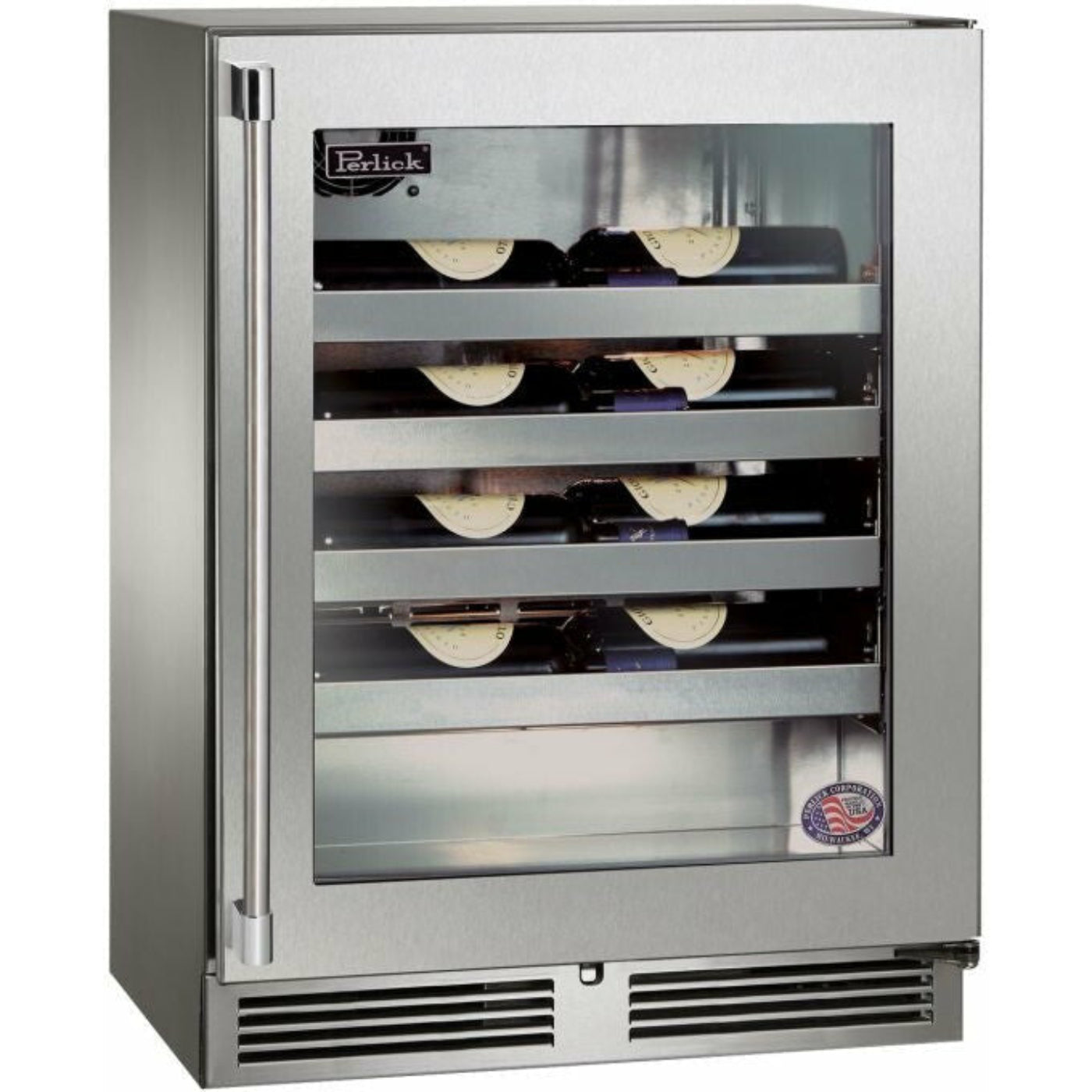

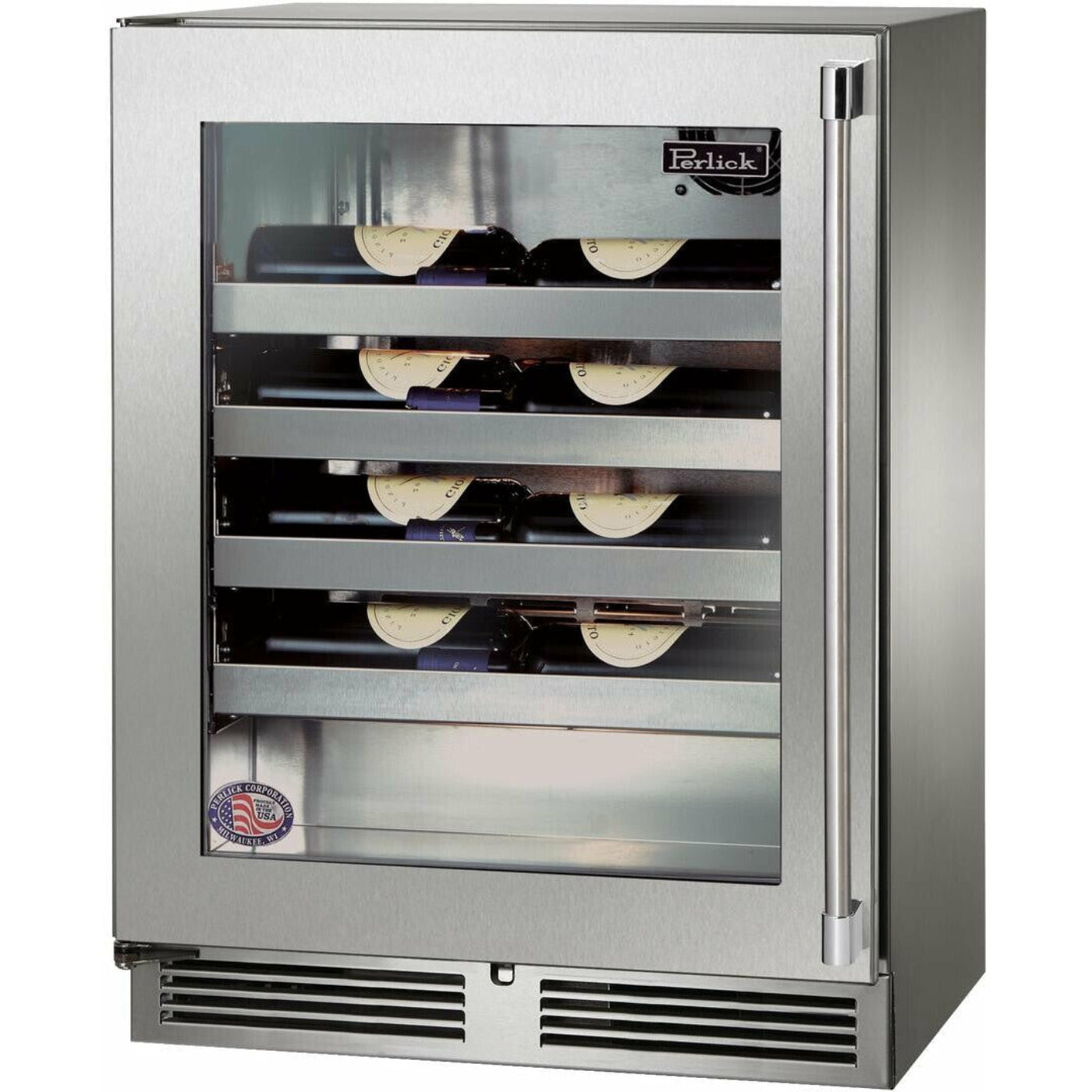

Perlick 24" Wine Reserve, Stainless Steel Glass Door, Sottile Sh.Depth (18") - HH24WS-4-3
24 Inch Undercounter Wine Reserve with 20 Wine Bottle Capacity
Wine Reserve is a popular choice for keeping your favorite vintages at the ideal temperature. The spacious interior has a storage capacity of 3.1 cu. ft. to store up to 20 bottles of wine, with room to store additional bottles underneath. It features LED lighting, 4-full-extension wine shelves, a digital thermostat, stainless steel interior, and stainless steel ball-bearing glides. It is UL Listed and equipped with a door alarm for added security. Has a unique, slim profile to provide greater design flexibility without sacrificing storage capacity.
Features
3.1 cu. ft Capacity
- Storage for up to 20 bottles of wine on the shelves plus extra storage on the floor of the unit.Â
Full-Extension Shelves
- Provides faster and safer product access with no reaching in the back of the cabinets; stainless steel wine shelves will not absorb odors over time.
 Stainless Steel Glides
- The stainless steel ball-bearing glides provide smooth movement of shelves.
 LED LightSelectable blue or white LED lighting.
 Door Alarm
- Audible door alarm warns the user if the door is held open.
 Stainless Steel Interior
- Commercial-grade all stainless steel interior provides superior durability and easy cleaning; black vinyl exterior for built-in applications.
Compressor
- Variable speed compressor minimizes sound; up to 30% quieter than competitors.
 1,000 BTU/hr Capacity
- Delivers industry's most energy-efficient cool down; indoors or outdoors.
 R600a Natural Refrigerant
- Offers maximum energy efficiency with zero global warming potential.
 Additional Features
 Specifications
| Commercial / Residential |
Residential |
| Indoor / Outdoor |
Indoor |
| Under-counter |
Yes |
| Interior Capacity |
3.1 cu. ft. |
| Bottle Capacity |
20 Wine Bottles |
| Thermostat |
Digital |
| Full Extension Pull-Out Shelving |
Yes |
| Lighting Type |
LED |
| Lighting Color |
White or Blue |
| Leveling Legs |
Yes |
| Number of Doors |
1 |
| Electrical Specifications |
|
| Electrical Specification |
Details |
| Frequency |
60 Hz |
| Voltage |
115V |
| Amperage |
2.3 A |
| Electrical Connection |
Cord Connected |
| Cord Plug Type |
NEMA 3-Prong 5-15P |
| Cord Length |
6' |
| Defrost Initiation |
Automatic |
| Defrost Type |
Off Cycle |
| Refrigerant Type |
R600a |
Dimensions and Weight
Door Swing Clearance: Â
24 15/16"
Shipping Weight: Â
185 lb.
What our Experts Think
-
Capacity: Holds up to 33 bottles (750ml standard wine bottles).
-
Depth: 18" Sottile shallow depth – ideal for smaller kitchens, condos, bars, or tight installations.
-
Temperature Range: 40°–65°F, precise digital control.
-
Cooling Zone: Single-zone – consistent storage temperature across all bottles.
-
Door Style: Stainless steel-framed glass door with UV-coated, low-E glass to protect wine from light exposure.
Q&A
Q: What is the Perlick HH24WS-4-3?
A: It’s a 24-inch shallow-depth wine reserve (only 18" deep) with a stainless steel glass door, perfect for space-conscious installations.
Q: How many bottles can it hold?
A: It stores up to 33 bottles while maintaining ideal serving temperatures.
Q: What makes it unique?
A: Its Sottile shallow depth design saves space without sacrificing storage capacity or performance.
Q: How does it protect wine quality?
A: Features include UV-coated glass, temperature alarm, and full-extension shelves for easy access.
Q: Where can it be used?
A: Designed for built-in or freestanding installation, it’s ideal for kitchens, bars, or entertainment spaces with limited depth.
Maintenance Tips
-
Glass Door Cleaning: Use a non-abrasive glass cleaner and soft cloth. Avoid ammonia-based products to protect the finish and gasket.
-
Stainless Steel Care: Wipe with a microfiber cloth and stainless steel cleaner or mild soap. Always clean along the grain and avoid scouring pads.
-
Interior Cleaning: Remove wine racks and wash with mild soap and warm water. Clean interior walls with a soft damp cloth, then dry completely.
-
Ventilation: Keep the front ventilation grille unobstructed for efficient cooling, especially since this model has a shallow depth design.
-
Wine Rack Maintenance: Check racks regularly for smooth sliding. If needed, lightly lubricate tracks with a food-safe silicone spray.
-
Door Seal: Inspect the gasket for dirt or wear. Clean with warm water and replace if it becomes cracked or loose to ensure a proper seal.
-
Alarm Function: If equipped with temperature or door alarms, test them periodically to confirm proper operation.
-
Operating Environment: Avoid direct sunlight and excessive heat sources. Ensure room ventilation for consistent performance.
-
Power and Safety: Always disconnect from power before cleaning or performing maintenance. Allow time to cool before handling interior surfaces.
