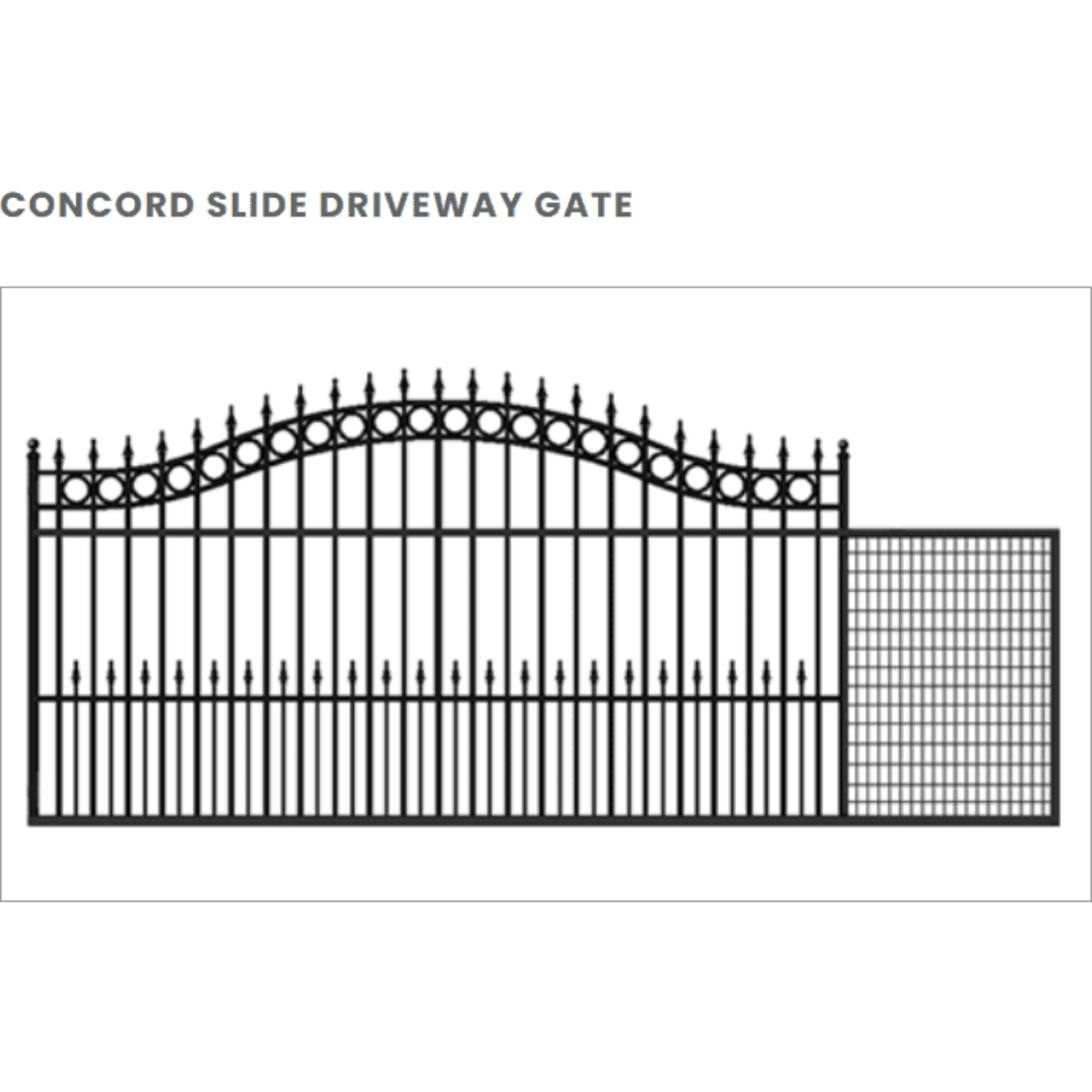

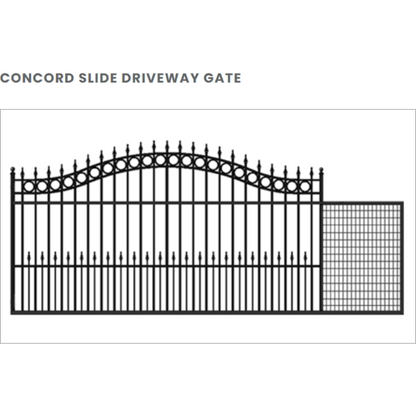

Amazing Gates Concord Slide Driveway Gate - 11-SG-CONCORD-HDG
This product can be customized to fit your specific size needs, so please allow for additional manufacturing time. A sliding gate installation kit, including our slider guide, is necessary for the complete system. The listed price is for a 12' gate only. To complete the installation, a hardware package (sold separately) is also available and includes a guide rail, V wheels, and chain brackets.
Posts and Hinges must be purchased separately.
Features
Materials
- The Concord Sliding Gate is constructed of 16 gauge steel for maximum durability, powder coated with a heavy duty baked on TIGER Drylac Jet Black finish for a wrought iron look.
- Maximum in strength and corrosion protection available.
Colors
- Jet Black is our standard color.
Single or Bi-Parting Gates
- A single slide gate may be used for gap openings up to 18 ft wide. Gates longer than 18 feet must be bi-parting (requires two slider guides and two openers). For single leaf sliding gates, a Catch Post is recommended to add stability.
Slide Gate Features:
Heavy Duty Rollers: The Amazing Slider Guide
-
The heavy-duty roller fits between the gate and the guideposts.
V-Track
-
The galvanized 'V' Track can either be anchor-bolted to an existing driveway or set in concrete while pouring a new grade beam. The gate rolls open and closed on this track so it must be twice as long as the gap opening the gate is securing.
Frame Extension
-
The Slider Frame Extension is what allows the Slider Guide to hold the gate upright in the closed position. Non-reach-through wire mesh is attached to the back frame at the factory and cannot be removed. A second wire mesh designed to be attached to main gate is supplied with every gate for attachment on site by the installer. Alternative Style : the gate design can be continued into this area.
Chain attach brackets
-
Most slide gate openers are chain driven. Our system uses a bolt-on chain attach bracket which can be vertically adjusted to align with the chain from the opener. This facilitates the installation.
Heavy Duty Chain
-
The heavy duty chain attaches to the adjustable chain attach bracket at each end of the gate and passes through the drive sprocket of the Gate Opener.
Catch Post
-
For single leaf sliding gates, a Catch Post is recommended to add stability.
Built-in Gate Opener Platform
-
The Amazing Slider Guide also features a mounting platform at the bottom for attaching the gate opener. This eliminates the need to pour a concrete pad for the opener, saving you time and money. The Amazing Slider Guide roller placement and gate opener platform placement are both adjustable vertically for use with various gate heights and for a trouble free installation.
Photo Eyes
-
Photo eyes or safety loops are required to ensure safety of pedestrians and/or vehicles.
Slide Gates
Our sliding gate system features the unique Amazing Slider Guide that allows you to hang gates that are not only functional, but also beautiful. The sliding gate styles shown below are rolling gate style with Ground Track.
All rolling sliding gates are finished with a baked-on powder coat.
The ground track automatic driveway sliding gates set the industry standard and are designed to roll on 'V' Track angle iron welded to a steel strap with mounting holes, which is then bolted to the driveway. The gate has 'V' Wheels that roll along the track as the gate opens and closes.
The gate is held upright with either 2 or 4 roller guideposts (2 for gates under 18' wide and 4 posts for longer gates). The posts are set in concrete on either side of the gate and pinch the gate top rail between rollers, which are fastened to the posts.
Sliding Gate System Requires
Ground Track Sliding Gate System Requires:
-
Modified Swing Driveway Gate with Back Frame
-
Slider Guide
-
“V” Track
-
“V” Wheels
-
Guide Rollers
-
Catch Post
Sliding Gate System Features
Ground Track Sliding Gate Features:
-
Works with right or left hand installations
-
Works with all of our sliding gate operators
-
No concrete pad needed for operator
-
Long lasting galvanized steel
-
Powder coat finish
Installation
Slide Driveway Gate System Installation
What Our Experts Think
-
Elegant Concord design adds a premium look to residential and commercial properties.
-
Heavy-duty steel construction ensures long-lasting durability and security.
-
Customizable sizing available to perfectly fit your driveway requirements.
-
Designed for compatibility with automatic gate openers for convenience.
-
Powder-coated finish enhances weather resistance and reduces maintenance.
Q&A
Q: Can this gate be customized to my driveway size?
A: Yes, it can be manufactured to your required dimensions.
Q: What material is the gate made of?
A: Heavy-duty steel with a protective powder-coated finish.
Q: Is it compatible with automatic openers?
A: Yes, it’s designed to work with most standard slide gate operators.
Q: Does it require special maintenance?
A: Minimal, thanks to its durable powder-coated finish.
Maintenance Tips
-
Clean the gate with mild soap and water to maintain its finish.
-
Inspect hinges, rollers, and tracks regularly for smooth operation.
-
Lubricate moving parts periodically to reduce wear.
-
Touch up any scratches promptly to prevent rust.
-
Ensure tracks are free of debris for reliable sliding.
