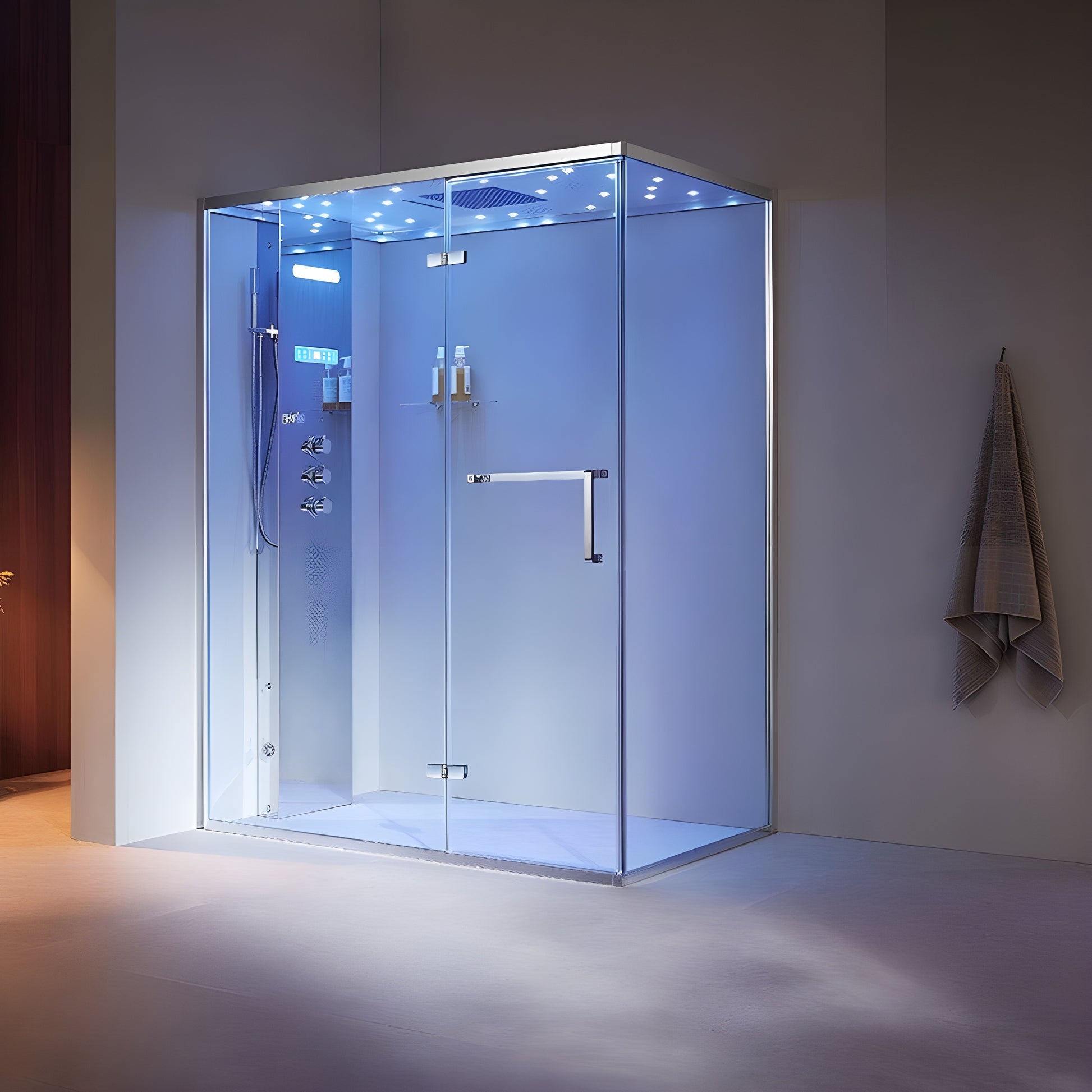

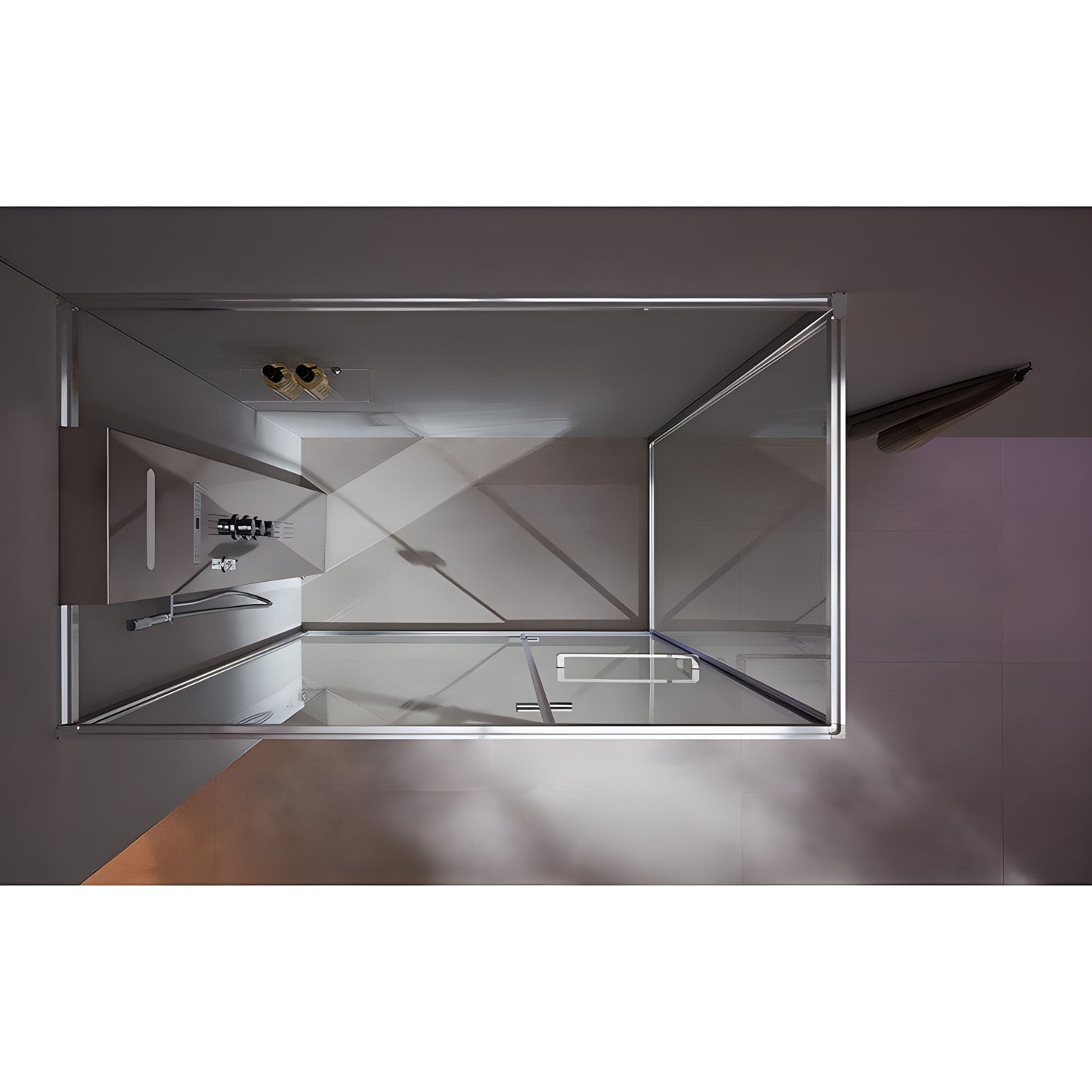

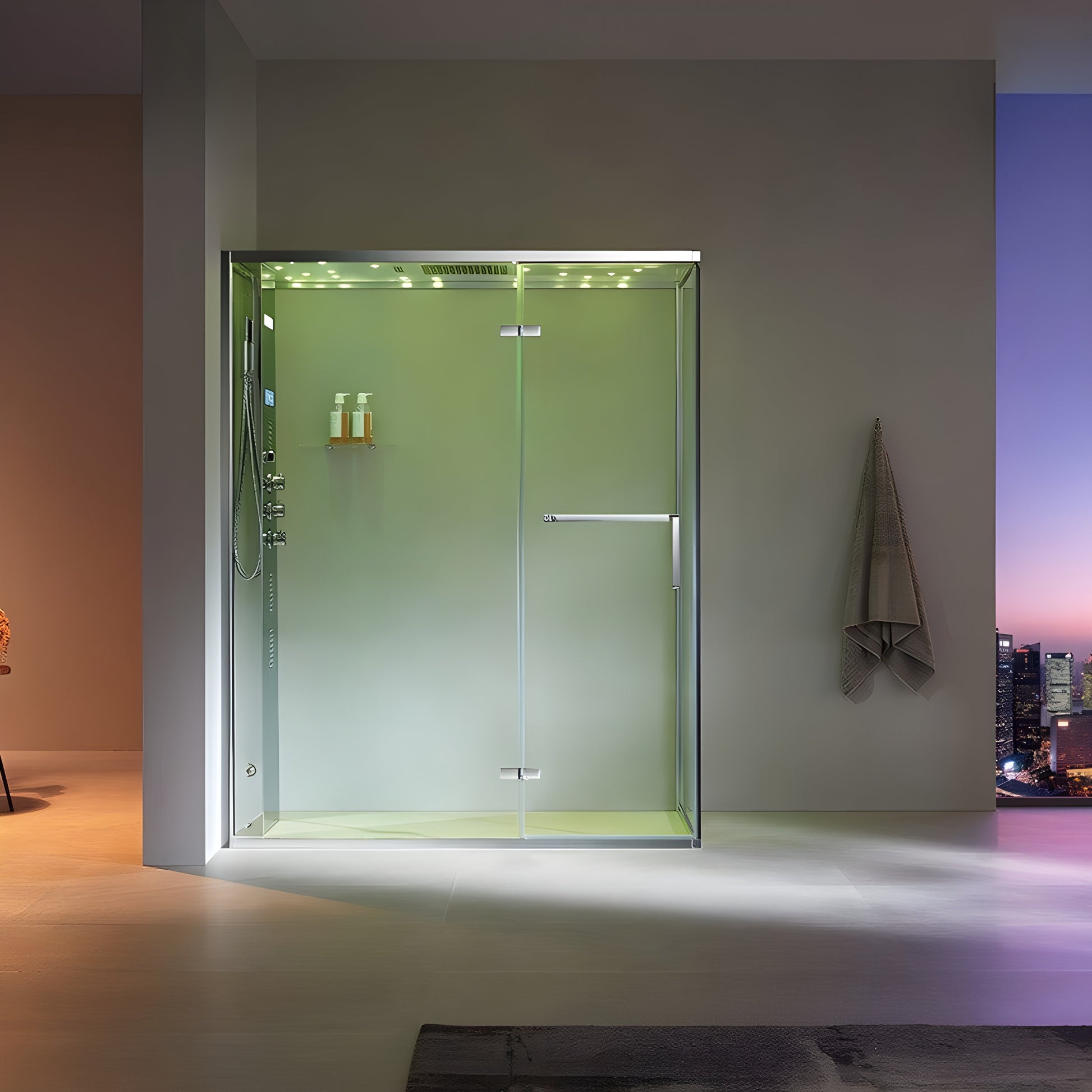

Sauna Hammam HAMMAM ARCHIPEL STEAM CONCEPT 160G SHOWER CABIN (160X90CM)

Sauna Hammam HAMMAM ARCHIPEL STEAM CONCEPT 160G SHOWER CABIN (160X90CM)

If you haven’t yet heard of hammam, you are bound to soon. This treatment makes itself known around the world for being a relaxing and cleansing Moroccan ritual that is centuries old.

Hammam differs slightly from the traditional thermal spa. While both are profoundly relaxing and good for the skin, rather than using thermal waters, hammam treatments use hot steam to encourage a deep and invigorating cleanse.

Hammam treatments also use vitamin-E rich, olive-based soap known for its skin-nourishing and exfoliating properties. Additionally, some treatments may include rhassoul clay, an antibacterial mineral that effectively and safely removes toxins and impurities from the body, reduces sebum and tightens pores.

Features

• Total dimensions: 1600*900*2180mm

• Column dimensions: 1991*360*100 mm

• Product weight: 130kg

• Extra flat chromed stainless steel column with 4500W steam generator

• Non-integral cabin: 2 walls provided

• digital control

• Built-in thermostatic mixer

• 4-way selector:

• hydromassage jets,

• chrome-plated brass hand shower,

• stainless steel waterfall

• tropical shower

• Hammam function with time and temperature control

• Chromotherapy: 4 colors to choose from: white, red, green and blue.

• Integrated ozonator

• Automatic control panel lock

• Loudspeaker with FM radio + integrated bluetooth function

• Easy wall mounting

• Power: 4500W - 220V - 25A

Additional Information

PREPARATIONS AND CONNECTIONS

Floor :

• Cabin without shower tray : Archipel shower cubicles are delivered without shower tray. Provide a tiled floor with slope and built-in drainage.

• Evacuation  : Plan an evacuation under the ground, with an embedding depth of 100 mm.

Electrical connection :

• Generator power: 4500 W

• Single-phase connection 220-230V power supply protected by a 25A circuit breaker with 30mA differential.

• Equipotential ground

• In any case, you must go through a professional electrician to ensure the electrical connections of your shower cubicle in complete safety, taking into account the specificities of your home and the standards in force.

Hydraulic connections:

• A hot water supply in 15/21 male (flexible in 15/21 female supplied).

• A cold water supply in 15/21 male (flexible in 15/21 female supplied).

PACKING

• Package 1: Glass and roof 2130*1310*220 mm: 85 kg (85 kg net)

• Package 2: Steam column 2030*410*210 mm: 42 kg (40 kg net)

Product Manual

Installation instructions

Technical sheet

What Our Experts Think

• Integrated steam generator for authentic hammam sessions

• Ergonomic design ensures comfort during long sessions

• Tempered glass panels provide durability and a sleek aesthetic

• Hydro massage jets for full-body relaxation

• Ambient LED lighting for a soothing atmosphere

• User-friendly digital control panel for easy operation

Q&A

Q: Is installation complicated?
A: The 160G is designed for professional installation, ensuring proper steam sealing and safe operation.

Q: How many people can use it at once?
A: The cabin comfortably accommodates 2 users, depending on your preference.

Q: Does it include hydrotherapy functions?
A: Yes, it comes with integrated hydro massage jets in addition to steam functions.

Maintenance Tips

• Wipe down glass after each use to avoid limescale buildup

• Clean steam outlet regularly for optimal performance

• Use only recommended descaling solutions

• Keep the cabin well-ventilated after use to maintain freshness
