P-W Series Spring Driven "Welding" Low Pressure Hose Reels

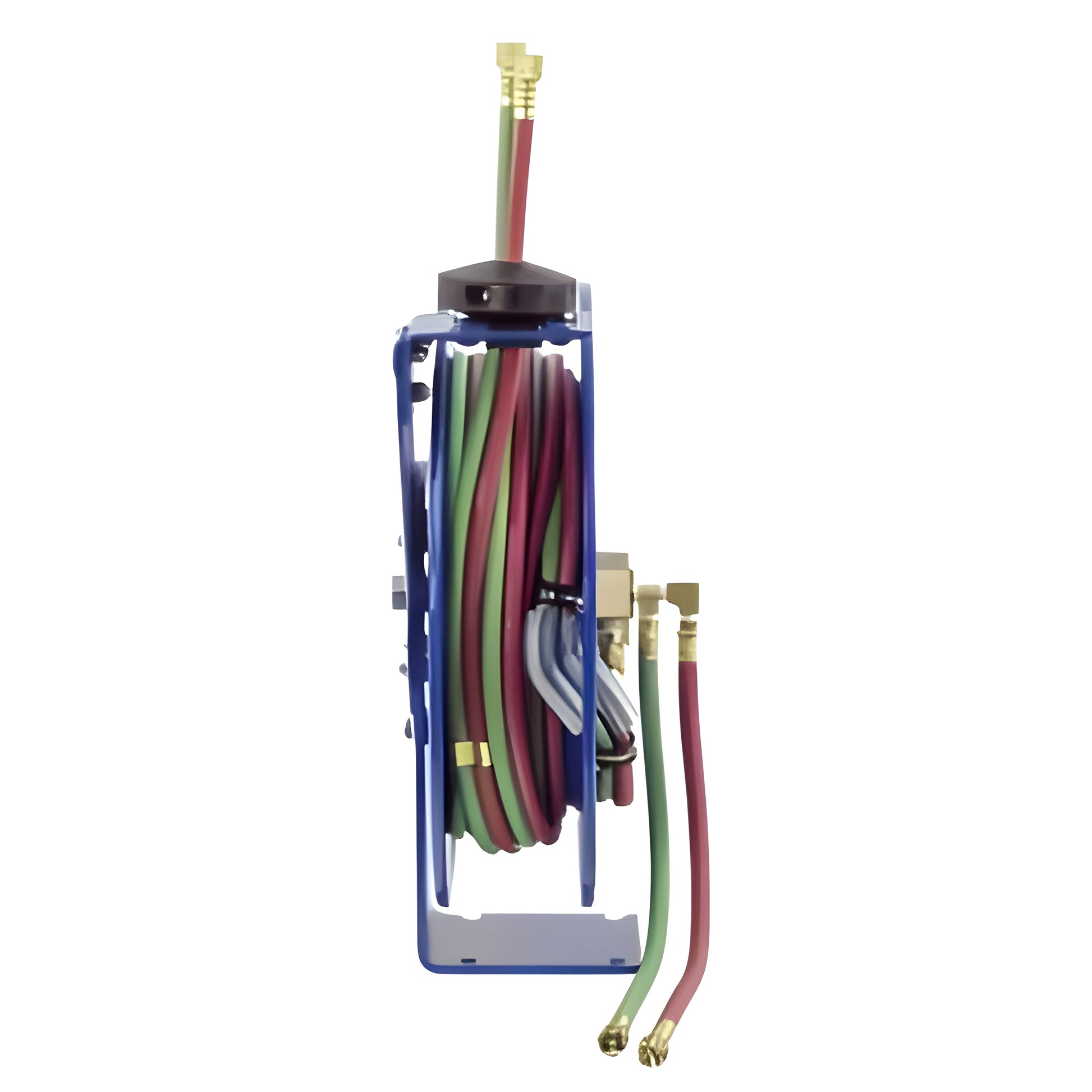

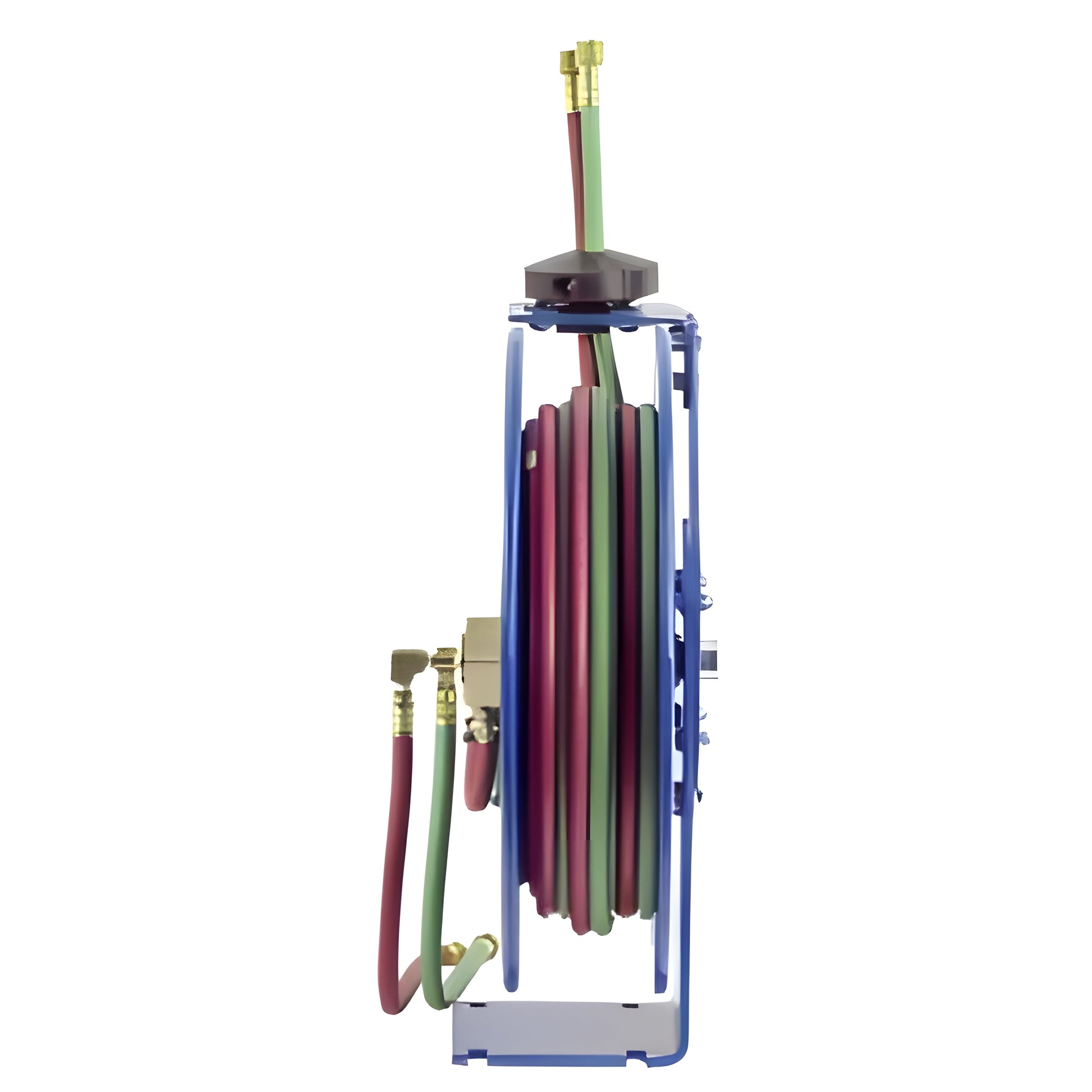

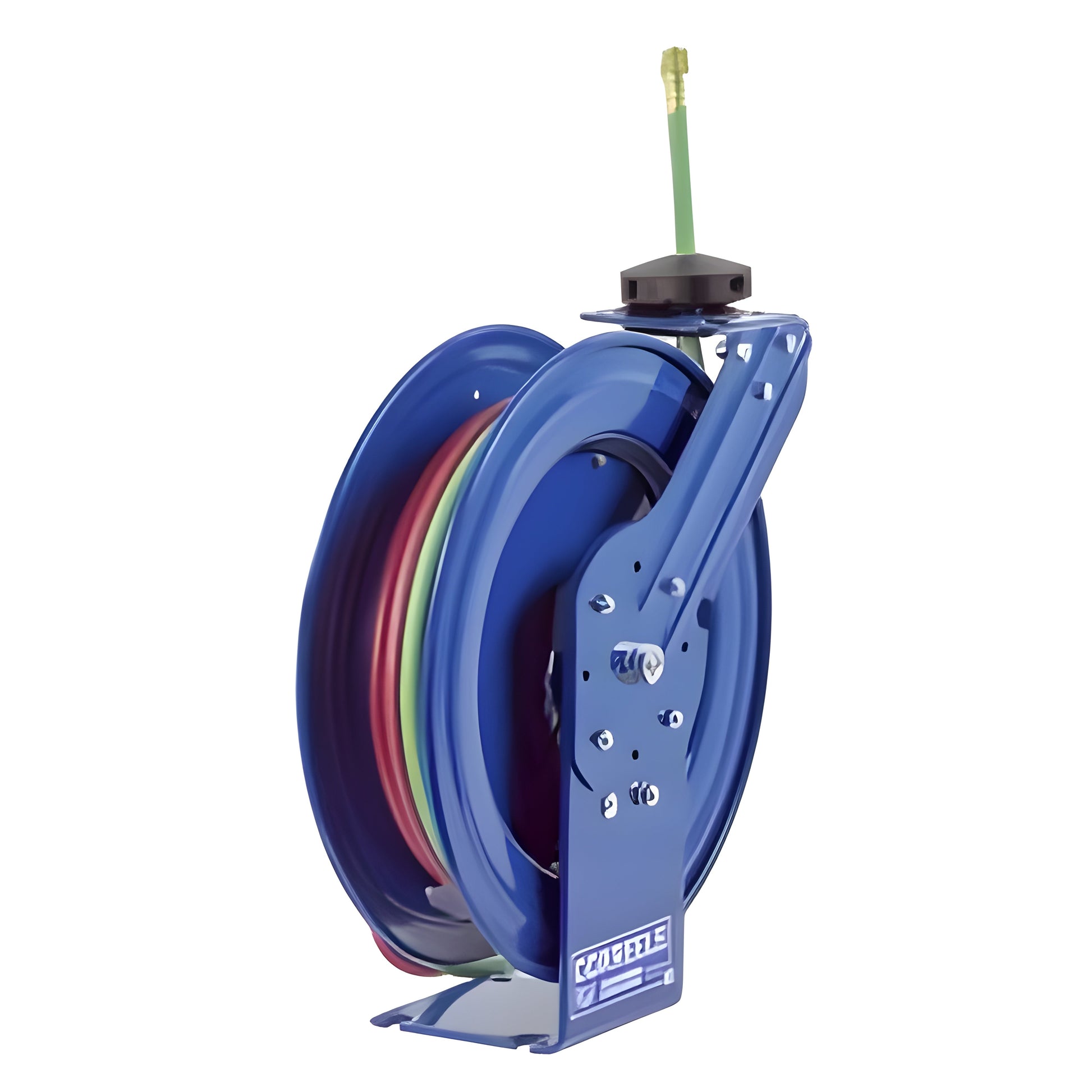

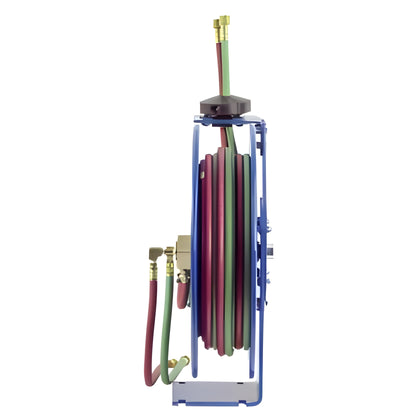

COXREELS P-W Series spring driven "Welding" hose reels are the ideal solution for managing bulky twin line welding hose. The P-W Series, like the P Series, is more compact in size and shares the reputation for long lasting performance.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- WELDING GAS SWIVEL - External 90◦ full-flow dual ported brass swivel with VITON seals offering both connections from the same side of the reel. No need to remove the reel from its mount.
- EZ-COIL EQUIPPED - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Coxreels patented safety system that retracts up to 80% slower than conventional reels.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, oxy-acetylene or "T" Grade welding hose, and sturdy permanently lubricated precision bearings.
Specifications
| MODEL |
I.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
CAD DOWNLOADS |
| EZ-P-W-125 |
1/4" |
25' |
Yes |
200 |
46 |
8.5"(W) 18.63"(H) 17"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
CAD File |
| EZ-P-WL-125 |
1/4" |
25' |
No |
200 |
39 |
8.5"(W) 18.63"(H) 17"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
Request CAD File |
| EZ-P-WT-125 |
1/4" |
25' |
Yes |
200 |
46 |
8.5"(W) 18.63"(H) 17"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
CAD File |
| EZ-P-WTL-125 |
1/4" |
25' |
No |
200 |
39 |
8.5"(W) 18.63"(H) 17"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
Request CAD File |
What Our Experts Think
-
Welding-Specific Design: Tailored for welding applications, designed to handle low-pressure hoses for gas or oxygen delivery.
-
Spring-Driven Retraction: Provides smooth and automatic hose retraction for hassle-free storage and quick access.
-
Low-Pressure Capability: Perfect for tasks requiring up to 1,250 PSI, ideal for welding, cutting, and other low-pressure operations.
-
Heavy-Duty Construction: Built with durable materials to endure tough industrial environments and frequent use.
-
Corrosion-Resistant Finish: Coated to resist rust and wear, ensuring longevity and reliable performance.
-
Space-Efficient Design: Compact and easy to store, keeping hoses organized and tangle-free in limited spaces.
-
Versatile Applications: Ideal for welding, automotive, and manufacturing environments where low-pressure hose management is needed.
Q&A
Q: What is the Coxreels P-W Series Spring Driven "Welding" Low Pressure Hose Reel - EZ-P-W-125?
A: The Coxreels EZ-P-W-125 is a spring-driven hose reel designed specifically for welding applications, providing efficient storage and retraction of low-pressure welding hoses.
Q: What is the hose capacity of this reel?
A: The EZ-P-W-125 can accommodate up to 125 feet of low-pressure welding hose, making it ideal for managing hoses used in welding and other related tasks.
Q: How does the spring-driven mechanism work?
A: The spring-driven design automatically retracts the hose after use, providing smooth, tangle-free storage and making it easier to keep your workspace organized.
Q: Is the reel durable?
A: Yes, the P-W Series is built from heavy-duty steel with a corrosion-resistant finish, ensuring long-lasting performance even in demanding welding environments.
Q: Is this reel easy to install?
A: Yes, the EZ-P-W-125 offers flexible mounting options, including wall, floor, or ceiling installation, allowing for versatile placement in welding and industrial environments.
Q: What are typical applications for this reel?
A: This reel is ideal for storing welding hoses, ensuring easy access and smooth retraction during welding tasks in workshops, factories, and construction sites.
Maintenance Tips
-
Regular Cleaning: Wipe down the reel and hose with a damp cloth to remove dirt, dust, and debris. Avoid using harsh cleaners that may damage the reel's surface.
-
Lubricate Moving Parts: Apply a silicone-based lubricant to the reel’s spring and moving components to ensure smooth operation and prevent wear.
-
Inspect Hose and Fittings: Check the hose for any signs of wear, cracks, or leaks. Replace any damaged hose sections to maintain performance. Ensure all fittings are secure and leak-free.
-
Check Pressure and Flow: Ensure that the operating pressure does not exceed the recommended limits to avoid damage to the reel and hose.
-
Adjust Spring Tension: If the hose retraction becomes slow or uneven, adjust the spring tension to ensure smooth retraction and operation.
-
Tighten Fasteners: Periodically check and tighten all bolts, screws, and mounting hardware to ensure the reel is securely fastened.
-
Proper Storage: Store the reel in a dry, cool location when not in use to avoid exposure to harsh weather conditions that can cause corrosion or damage.
