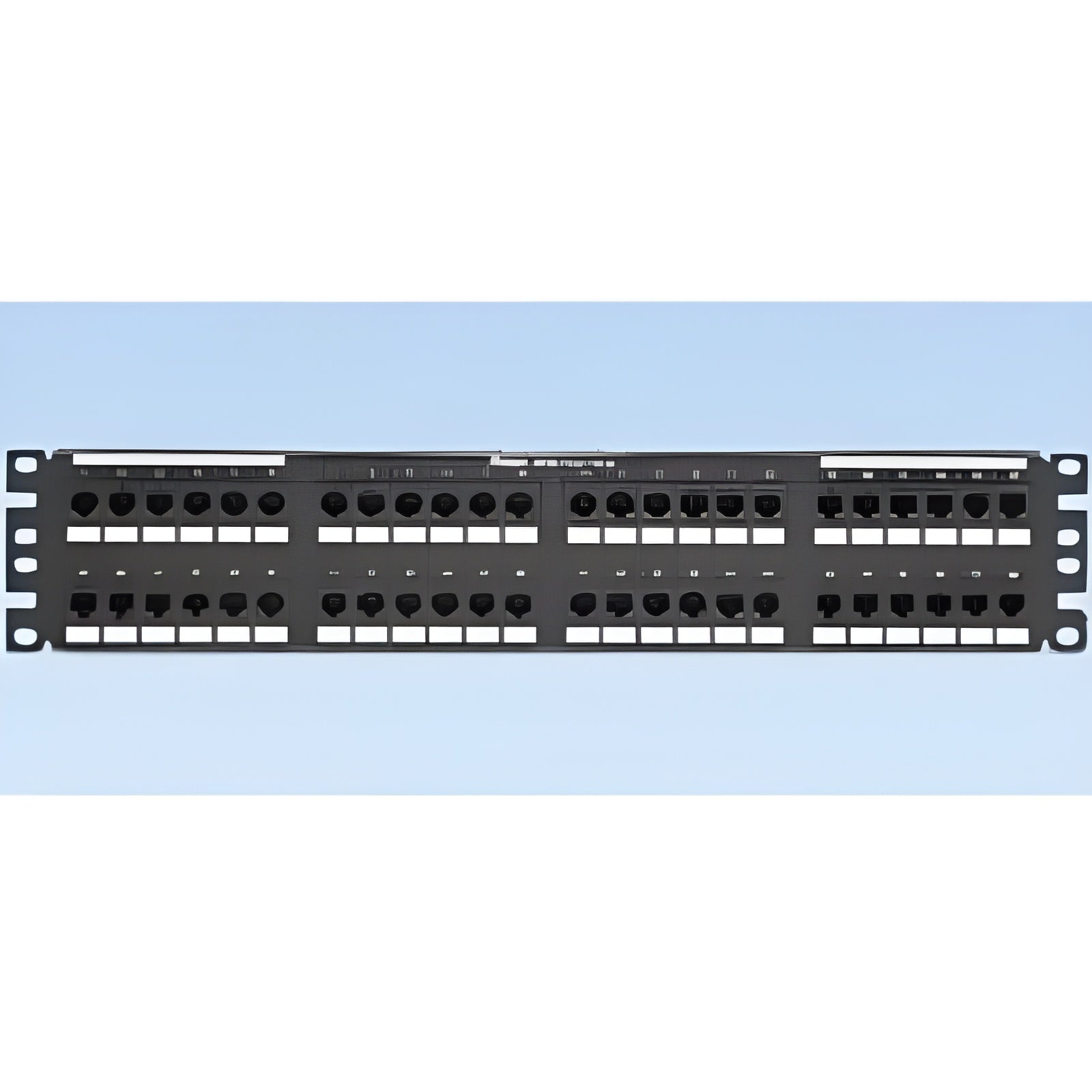

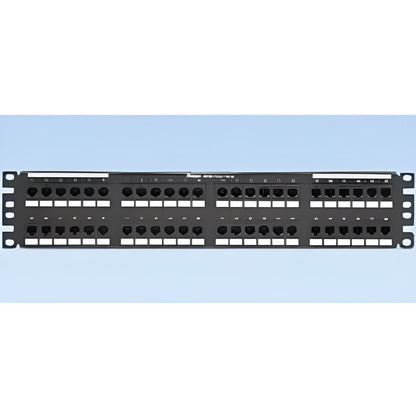

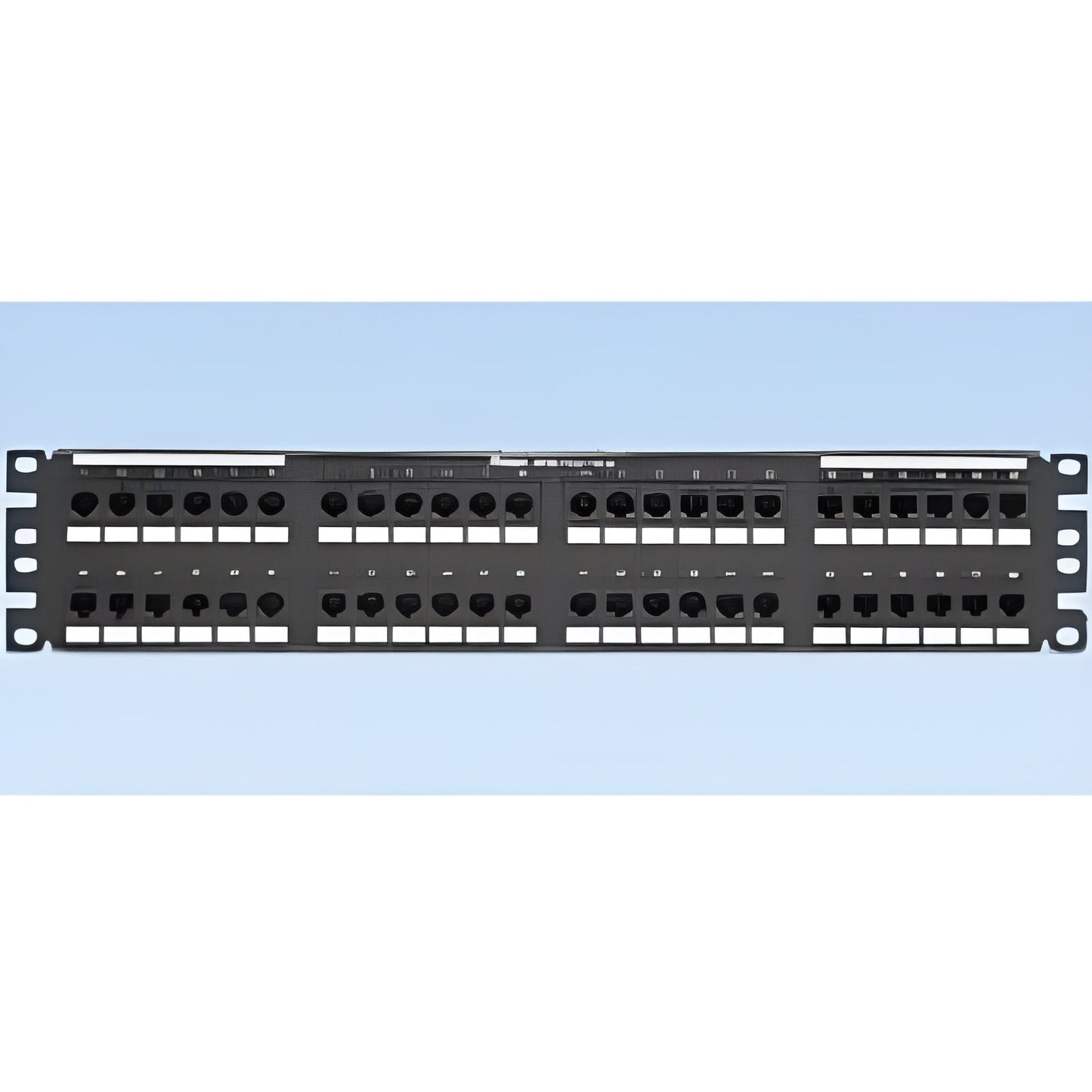

Panduit Punchdown Patch Panel, Cat 5e, Flat, 48 - DP485E88TGY
The Panduit DP485E88TGY is a high-density Cat5e punchdown patch panel designed to provide a centralized and organized solution for connecting network devices in your server room, data center, or office network. This 2-rack unit (RU) panel features 48 punchdown terminations, offering a cost-effective and flexible option for managing your network cabling infrastructure.
Features
-
High Performance: Cat 5e compatibility ensures reliable data transmission for your network.
-
Space-Saving Design: Occupies only 2 rack spaces, maximizing space efficiency.
-
Easy Installation: Utilizes 110 punch-down termination for quick and hassle-free installation.
-
Durable Construction: Built to last with high-quality materials, ensuring long-term reliability.
-
Versatile Connectivity: Provides 48 ports for connecting a wide range of network devices.
Specification
| Manufacturer: |
Panduit |
| Category: |
CAT5e |
| Number of Ports: |
48 |
| Number of Rack Spaces: |
2 |
| Termination: |
110 punch down |
Product Manual
Product Manual - DP485E88TGY
What Our Experts Think
The Panduit Punchdown Patch Panel, Cat 5e, Flat, 48-Port (DP485E88TGY) is a reliable and space-efficient solution for managing Cat 5e network connections. Here’s why it’s highly recommended:
-
Cat 5e Performance: Supports up to 1000Mbps Ethernet speeds, making it a great option for everyday networking applications and office environments.
-
48-Port Capacity: Perfect for high-density installations, allowing you to manage up to 48 connections in a single, organized panel.
-
Flat Design: The flat design reduces cable clutter, allowing for better cable management and more efficient use of rack space.
-
Punchdown Termination: Features easy-to-use punchdown blocks, ensuring quick, secure terminations that save time during installation.
-
Durable Build: Constructed with high-quality materials, ensuring long-term durability and reliable performance for commercial and residential use.
-
Labeling for Easy Identification: Comes with clear labeling areas to help you organize and identify cables for easy maintenance and troubleshooting.
-
TIA/EIA-568-B Compliant: Meets industry standards for networking equipment, ensuring compatibility with various network systems.
Q&A
Q: What is the Panduit Punchdown Patch Panel, Cat 5e, Flat, 48?
A: The Panduit Punchdown Patch Panel, Cat 5e, Flat, 48 (DP485E88TGY) is a 48-port patch panel designed for easy and secure termination of Cat 5e Ethernet cables. Its flat design ensures space-saving, organized cable management in networking setups.
Q: How many ports does this patch panel provide?
A: This patch panel offers 48 ports, making it ideal for large-scale networking installations in offices, data centers, and other high-density environments.
Q: What type of cables are compatible with this patch panel?
A: This panel supports Cat 5e cables, which are commonly used for Fast Ethernet (100Mbps) and Gigabit Ethernet (1Gbps) applications.
Q: What are the benefits of the flat design?
A: The flat design allows for efficient use of space in server racks, minimizing the overall footprint and helping to streamline cable management and installation.
Q: How does the punchdown feature work?
A: The patch panel uses a punchdown termination method where Ethernet cables are inserted into the ports and then securely punched down using a punchdown tool, ensuring reliable connections.
Q: Is this patch panel suitable for high-performance networks?
A: Yes, the Panduit Punchdown Patch Panel, Cat 5e, supports Gigabit Ethernet and is well-suited for networking environments requiring reliable, low-cost data transmission.
Q: Is installation straightforward?
A: Yes, the panel is designed for easy installation with clear port labeling and a straightforward punchdown process for efficient setup and organization.
Q: Where is this patch panel commonly used?
A: The Panduit Punchdown Patch Panel is commonly used in offices, data centers, server rooms, and other environments requiring structured Ethernet networking solutions.
Maintenance Tips
-
Inspect Punchdown Connections
Regularly check all punchdown connections to ensure they are secure and free of loose or unseated wires that may affect performance.
-
Keep Panel Clean
Use a dry microfiber cloth to clean the panel and remove dust, dirt, and debris. Avoid using liquids, which could damage the panel or electrical contacts.
-
Examine Cables for Wear
Periodically inspect the cables connected to the patch panel for any signs of damage, such as cuts, frays, or bends. Replace any cables that show wear to avoid connection issues.
-
Avoid Over-Tightening
Be careful not to over-tighten wires during the punchdown process. This can damage the cables or the patch panel, compromising the connection.
-
Properly Label Ports
Ensure that all ports are clearly labeled for easy identification during troubleshooting, upgrades, or routine maintenance.
-
Monitor Environmental Conditions
Install and store the patch panel in a cool, dry location with adequate ventilation to avoid overheating, which could impact its performance.
-
Ensure Proper Grounding
Verify that the patch panel is properly grounded to reduce the risk of electrical interference and ensure consistent network performance.
