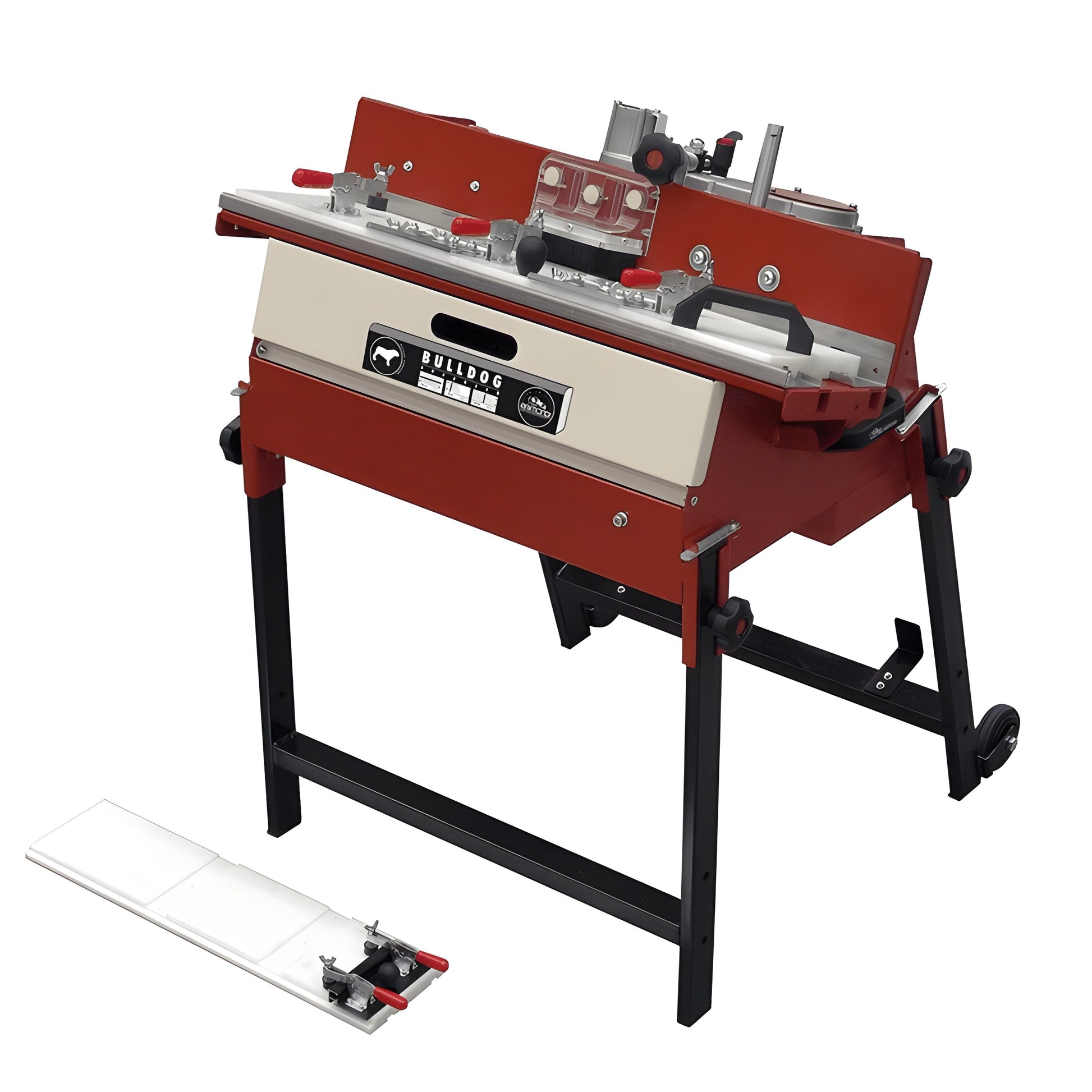

Raimondi Bulldog Advanced Bullnose Machine - BD1WD
The Raimondi Bulldog Advanced Bullnose Machine is your ultimate solution for achieving precise and professional profiles on various materials, including porcelain, ceramic, stone, marble, and granite. With the capability to create perfect half/full bullnose, 45° bevel (Jolly), or finished flat edges, this advanced machine is ideal for both residential and commercial use. Its powerful single motor offers three levels of finishing—milling, rough finishes, and polishing—ensuring high-quality results every time. The 31-1/2" maximum profiling length and the ability to work with materials up to 1-3/16" thick make this machine versatile and efficient for all your profiling needs.
Equipped with a heavy-duty water pump to cool the profile wheels and telescopic legs with a wheel kit for easy transportation and setup, the Raimondi Bulldog is designed for user convenience and durability. The machine features a 20 mm arbor, an adjustable wheel distance, and a clamping mechanism with an adjustable pressure wheel to prevent material shifting. A magnetic splash guard ensures that water and debris stay away from the operator. Included in the package are a 31" sliding table, a tool kit, a dressing stone, and an operator’s manual. Please note that all bullnose wheels are sold separately.
Features
-
Profile or bevel edges of porcelain, ceramic, stone, marble, granite and more
-
Powerful single motor application provides 3 levels of finishing
-
31" maximum profiling length
-
Can work on materials up to 1-3/16" thick
-
Heavy duty water pump will cool down profile wheels
-
Telescopic legs equipped with a wheel kit for easy transportation and set up
-
Machine has 20 mm arbor and wheel distance is adjustable
-
Clamping mechanism and adjustable pressure wheel will not allow material to shift
-
Magnetic splash guard keeps water and debris away from the operator
-
Includes 31" sliding table, tool kit, dressing stone and operator's manual
-
All bullnose wheels are sold separately
Specification
| Raimondi Bulldog Specifications |
| Power |
1-1/2 hp |
| Voltage |
110 V |
| Max Profiling Length |
31-1/2" (80 cm) |
| Max Profiling Depth |
1-3/16" (3 cm) |
| Min Tile Width |
1-1/2" (4 cm) |
| Max Tile Width |
23-5/8" (60 cm) |
| RPM (Motor/Wheel) |
3360/5370 |
| Arbor |
20 mm |
| Weight |
165 lb |
What Our Experts Think
-
Efficient Bullnosing: Single-head design ensures precise and smooth bullnose profiles on tiles and stones.
-
Versatile Compatibility: Suitable for various materials like porcelain, marble, granite, and ceramic tiles.
-
Adjustable Precision: Allows customization of edge profiles to meet diverse project requirements.
-
Durable Performance: Built with high-quality materials to handle demanding professional use.
-
Compact & Portable: Lightweight and easy to transport, making it ideal for on-site applications.
-
User-Friendly Operation: Simple controls ensure consistent results, even for complex edge finishes.
Q&A
Q: What is the Raimondi Bulldog BD1WD Bullnose Machine used for?
A: It’s a professional-grade machine designed for shaping, grinding, and polishing bullnose edges on ceramic, porcelain, and stone tiles, providing a precise and smooth finish.
Q: What are its key features?
A: The BD1WD features a single adjustable head for customizable edge profiles, variable speed control, a water-cooling system to prevent overheating, and a durable build for consistent performance.
Q: What tile sizes can it handle?
A: It supports tiles up to 1-1/4" thick and various lengths, offering versatility for different project requirements.
Q: Is it easy to use?
A: Yes, the machine is designed with user-friendly controls, ergonomic handling, and adjustable settings to achieve desired edge finishes efficiently.
Q: How does it enhance productivity?
A: By automating the bullnose shaping process, it reduces manual labor and ensures uniform results across multiple tiles, saving time and effort.
Q: Is it suitable for heavy-duty applications?
A: Absolutely. The robust construction and high-performance motor make it ideal for both residential and commercial projects.
Maintenance Tips
-
Daily Cleaning: Clean the machine, cutting head, and water nozzles after each use to remove debris and residue.
-
Blade Care: Inspect the diamond blade regularly for wear or damage and replace it as needed for optimal cutting performance.
-
Water System Maintenance: Check and clean water filters, hoses, and the pump to ensure a steady and efficient water flow.
-
Lubrication: Lubricate moving parts and guide rails as per the manufacturer’s instructions to ensure smooth operation.
-
Alignment Check: Verify that the cutting head is properly aligned for accurate and consistent bullnose profiles.
-
Electrical Safety: Inspect the power cord and connections before each use for damage or wear to avoid electrical hazards.
-
Storage: Store the machine in a clean, dry area to protect it from moisture, dust, and temperature extremes.
-
Routine Inspection: Tighten screws, bolts, and fittings periodically to maintain machine stability and prevent operational issues.
