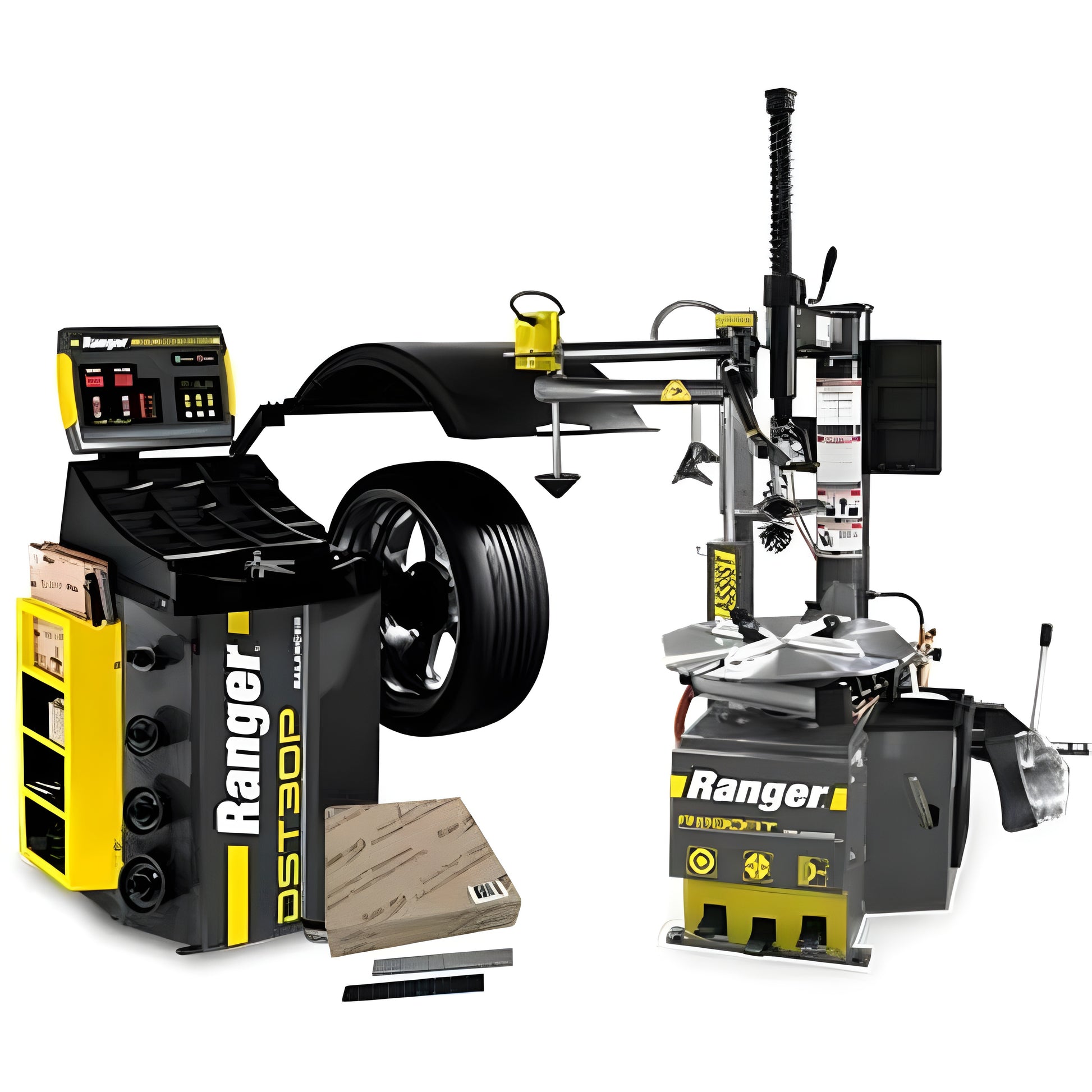

Ranger R980AT Tire Changer + DST30P Wheel Balancer + Tape Wheel Weights / Combo Black and Silver 1400pcs - 5140127

R980AT (5140147) QTY 1

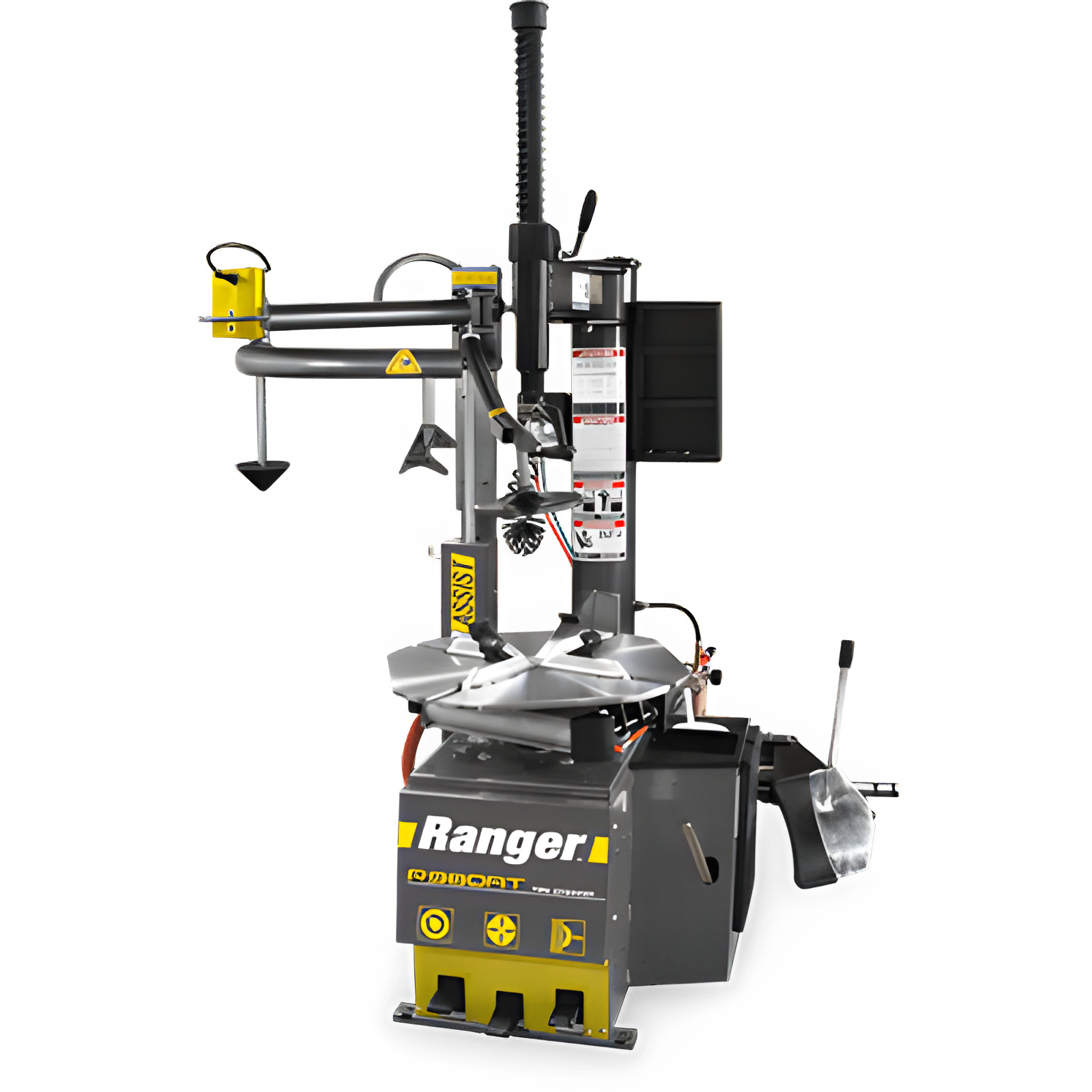

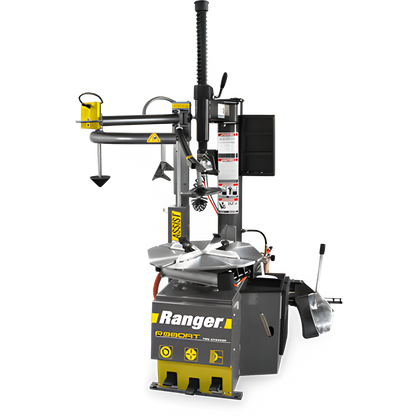

Tire Changer / Swing Arm / Single-Tower Assist / 30" Capacity

The R980AT saves an impressive amount of space, making it ideal for small or cramped tire shops. Because it utilizes a swing-arm design and doesn't tilt back, it can be installed flush against a wall. An assist tower will help with stiffer sidewalls, run-flats and other low-profile tires. 30" clamping ability.

DST30P (5140154) QTY 1

Wheel Balancer / 36 mm Shaft / Six-Second Balancing Times

Stop chasing weight! The DST30P Wheel Balancer features incredibly fast floor-to-floor times and calibrates the minimal weight adjustment for a perfect balance—in just six seconds flat.

Tape Wheel Weights / Combo (5150230) QTY 1

Adhesive Steel Wheel Weights / Combo / ROLLS (1400 pcs. - 0.25 oz. - 1/2" Wide - 22 lbs.)

This combo Quick-Peel™ adhesive steel wheel weights are an effective and environmentally friendly way to quickly balance wheels using as little weight as possible.

Features

• Air Requirement 140 - 165 psi (10-11 BAR)
• Wheel Clamping Method
• 4 Clamps - Internal / External
• Table Clamping System
• Dual Pneumatic Cylinders
• Bead Breaking System
• Pneumatic Blade / Dual Settings
• Power Assist Towers
• Single Assist Tower
• Tool Holder
• Manual Lock
• Inflation Gauge With Integrated Air Dump Valve
• Inflation Pressure Regulator/Limiter
• Water Filter
• Oiler / Lubricator
• Air Regulator
• Breaker Bar
• Large Soap / Lubricator Bucket
• Brush
• Tower Design
• Rigid Fixed / Swing Arm
• Bead Lifting Roller(s)
• Single Lifting Roller
• Alloy-Steel Mount/Demount Head
• Plastic-Polymer Mount/Demount Head
• Upper Bead Assist Roller
• Traveling Drop-Center Hold Down Device
• Inflation Restraint Device
• Bead Seating System
• Turbo Blast / Bead Seating
• Tool Tray / Bin Storage

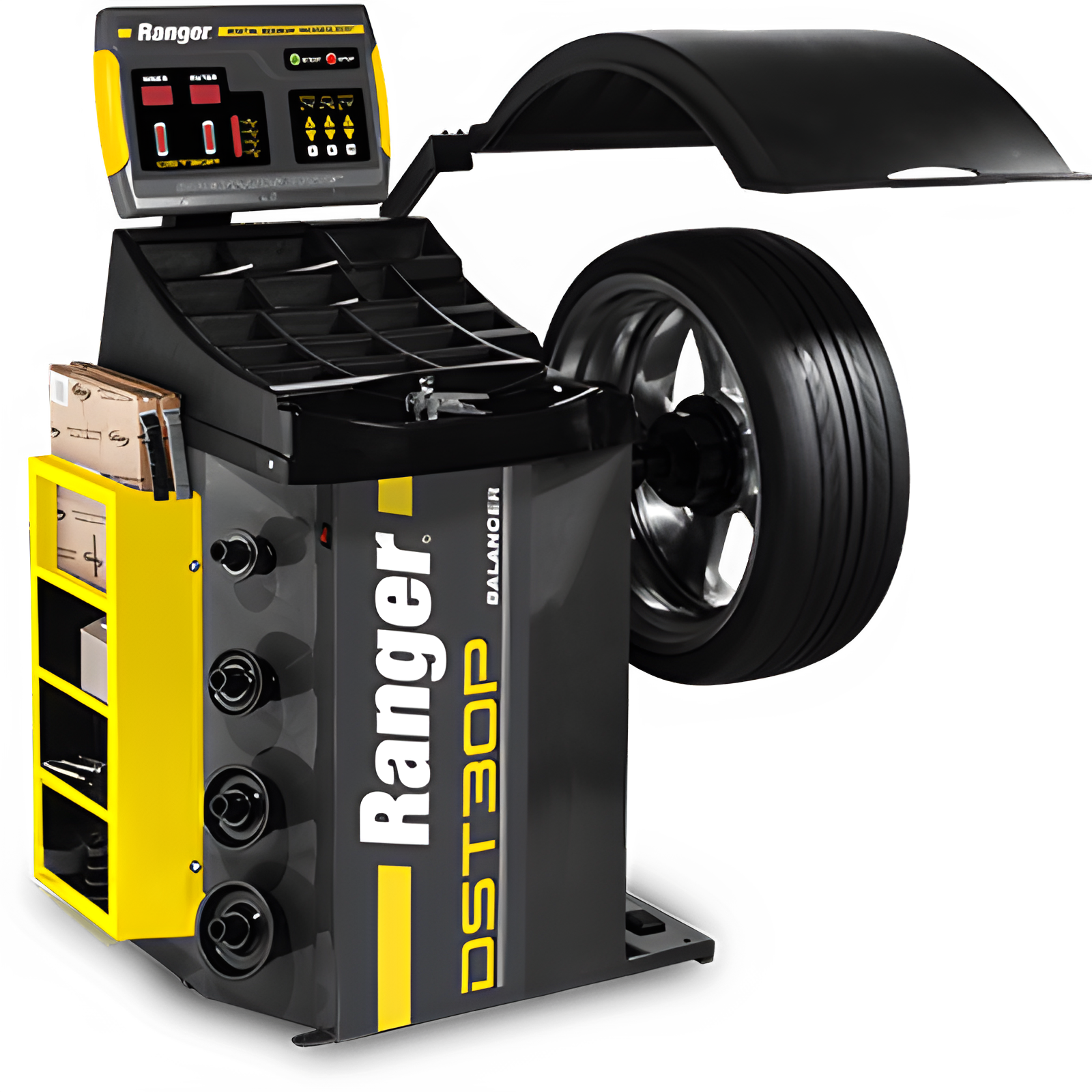

Ranger DST30P Wheel Balancer

• Dynamic, Static, and Performance Alloy settings
• A multi-user save function holds presets to increase productivity
• An ergonomic control board and easy-to-read LED display has vibrant visual cues and keypad to improve efficiency and proper balancing techniques for faster floor-to-floor times
• A simultaneous retrieval of static, dynamic and ALU1/ALU2 data, identifies weight placement configurations for a variety of wheel styles and designs with the simple push of a button
• Automatic rolling wheel parameter setting feature saves valuable time and minimizes errors
• Low RPM balancing speed and rapid six-second cycle time
• Automatic braking
• Gram/ounce selection and millimeter/inch selection
• Automatic round-off with top-dead-center weight position indicator
• Manual or automatic start when hood is lowered
• Self-calibration function
• High-volume top weight tray and side shelf storage gives you room to inventory a wide variety of wheel weights and tools
• Newly designed side shelf features an open-top design that accommodates Ranger Quick-Peel™ adhesive tape weight convenient bulk rolls
• Precision-machined, hardened-steel 36 mm shaft
• Quick-release hub nut for dramatically reduced set-up times
• Side-position brake hold wheels at precisely 12-o’clock for proper weight placement
• Side cone storage pegs keeps accessories readily available
• New “open-side” hood design allows for a broader coverage of tire shapes and sizes

Specifications

 Ranger R980AT Tire Changer

• Style: Fixed Tower Design
• Assist Type: Single-Tower Assist
• Speed: Standard
• Motor: 3 HP (220 VAC 50-60 HZ)
• Drive System Type: Electric / Air
• Air Requirement: 140-165 PSI (10-11 BAR)
• Wheel Clamping Method: 4 Clamps - Internal / External
• Table Clamping System: Dual Pneumatic Cylinders
• Bead Breaking System: Pneumatic Blade / Dual
• Tower Design: Rigid Fixed / Swing Arm
• Power Assist Towers:  Single Assist Tower
• Bead Lifting Roller(s): Single Lifting Roller
• Bead Seating System: Turbo Blast / Bead Seating
• Internal Rim Clamping Capacity: 10” - 30” (254 mm - 762 mm)
• External Rim Clamping Capacity: 9” - 28” (229 mm - 711 mm)
• Turntable Tire Width Capacity (Mounting): 4” - 18” (102 mm - 457 mm)
• Bead Breaker Tire Width Capacity (Demounting): 1.5” – 13” (38 mm – 330 mm)
• Maximum Tire Diameter: 50” (1,270 mm)
• Shipping Weight: 904 lbs. (410 kg)
• Shipping Dimensions: 51'' x 45'' x 73'' (1,295 mm x 1,143 mm x 1,854 mm

Ranger DST30P Wheel Balancer

Style

Auto & Light Truck

Data Entry

Manual

Motor

1.5 HP, 110/220V, 50 / 60 Hz, 1Ph

Working Temperature

-5°C / 27°F - 50°C / 82°F

Cycle Time

6 - 9 Seconds (avg.)

Balancing Modes

Dynamic / Static / 3-Alloy

Drive System

Belt Drive

Wheel Braking

Automatic / Electronic

Cones Included

3 Standard / 1 Truck

Max. Tire Diameter

50” (1,270 mm)

Max. Tire Weight

150 lbs. (68 kg)

Wheel Diameter Capacity

8” - 30” (254 mm - 672 mm)

Wheel Width Capacity

1.2” - 20” (30 mm - 508 mm)

Balancing Increments

0.25 oz (7 gram)

Balancing Speed

180 RPM

Accuracy

+/- 1 gram (.035 oz)

Resolution

0.01 ounce, 1.4°

Shipping Weight

398 lbs. (181 kg)

Manuals

Ranger R980AT User Manual
Ranger R980AT Sales Sheet
Ranger R980AT Warranty

Ranger DST30P User Manual
Ranger DST30P Sales Sheet
Ranger DST30P Warranty

What Our Experts Think

• Complete tire service combo – Includes tire changer, wheel balancer, and 1400 pcs of tape weights.

• Ranger R980AT Tire Changer – Durable and user-friendly for efficient tire mounting and removal.

• DST30P Wheel Balancer – Provides precise wheel balancing for smooth rides.

• Quality tape weights – Black and silver options ensure secure, balanced wheels.

Q&A

Q: Is this combo suitable for professional shops?
A: Yes, designed for high-volume, professional tire services.

Q: Are the wheel weights compatible with most rims?
A: Yes, tape weights fit a wide variety of wheel types.

Maintenance Tips

• Regularly inspect tire changer components for wear.

• Calibrate wheel balancer periodically for accuracy.

• Store tape weights in a dry, clean area.

• Follow manufacturer guidelines for equipment servicing.
