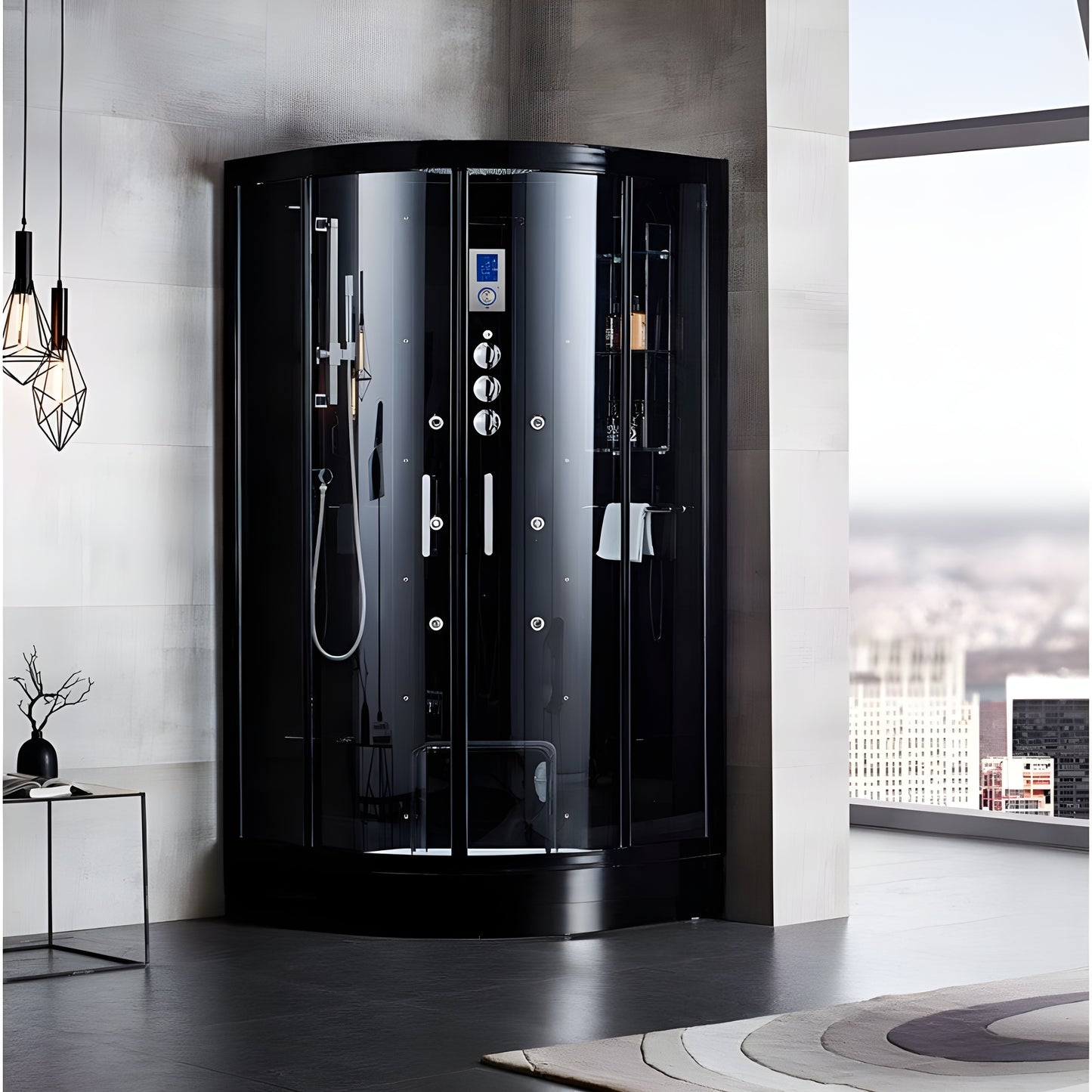

Sauna Hammam SHOWER CABIN HAMMAM ARCHIPEL QDR 100C BLACK - MK53016127

Sauna Hammam SHOWER CABIN HAMMAM ARCHIPEL QDR 100C BLACK - MK53016127

If you haven’t yet heard of hammam, you are bound to soon. This treatment makes itself known around the world for being a relaxing and cleansing Moroccan ritual that is centuries old.

Hammam differs slightly from the traditional thermal spa. While both are profoundly relaxing and good for the skin, rather than using thermal waters, hammam treatments use hot steam to encourage a deep and invigorating cleanse.

Hammam treatments also use vitamin-E rich, olive-based soap known for its skin-nourishing and exfoliating properties. Additionally, some treatments may include rhassoul clay, an antibacterial mineral that effectively and safely removes toxins and impurities from the body, reduces sebum and tightens pores.

Features

• Overall dimensions in millimetres: 1000*1000*2235.

• Product weight: 163kg

• Suitable for anyone under 200cm tall.

• Can accommodate up to 2 people seated during hammam sessions (take a second seat as an option)

• Cabin to be placed in the corner of your choice: "quarter-round" type: suitable for both left and right corners

• Removable rear panel from inside the cabin (simplified maintenance)

• Acrylic tray reinforced with layers of fiberglass

• Steel frame with adjustable feet,

• Fixed pane and glazed door in 5mm ESG safety glass  tempered safety  glass resistant to shocks, knocks, bending stresses as well as thermal loads.

• Bottom panels in real tempered glass, opaque black

• Quality side profiles, in sandblasted aluminium.

• Real tempered glass roof, opaque black.

• Cabin specifically designed for steam use.

• Precision thermostatic mixing valve

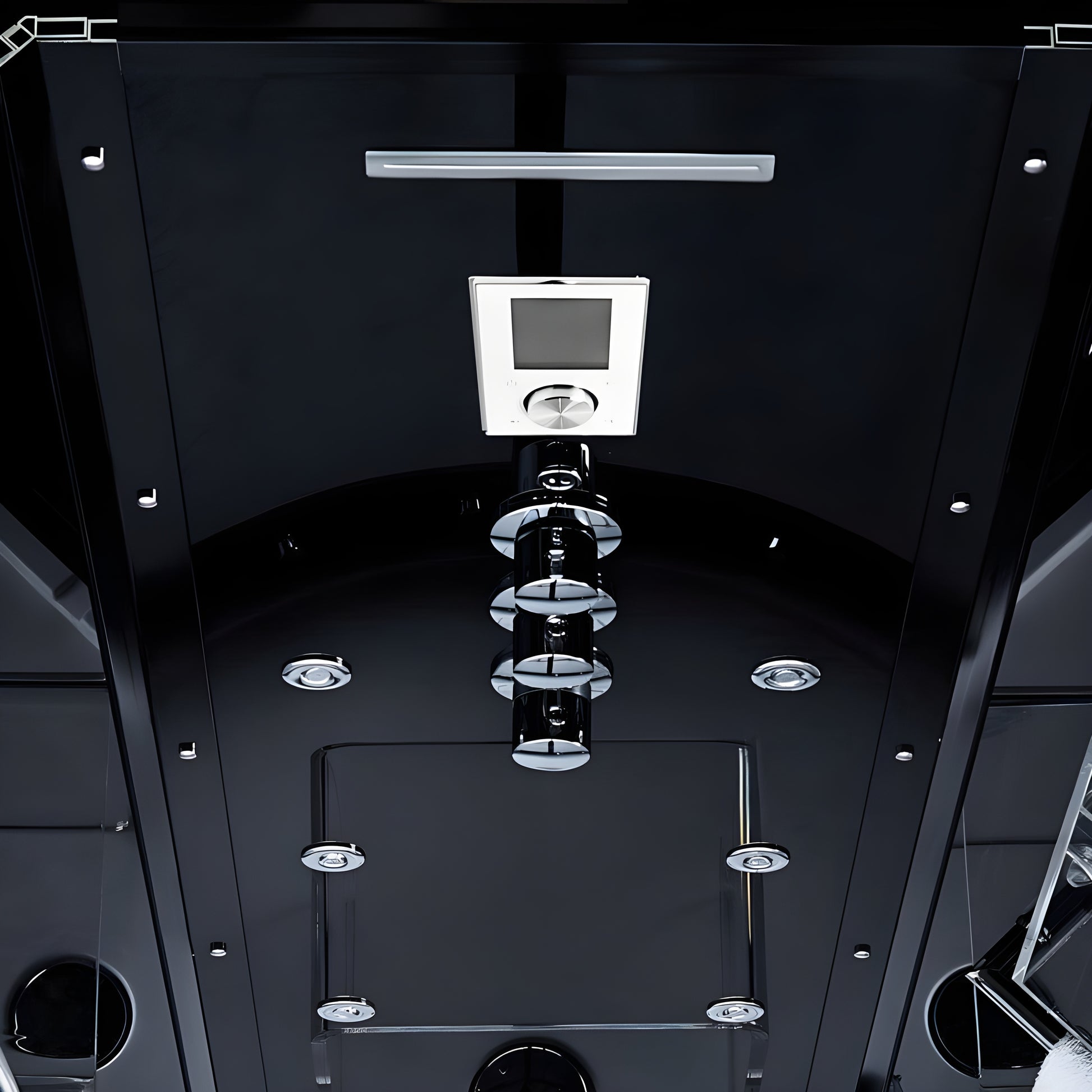

• Digital control panel with FM radio + bluetooth

• Double sliding door with roller and magnetic closure

• Large designer tropical rain shower with anti-limescale studs

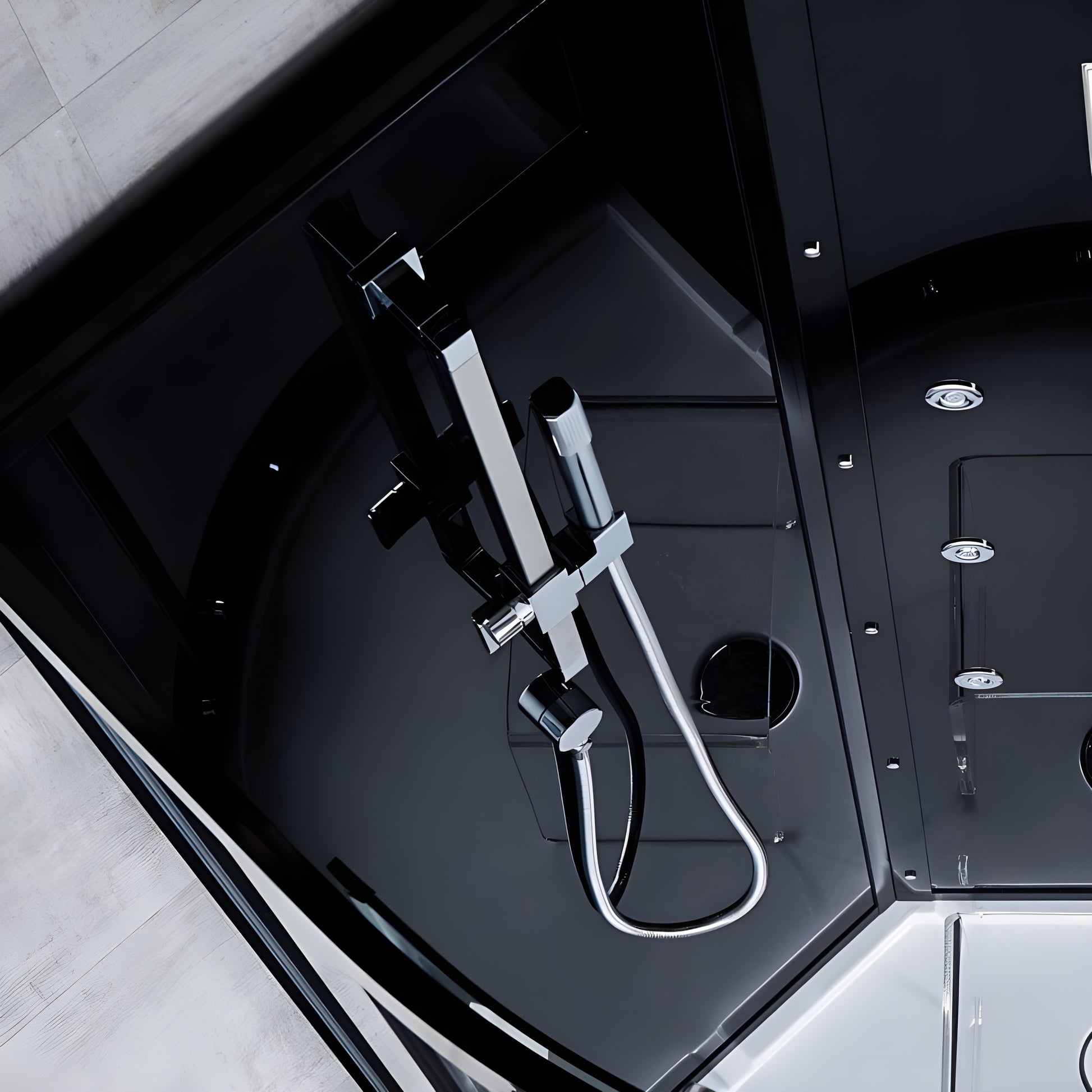

• Height adjustable chrome hand shower. with brass shower bar

• 6 high pressure jets with manual or sequential massage ("spray" function).

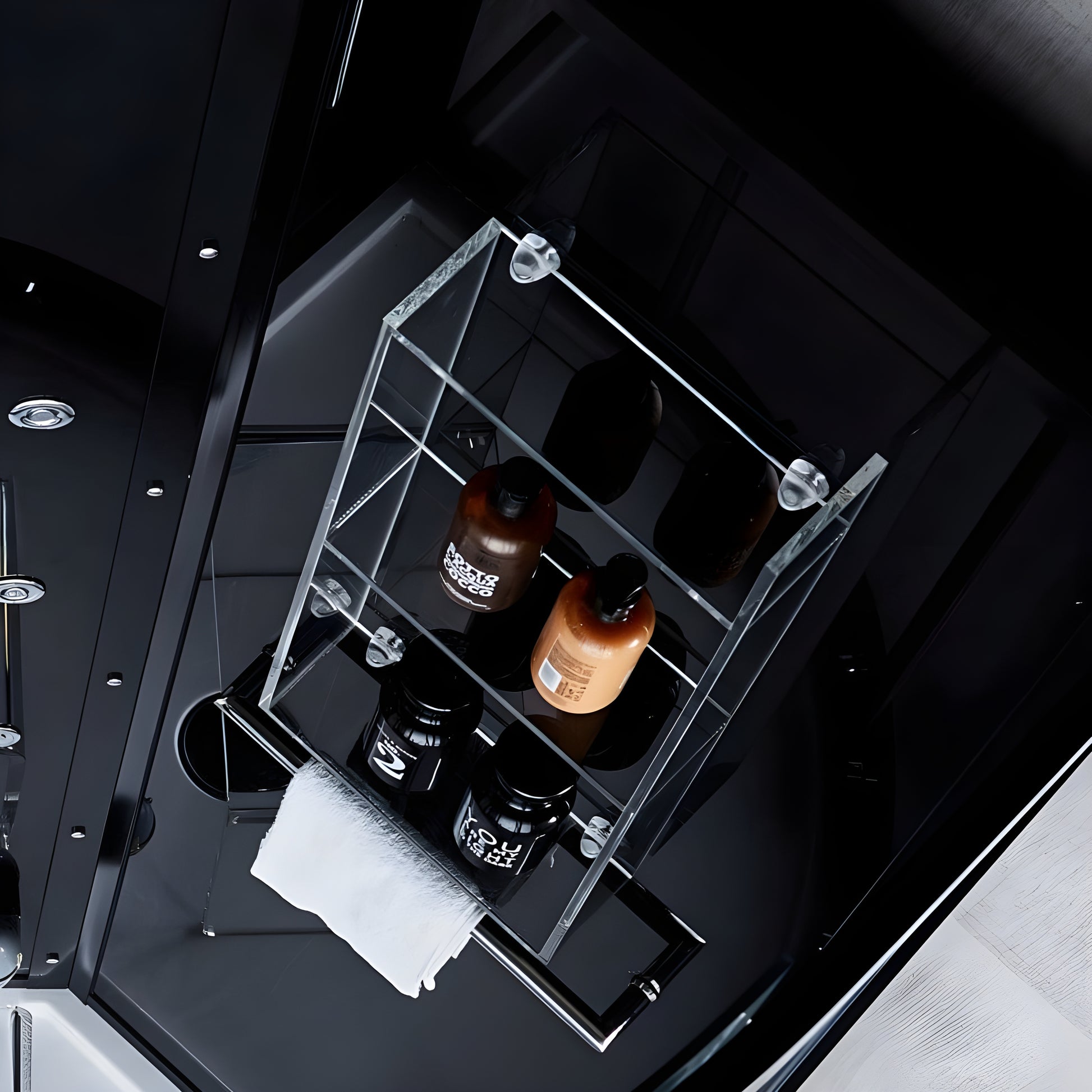

• triple shelf + towel rail

• Hand shower with height-adjustable bracket + overhead rain shower

• Cascade function

• Mechanical ventilation integrated into the cabin

Additional Information

TECHNOLOGY AND PERFORMANCE

• Professional 3000W steam generator allowing you to quickly exceed 40°C with the same feeling of well-being and warmth as in a traditional hammam (requires a 16A line and a 3 x 2.5mm² cable section)

• Latest generation multimedia touch screen

• Steam generated in less than 2 minutes with time and temperature management

• Simplified aromatherapy system at the steam nozzle, suitable for the addition of essential oils for hammam

• Dual generator protection against overheating and dry running

• Automatic emptying at the end of the session

• Simplified maintenance: removable rear panel from the inside (allows access to the steam generator, mixer tap, water supply, control panel)

• Chromotherapy: LED light on the ceiling with choice of colours.

• FM radio with memory

• Integrated Bluetooth function for listening to digital music and receiving calls

• Automatic ozone disinfection to kill 99% of bacteria, germs and viruses in the cabin (no maintenance, no noise, no smell, no recharging (this is made naturally possible thanks to the formation  of an electric arc, which causes the dissociation of dioxygen molecules -O2- into oxygen atoms -O- which themselves regroup with dioxygen to form ozone -03-).

SUMMARY BENEFITS OF ARCHIPEL QDR CABINS

• Simplified maintenance: removable rear panel from the inside (allows access to the steam generator, mixer tap, water supply, control panel)

• Warranty for professional or home use

• Sandblasted aluminum structure and 5 mm tempered safety glass

• 3000 watt generator

• FM radio with storable stations + bluetooth

• Electronic cabin ventilation

• Aromatherapy from the nozzle

• Peripheral chromotherapy

• Evacuation diameter 40 mm

• Triple shelf

Product Manual

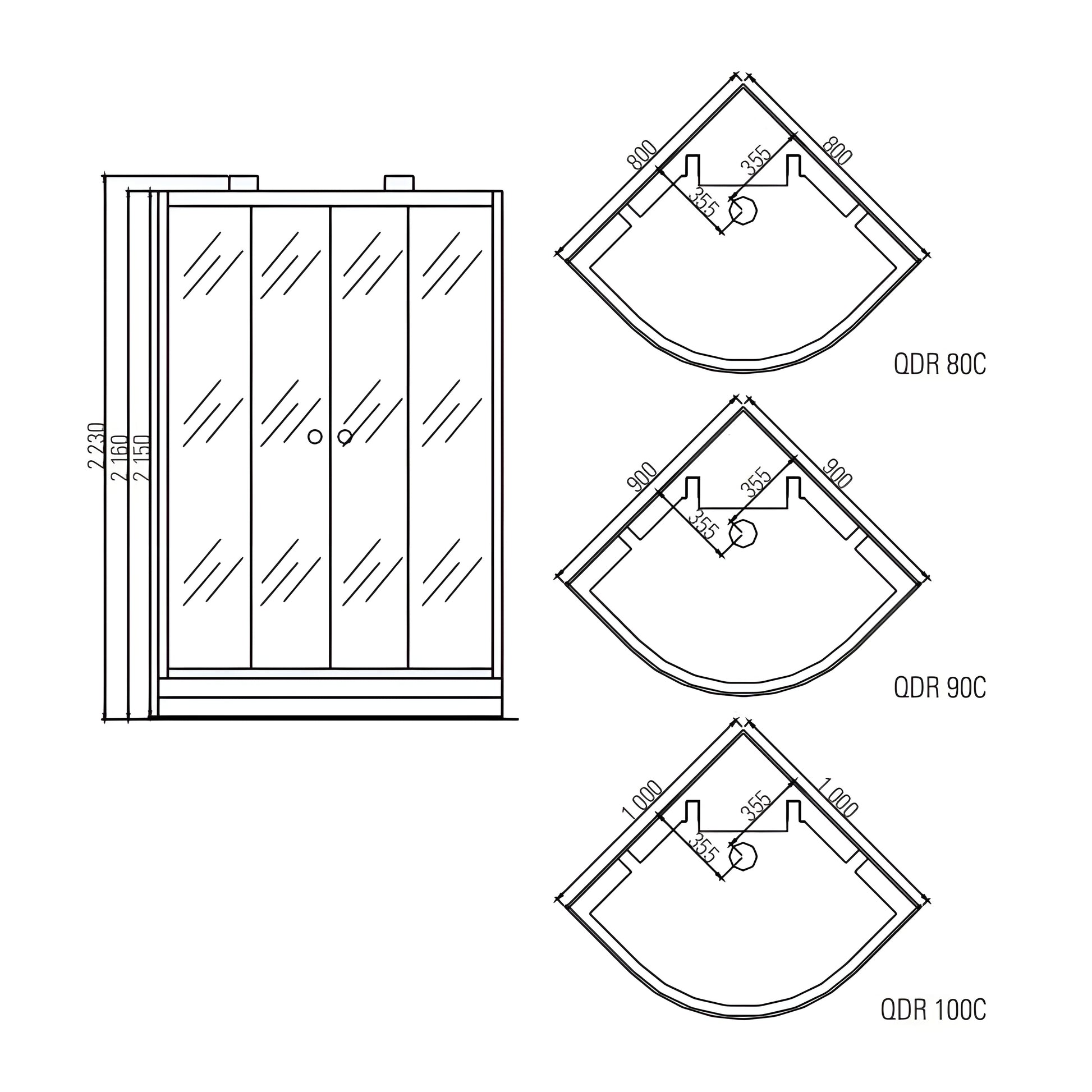

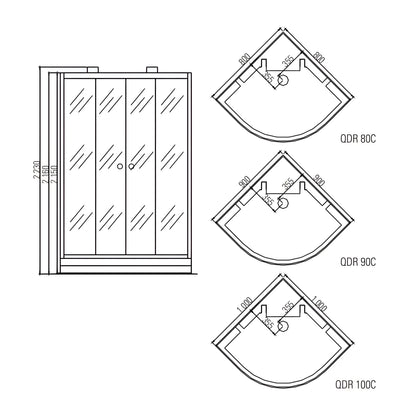

Diagram 80C 90C 100C

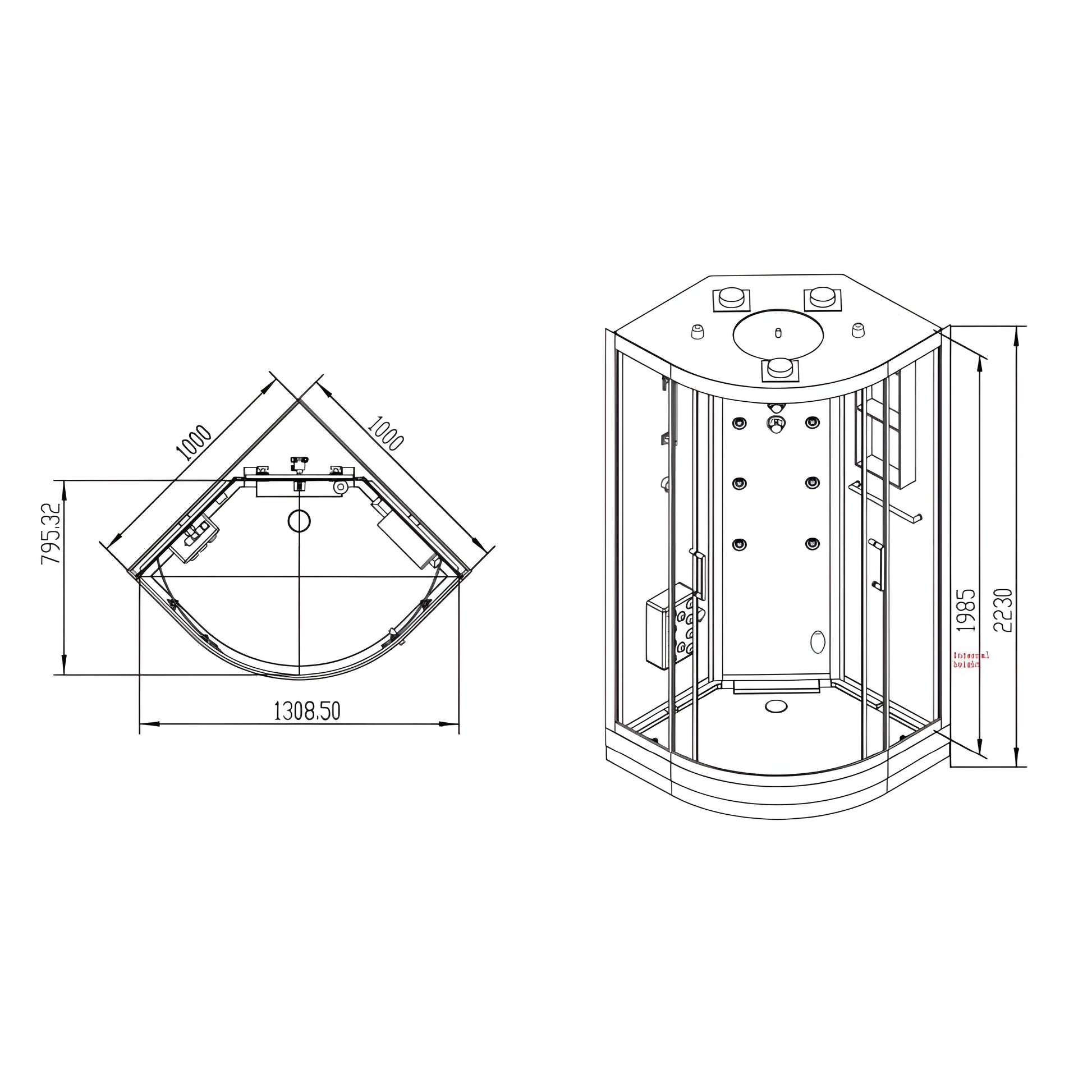

Schematic QDR 100C

Commercial sheet

What Our Experts Think

• Stylish 100C hammam shower cabin in elegant black finish

• Spacious design for comfort while remaining practical in size

• Combines shower functionality with full hammam steam therapy

• Steam sessions support detox, relaxation, and improved circulation

• Perfect for upgrading your bathroom with a luxury spa feature

Q&A

Q: What are the dimensions of this cabin?
A: The 100C size offers a balance between comfort and compactness.

Q: Does it include both shower and hammam steam?
A: Yes, it integrates daily shower use with therapeutic steam.

Q: Is installation easy?
A: Professional installation is recommended for best performance.

Q: What makes the black edition appealing?
A: The sleek black finish creates a bold and modern bathroom design.

Maintenance Tips

1. Wipe down glass and panels after use to avoid stains and limescale.

2. Clean steam nozzles monthly to ensure smooth steam flow.

3. Use gentle, non-abrasive cleaning products for surfaces.

4. Ventilate the cabin after sessions to reduce humidity buildup.

5. Arrange annual professional servicing for durability and efficiency.
