Sauna Hammam SHOWER CABIN HAMMAM ARCHIPEL QDR 80C BLACK - MK53016811

Sauna Hammam SHOWER CABIN HAMMAM ARCHIPEL QDR 80C BLACK - MK53016811

If you haven’t yet heard of hammam, you are bound to soon. This treatment makes itself known around the world for being a relaxing and cleansing Moroccan ritual that is centuries old.

Hammam differs slightly from the traditional thermal spa. While both are profoundly relaxing and good for the skin, rather than using thermal waters, hammam treatments use hot steam to encourage a deep and invigorating cleanse.

Hammam treatments also use vitamin-E rich, olive-based soap known for its skin-nourishing and exfoliating properties. Additionally, some treatments may include rhassoul clay, an antibacterial mineral that effectively and safely removes toxins and impurities from the body, reduces sebum and tightens pores.

Features

• Overall dimensions in millimetres: 800*800*2235.

• Product weight: 130kg

• Suitable for anyone under 200cm tall.

• Can accommodate 1 person seated during hammam sessions

• Cabin to be placed in the corner of your choice: "quarter-round" type: suitable for both left and right corners

• Removable rear panel from inside the cabin (simplified maintenance)

• Acrylic tray reinforced with layers of fiberglass

• Steel frame with adjustable feet,

• Fixed window and glazed door in 5mm ESG safety glass tempered safety glass  resistant to shocks, knocks, bending stresses and thermal loads.

• Bottom panels in real tempered glass, opaque black

• Quality side profiles, in sandblasted aluminium.

• Real tempered glass roof, opaque black.

• Cabin specifically designed for steam use.

• Precision thermostatic mixing valve

• Digital control panel with FM radio + bluetooth

• Double sliding door with wheels and magnetic closure

• Large designer tropical rain shower with anti-limescale studs

• Height adjustable chrome hand shower. with brass shower bar

• 6 high pressure jets with manual or sequential massage ("spray" function).

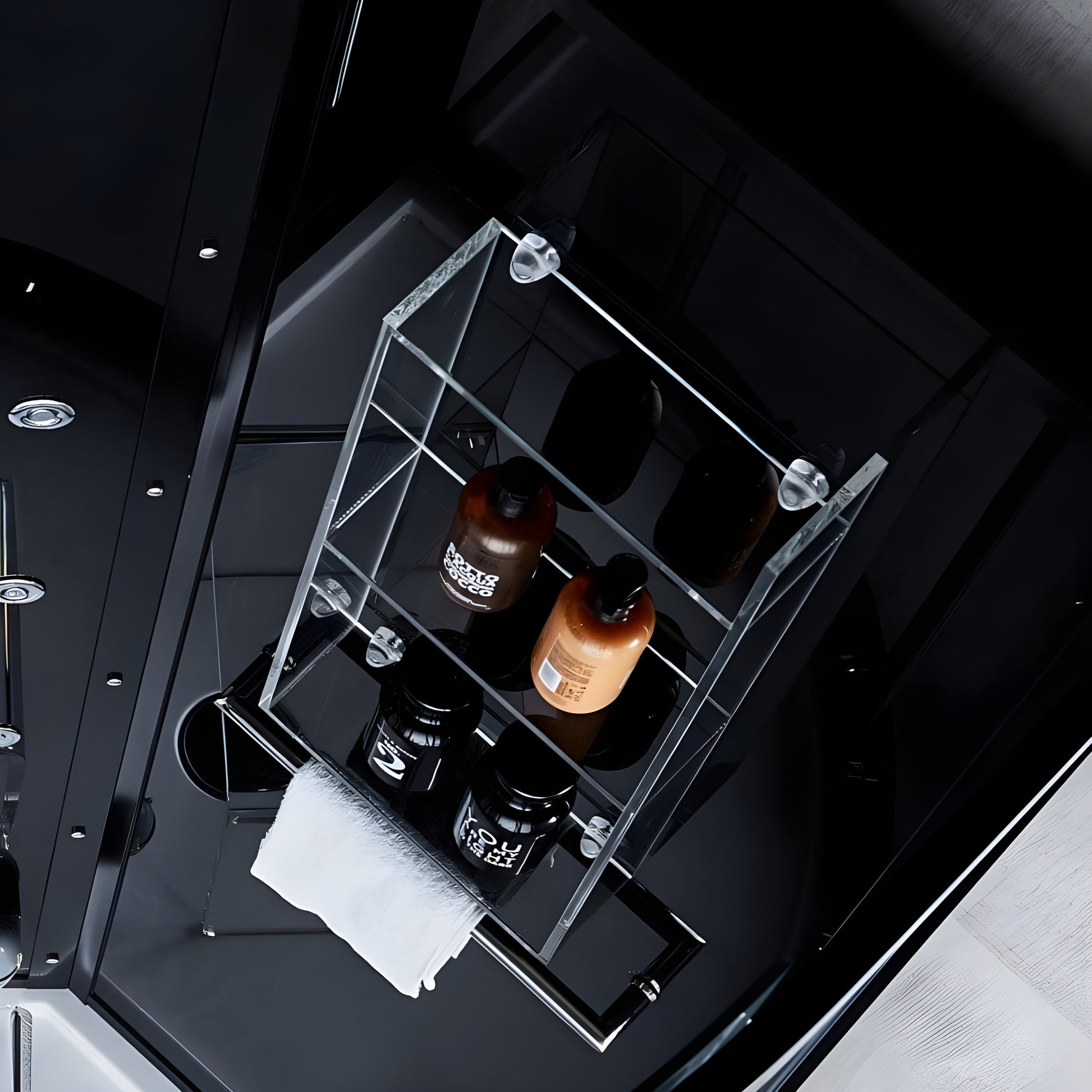

• triple shelf + towel rail

• Hand shower with height-adjustable holder + overhead rain shower

• Cascade function

• Mechanical ventilation integrated into the cabin

Additional Information

TECHNOLOGY AND PERFORMANCE

• Professional 3000W steam generator allowing you to quickly exceed 40°C with the same feeling of well-being and warmth as in a traditional hammam (requires a 16A line and a 3 x 2.5mm² cable section)

• Latest generation multimedia touch screen

• Steam generated in less than 2 minutes with time and temperature management

• Simplified aromatherapy system at the steam nozzle, suitable for adding essential oils for hammam

• Dual generator protection against overheating and dry running

• Automatic emptying at the end of the session

• Simplified maintenance: removable rear panel from the inside (allows access to the steam generator, mixer tap, water supply, control panel)

• Chromotherapy: LED light on the ceiling with choice of colours.

• FM radio with memory

• Integrated Bluetooth function for listening to digital music and receiving calls

• Automatic ozone disinfection to kill 99% of bacteria, germs and viruses in the cabin (maintenance-free, noise-free, odor-free, without recharging  (this is made naturally possible thanks to the formation of an electric arc, which causes the dissociation of dioxygen molecules -O2- into oxygen atoms -O- which themselves regroup with dioxygen to form ozone -03-).

SUMMARY BENEFITS OF ARCHIPEL QDR CABINS

• Simplified maintenance: removable rear panel from the inside (allows access to the steam generator, mixer tap, water supply, control panel)

• Warranty for professional or home use

• Sandblasted aluminum structure and 5 mm tempered safety glass

• 3000 watt generator

• FM radio with storable stations + bluetooth

• Electronic cabin ventilation

• Aromatherapy from the nozzle

• Peripheral chromotherapy

• Evacuation diameter 40 mm

• Triple shelf

Product Manual

Diagram 80C 90C 100C

QDR 80C scheme

Commercial sheet

What Our Experts Think

• Compact 80×80cm footprint – ideal for space-conscious bathrooms

• Integrated steam hammam system – enjoy deep relaxation and wellness benefits at home

• Elegant black design – adds a modern, sophisticated touch

• Easy access – sliding glass doors ensure practicality and comfort

• Durable build – crafted with high-quality materials for long-lasting performance

Q&A

Q: Does this cabin include both shower and hammam functions?
A: Yes, it’s a dual-function unit, allowing you to enjoy a regular shower or switch to steam mode for hammam relaxation.

Q: Is installation complicated?
A: Professional installation is recommended to ensure proper plumbing, electrical, and steam system setup.

Q: How much space is required for installation?
A: With its 80×80cm compact size, it fits easily into smaller bathrooms while still delivering a full hammam experience.

Maintenance Tips

• Wipe glass and panels after each use to prevent limescale buildup

• Clean steam generator regularly with approved descaling products

• Ventilate the bathroom after hammam sessions to maintain cabin condition

• Avoid abrasive cleaners to preserve the glossy finish
