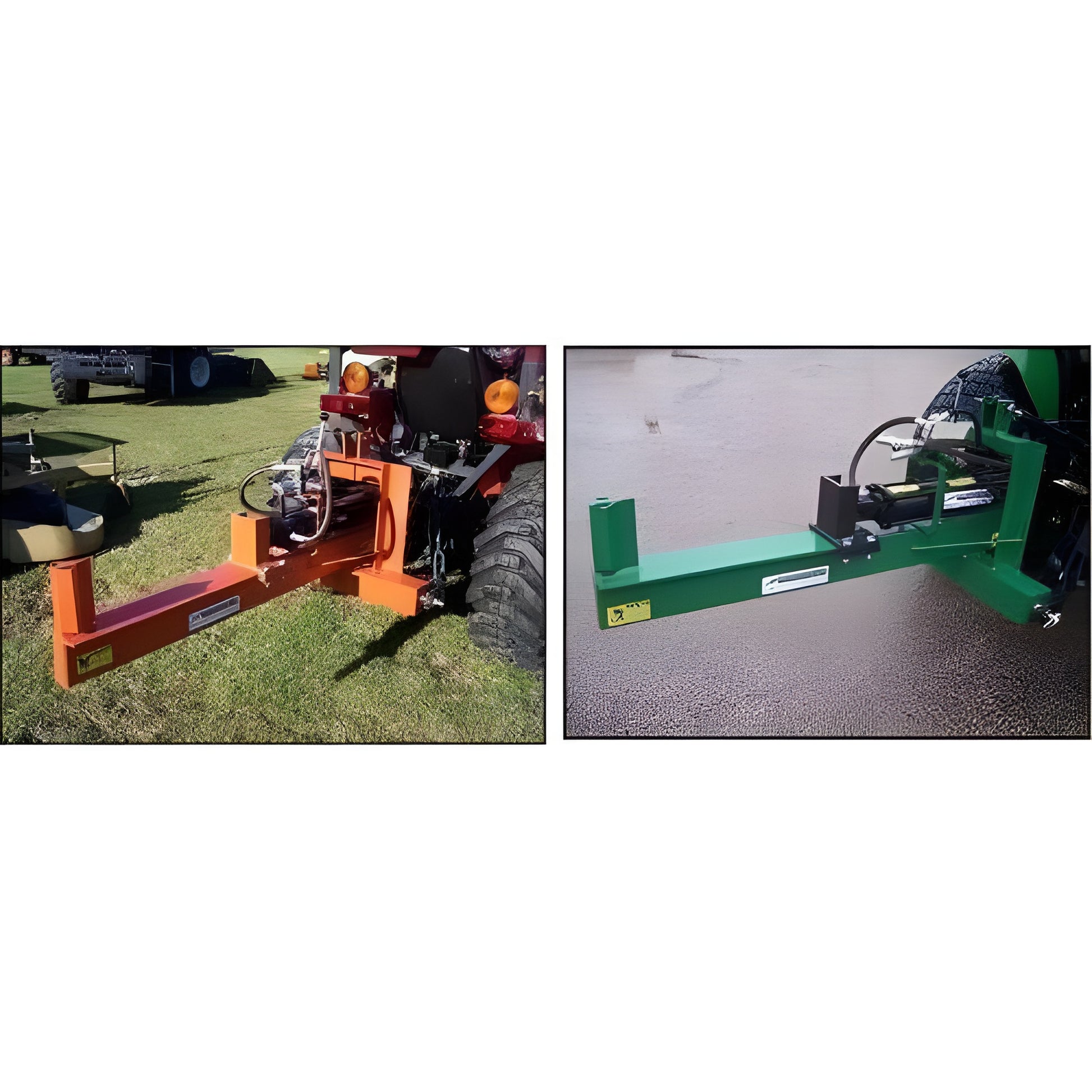

Our 12 ton wood splitter attachment for tractors are a perfect combination.
It gives you the low cost of using your existing tractor for driving the hydraulics. Just hook up to the auxiliary outputs of your tractor and you are ready to use this log splitter. The standard pins we use are category 1.
It is recommended that you have a flow rate of 5GPM or higher for this log splitter. If your tractor is not properly equipped you do have a choice to run the PTO kit which is self contained and includes a PTO pump.
Features
- Splits logs up to 20 inches long
- “Deadman” switch stops the ram when the handle is released.
- Control Valve locks into return and auto-returns
- Built in Relief valve protects the hydraulic system
- Solid Rectangular Tube Design eliminates twisting and bending
- Category 1 pins
Specifications
| Beam Structure |
Tubular design 2" wide x 5" tall. 5" Top plate reinforced heavy-duty |
| Splitting Wedge |
6" High |
| Operating Position |
Horizontal (Horizontal / Vertical Optional) |
| Force / Tonnage |
12 Ton (Approx depending on tractor) |
| Cylinder |
3" x 18" |
| Cycle Time |
8-15 Seconds (Approx depends on tractor) |
| Log Opening |
19 Inches |
| Working Height |
You adjust with your 3 point hitch |
| Safety Control Valve |
Detent, Auto Return |
| Operation Weight |
225 LBS |
| Shipping Weight |
250 LBS |
What Our Experts Think
-
Heavy-duty 12-ton log splitter designed for tractors with a 3-point hitch
-
Efficient horizontal splitting for medium to large logs
-
Durable steel construction ensures long-lasting performance under regular use
-
Compact, easy-to-mount design fits most standard 3-point tractors
-
Recommended by forestry and agricultural experts for reliability, safety, and efficiency
Q&A
-
Q: What is the splitting force?
A: 12 tons, ideal for medium logs and standard farm use
-
Q: What tractor compatibility is required?
A: Standard 3-point hitch tractors
-
Q: Is it easy to operate?
A: Yes, lever-controlled splitting allows safe and efficient use
-
Q: Can it handle large logs?
A: Yes, suitable for medium to large-diameter logs
Maintenance Tips
-
Inspect hydraulic hoses and connections before each use
-
Keep wedge and moving parts clean and free of debris
-
Lubricate pivot points according to manufacturer recommendations
-
Store in a dry, sheltered area to prevent rust and corrosion
-
Check mounting points and attachment stability regularly
