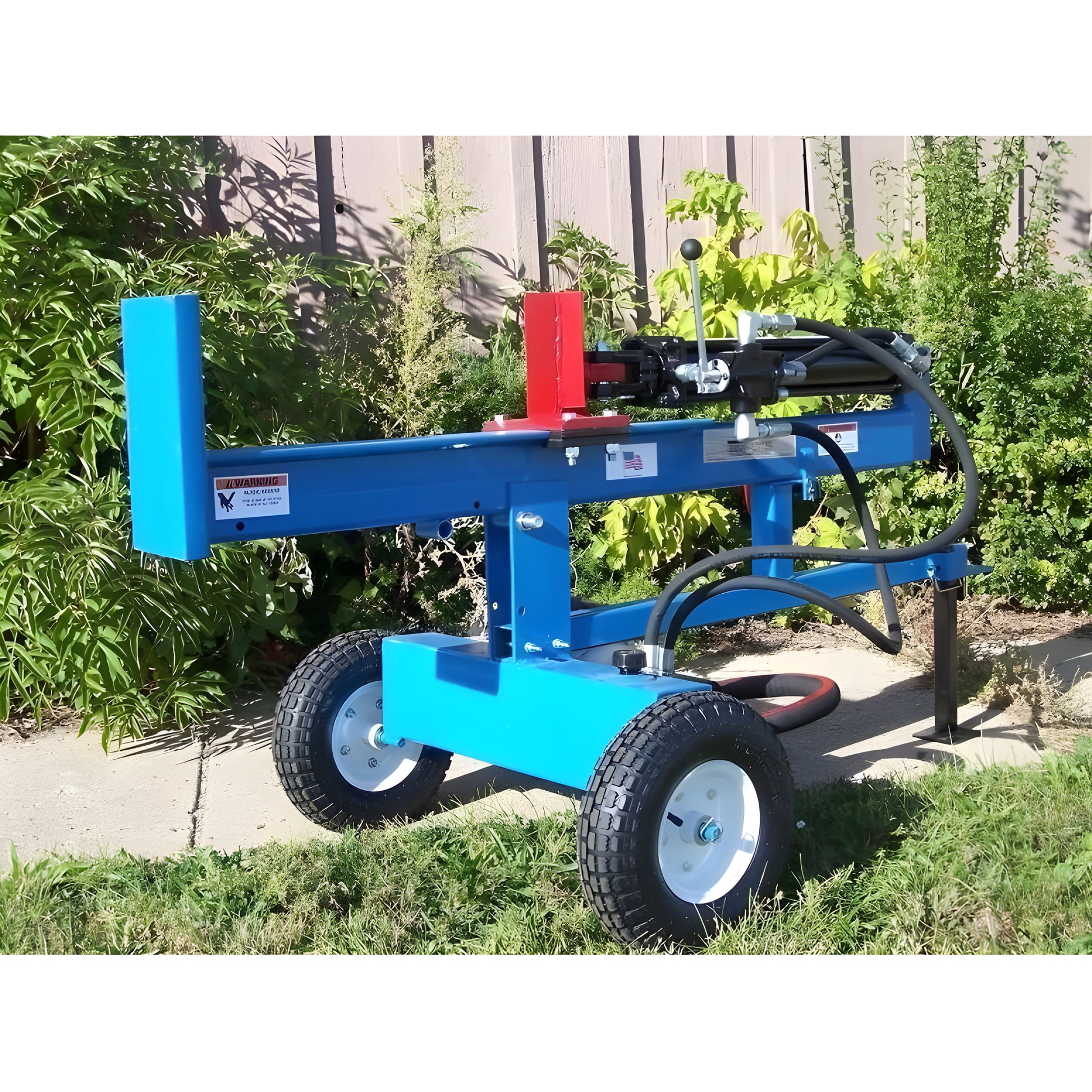

Wood Splitters Direct 16 Ton Ram Splitter Horizontal Vertical Electric Log Splitter - HV16-4
16 ton HV16-4 Ram Splitter comes with a 1.5 HP motor which gives you the equivalent HP to a 5 HP Gasoline motor with out having to pull on a cord to start it.
With the high torque of this electric motor, you are not giving up any power. The nice thing about this unit is you can spit in your garge or indoors if wanted to! No harmful fumes.
See the video below of one of our customers who bought from us years ago to see this electric wood splitter in action. Even though the video is a horizontal configuration, the horizontal vertical works just as good! Electric log splitters comes complete with one year warranty on all parts.
4 Way Wedge - Split logs into 4 pieces. 4 way wedge just slips over existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 2".
Log Cradles - HV units catch falling wood saving you from bending over and picking up split wood off the ground and splitting again. Just imagine the amount of extra times you could save from bending over picking up firewood to split again from each cord of wood? Cradles are bolted on the beam and can be remove at anytime.
Features
Beam Structure: 2" wide x 5" tall - 5" Top Plate Tubular Design
Splitting Wedge: 6" High
Operating Position: Horizontial / Vertical
Force / Tonnage: 16 Ton (32,000 lbs)
Video
Specifications
Beam Structure
2" wide x 5" tall - 5" Top Plate Tubular Design
Splitting Wedge
6" High
Operating Position
Horizontal / Vertical
Force / Tonnage
16 Ton (32,000 lbs)
Cylinder
3.5" x 18"
Cycle Time
11-13 Seconds (Approx)
Log Opening
20 Inches
Wheels & Tires
13" High Pneumatic tires
Road Towable
No
Motor
Electric 1.5HP
Recommended Amps
20 Amp Breaker
Operating Size
32" wide, 70" long, 48" in vertical
Hydraulic System
4 Gallon Tank + Cylinder, and Hoses
Safety Control Valve
Detent, Auto Return
2 Stage Pump
11 Gallons Per Minute
Operation Weight
325 LBS
Made in USA
Yes!
4 Way Wedge
Optional
Tow Package
Optional
Log Cradles
Optional
What Our Experts Think
16-ton splitting force handles tough hardwood with ease.
Dual horizontal and vertical operation for maximum versatility.
Electric-powered 1.5 HP motor equals performance of a 5 HP gas engine.
No pull-start hassle—simple plug-in and use.
Q&A
Q: What is the splitting force of this log splitter? A: It delivers 16 tons of splitting power.
Q: Can it be used both vertically and horizontally? A: Yes, it functions in both positions for convenience.
Q: What powers the splitter? A: A 1.5 HP electric motor, equivalent to a 5 HP gas engine.
Q: Is it easy to start? A: Yes, just plug it in—no pull cord required.
Maintenance Tips
Keep hydraulic fluid at proper levels for smooth operation.
Clean debris and wood chips after each use.
Store indoors or under cover to protect from weather.
Inspect hoses, fittings, and moving parts regularly for wear.
