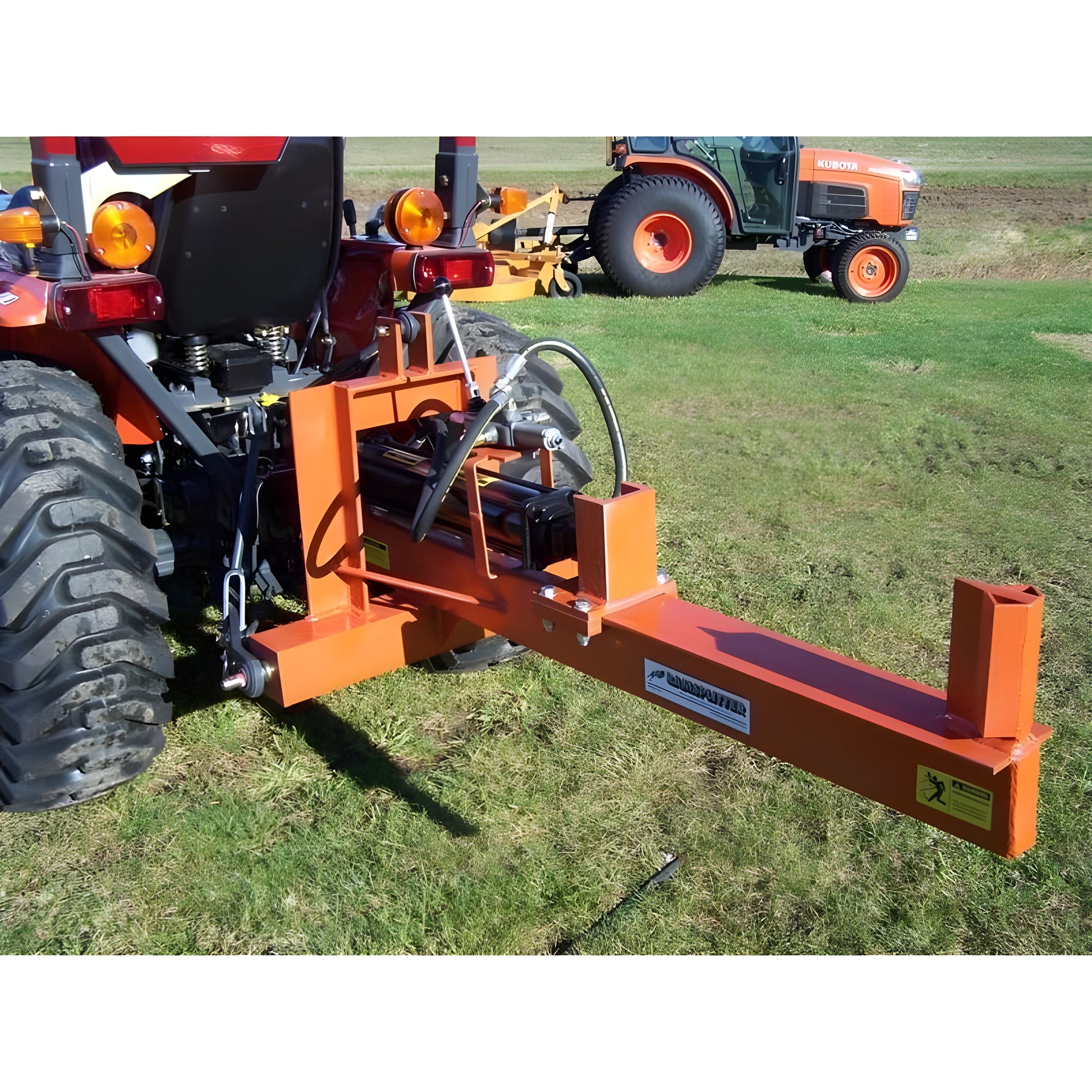

Our 16 ton 3 point wood splitter attachment for tractors are perfect for the small tractor owner.
Just hook up to the auxiliary outputs of your tractor and you are ready to use this log splitter. The standard pins we use are category 1. No pins (top link), hoses or quick disconnects are included. All connections including hoses are included with PTO kits.
It is recommended that you have a flow rate of 5GPM or higher for this log splitter. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump.
-

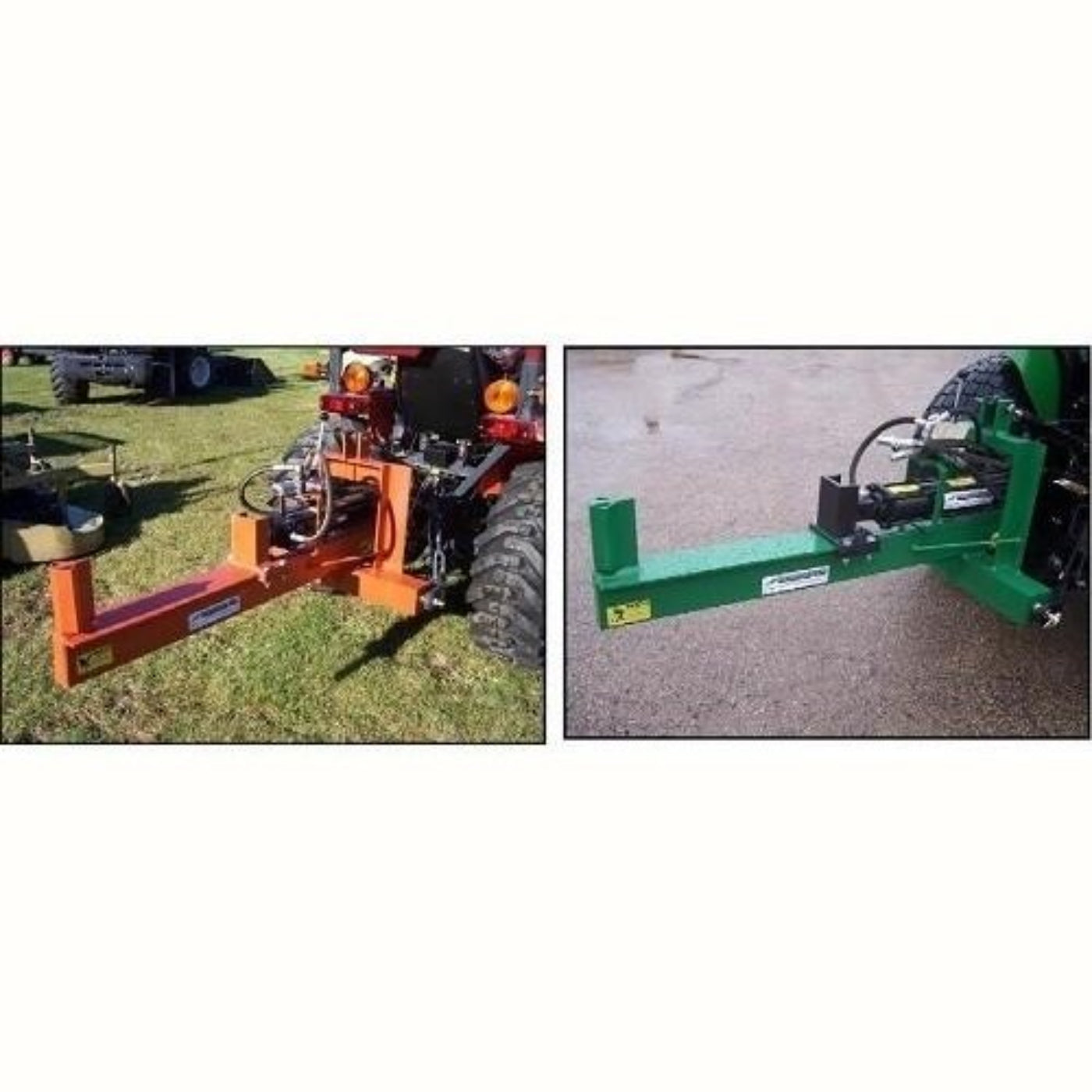

Color Choice - At no additional cost you get to choose your color: Black, Kubota orange, John Deere green or Ford blue.
-

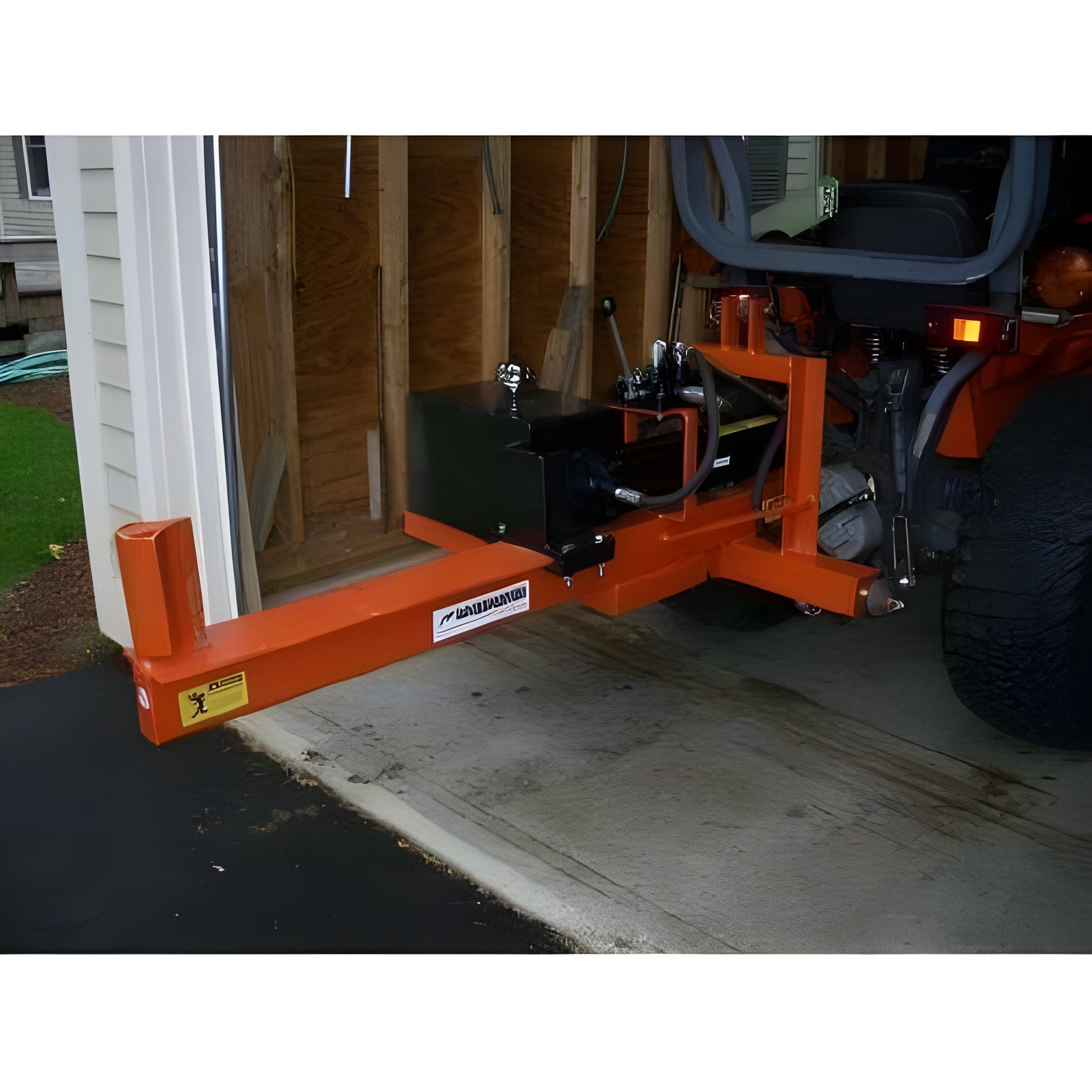

PTO Kit - PTO (Power Take Off) kit runs completely off your PTO on your tractor. There is no need to worry about any of your hydraulics as this system is self contained which includes a tank and a 11.9 GPM PTO pump. Hook up the pump to the PTO, fill the tank with fluids and your ready to split wood. This PTO pump is designed for 540RPM at the PTO.
-
4 Way Wedge - Split logs into 4 pieces. 4 way wedge just slips over the existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 2". Split one log once instead of 3 times to get 4 pieces.
-
Log Cradles - These cradles are welded on the beams on each side of the opening between the wedge and the push plate on the cylinder. This eliminates the need from having to hold the log into place with your hand. If you go with a horizontal vertical option the log cradles are bolted on the beam and are more like "tables".
-
Horizontal/Vertical - This log splitter can also come in a horizontal / vertical configuration where you can split both horizontal or vertical. The log splitter looks the same but the beam will have the ability to flip upward and lock in the vertical position. This will eliminate the need for lifting the larger logs up on the beam. Please choose your option as to which one best suits your needs.
Features
- Beam Structure: Tubular design 2" wide x 5" tall. 5" Top plate reinforced heavy-duty
- Splitting Wedge: 6" High
- Operating Position: Horizontal (Horizontal / Vertical Optional)
- Force / Tonnage:16 Ton (Approx depending on tractor)
- Cylinder : 3.5" x 18"
Specifications
| Beam Structure |
Tubular design, 2" wide x 5" tall. 5" Top plate reinforced heavy-duty |
| Splitting Wedge |
6" High |
| Operating Position |
Horizontal (Horizontal / Vertical Optional) |
| Force / Tonnage |
16 Ton (Approx depending on tractor) |
| Cylinder |
3.5" x 18" |
| Cycle Time |
8-15 Seconds (Approx depends on tractor) |
| Log Opening |
19 Inches |
| Working Height |
You adjust with your 3 point hitch |
| Safety Control Valve |
Detent, Auto Return |
| Top link / Pins, Hoses, Quick Disconnects |
Not Included |
| Shipping Weight |
250 LBS |
What Our Experts Think
-
Heavy-duty 16-ton log splitter designed for tractors with a 3-point hitch
-
Efficient horizontal splitting for medium to large logs
-
Rugged steel construction ensures long-lasting performance under heavy workloads
-
Compact and easy-to-mount design fits most standard 3-point tractors
-
Recommended by forestry and agricultural experts for strength, reliability, and efficiency
Q&A
-
Q: What is the splitting force?
A: 16 tons, suitable for medium to large logs
-
Q: What tractor compatibility is required?
A: Standard 3-point hitch tractors
-
Q: Is it easy to operate?
A: Yes, lever-controlled splitting ensures safe and efficient use
-
Q: Can it handle large-diameter logs?
A: Yes, designed for commercial and farm-scale log splitting
Maintenance Tips
-
Inspect hydraulic hoses and connections before each use
-
Keep wedge and moving parts clean and free of debris
-
Lubricate pivot points and moving components regularly
-
Store in a dry, sheltered area to prevent rust and corrosion
-
Check mounting points and attachment stability before operation
