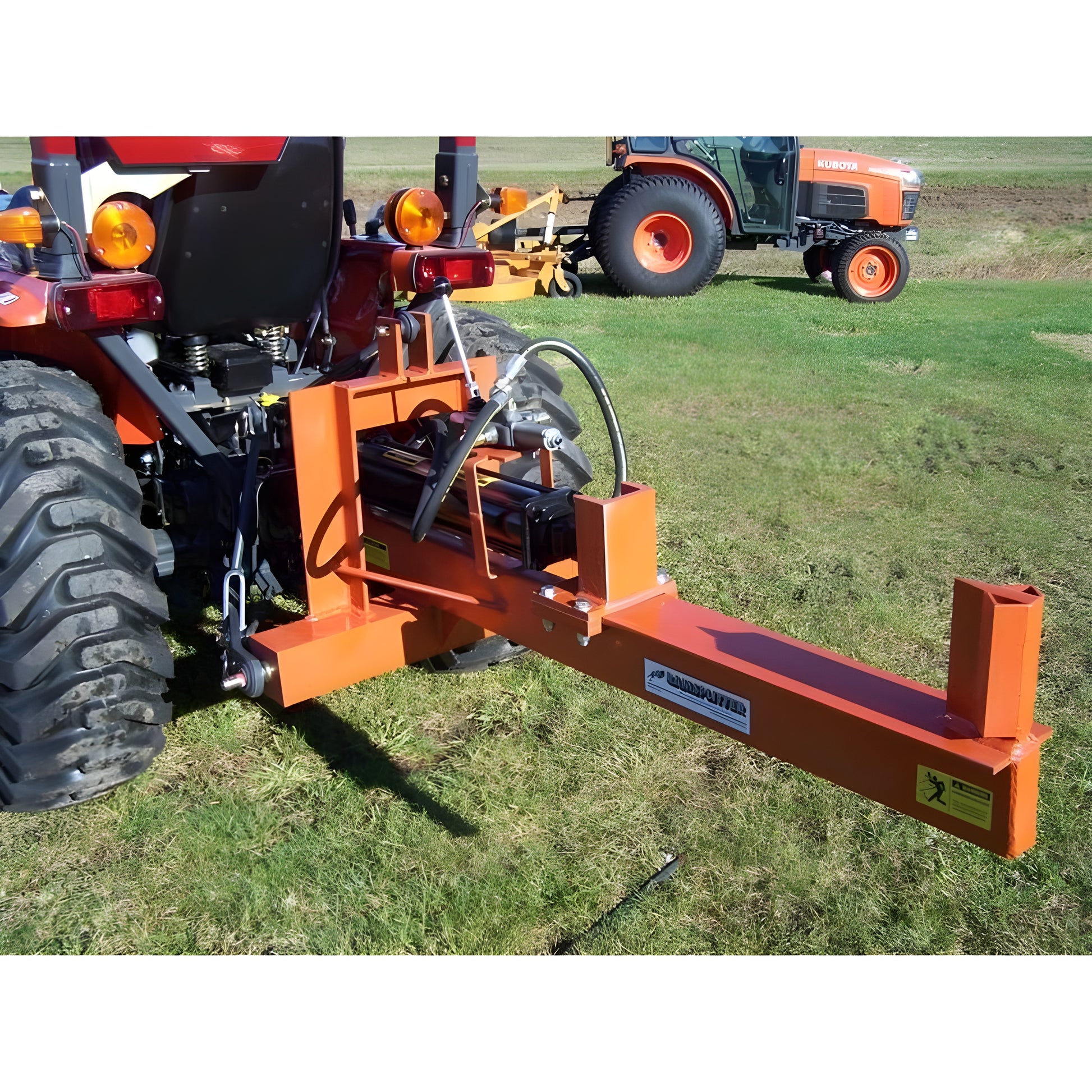

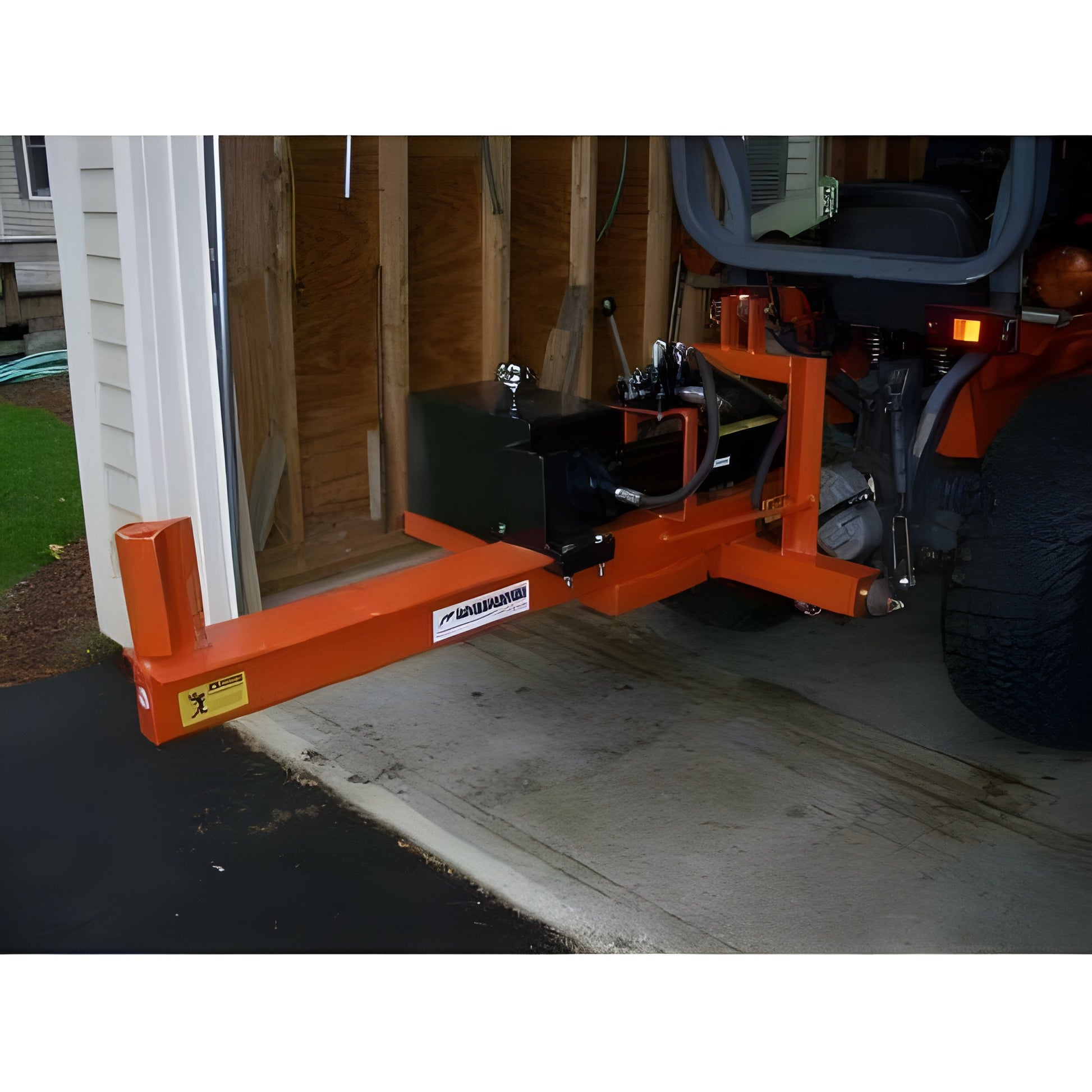

Wood Splitters Direct 20 Ton Horizontal Tractor 3pt Log Splitter - 3PT20H

Just hook up to the auxiliary outputs and start splitting firewood.

Our 20 ton (3PT20H) wood splitters for tractors made by Ram Splitter have become a popular choice for the tractor owner who wants to use their tractors existing hydraulics to power this splitter.

The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included. Top link pins or anything else that is related to your tractor for hardware are not included. All connections including hoses are included with PTO kits.

It is recommended that you have a flow rate of 7.5GPM or higher for this log splitter. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump. Tractor required to be 25hp or higher to run PTO kits. Please see options. Instead of displaying several listings with various options we have decided to let you customize your splitter!

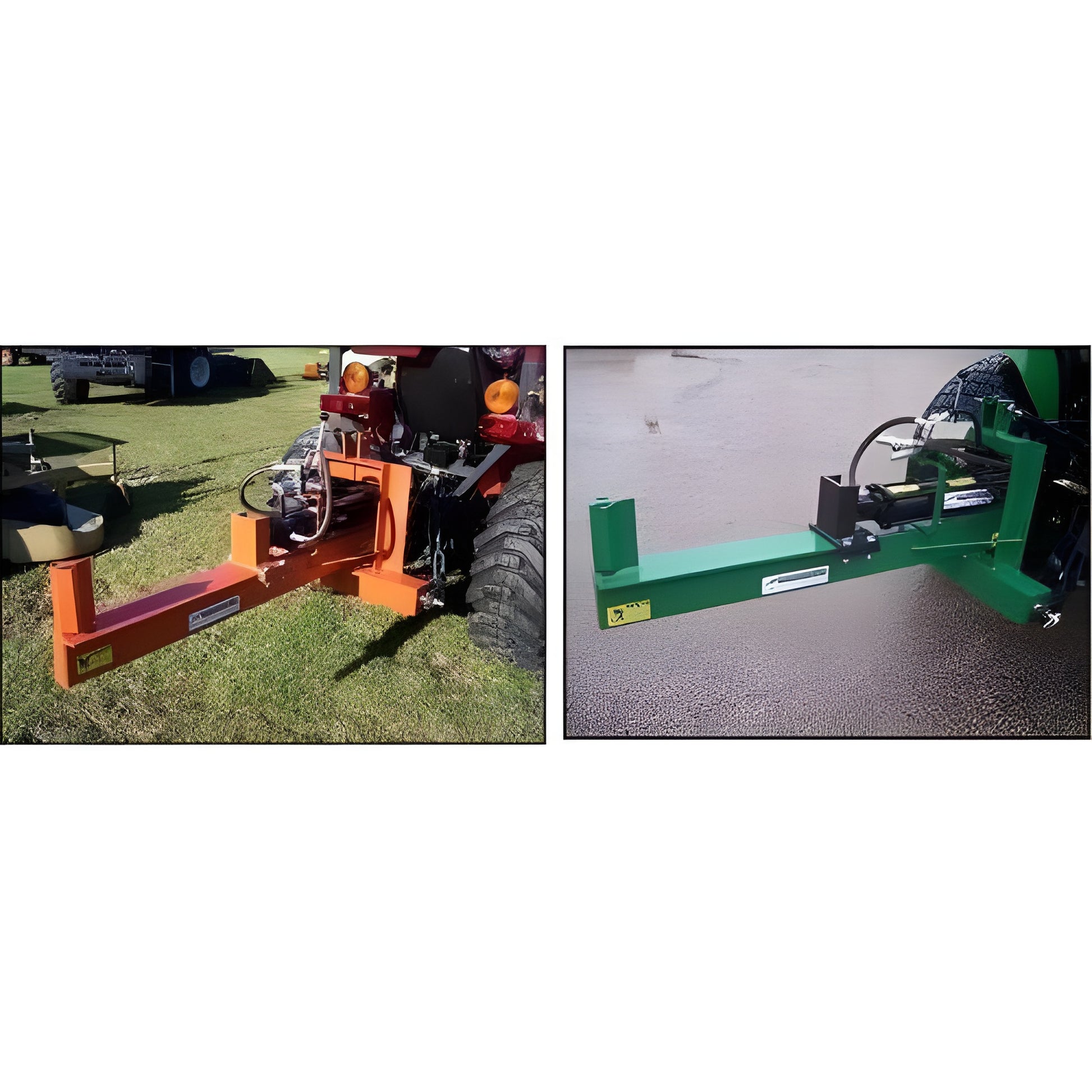

• Color Choice - At no additional cost you get to choose your color: Black, Kubota orange, John Deere green or Ford blue.
• PTO Kit - PTO (Power Take Off) kit runs completely off your PTO on your tractor. There is no need to worry about any of your hydraulics as this system is self contained which includes a tank and a 21GPM PTO pump. Hook up the pump to the PTO, fill the tank with fluids and your ready to split wood. This PTO pump is designed for 540RPM at the PTO.  25HP min tractor required.
• 4 Way Wedge - Split logs into 4 pieces. 4 way wedge just slips over the existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 3". Split one log once instead of 3 times to get 4 pieces.
• Log Cradles - These cradles are welded on the beams on each side of the opening between the wedge and the push plate on the cylinder. This eliminates the need from having to hold the log into place with your hand.
• Opening Size - The standard opening size on this unit is 26". The cylinder stroke is 24" making it a 4" x 24" cylinder. Looking for a bigger opening for that wood boiler or stove that can take larger pieces? We offer a 4" x 30" (32" opening) stroke cylinder.

Features

Specifications

What Our Experts Think

• Heavy-duty 20-ton horizontal log splitter for tractors with 3-point hitch

• Efficient splitting of large logs with minimal effort

• Durable construction ensures long-lasting performance in heavy workloads

• Compact and easy-to-mount design for versatile tractor compatibility

• Recommended by forestry and agricultural experts for strength, reliability, and productivity

Q&A

• Q: What is the splitting force?
  A: 20 tons for tough logs and large-scale work

• Q: What type of tractor compatibility is required?
  A: Designed for standard 3-point hitch tractors

• Q: Is it easy to operate?
  A: Yes, lever-controlled splitting for safe, efficient use

• Q: Can it handle large logs?
  A: Yes, built for heavy-duty, large-diameter logs

Maintenance Tips

• Inspect hydraulic connections and hoses regularly

• Keep moving parts and wedge clean and free of debris

• Lubricate pivot points as recommended by the manufacturer

• Store in a dry, sheltered location to prevent rust and corrosion

• Check mounting and attachment points before each use
