Wood Splitters Direct 20 Ton Horizontal Vertical Tractor 3pt Log Splitter (3PT20HV)
Our 20 ton (3PT20HV) HV log splitter for tractors made by Ram Splitter have become a popular choice over the years.

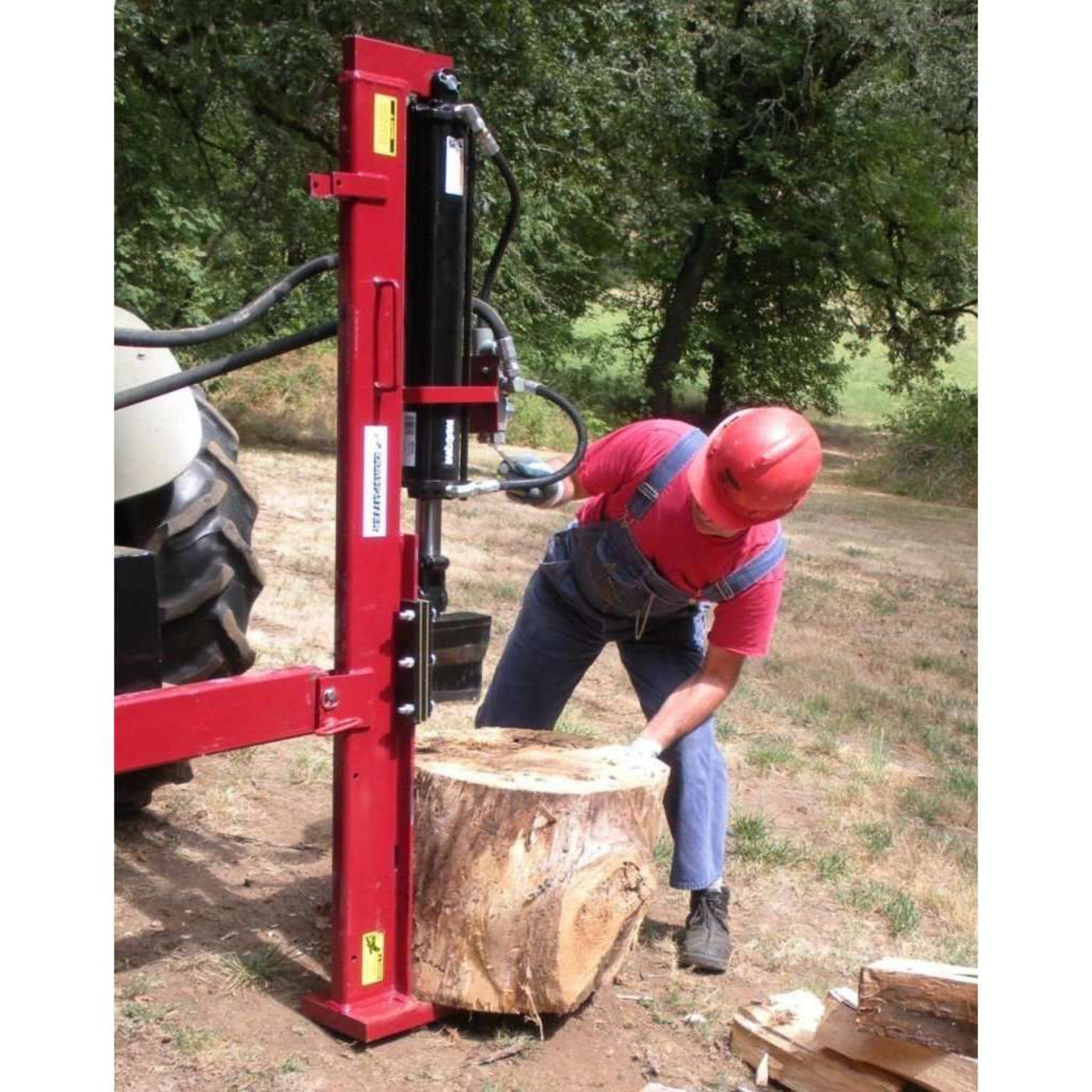

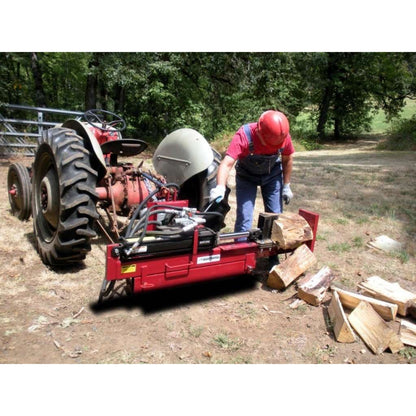

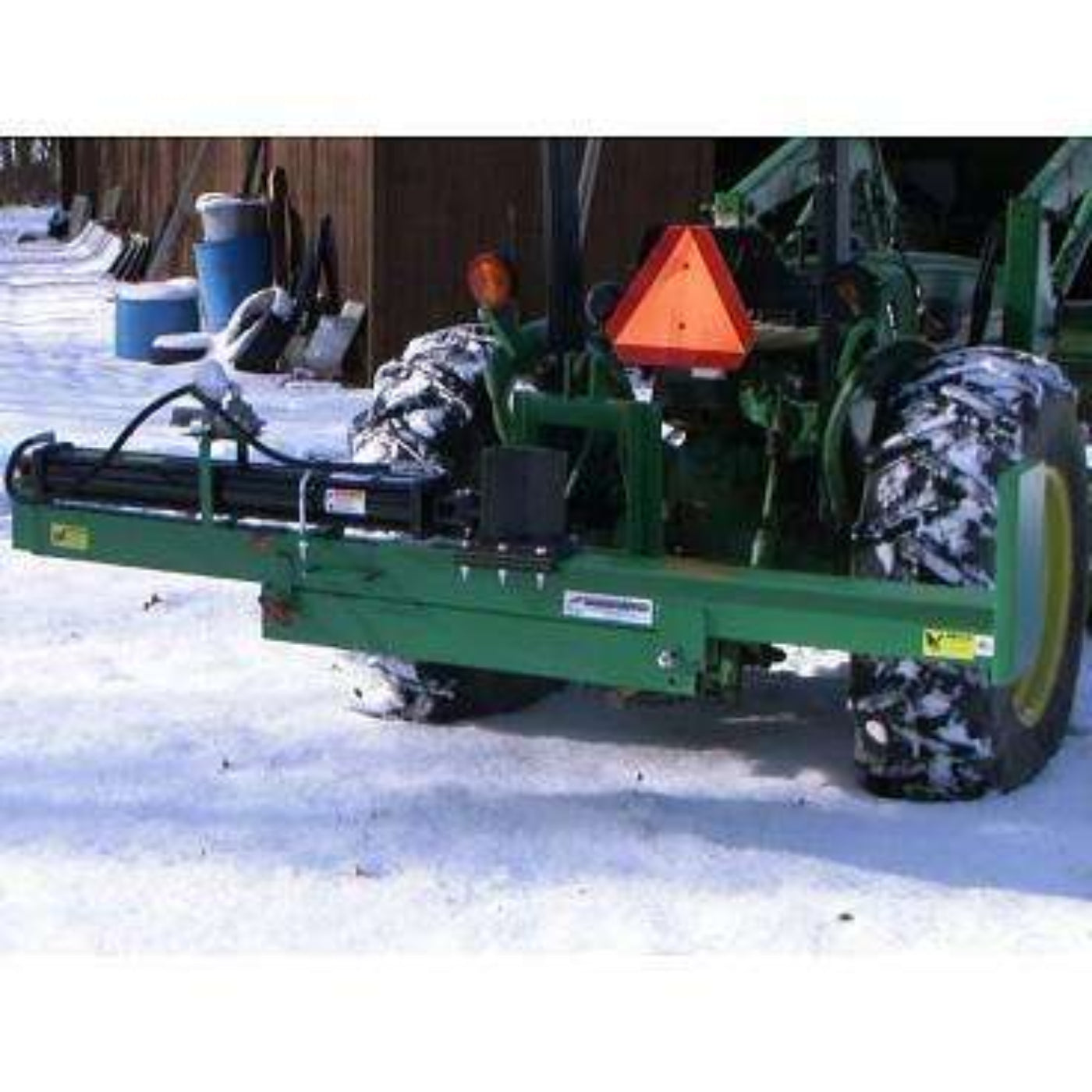

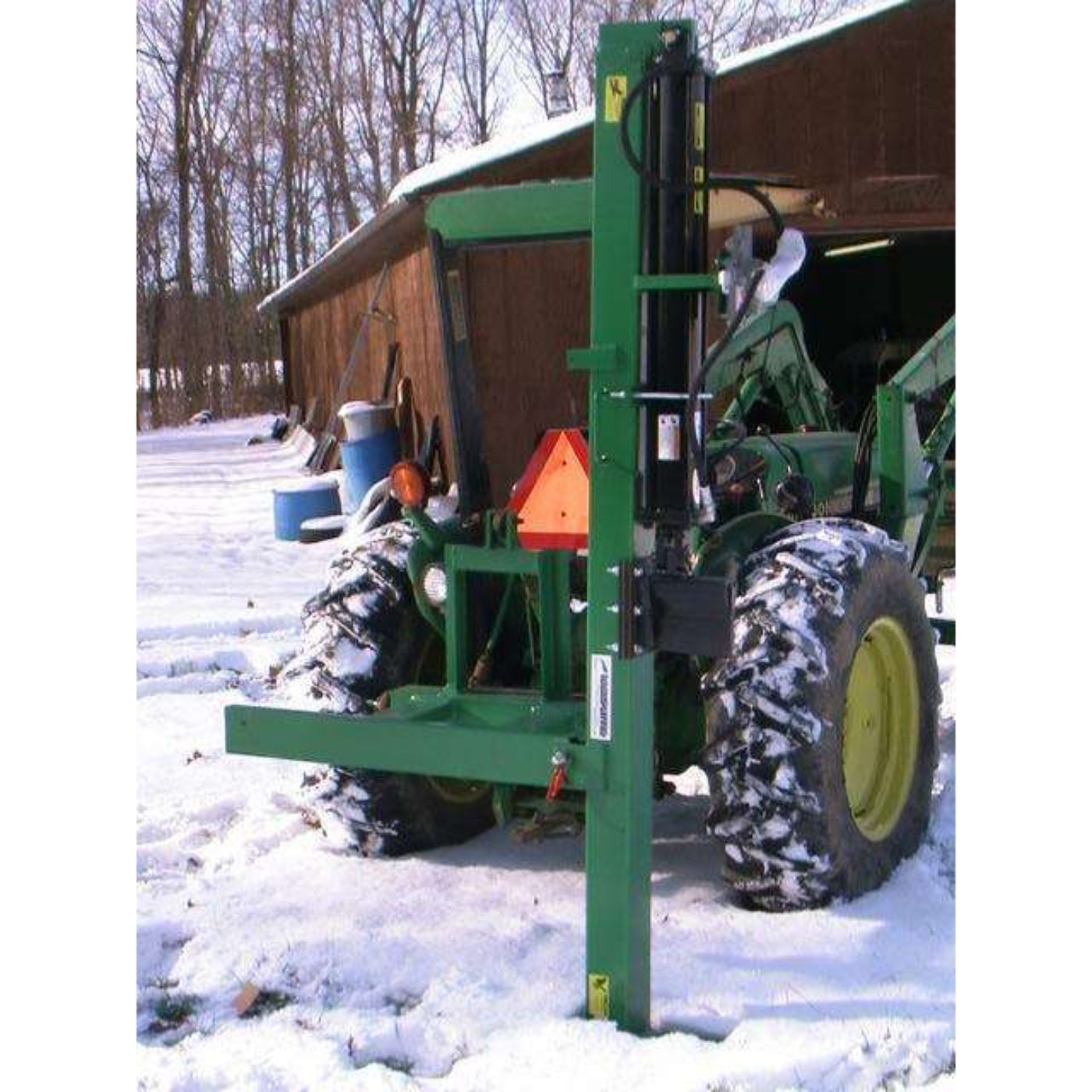

This 3 point log splitter unit will split both in the horizontal and vertical position for those large rounds you really don't feel like lugging up on the beam.
The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included. Top link pins or anything else that is related to your tractor for hardware are not included. All connections including hoses are included with PTO kits.
It is recommended that you have a flow rate of 7.5GPM or higher for this log splitter. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump. Tractor required to be 25hp or higher to run PTO kits.
Features
- Beam Structure: Tubular design 2" wide x 5" tall. 6" Top plate reinforced heavy-duty
- Splitting Wedge: 8" High
- Operating Position: Horizontal / Vertical
- Force / Tonnage: 20 Ton (Approx depending on tractor PSI)
- Cylinder: 4" x 24" (Optional 30")
- Cycle Time: 10-15 Seconds (Approx depends on tractor GPM)
Specifications
| Tonnage |
20 Ton (Approx depending on tractor PSI) |
| Beam Structure |
Tubular design 2" wide x 5" tall. 6" Top plate reinforced heavy-duty |
| Splitting Wedge |
8" High |
| Operating Position |
Horizontal / Vertical |
| Force / Tonnage |
20 Ton (Approx depending on tractor PSI) |
| Cylinder |
4" x 24" (Optional 30") |
| Cycle Time |
10-15 Seconds (Approx depends on tractor GPM) |
| Log Opening |
25 inch (31 inch optional) |
| Working Height |
You adjust with your 3 point hitch |
| Safety Control Valve |
Detent, Auto Return |
| Operation Weight |
400 LBS |
| Made in USA |
Yes |
| Color |
Choice: Black, Orange, Green, Blue |
| 4 Way Wedge |
Optional |
| PTO Driven |
Optional |
| Log Cradles |
Optional |
What Our Experts Think
-
Powerful 20-ton splitting force handles large logs with ease.
-
Dual horizontal and vertical operation for versatile splitting.
-
Tractor-mounted 3-point hitch design ensures easy transport and setup.
-
Heavy-duty construction built for durability and long-term use.
-
Ideal for farmers, landscapers, and firewood producers.
Q&A
Q: What tractors is this compatible with?
A: Fits standard 3-point hitch tractors with adequate horsepower.
Q: Can it split logs both vertically and horizontally?
A: Yes, designed for dual orientation splitting for convenience.
Q: Is assembly required?
A: Minimal assembly needed; detailed instructions included.
Maintenance Tips
-
Regularly check hydraulic fluid levels and top up as needed.
-
Inspect and tighten bolts before each use.
-
Keep wedge sharp for efficient splitting.
-
Clean debris from moving parts after each session.
-
Store in a dry place to prevent rust and corrosion.
