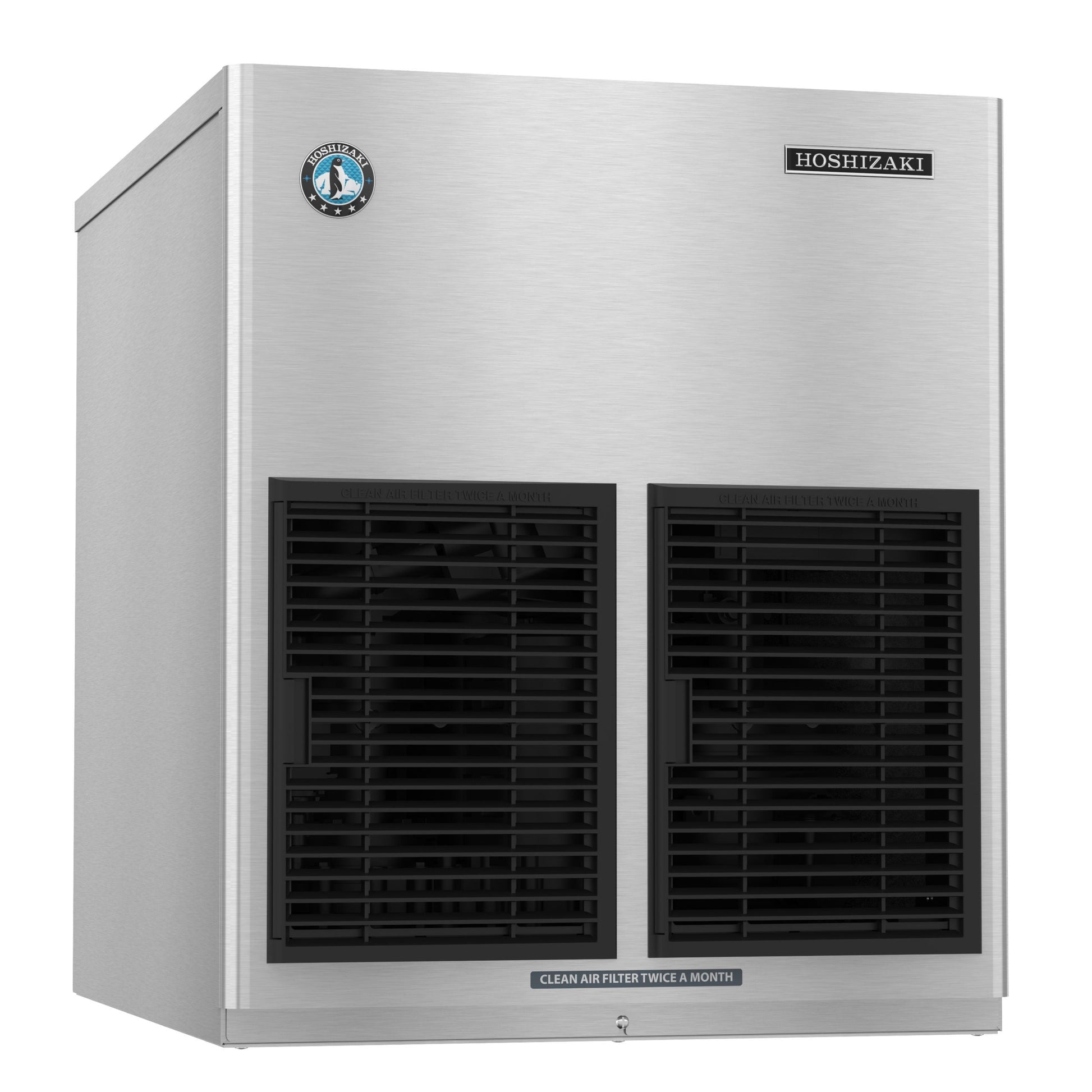

Hoshizaki | 22" Wide Air-Cooled Small Cubelet Ice Maker (Bin Sold Separately) - F-801MAJ-C
The F-801MAJ-C is capable of producing approximately 632 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.
Features
- Dimensions: 22″ W x 27-3/8″ D x 26″ H
- Up to 632 lbs of ice produced per 24 hours
- Mount 2 units side-by-side for 2x the ice production

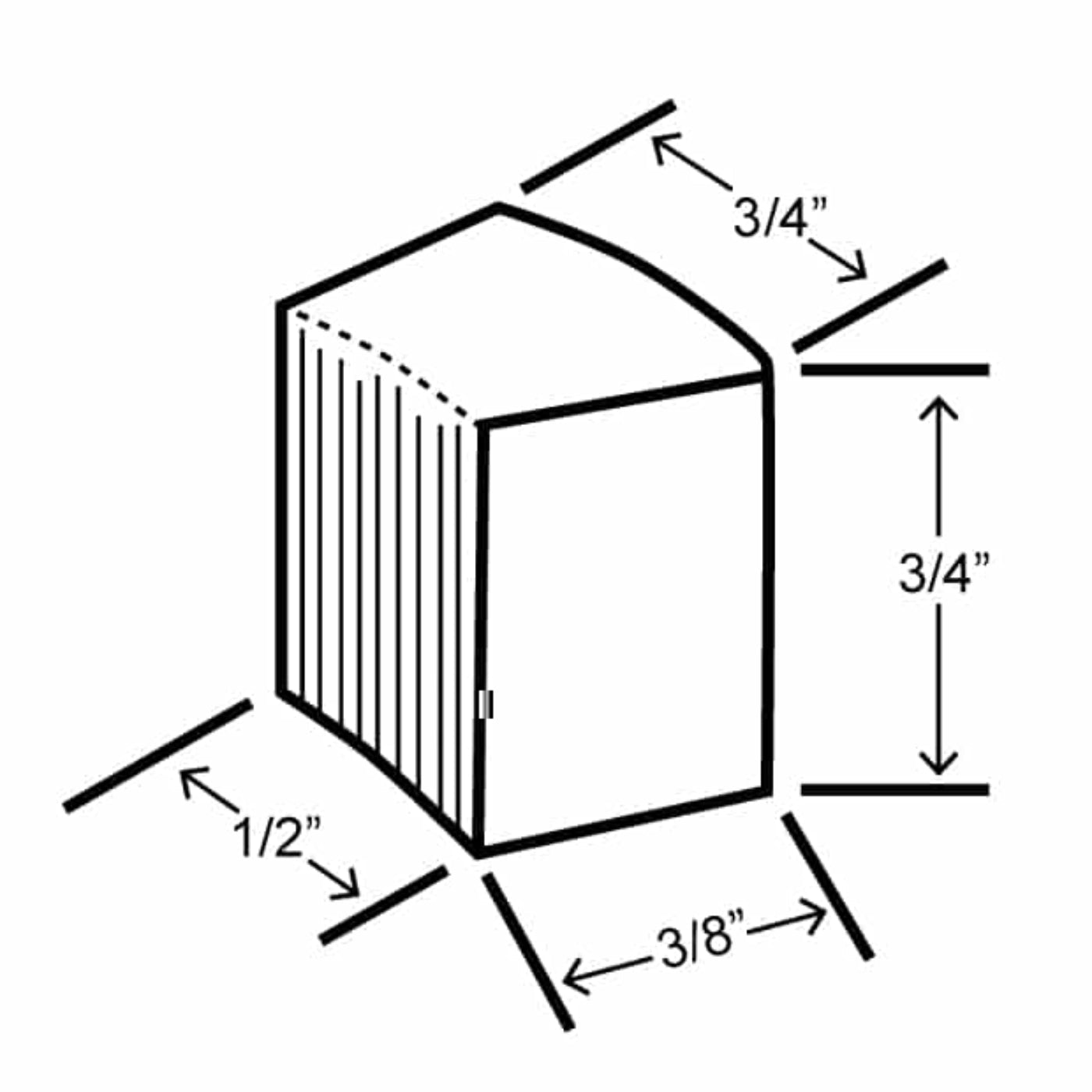

- Produces small cubelet nugget-style ice
- Durable stainless steel exterior

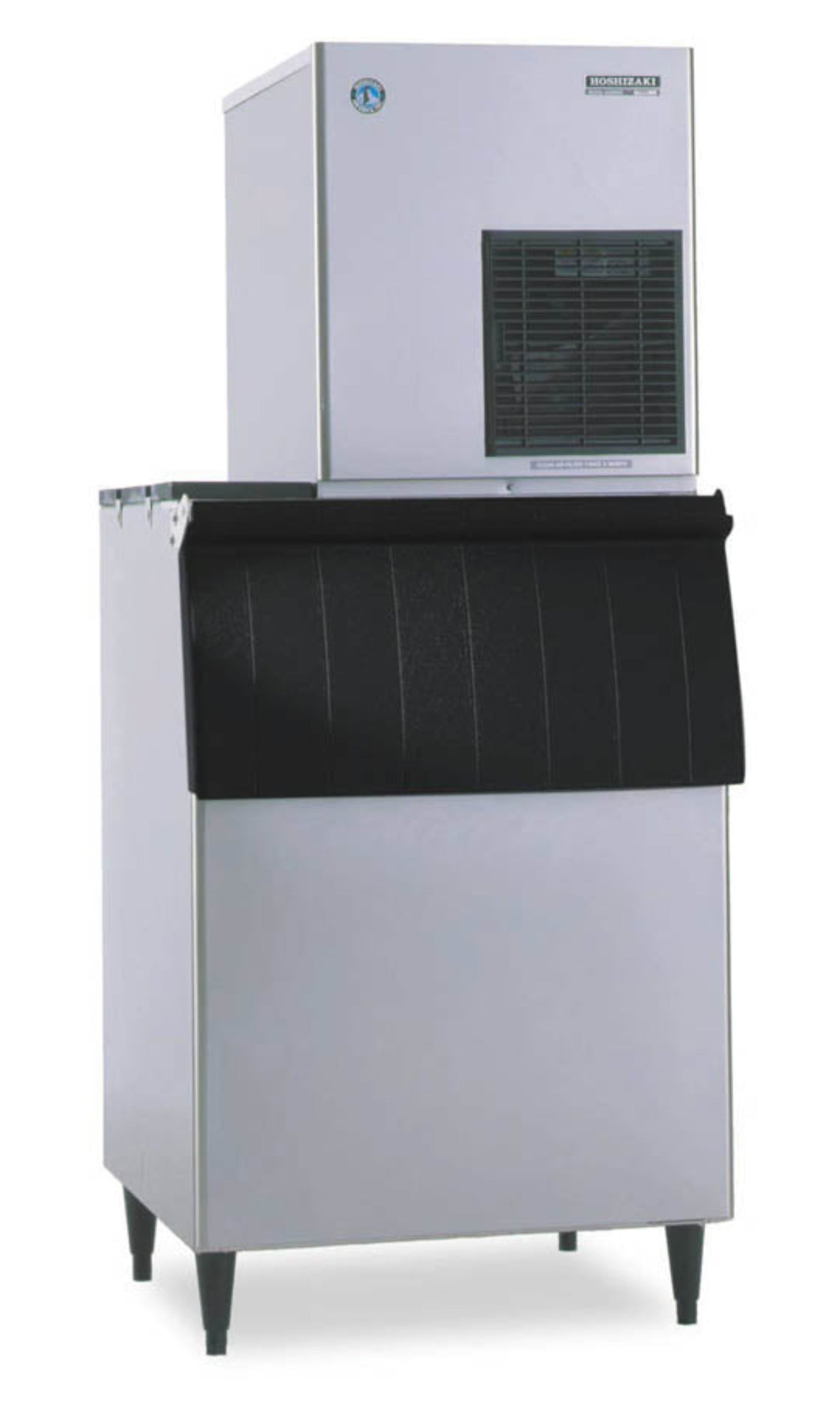

- Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
- 2 second rinse every hour to remove sediment for cleaner ice
- Advanced CleanCycle24™ design
- Infrared bin control for easy cleaning and reliability
- R-404A refrigerant (1 lbs. 12 oz. / 790 g)
- Heat Rejection: BTU/hr
- Ambient temperature range: 45 – 100°F
- Water temperature range: 45 – 90°F
- Water pressure: 10 – 113psig
- Voltage range: 104 – 127V
- 11.8 amps (15 Amp Max fuse)
- 5 kwh/100 lbs.@ 90/70
- Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
- Three Years: Parts & Labor warranty on entire machine.
- Five Years: Parts warranty on Compressor, air-cooled condenser coil.
Specifications
| Brand |
Hoshizaki |
| Model Number |
F-801MAJ-C |
| Weight |
200 lbs |
| Width |
22" |
| Depth |
27.38" |
| Height |
26" |
| Compatible With |
ice storage bin |
| Cooling |
air-cooled |
| Ice Type |
nugget ice |
| Refrigeration |
self-contained refrigeration |
| Energy Efficiency |
ENERGY STAR® |
| Production per 24 hr (Lbs) |
690 |
| Voltage |
115 |
| Phase |
1 |
| Drain Type |
gravity drain |
What Our Experts Think
-
Compact Design: 22-inch wide ice maker, perfect for spaces where efficiency and space-saving are key.
-
Air-Cooled System: Efficient air-cooled technology ensures fast, reliable ice production while reducing water and energy usage.
-
High-Quality Ice: Produces small, chewable cubelets that are perfect for beverages and easy to store.
-
Reliable Performance: Built for long-lasting, continuous operation, ideal for small to medium-sized commercial setups.
-
Bin Sold Separately: Flexible setup with separate bin purchase, allowing you to customize your ice storage capacity.
Q&A
Q: What is the Hoshizaki F-801MAJ-C?
A: The Hoshizaki F-801MAJ-C is a 22-inch wide air-cooled small cubelet ice maker, designed to efficiently produce high-quality ice for commercial use. (Bin sold separately.)
Q: What type of ice does the Hoshizaki F-801MAJ-C produce?
A: It produces small, cubelet ice, perfect for beverages, ensuring quick chilling and a smooth texture.
Q: Is the ice maker air-cooled?
A: Yes, the F-801MAJ-C features an air-cooled system, offering efficient performance and easy installation without the need for a water-cooled setup.
Q: Does the Hoshizaki F-801MAJ-C come with a bin?
A: No, the bin is sold separately, allowing you to choose the right storage solution based on your needs.
Q: How much ice does the Hoshizaki F-801MAJ-C produce?
A: The F-801MAJ-C can produce up to 800 pounds of ice per day, providing a steady supply for high-demand commercial environments.
Maintenance Tips
-
Regular Cleaning: Clean the exterior and interior surfaces with a damp cloth. Use a mild detergent for stubborn stains.
-
Descale the Machine: Perform regular descaling to prevent mineral buildup and ensure optimal performance.
-
Inspect the Air Filter: Clean or replace the air filter as needed to maintain proper airflow and efficiency.
-
Check Water Supply: Ensure the water line is clear and connected securely to avoid leaks or blockages.
-
Empty the Bin: Empty the ice storage bin regularly to maintain ice quality and prevent odors.
