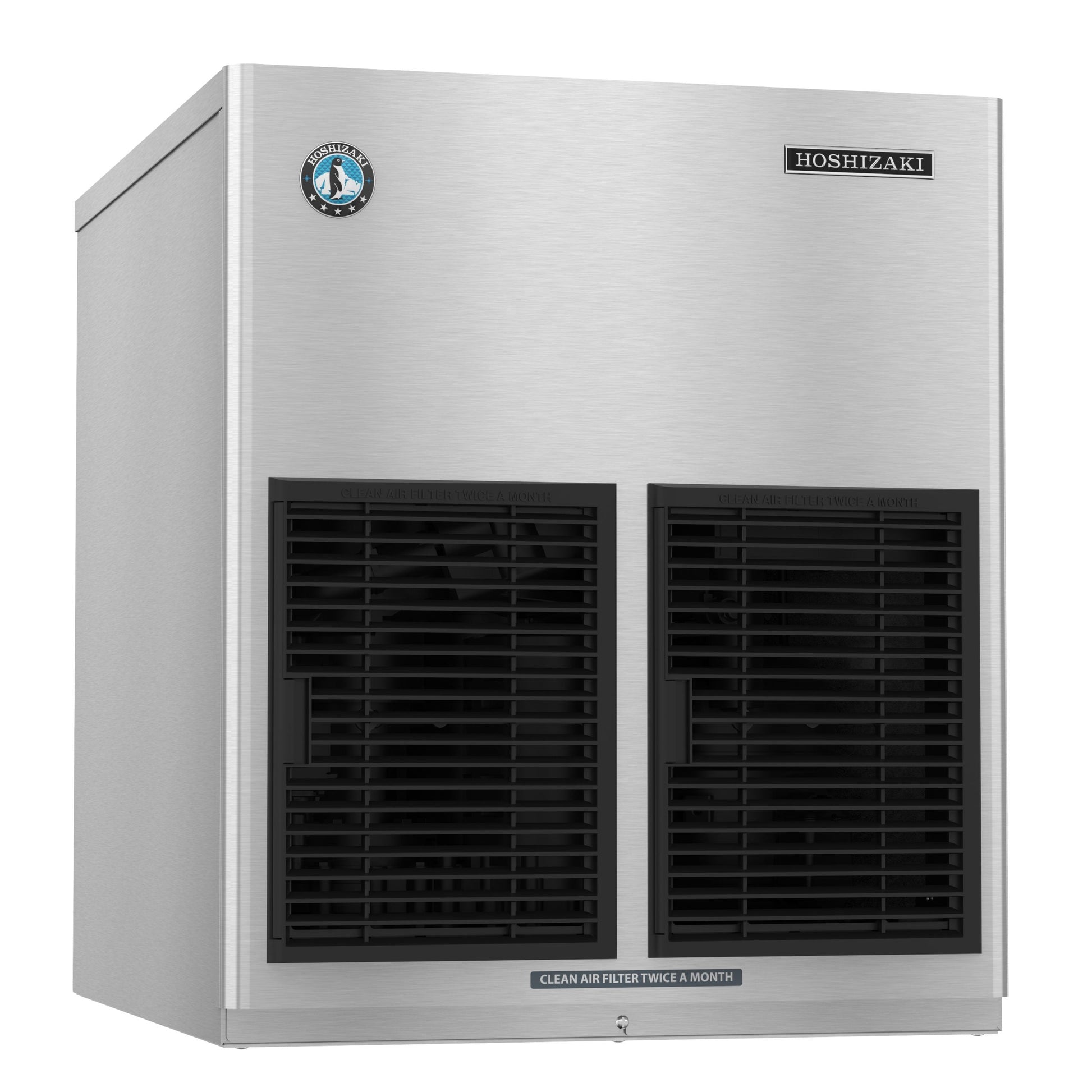

HoshizakiF-801MAJ-C | 22" Wide Air-Cooled Small Cubelet Ice Maker (Bin Sold Separately) -   F-801MAJ-C

HoshizakiF-801MAJ-C | 22" Wide Air-Cooled Small Cubelet Ice Maker (Bin Sold Separately) -   F-801MAJ-C

The F-801MAJ-C is capable of producing approximately 632 lbs of cubelet (nugget-style) ice per day. Cubelet ice is the most popular ice for drinks – as it cools the beverage quickly and absorbs the flavor making an easy-to-chew treat. This Air-cooled, Slim Line Modular icemaker features the Advanced CleanCycle24™ design plus a greaseless bearing auger construction making it simple to maintain. The F-801MAJ-C requires a Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650. ENERGY STAR® qualified. Please consult the Specification Sheet for additional details.

Features

• Dimensions: 22″ W x 27-3/8″ D x 26″ H
• Up to 632 lbs of ice produced per 24 hours
• Mount 2 units side-by-side for 2x the ice production
• Produces small cubelet nugget-style ice
• Durable stainless steel exterior
• Compatible bins & dispensers, sold separately: B-250, B-300, B-500, B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650, B-1150, B-1300, B-1500, B-1650
• 2 second rinse every hour to remove sediment for cleaner ice
• Advanced CleanCycle24™ design
• Infrared bin control for easy cleaning and reliability
• R-404A refrigerant (1 lbs. 12 oz. / 790 g)
• Heat Rejection: BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 11.8 amps (15 Amp Max fuse)
• 5 kwh/100 lbs. 90/70
• Single phase, 115v/60/1, 3 wire, including ground. Must be hardwired at site, no cord/plug included
• ENERGY STAR qualified

Specifications

What Our Experts Think

The Hoshizaki F-801MAJ-C is a 22” air-cooled small cubelet ice maker, designed for businesses that require high-capacity, chewable ice with efficient performance.

• Impressive Ice Production – Produces up to 751 lbs. of small cubelet ice per day.
• Soft, Chewable Ice – Perfect for beverages, healthcare, and blended drinks.
• Air-Cooled Efficiency – Reduces water consumption and allows for easy installation.
• Durable Stainless Steel Build – Ensures longevity and easy maintenance.
• Hygienic Design – Features H-GUARD Plus® antimicrobial protection to minimize bacteria growth.
• Energy & Water Efficient – Meets NSF and UL standards, optimizing operational costs.

Q&A

Q: How much ice does this machine produce?
A: It produces up to 690 lbs of small cubelet ice per day.

Q: What type of cooling system does it use?
A: It features an air-cooled system for efficient operation and easy installation.

Q: Is the ice storage bin included?
A: No, the storage bin is sold separately.

Q: What are the benefits of small cubelet ice?
A: Soft, chewable, and great for beverages, healthcare, and blended drinks.

Q: What are the dimensions of this ice maker?
A: The unit measures 22" W x 27.38" D x 26" H.

Q: Where is this ice maker best suited?
A: Ideal for restaurants, bars, cafes, and healthcare facilities.

Maintenance Tips

• Clean the Air Filter – Wash monthly to maintain airflow and prevent overheating.
• Sanitize the Ice System – Prevent mold and bacteria by cleaning every 1-3 months.
• Replace Water Filters – Change every 6 months to ensure ice purity and machine longevity.
• Descale the Evaporator – Use a Hoshizaki-approved descaler every 3-6 months.
• Check Water Pressure – Maintain 10-113 PSIG for consistent ice production.
• Inspect Moving Parts – Keep components clean to prevent clogging and ensure smooth operation.
• Monitor Ice Output – A drop in production may indicate a clogged filter or scale buildup.
