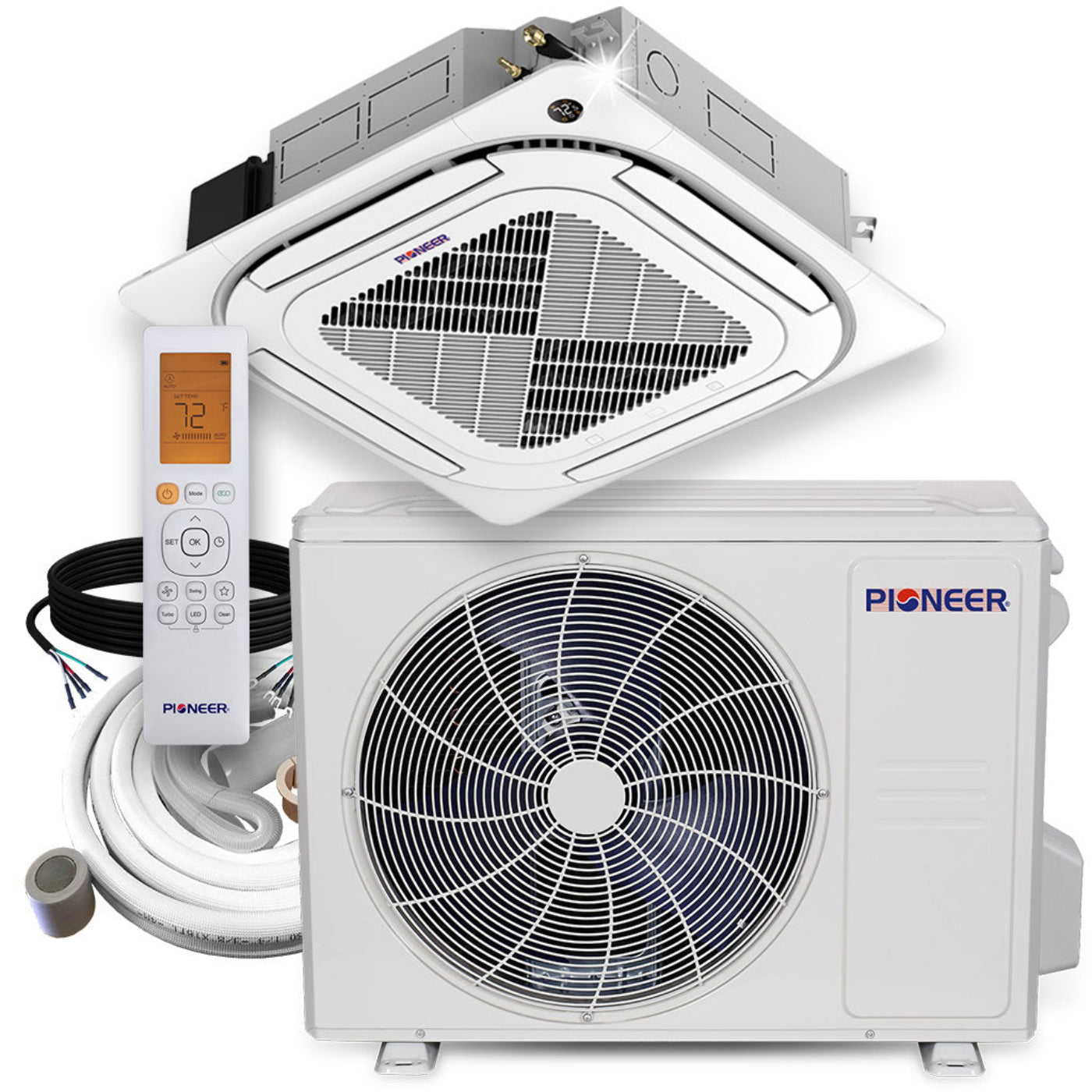

Pioneer® 24,000 BTU 21.5 SEER2 8-Way Slim Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 24,000 BTU/H with 21.5 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 25,000 BTU/H with 9.7 HSPF2 / 3.32 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
-
Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
-
Customizable length copper line set with flare connections
-
Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $153.00
- Heating: $503.00
What's Included
- Indoor Unit
- Outdoor Unit
- Panel
- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
-
Power Supply: 208~230V, 60Hz, 1Ph
-
Cooling Rated Capacity: 24,000 BTU/h
-
Cooling Capacity Range: 8,100~26,200 BTU/h
-
Cooling SEER2: 21.5 BTU /W.h
-
Cooling EER2: 12.5 BTU/W.h
-
Heating Rated Capacity: 25,000 BTU/h
-
Heating Capacity Range: 10,600~30,000 BTU/h
- Heating HSPF2: 9.7 BTU/W.h
- Heating C.O.P.2: 3.37 W/W
- Refrigerant Type: R410a
- Suitable Area: 600~950 Sq.F
Indoor Unit Data
- Model: CB024GMFILDFHE
- Air Flow (Hi/Med/Lo): 706 / 635 / 547 CFM
- Sound Level (Hi/Med/Lo): 49.0 / 46.0 / 43.0 dB(A)
- Net Dimensions (WDH): 32.6 x 32.6 x 8.2 Inches
- Carton Dimensions (WDH): 35.8 x 35.8 x 9.8 Inches
- Net / Gross Weight: 47.2 / 55.3 Lbs
Panel Data
-
Net Dimensions (WDH): 37.7 x 37.7 x 2.2 Inches
- Carton Dimensions (WDH): 40.8 x 40.8 x 3.5 Inches
- Net / Gross Weight: 13.2 / 19.8 Lbs
Outdoor Unit Data
- Model: YN024GMFI22RPE
- Breaker Needed: 25A (double-pole)
- Sound Level: 61.0 dB(A)
- Net Dimensions (WDH): 37.2 x 16.2 x 31.8 Inches
- Carton Dimensions (WDH): 42.8 x 19.6 x 34.0 Inches
- Net / Gross Weight: 124.8 / 134.9 Lbs
Manuals
What Our Experts Think
-
Powerful 24,000 BTU system ideal for large rooms or open spaces.
-
High 21.5 SEER2 efficiency rating reduces energy costs.
-
Slim cassette design fits seamlessly into ceilings with 8-way airflow.
-
Provides both cooling and heating for year-round comfort.
-
Complete 230V set includes indoor unit, outdoor unit, and installation kit.
Q&A
Q: Is this system suitable for large spaces?
A: Yes, the 24,000 BTU capacity efficiently cools and heats bigger areas.
Q: How energy-efficient is it?
A: With a 21.5 SEER2 rating, it delivers high performance while lowering utility bills.
Q: What makes the slim cassette design unique?
A: It installs in ceilings and provides 8-way airflow for even distribution.
Q: Does it include both cooling and heating?
A: Yes, it functions as both an air conditioner and heat pump.
Maintenance Tips
-
Clean filters every 1–2 months for maximum efficiency.
-
Keep ceiling vents free from dust and obstructions.
-
Ensure the outdoor unit is clear of debris for proper airflow.
-
Schedule professional servicing yearly for refrigerant and system checks.
