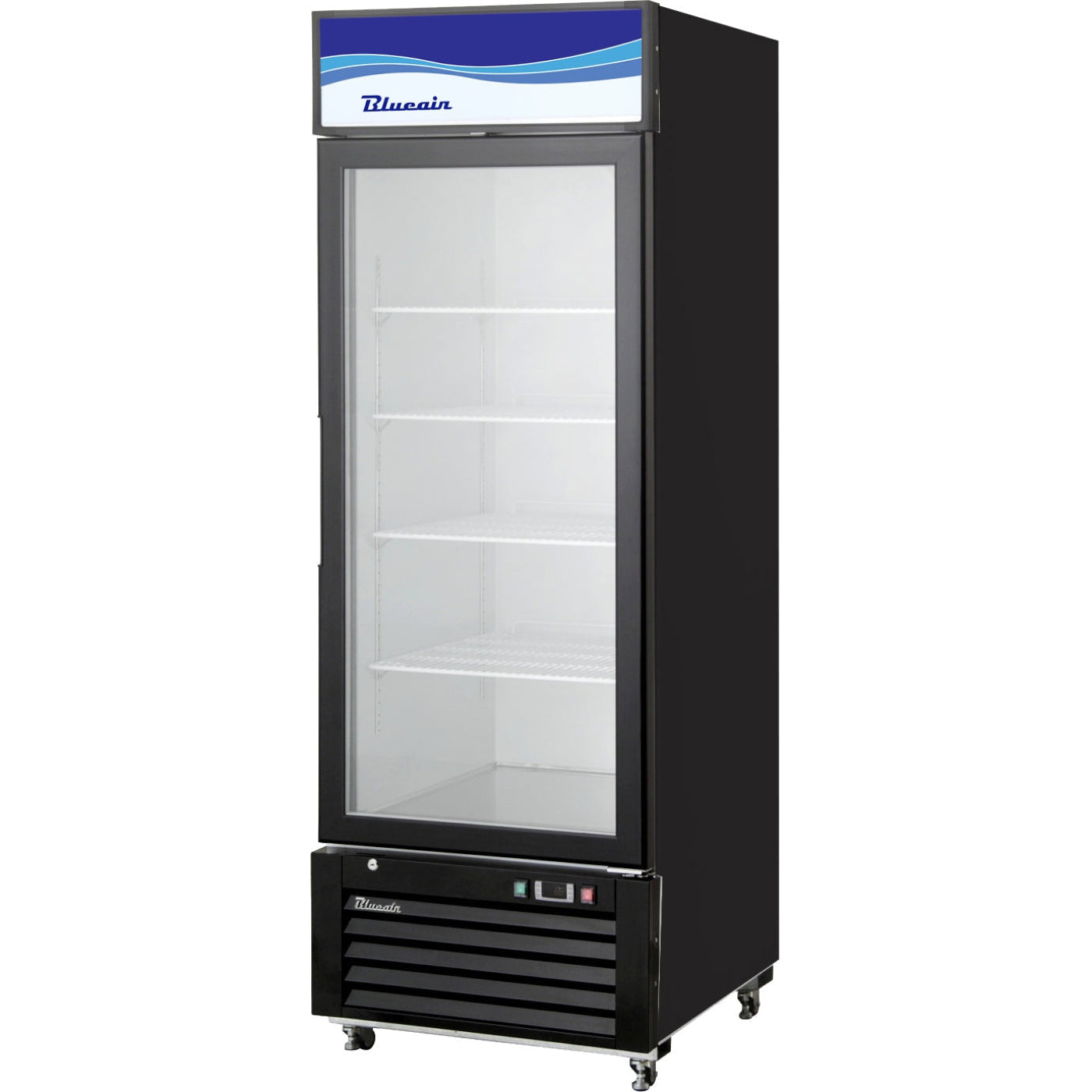

Blue Air BK| 27" Wide 1 Swing Door Black Merchandiser Freezer - GF23B-HC
- Hydrocarbon refrigerants (R-290) – increases energy efficiency by up to 25% compared to using HFC refrigerants. It is safer for the environment and does not cause ozone depletion.
- Front sliding refrigeration unit allows the unit to be serviced without being moved.
- Self-contained system, bottom mounted compressor provides quick and easy maintenance
- Epoxy coated evaporator reduces potential corrosion.
- Freezers hold a temperature range between -10°F ~ 5°F
- Fabric condensation
Features
Cabinet Construction
- Black or white painted steel exterior and white painted steel interior.
- High density foamed in place polyurethane insulation – Environmentally safe.
- Sturdy, epoxy coated wire shelves with adjustable shelving height.
- 4 shelves for each compartment
- 2.5” Diameter swivel casters with front brakes. Four casters on one- and two-door models and six on three-door models (two casters on each model have front brakes)
Doors
- Self closing doors (doors close at 90° or less)
- Automatic hold open door feature at 110°
- Durable door gasket with easy replacement.
- Heavy duty recess door handles
- Door designed to open easily.
- Doors built with pressure relievers to eliminate vacuum pressure and allow easy door opening.
- Standard door locks
- Double pane glass
Design & Features
- Digital temperature control & monitor system
- Keep food products safe by maintaining constant temperatures.
- Digital display allows for easy monitoring.
- Programs interpret the condition of refrigeration systems by self-diagnosis.
- Controls include automatic evaporator fan motor delays.
Lighting
- LED Interior lighting.
- LED backlit graphic panel
- Interior vertical LED lighting
Standard
- NSF/ANSI Standard 7 compliant
Connection
- 9 ft long flexible three wire cord with molded plug
Specifications
| Capacity |
23 cu. ft. |
| Exterior Dimensions ( L x D x H ) |
27 x 31 1/2 x 81 1/4 inch |
| Net Weight |
309 lb |
| Door |
1 |
| Shelves |
4 |
| Compressor |
1/2 HP |
| Refrigerant |
R-290 |
| Temperature Range |
-10℉ ~ 5℉ |
| Input (Voltage / Hz / Phase) |
AC 115V / 60Hz / 1 |
| Amps |
6.3 |
| Energy Consumption |
8 (kWh/day) |
Documents
Spec Sheet
What Our Experts Think
-
Compact and Efficient Freezing: The Blue Air 27" Wide 1 Swing Door Black Merchandiser Freezer is perfect for smaller spaces or businesses looking to showcase frozen goods while maintaining efficient use of space. With a sleek, compact design, it’s ideal for convenience stores, restaurants, or any setting with limited space.
-
Energy-Efficient and Reliable: Equipped with an HC refrigeration system, this freezer provides powerful, consistent freezing while reducing energy usage. It helps to lower overall energy costs, making it both environmentally friendly and cost-effective.
-
Merchandiser Design for Easy Display: The glass swing door provides visibility of the contents, making it easy for customers to browse frozen products without having to open the door. This helps maintain the freezer’s temperature while promoting items for sale.
-
Durable and Low Maintenance: Constructed from high-quality materials, including stainless steel and black vinyl, the GF23B-HC is both durable and easy to clean, designed to withstand the demands of a busy environment.
-
Adjustable Shelving for Flexibility: The interior features adjustable shelving, allowing you to arrange the freezer to accommodate various frozen goods and optimize storage space.
-
User-Friendly Controls: The digital controls make it easy to set and monitor temperatures, ensuring your products are stored at the ideal freezing temperatures with minimal effort.
-
Sleek and Professional Appearance: The black exterior design offers a modern and professional look that blends seamlessly into any retail or commercial space, enhancing both functionality and aesthetics.
Q&A
Q: What is the Blue Air 27" Wide 1 Swing Door Black Merchandiser Freezer?
A: The Blue Air GF23B-HC is a 27" wide commercial merchandiser freezer with one swing door and a sleek black finish, designed for displaying frozen products in retail settings like convenience stores, supermarkets, and foodservice establishments.
Q: What is the storage capacity of the Blue Air Merchandiser Freezer?
A: The GF23B-HC offers spacious storage with adjustable shelves, perfect for storing frozen food items such as ice cream, frozen meals, or other packaged goods that require visibility and easy access.
Q: Is the Blue Air merchandiser freezer energy-efficient?
A: Yes, the GF23B-HC features an energy-efficient refrigeration system using eco-friendly hydrocarbon refrigerant (HC), ensuring consistent freezing while minimizing energy consumption.
Q: How easy is the Blue Air merchandiser freezer to clean?
A: The GF23B-HC is constructed with durable stainless steel and features a sleek, easy-to-clean black exterior, making it simple to maintain and ensure a hygienic display in high-traffic areas.
Q: What types of businesses is the Blue Air Merchandiser Freezer ideal for?
A: The GF23B-HC is ideal for retail businesses like convenience stores, grocery stores, supermarkets, and foodservice operations that need to display frozen items in a visually appealing and easily accessible manner.
Q: What is the power requirement for the Blue Air merchandiser freezer?
A: The GF23B-HC operates on a standard 115V commercial power outlet, making it easy to install and use in most retail environments.
Q: Does the Blue Air merchandiser freezer have a self-contained refrigeration system?
A: Yes, the GF23B-HC is equipped with a self-contained refrigeration system, offering efficient freezing and convenient installation in retail spaces.
Maintenance Tips
-
Daily Cleaning: Wipe down the interior and exterior of the freezer with mild detergent and warm water to remove spills, food residue, and dirt. Regular cleaning will help prevent odors and maintain a hygienic environment.
-
Sanitize the Interior: Regularly sanitize the interior, including shelves and compartments, to prevent bacteria buildup. Pay special attention to door handles and areas with frequent contact.
-
Monitor Temperature: Ensure that the freezer maintains the ideal temperature of 0°F or lower. Use a thermometer to monitor and adjust the temperature as necessary for safe food storage.
-
Clean the Condenser Coils: Dust and debris can accumulate on the condenser coils, reducing the efficiency of the unit. Clean the coils every 1-2 months using a vacuum or coil brush to keep the system running smoothly.
-
Check Door Seals: Inspect the door gaskets for any damage, such as cracks, tears, or wear. Damaged seals can cause cold air to leak out, reducing efficiency. Replace any faulty gaskets promptly.
-
Defrost as Needed: If ice builds up inside the freezer, manually defrost it to maintain proper airflow. This ensures that the unit works efficiently without putting unnecessary strain on the compressor.
-
Lubricate Door Hinges: Periodically lubricate the door hinges with food-safe lubricant to ensure smooth opening and closing. This helps prevent squeaking and sticking of the door.
-
Ensure Proper Ventilation: Maintain 2-4 inches of clearance around the freezer to allow for proper airflow. Avoid overcrowding the unit to ensure it operates efficiently and doesn't overheat.
-
Inspect Drain Lines: Regularly check the drain lines to make sure they are free of blockages. Blocked drain lines can lead to water buildup inside the freezer, potentially affecting its performance.
-
Annual Professional Servicing: Schedule an annual inspection with a professional technician to check refrigerant levels, electrical components, and ensure the freezer is operating at its best.
