Our 30 ton (3PT30H) wood splitters for tractors made by Ram Splitter are built with one thing in mind, power.
If you have the tractor to push this log splitter then this one of the most cost effective ways to split firewood. This log splitter will push up to 60,000lbs of force for those tough nasty logs.
The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included. Top link pins or anything else that is related to your tractor for hardware are not included. All connections including hoses are included with PTO kits.
It's recommended that you have a flow rate of 12GPM (the more the better) or higher for this log splitter, otherwise you would be looking at a very slow cycle time. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump.
Ā

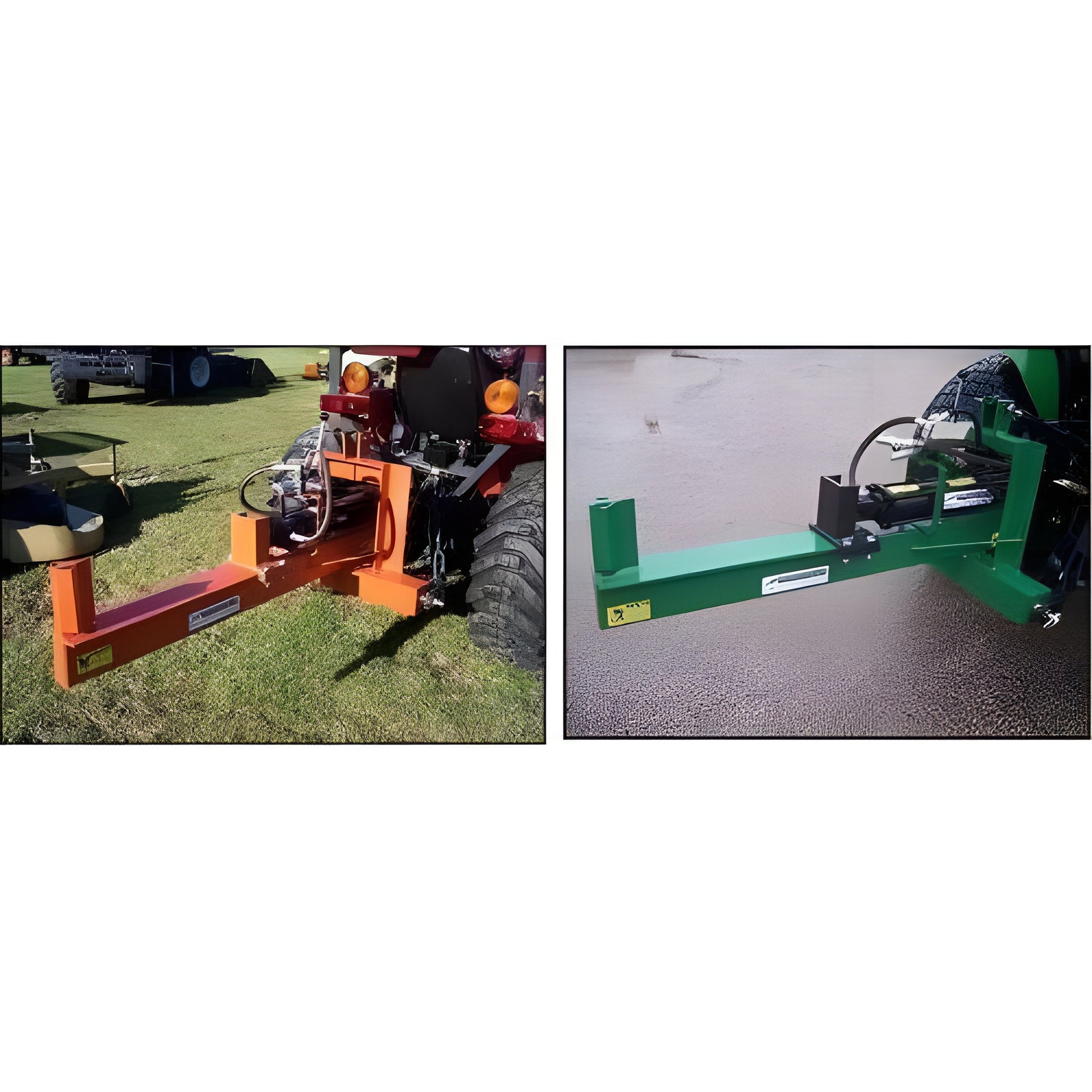

Color Choice - At no additional cost you get to choose your color: Black, Kubota orange, John Deere green or Ford blue.

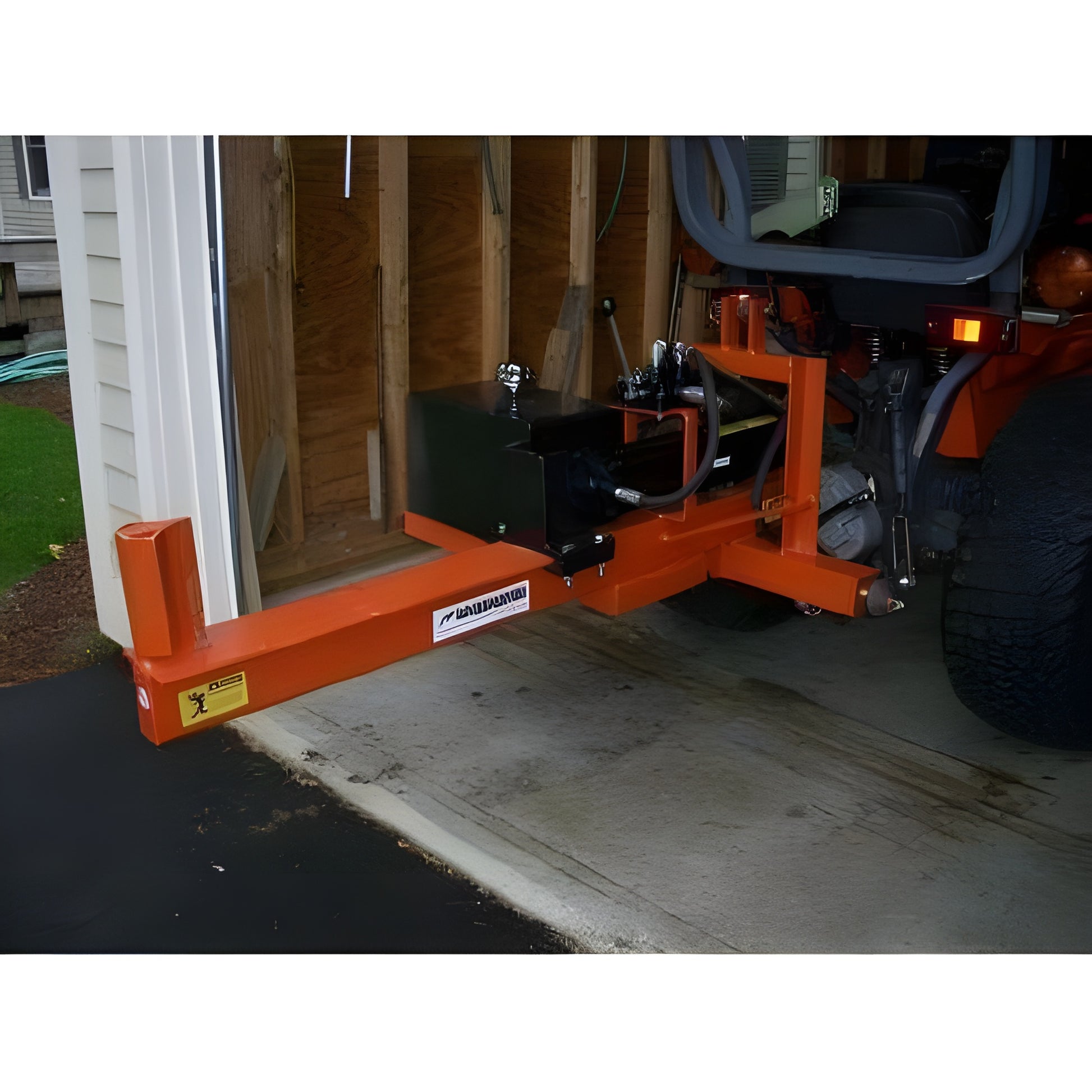

PTO Kit - PTO (Power Take Off) kit runs completely off your PTO on your tractor. There is no need to worry about any of your hydraulics as this system is self contained which includes a tank and a 21GPM PTO pump. Hook up the pump to the PTO, fill the tank with fluids and your ready to split wood. This PTO pump is designed for 540RPM at the PTO.Ā 35 HP minimum tractor required.
4 Way Wedge - Split logs into 4 pieces. 4 way wedge just slips over the existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 3". Split one log once instead of 3 times to get 4 pieces.
Log Cradles - These cradles are welded on the beams on each side of the opening between the wedge and the push plate on the cylinder. This eliminates the need from having to hold the log into place with your hand.
Opening Size - The standard opening size on this unit is 26".Ā The cylinder stroke is 24" making it a 5" x 24" cylinder. Looking for a bigger opening for that wood boiler or stove that can take larger pieces? We offer a 5" x 30" (32" opening) stroke cylinder.
Features
- Beam Structure: Tubular design 3" wide x 6" tall. 6" Top plate reinforced heavy-duty
- Splitting Wedge: 10" High
- Operating Position: Horizontal
- Force / Tonnage: 30 Ton (Approx depending on tractor PSI)
- Cylinder: 5" x 24" (Optional 30" or 36")
Specifications
| Beam Structure |
Tubular design, 3" wide x 6" tall. 6" top plate reinforced heavy-duty |
| Splitting Wedge |
10" high |
| Operating Position |
Horizontal |
| Force / Tonnage |
30 Ton (Approx depending on tractor PSI) |
| Cylinder |
5" x 24" (Optional: 30" or 36") |
| Cycle Time |
10-15 Seconds (Approx depends on tractor GPM) |
| Log Opening |
25 Inches |
| Working Height |
Adjustable with 3-point hitch |
| Safety Control Valve |
Detent, Auto Return |
| Operation Weight |
475 lbs |
| Made in USA |
Yes |
| Color |
Choice: Black, Orange, Green, Blue |
| Log cradles |
Optional |
| PTO Driven |
Optional |
| 4 Way Wedge |
Optional |
| Optional |
5" x 30" Cylinder |
What Our Experts Think
-
Heavy-duty 30-ton horizontal log splitter designed for tractors with a 3-point hitch
-
Efficiently splits large logs with minimal effort for high productivity
-
Durable steel construction ensures long-lasting performance in demanding workloads
-
Compact and easy-to-mount design fits most standard 3-point tractors
-
Recommended by forestry and agricultural experts for strength, reliability, and efficiency
Q&A
-
Q: What is the splitting force?
A: 30 tons, ideal for heavy-duty logs
-
Q: What tractor compatibility is required?
A: Designed for standard 3-point hitch tractors
-
Q: Is it easy to operate?
A: Yes, lever-controlled splitting allows safe and efficient use
-
Q: Can it handle large-diameter logs?
A: Yes, built for commercial-scale log splitting
Maintenance Tips
-
Inspect hydraulic hoses and connections before each use
-
Keep wedge and moving parts clean and free of debris
-
Lubricate pivot points as recommended by the manufacturer
-
Store in a dry, sheltered location to prevent rust and corrosion
-
Check mounting points and attachment stability regularly
