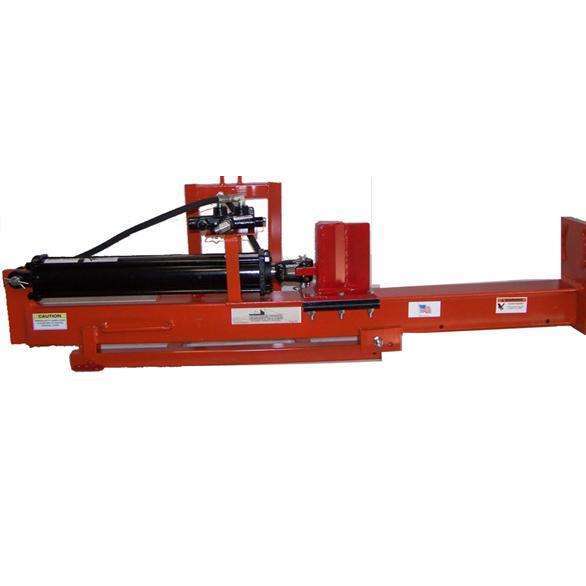

Our 30 ton (3PT30HV) HV log splitter for tractors made by Ram Splitter are American made built to last.

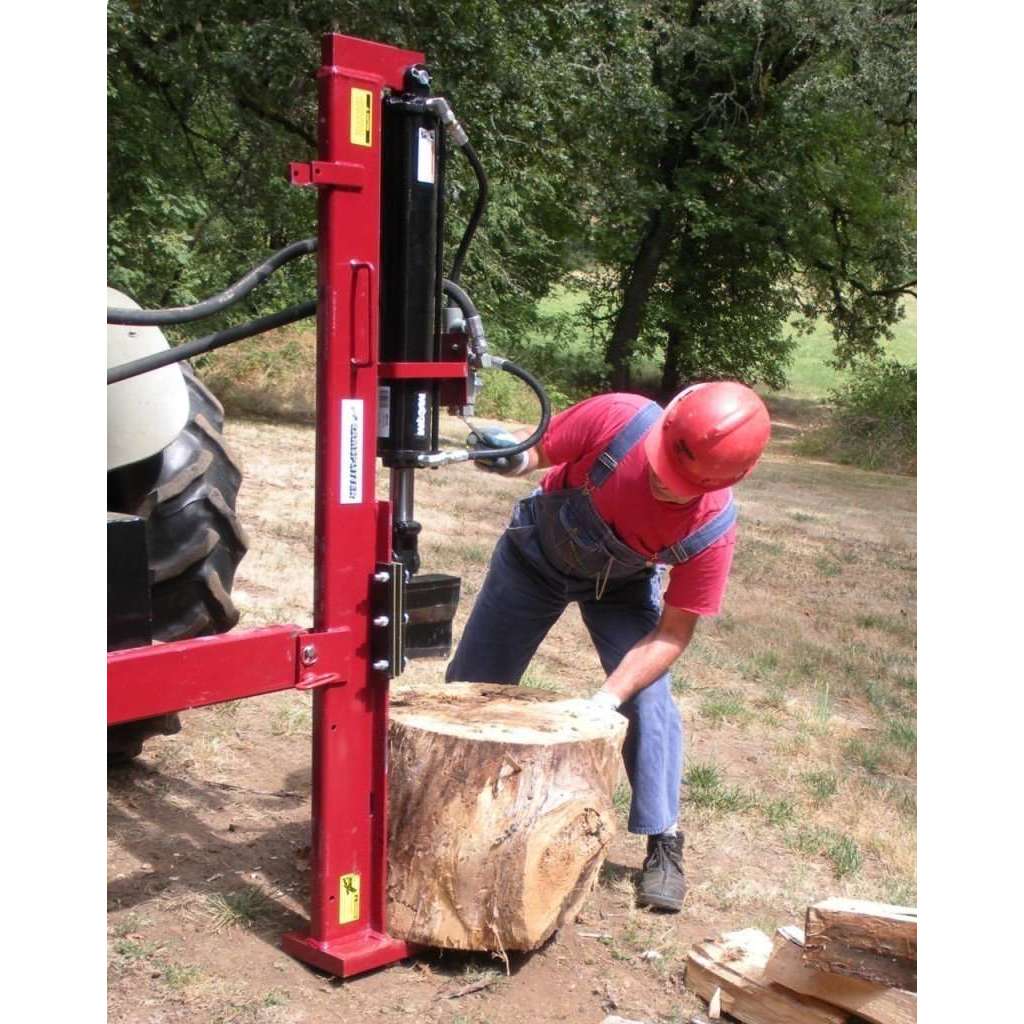

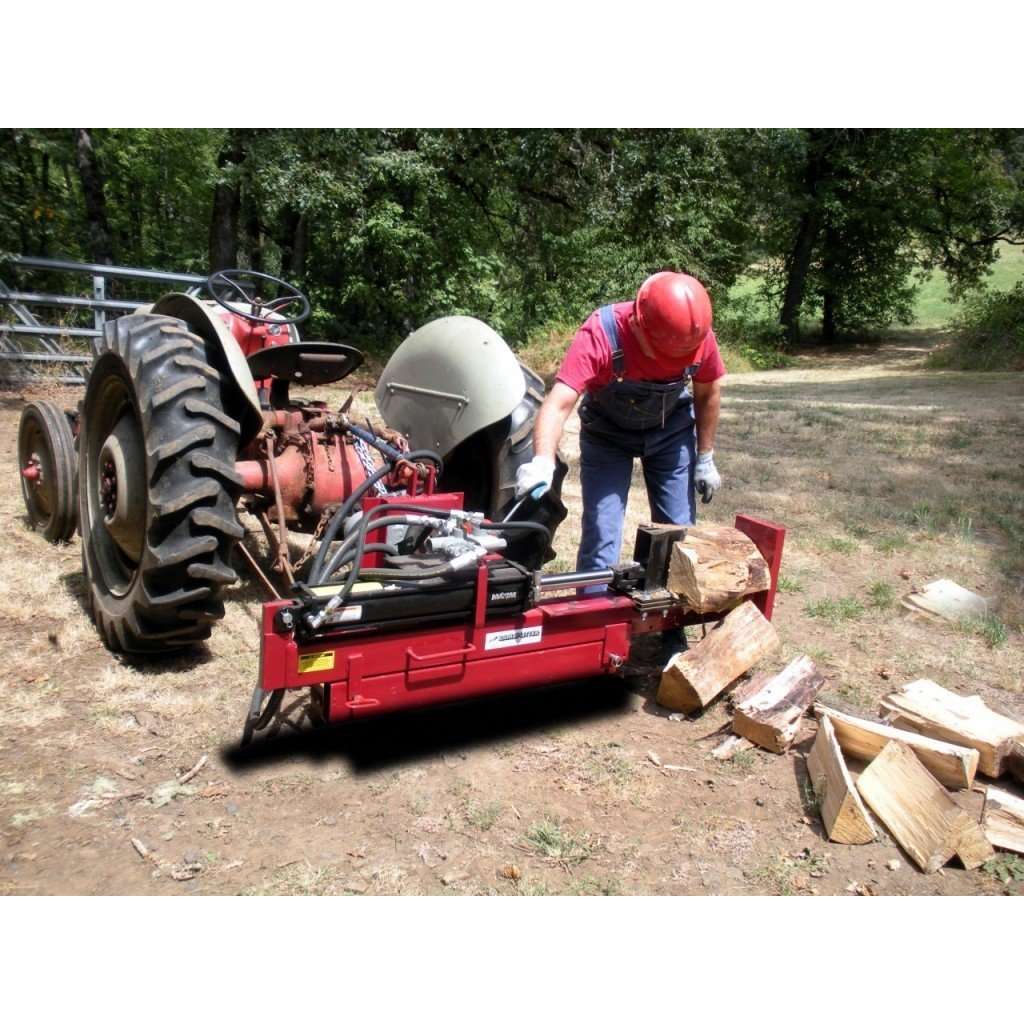

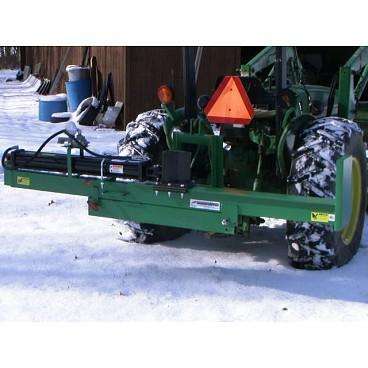

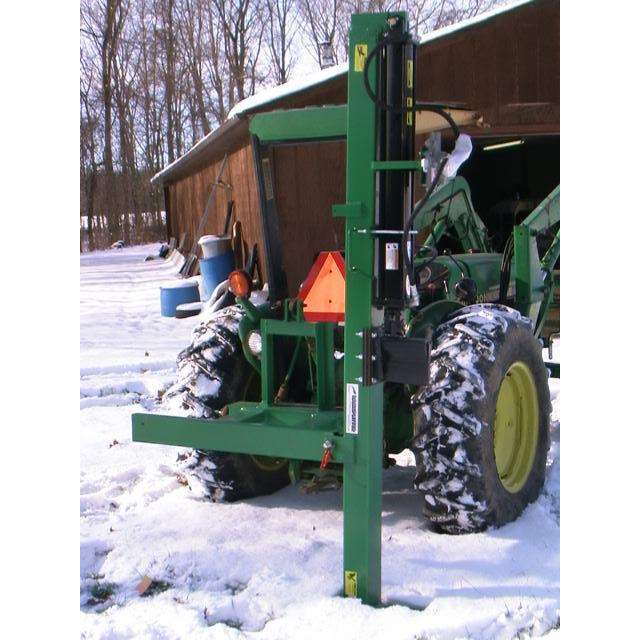

This 30 ton 3 point log splitter is a work horse that will split both in the horizontal and vertical position for those large logs you don't even want to think about trying to lift.
The standard pins we use are category 1 but can be changed out to 2 or 3, anything else you will have to change out to match your tractor. The hose ends (connectors) are not included. Top link pins or anything else that is related to your tractor for hardware are not included. All connections including hoses are included with PTO kits.
It is recommended that you have a flow rate of 12GPM or higher for this log splitter, otherwise you may run into very log cycle times. If your tractor is not properly equipped you do have a choice to run the PTO kit (costs extra) which is self contained and includes a PTO pump.Ā
Features
- Beam Structure: Tubular design 3" wide x 5" tall. 6" Top plate reinforced heavy-duty
- Splitting Wedge: 10" High
- Operating Position: Horizontal / Vertical
- Force / Tonnage: 30 Ton (Approx depending on tractor PSI)
- Cylinder: 5" x 24" (Optional 30")
- Cycle Time: 15-20 Seconds (Approx depends on tractor GPM)
Ā
Specifications
| Tonnage |
30 Ton (Approx depending on tractor PSI) |
| Beam Structure |
Tubular design 3" wide x 5" tall. 6" Top plate reinforced heavy-duty |
| Splitting Wedge |
10" High |
| Operating Position |
Horizontal / Vertical |
| Force / Tonnage |
30 Ton (Approx depending on tractor PSI) |
| Cylinder |
5" x 24" (Optional 30") |
| Cycle Time |
15-20 Seconds (Approx depends on tractor GPM) |
| Log Opening |
25 Inches |
| Working Height |
You adjust with your 3 point hitch |
| Safety Control Valve |
Detent, Auto Return |
| Operation Weight |
500 LBS |
| Made in USA |
Yes |
| Color |
Choice: Black, Orange, Green, Blue |
| Warranty |
1 Year |
| Shipping |
Freight - Limited time free shipping |
| 4 Way Wedge |
Optional |
| PTO Driven |
Optional |
| Log Cradles |
Optional |
