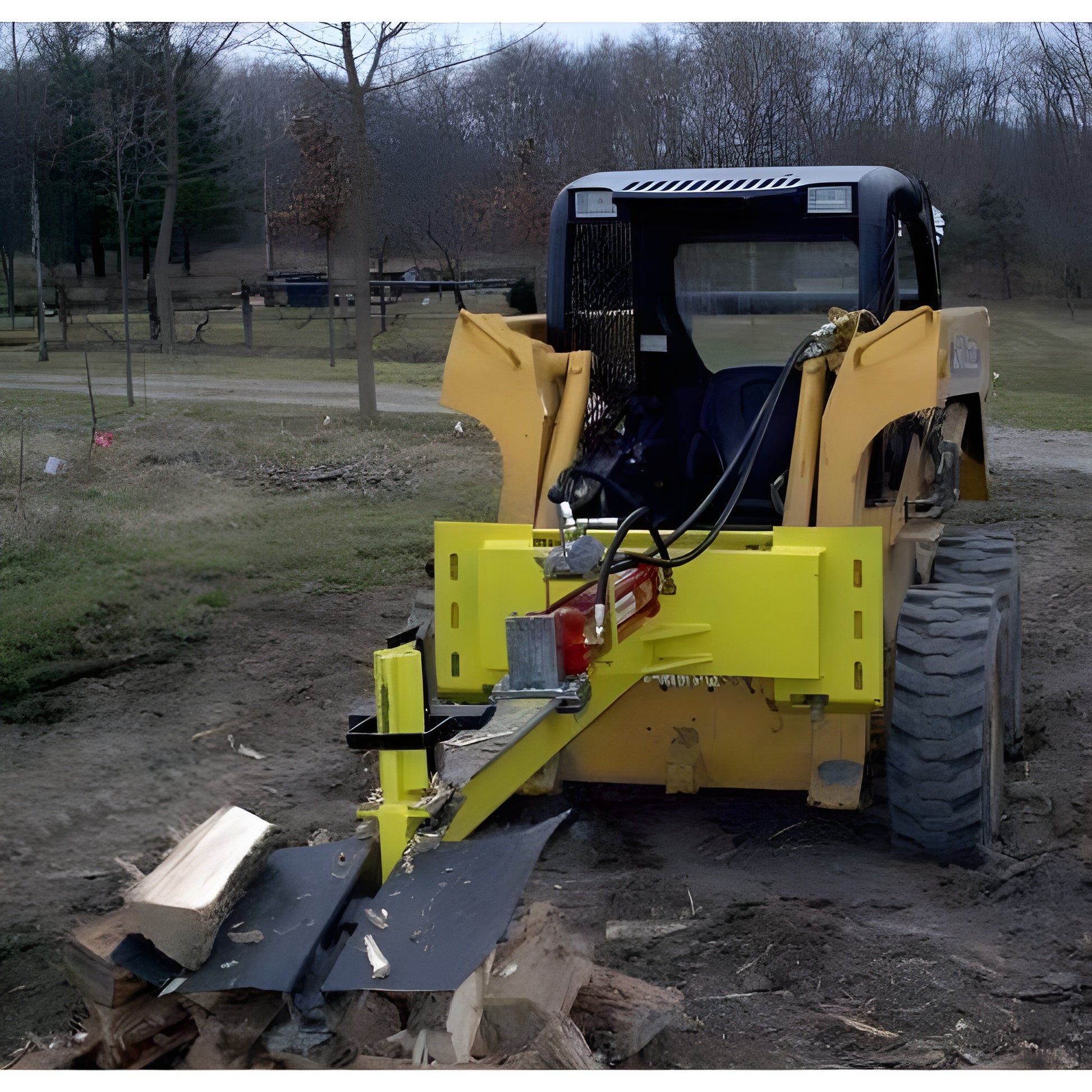

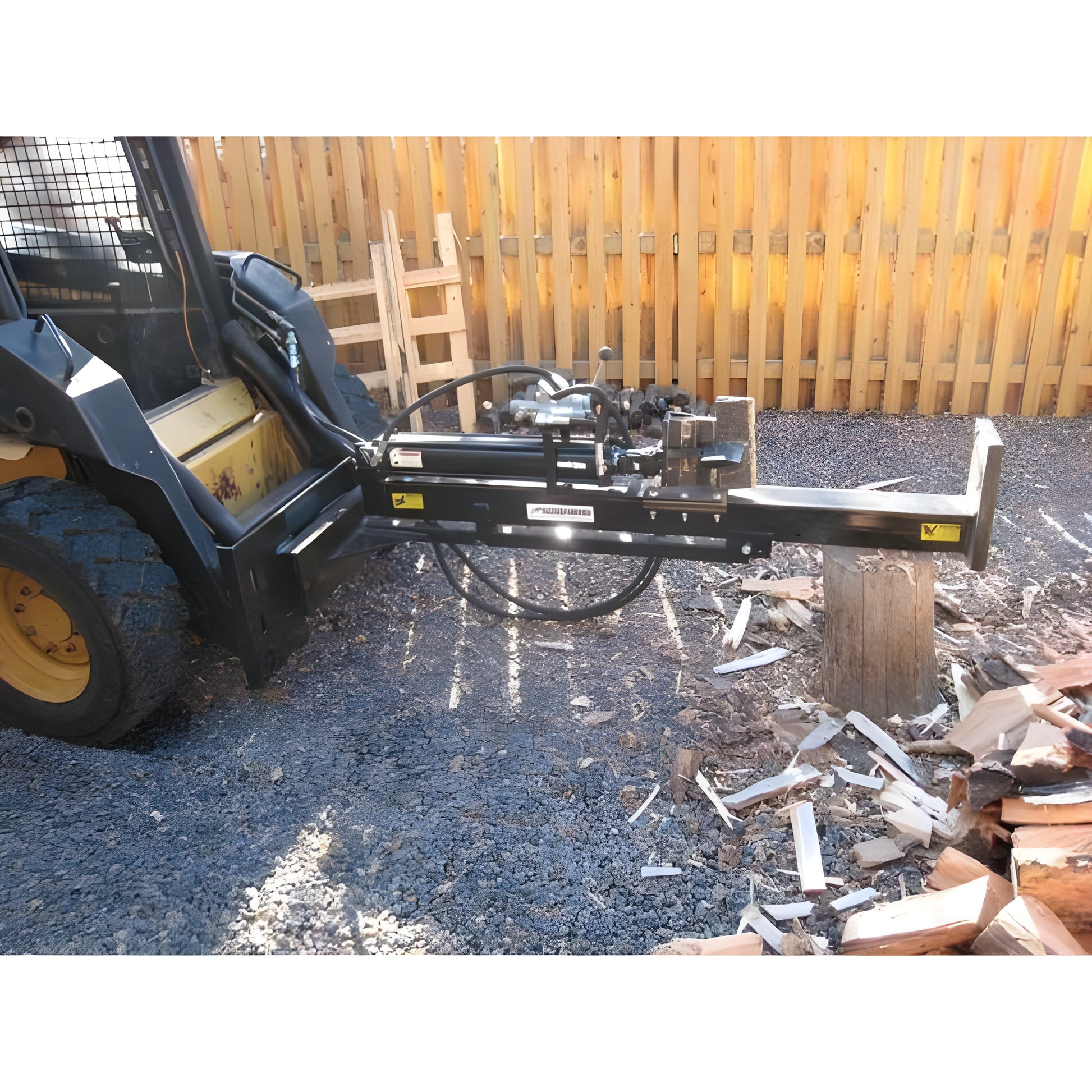

This 30 Ton horizontal attachment for your skid loader takes all the hard work out of splitting firewood.
For a limited time hoses and connectors come free with this unit, just hook it up to your machine and your ready to get to work.
You have 3 options:
- 4 Way Wedge - Split logs into 4 pieces. 4 way wedge just slips over existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture) 4 way wedge will reduce opening size by 3".

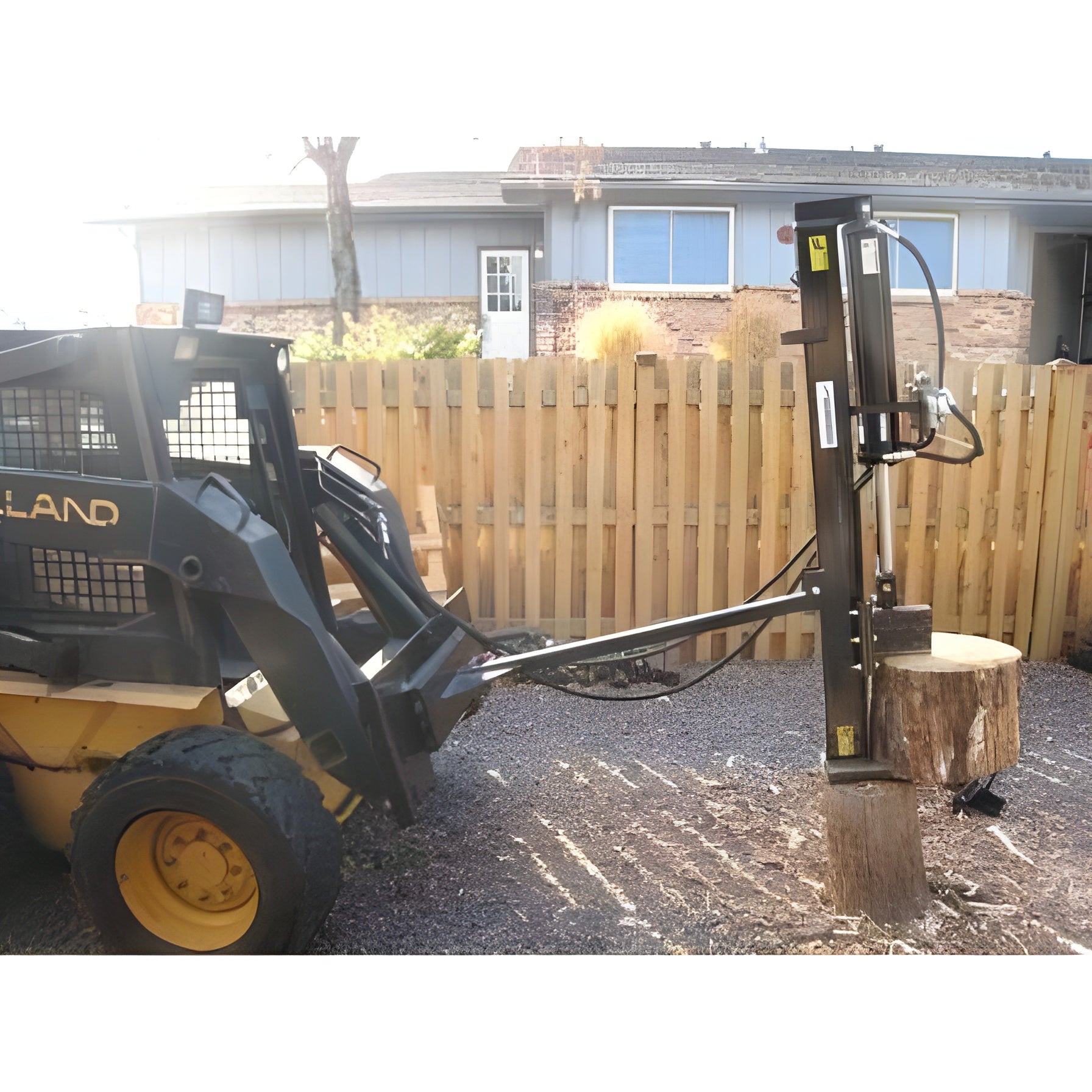

- Horizontal/Vertical - HV units can split both in the horizontal and vertical positions.
- Log Cradles - HV units can catch falling wood saving you from bending over and picking up wood off the ground(when splitting horizontal). Horizontal units will hold logs in place.
Features
- Tonnage:Â
- 30 Ton (60,000 lbs)
- Cylinder: 5" x 24"
- Opening Size:Â 25 Inch Opening Length
- Control Valve: Detent Auto Return
- Beam: 6 x 3 Tubular Design - 6" Top plate
- Color: Black Only
- Mounting Plate: Universal ( 2 quick attach lock handle type)
Â
Detailed Specifications
| Tonnage |
30 Ton (60,000 lbs) |
| Cylinder |
5" x 24" |
| Opening Size |
25 Inch Opening Length |
| Control Valve |
Detent Auto Return |
| Beam |
6 x 3 Tubular Design - 6" Top plate |
| Color |
Black Only |
| Mounting Plate |
Universal (2 quick attach lock handle type) |
| Weight |
560 lbs |
| Length |
78 Inches |
| Wedge |
Single 10" High |
| Warranty |
1 Year |
| Hoses & Connectors |
Included with flat face disconnects |
| Made in USA |
Yes! |
| 4 Way Wedge |
Optional |
| Horizontal / Vertical |
Optional |
| Log Cradles |
Optional |
| 30" Stroke Cylinder |
Optional 5" x 30" |
What Our Experts Think
-
Powerful 30-ton splitting force – Handles tough logs with ease.
-
Skid steer compatible – Easy attachment for most skid steer models.
-
Heavy-duty construction – Built for durability and long-term use.
-
Efficient hydraulic operation – Maximizes splitting speed and performance.
Q&A
Q: Will this fit all skid steer brands?
A: Compatible with most skid steers; check model specifications.
Q: What is the maximum splitting force?
A: Delivers up to 30 tons of splitting power.
Maintenance Tips
-
Regularly check hydraulic hoses and fittings.
-
Keep splitter clean and free of debris.
-
Inspect wear parts and replace as needed.
-
Follow manufacturer’s hydraulic maintenance schedule.
