Hoshizaki | 44" Wide Air-Cooled Square Cuber Ice Maker (Bin Sold Separately) - M-500SAB

Hoshizaki  | 44" Wide Air-Cooled Square Cuber Ice Maker (Bin Sold Separately) - M-500SAB

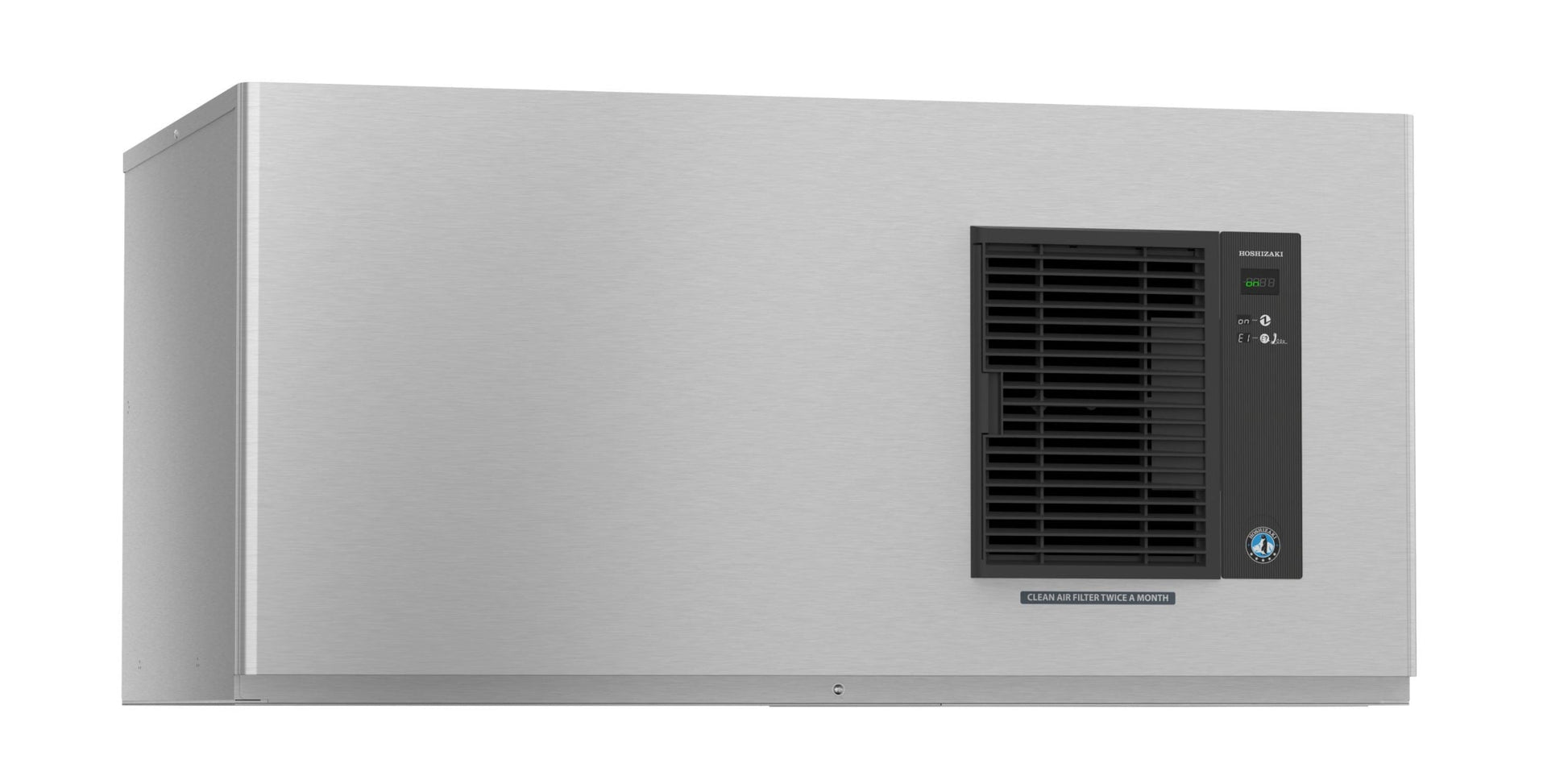

The IM-500SAB is capable of producing approximately 489 lbs of individual square cubes. The square cube shape melts very slowly, chilling beverages with very minimal dilution. This Air-cooled, Stackable icemaker features the EverCheck™ digital control system with LED display detects potential problems and notifies the operator before excessive maintenance or repair. The IM-500SAB requires a Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included electrical connection that is hard-wired at the installation site. Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650. Please consult the Specification Sheet for additional details.

Features

• Dimensions: 44″ W x 27-5/8″ D x 21-3/4″ H
• Up to 489 lbs of ice produced per 24 hours

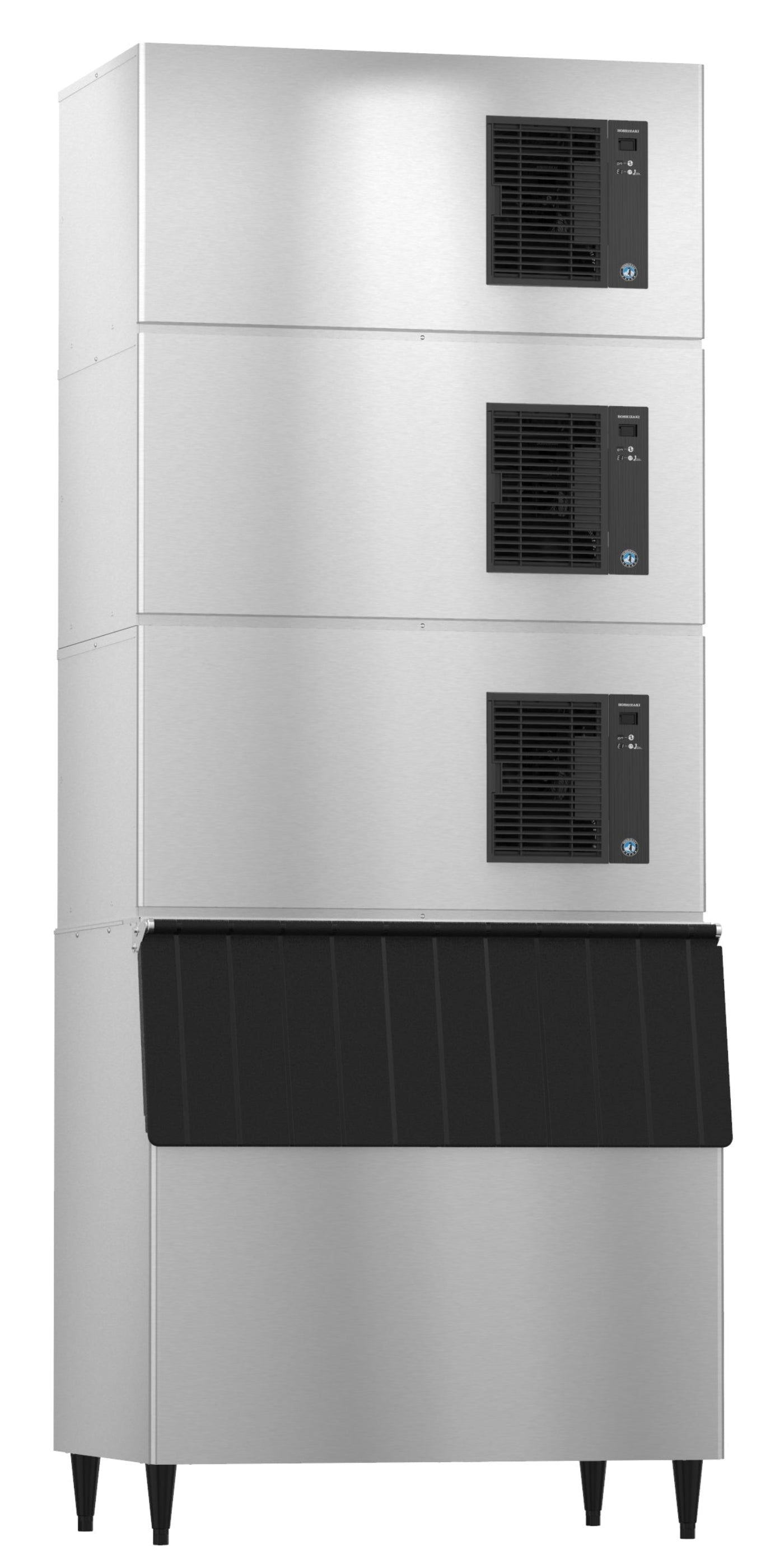

• Stack 3 units for 3x the ice production

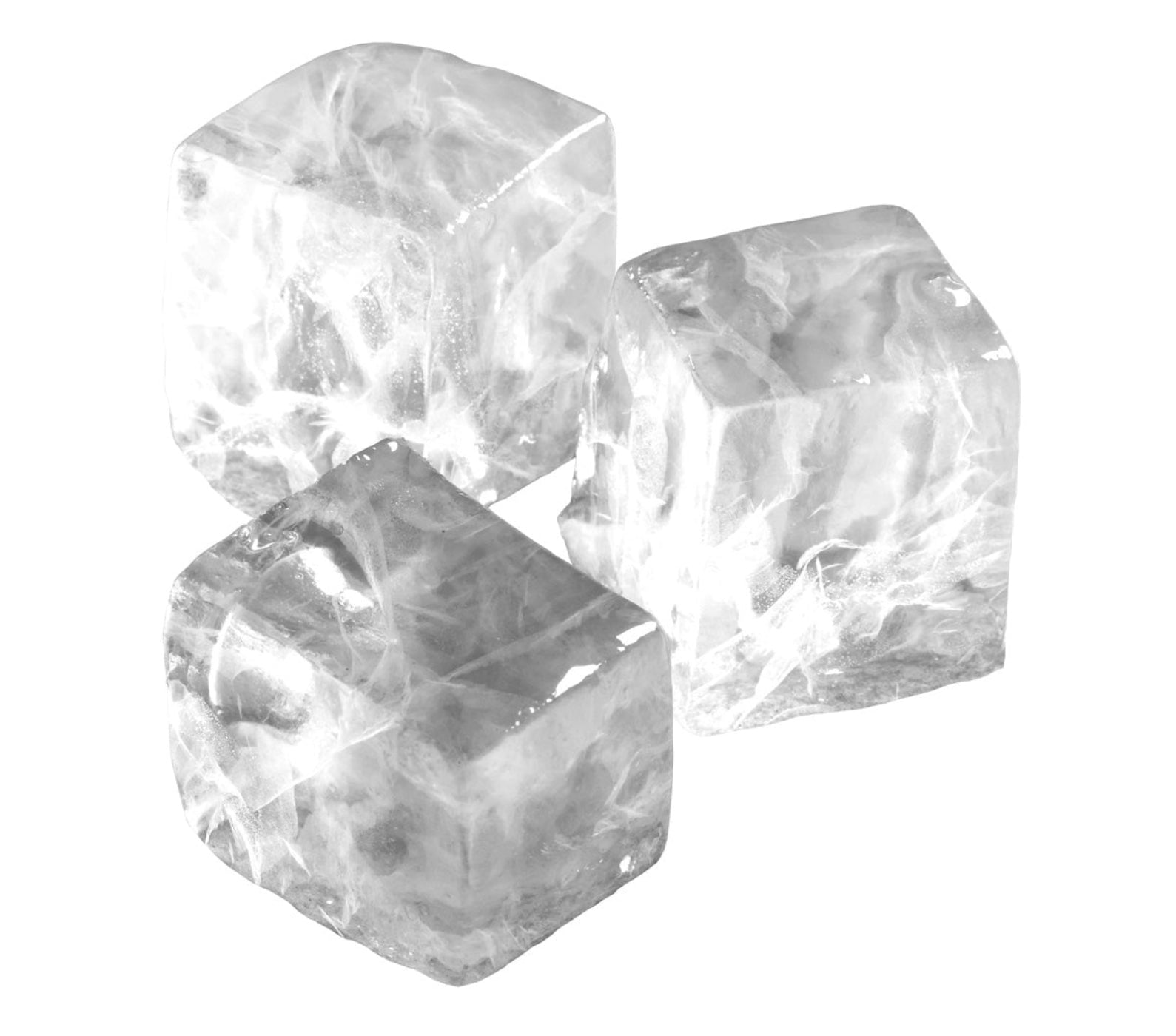

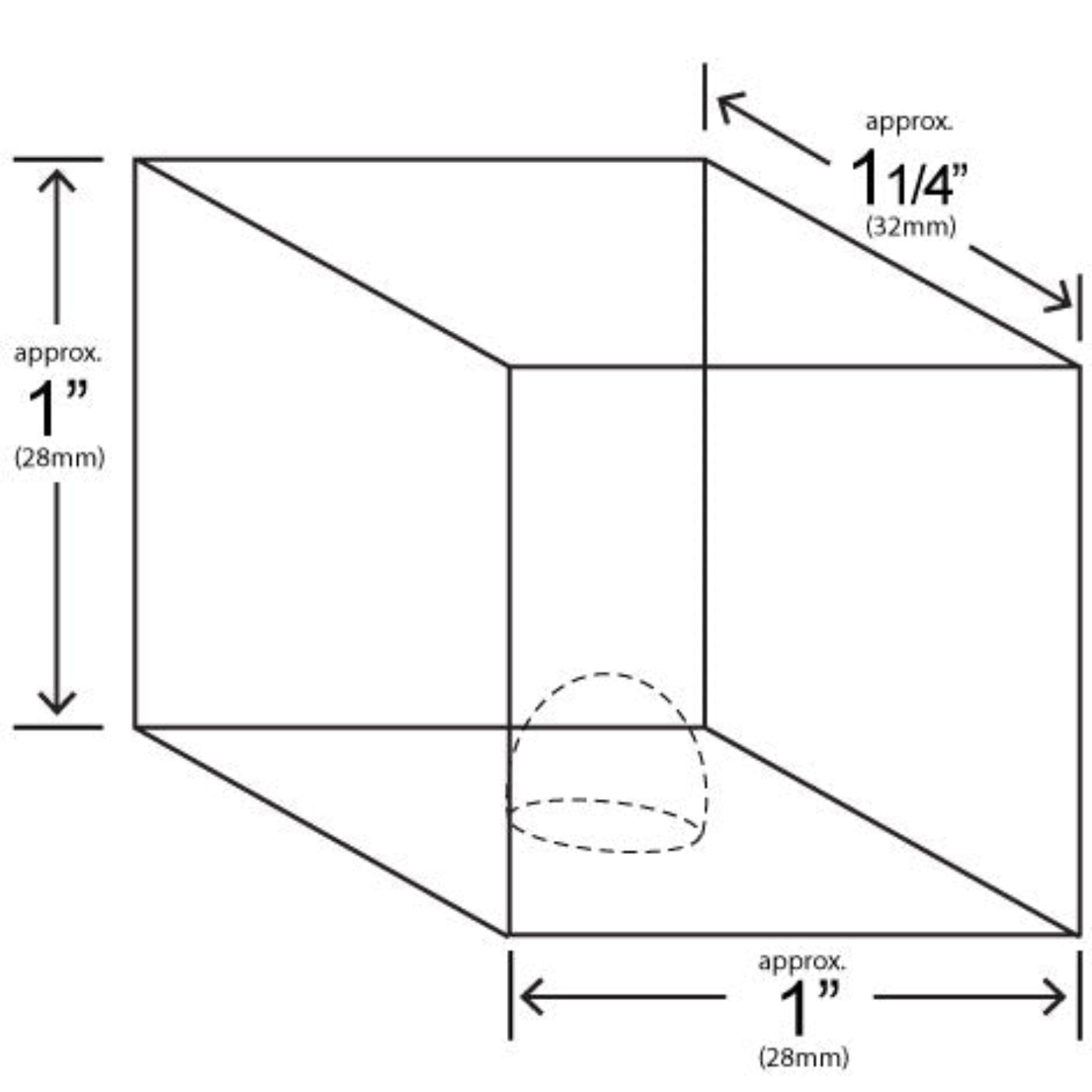

• Produces individual square cubes
• Durable stainless steel exterior

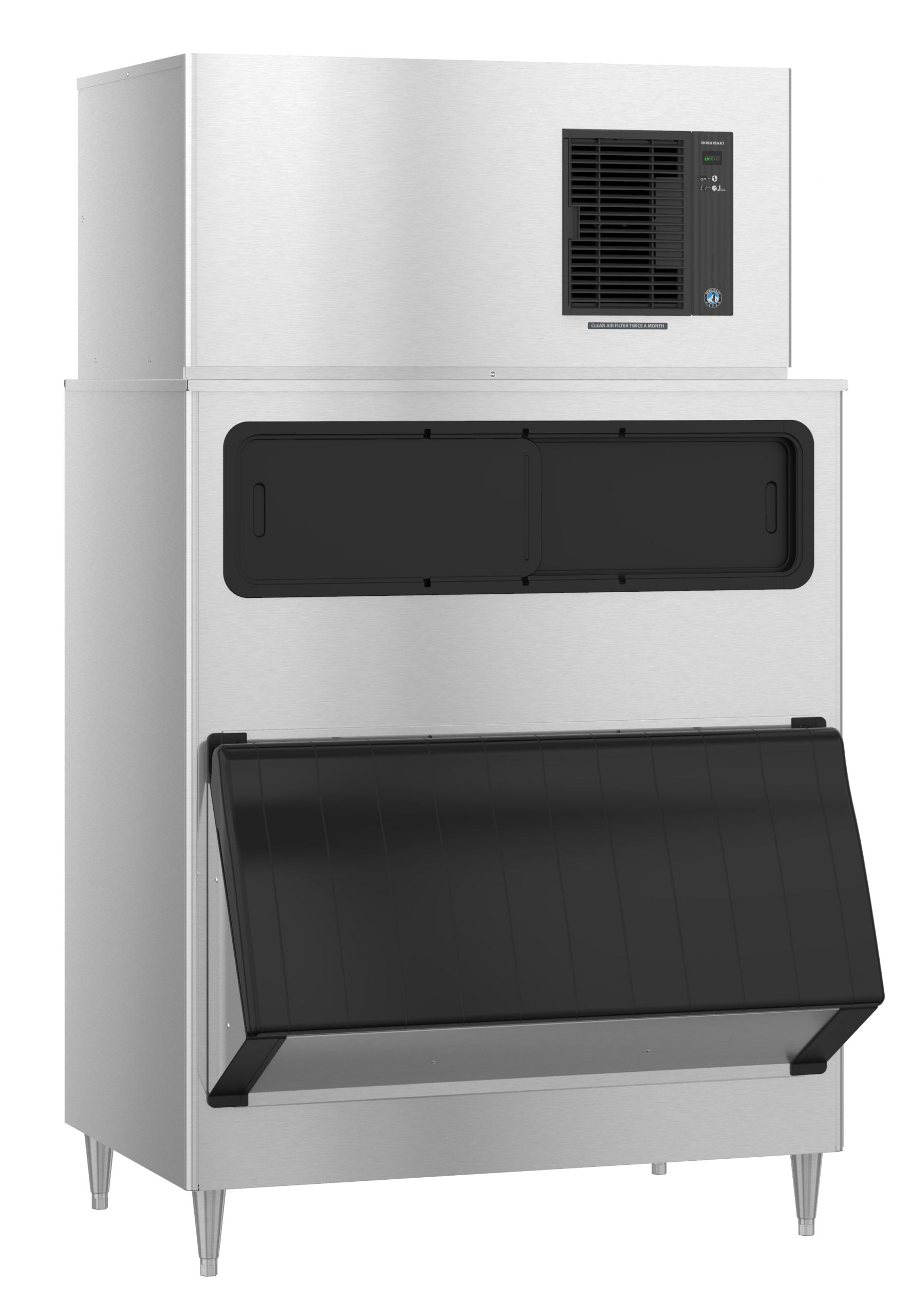

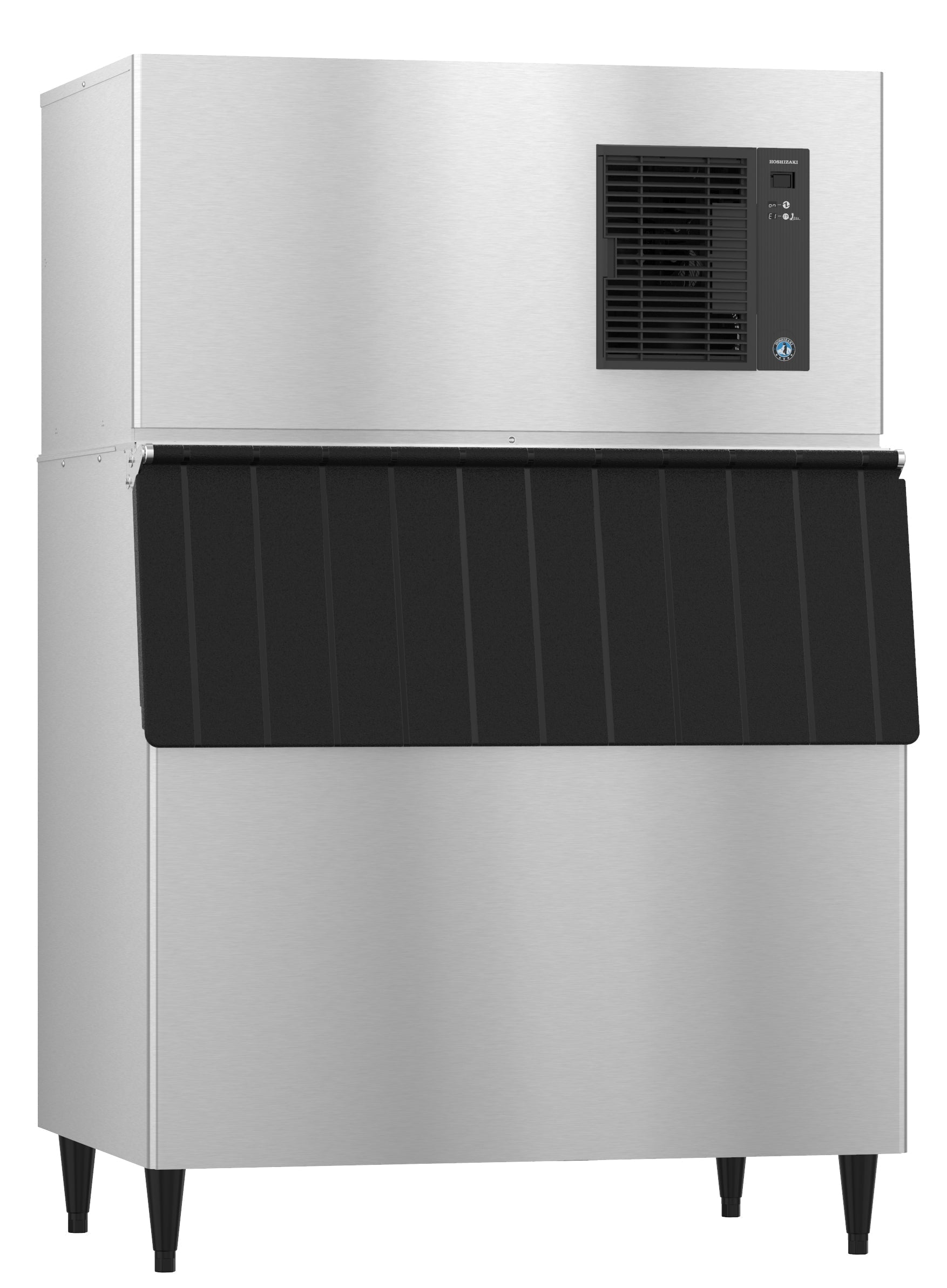

• Compatible bins & dispensers, sold separately: B-700, B-800, B-900, B-1150, B-1300, B-1500, B-1650
• EverCheck digital control system with LED display
• Clean individual square ice cubes
• Panels easily removed and all components accessible for service
• R-404A refrigerant (1 lbs. 10.5 oz. / 751.3 g)
• Heat Rejection:4500 BTU/hr
• Ambient temperature range: 45 – 100°F
• Water temperature range: 45 – 90°F
• Water pressure: 10 – 113psig
• Voltage range: 104 – 127V
• 11.5 amps (20 Amp Max fuse)
• 5.8 kwh/100 lbs. 90/70
• Single phase, 115v/60/1, Must be hardwired at site, no cord/plug included
• Clean ice and easy maintenance lead to longer unit life span

Specifications

What Our Experts Think

The Hoshizaki M-500SAB Air-Cooled Square Cuber Ice Maker is a high-performance solution for businesses needing consistent, high-quality ice production. Here’s why it’s a great choice:

• Large Production Capacity: Ideal for high-demand environments like bars, restaurants, and hotels.
• Air-Cooled Efficiency: Reduces water usage compared to water-cooled models, saving on utility costs.
• Square Cube Design: Produces premium, slow-melting square cubes, perfect for cocktails and beverages.
• Durable Stainless Steel Construction: Built for reliability and long-lasting performance.
• Bin Sold Separately: Customize your storage solution based on your specific ice volume needs.

Q&A

Q: What is the Hoshizaki M-500SAB Ice Maker?
A: The M-500SAB is a 44" wide, air-cooled commercial ice maker that produces high-quality square ice cubes.

Q: How much ice can it produce?
A: It has a daily production capacity of up to 500 lbs, making it ideal for medium-to-high-demand environments.

Q: Does it include an ice storage bin?
A: No, the storage bin is sold separately, allowing for customized storage solutions.

Q: What type of ice does it make?
A: It produces dense, slow-melting square cubes, perfect for premium cocktails, beverages, and food presentations.

Q: Is it energy-efficient?
A: Yes! Its air-cooled system optimizes energy use while maintaining high ice production.

Q: What businesses benefit from this ice maker?
A: Ideal for bars, restaurants, hotels, and catering services needing a consistent ice supply.

Q: What are the maintenance requirements?
A: Regular cleaning and descaling are recommended to ensure peak performance and ice quality.

Maintenance Tips

• Clean & Sanitize Regularly – Wipe down exterior, clean interior components, and sanitize ice-making parts.
• Descale Water System – Remove mineral buildup to maintain efficiency and ice quality.
• Check Air Filters & Vents – Clean or replace air filters to ensure proper airflow and cooling.
• Inspect Water & Drain Lines – Ensure hoses are free of leaks and blockages for consistent operation.
• Monitor Mechanical Components – Regularly check pumps, motors, and electrical connections for optimal performance.
