Hoshizaki 48" Wide 4 Drawer Undercounter Freezer - UF48B-D4

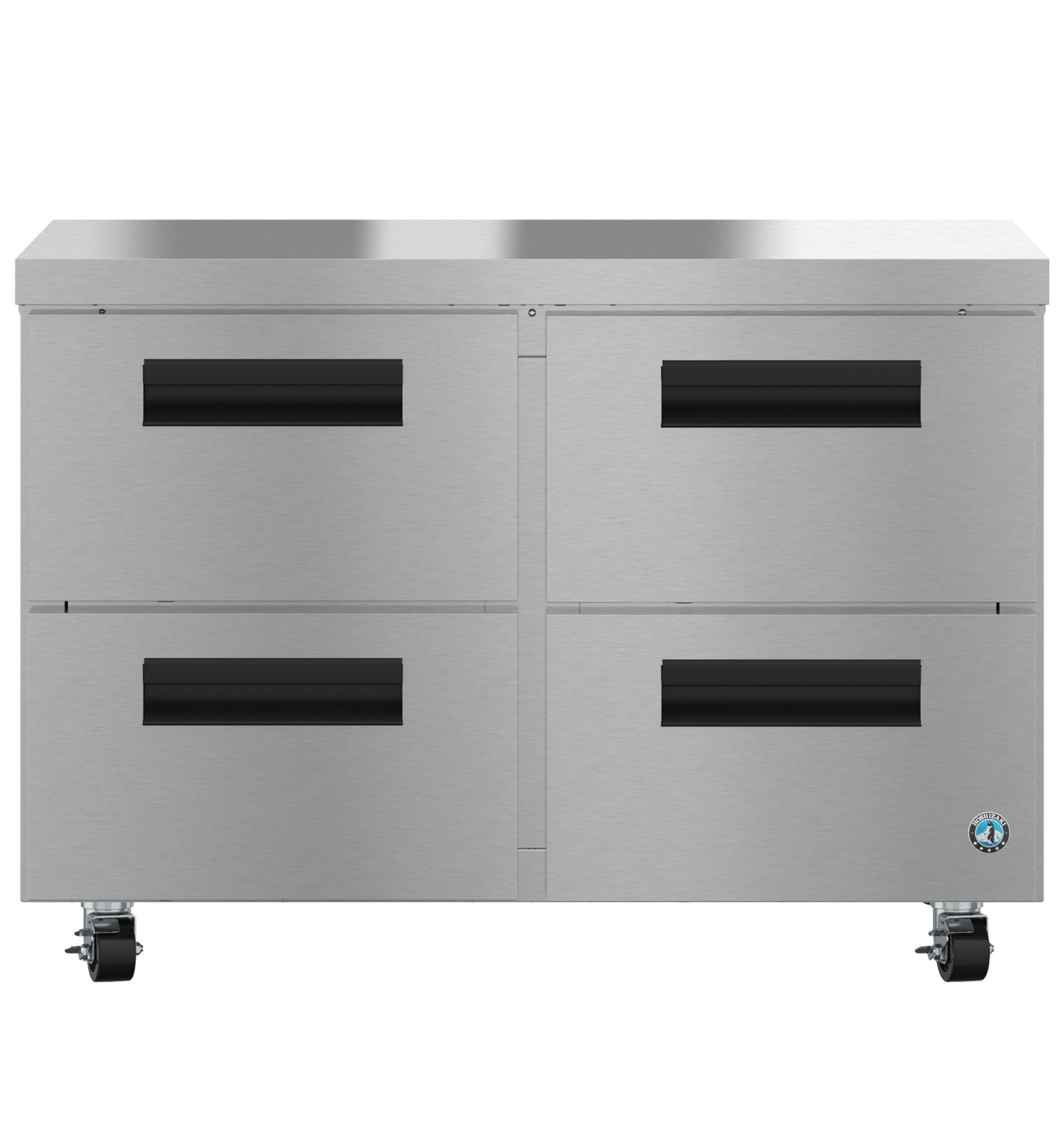

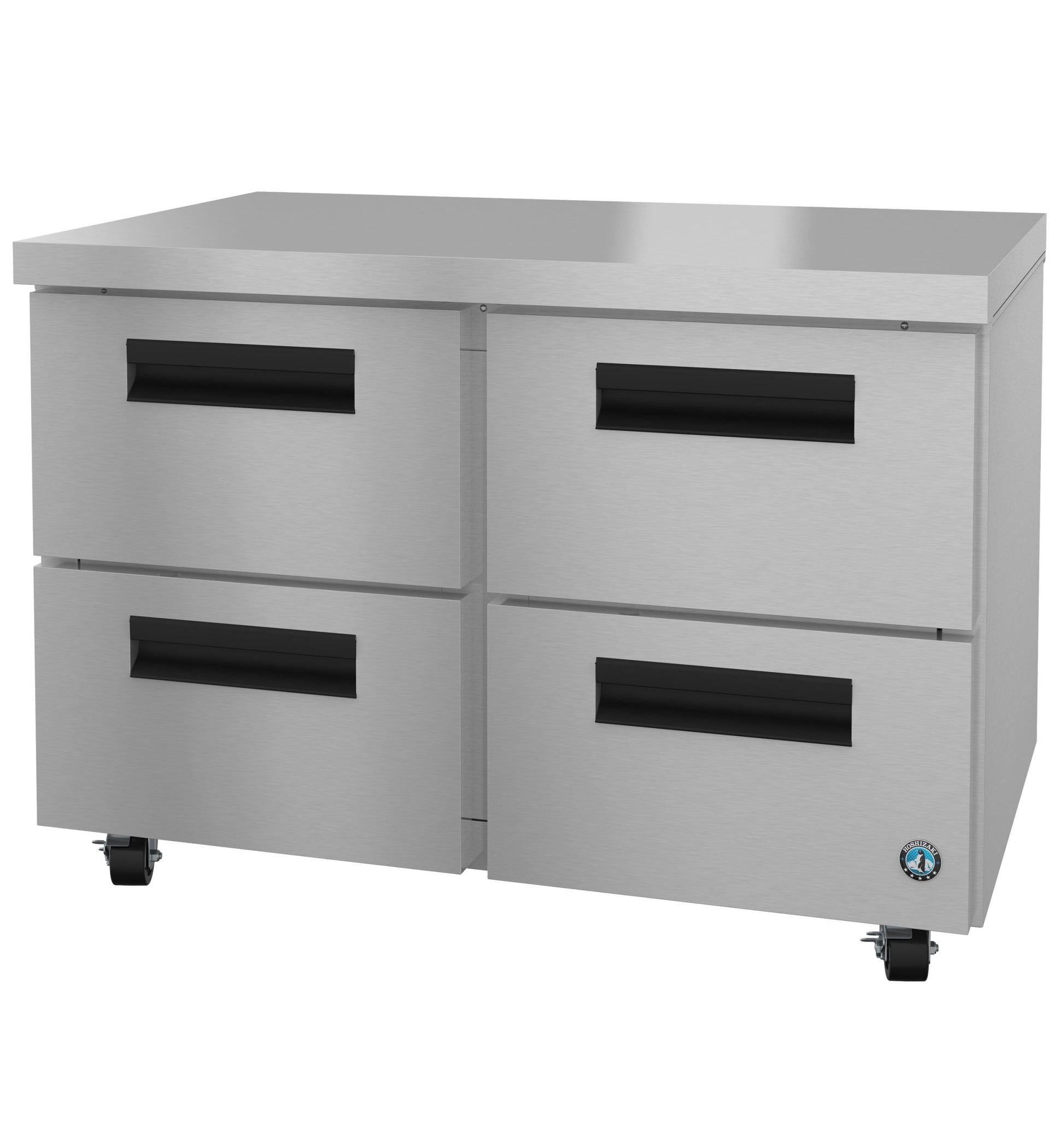

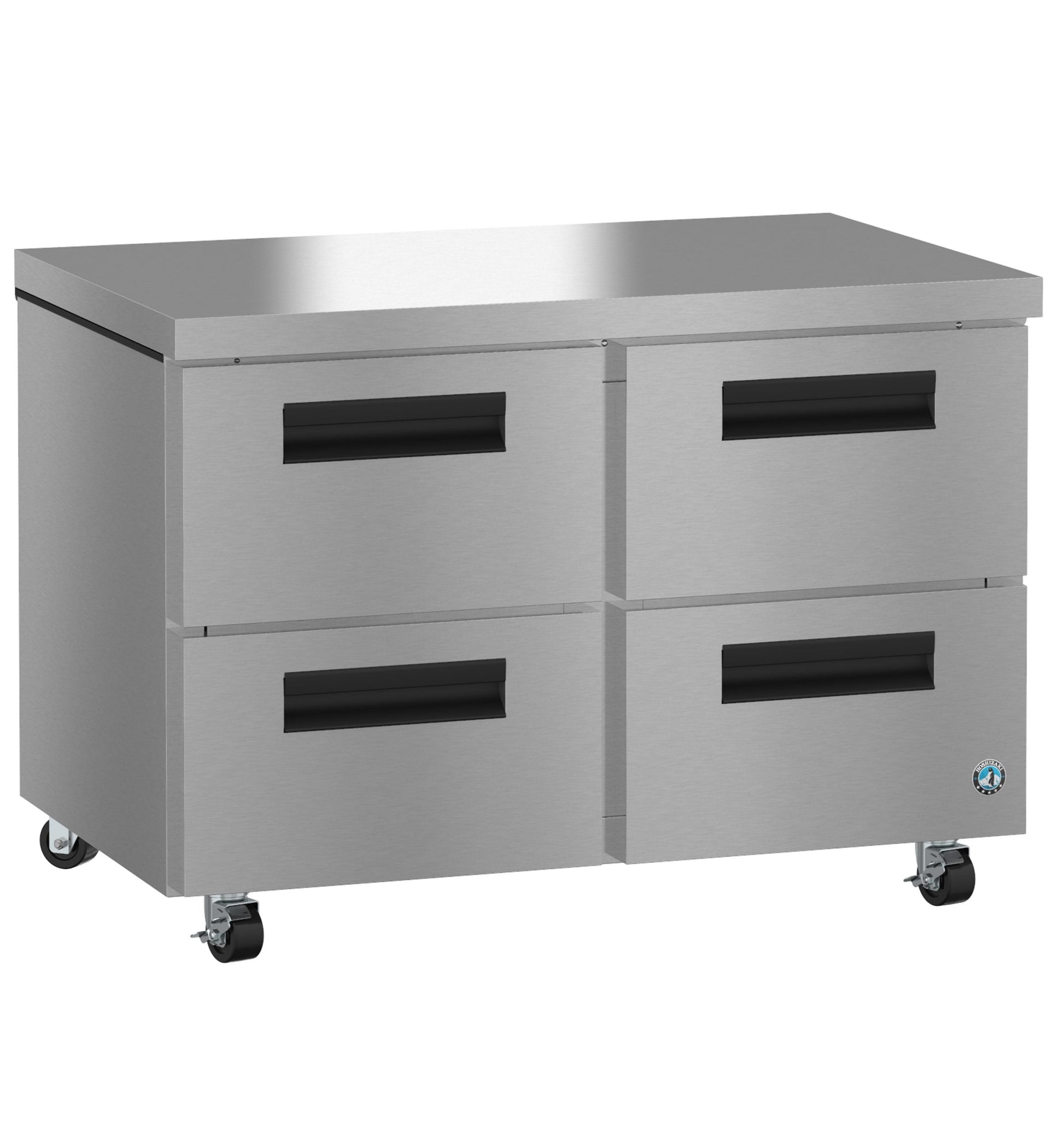

The UF48B-D4 Steelheart Series Undercounter two section freezer with stainless drawers is a space saving workhorse. Engineered to maintain food safe temperatures in 100°F ambient conditions. With a net capacity of 12 cubic feet this efficient undercounter freezer and front air flow design is perfect for hot/tight kitchens. The UF48B-D4 is constructed of stainless steel, which protects this unit from accidental damage and rust. Plus, it is easy to clean.
The UF48B-D4 also includes Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others), (4) 4″ stem casters (2 with brakes) are standard, plus a the drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers. Electrical consumption of 3.6 kWh/day at 4 Amps, 10 ft long cord with a 5 – 15P NEMA plug. Optional kits: 2.25″ or 6″ casters, Overshelves, Stainless steel back, Drawer divider bars. The unit is ETL Safety (US & C) Listed, ETL Sanitation, Georgia Made Certified and includes a six years parts warranty, five years labor warranty, and seven years compressor warranty.
Features
- Dimensions: 48″ W x 30″ D x 33.75″ H
- Net capacity of 12 cubic feet
- Innovative air distribution system distributes air evenly to maintain product temperature
- Enamel coated evaporator coil for extended life
- Stainless steel exterior (front, sides, top) and a stainless steel interior
- The drawer slides are constructed of 16 gauge stainless steel with durable acetal rollers
- Extruded aluminum flush mount drawer handle
- (4) stainless steel drawers, fully welded construction and securely fastened in the cabinet
- Insulated with 2″ CFC free, foamed in place polyurethane
- Drawers capacity: Top: (1) 1/2 size and (1) 1/3 size pans, 4″ deep. Bottom: (1) 1/2 size and (1) 1/3 size, 6″ deep pans (pans by others)
- Engineered to maintain food safe temperatures in 100°F ambient conditions
- R290 refrigerant
- (4) 4″ Stem Casters (2 with brakes) are standard
-
- Optional kits: 2.25″ or 6″ casters, Overshelves, Stainless steel back, Drawer divider bars
- Nominal Compres. of 1426 BTU/hr at 1/3 HP
- 115v/60/1, 10 ft. cord and plug
- Shipping Crate: 52.5″ L x 34″ D x 36.5″ H at 331 lbs
- Automatic time-initiated heated defrost
- Six Years parts warranty, Five Years labor warranty, Seven Years compressor warranty
Specifications
| Brand |
Hoshizaki |
| Model Number |
UF48B-D4 |
| Weight |
331 lbs |
| Width |
48" |
| Depth |
31" |
| Height |
33.75" |
| Certifications |
cETLus, ETL-Sanitation |
| Size |
2 section |
| Door Type |
solid |
| Refrigeration |
self-contained, rear mounted |
| Capacity (cu. ft.) |
14 |
| Installation Type |
freestanding |
| Handle Type |
recessed |
| Compressor Style |
front breathing |
| Drawer Quantity |
4 |
| Exterior Finish |
stainless steel |
| Access Type |
drawers |
| Compressor HP |
1/3 HP |
What Our Experts Think
-
Ample Storage: The 48" wide design with four drawers offers generous storage for frozen items, ideal for kitchens that require efficient space management.
-
Durable Construction: Built with high-quality stainless steel, providing durability and ease of cleaning, even in high-use environments.
-
Reliable Freezing: Maintains consistent temperatures, keeping food safely frozen and reducing spoilage, ideal for busy kitchens.
-
Energy Efficient: Designed to minimize energy consumption while delivering powerful cooling performance, lowering operational costs.
-
Smooth-Glide Drawers: The four drawers provide easy access to stored items, improving workflow and organization in the kitchen.
-
Space-Saving Design: The undercounter configuration allows for extra work surface while providing frozen storage in tight spaces.
-
Hoshizaki Quality: Known for reliability and long-lasting performance, this undercounter freezer meets the demands of commercial kitchens.
Q&A
Q: What is the Hoshizaki UF48B-D4 Undercounter Freezer?
A: A 48" wide, 4-drawer undercounter freezer designed for efficient frozen storage in commercial kitchens with a compact design.
Q: What is the storage capacity?
A: Provides 12.8 cu. ft. of frozen storage space with four drawers for easy access and organization.
Q: What materials is it made from?
A: Features a durable stainless steel exterior and aluminum interior for easy cleaning and long-lasting durability.
Q: How does it maintain temperature?
A: Equipped with a self-contained refrigeration system that ensures consistent freezing and temperature control.
Q: Is it energy efficient?
A: Yes, it uses R290 refrigerant, providing eco-friendly and energy-efficient cooling.
Q: What are the dimensions?
A: Approximately 48" W x 30" D x 34" H, designed to fit undercounter spaces in commercial kitchens.
Q: Does it have adjustable legs?
A: Yes, includes adjustable legs for leveling on uneven surfaces.
Maintenance Tips
-
Clean Regularly: Wipe down the interior and exterior with mild soap and warm water to remove dirt, food, and grease buildup.
-
Inspect & Clean Gaskets: Check door seals for any wear or damage and clean them to maintain proper sealing for energy efficiency.
-
Clean Condenser Coils: Dust and vacuum the coils every 3-6 months to ensure the freezer is operating efficiently.
-
Monitor Temperature: Maintain a temperature range of -10°F to -20°F to keep food safely frozen.
-
Defrost as Necessary: Check for ice buildup and defrost when needed to prevent airflow obstruction and ensure optimal performance.
-
Avoid Overloading Drawers: Do not exceed drawer weight limits to ensure smooth operation and avoid damage to the unit.
