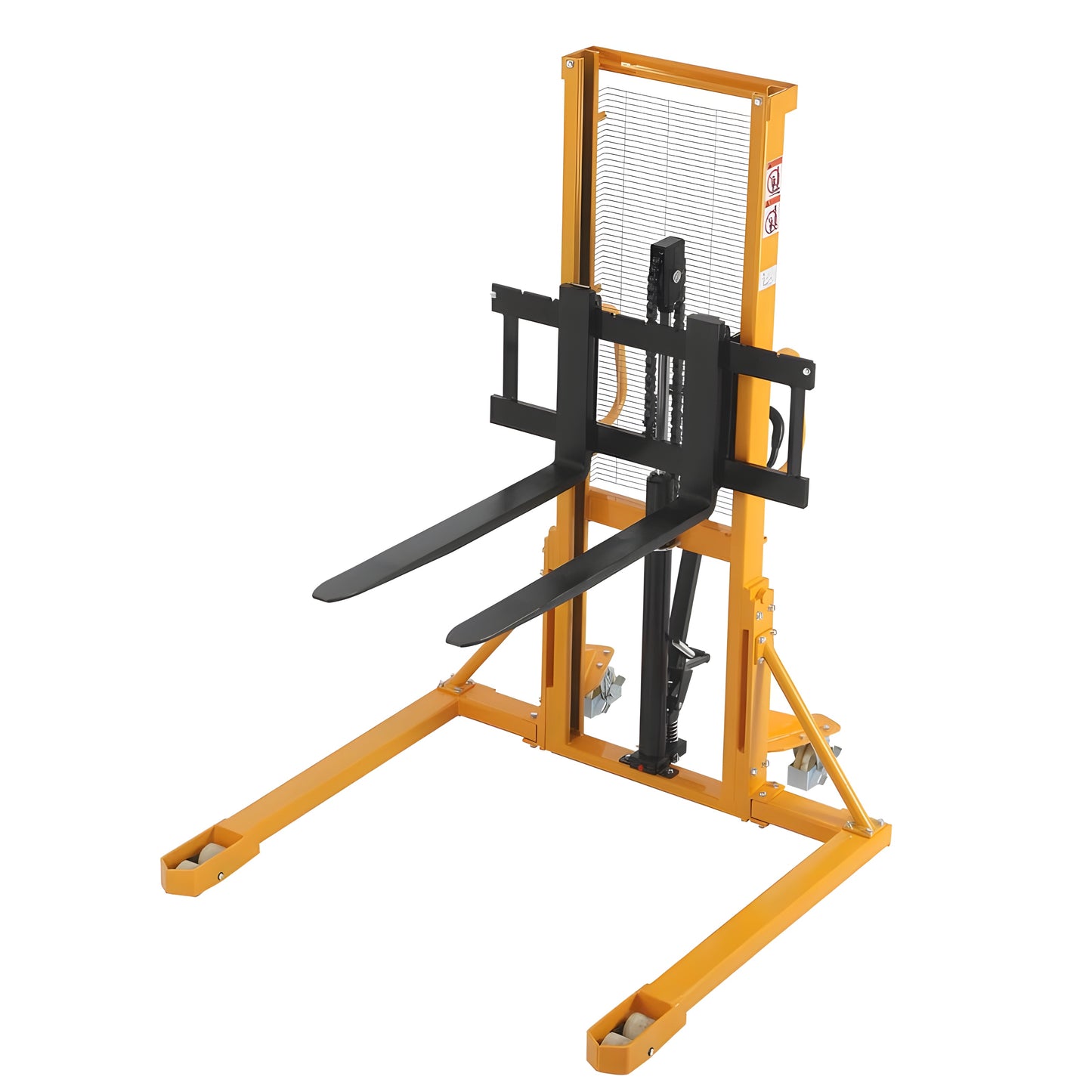

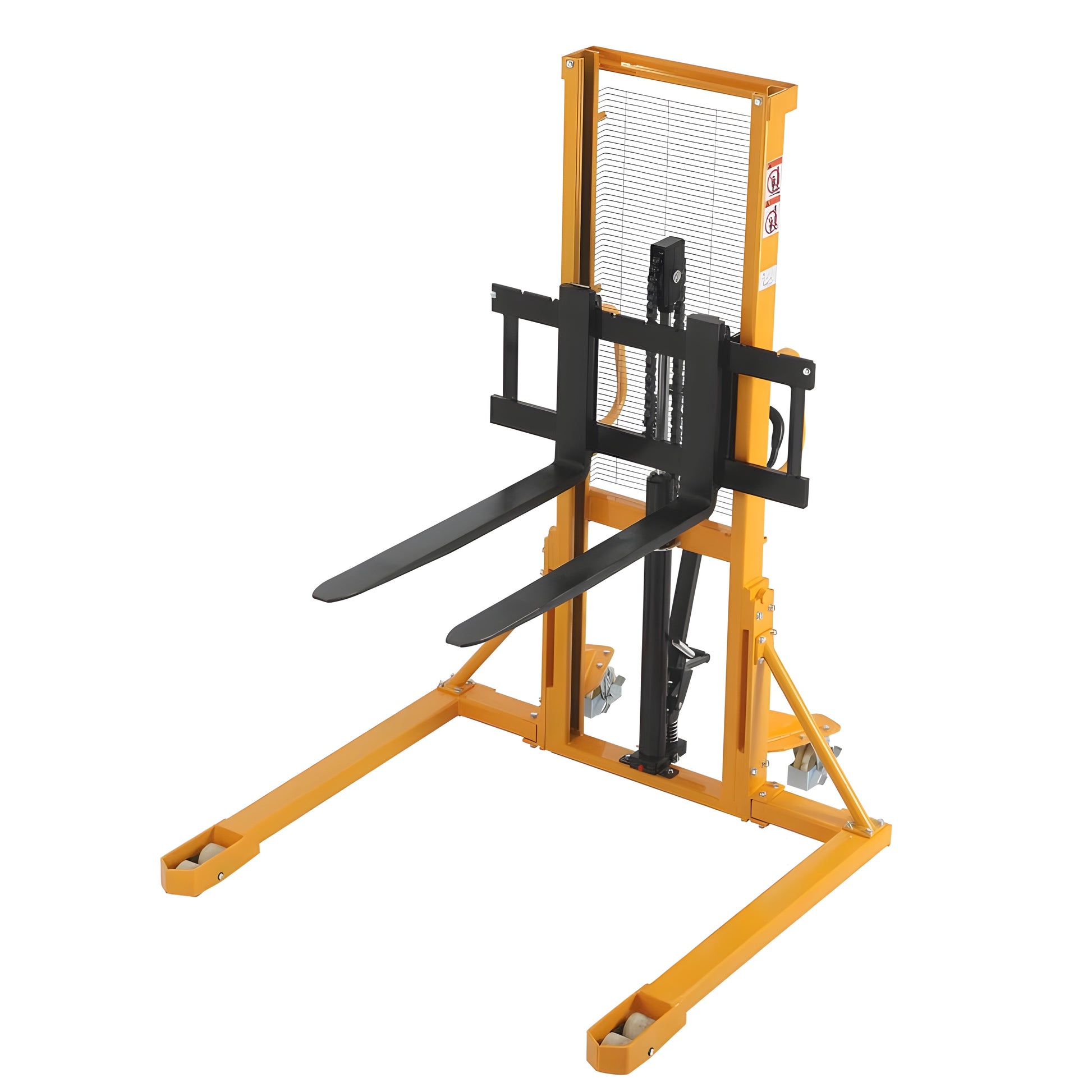

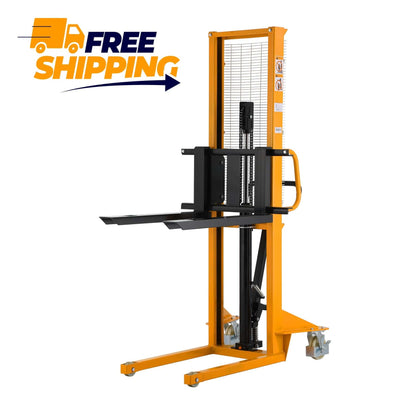

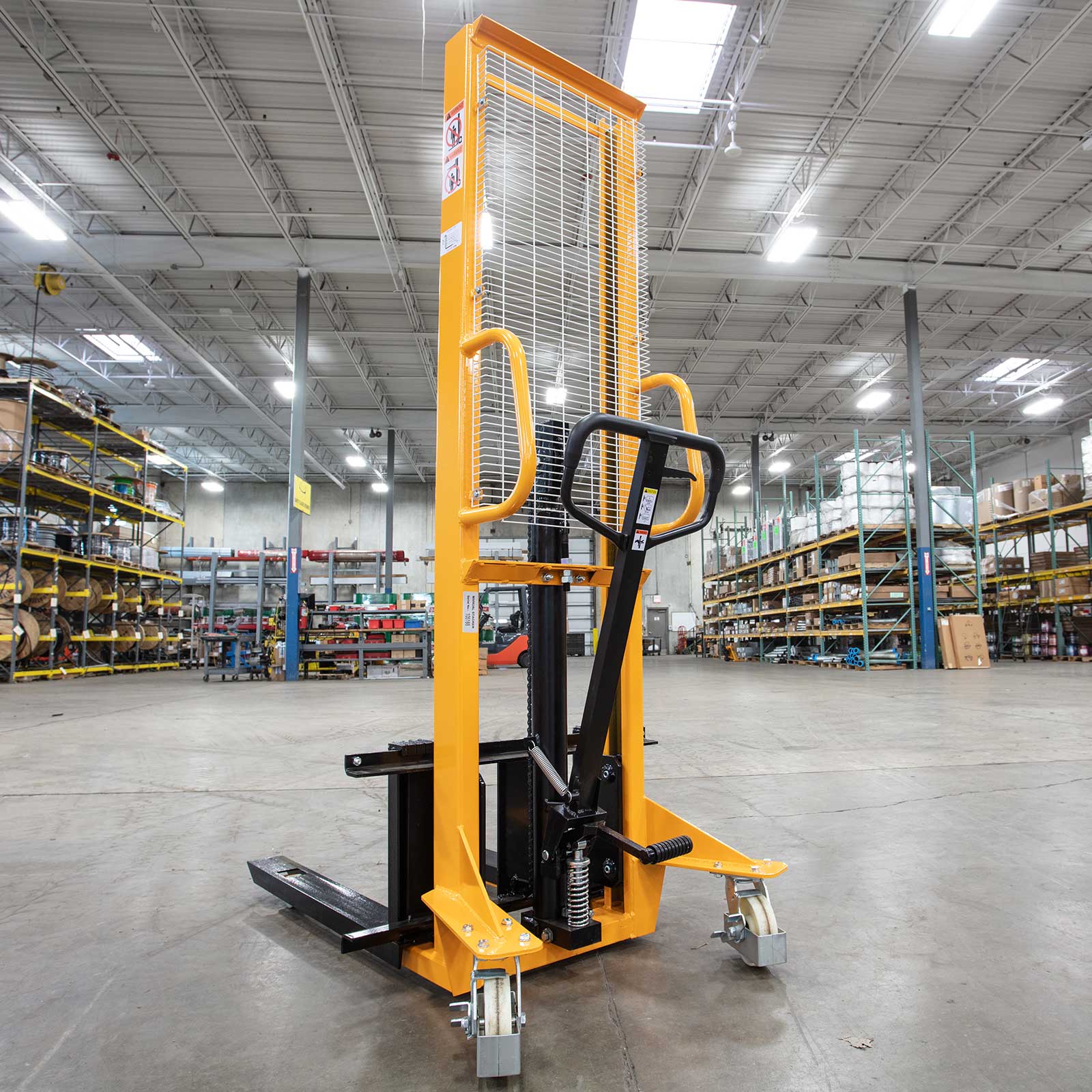

Apollolift Manual Pallet Stacker Adjustable Forks 1100lbs Cap. 63" Lift Height A-3002
- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- High quality steel mast and strong steel construction ensures rigidity and durability.
- High efficient pumps makes the control easier to operate.
- Metal grid protects user from lift chains.
- With safety wheel guard and brake system to ensure safety during operation.
- Manually raise and lower loads with foot pump and handle operation.

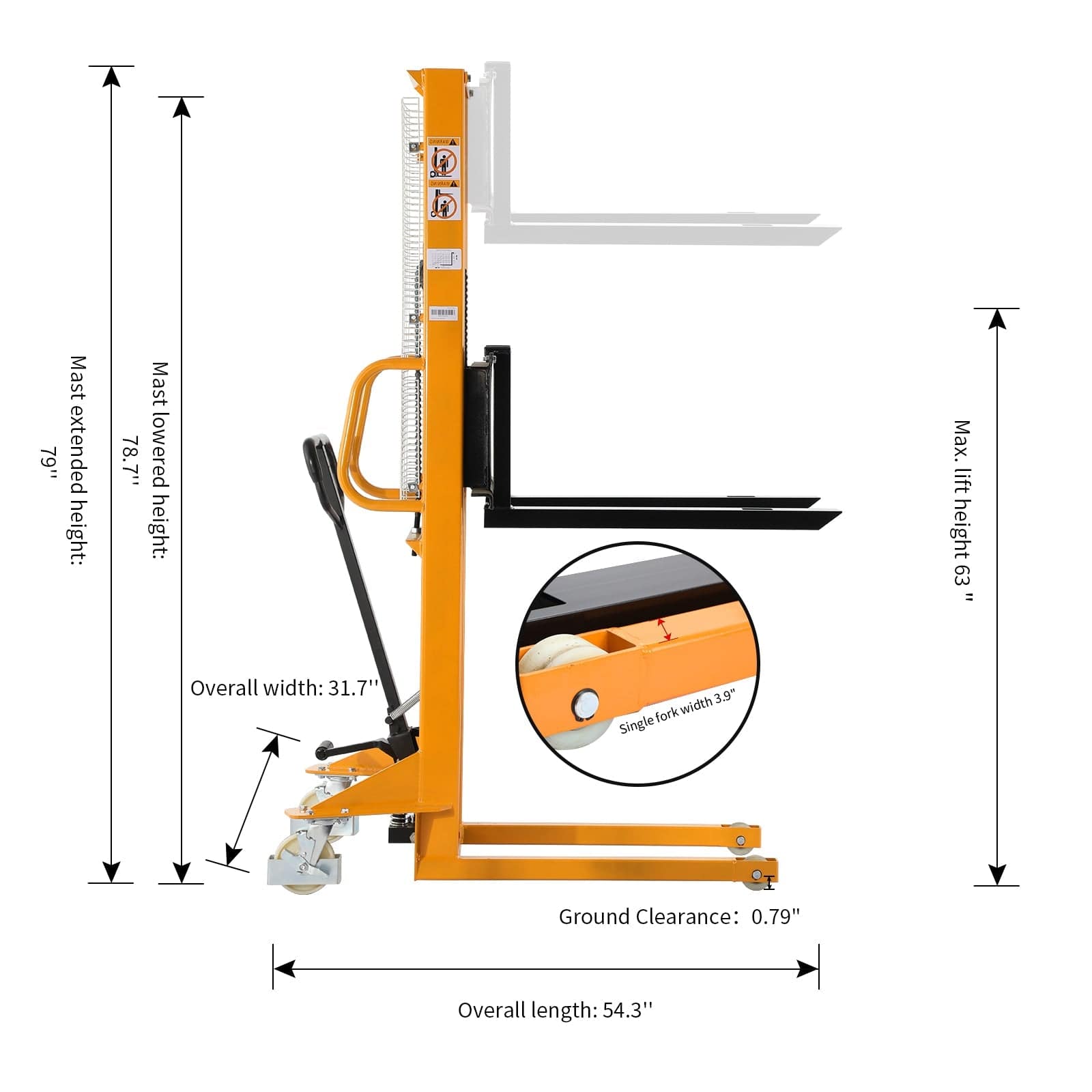

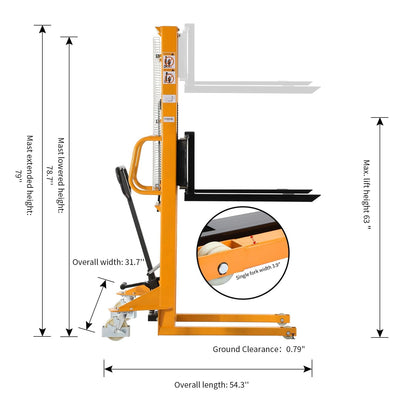

DIMENSIONS
- Overall width: 31.7''
- Overall length: 54.3''
- Load center: 19.7''
- Recommended Aisle Width: 75.4"
- Turning radius: 48.6''
- Inner legs width: 16.5''
- Outer legs width: 20.5''
MAST
- Lifting height: 63''
- Mast lowered height:78.7''
- Mast extended height: 79''

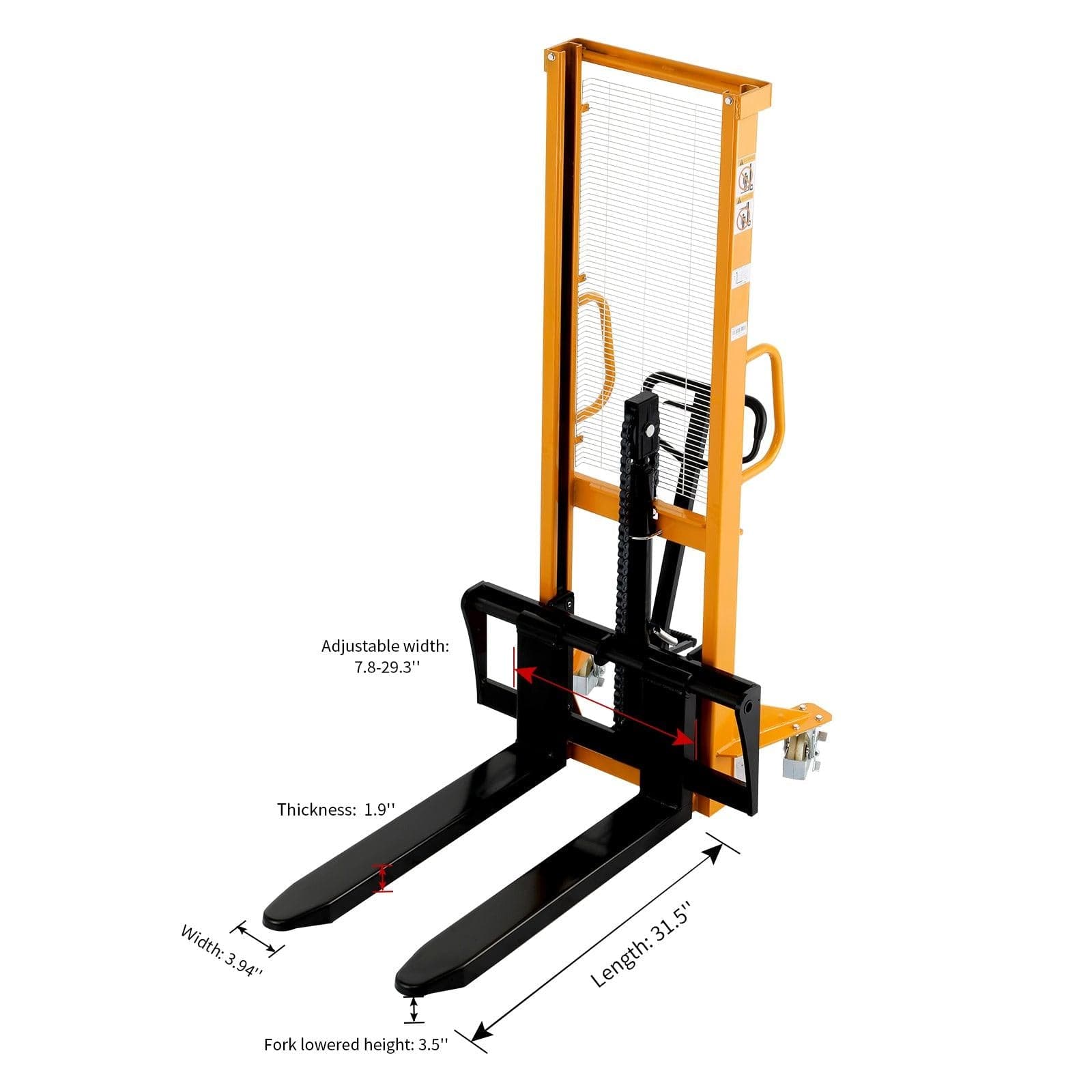

FORKS
- Adjustable width: 7.9-29.3''
- Thickness: 1.9''
- Width: 3.94''
- Length: 31.5''
- Fork lowered height: 3.5''
Features
- Foot Operated Pump: Lift Height nearly 1'' per stroke.
Videos
Â
What Our Experts Think
-
Manual hydraulic lifting – Reliable, power-free operation.
-
Adjustable forks – Fits various pallet sizes for versatility.
-
1100 lbs capacity – Ideal for light to medium loads.
-
63" maximum lift height – Suitable for stacking and transport.
Q&A

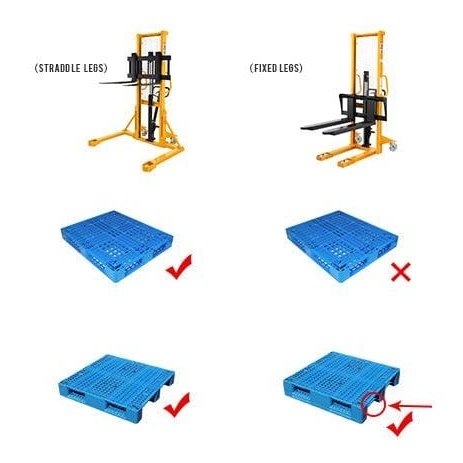

Q: Can it lift pallets of different widths?
A: Yes, forks adjust to fit multiple pallet sizes.
Q: Does this require electricity?
A: No, it operates manually via hydraulic pump.
Maintenance Tips
-
Check hydraulic fluid regularly.
-
Inspect forks and frame for wear or damage.
-
Lubricate moving parts as needed.
-
Follow manufacturer’s maintenance recommendations.
