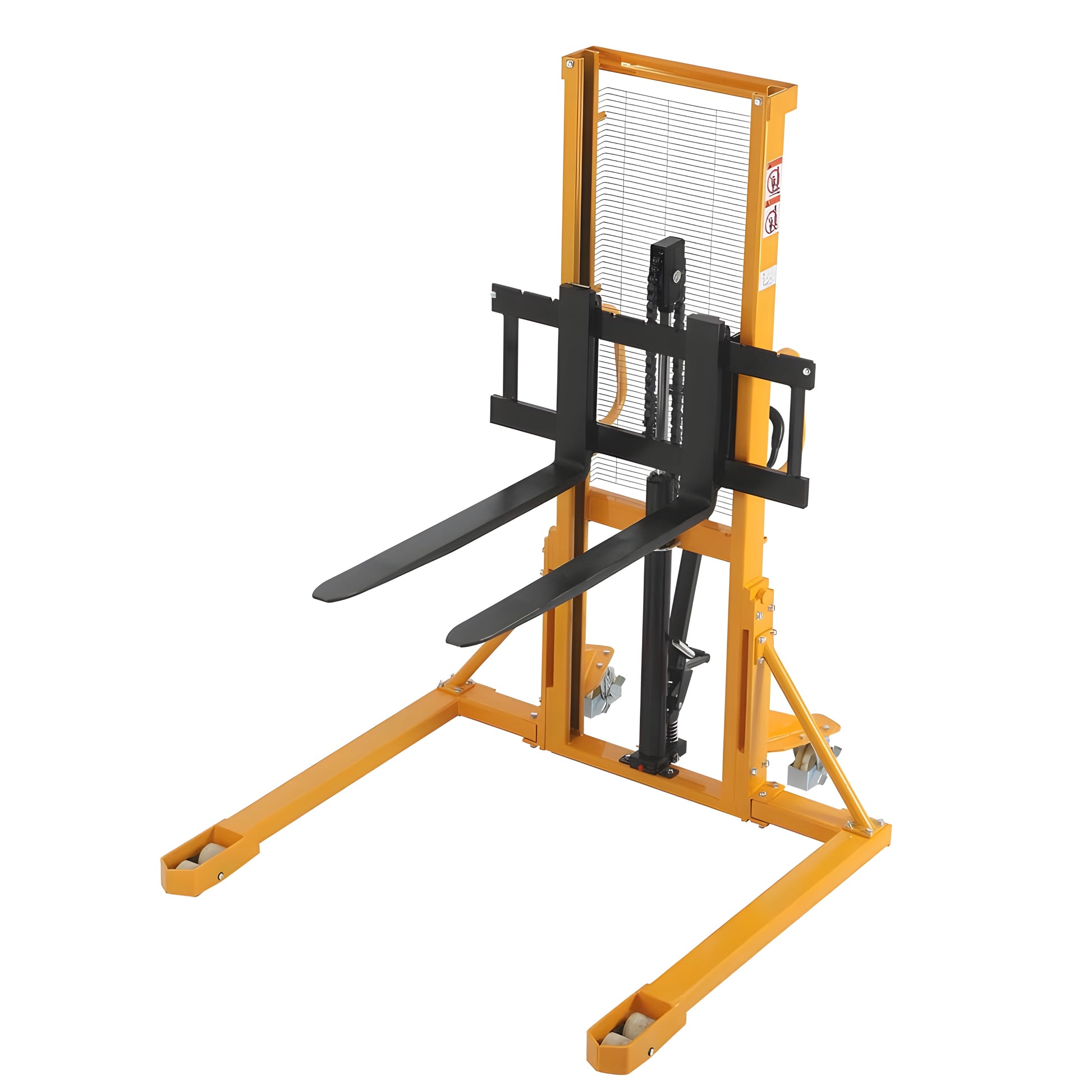

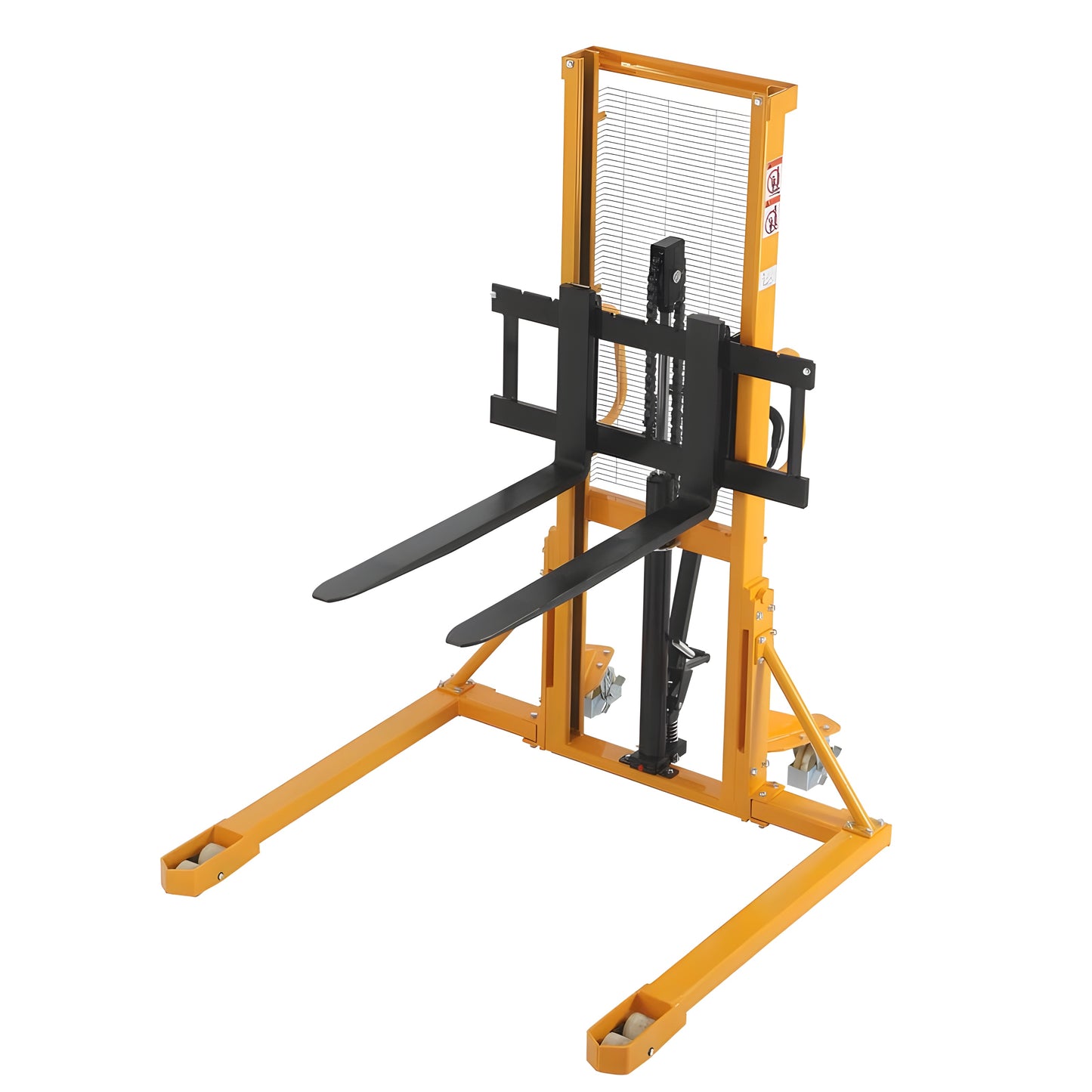

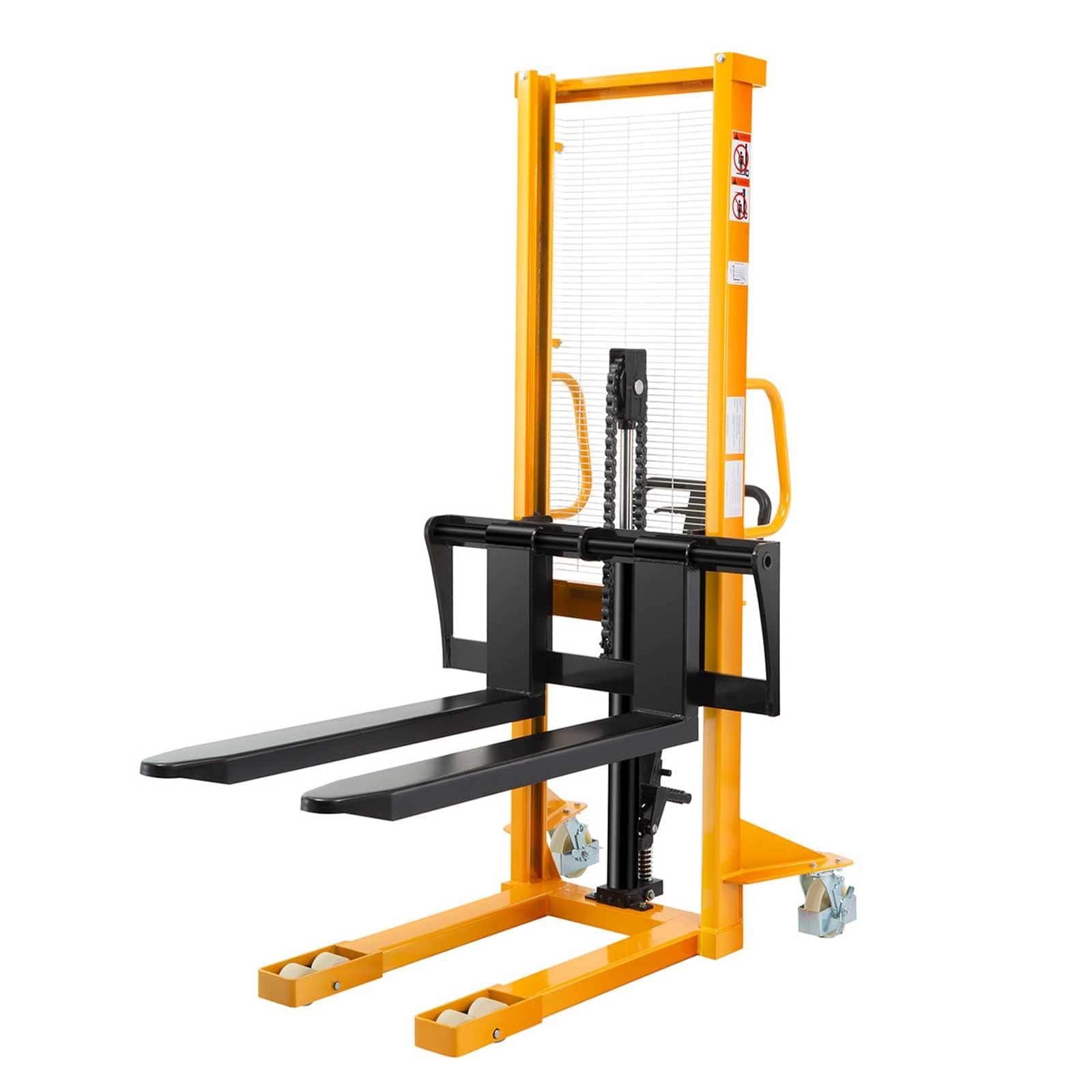

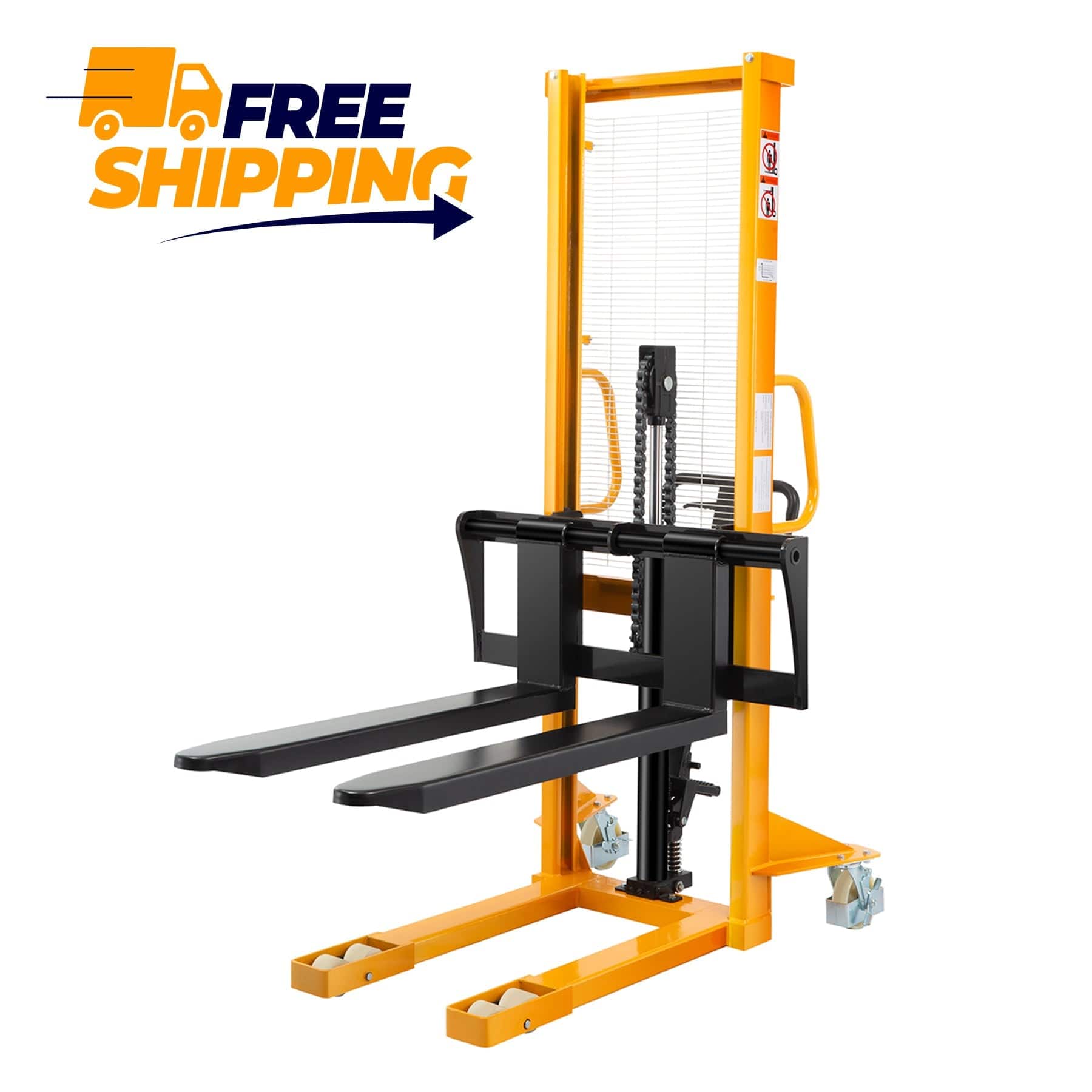

Apollolift Manual Hydraulic Stacker Pallet Stacker Adjustable Forks 2200lbs Cap. 63" Lift Height A-3003
- Compact design for pallet, perfect stacking and pallet positioning as well as stocking and refilling shelves.
- High quality steel mast and strong steel construction ensures rigidity and durability.
- High efficient pumps makes the control easier to operate.
- Metal grid protects user from lift chains.
- With safety wheel guard and brake system to ensure safety during operation.Â
- Manually raise and lower loads with foot pump and handle operation.

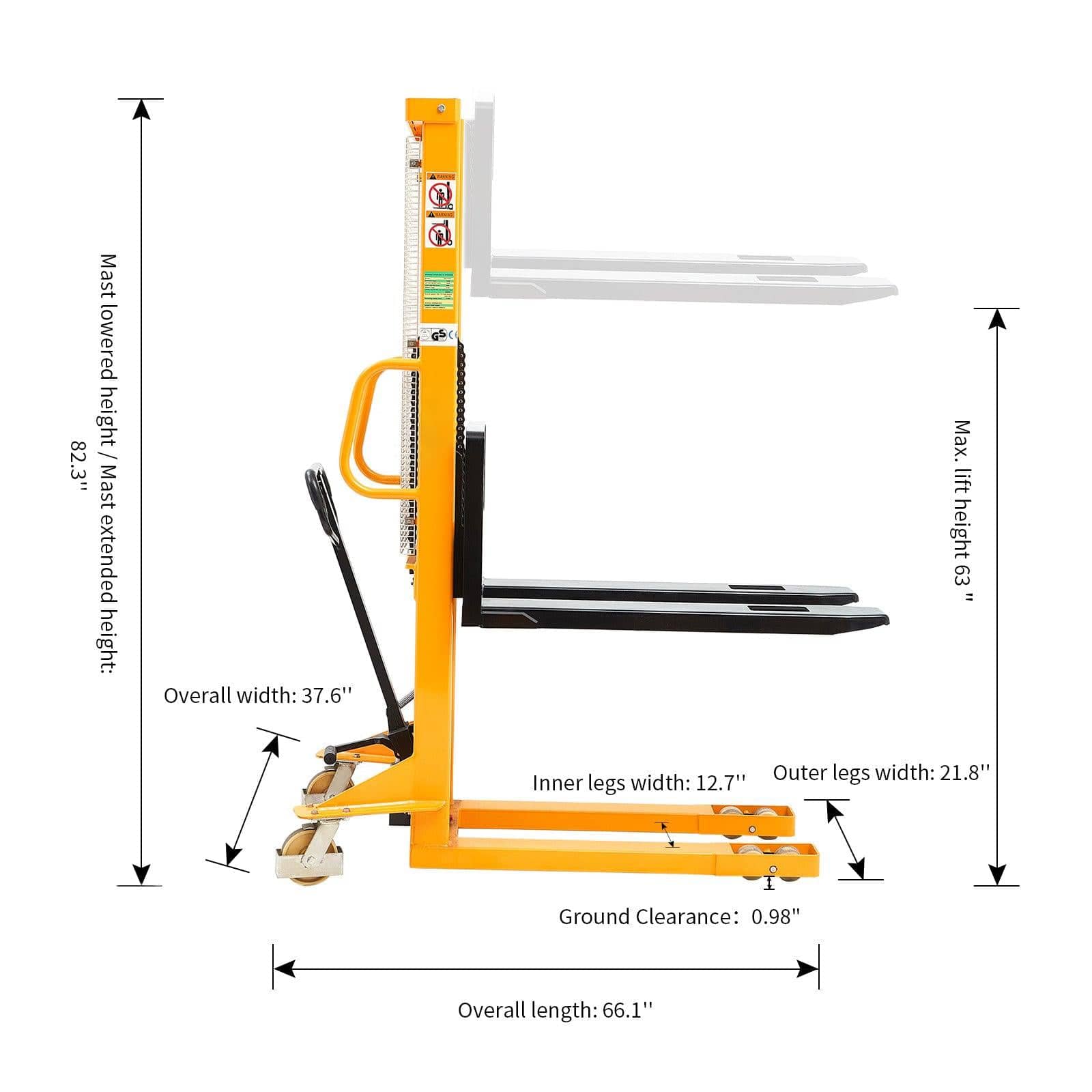

DIMENSIONS
- Overall width: 37.6''
- Overall length: 66.1''
- Load center: 19.7''
- Recommended Aisle Width: 84.5"
- Turning radius: 48.6''
- Inner legs width: 12.7''
- Outer legs width: 21.8''
MAST
- Lifting height: 63''
- Mast lowered height: 82.3''
- Mast extended height: 82.3''

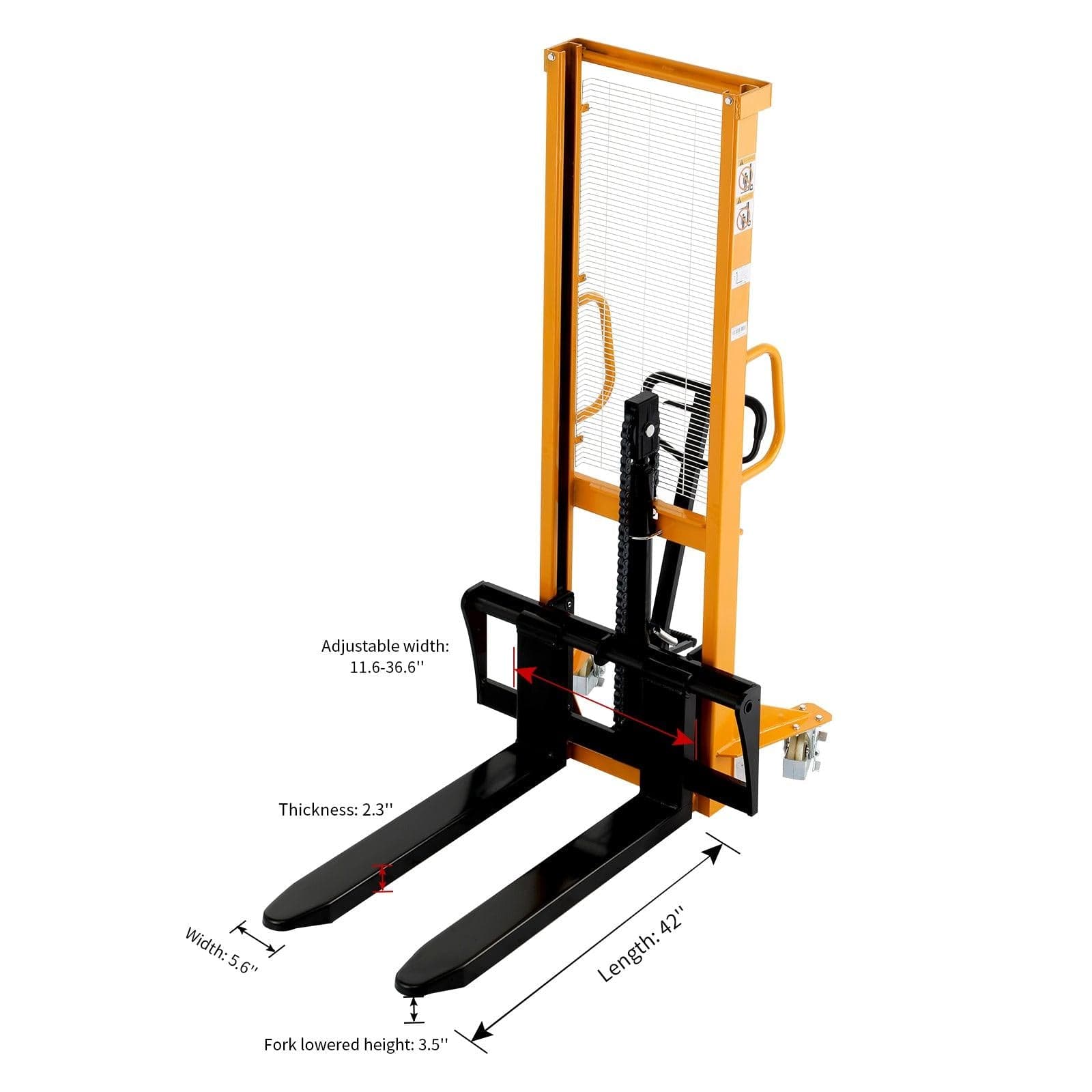

FORKS

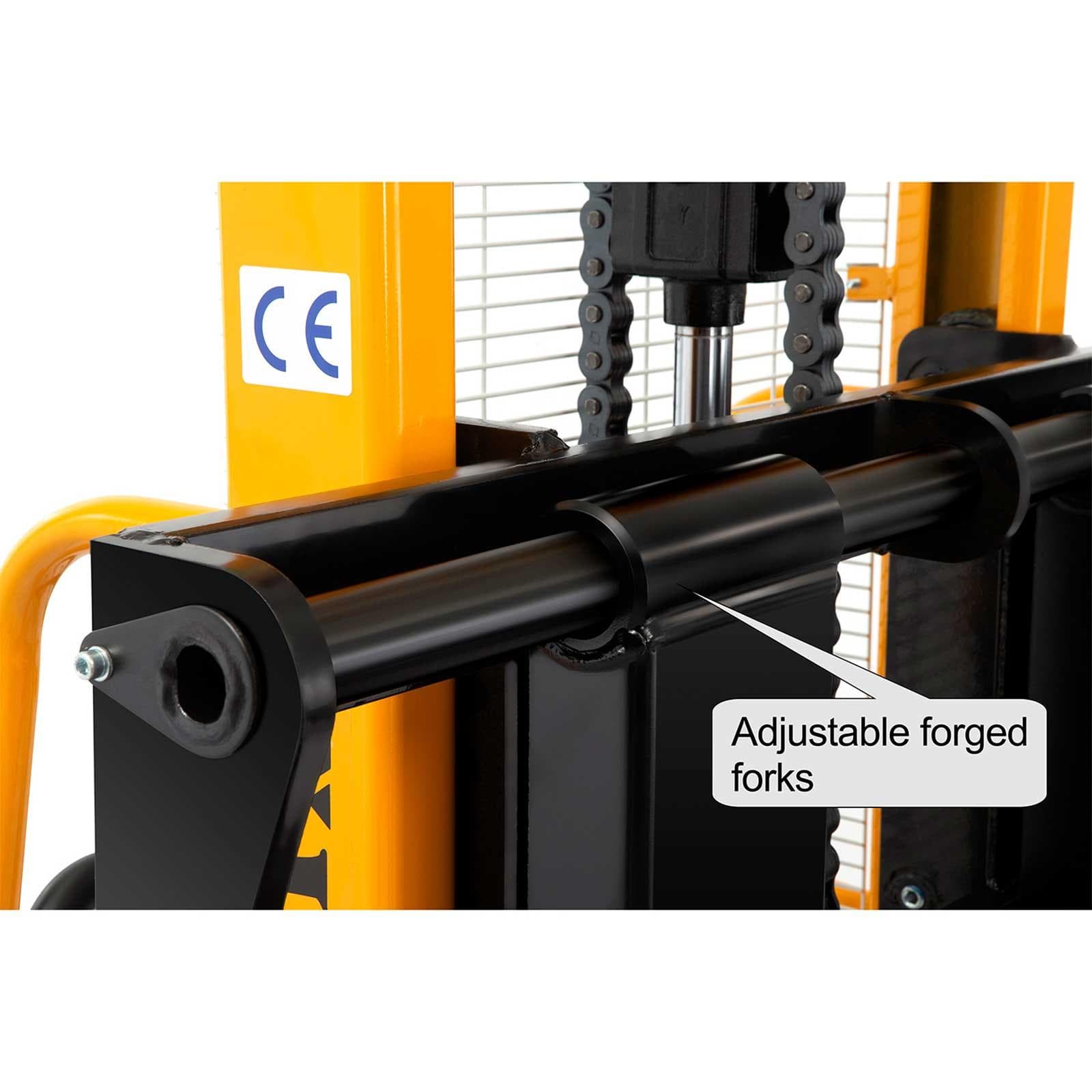

- Adjustable width: 11.6-36.6''
- Thickness: 2.4''
- Width: 5.6''
- Length: 42''
- Fork lowered height: 3.5''
Features
- Foot Operated Pump: Lift Height nearly 1'' per stroke.
Videos
Â
What Our Experts Think
-
Manual hydraulic operation – Smooth lifting without electricity.
-
Adjustable forks – Fits various pallet sizes for versatile use.
-
2200 lbs capacity – Suitable for moderate lifting tasks.
-
63" maximum lift height – Ideal for stacking and loading.
Q&A

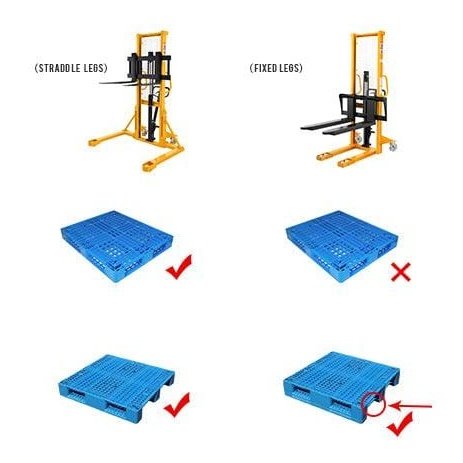

Q: Is this stacker suitable for narrow pallets?
A: Yes, adjustable forks accommodate different pallet widths.
Q: Does it require power?
A: No, it operates manually via hydraulic pump.
Maintenance Tips
-
Regularly check hydraulic fluid levels.
-
Inspect forks and frame for damage.
-
Lubricate moving parts periodically.
-
Follow the manufacturer’s maintenance schedule.
