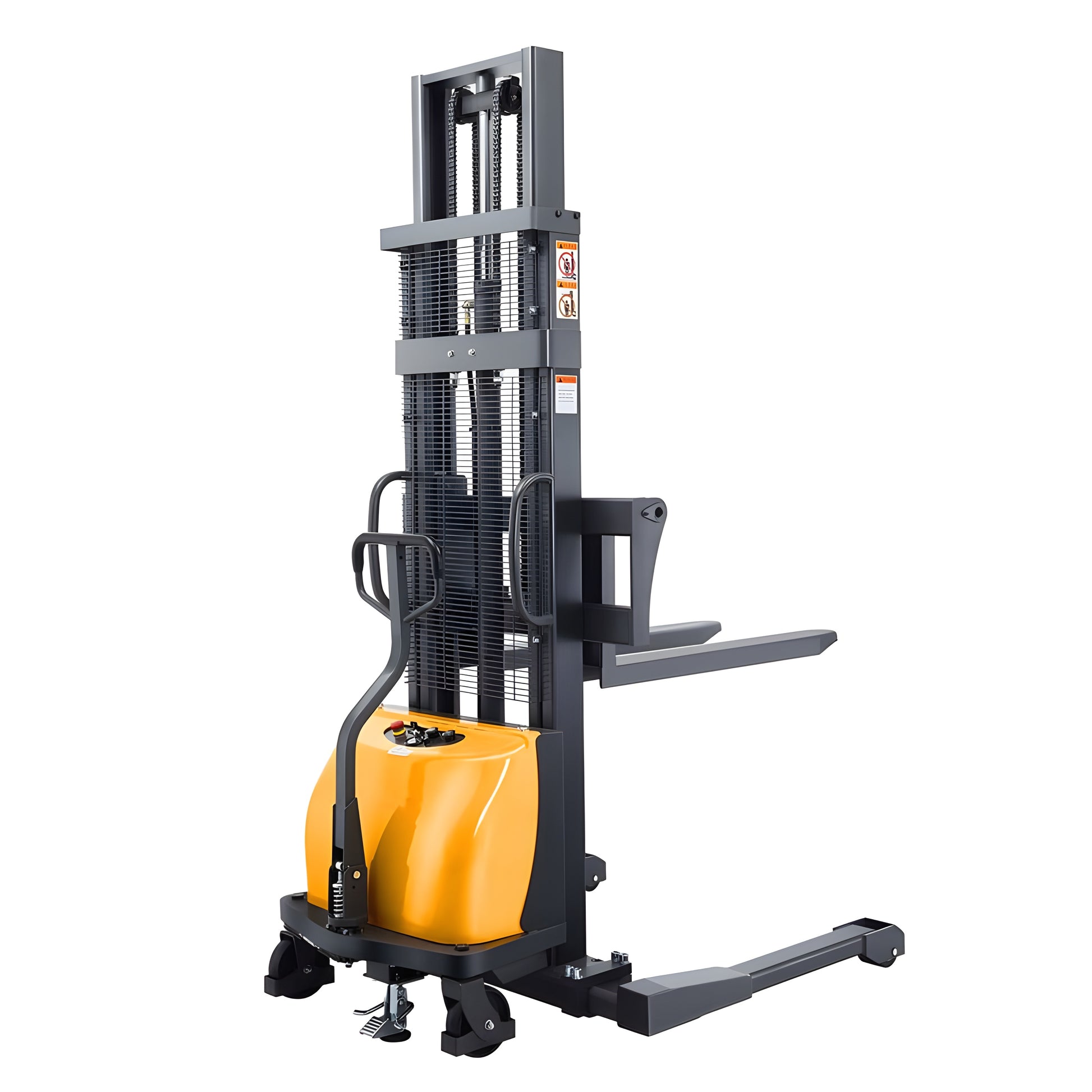

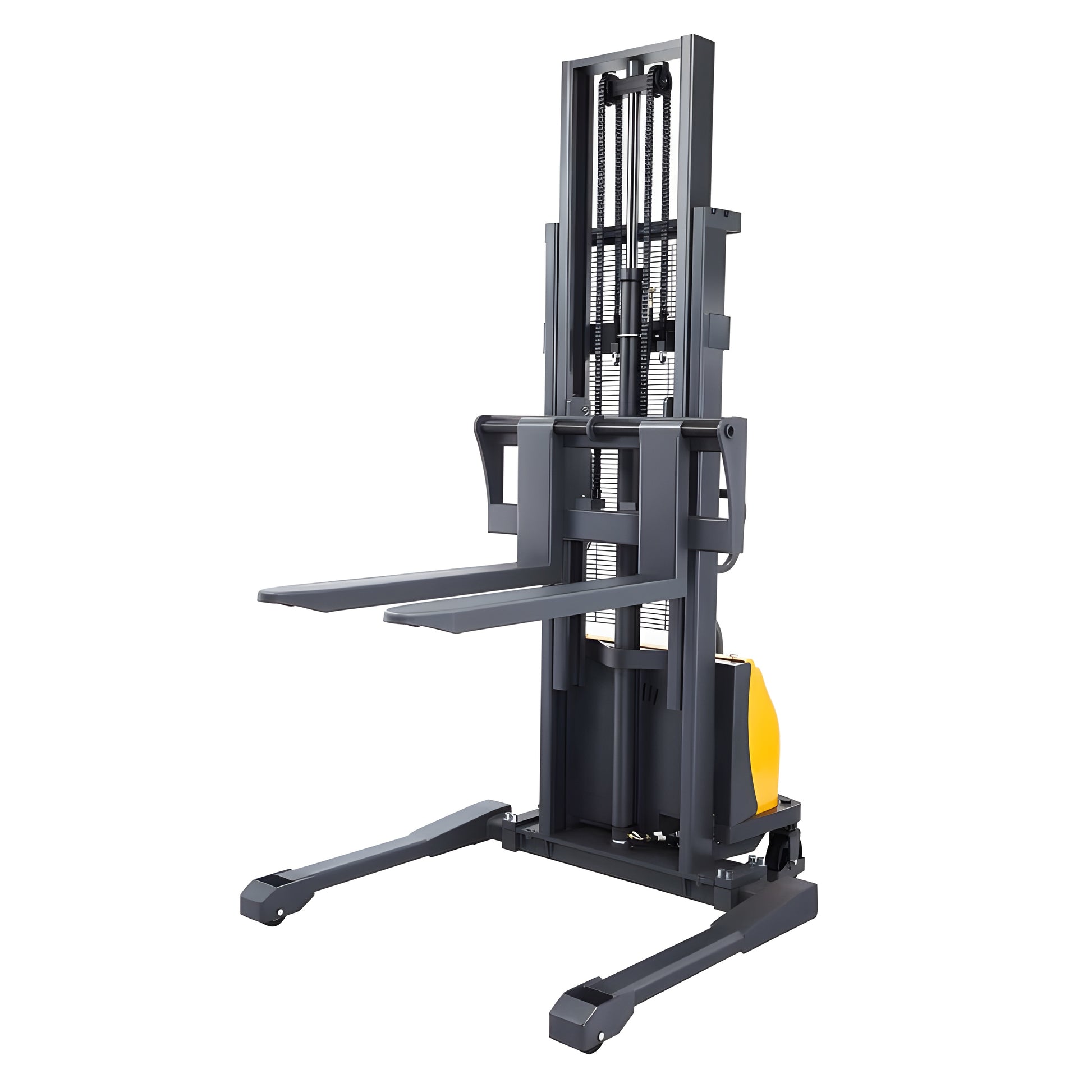

Manual Push And Pull, Powered Lifting And Lowering!
- Special chain steering system.
- Integrate panel design.
-
Foot pedal brake for safety and ramp usage.

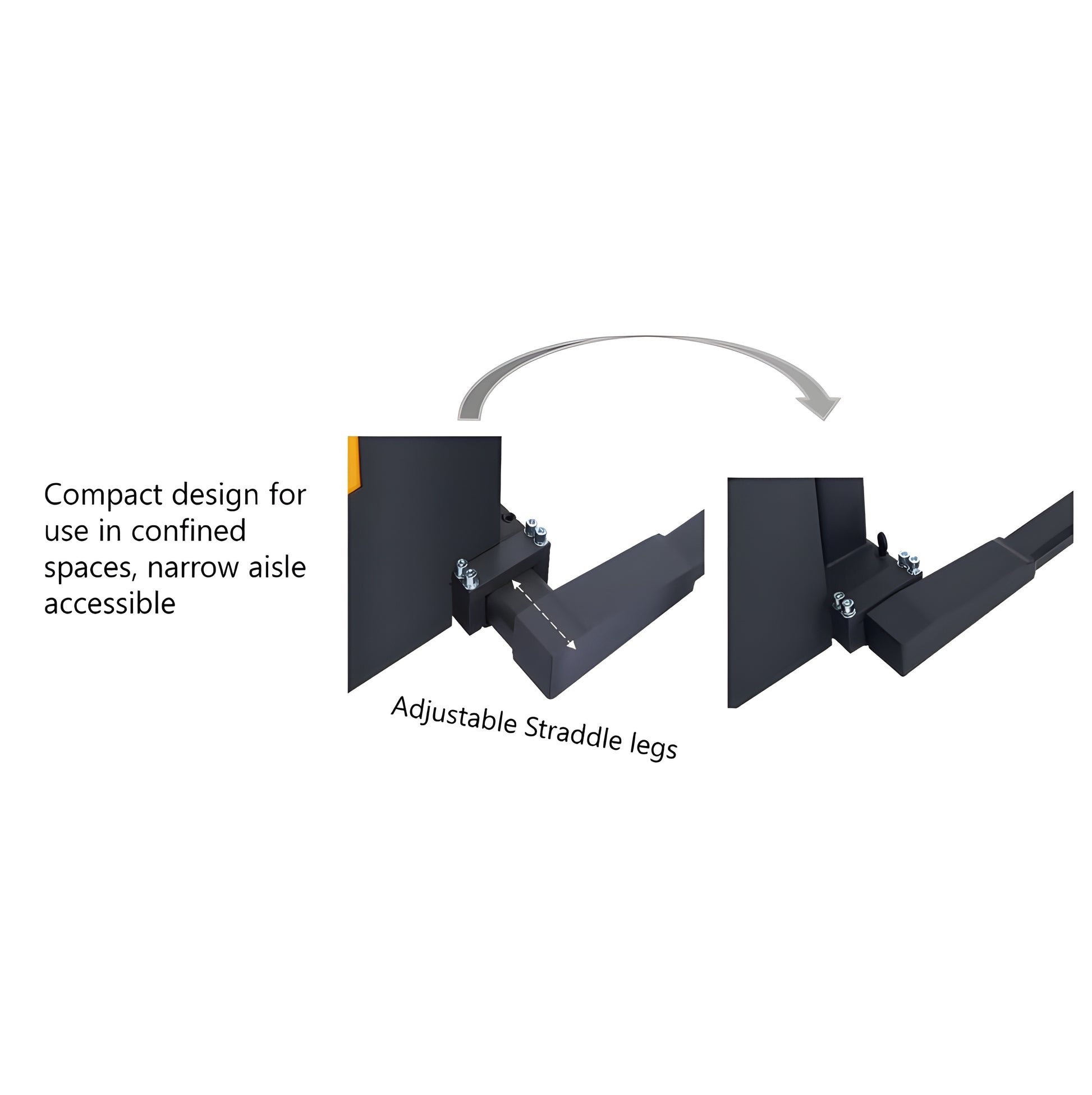

- Adjustable forks and straddle legs.

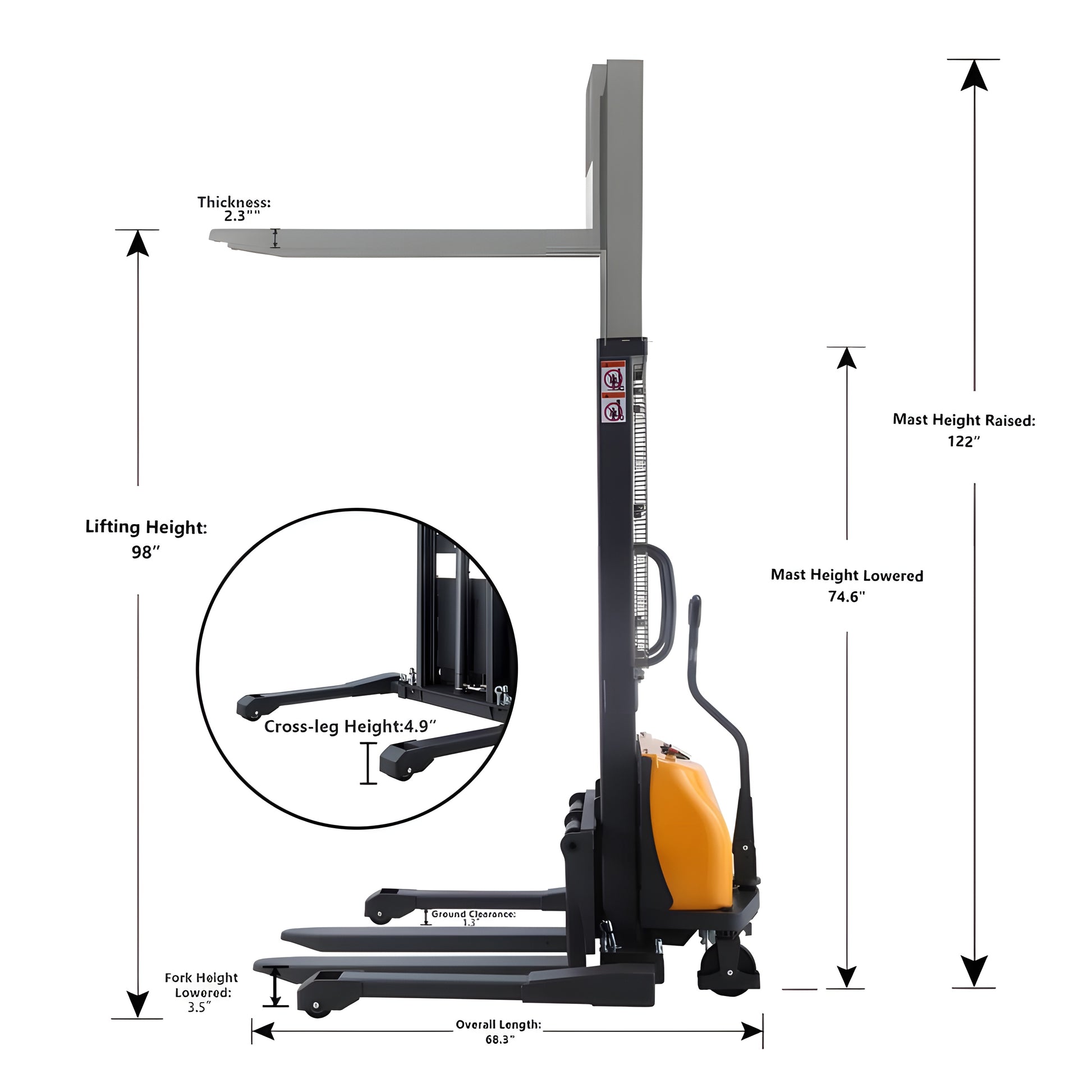

DIMENSIONS:
- Overall Length：68.3"
- Overall Width：44½"-60.3"
- Recommended Aisle Width：89.2"
- Turning Radius：56.1"
- Mast Height Lowered：74.6"
- Mast Height Raised：122''
- Load Center：19.7"
- Wheel Diameter：7''/3.15''

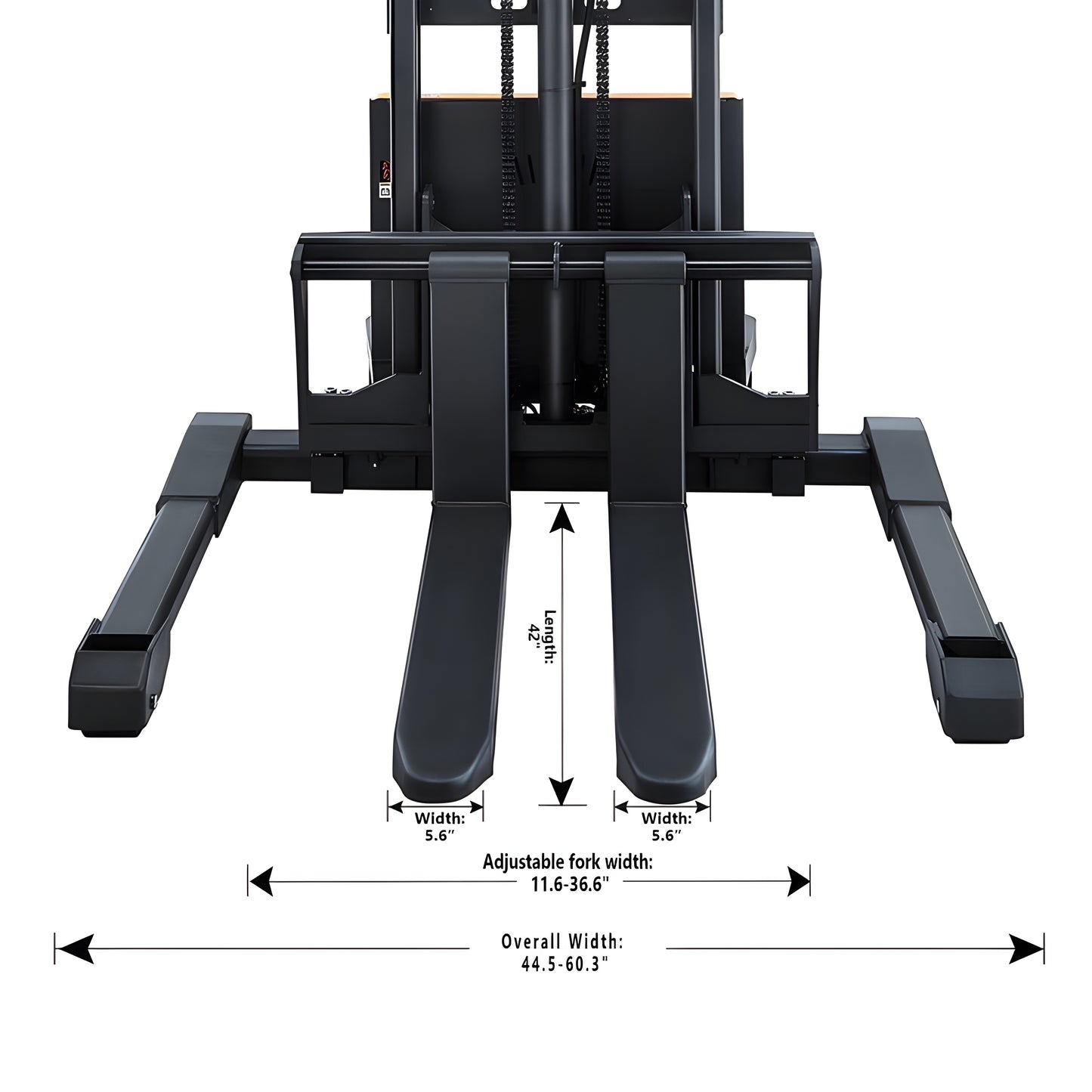

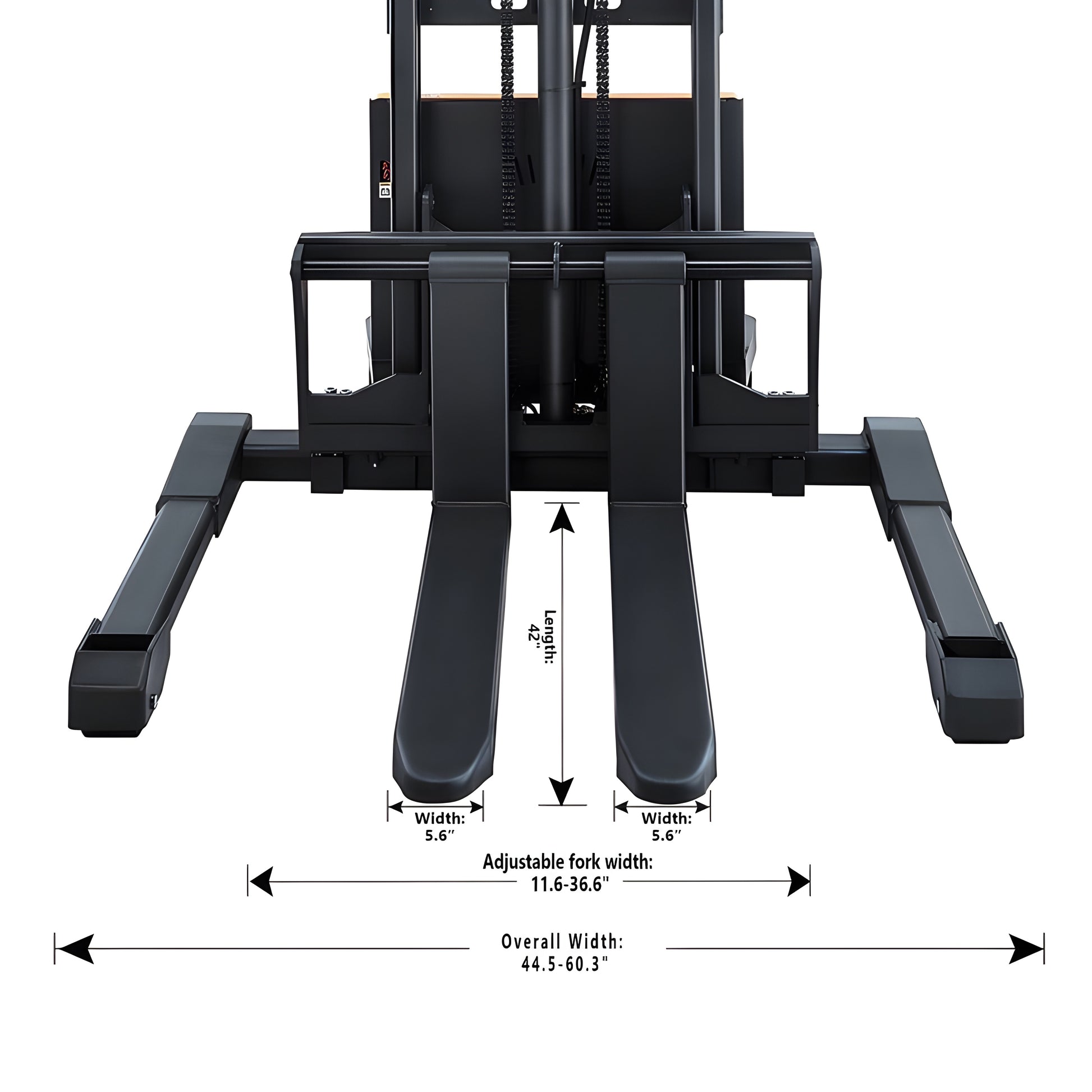

FORKS:
- Thickness：2.3''
- Width：5.6''
- Length：42''
- Adjustable fork width：11.6-36.6''
SPEED:
- Lifting speed(laden/unladen)：2.7/3.9mph
- Lowering speed(laden/unladen)：5.9/4.7mph
BDI:

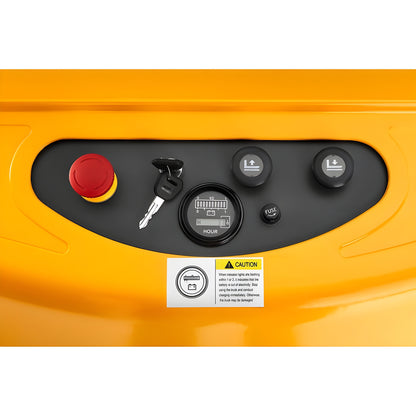

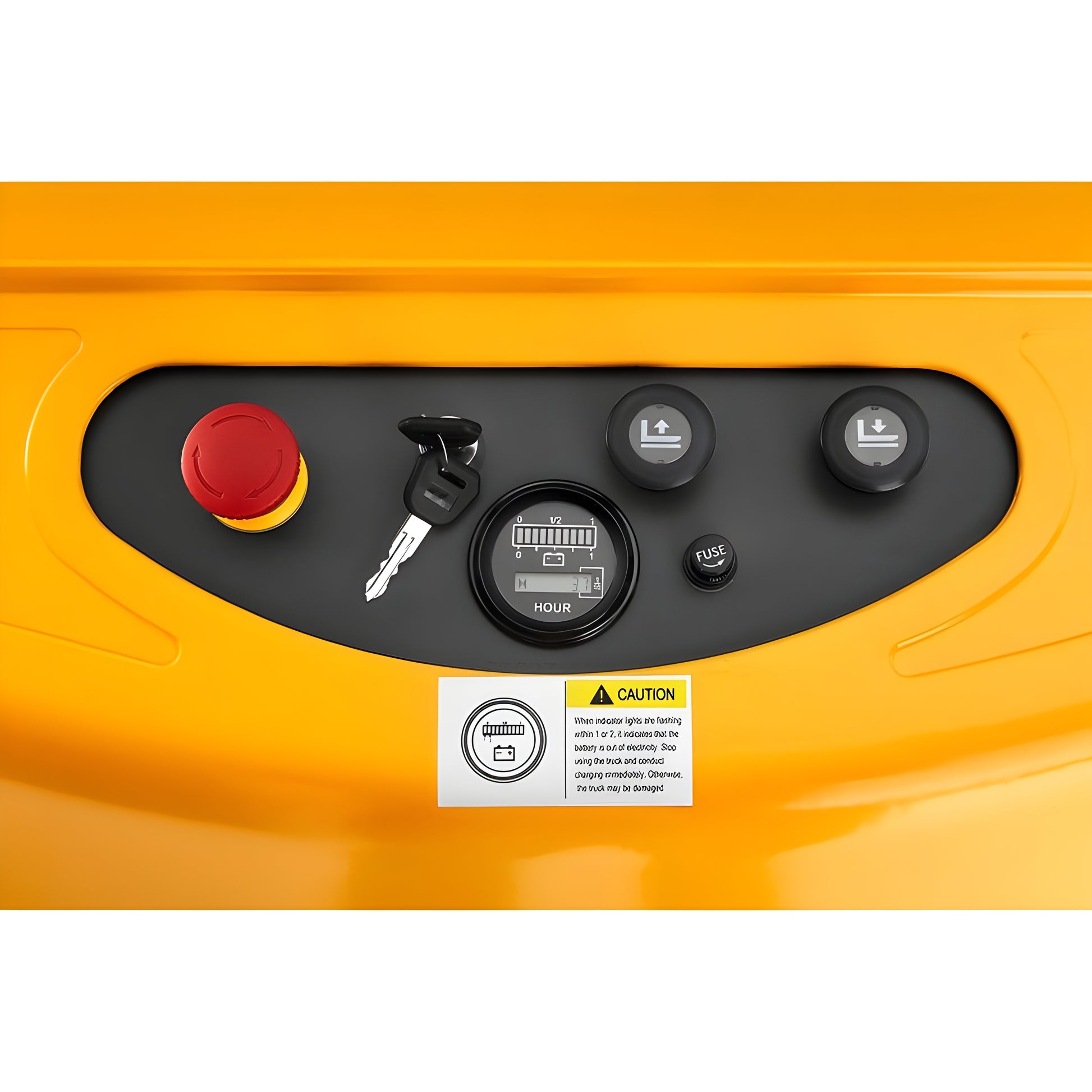

- Multi-function battery display indicator.
- Red：the battery is less than 20% and need to be charged, the truck can walk only, not lift.
- Yellow：the battery is around 50%.
- Green：the battery is full.
- Not explosion proof.
- This truck is designed to be used on flat ground, avoiding uneven grounds with potholes or large ramp.
- Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.
- Fully charge battery before use to avoid damaging cells.
- Charger plugs into standard 110V-120V outlets.
- Charge the truck once a month even it's not in use.
- Time to fully charge battery: 8 - 10 hrs.
Videos
Manuals
What Our Experts Think
-
Semi-electric operation – Combines manual steering with powered lifting for ease and control.
-
2200 lbs lifting capacity – Suitable for medium-duty material handling.
-
98-inch maximum lift height – Ideal for pallet stacking and retrieval.
-
Compact straddle design – Enhances stability and maneuverability in tight spaces.
Q&A
Q: Is this stacker easy to maneuver indoors?
A: Yes, designed for smooth operation in confined areas.
Q: Can it lift standard pallets?
A: Yes, supports most pallet sizes up to 2200 lbs.
Maintenance Tips
-
Check hydraulic fluid levels regularly.
-
Inspect forks and wheels for wear.
-
Keep moving parts lubricated.
-
Schedule routine professional maintenance.
