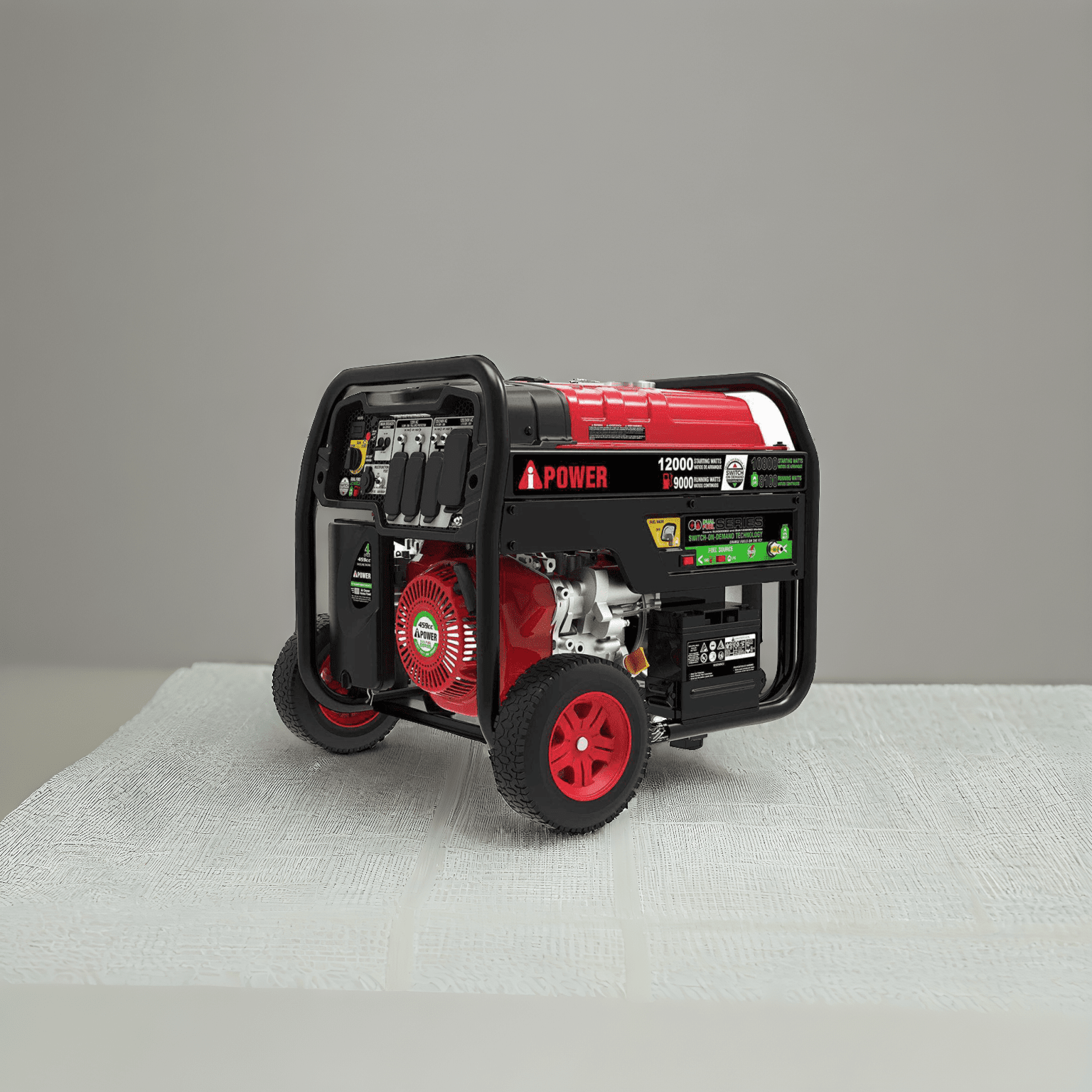

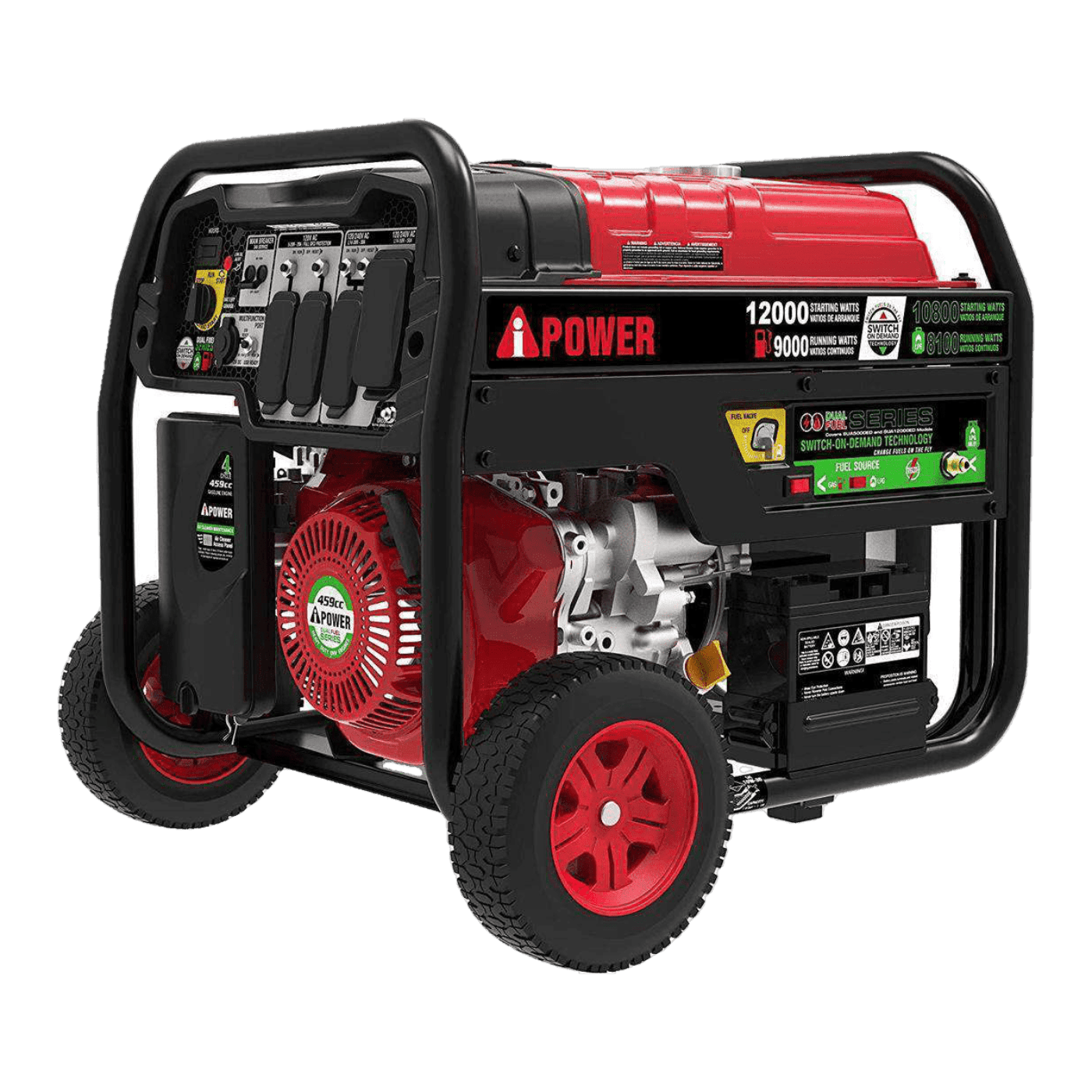

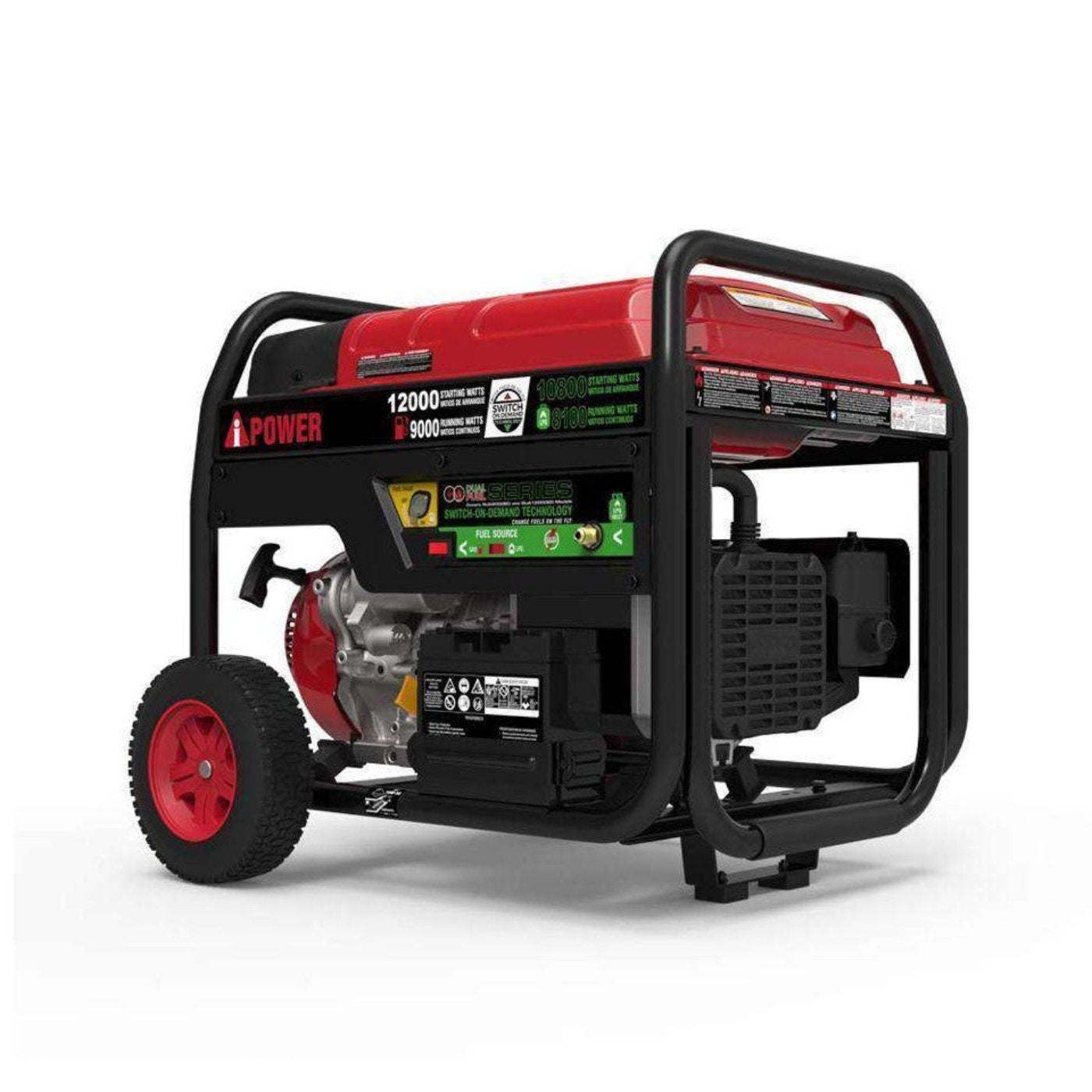

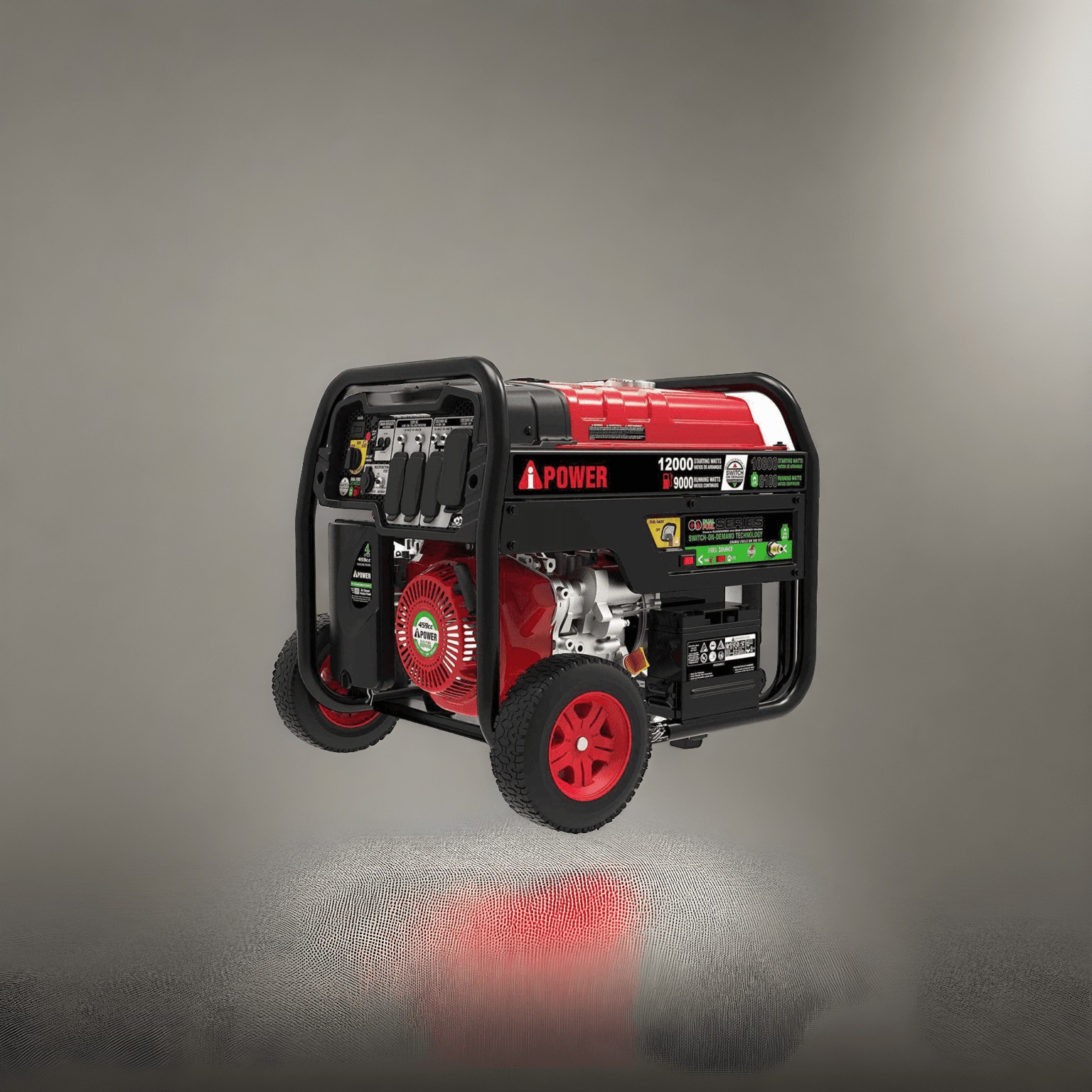

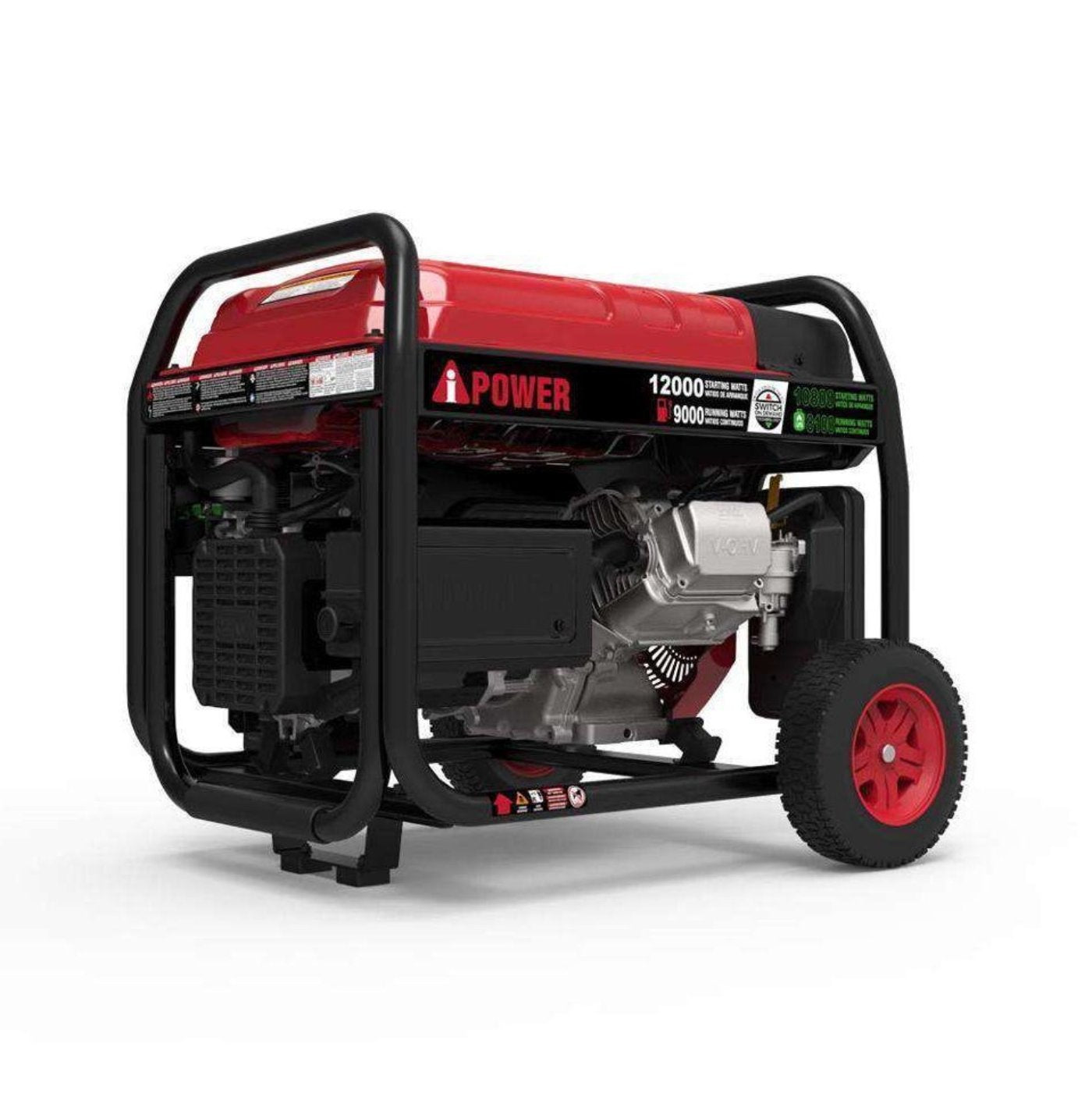

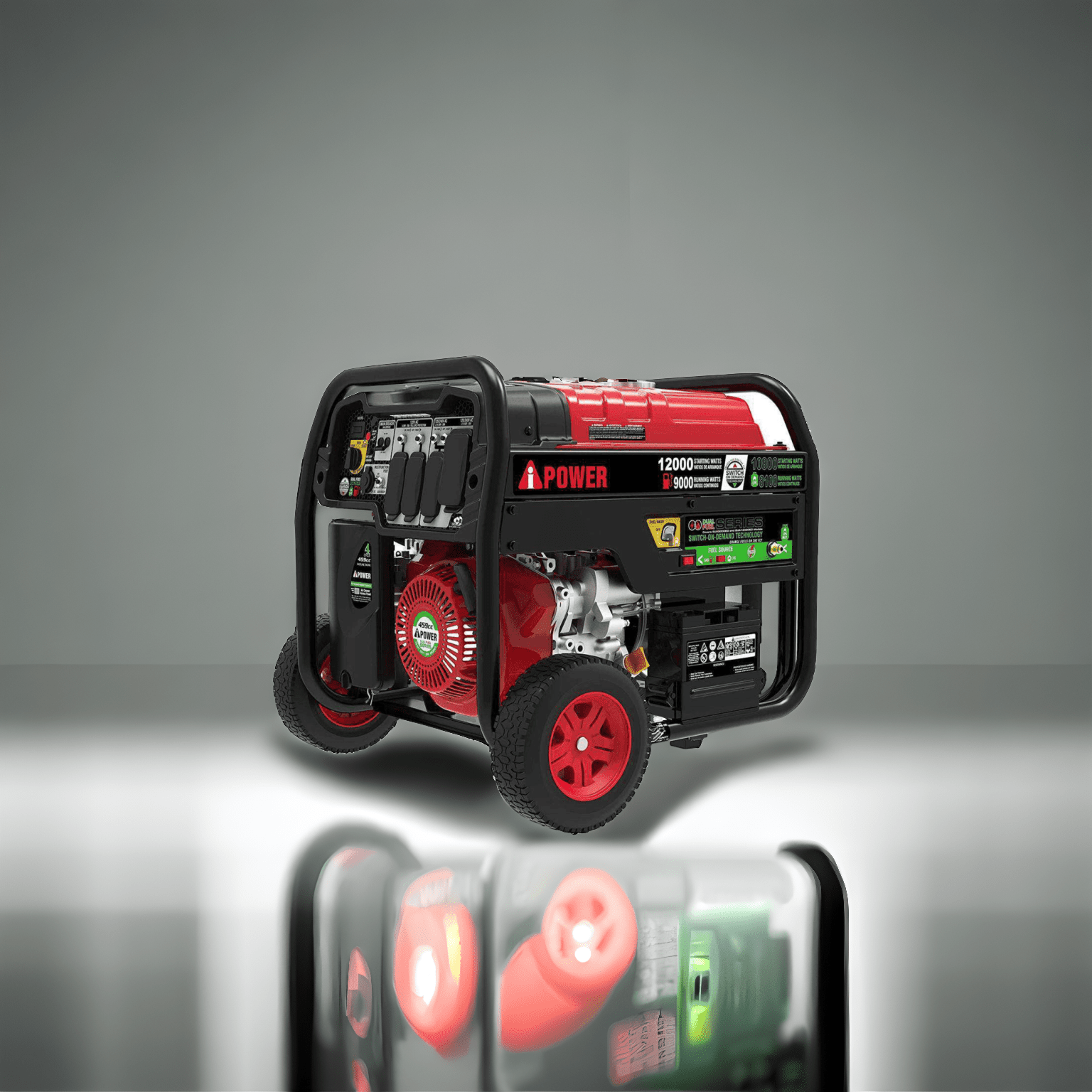

The A-iPower SUA12000ED Dual Fuel, its ideal for the construction jobsite or as back-up power for your home during emergencies when gasoline is not available. The generator features a one – touch button for electric start (battery included), includes Intelli-Start to ensure your battery is always fully charged when you need it. With a large 7-gallon heavy duty all steel construction fuel tank with built in fuel gauge, it provides and average run time of 8.5 hours at 50% load with gasoline or up to 10 hours at 50% load with a 20Lbs LPG tank. The generator operates at 78Db.
Powerful, Portable, Tough, Compact, Reliable, Purpose-Built are the words for the A-iPower SUA12000ED Dual Fuel generator
Features
- 12,000 starting watts / 9,000 running watts
- 60Hz, 120 VAC / 240 VAC, single phase
- 459cc / 16hp ohv, single cylinder, air cooled, 4 stroke engine with electric start
- High performance alternator
- Provides greater peak wattage, which allows motor-driven appliances and tools to operate simultaneously

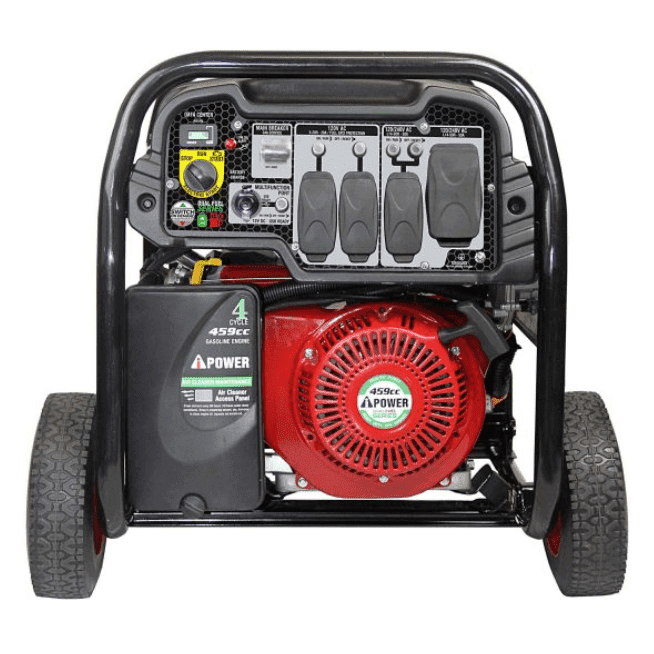

- Easy-access, ergonomically-angled compact control panel
- Multiple front panel outlets for easy power connections; weatherproof covers provide added protection from the environment and rugged working conditions
- Keyless one touch push button start
- Backup recoil start
- Cast iron cylinder sleeves
- Intelligent automatic voltage regulator
- Fuel tank breather hose
- Attractive and rustproof
- Seamless welding
- Built in, easy to read fuel gauge
- Stainless steel fuel cap
- 7 gallon, heavy duty, all steel fuel tank provides up to 9 hours of run time at 50% load
- GFCI protected outlets
- Digital hour meter
- Push - to - reset circuit breakers
- Weatherproof breaker and switch covers
- Built in DC adapter plug and DC charging cables
- Cord protective cover
- Low oil shutdown
- Dual element air filter
- Low tone muffler with USDA approved spark arrestor
- Neutral bonded to frame for added safety
- 1.2" diameter silver grey powder coated rigid tubular steel frame
- Built in ergonomically designed handle
- 9.5" never flat wheels
- Easy to assemble
- 12v-14ah maintenance-free battery included
Specifications
| MODEL |
SUA12000EC |
| UPC CODE |
851217006114 |
| RUNNING WATTS |
9000 GASOLINE/8100 LPG |
| STARTING WATTS |
12000 |
| ALTERNATOR |
SENCI |
| AUTOMATIC VOLTAGE REGULATOR |
YES |
| AC LOAD |
120/240V |
| PHASE/FREQUENCEY |
SINGLE/60HZ |
| ENGINE (OHV) |
459CC/16HP 4 STROKE |
| BORE X STROKE |
92*69MM |
| ENGINE RPM |
3600 |
| AC LOAD |
100% |
| STARTING METHOD |
ELECTRIC START |
| LUBRICATION |
SPLASH SUMP |
| LOW-OIL SHUTDOWN |
YES |
| DIRECT CIRCUIT (DC) |
YES |
| LOW-OIL ALERT LAMP |
1 |
| CIRCUIT BREAKER |
8.3A, 20A, 30A, 38A |
| FOUR NEMA 120VAC 20A GFCI-PROTECTED OUTLETS |
4 GFCI |
| ONCE NEMA 120/240VAC 30A, L5-30R TWIST-LOCK OUTLET |
1 |
| 120/240VAC 50A NEMA L14-50R TWIST-LOCK OUTLET |
1 |
| 12V 8.3A MULTIFUNCTION PORT - USB READY |
1 |
| WEATHER PROTECTED OUTLET COVERS |
4 |
| NEUTRAL BONDED TO FRAME |
YES |
| FUEL TANK CAPACITY |
6.6 GAL |
Manual
User's Manual
What Our Experts Think
-

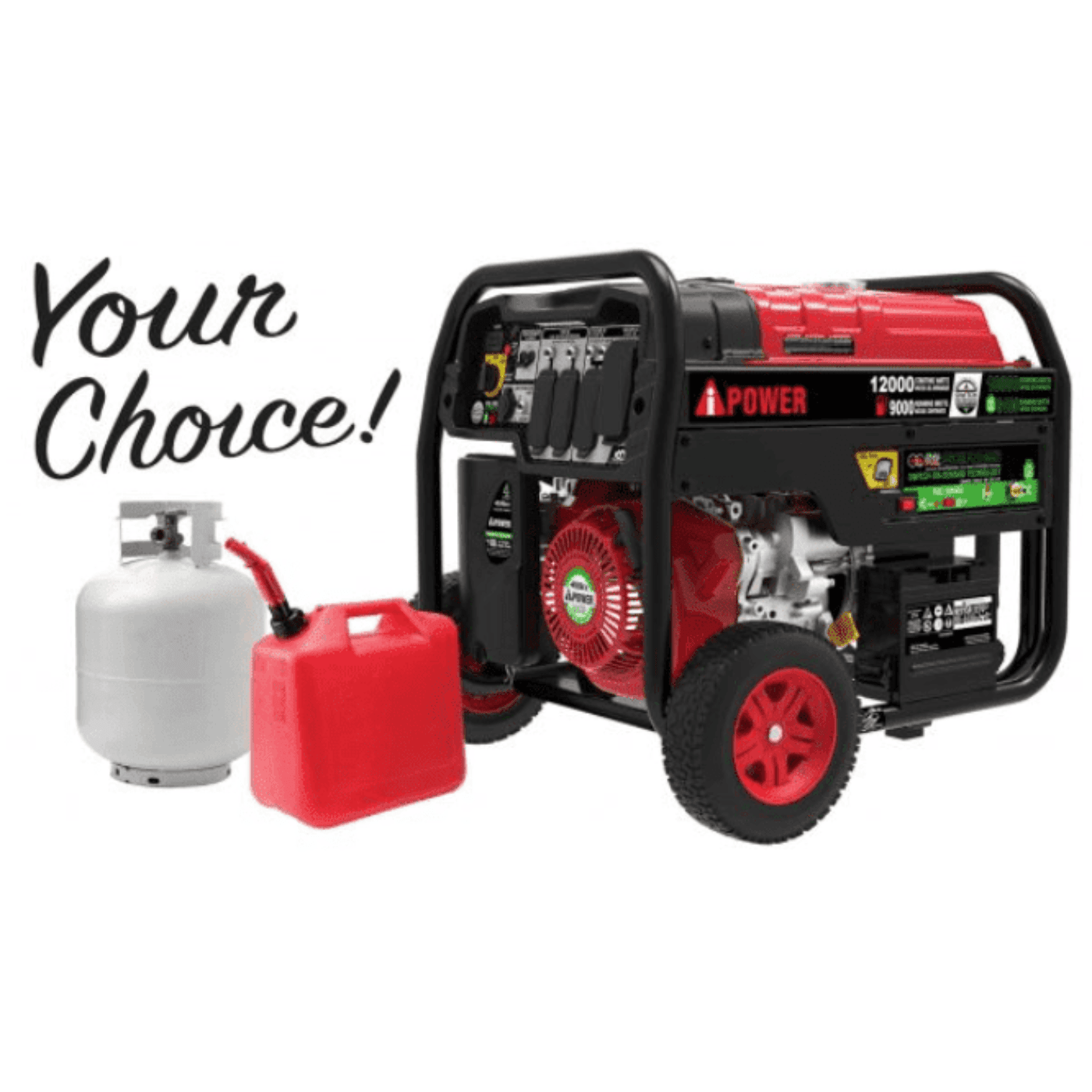

Dual Fuel Flexibility: The A-iPower SUA12000ED can run on both gasoline and propane, providing versatility for various fueling options.
-
Powerful Performance: With 9,000W running and 12,000W peak power, it’s ideal for both home backup and outdoor use.
-
Electric Start Convenience: The electric start ensures quick, effortless operation, especially during emergencies.
-
CARB Compliant: Meets California Air Resources Board (CARB) standards for cleaner emissions, making it environmentally friendly.
-
Long Runtime: Large 7.0-gallon fuel tank offers extended runtime, providing reliable power for hours.
-
Multiple Outlets: Equipped with multiple 120V and 240V outlets, making it suitable for a variety of devices and appliances.
-
Durable Design: Built with a heavy-duty frame and designed for tough conditions, ensuring long-lasting use.
-
Quiet Operation: Runs quieter than comparable models, reducing noise without compromising power.
Q&A
Q: What is the power output of the A-iPower SUA12000ED?
A: The generator provides 9,000W running and 12,000W peak power, suitable for heavy-duty appliances and tools.
Q: Can the A-iPower SUA12000ED run on both gasoline and propane?
A: Yes, it is a dual fuel generator, allowing you to choose between gasoline and propane.
Q: Is the generator CARB compliant?
A: Yes, the SUA12000ED meets CARB standards, making it suitable for use in California.
Q: Does it have an electric start?
A: Yes, the generator features an electric start for quick, easy operation.
Q: What is the runtime on a full tank?
A: With a 7.0-gallon fuel tank, the generator offers extended runtime for continuous power.
Q: Can I use both 120V and 240V devices?
A: Yes, it includes multiple outlets, including 120V and 240V, for versatile device compatibility.
Maintenance Tips
-
Oil Changes: Change oil after the first 20 hours, then every 100 hours of use.
-
Air Filter: Clean or replace every 50 hours for optimal performance.
-
Fuel Care: Use fresh fuel and add stabilizer. Drain fuel if storing long-term.
-
Spark Plug: Inspect every 100 hours, clean or replace as needed.
-
Battery: Regularly check and keep the battery charged, replace if weak.
-
Storage: Store in a dry, clean space when not in use, especially during long periods.
