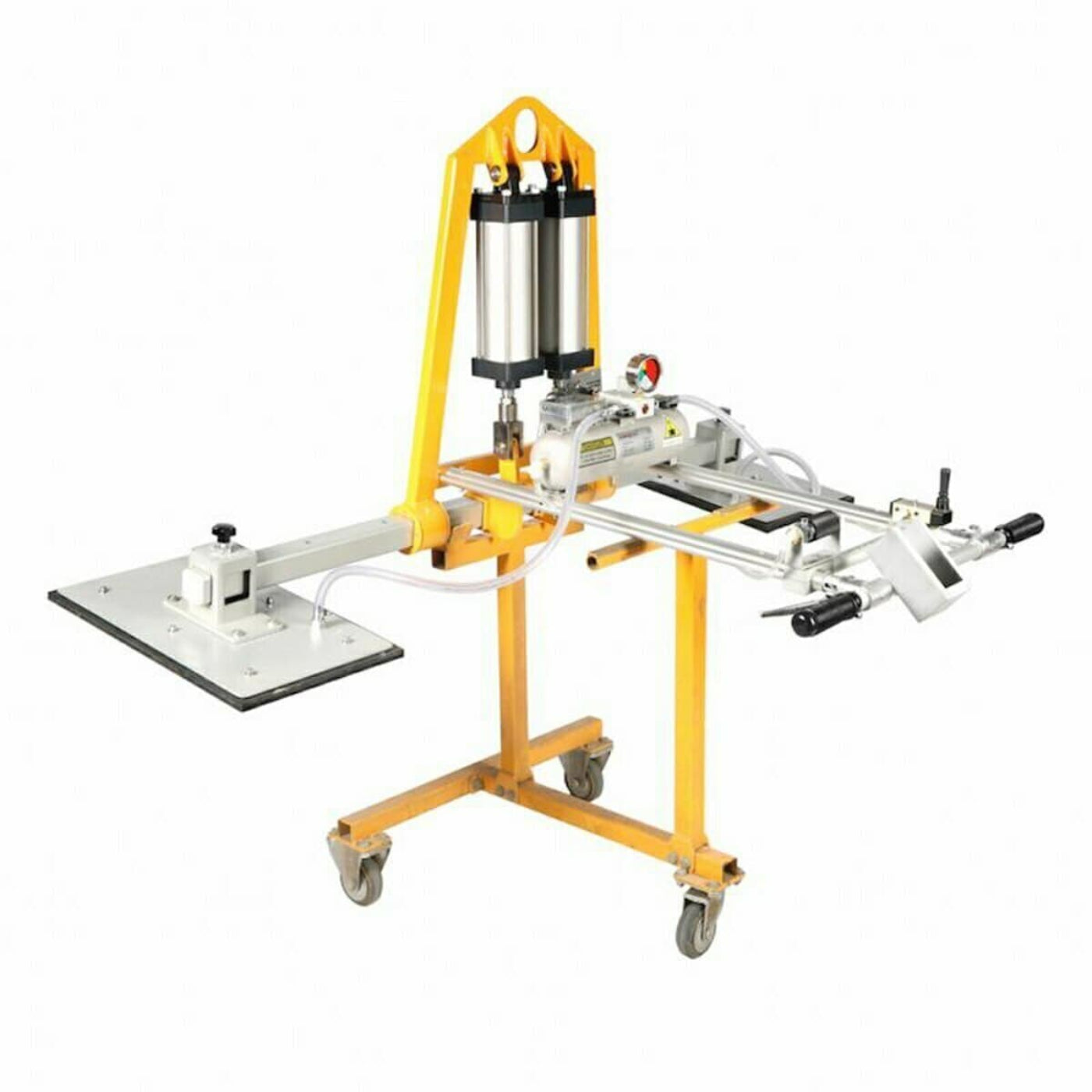

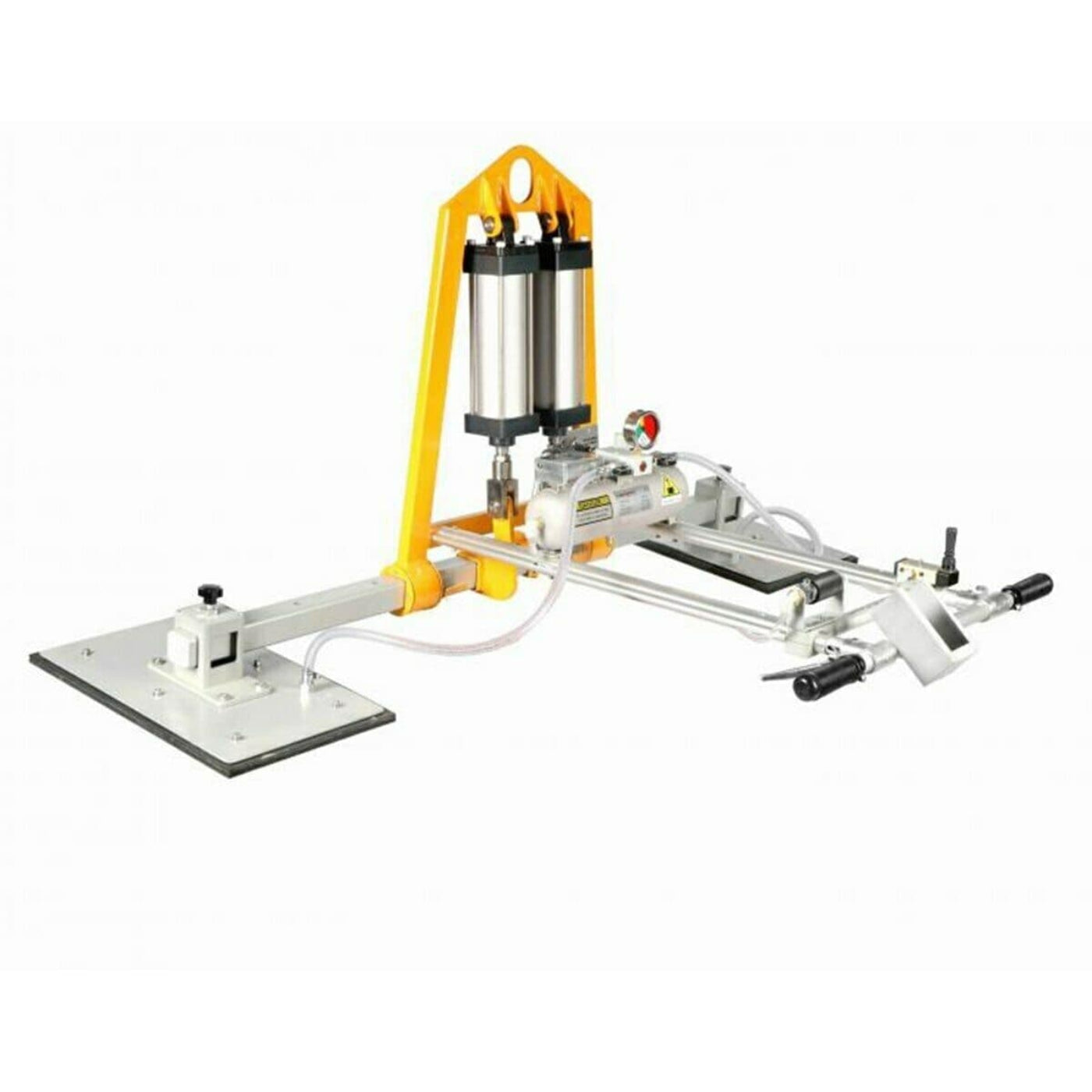

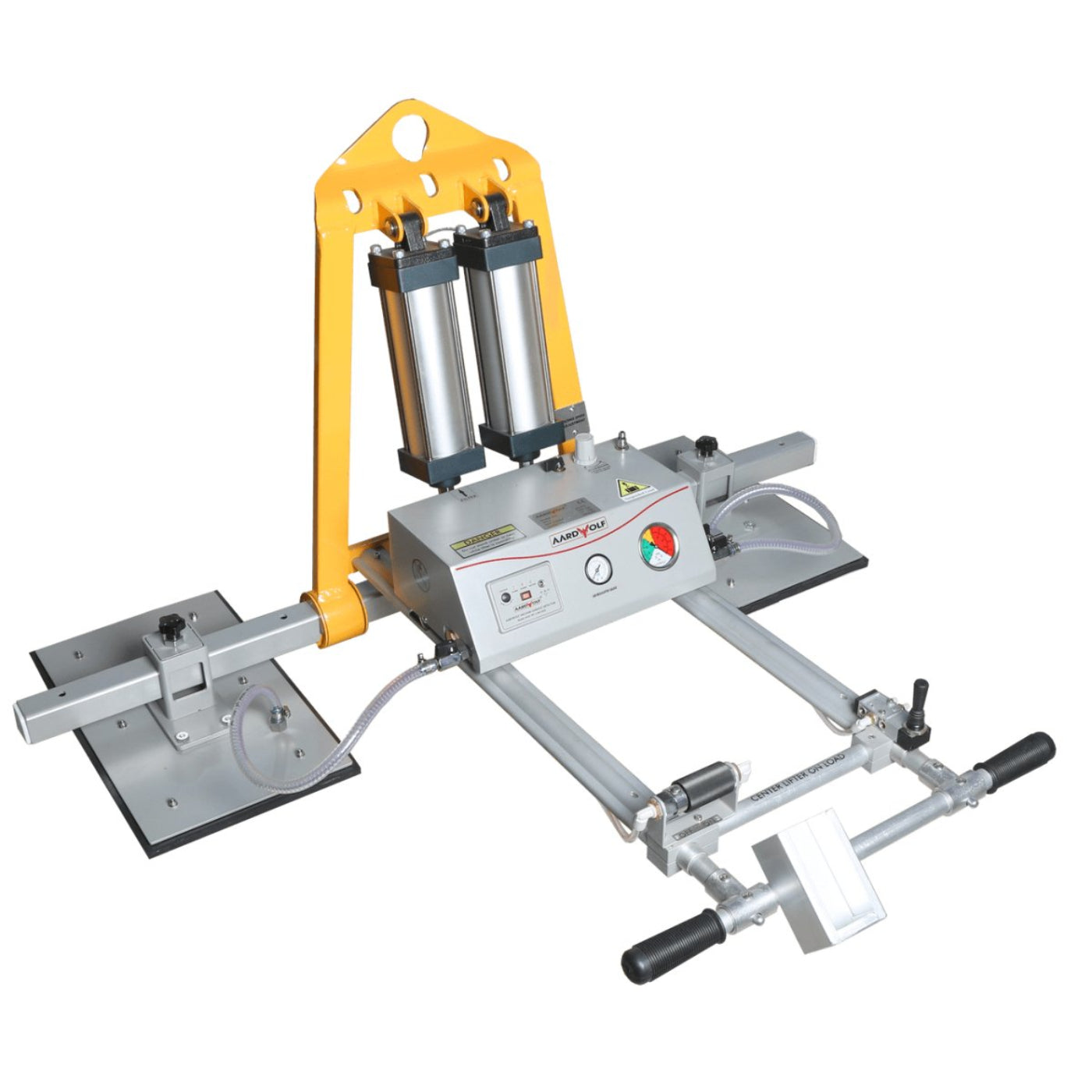

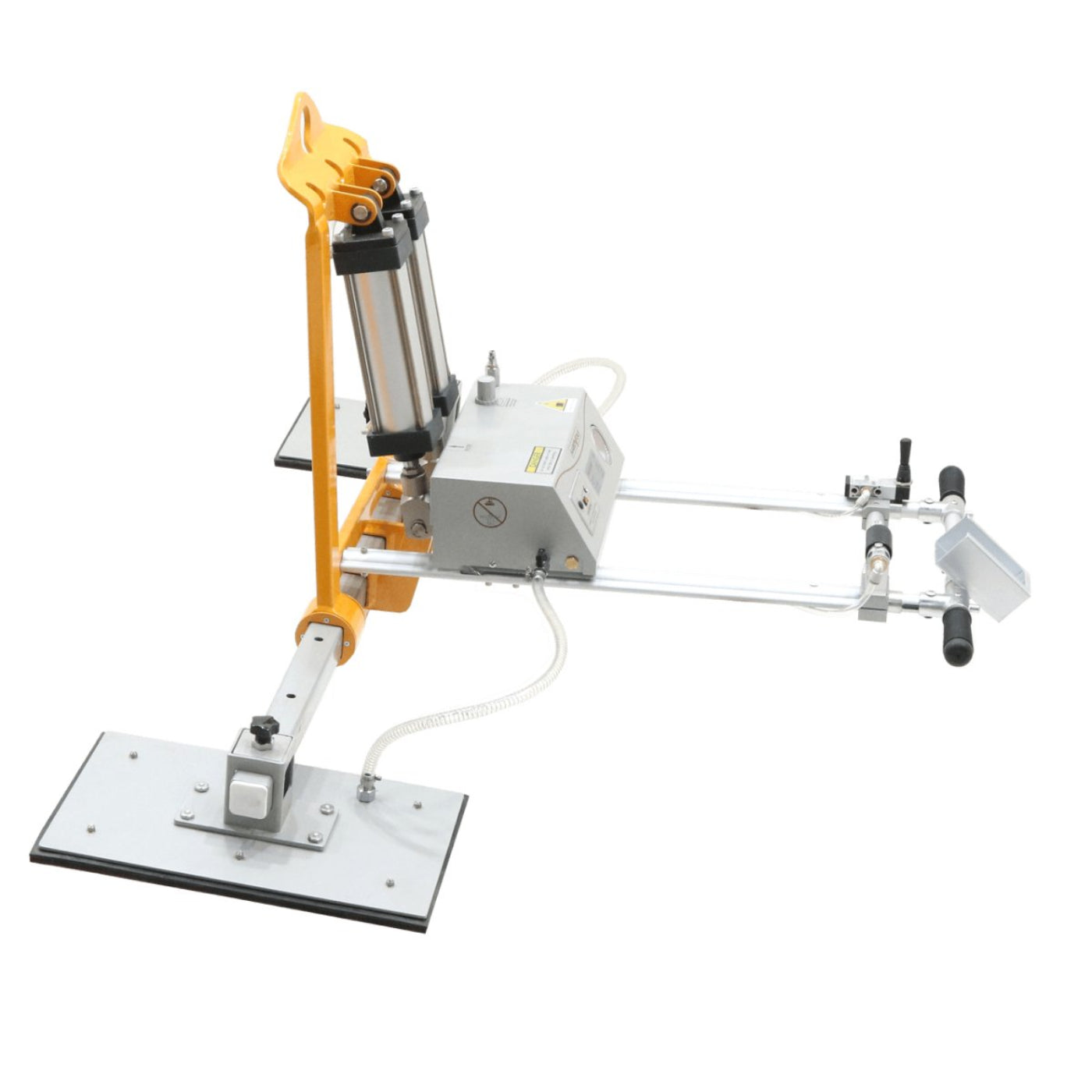

Aardwolf AVLP2-500 Vacuum Lifter - AVLP2
This vacuum lifter is designed to lift smooth or rough marble and granite slabs.
Featuring rugged construction with the ability to lift and tilt materials. Powered by compressed air.
Features
- Pneumatic vertical-horizontal tilting from 0 to 90° by a pneumatic piston.

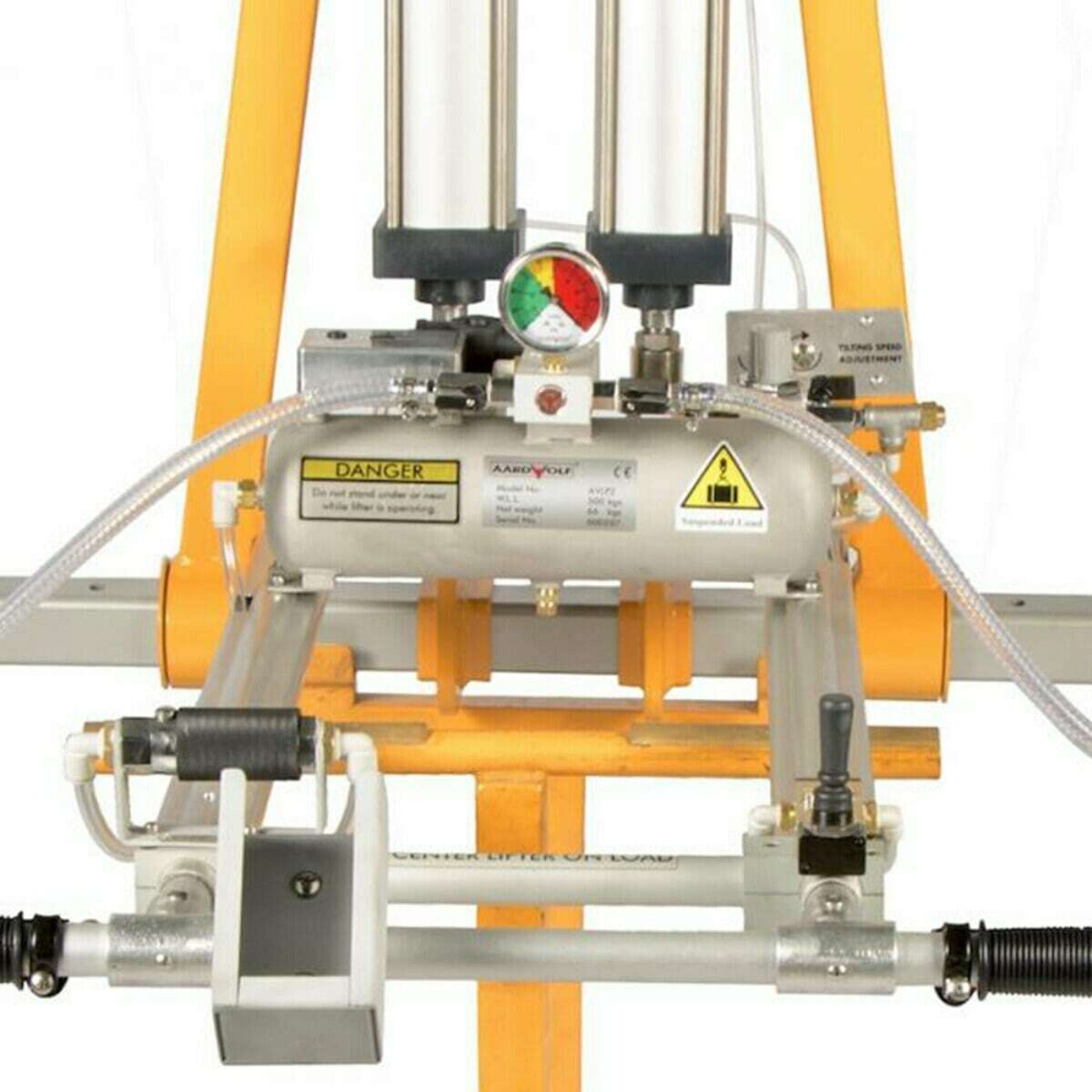

- The vacuum tank ensures safe pickup in the event of a sudden power break to the vacuum pump.
- Acoustic and visual alarm system powered by a rechargeable 12V Li-on battery.
- Slide valve with ON/OFF position for attaching and releasing of material.
Specifications
| Charger Code |
GAL 12V-40 (Bosch) |
| Input Voltage |
220–240V AC |
| Output Voltage |
12V |
| Output Current |
4.0Ah |
| Quantity |
1 |
| Full Charging Time |
0.5 hour |
| Weight |
460 grams |
| Air Consumption |
180 liters/minute |
| Supply Air Pressure |
5 bars (72 psi) |
What our Experts Think
-
Dual-Pad Design: Equipped with two 520 x 320 mm (20.5" x 12.6") vacuum pads, suitable for lifting smooth or rough marble and granite slabs.
-
High Load Capacity: Offers a vertical lifting capacity of up to 250 kg (551 lbs) and a horizontal lifting capacity of up to 500 kg (1,102 lbs), depending on the application.
-
Pneumatic Tilting: Features pneumatic vertical-horizontal tilting from 0 to 90° via pneumatic pistons, making precise positioning of slabs easy.
-
Safety: Includes a vacuum tank that ensures safe pickup if there is a sudden power break to the pump, along with an acoustic and visual alarm system powered by a rechargeable 12V Li-ion battery.
-
User-Friendly Operation: Equipped with a slide valve with an ON/OFF position for attaching and releasing materials, ensuring easy handling.
Q&A
Q: What is the Aardwolf AVLP2-500 Vacuum Lifter used for?
A: The AVLP2-500 is designed to lift and transport smooth or rough marble and granite slabs, enhancing material handling efficiency in workshops and construction sites.
Q: What is its lifting capacity?
A: It has a vertical lifting capacity of 250 kg (551 lbs) and a horizontal lifting capacity of 500 kg (1,102 lbs), providing robust support for heavy stone materials.
Q: How does it operate?
A: Powered by compressed air, the lifter includes a pneumatic vertical-horizontal tilting mechanism from 0 to 90° via pneumatic pistons, allowing precise positioning of slabs.
Q: What is its weight?
A: The net weight of the AVLP2-500 is approximately 80 kg (176 lbs), facilitating ease of use and maneuverability.
Maintenance Tips
-
Inspect Regularly: Check the vacuum pads, seals, hoses, and lifting arms for wear, cracks, or damage before each use.
-
Clean After Use: Remove dust, debris, and moisture from the vacuum pads and lifting components to prevent buildup and maintain suction efficiency.
-
Test Vacuum Function: Ensure the vacuum system is operating correctly by checking the vacuum gauge and listening for any unusual noises.
-
Lubricate Moving Parts: Apply appropriate lubricant to any moving parts, such as pivot points and joints, to ensure smooth operation.
-
Check Air Supply: Ensure the compressed air supply is clean and dry to prevent contamination of the vacuum system.
-
Store Properly: When not in use, store the vacuum lifter in a dry, sheltered area to protect it from environmental damage.
