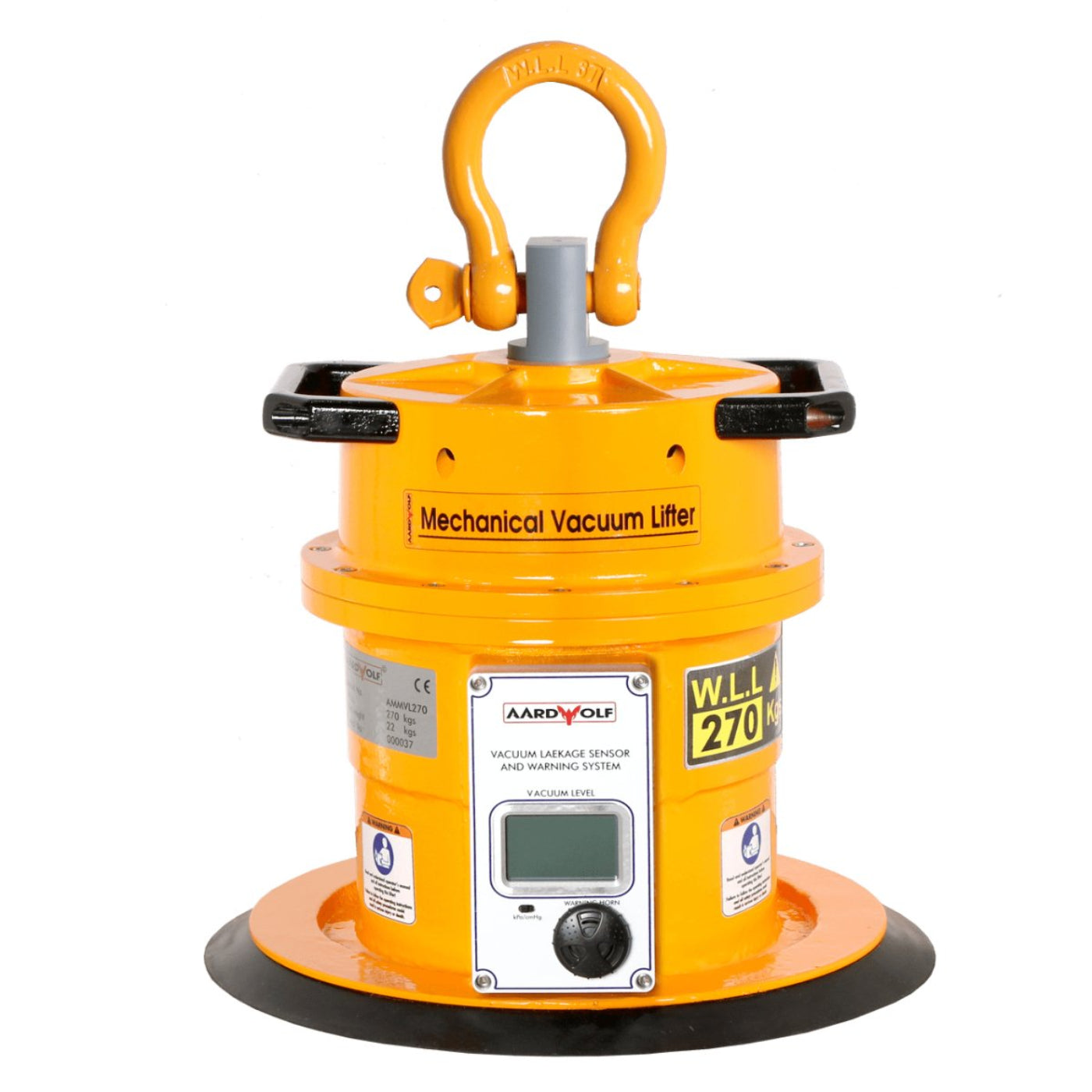

Aardwolf Mono Mechanical Vacuum Lifter 270 - AMMVL270

Aardwolf Mono Mechanical Vacuum Lifter 270 - AMMVL270

Material Handling Equipment for moving stone, all types of metals, plastics, and fiberglass

No power source required. Ideal for the horizontal handling of non-porous sheet and plate material such as diamond sawn or polished granite, polished engineered stone, all types of metals, plastics and fiberglass. An automatic self-cycling valve located in the bottom of the piston controls the vacuum grip-and-release cycle.

Features

• Self-powered and self-cycling
• Audio alarm system powered by a non-rechargeable 9V battery
• Immediately ready for operation
• Low maintenance
• Aluminium construction
• Lightweight

Specifications

What our Experts Think

• Heavy-Duty Lifting Power: Engineered to handle up to 270 kg (595 lbs.), making it ideal for safely lifting and positioning stone slabs, glass panels, and non-porous materials.

• Mechanical Vacuum System: Operates without electricity or compressed air—automatically generates vacuum upon lifting and releases with a simple cable control, enhancing on-site efficiency.

• Compact & Portable: Lightweight and easy to maneuver, making it perfect for use in workshops, construction sites, or material yards with limited space.

• Safety-Focused Design: Features a built-in vacuum gauge and safety check valve to ensure a reliable hold and secure lifting every time.

• Low Maintenance: Mechanical system reduces the need for constant upkeep—durable components ensure long-term performance in rugged environments.

Q&A

Q: What is the Aardwolf Mono Mechanical Vacuum Lifter 270 (AMMVL270) used for?
A: The AMMVL270 is designed for lifting, moving, and placing non-porous materials like glass, metal, and polished stone using a powerful mechanical vacuum system—ideal for industrial and construction applications.

Q: How does the Aardwolf AMMVL270 Vacuum Lifter work?
A: It uses a mechanical vacuum pump powered by the lifter’s own movement—no electricity or compressed air needed—creating a strong vacuum seal on smooth, flat surfaces.

Q: What are the key features of the Aardwolf AMMVL270?
A: Features include a 270 kg (595 lb) lifting capacity, self-powered vacuum system, durable steel frame, quick-release mechanism, and a compact, easy-to-transport design.

Q: What types of materials can the AMMVL270 lift?
A: It’s ideal for non-porous materials such as glass panels, metal sheets, polished granite, and engineered stone slabs.

Q: Is the Aardwolf AMMVL270 safe and easy to use?
A: Yes, it includes built-in safety features like a vacuum gauge, strong suction pad, and manual release valve, ensuring safe operation with minimal user effort.

Maintenance Tips

• Inspect Vacuum Pads Daily:
  Check the vacuum pads for cracks, wear, or contamination. Clean them with a soft cloth and mild cleaner to maintain a strong seal and safe lifting performance.

• Check Seals and Hoses:
  Regularly inspect all seals, gaskets, and vacuum hoses for leaks or deterioration. Replace immediately if any are damaged to avoid vacuum loss during operation.

• Lubricate Moving Parts:
  Apply appropriate lubricant to mechanical joints and moving components as specified in the user manual to prevent rust and ensure smooth operation.

• Test Vacuum Function Before Use:
  Always perform a vacuum pressure check before lifting materials. Ensure the unit builds and holds pressure reliably within the safe operating range.

• Clean Unit After Use:
  Wipe down the lifter with a dry or slightly damp cloth to remove dust, adhesive residue, or debris, especially after working with porous materials like stone or concrete.

• Inspect Frame and Handles:
  Examine the frame and handles for any signs of stress, cracks, or structural wear. Tighten bolts and fasteners to maintain secure operation.

• Follow Load Limits:
  Never exceed the 270 kg (595 lbs) capacity. Overloading can cause mechanical failure and void warranty or safety certifications.

• Store Safely:
  Store the vacuum lifter in a clean, dry area away from direct sunlight and extreme temperatures. Use the original packaging or a protective case if available.
