Alpha Tools PSG-125 Diamond Cutting Kit - 5480-1301

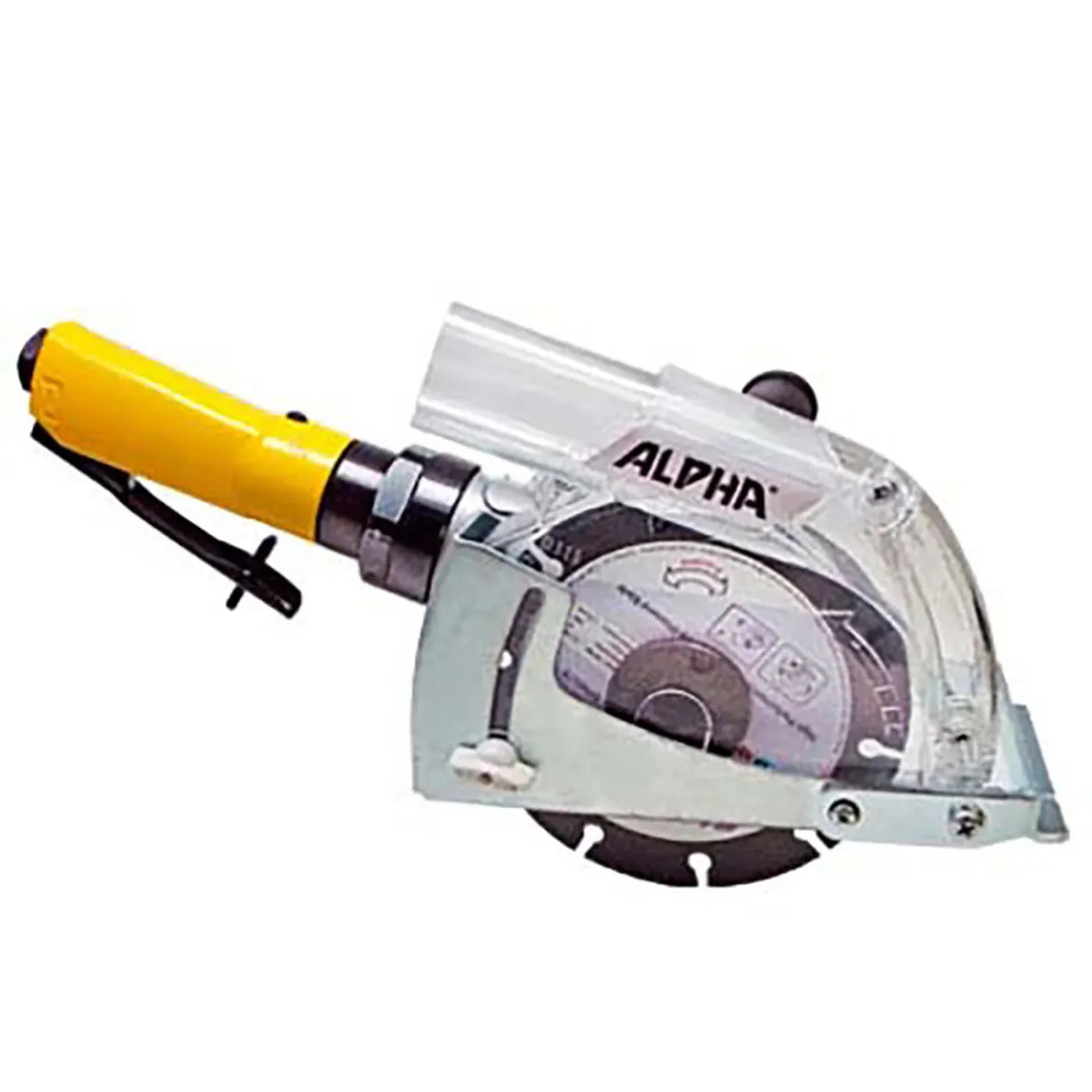

Alpha Tools PSG-125 Diamond Cutting Kit

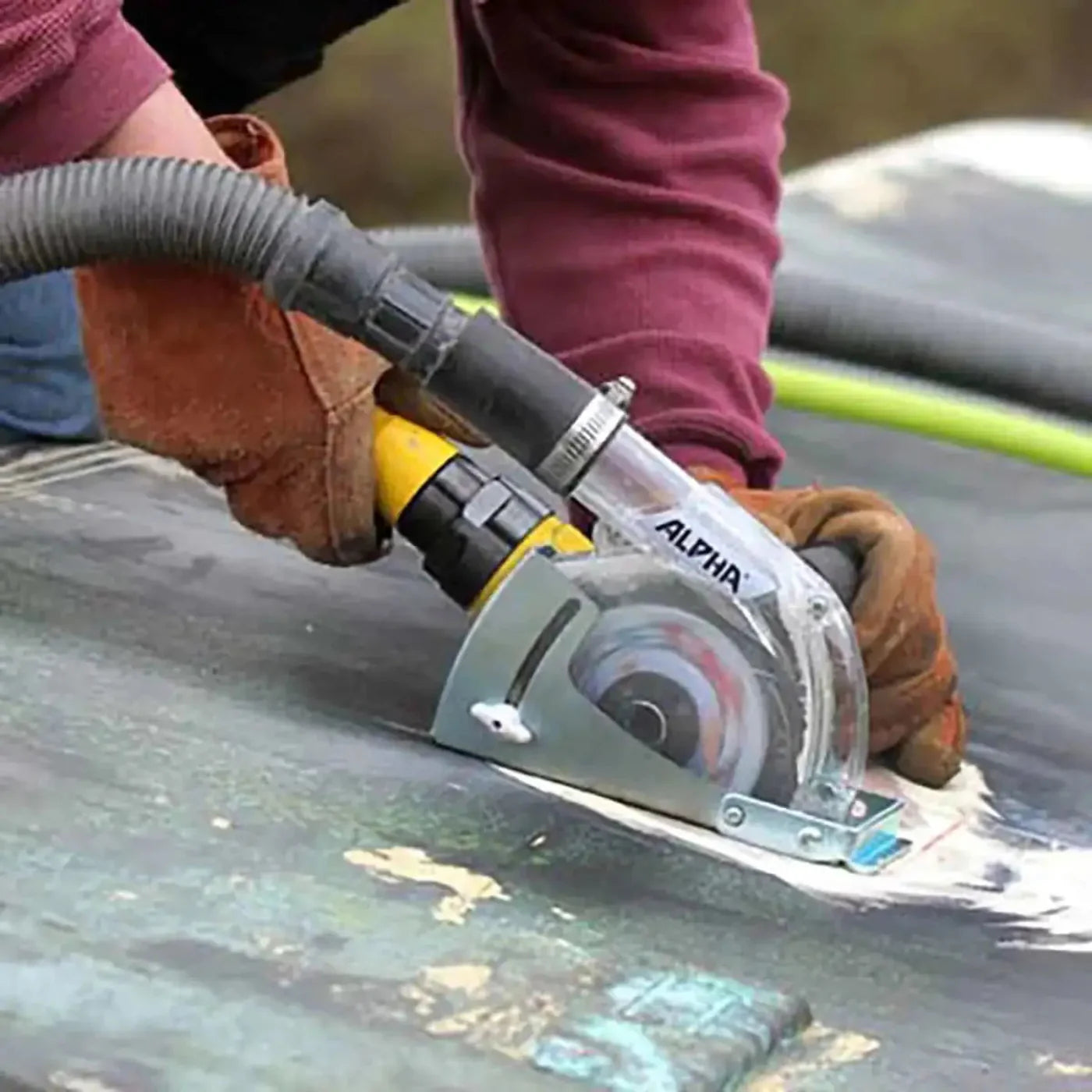

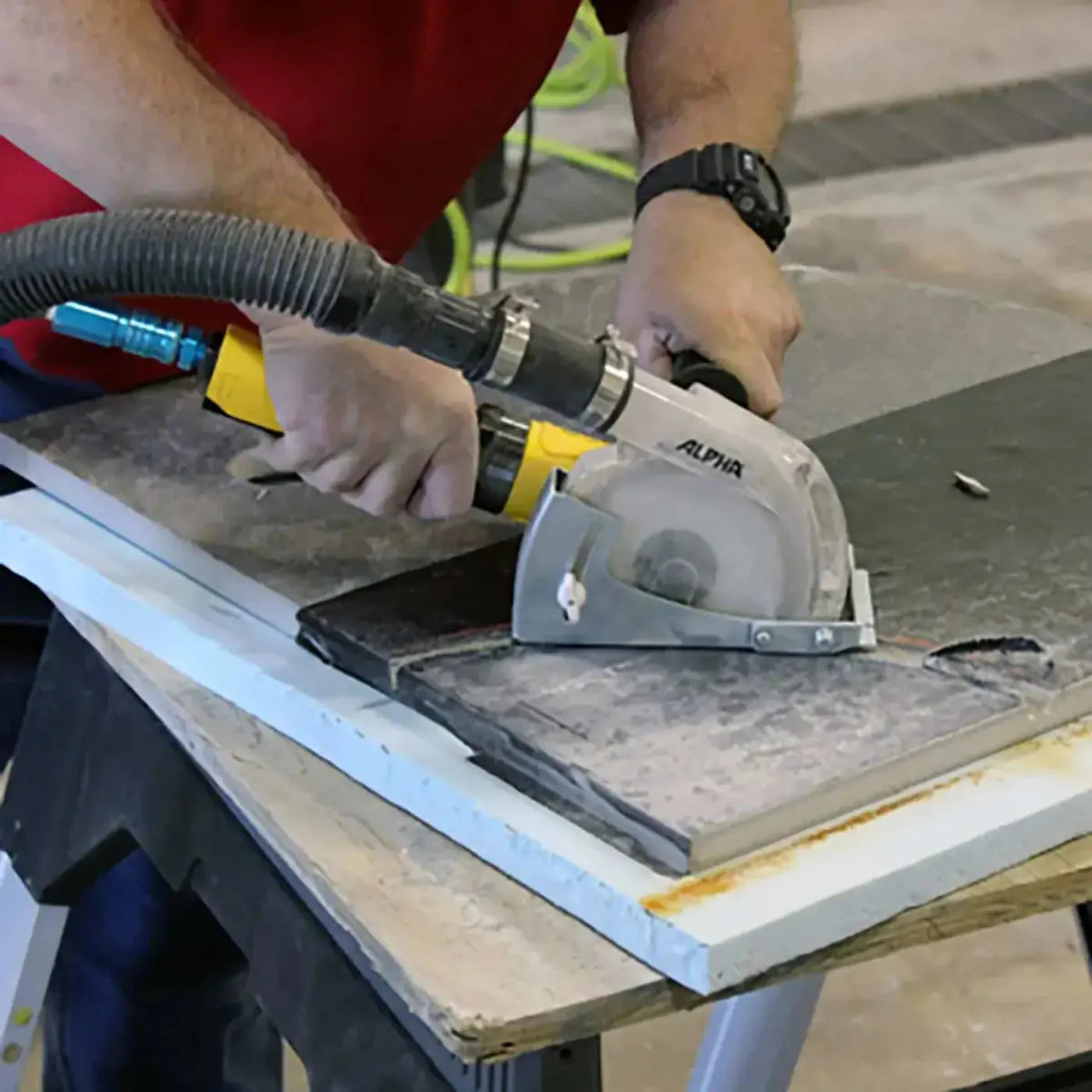

Alpha is pleased to introduce the PSG-125 Diamond Cutting Kit. This system is recommended for virtually dust-free masonry cutting applications using a diamond blade. It fits not only standard cutting blades but also wide kerf blades for tuck-pointing, crack chasing, and grout removal. Also, great for curve-cutting blades for sink-hole cut-out applications. An optional water feed system is available to keep the dust to a minimum.
Features
- Virtually dust-free Masonry Cutting
- Fits wide kerf blades for tuck pointing, crack chasing, and grout removal
- Powerful 1.4 HP motor with speed control governor
- Compact ergonomic aluminum body
- Optional water feed system available
- Reversible safety lever throttle

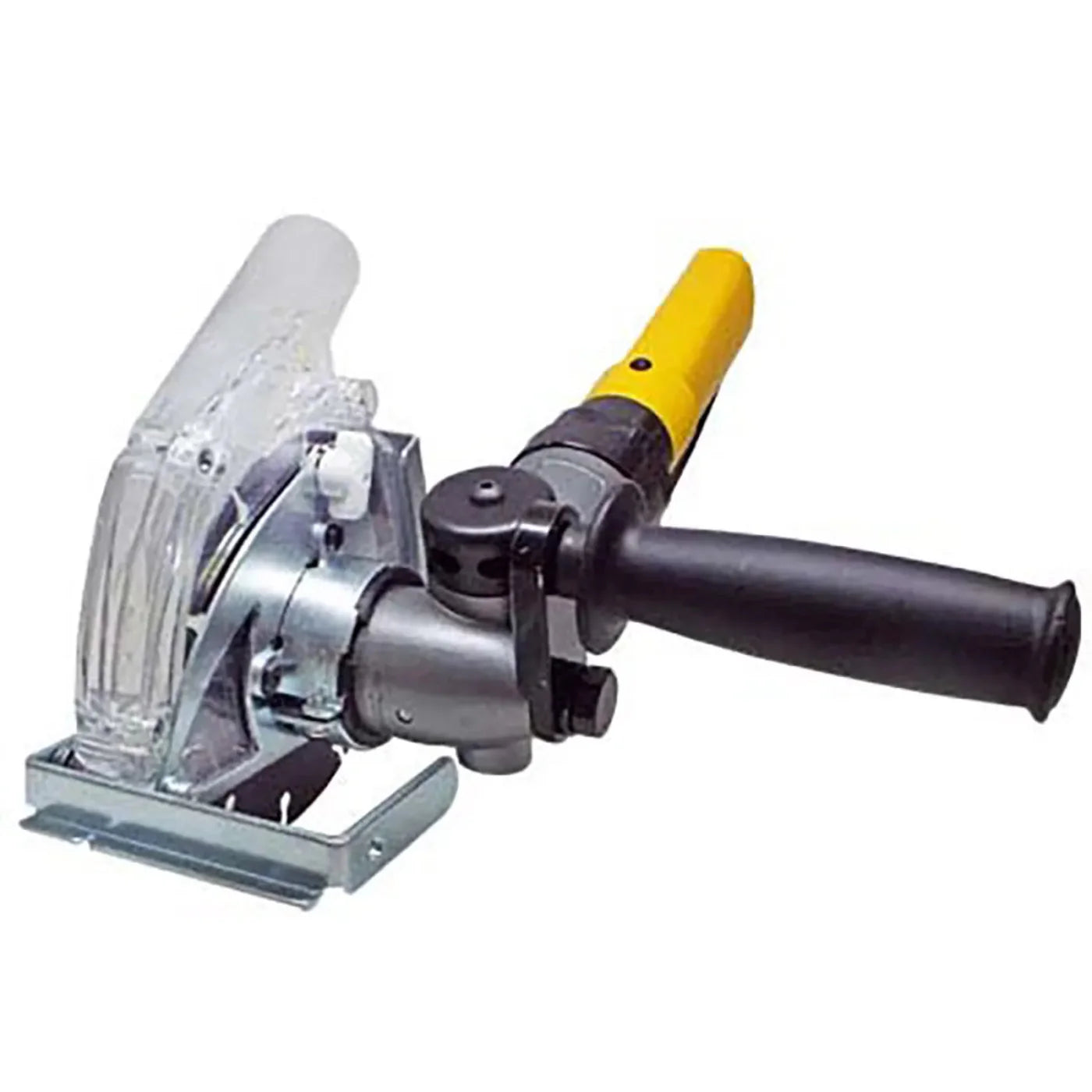

- Two auxiliary handle positions
- Adjustable rotating exhaust
- Built-in oil port for easy maintenance
- Kit Contains PSG-125 and Ecoguard W5 with Connector
Included
- PSG-125 Pneumatic Grinder
- Ecoguard W5 Assembly/Connector
- Lock Nut with 7/8" Arbor
- Inner Flange
- Side Handle
- Hex Wrench (1/4")
- Pin Wrench
- Handle Bracket
- Hex Bolt (M12x16)
- Spring Washer (M12)
- Rubber Hose Connector
- Stainless Steel Hose Band
- Rust Inhibitor Oil (8oz / 237ml) (AIR-008)
Specifications
| Model |
5480-1301 (PSG-125) |
| Air Pressure |
90 PSI (6.2 Bar) |
| Air Consumption Max |
33 CFM (934L/min) |
| No Load Speed |
12,000 RPM |
| Weight |
4.6 lbs (2.1 kgs) |
| Length |
11-3/4” (298mm) |
| Air Inlet |
3/8” NPT |
| Spindle |
5/8”-11 |
| Maximum disc capacity |
5” x 1/4” x 7/8” |
| Max. HP |
1.4 HP |
What Our Experts Think
-
Precision Diamond Cutting – Ensures smooth, accurate cuts on stone and tile.
-
High-Performance Design – Built for professional-grade durability and efficiency.
-
Water-Feed System – Reduces dust and extends blade life for cleaner cuts.
-
Ergonomic & Lightweight – Designed for comfort and ease of use.
-
Versatile Applications – Ideal for granite, marble, porcelain, and other hard materials
Q&A
Q: What is the Alpha Tools PSG-125 Diamond Cutting Kit used for?
A: It is designed for precise cutting of stone, tile, quartz, and other hard surfaces using diamond blade technology.
Q: What materials can it cut?
A: It efficiently cuts granite, marble, engineered stone, porcelain, and other tough materials.
Q: What size blade does it use?
A: It is compatible with 5-inch diamond blades for high-precision cutting.
Q: Does it support wet cutting?
A: Yes, it features a water feed system to reduce dust and cool the blade for cleaner cuts.
Q: What is included in the kit?
A: The kit includes the PSG-125 saw, a water feed system, and a premium diamond blade for professional-quality results.
Q: Is it suitable for professional use?
A: Yes, it is built for contractors, fabricators, and tile installers who require precision and durability.
Maintenance Tips
-
Keep Blade Clean – Remove debris and dust to maintain precision and longevity.
-
Inspect Diamond Blade – Check for wear or damage and replace if cutting efficiency decreases.
-
Lubricate Moving Parts – Apply lubricant to bearings and moving components for smooth operation.
-
Ensure Secure Fastening – Tighten screws and bolts to prevent misalignment.
-
Use Proper Coolant – If applicable, use the recommended coolant to reduce heat buildup.
-
Store in a Dry Area – Prevent rust and damage by keeping the tool in a clean, dry place.
