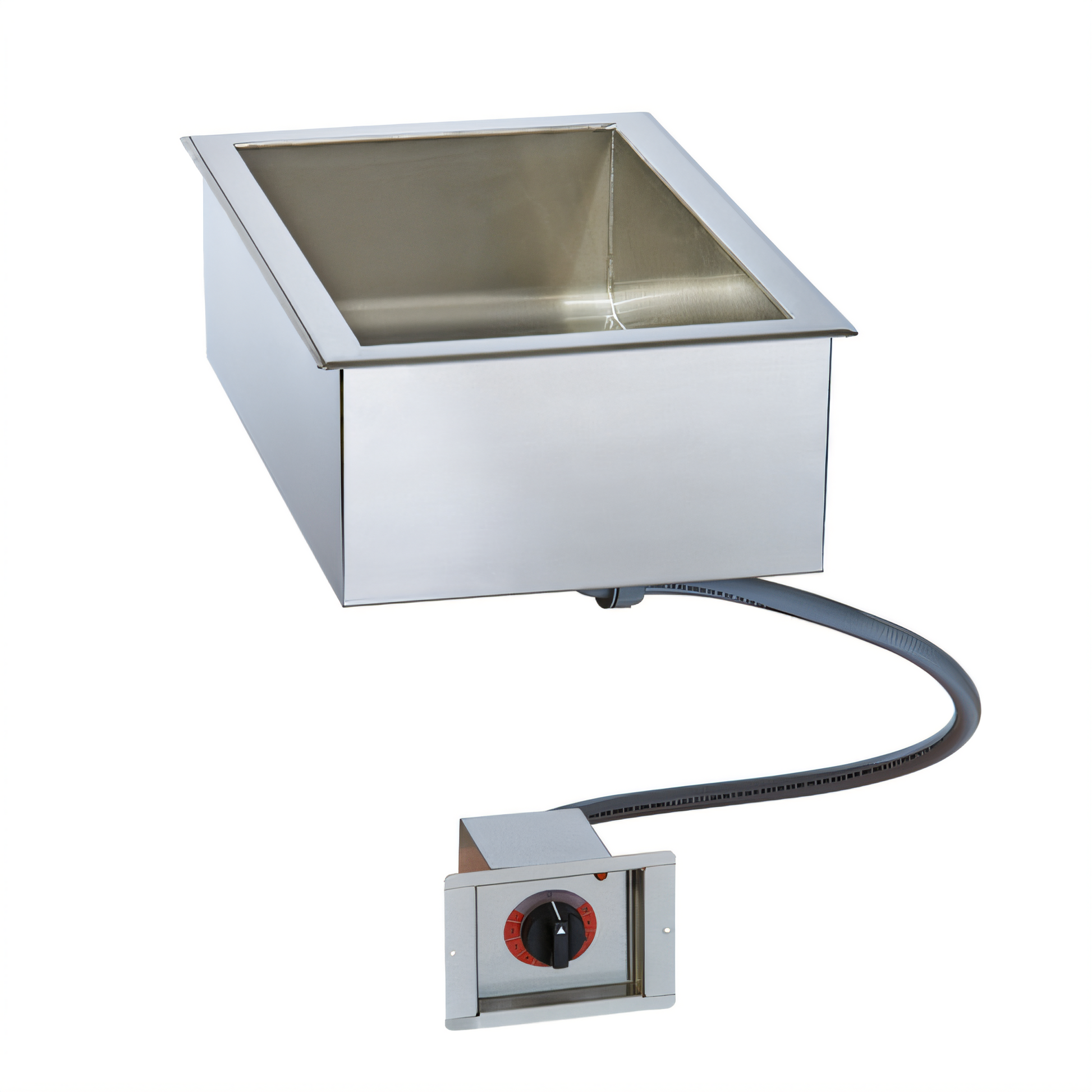

Alto-Shaam 100-HW/D6 Halo Heat Steam Tables & Food Wells - 100-HW/D6
Drop-In • 1 × 12" × 20" Full-Size Pan • Electric
Replace traditional steam wells with the power-saving alternative that keeps food fresher, longer. Alto-Shaam’s patented Halo Heat® technology radiates gentle, even heat around your pan – no water, fans or hot elements required – so every serving tastes just-made from the first plate to the last.
Features
- Waterless Halo Heat® system extends holding times while maintaining texture, color and flavor.
- 6-3/8" (162 mm) deep well accepts 6" (150 mm), 4" (100 mm) or 2½" (65 mm) pans for ultimate menu flexibility.
- Field-adjustable thermostat (flush-mount or remote) lets you dial in precise holding temperatures for any dish.
- Stainless steel well and flange resist corrosion and clean up fast – no lime scale, drains or deliming chemicals.
- EcoSmart® design uses up to 30 % less energy than comparable wet wells, cutting utility costs every shift.
- Includes two half/third-size divider bars for secure pan layout (pans sold separately).
- Safe, water-free operation eliminates steam hazards and reduces slip-and-fall risk around the line.
- Certified cULus, UL EPH, CE, IPX3 & TÜV NORD for worldwide compliance and peace of mind.
Specifications
| Model |
100-HW/D6 |
| Pan capacity |
1 × 12" × 20" full-size pan (up to 6" deep) |
| Interior (H × W × D) |
6-3/8" × 12" × 20-3/16" (162 mm × 304 mm × 512 mm) |
| Exterior (H × W × D) |
8-7/8" × 15" × 23-1/8" (225 mm × 380 mm × 586 mm) |
| Counter cut-out |
13-13/16" × 22-1/8" (351 mm × 562 mm) |
| Net / ship weight |
29 lb / 75 lb (13 kg / 34 kg) |
| Electrical options |
120 V, 1 ph, 5 A, 0.6 kW, NEMA 5-15P
208 V, 1 ph, 2.2 A, 0.45 kW, NEMA 6-15P
240 V, 1 ph, 2.5 A, 0.6 kW (U.S. only)
230 V, 1 ph, 2.6 A, 0.6 kW, CEE 7/7 |
| Heat rejection |
61 BTU/hr (0.02 kW) |
| Construction |
All-stainless steel well, flange & control box |
Accessories
- Pan divider bar – half/third-size (P/N 11318)
- Locking kit for secure installation (P/N 5020849)
- Undermount kit for concealed support (P/N 5020793)
What our Experts Think
-
Halo Heat Technology – Provides gentle, even heat to keep food warm without drying out.
-
Six-Well Design – Offers versatile holding for multiple dishes at once, ideal for buffets or service lines.
-
Durable Stainless Steel Construction – Built for long-lasting use in demanding commercial environments.
-
Energy-Efficient Performance – Maintains consistent temperatures while reducing energy costs.
-
Perfect for Restaurants, Hotels & Catering – Ensures food stays fresh, hot, and appealing for service.
Q&A
Q: What is the Alto-Shaam 100-HW/D6 used for?
A: It’s a hot food holding unit designed with Halo Heat® technology to keep foods warm and ready to serve without overcooking or drying out.
Q: How many wells does it have?
A: The 100-HW/D6 features six heated wells, each independently controlled for flexible menu options.
Q: What makes this steam table unique?
A: Its Halo Heat® system provides gentle, precise heat without water or steam, ensuring better food quality and reduced maintenance.
Q: What types of food can it hold?
A: Ideal for meats, sides, vegetables, soups, and prepared dishes, keeping them at safe serving temperatures.
Q: Where is this unit commonly used?
A: Perfect for buffets, hotels, schools, restaurants, healthcare facilities, and catering kitchens that need reliable hot food holding.
Maintenance Tips
-
Six hot food wells with Halo Heat® technology for gentle, even heating
-
Maintains food quality and moisture without water or steam
-
Independent controls for each well to maximize flexibility
-
Durable stainless steel build for long-term commercial use
-
Easy-to-clean design with smooth surfaces and removable pans
-
Energy-efficient operation reduces operating costs
-
Perfect for buffets, cafeterias, and catering service lines
