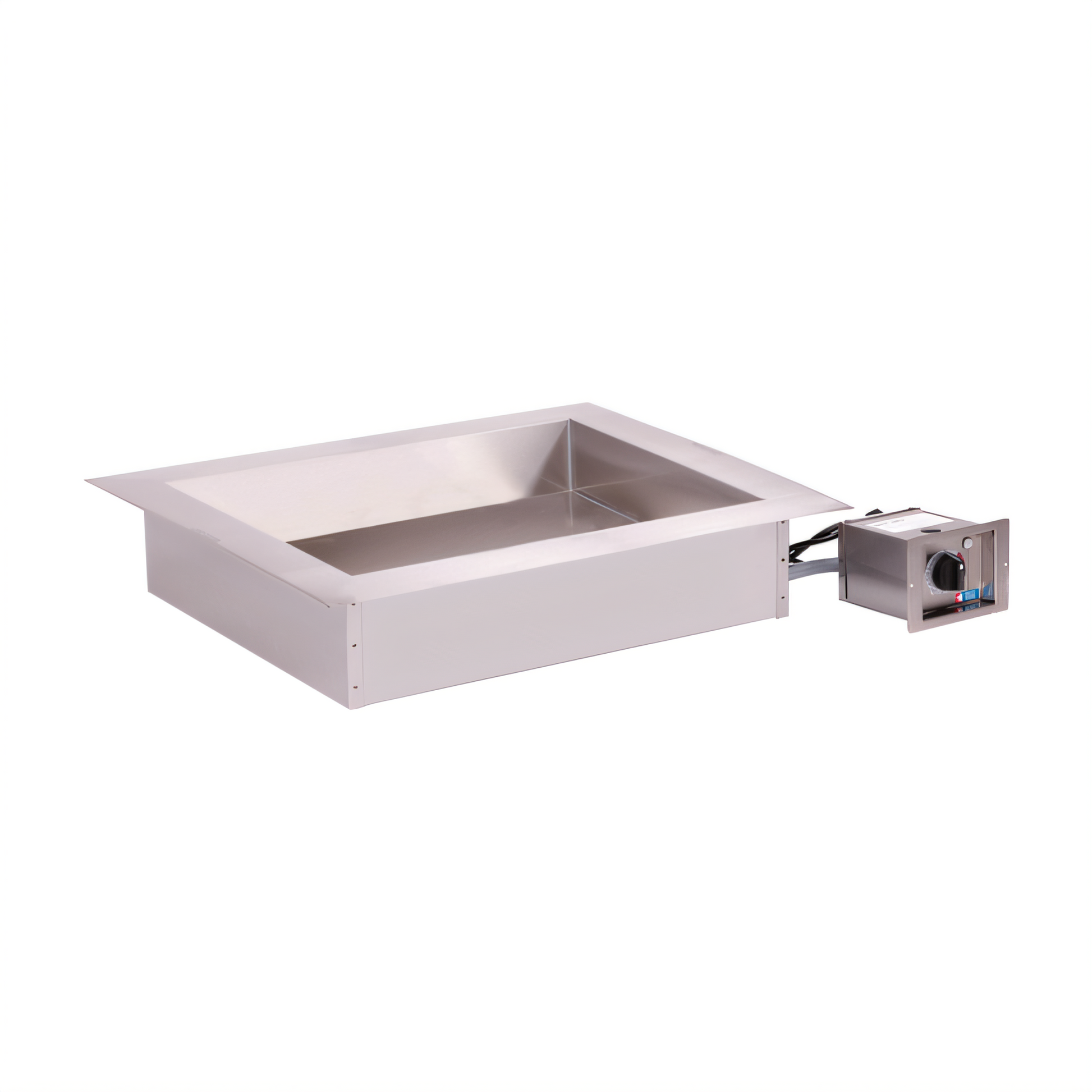

Alto-Shaam 100-HWLF/D6 Halo Heat Steam Tables & Food Wells - 100-HWLF/D6
Large-Flange | Drop-In | Electric | 1 × 12" × 20" Full-Size Pan*
Replace high-maintenance steam tables with Alto-Shaam’s proven Halo Heat® technology. The 100-HWLF/D6 surrounds food with gentle, radiant heat—no water, fans or extreme elements—extending hold times, maintaining fresh-made quality and slashing utility costs.
Features
-
Waterless Halo Heat® – Even, radiant heat eliminates lime scale, drains and plumbing.
-
Large flange – Clean, finished trim hides cut edges for a fast, professional drop-in install.
-
6-3/8" deep well – Accepts 6" (150 mm) pans for maximum product capacity & flexibility.
-
EcoSmart efficiency – Only 0.6 kW at 120 V; dramatically lower operating costs vs. steam.
-
Adjustable thermostat – Precise, individual well control mounts flush or remotely.
-
Safer operation – No hot water or steam means cooler counters and lower burn risk.
-
Built to last – Heavy-gauge stainless steel construction with IPX3 splash protection.
Specifications
| Pan Capacity |
1 × full-size (12" × 20") – pans not included |
| Well Depth |
6-3/8" (162 mm) – holds up to 6" deep pans |
| Exterior (H × W × D) |
8-7/8" × 18-5/16" × 27-1/16" (225 mm × 465 mm × 686 mm) |
| Interior Well (H × W × D) |
6-3/8" × 12" × 20-3/16" (162 mm × 304 mm × 512 mm) |
| Counter Cutout |
13-13/16" × 22-1/8" (351 mm × 562 mm) |
| Net Weight |
31 lb (14 kg) |
| Electrical |
120 V, 1 ph, 5 A, 0.6 kW | 208 V, 1 ph, 2.2 A, 0.45 kW | 240 V, 1 ph, 2.5 A, 0.6 kW | 230 V, 1 ph, 2.6 A, 0.6 kW
6 ft (1.8 m) cord, NEMA 5-15P or 6-15P (per voltage) |
| Construction |
All stainless steel; large perimeter flange; IPX3 splash rating |
What’s Included
- 100-HWLF/D6 single well with attached control box
- Adjustable thermostatic controller (flush-mount kit)
- 6-ft (1.8 m) pre-wired power cord
- Installation & operation manual
Accessories
- Pan divider bar – half/third-size (11318)
- Undermount kit (5020793)
- Security locking kit (5020849)
What our Experts Think
-
Advanced Halo Heat® Technology – Provides gentle, even heating without water or steam, preserving food quality.
-
Labor-Free Design – No water connections or plumbing required, reducing maintenance and setup time.
-
Durable Construction – Stainless steel build ensures long-lasting performance in commercial kitchens.
-
Consistent Food Holding – Keeps food at safe serving temperatures without overcooking or drying out.
-
Ideal for High-Volume Service – Perfect for buffets, banquets, catering, and self-service applications.
Q&A
Q: What is the Alto-Shaam 100-HWLF/D6?
A: It’s a Halo Heat steam table with multiple food wells designed to keep food warm and ready to serve.
Q: How does it maintain food quality?
A: Uses Halo Heat technology for gentle, even heating that prevents overcooking and retains moisture.
Q: How many food wells does it include?
A: Equipped with six wells to hold a variety of hot foods at once.
Q: Is it energy-efficient?
A: Yes, Halo Heat systems are designed for consistent heat with reduced energy consumption.
Q: Where is it commonly used?
A: Perfect for buffets, cafeterias, banquets, and restaurants that require dependable hot food holding.
Maintenance Tips
-
Clean food wells and exterior surfaces daily with warm water and mild detergent.
-
Sanitize food-contact areas regularly to ensure food safety compliance.
-
Refill and monitor water levels to maintain consistent heating performance.
-
Inspect gaskets, hinges, and hardware for wear; replace if needed.
-
Avoid abrasive cleaners that may scratch stainless steel surfaces.
-
Drain and descale wells periodically to prevent mineral buildup.
-
Schedule professional maintenance checks for long-term reliability.
