Alto-Shaam 1000-UP Halo Heat Heated Cabinets & Holding Shelves - 1000-UP

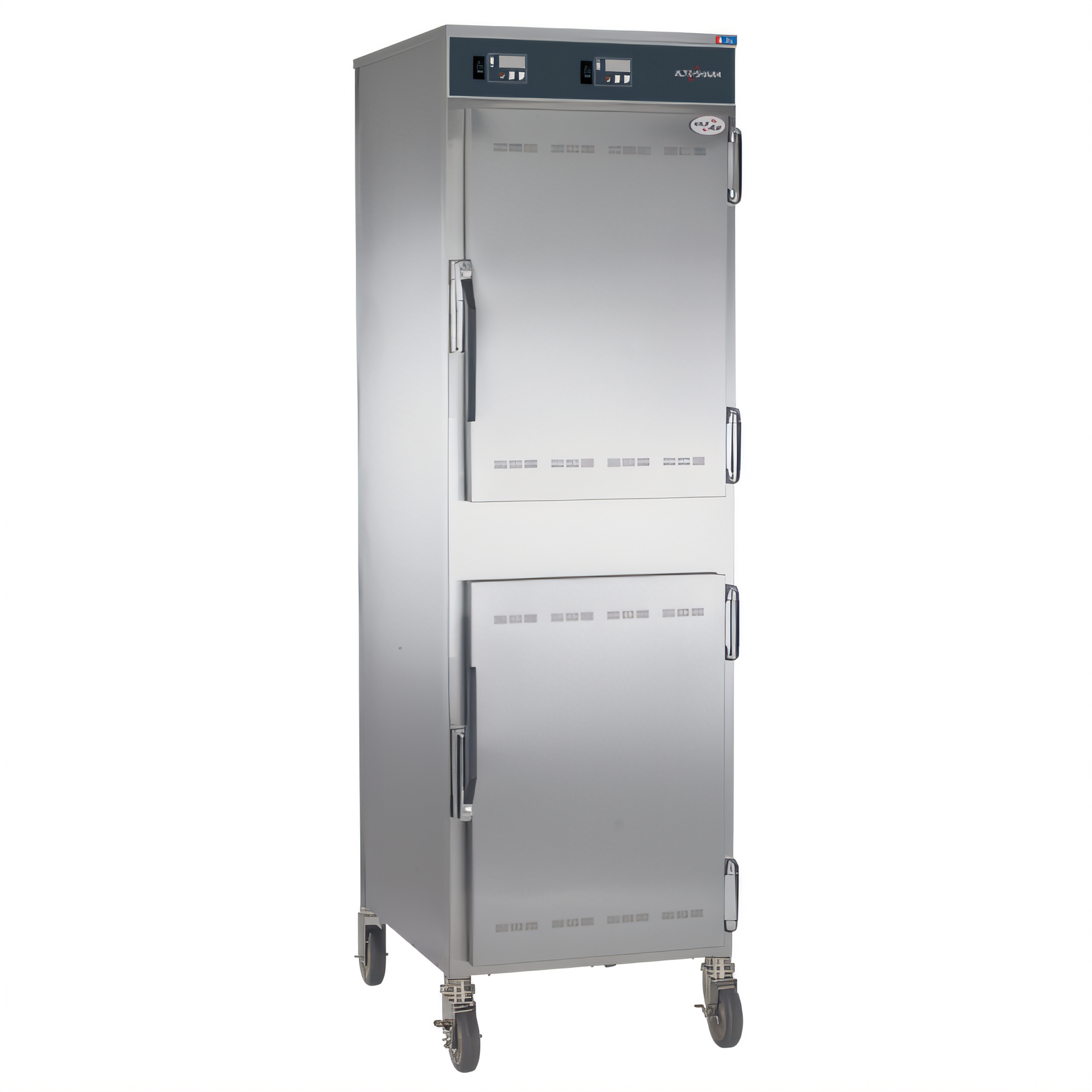

Model 1000-UP – Double-Compartment, EcoSmart & ENERGY STAR Keep beautifully cooked food hot, fresh, and ready to serve without drying out or over-cooking. Alto-Shaam’s exclusive Halo Heat technology delivers gentle, even radiant heat that surrounds product—no fans, harsh elements, or added humidity—so every bite tastes as good as when it left the oven.
Features
-

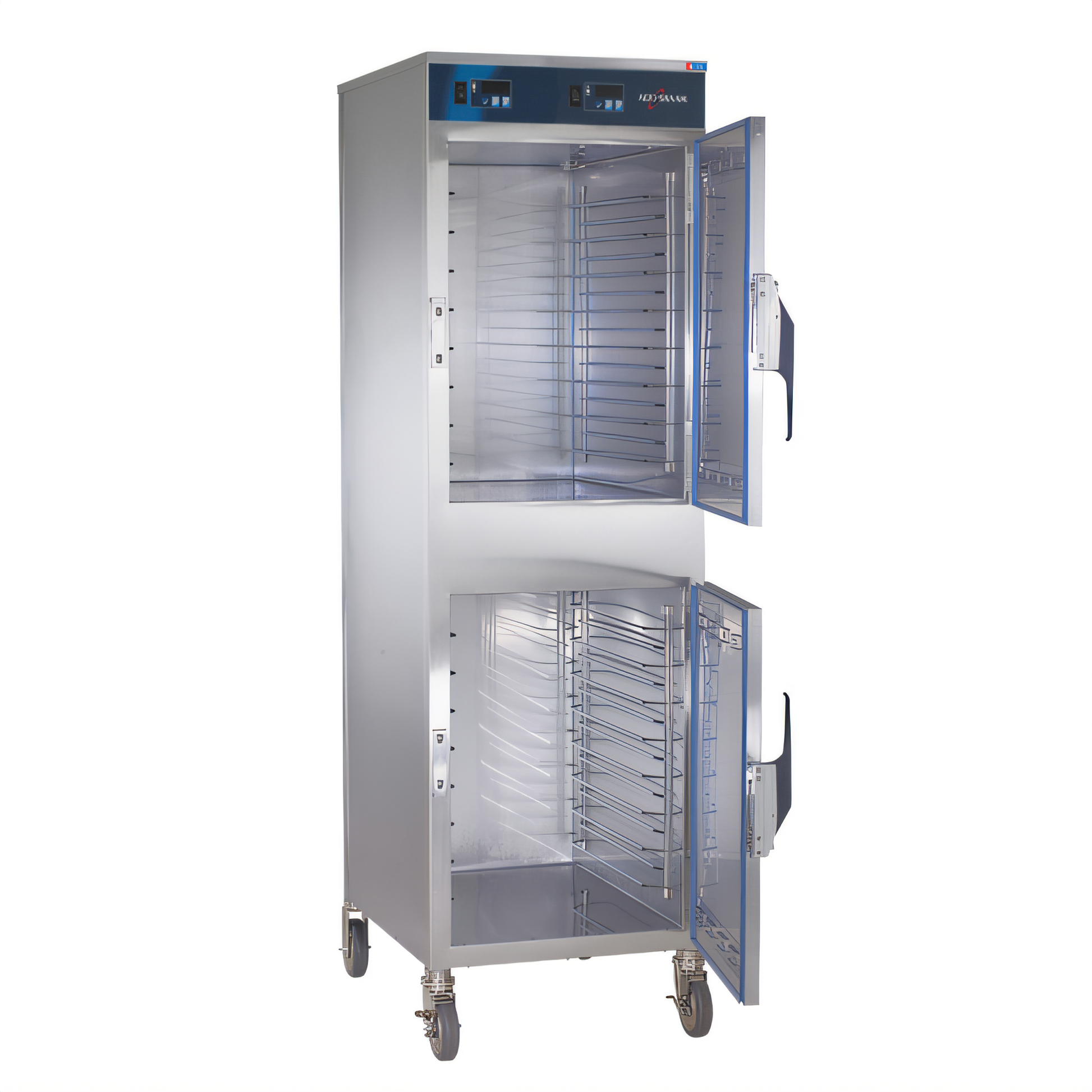

Dual cavities, double capacity – Each insulated compartment holds 8 full-size sheet pans (18" × 26" × 1"); that’s 16 pans total.
-
Halo Heat uniform warming – Radiant heat wraps food for superior moisture retention, color, and flavor.
-
Simple dial controls – Independent on/off switches and adjustable thermostats (60 – 200 °F / 16 – 93 °C) per compartment.
-
Rapid heat recovery – Temperature rebounds quickly after the door is opened, keeping service running smoothly.
-
Built to last – Heavy-duty 304 stainless steel interior & exterior resist corrosion and daily kitchen abuse.
-
Kitchen-friendly mobility – 5" extra-rugged casters (2 rigid, 2 swivel with brakes) glide over thresholds and lock firmly in place.
-
EcoSmart® efficiency – Low energy draw earns ENERGY STAR®, cULus, UL EPH/NSF 4, CE, IPX3 & TUV NORD approvals.
- Antimicrobial door handles and vent control help maintain safe, crisp holding conditions.
Specifications
| Pan Capacity |
8 full-size sheet pans per cavity (16 total) |
| Temperature Range |
60 °F – 200 °F (16 °C – 93 °C) |
| Exterior Dimensions (H × W × D) |
75-13/16" × 23-15/16" × 32-11/16" (1924 × 608 × 804 mm) |
Interior Dimensions
(per cavity) |
26-7/8" × 18-7/8" × 26-1/2" (682 × 479 × 673 mm) |
| Net Weight |
282 lb (128 kg) |
| Electrical Options |
120 V 1 ph 16 A 1.9 kW (NEMA 5-20P)
208 V 1 ph 7 A 1.4 kW (NEMA 6-15P)
240 V 1 ph 8 A 1.9 kW
230 V 1 ph 7.7 A 1.8 kW |
Accessories
- Wire pan grids & stainless-steel side racks (8-position)
- Full-perimeter bumper for high-traffic kitchens
- Locking doors or security panel kit
- Drip pans (with or without drain) & water reservoir kit
- 6" flanged legs in lieu of casters
What our Experts Think
-
Halo Heat® Technology – Maintains even, gentle heat to keep food hot without drying or overcooking.
-
Double-Compartment Design – Allows separate holding of multiple dishes, increasing menu flexibility.
-
Durable Stainless Steel Construction – Built to withstand the demands of busy commercial kitchens.
-
Energy-Efficient Heating – Delivers consistent temperatures while reducing operating costs.
-
Perfect for Restaurants, Hotels & Caterers – Keeps prepared food fresh, hot, and ready for extended service.
Q&A
Q: What is the Alto-Shaam 1000-UP used for?
A: The 1000-UP is a double-compartment heated holding cabinet designed to keep prepared foods at safe serving temperatures for extended periods without drying out.
Q: How does Halo Heat® technology improve food holding?
A: Halo Heat® provides gentle, even radiant heat that maintains food quality, moisture, and flavor while reducing shrinkage compared to traditional heated cabinets.
Q: What makes the 1000-UP different from standard holding cabinets?
A: It eliminates the need for fans, added humidity, or harsh heating elements, ensuring consistent results and better energy efficiency.
Q: What types of food can it hold?
A: Suitable for roasted meats, poultry, vegetables, casseroles, baked goods, and plated meals, making it versatile for various menu items.
Q: Where is this cabinet commonly used?
A: The 1000-UP is ideal for restaurants, banquet halls, catering kitchens, hotels, and healthcare facilities that need to hold large quantities of food before service.
Maintenance Tips
-
Dual-compartment heated cabinet with Halo Heat® technology
-
Independently controlled sections for flexible food holding
-
Gentle radiant heat preserves food flavor, texture, and moisture
-
Full-size capacity ideal for high-volume kitchens and banquets
-
Durable stainless steel construction ensures long-term reliability
-
Easy-to-use controls for consistent temperature management
-
Energy-efficient operation reduces utility costs
-
Smooth interior surfaces allow quick and easy cleaning
