Powered navigation for urban deliveries, small markets and limited stock areas.

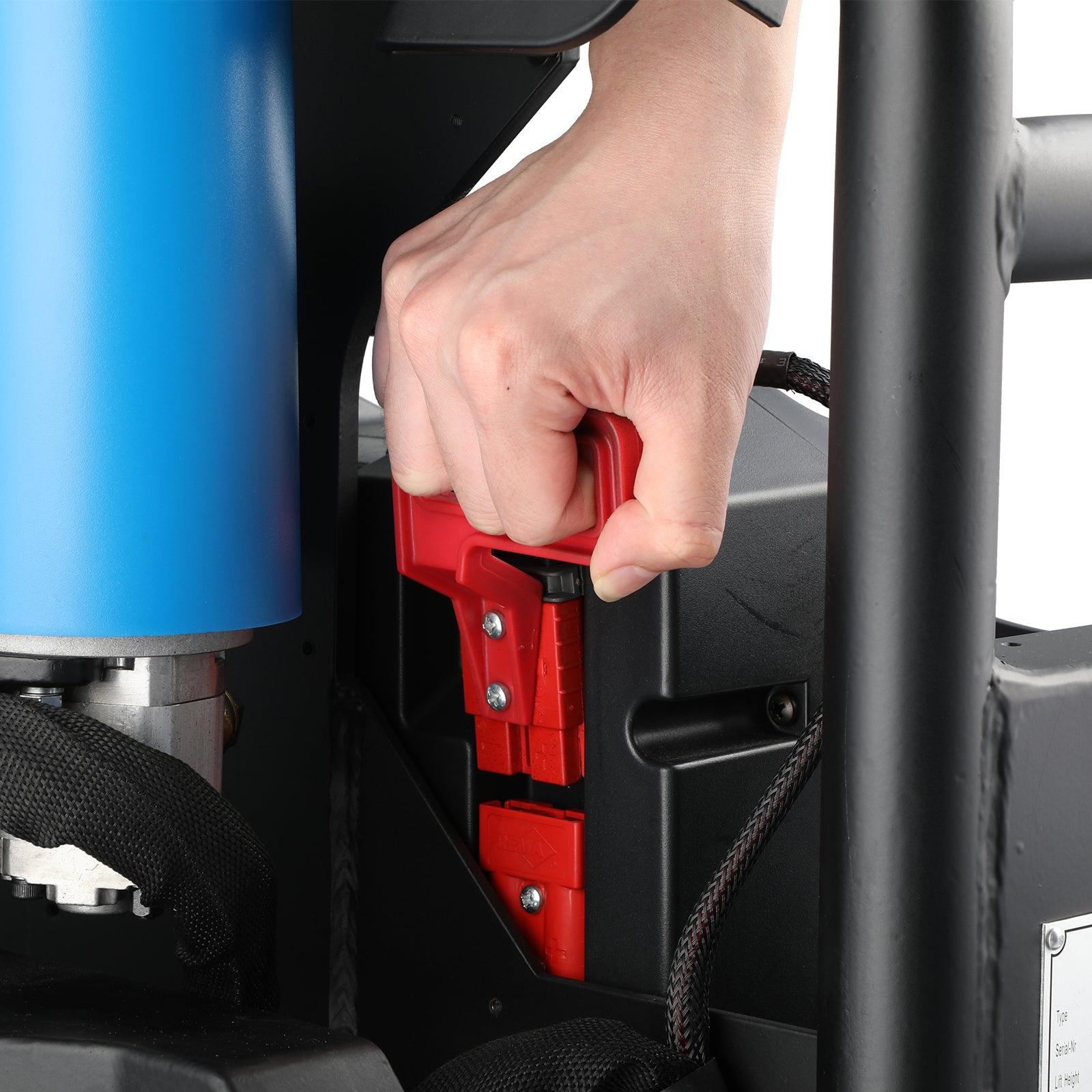

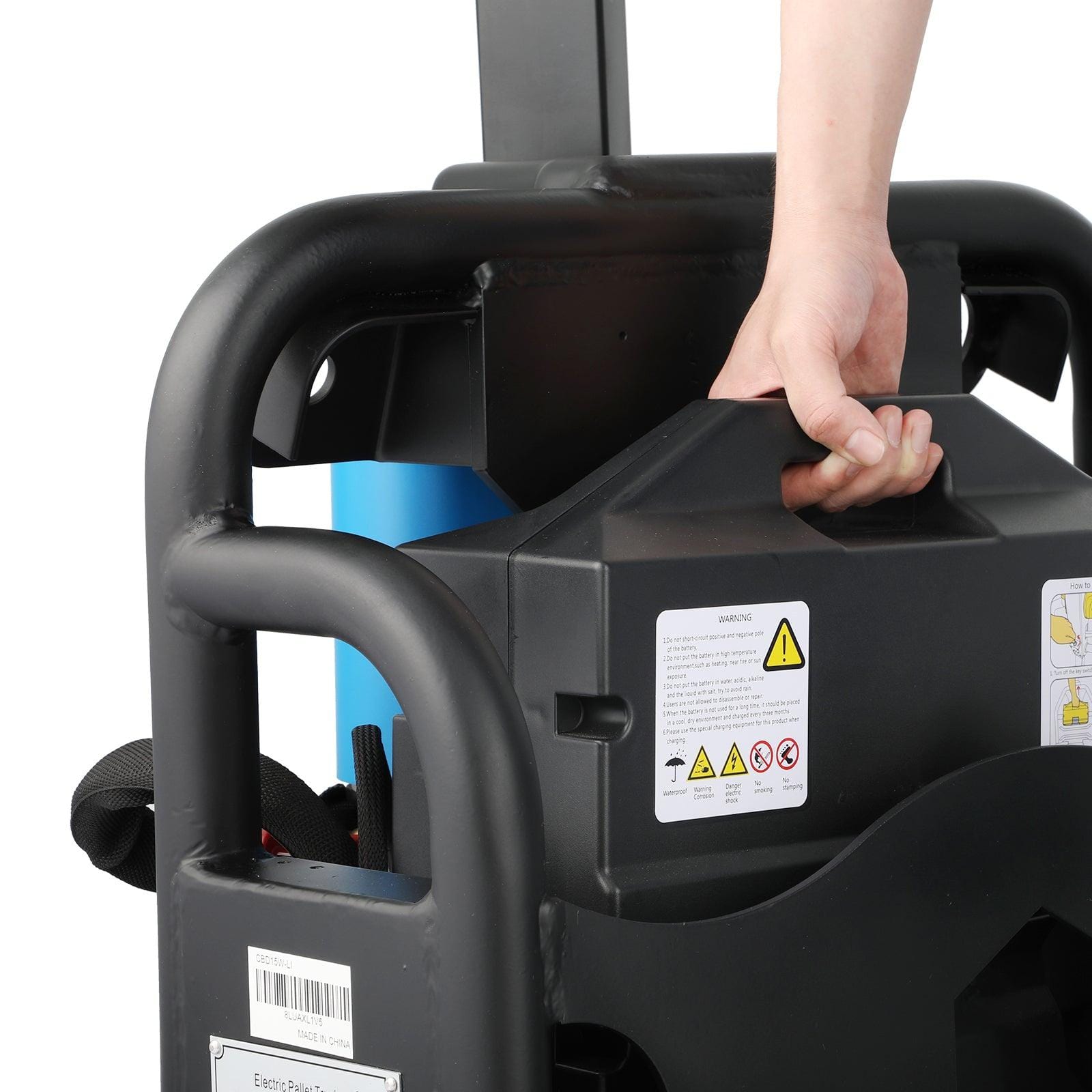

- 10 seconds to change battery reduces downtime.
- Push-button lift control and forward/reverse thumb wheels on handle.
-
4-6 hours service per charge. 3 hour charge time. It may vary depending on the usage and environment.
- 24 hours without break just need one extra battery.
- Gradeability(laden/unladen): 5%/20%

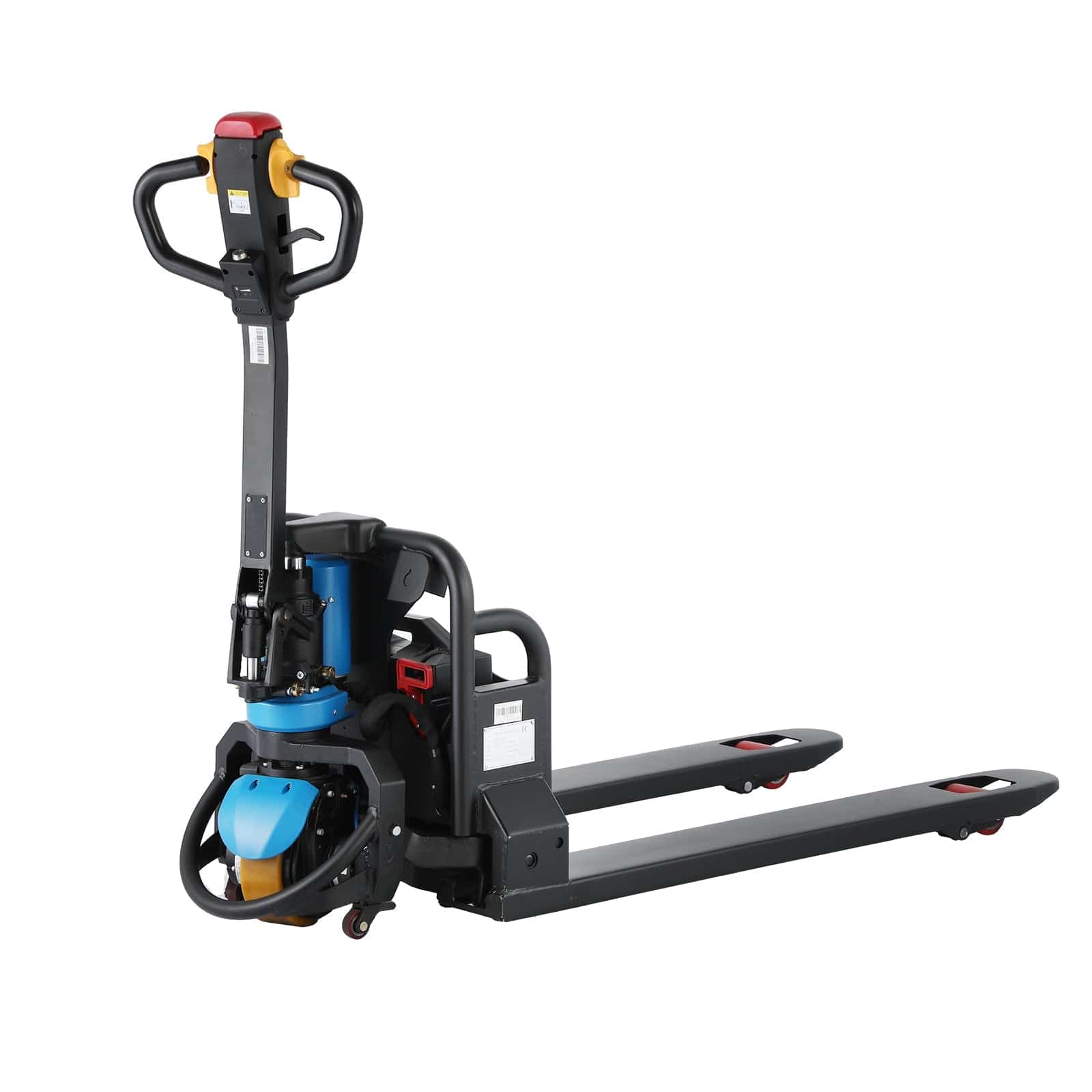

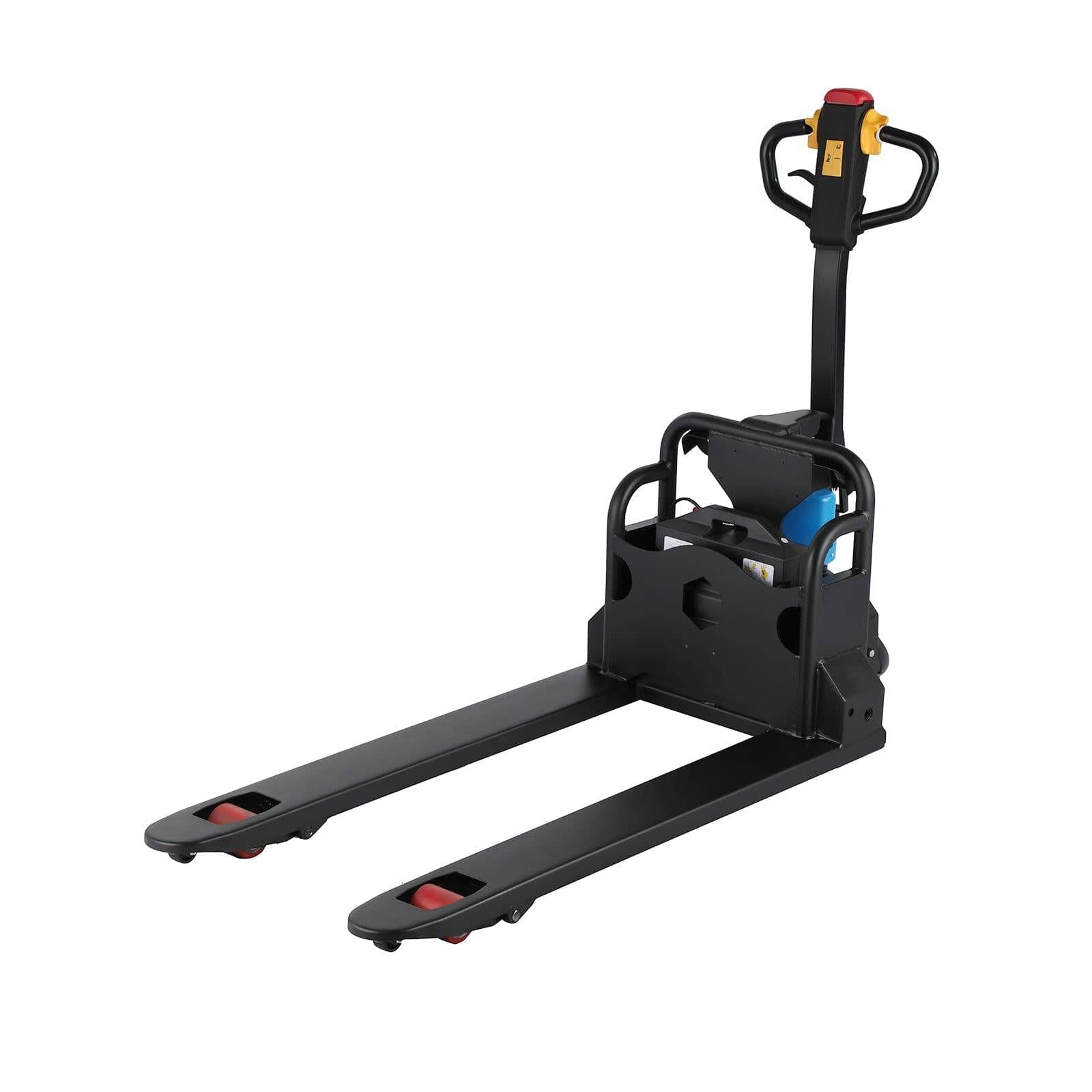

BATTERY POWERED PALLET TRUCKS

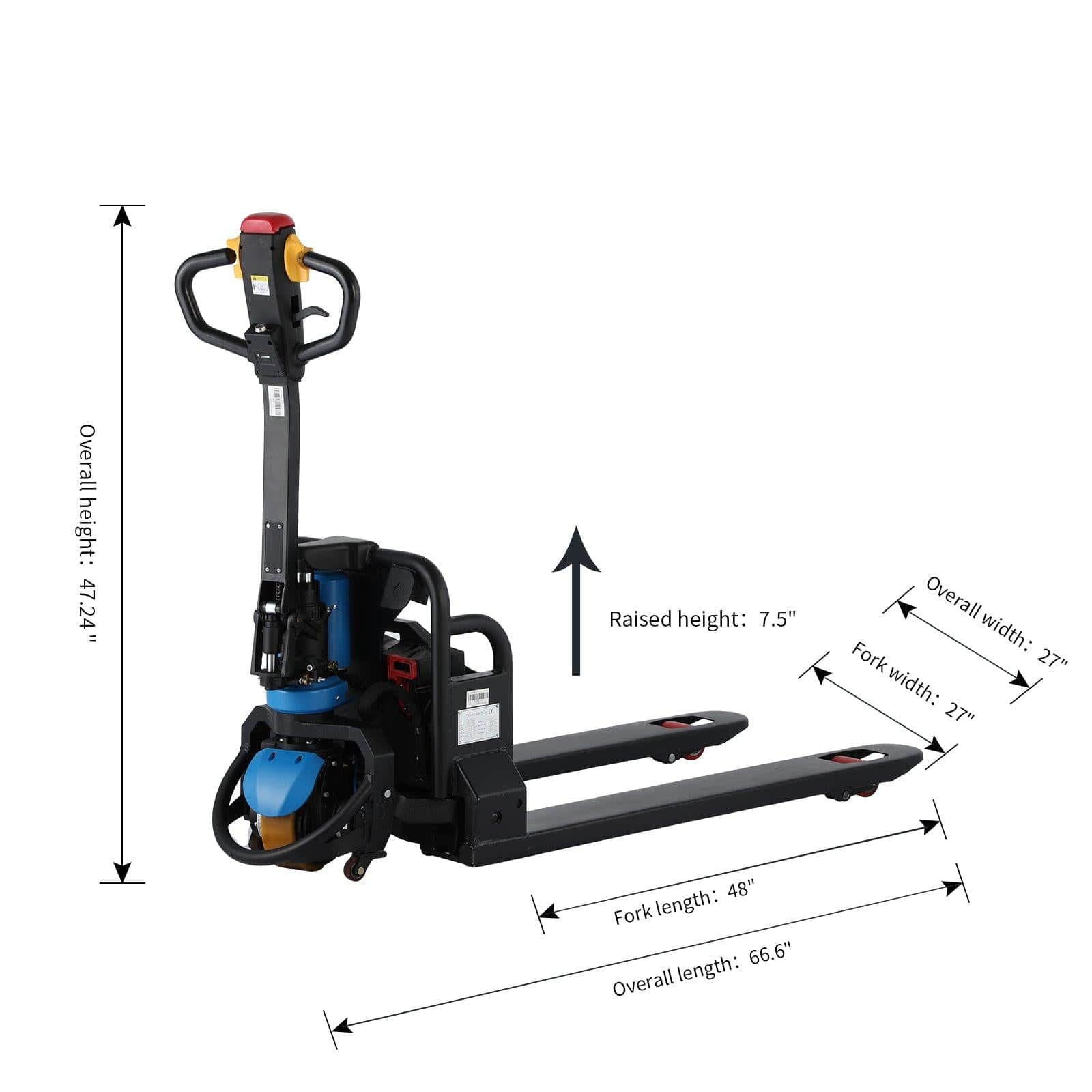

DIMENSIONS
Overall: 66.6" x 27"x47.24" (L xWx H)

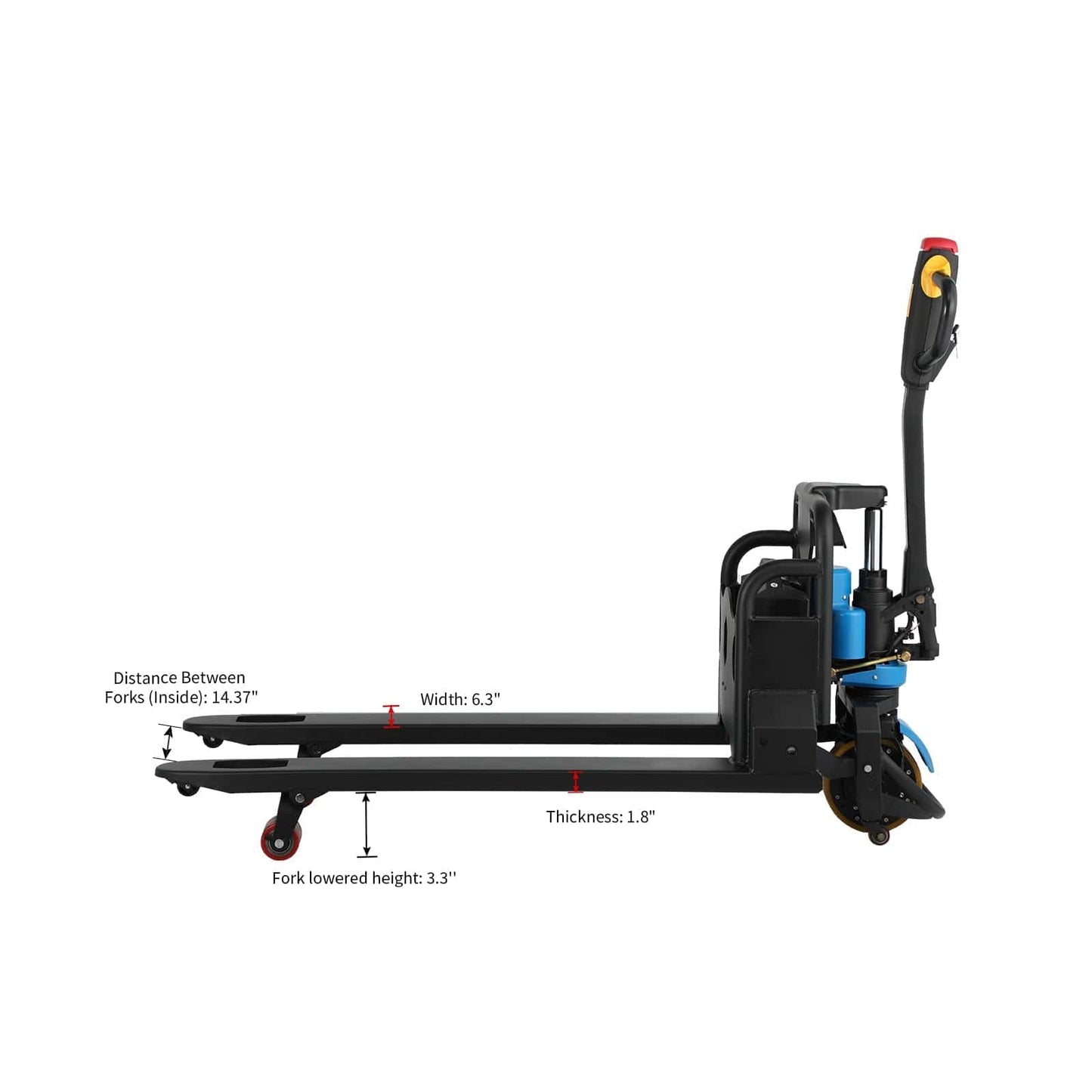

FORKS
- Actual: 48*27"
- Width: 6.3"
- Thickness: 1.8"
- Distance Between Forks (Inside): 14.37"
- Lowered height: 3.3''
- Raised height: 7½"
FEATURES
Non-marking polyurethane wheels.
SPEED
- Empty: 3.1mph
- Loaded: 2.98 mph
- 180° steering arc

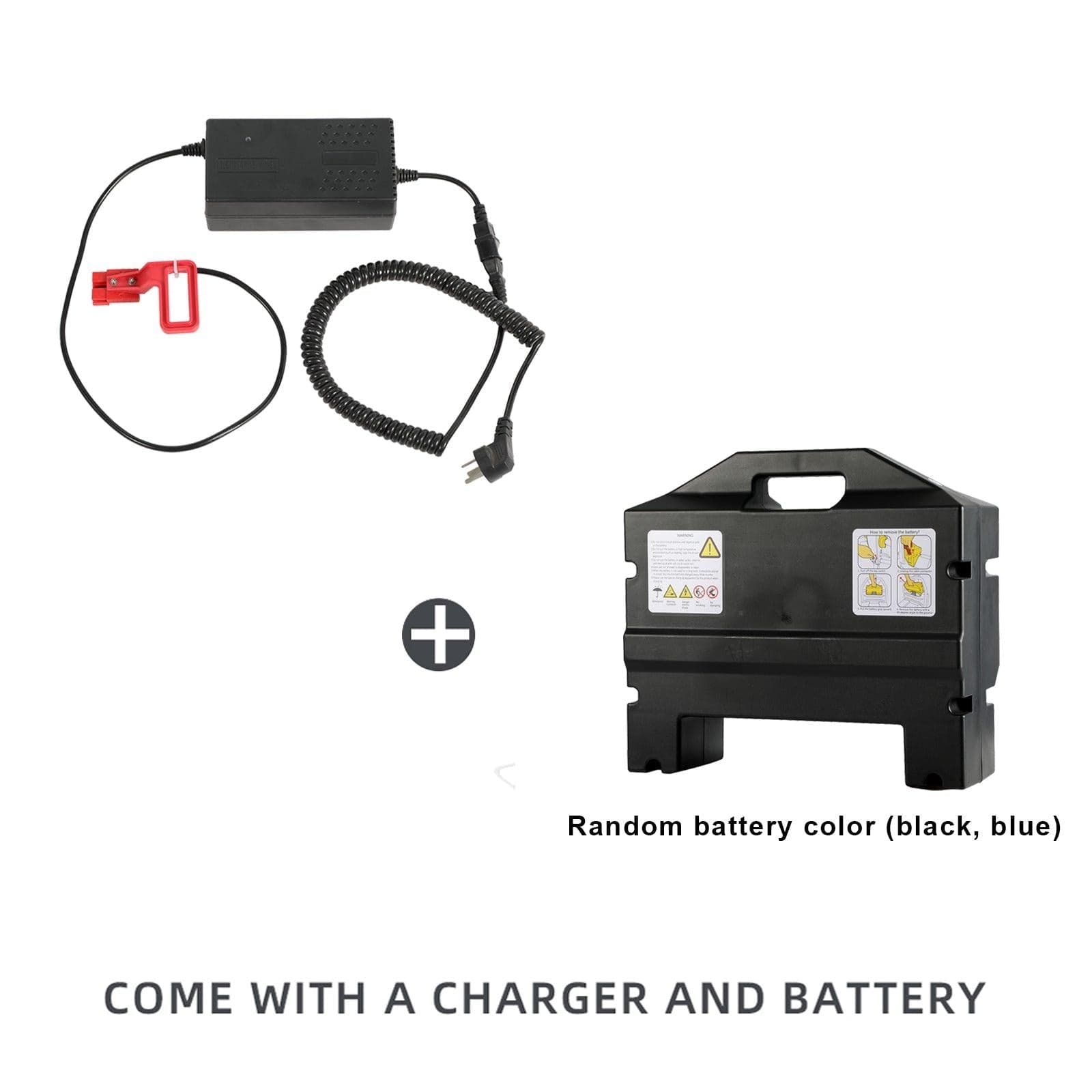

CHARGING

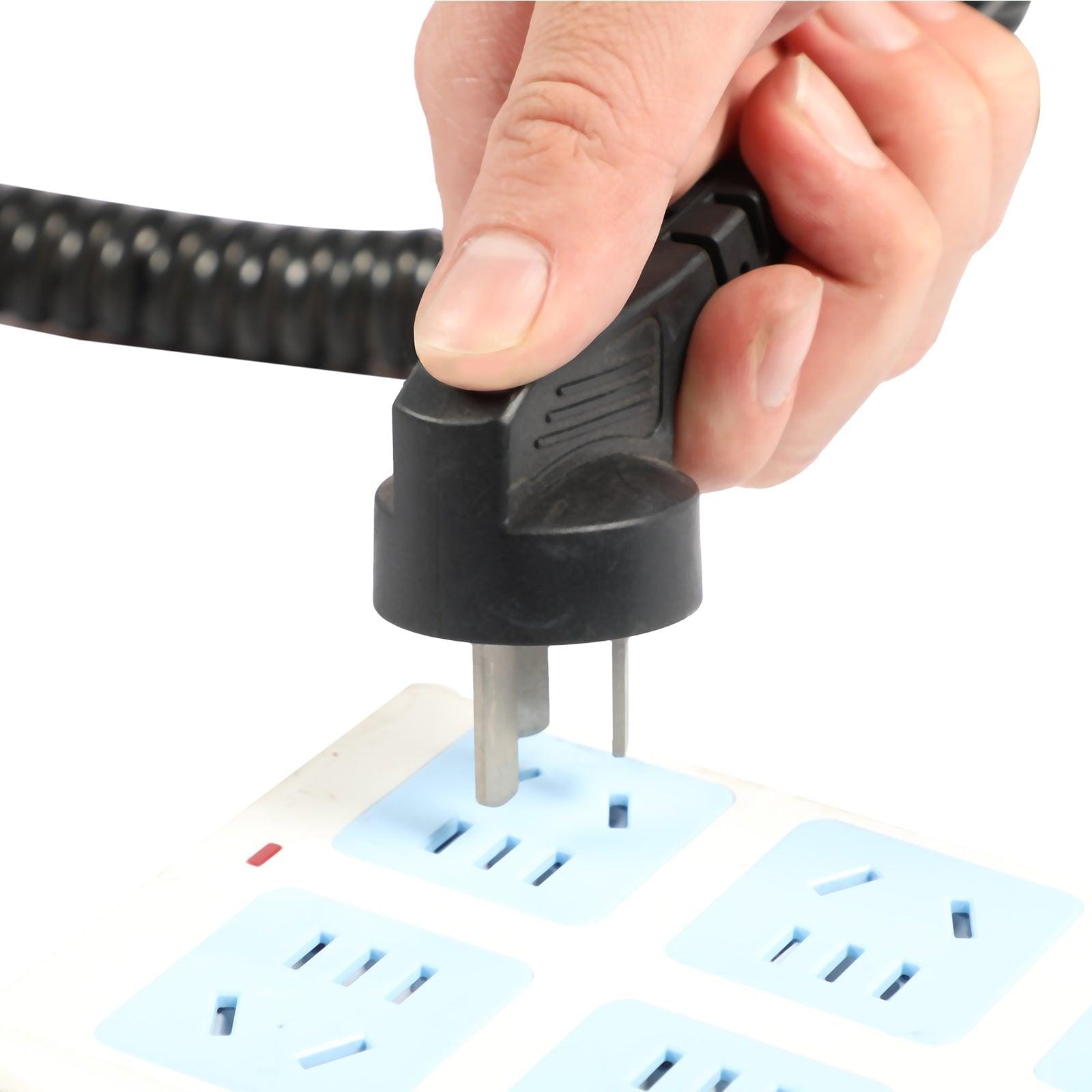

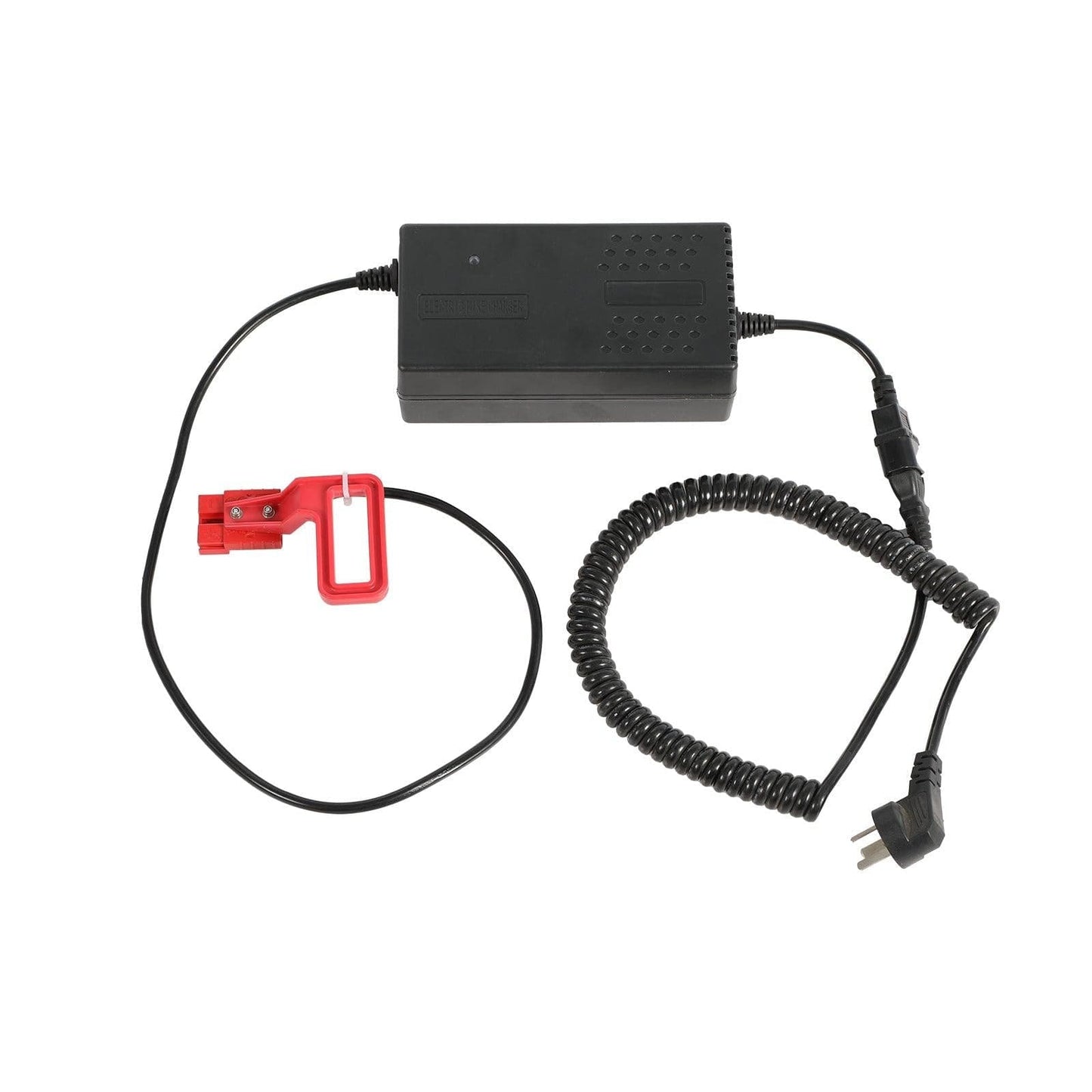

- Charger plugs into standard 110V-120V outlets.
- Fully charge battery before use to avoid damaging cells.
- Charge the truck once a month even it's not in use.

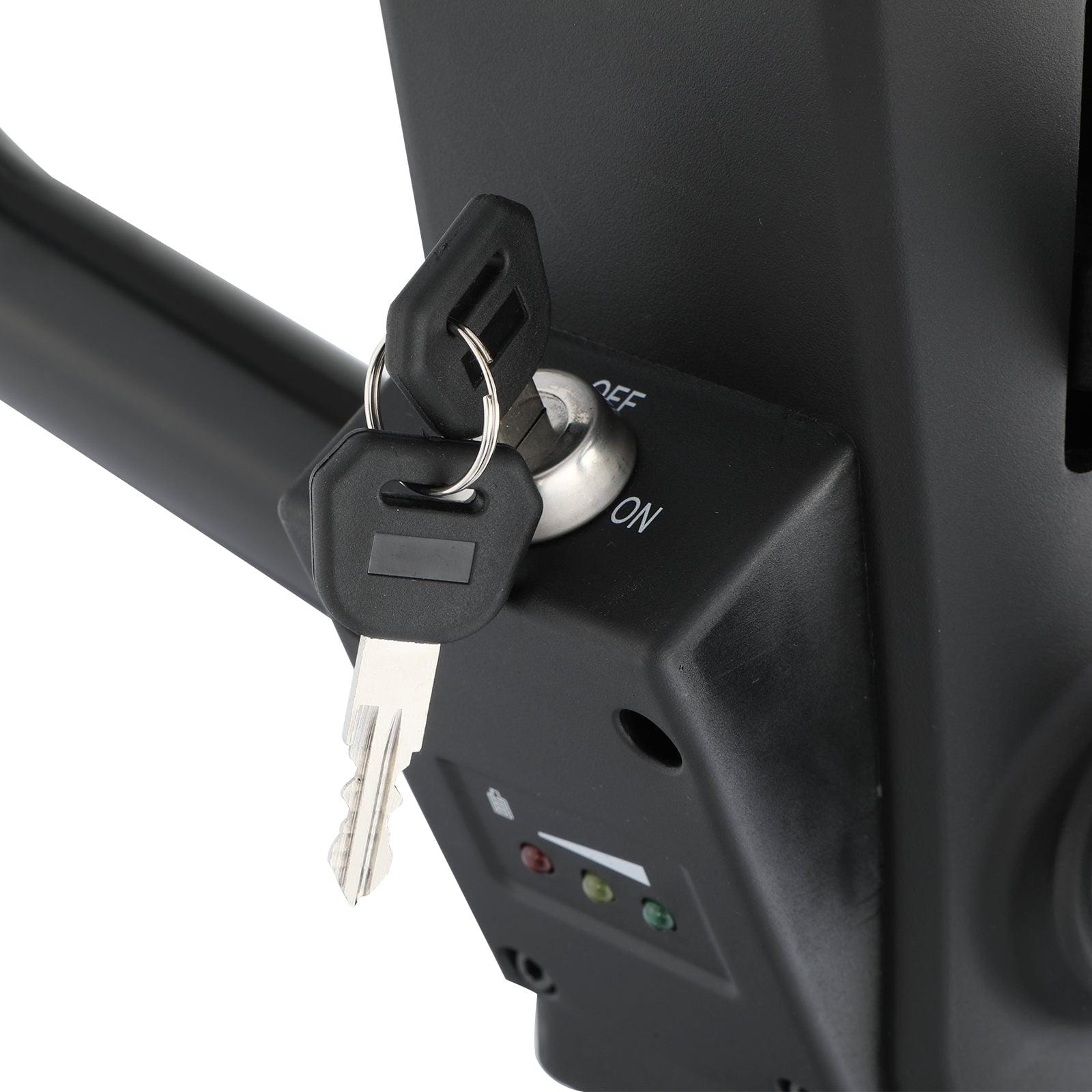

- LED light on the outside of the charger frame shows battery charge status.
-
Green: Fully Charged
-
Yellow Flash: Charging
Specifications
.
MODEL NO. |
FORK SIZE L x W |
LOAD CAPACITY |
WT.(LBS) |
RECHARGEABLE BATTERY |
DRIVE MOTOR |
WHEEL DIAMETER |
A-1020 |
48x27" |
3,300 lbs. |
298 |
48V/20AH |
.65 kw DC |
9.8"/3.15" |
A-1021 |
45x21" |
3,300 lbs. |
288 |
48V/20AH |
.65 kw DC |
9.8"/3.15" |
