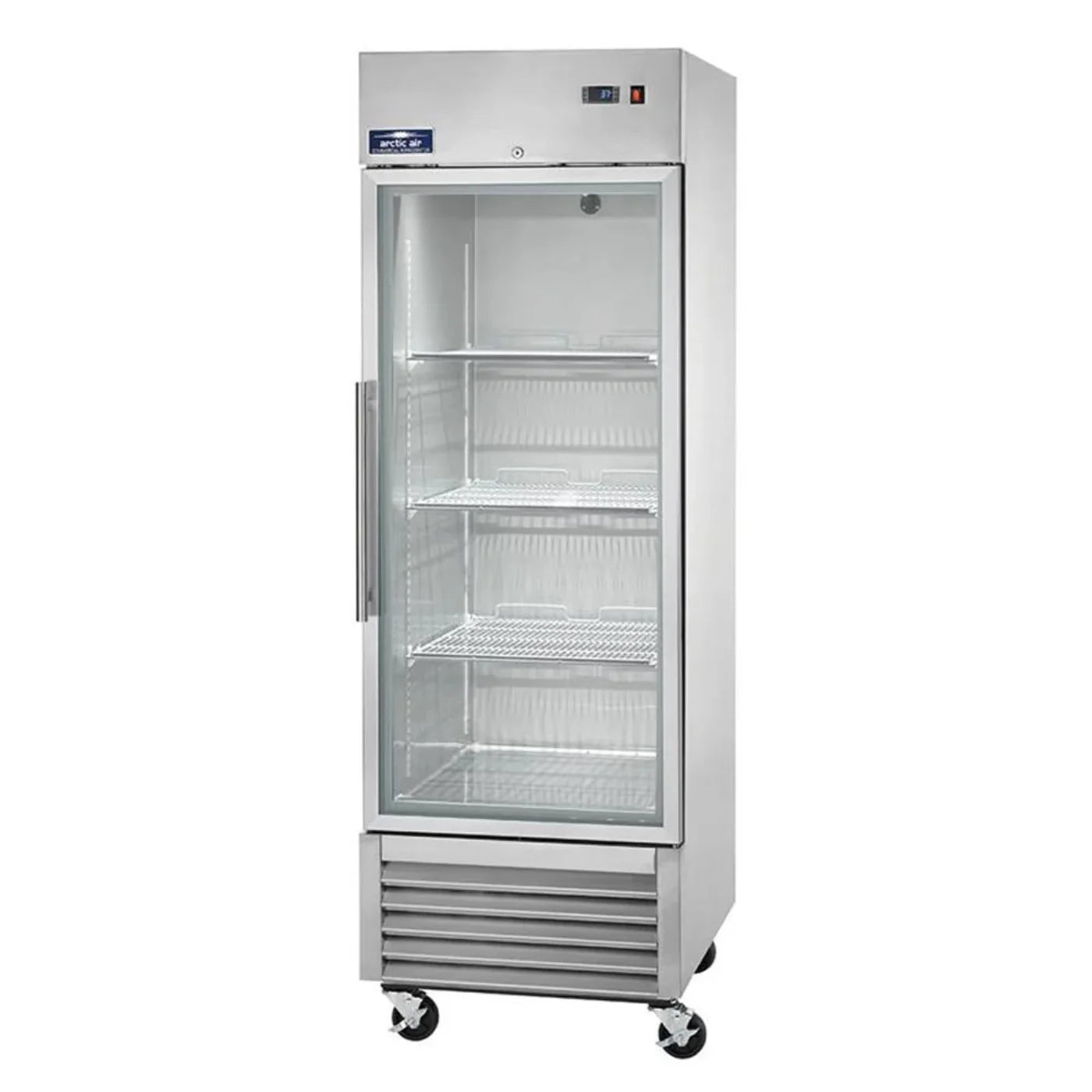

Arctic Air AGDF23 27" Single Glass Door Reach-In Stainless Steel Freezer - AGDF23
The Arctic Air AGDF23 27" Single Glass Door Reach-In Stainless Steel Freezer is engineered for both efficiency and durability in commercial food storage, boasting dimensions of 27 inches in width, 40 inches in depth, and 81.5 inches in height. It features an electronic thermostat equipped with an external digital LED display, providing precise temperature control and easy readability. The interior has a bright stainless liner complemented by a high-grade stainless steel floor with coved corners, making it easy to clean and maintain. It is furnished with three adjustable, heavy-duty epoxy-coated wire shelves per door, offering customizable storage options. Constructed with a self-contained capillary tube system using CFC-free refrigerants, this freezer promotes environmental sustainability while ensuring efficient cooling. Its bottom-mounted compressor operates effectively in the coolest area of the kitchen, and the front-accessible, bottom-mounted condensing unit is mounted on a slide-out rack for easy maintenance. The unit includes self-closing lockable doors and a magnetic door gasket that is removable and replaceable without tools, ensuring a tight seal. Additionally, the freezer is equipped with larger fan motors and blades for improved airflow, promoting faster recovery times. The easy-to-mount casters, with two being lockable, facilitate movement and placement in various kitchen settings. It meets NSF Standard 7 requirements for open food storage and comes with a full two-year parts and labor warranty, along with a five-year compressor warranty, ensuring reliability and peace of mind for users. Dimensions Width: 27 Inches Depth: 40 Inches Height: 81.5 Inches
Features
- The Arctic Air AGDF23 has a width of 27 inches, a depth of 40 inches, and a height of 81.5 inches, making it a compact and space-efficient solution for commercial freezer needs.
- Featuring a full-hinged door, the freezer allows for easy access to stored items, enhancing operational efficiency during busy service times.
- Equipped with a solid door, providing excellent insulation and protecting the contents from temperature fluctuations while ensuring energy efficiency.
- Constructed with a durable stainless steel front and sides, this freezer offers a sleek appearance while being easy to clean, ensuring it maintains its professional look in any kitchen environment.
- A self-contained refrigeration system is located at the bottom, allowing for efficient cooling and making maintenance easier by keeping the compressor accessible.
- Operates with a 3/8 HP compressor, delivering reliable performance to maintain optimal temperatures for food preservation.
- Designed with 1 section, the AGDF23 provides wide storage space for a variety of frozen items, making it suitable for smaller kitchens or as an additional freezer unit.
Specifications
| Manufacturer |
Arctic Air |
| Model Number |
AGDF23 |
| Width |
27" |
| Depth |
40" |
| Height |
81.5" |
| Door Style |
Full Hinged |
| Door Type |
Solid Door(s) |
| Exterior Finish |
Stainless Steel Front & Sides |
| Horsepower |
3/8 HP |
| Section |
1 Section |
| Refrigeration |
Self-contained – Bottom Mounted |
What our Experts Think
-
Compact & Efficient: With a 23.0 cu. ft. capacity, it’s perfect for kitchens that need reliable frozen storage without taking up too much space.
-
Reliable Cooling: Maintains temperatures between -10°F and 10°F, using an eco-friendly R290 refrigerant and a bottom-mounted compressor.
-
Durable & Easy to Clean: Made with a stainless steel exterior and interior, plus a stainless steel floor, ensuring durability and simple maintenance.
-
User-Friendly Design: Features a self-closing, lockable glass door, three adjustable epoxy-coated shelves, and an LED display for easy temperature control.
-
Convenient Mobility: Comes with four 5" casters (two lockable) for easy positioning and stability.
Q&A
Q: What is the capacity of the Arctic Air AGDF23?
A: The AGDF23 offers a 23.0 cu. ft. capacity, making it ideal for commercial freezer storage.
Q: What is the temperature range of the AGDF23?
A: The freezer maintains a temperature range of -10°F to 10°F, perfect for storing frozen items.
Q: What type of refrigeration system does the AGDF23 use?
A: The AGDF23 features a self-contained, bottom-mounted refrigeration system that uses R290 hydrocarbon refrigerant, known for its energy efficiency.
Q: What materials are used in the construction of the AGDF23?
A: The freezer is built with a stainless steel exterior and interior, ensuring durability and ease of cleaning.
Q: How is the AGDF23 accessed?
A: The freezer has a right-hinged, self-closing glass door, with a lock for added security.
Q: How many shelves does the AGDF23 have?
A: It includes three adjustable, epoxy-coated wire shelves for flexible storage options.
Q: Is the AGDF23 easy to maintain?
A: Yes, the unit features a front-accessible condensing unit for easy cleaning and maintenance.
Maintenance Tips
-
Clean the condenser coils every 90 days for optimal cooling.
-
Inspect and replace door gaskets as needed to ensure a proper seal.
-
Clean the interior and exterior regularly with a mild detergent and warm water.
-
Ensure the unit is level to prevent drainage issues and maintain proper operation.
-
Monitor the temperature to maintain an optimal range of -10°F to 10°F.
