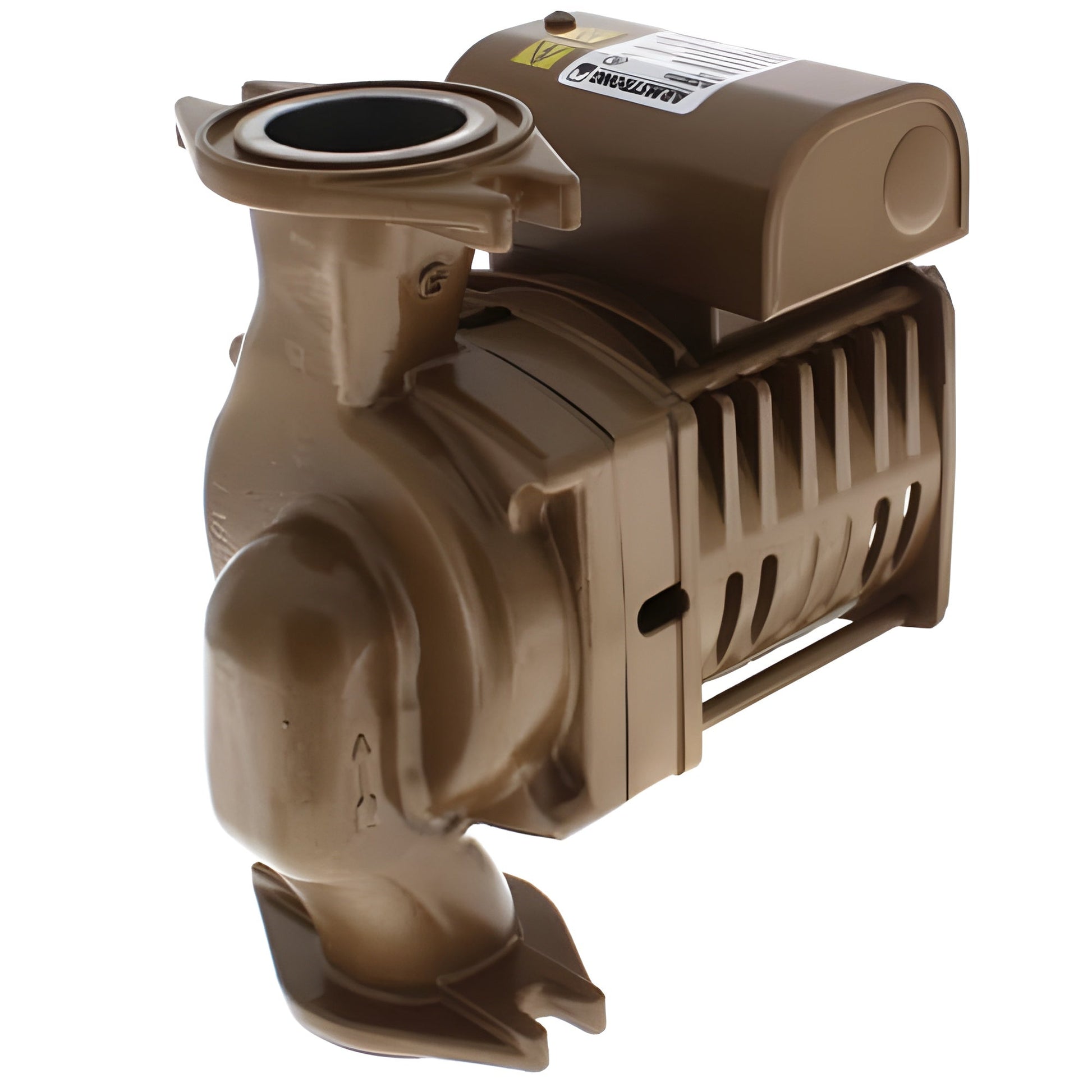

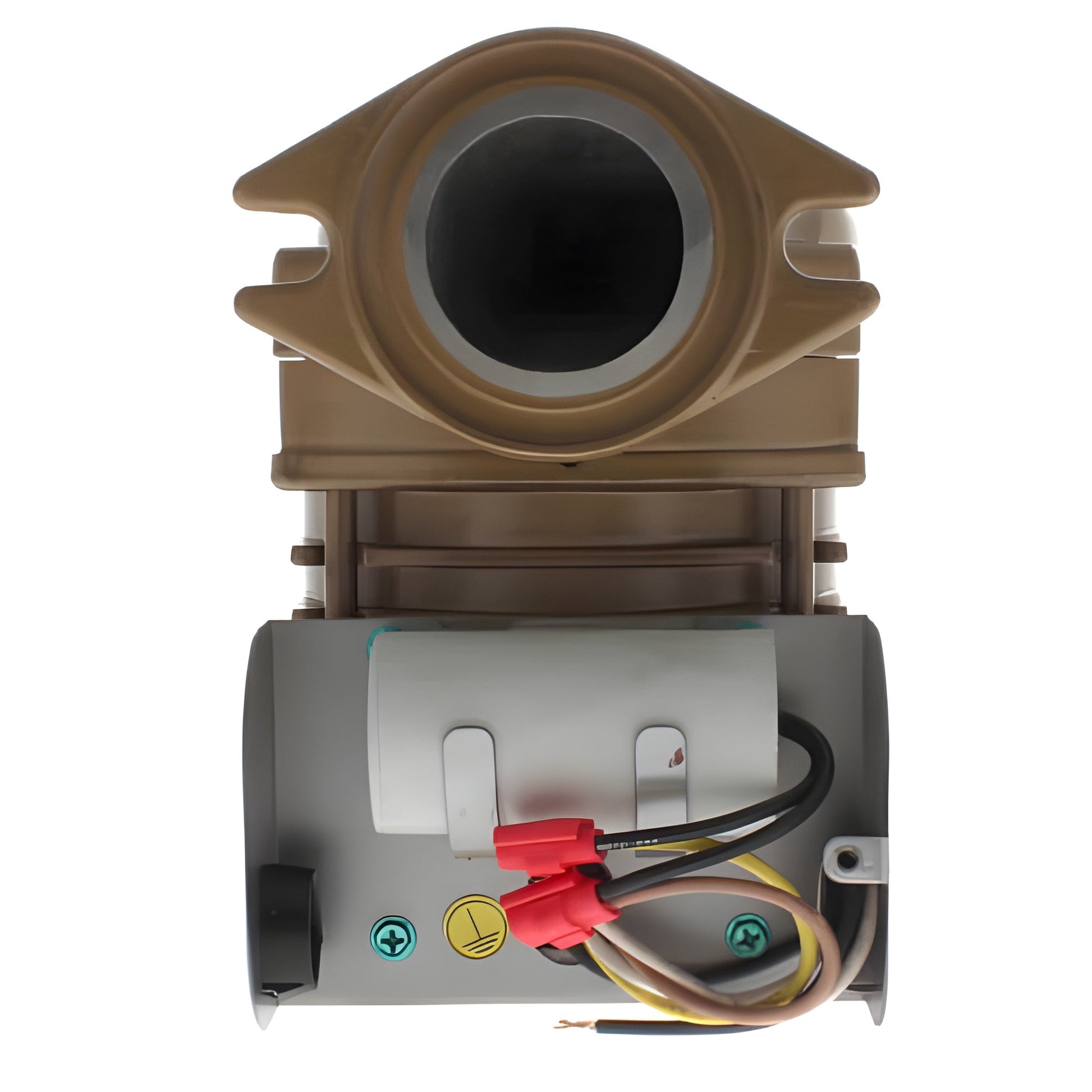

Armstrong 11.2b Bronze High-Efficiency Circulator Pump 120 VAC 1/6 hp - 182202-652
The Armstrong 182202-652 e11.2b Bronze High-Efficiency Circulator Pump is ideal for various hydronic applications. This model operates at 120 VAC and delivers 1/6 hp, making it effective and reliable.
The Armstrong 182202-652 e11.2b Bronze High-Efficiency Circulator Pump is ideal for various hydronic applications. This model operates at 120 VAC and delivers 1/6 hp, making it effective and reliable.
Features
- High-efficiency circulator pump
- Bronze construction for durability
- Suits hot and chilled water recirculation
Specifications
| Amperage Rating |
2 A |
| Connection Size |
1-1/2 inches Flanged |
| Dimension |
7-1/2 inches W x 8-1/2 inches H x 4.2 inches D |
| Flow Rate |
45 gpm |
| Frequency Rating |
60 Hz |
| HP Rating |
1/6 hp |
| Impeller Material |
30% Glass-Filled Noryl |
| Item Name |
Circulator Pump |
| Material |
Bronze |
| Maximum Feet of Head |
31.9 ft |
| Model |
e11.2b |
| Phase |
1 ph |
| Pressure Rating |
150 psi |
| RPM |
3300 rpm |
| Series |
E.2 |
| Temperature Rating |
32 - 230 degrees F |
| Type |
High-Efficiency |
| Voltage Rating |
120 VAC |
| Wattage |
125 W |
| Brand |
Armstrong Pumps |
| Manufacturer |
Armstrong Pumps |
| MPN |
182202-652 |
What Our Experts Think
-
1/6 HP Motor – Offers efficient power for consistent, reliable operation across a range of applications.
-
120 VAC Power – Compatible with standard voltage for easy integration into your system.
-
Bronze Construction – Provides superior corrosion resistance, making it ideal for long-term use in both residential and commercial systems.
-
High Efficiency – Engineered to reduce energy consumption while maintaining optimal circulation flow, contributing to lower operating costs.
-
Versatile Application – Perfect for HVAC, water heating, and general circulation needs, providing reliable performance in multiple environments.
Q&A
Q: What is the Armstrong 182202-652 circulator pump used for?
A: The Armstrong 182202-652 is a high-efficiency circulator pump used to circulate fluids in heating and cooling systems, ensuring consistent temperature control and energy efficiency in residential and light commercial applications.
Q: What makes the Armstrong 182202-652 circulator pump energy-efficient?
A: The 182202-652 circulator pump utilizes a high-efficiency motor and optimized design, reducing power consumption and providing reliable fluid circulation, making it ideal for energy-conscious users.
Q: How does the Armstrong 182202-652 improve system performance?
A: This pump ensures steady fluid circulation, helping heating and cooling systems maintain optimal temperature control, reduce energy waste, and improve overall system efficiency.
Q: Is the Armstrong 182202-652 circulator pump easy to install?
A: Yes, the Armstrong 182202-652 is designed for straightforward installation, with a compact size and standard 120 VAC connection, making it an easy addition to most heating and cooling systems.
Maintenance Tips
-
Inspect for Leaks – Regularly check all connections and seals for leaks. Tighten fittings or replace seals if necessary.
-
Monitor Pump Noise – Listen for any unusual noises that may indicate internal wear or debris in the pump. Address any issues immediately.
-
Clean the Pump – Remove any debris or scale buildup from the pump and impeller to ensure smooth operation and efficient fluid circulation.
-
Lubricate Bearings – Ensure proper lubrication of the bearings to reduce friction and prevent premature wear.
-
Check Motor Operation – Periodically inspect the motor for overheating, vibration, or abnormal performance. Ensure it is operating smoothly.
-
Test Pump Performance – Regularly check the flow rate and pressure to ensure the pump is performing within the specified range.
-
Inspect Electrical Connections – Check the power supply and electrical connections for any signs of damage or wear, ensuring safe operation.
-
Replace Parts as Needed – If components like the impeller or seals show signs of wear, replace them to maintain pump efficiency.
