Atlas 408SL 8,000 lb. Super Deluxe 4-Post Lift - ATEATTD-408SL-FPD
Deluxe 8,000 lb. Portable Hobbyist 4-Post Lift

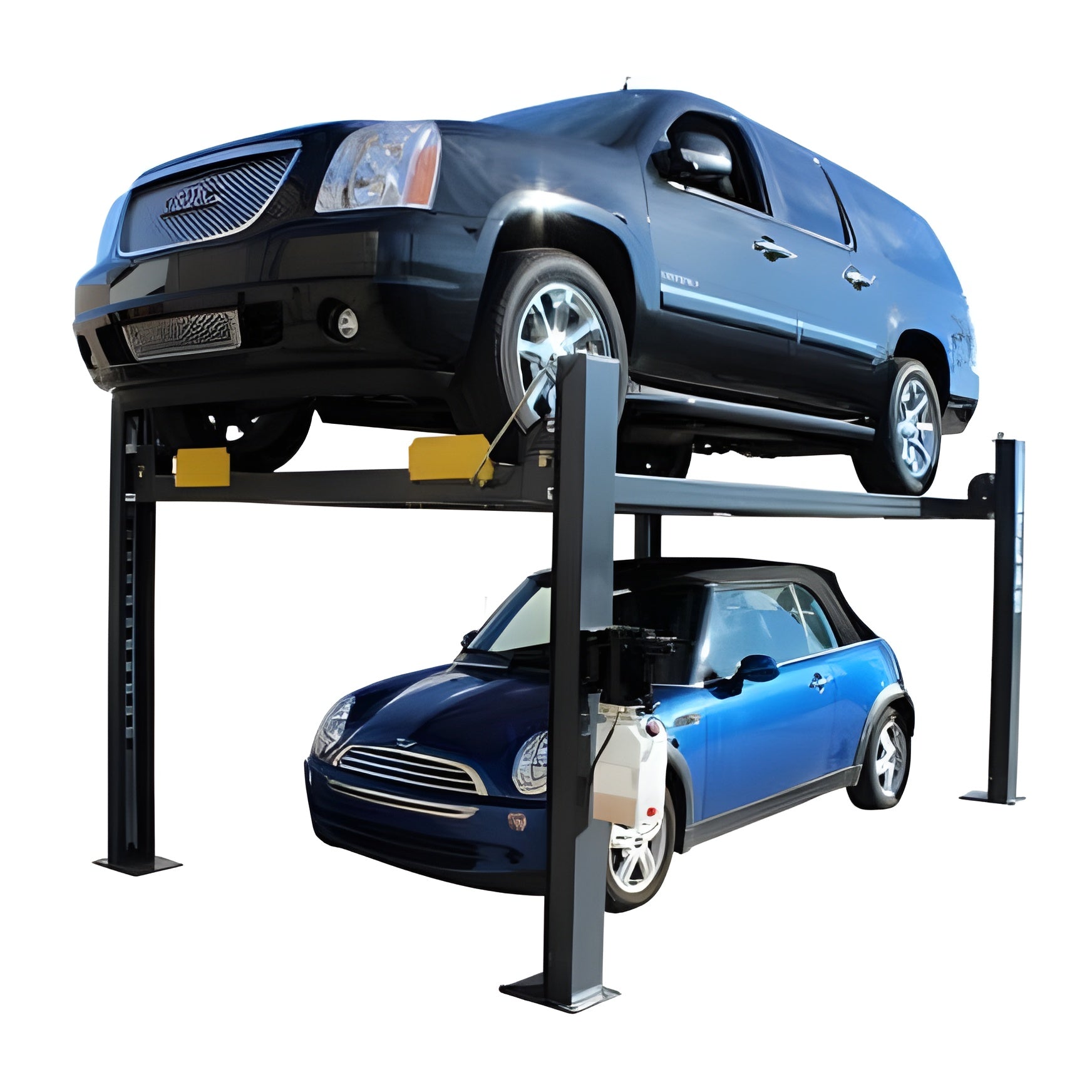

The Atlas 408SL super deluxe portable vehicle storage lift is designed for those car enthusiasts who demand the absolute best look and superior quality. The 408SL has all the great features of our Atlas Garage Pro Series 4 post hobbyist lifts, but incorporates many features found only on our Atlas commercial grade 4-post lifts.
All columns incorporate two special bends which help to increase the column strength. These strategic bends also increase the surface area for the slide block to travel. Horizontal cables are hidden inside of the cross tubes. Professional grade wheel covers are used to eliminate almost all exposure of cables and the double lock system. The Atlas 408SL has more metal and weighs over 100 lbs. more than other hobbyist lifts based upon the same column and runway configuration.
The Atlas 408SL is built to the same commercial lift standards as our Atlas 412 and Atlas 414 four post lifts, but also offers portability (Caster Kit included).
If you are looking for a lift that stands out from all the other storage lifts sold in the USA, then take a good look at the Atlas 408SL.
Many customers who purchased this lift also purchased the Atlas RJ35.
Video
Features
8,000 lb. Capacity
Free Standing/Portable Design
Diamond Plated Runways
Single point lock release
Columns incorporate two special bends to increase column strength.
Larger Column Size
Double Lock Safety System
Higher quality powder coating (steel gray color)

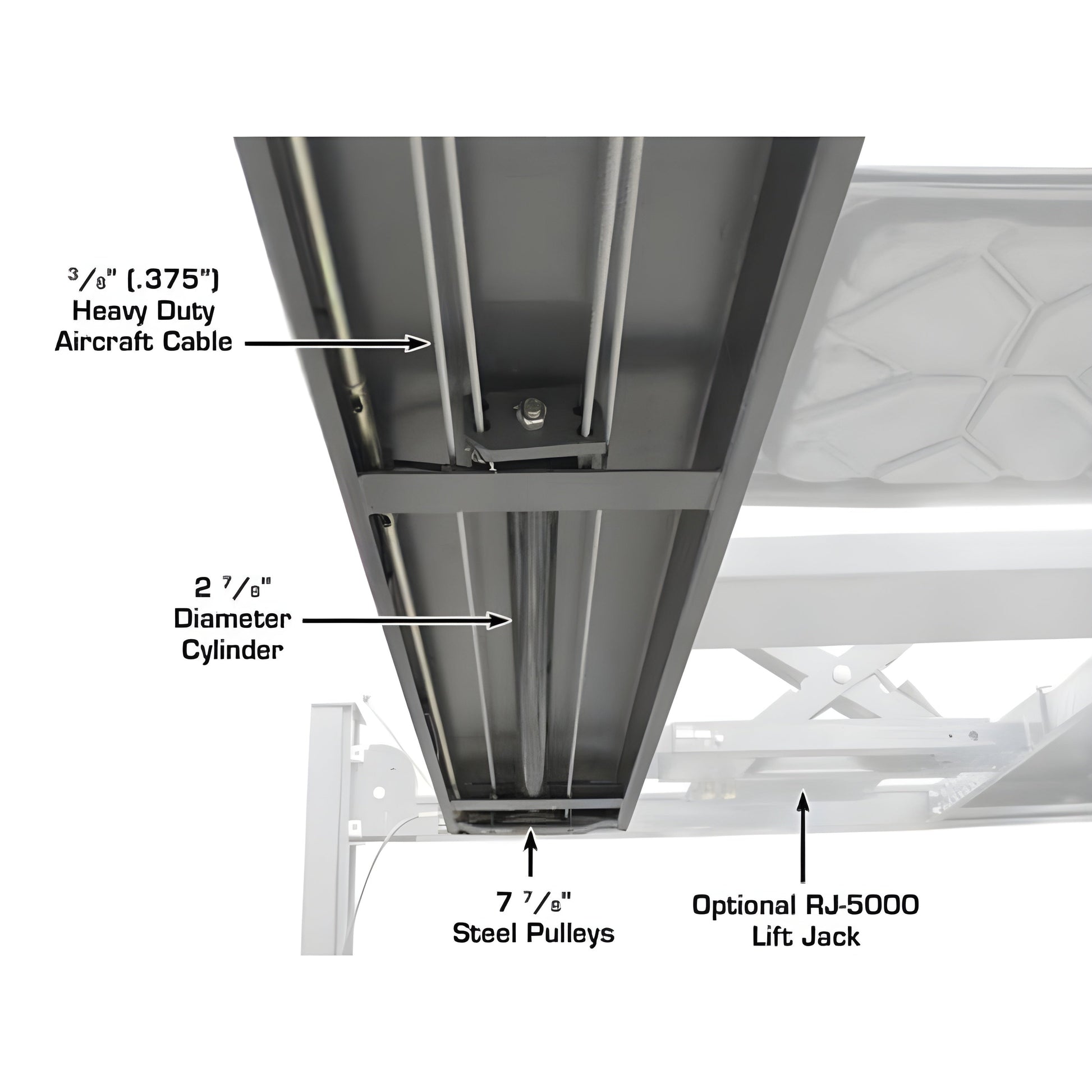

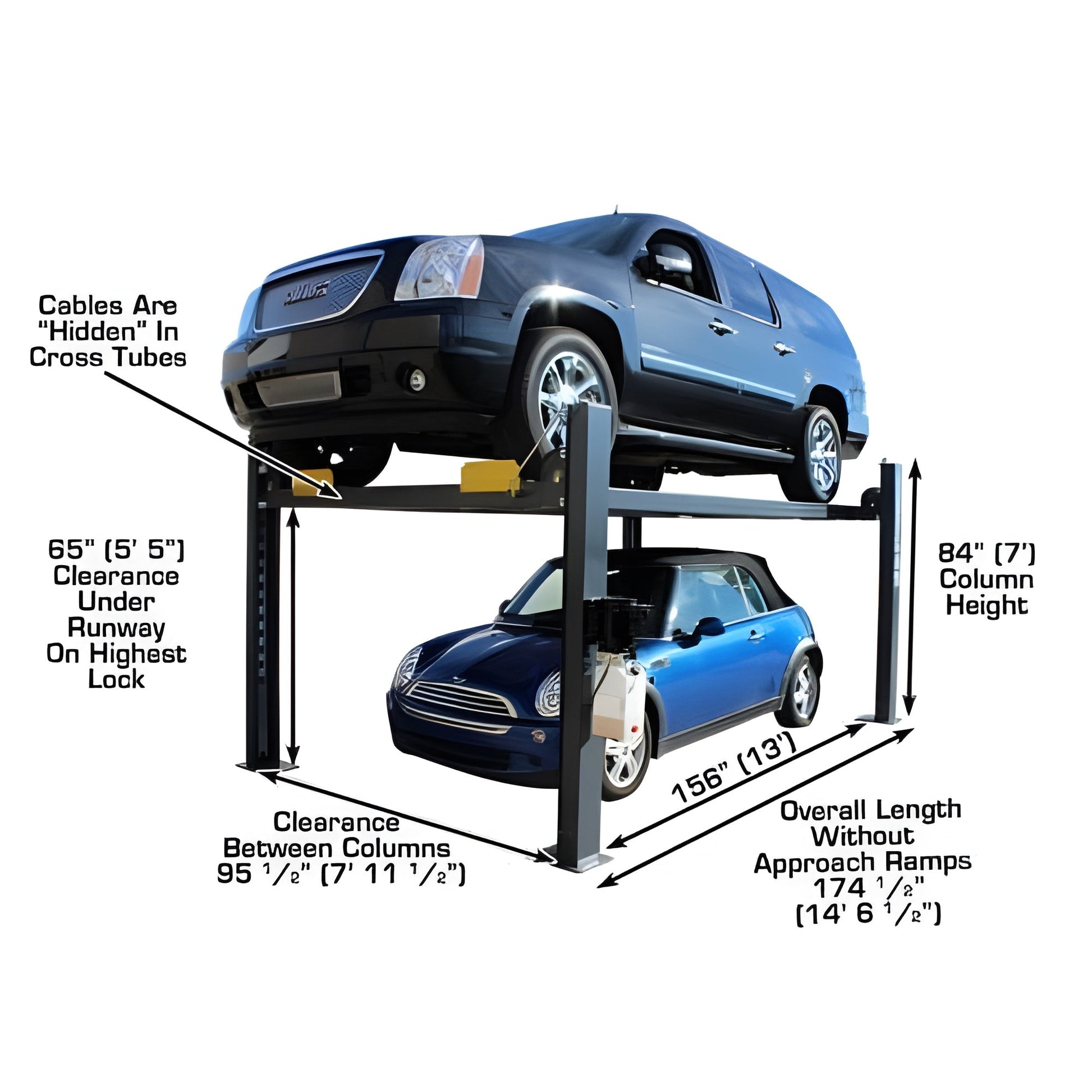

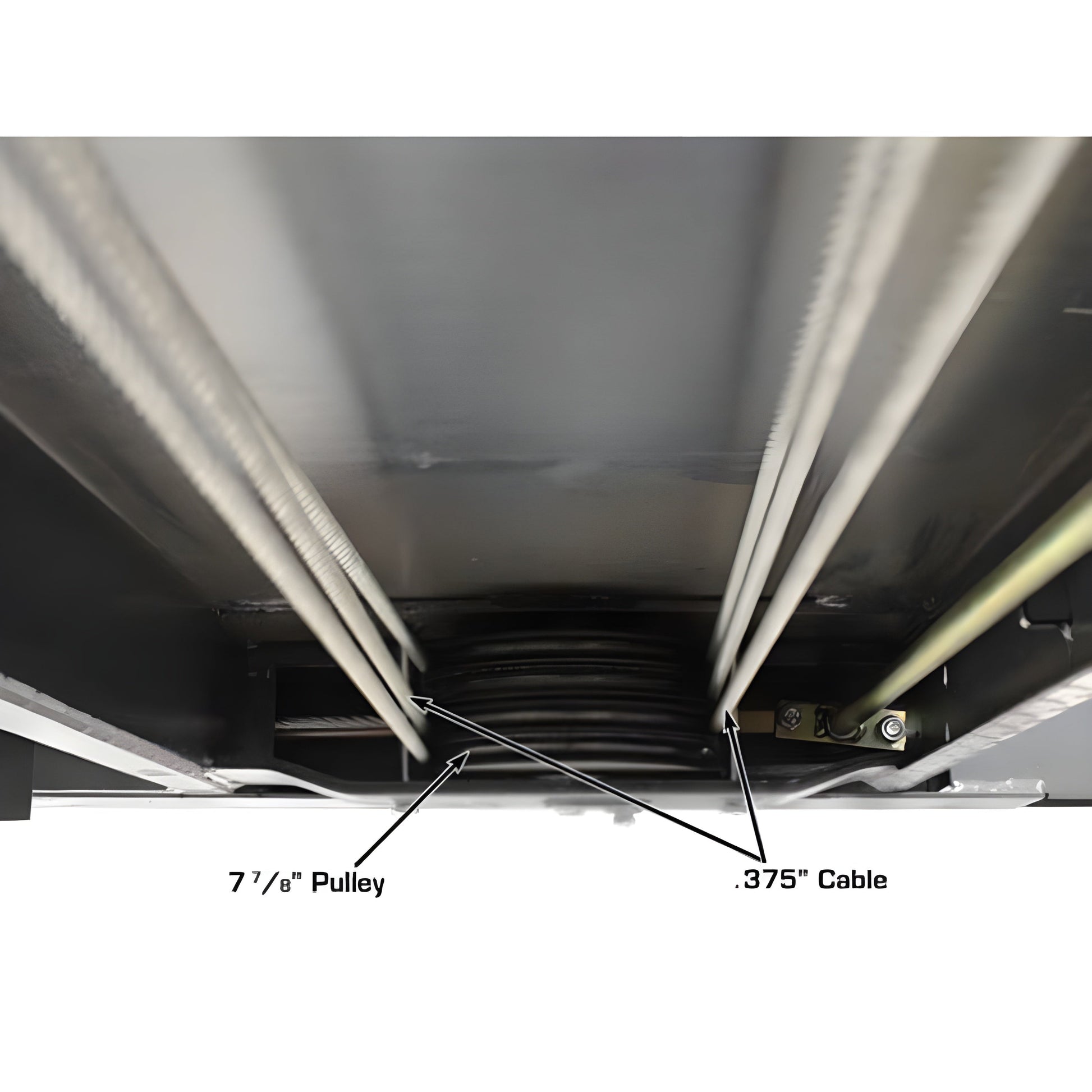

Cables hidden in Columns & Cross Tubes
Commercial Grade Wear Blocks
Power Unit can be positioned at any corner
Wider Access Between Runways
Caster Kit With Polyurethane Wheels Included
Steel Approach Ramps Included

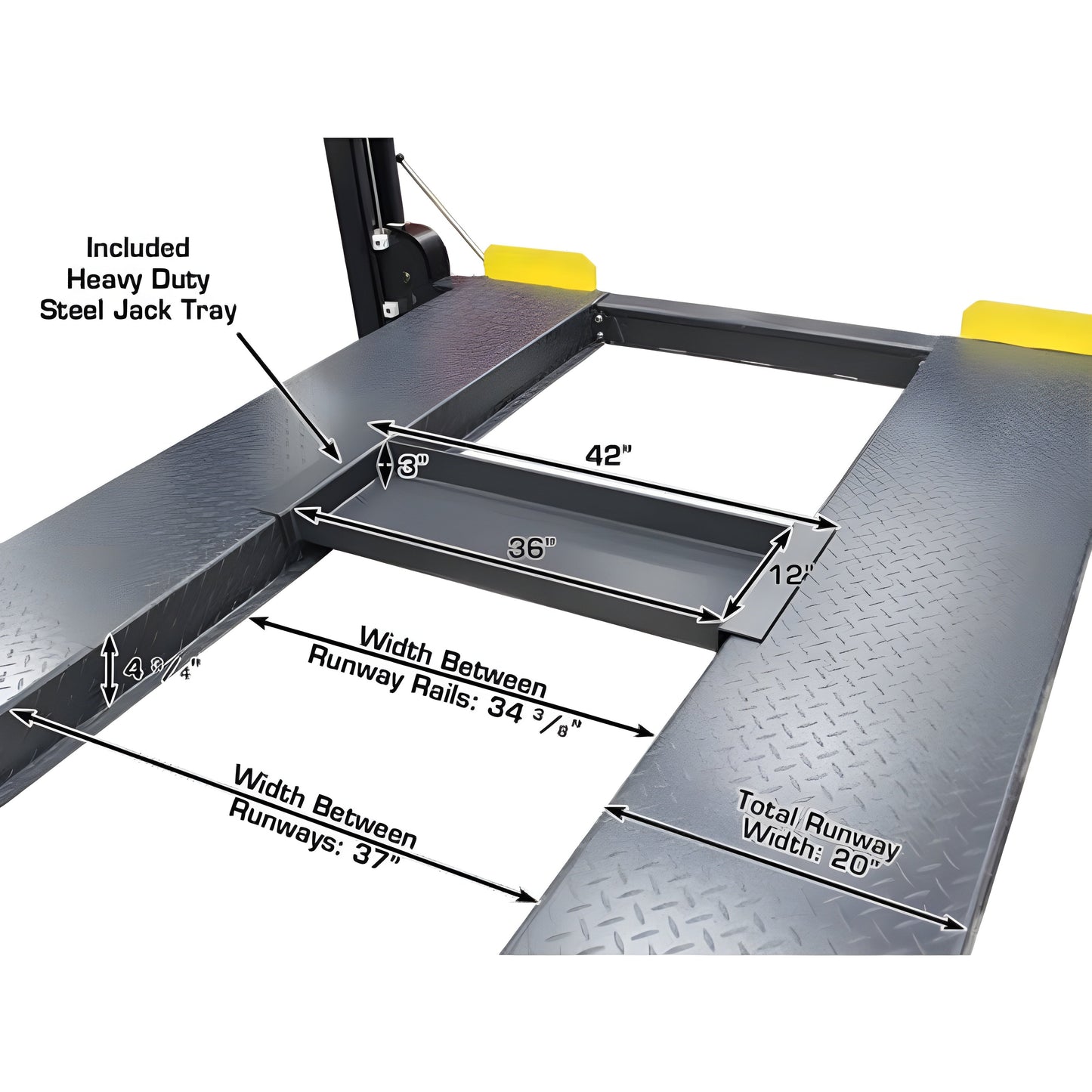

Steel Jack Tray Included

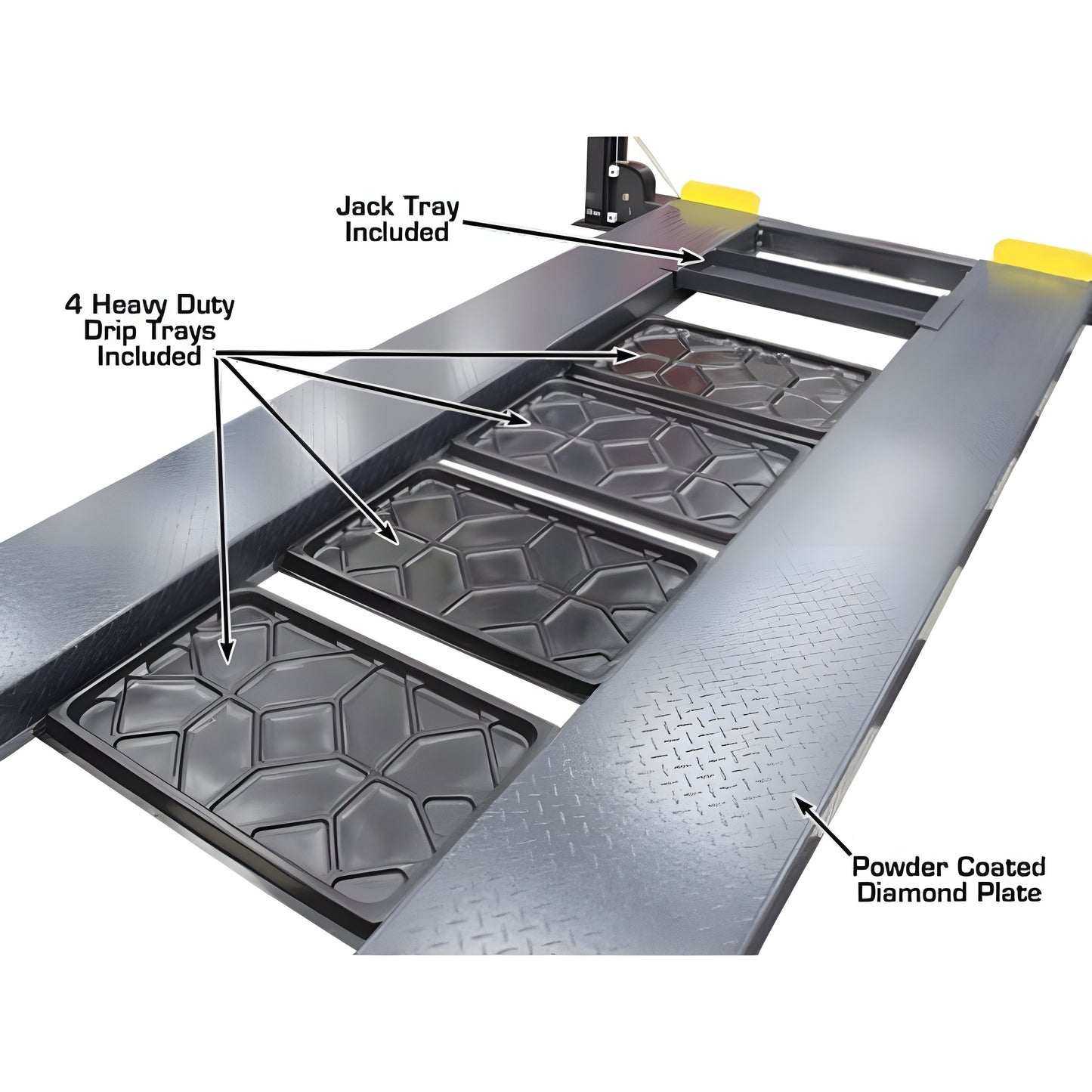

Four Plastic Drip Trays Included
Wheel Stops Included
Anchor Bolts Optional (Sold Separately)
110volt Electric Operation PLUG NOT INCLUDED (Requires 30amp Breaker)
Specifications
Atlas 408SL Specifications
Capacity
8,000 lb.
Lifting Height To Top Of Runway
73 1/4" (6' 1 1/4") (Not on Lock)
Clearance Under Runways
68 1/2 (5' 8 1/2")
Height Of Columns
83" (7' 11")

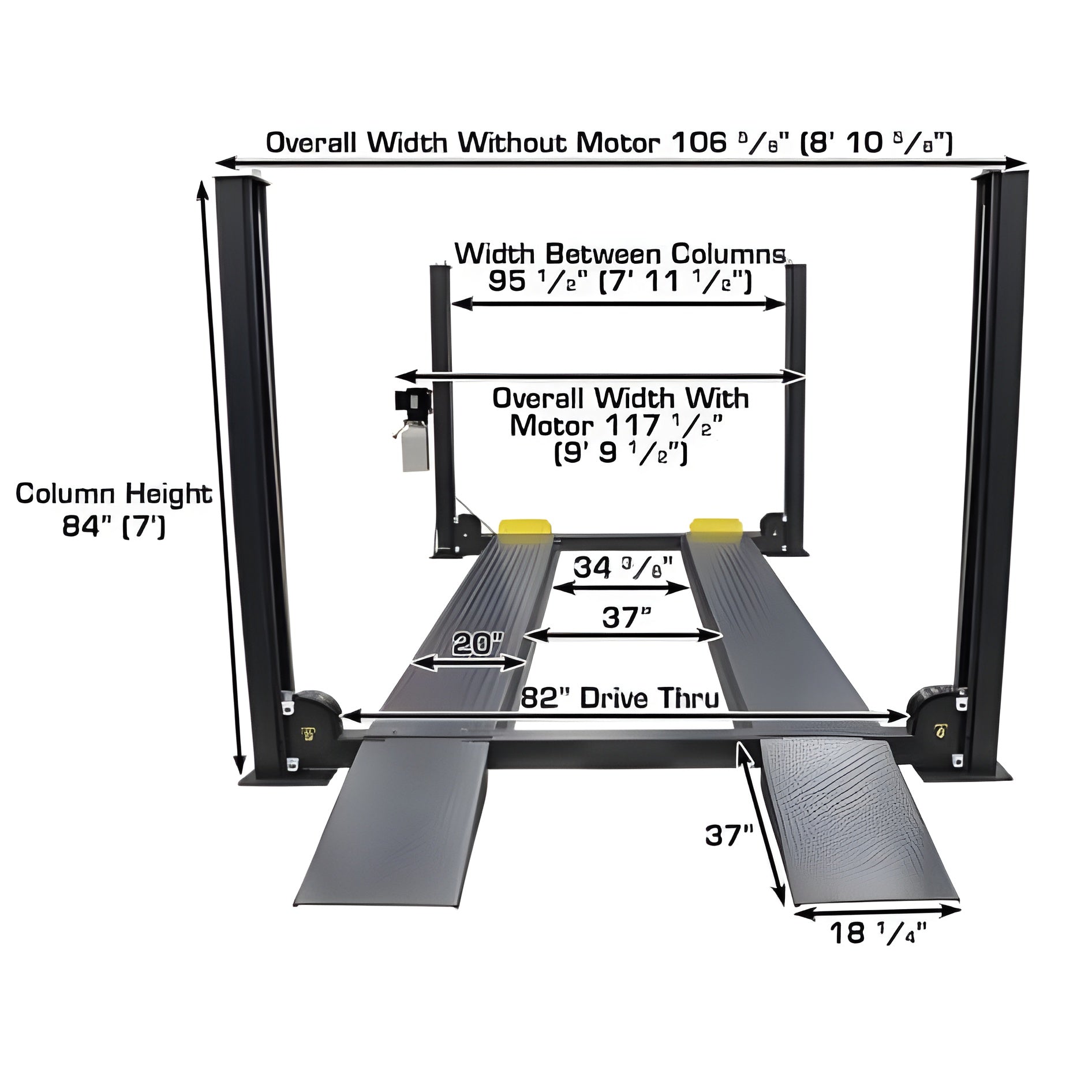

Overall Width (Without Motor)
109 5/8" (9' 1 5/8")

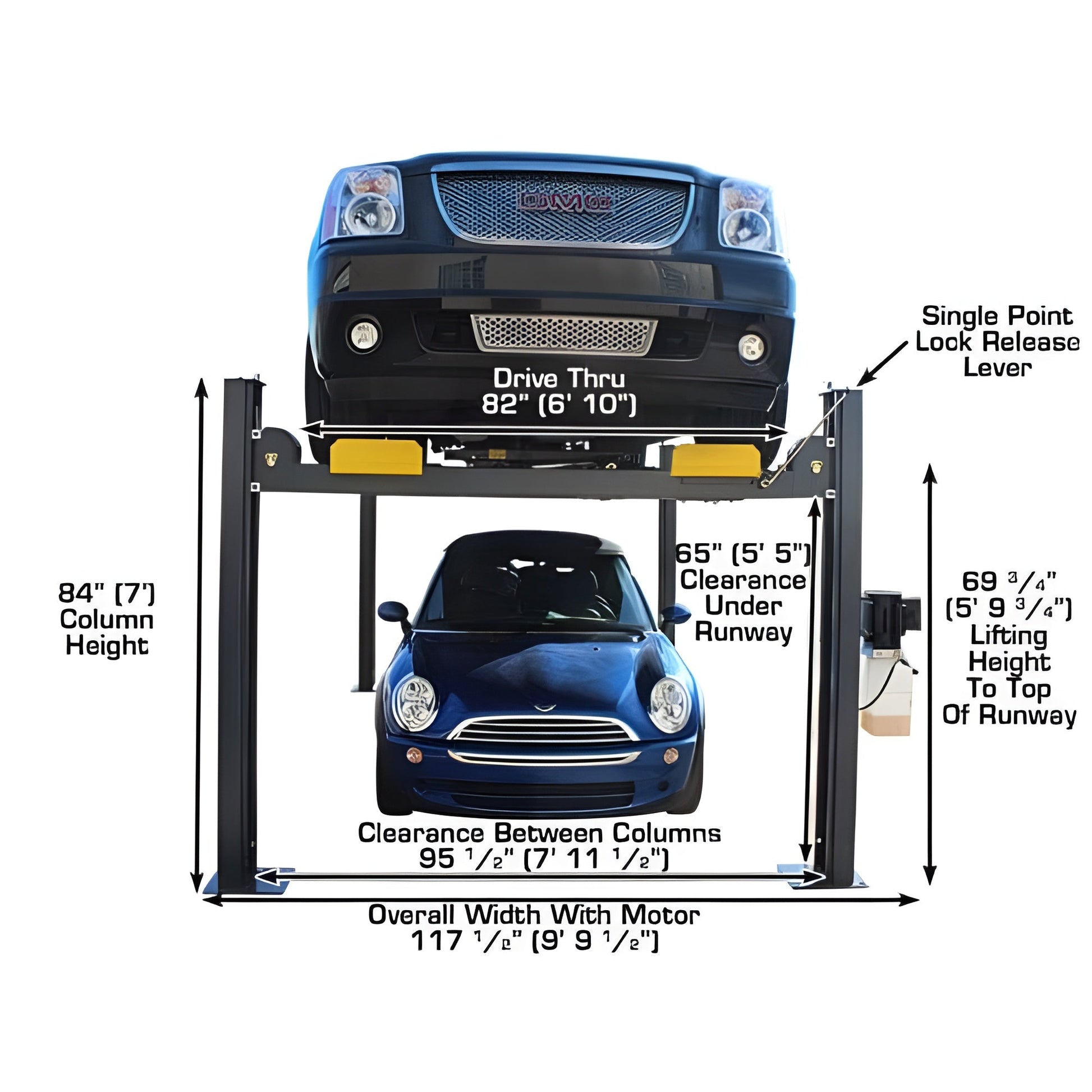

Overall Width (With Motor)
117 1/2" (9' 9 1/2")
Overall Length With Approach Ramp
205 3/8" (17' 1 3/8")
Approach Ramp
35" (2' 11")
Runway Width
21 1/2" (w/ Rails) or 18 3/4" (Driving Surface)
Runway Length
166 3/4" (13' 10 3/4")
Runway Thickness
4 3/4"
Width Between Runways
37 1/4" (3' 1 1/4")
Width Between Runway Rails
34 3/8" (2' 10 3/8")
Outside Runway To Outside Runway
74 3/4" (6' 2 3/4")

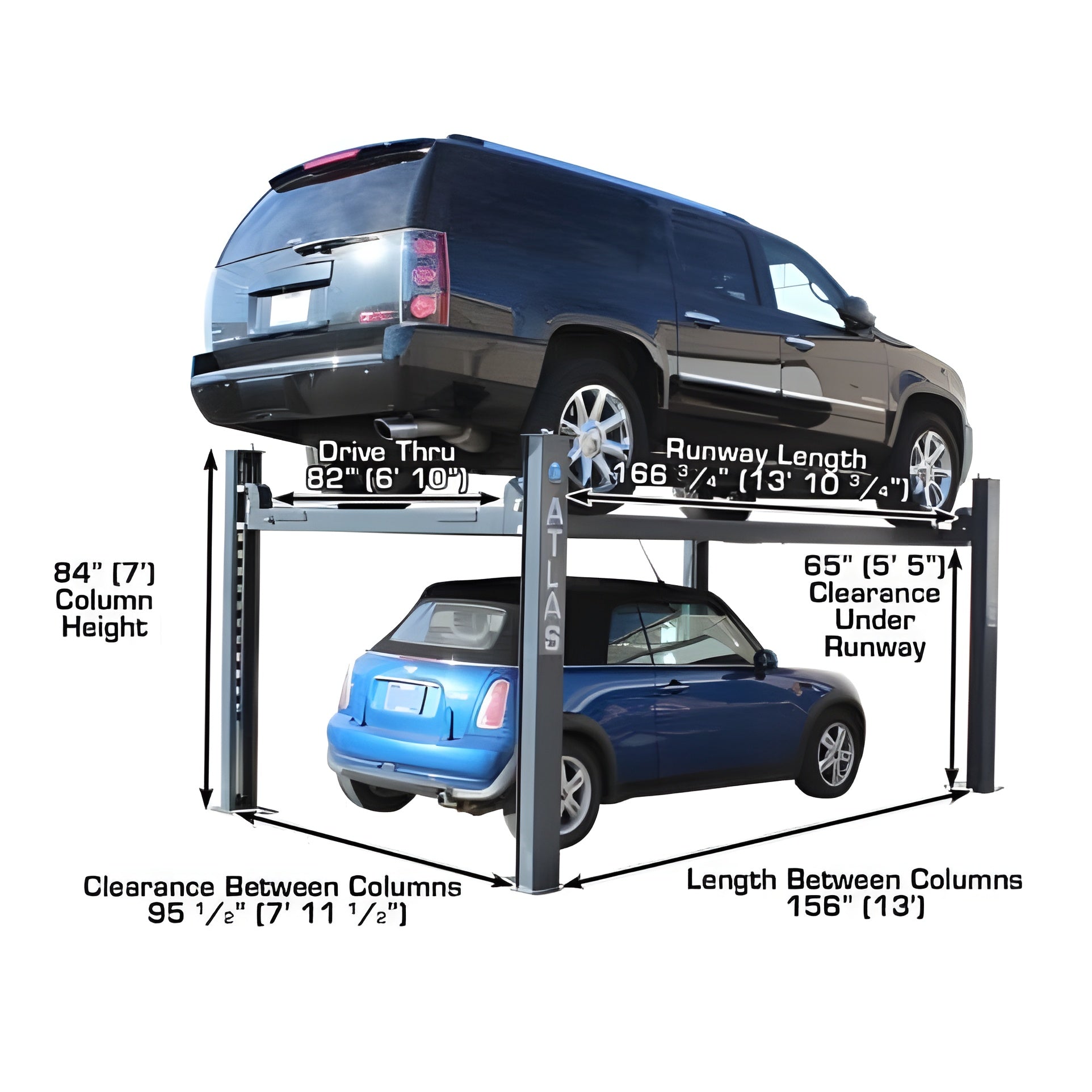

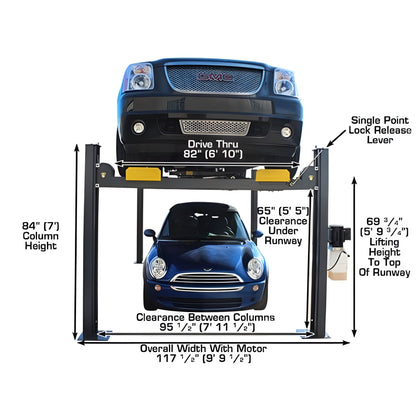

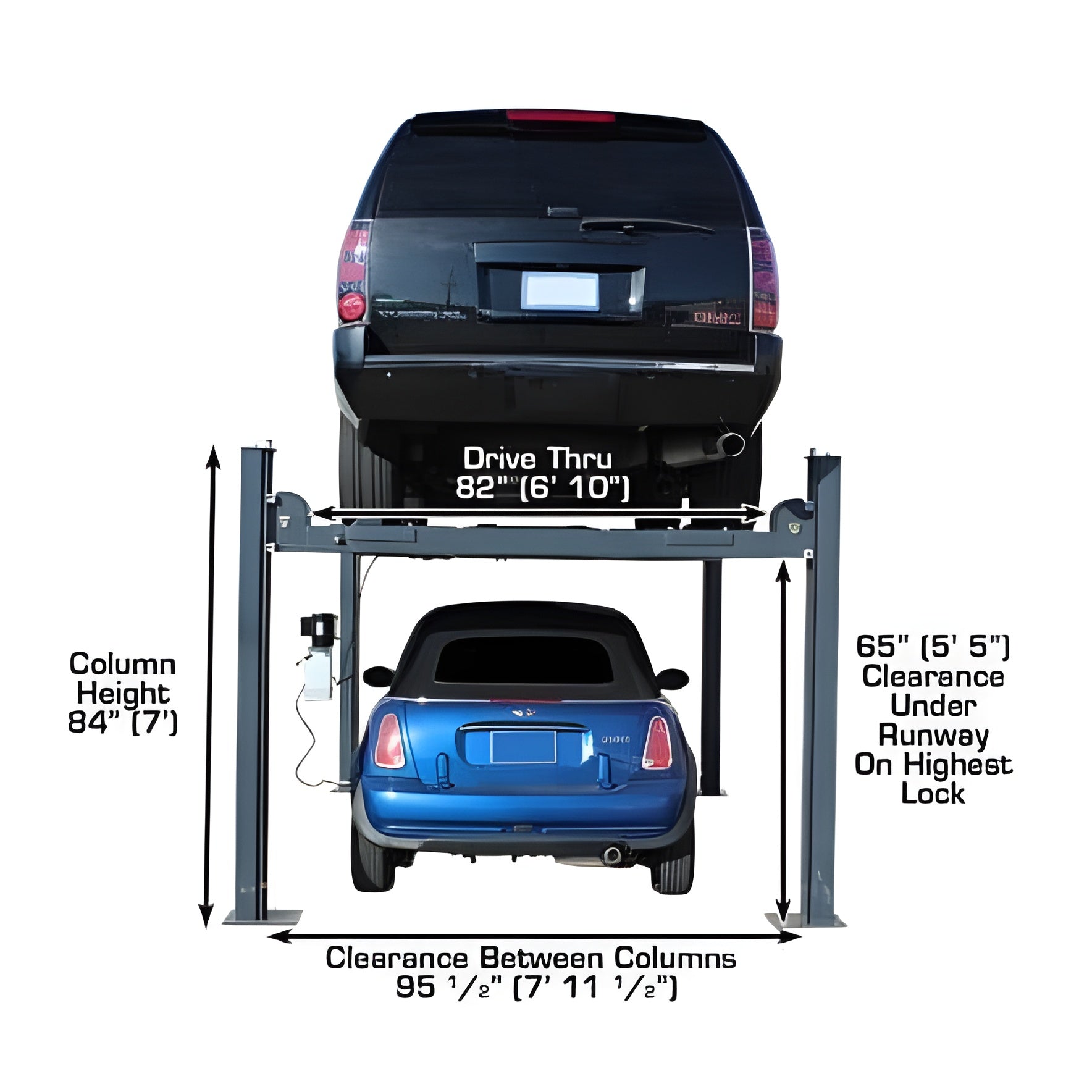

Clearance Between Columns
95 1/2" (7' 11 1/2")

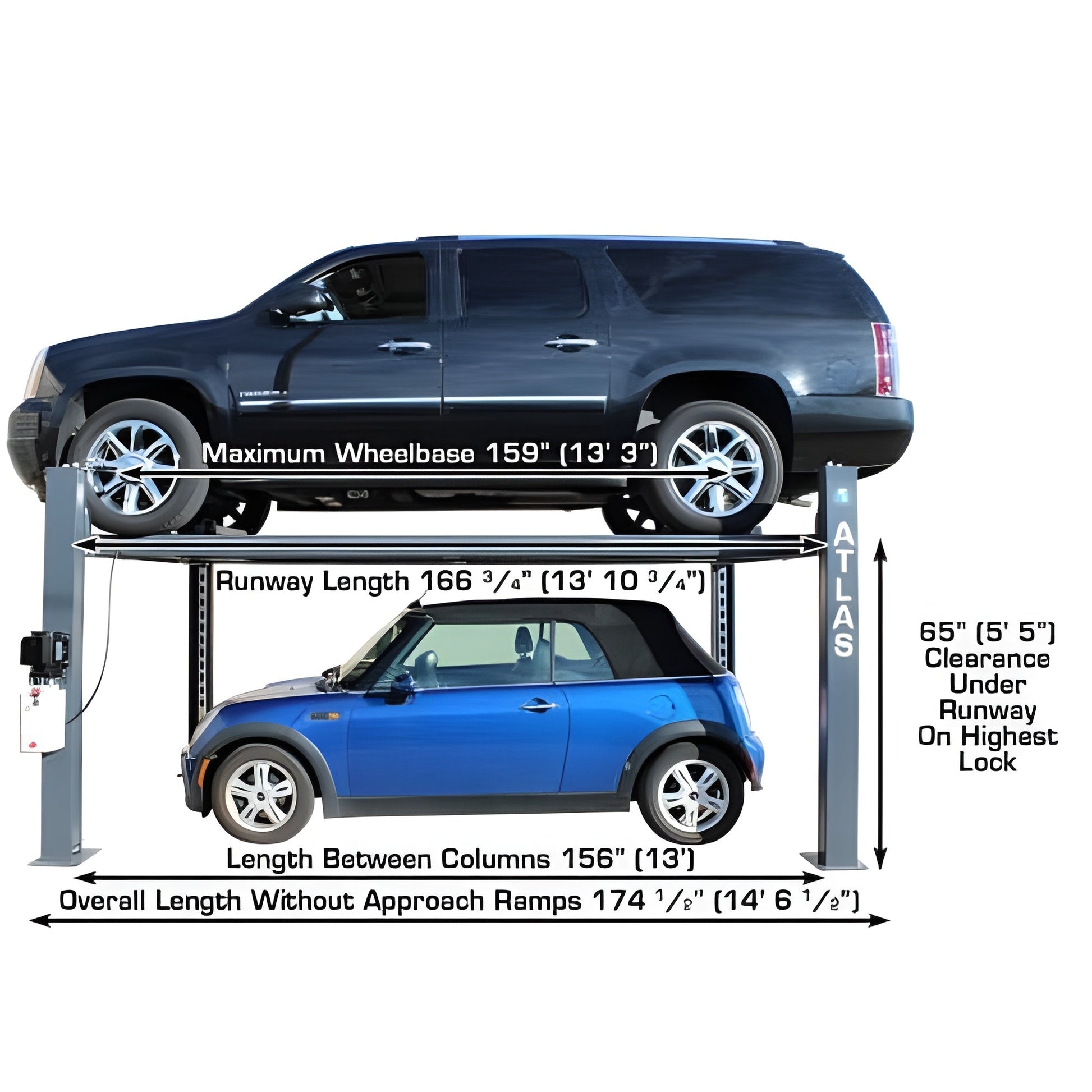

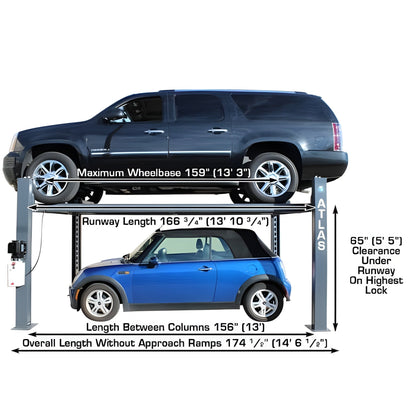

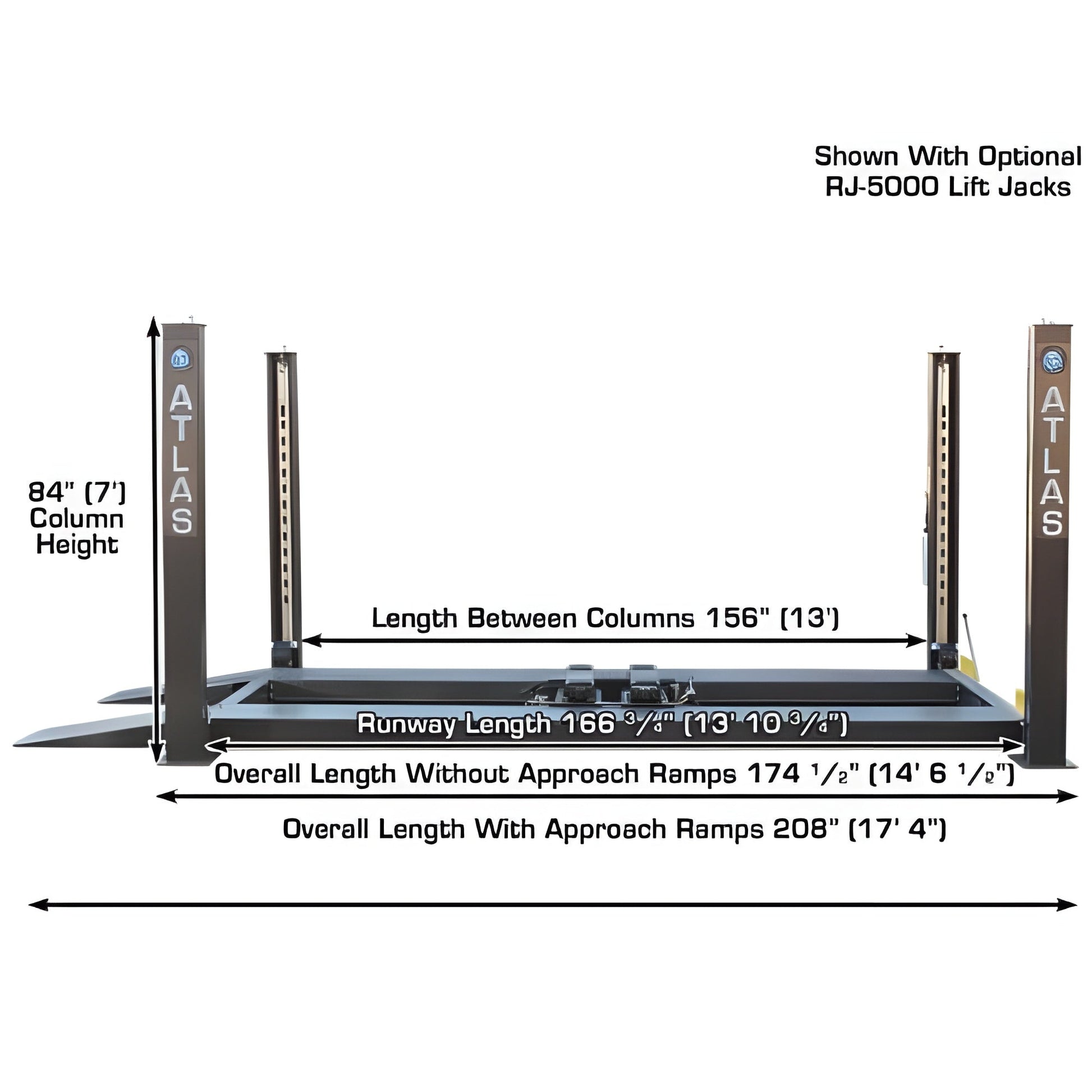

Length Between Columns
156" (13')

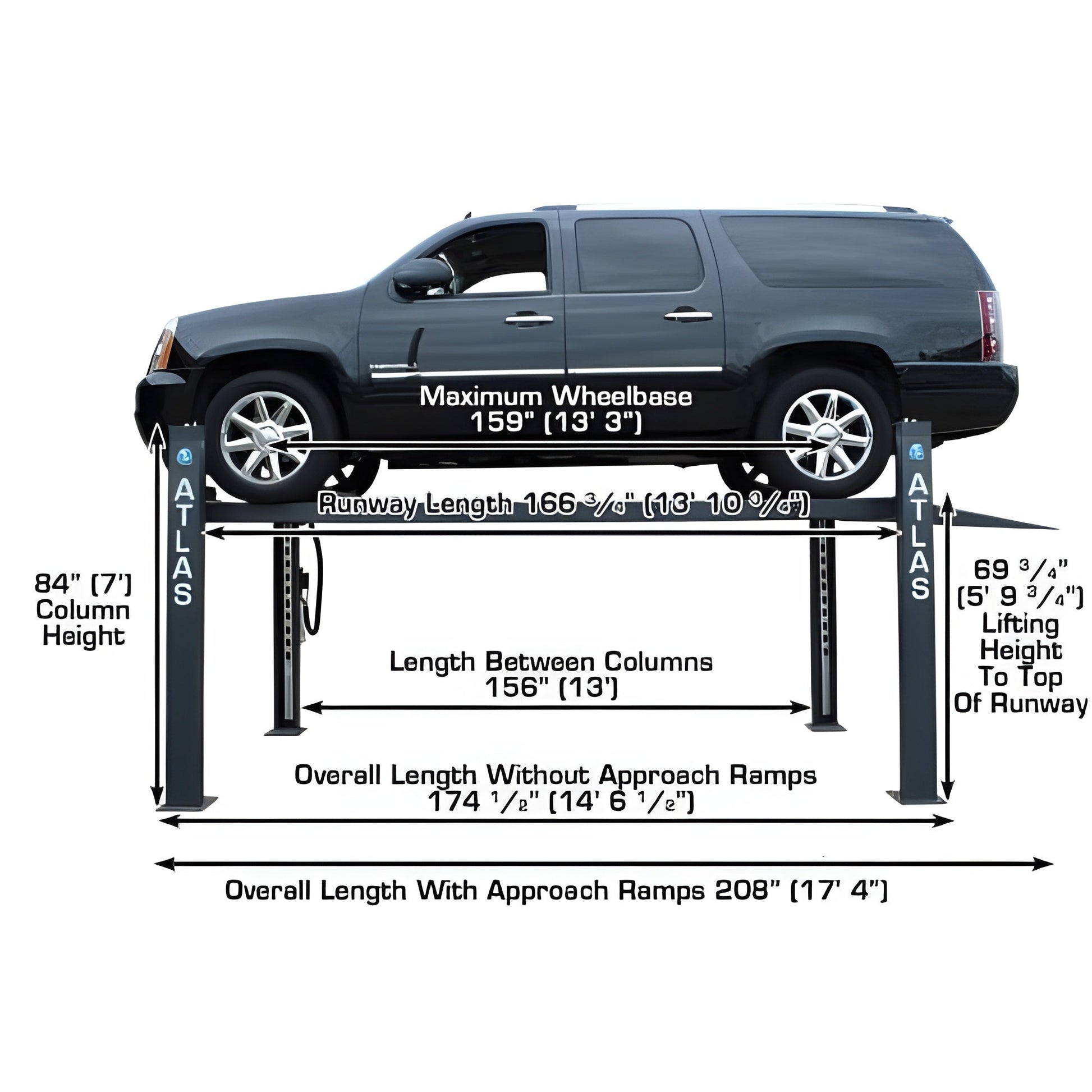

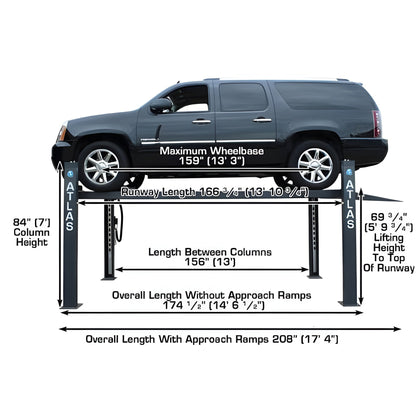

Maximum Wheel Base
154" (12' 10")
Drive Thru (Outside Of Tire To Outside Of Tire)
82" (6' 10")
Motor/Electrical Requirement
110 Volt, 30 AMP BREAKER REQUIRED
Manual
Atlas 408SL Manual
Atlas 408SL Cylinder Bleeding Procedure (Do this immediately after installation)
What our Expect Think
8,000 lb Capacity: Ideal for cars, SUVs, and light trucks.
Super Deluxe Model: Upgraded features for enhanced durability and performance.
Smooth Drive-On Ramps: Makes vehicle positioning effortless.
Compact 4-Post Design: Perfect for garages, shops, and vehicle storage.
Reliable Hydraulic System: Ensures smooth lifting and lowering.
Enhanced Safety Features: Built-in locking system for secure operation.
Q&A
Q: What is the weight capacity of the Atlas 408SL lift? A: It has an 8,000 lb capacity, ideal for cars, SUVs, and light trucks.
Q: What makes this lift "Super Deluxe"? A: It includes extended runways, extra lifting height, and upgraded safety features for enhanced functionality.
Q: What is the maximum lifting height? A: The lift raises vehicles up to approximately 84 inches, providing ample clearance.
Q: What power supply is required? A: It operates on a 110V power supply, making it convenient for standard outlets.
Maintenance Tips
Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables.
Lubrication – Grease pulleys, cables, and moving parts monthly.
Hydraulic System – Monitor fluid levels and inspect hoses for cracks or leaks.
Safety Locks – Ensure locks engage properly and keep them clean from debris.
Cable Tension – Regularly adjust and inspect cables for even wear.
Annual Check-Up – Perform a full inspection and replace worn components.
