Atlas 414A 14,000 lb 4-Post Alignment Lift - ATEATTD-414A-FPD
Commercial Grade Alignment Lift 14,000 lb. Capacity

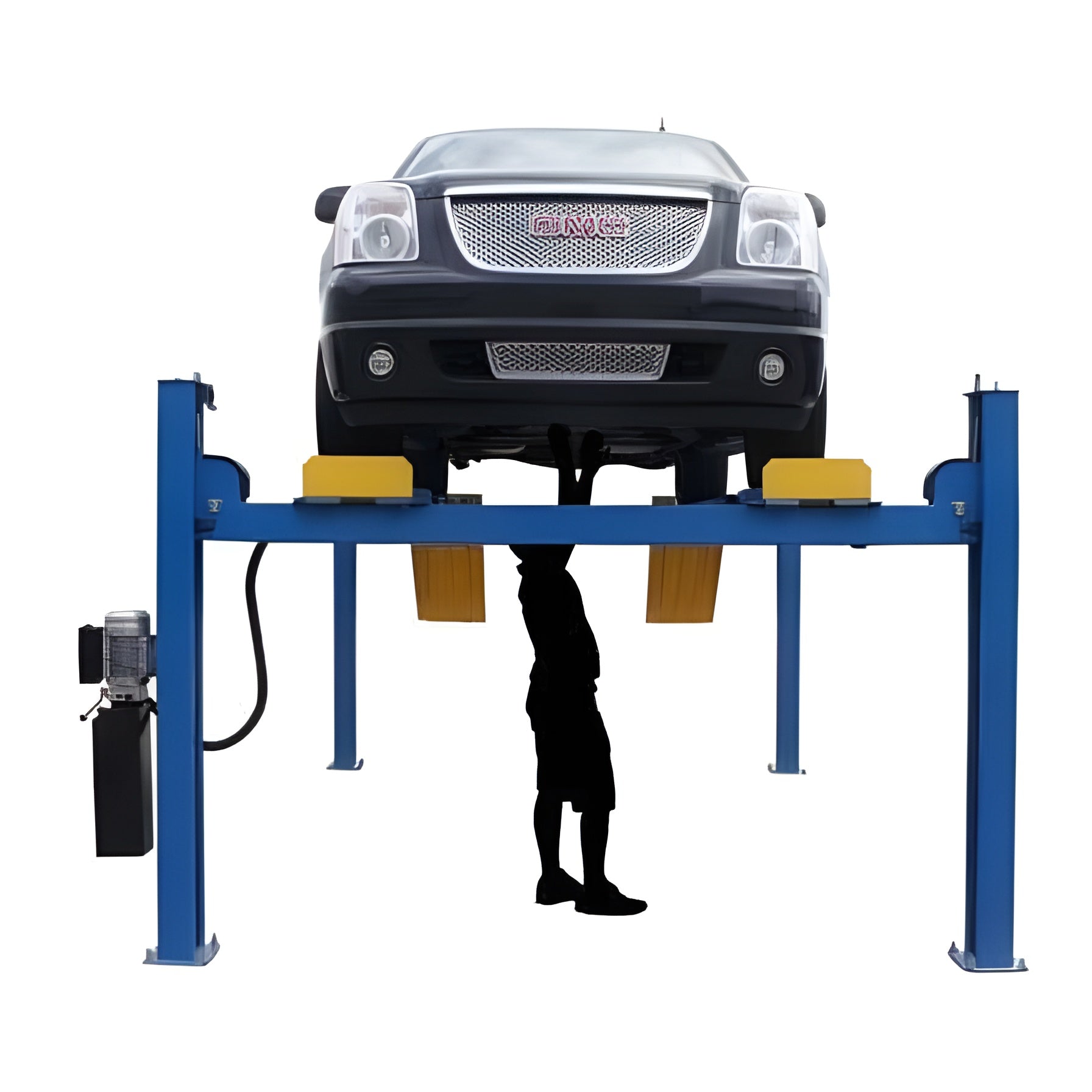

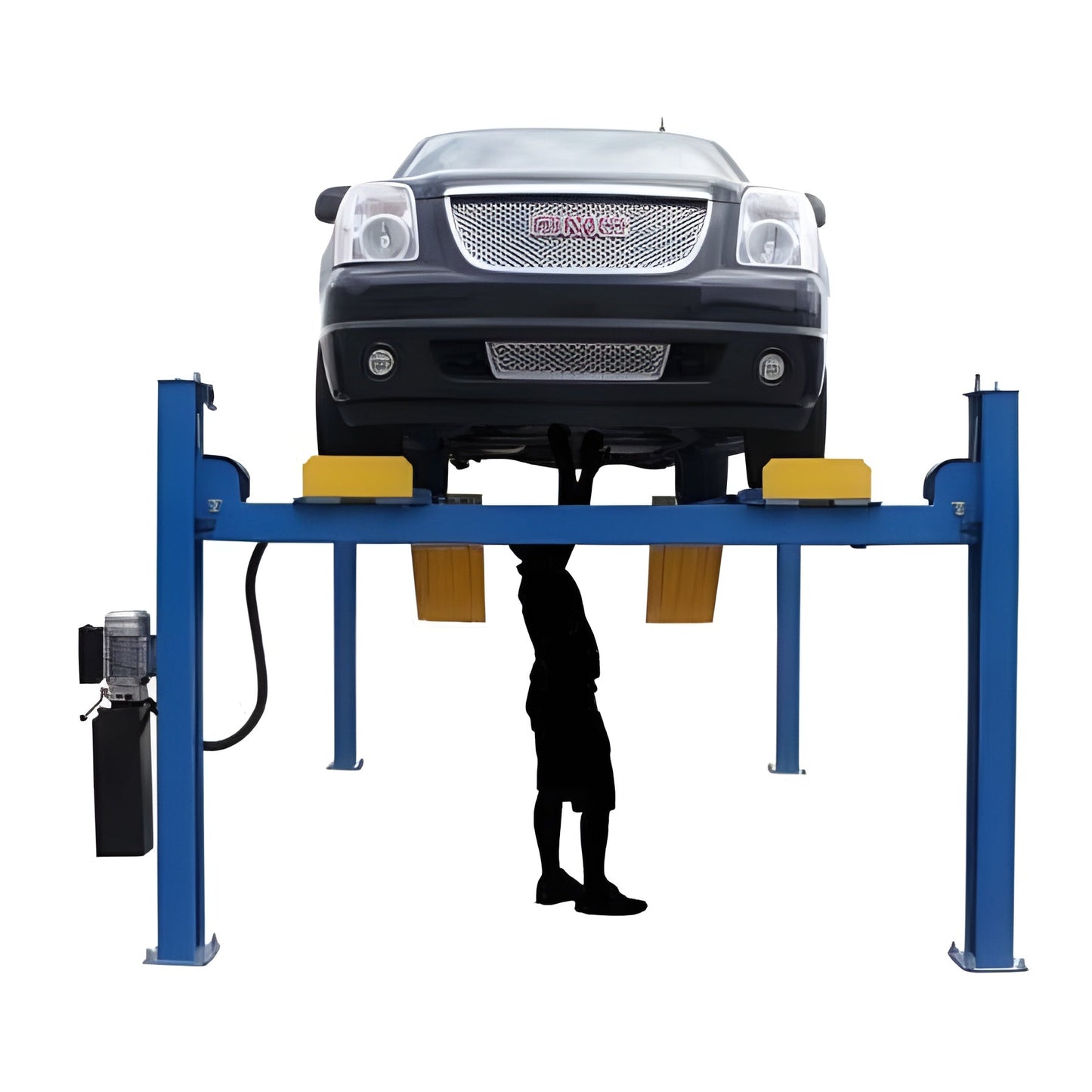

The Atlas 414A 14,000 pound capacity four post alignment lift is designed and built to commercial grade standards and will provide many years of service. Our Atlas lifts offer many exclusive features not found on many other competitors lifts.
The Atlas 414A incorporates many structural and cosmetic features that are found on lifts costing thousands of dollars more money. The 414A is tested to ensure that this lift system will perform flawlessly at its rated capacity.

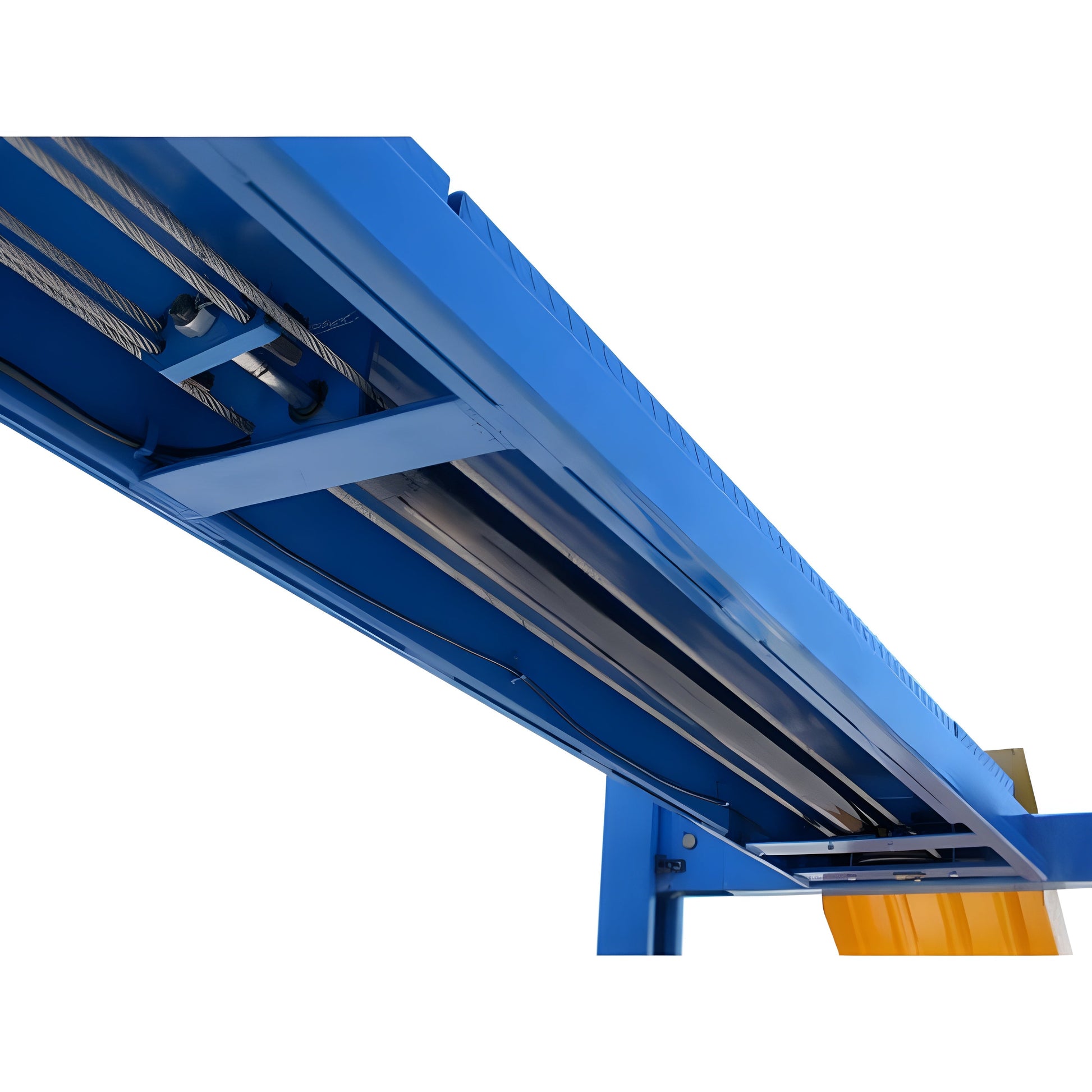

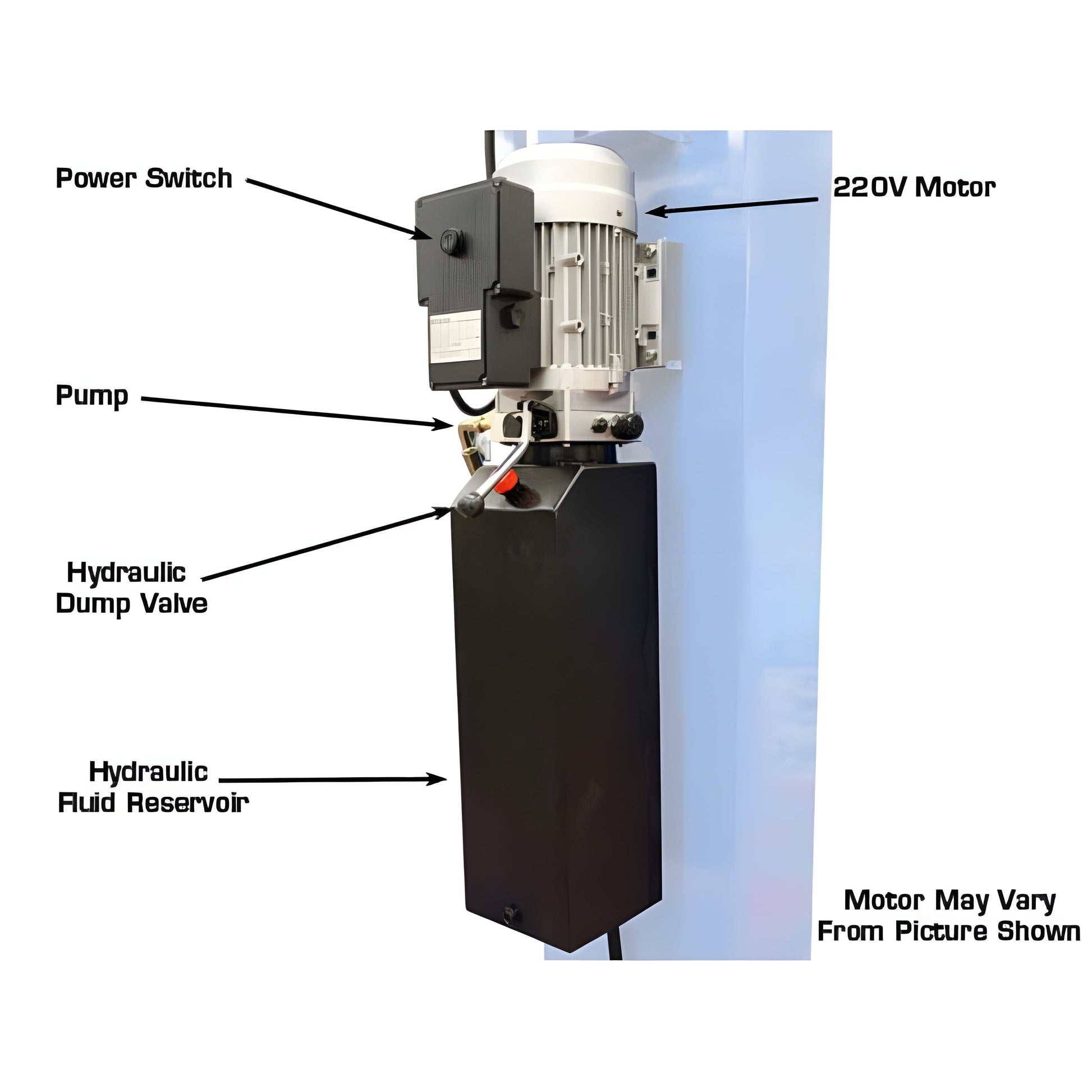

The Atlas 414A uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an old style chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to level properly and the exposed hydraulic cylinder is responsible for numerous door dings.

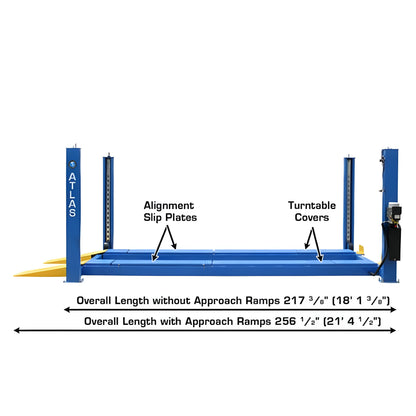

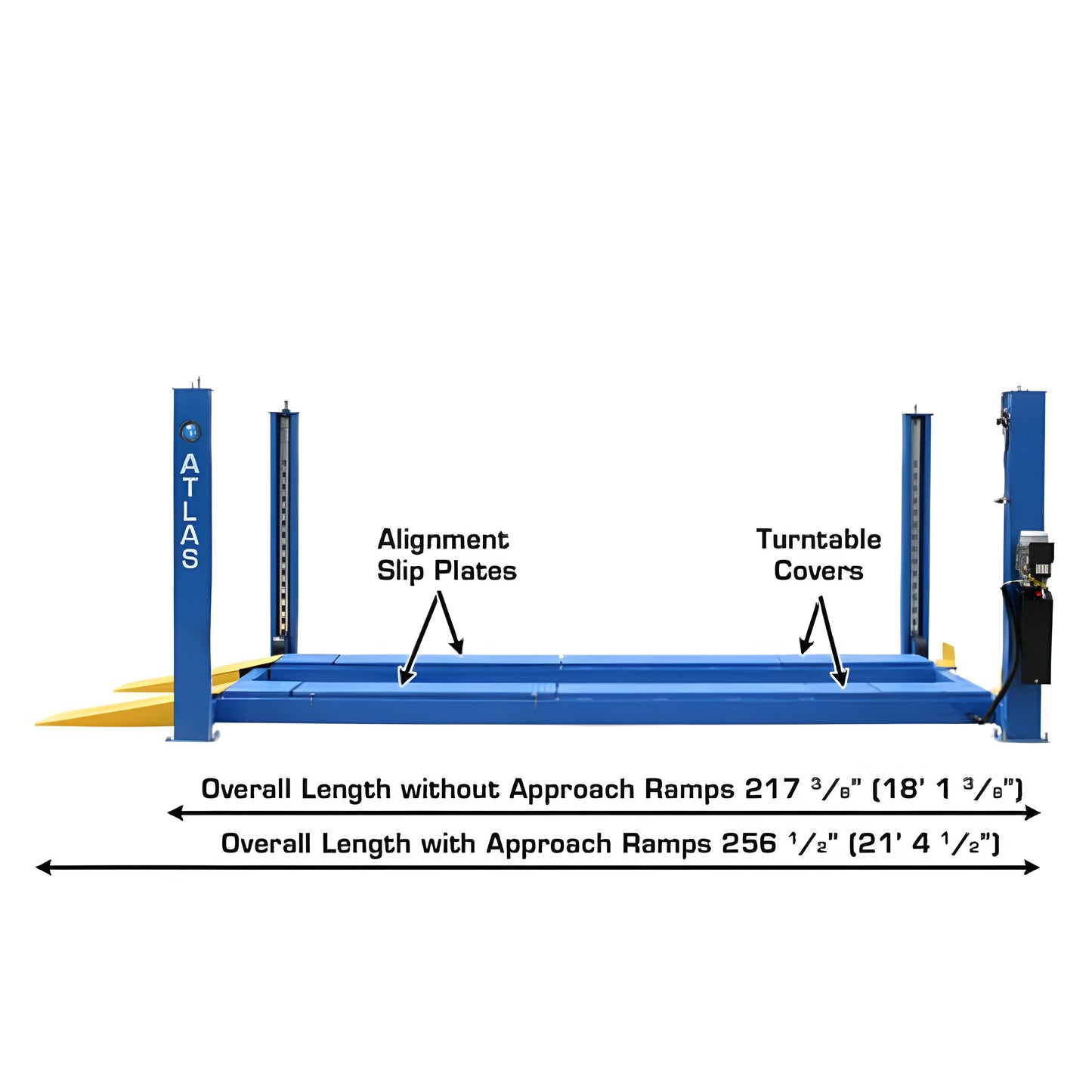

Besides having all the heavy duty features of the Atlas 414, such as tracks between the runways to allow the use of a rolling bridge jack (the Atlas RJ8000BK) on the lift (rolling jacks sold separately) the 414A features slip plates and alignment turntables. The slip plates are built in and are assured to be level with the turntables. The turntables can be set in different positions on the runway to accommodate a wide variety of wheelbases. The 414A also features metal cover plates to replace the turntables when not in use and so the lift can be used for more than just alignments.
Features
- 14,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall, Extra Wide & Extra Long
- Built-In Slip Plates & Alignment Turntables Included
- Multiple Positions for Turntable Placement
- Runway Covers Included (when Turntables are Removed)

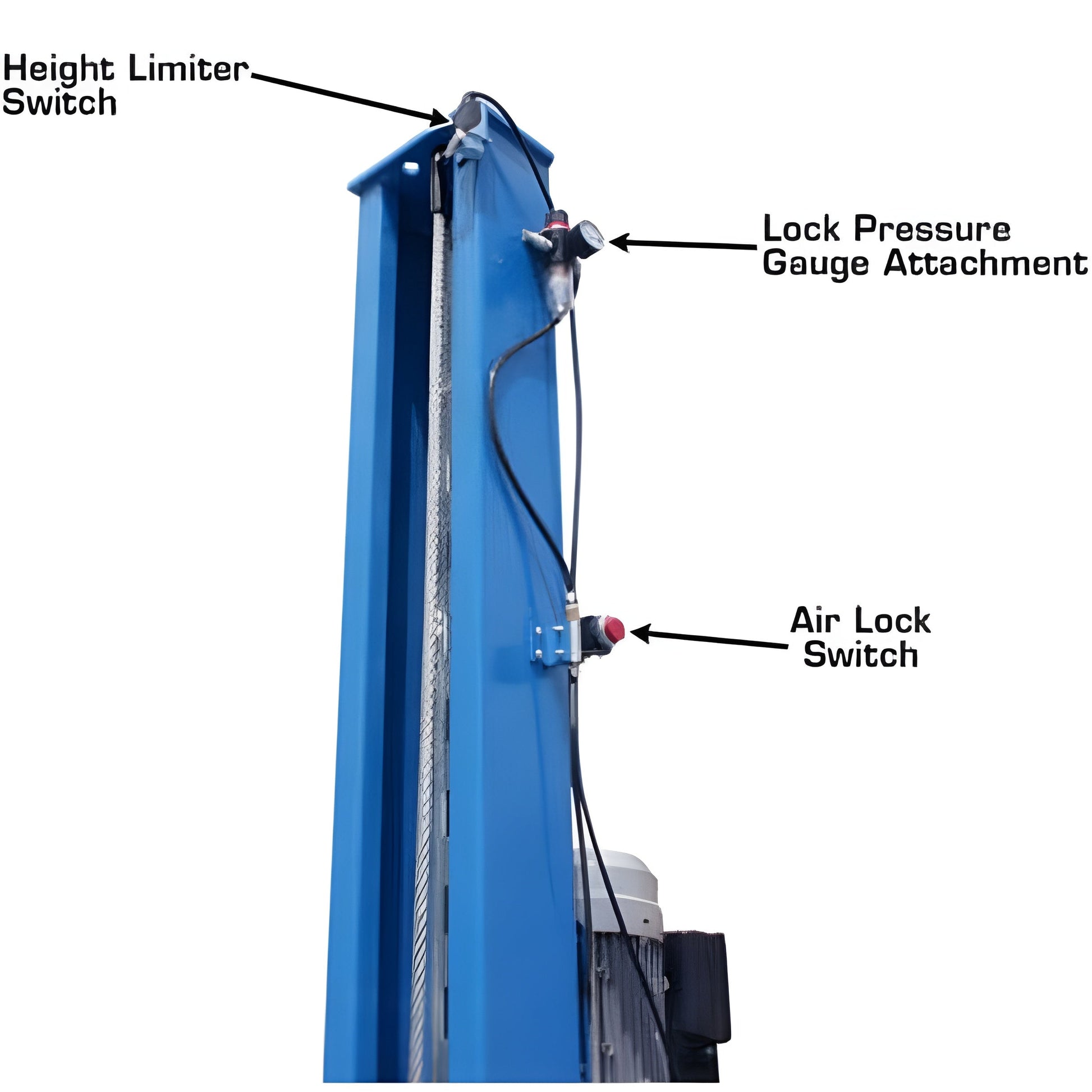

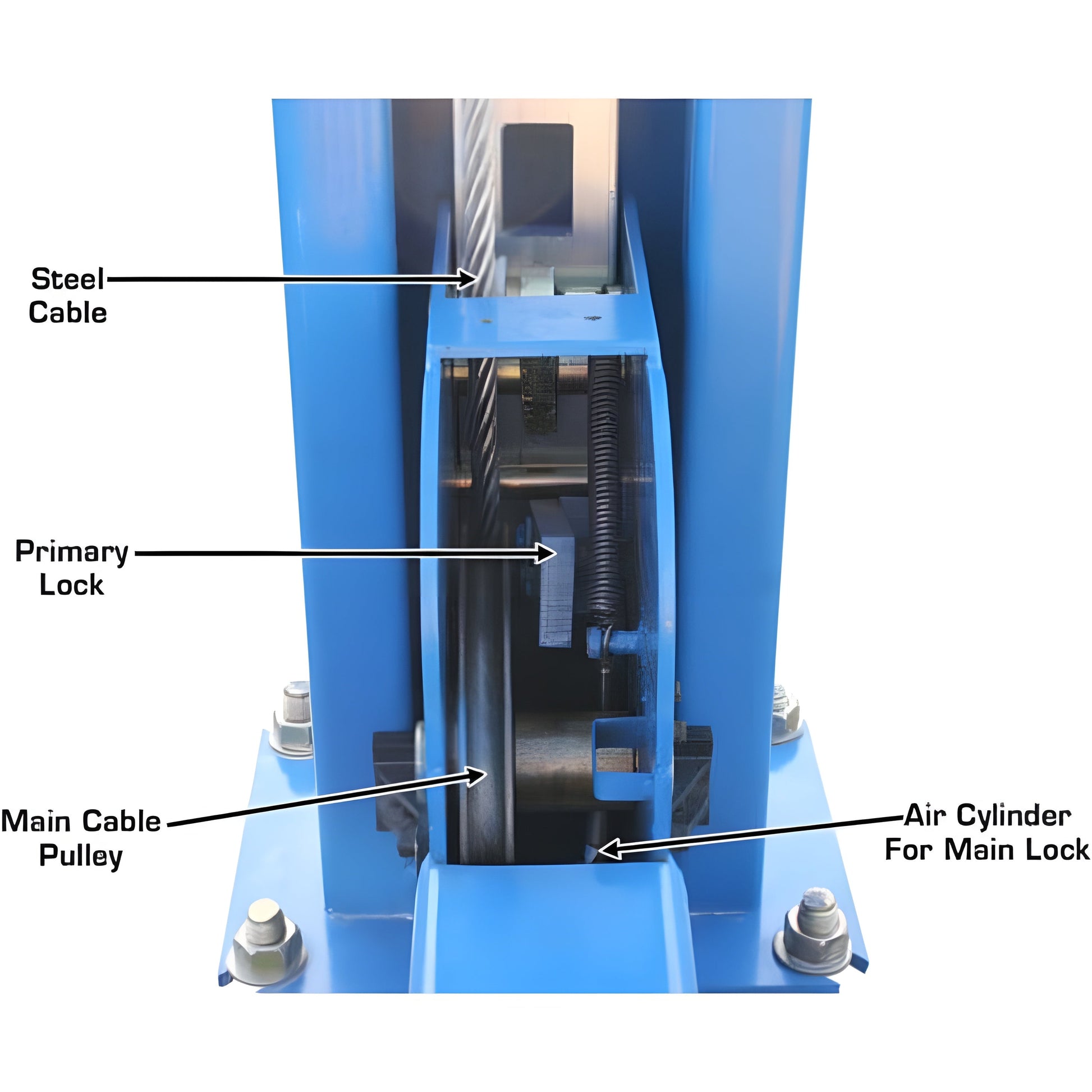

- Air Operated Single Point Lock Release (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Powder Coat Finish
- Steel Approach Ramps Included
- Additional Drive off Ramps Available (Sold Separately)
- Runway Extensions Available (Sold Separately)
- Mounting Hardware Included
- 220volt/1phase Electric Operation (Requires a 30amp Breaker)

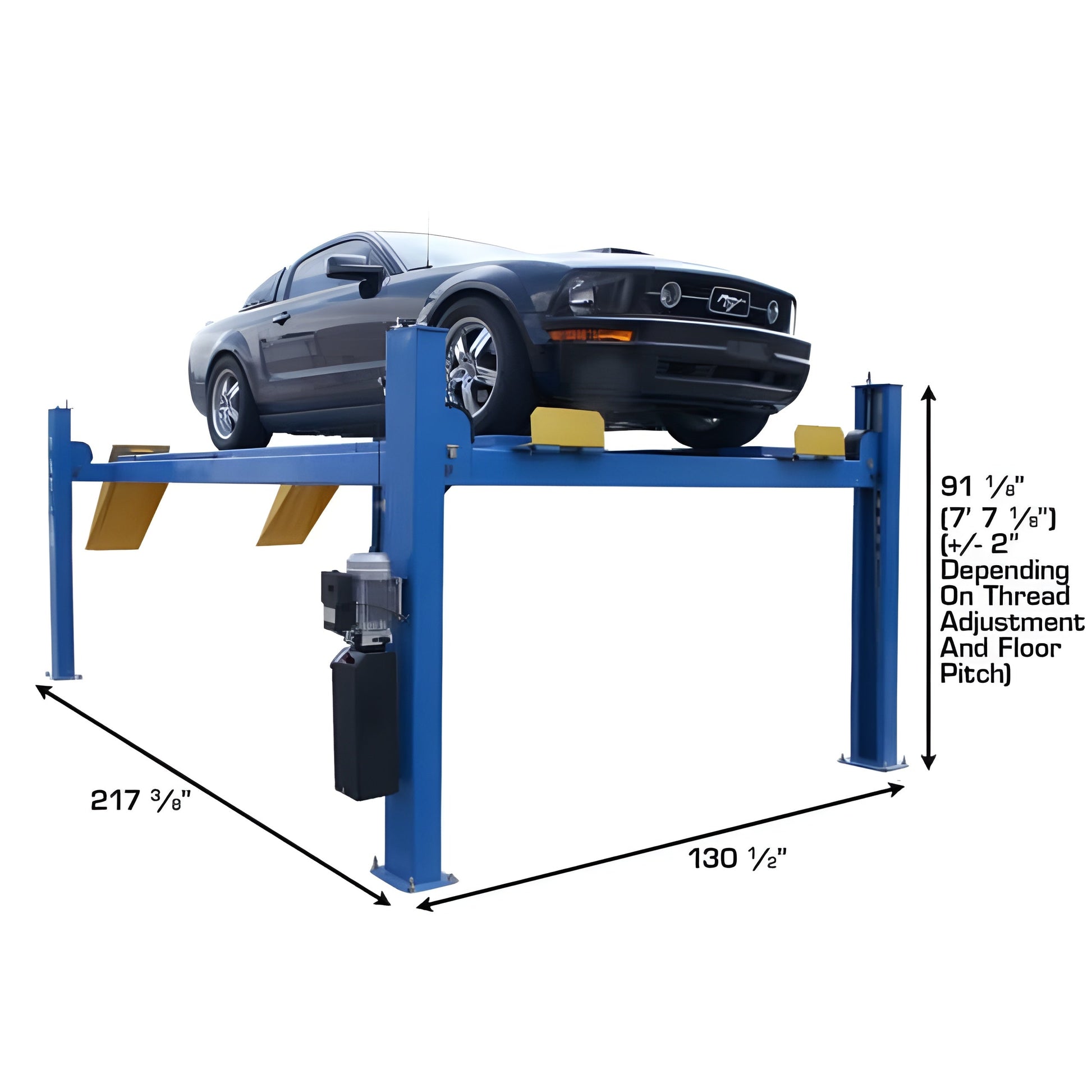

 Specifications
| Capacity |
14,000 lb. |
| Lifting Height |
80" (6' 8") |

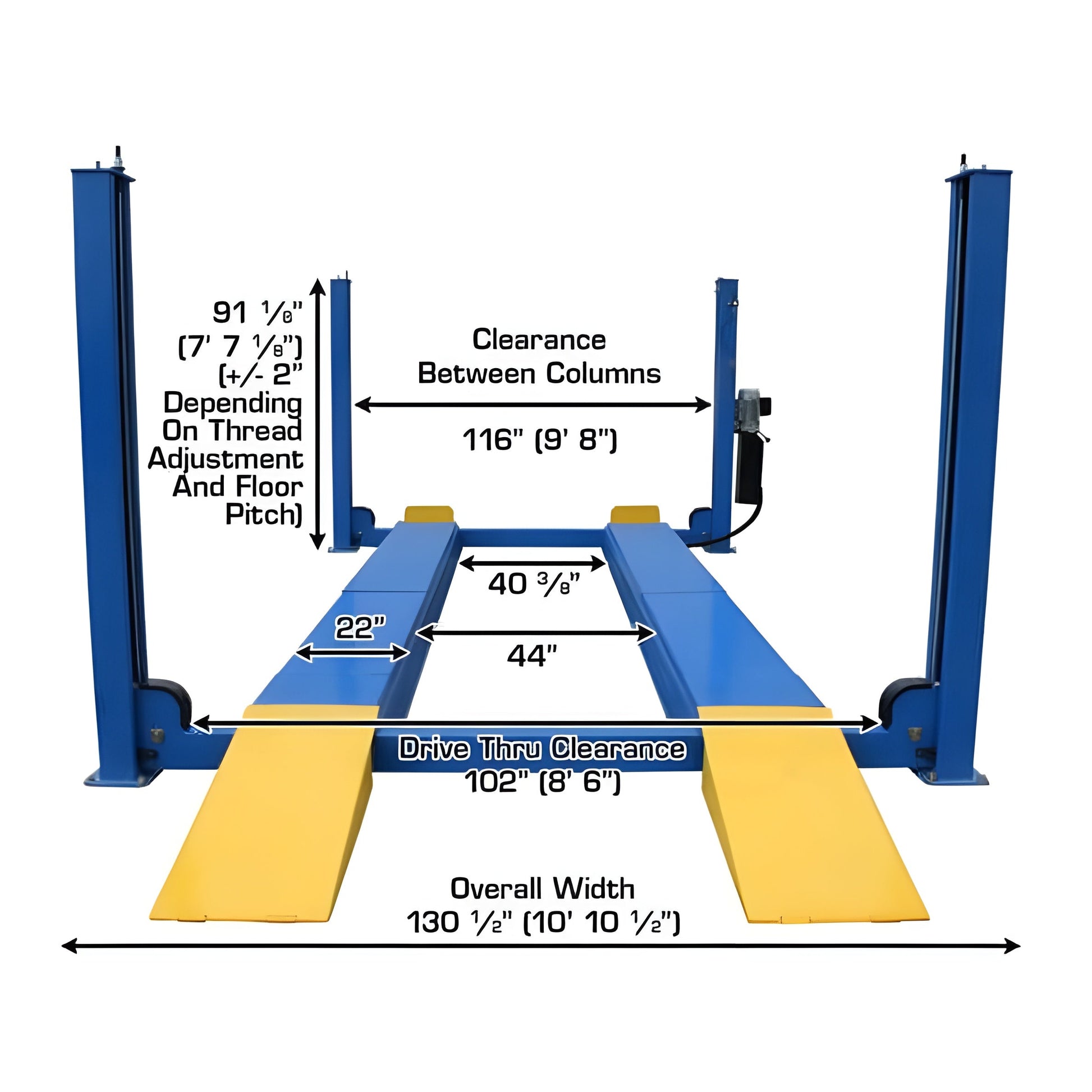

| Overall Width Of Columns (Without Motor) |

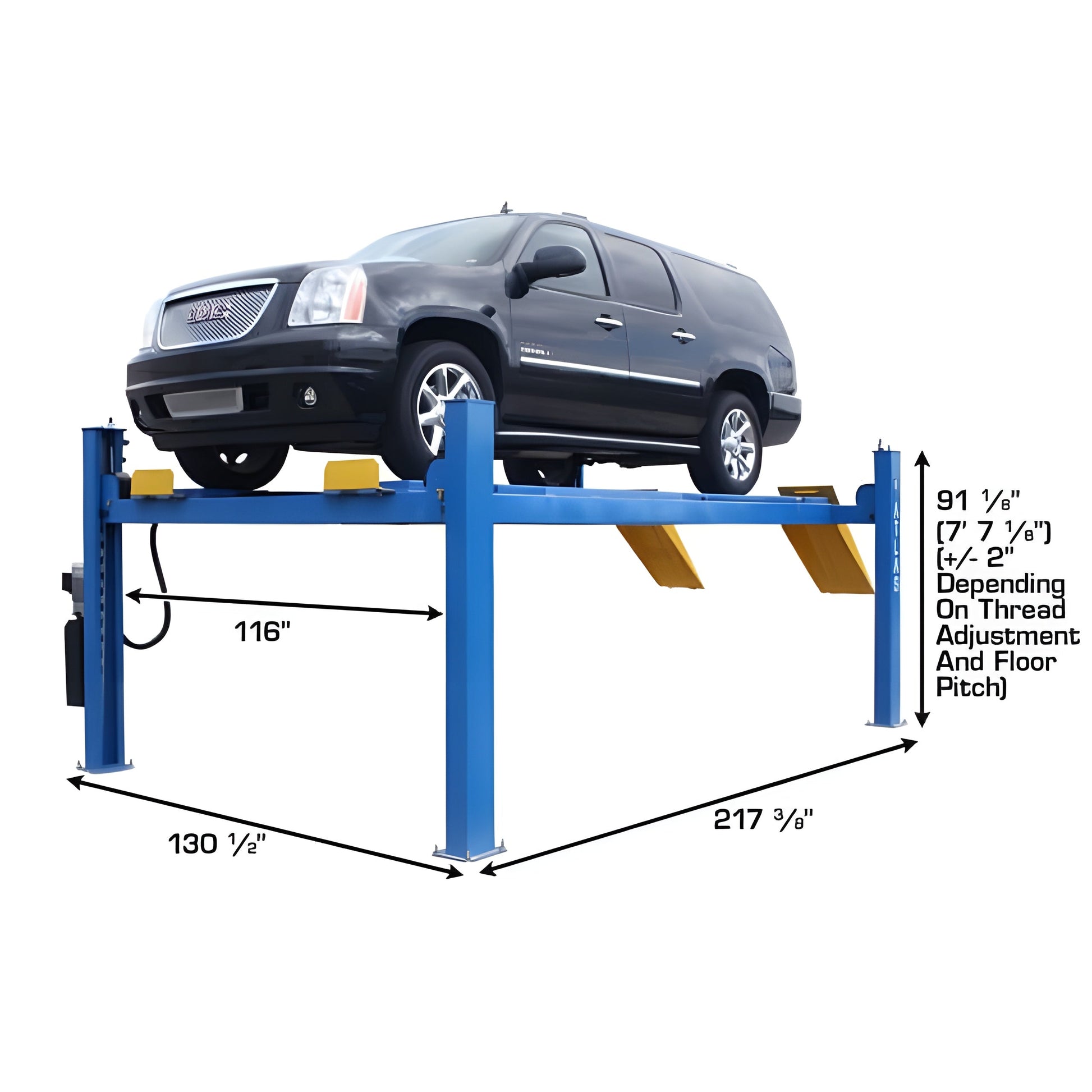

130 7/8" (10' 10 7/8") |
| Overall Width Of Columns (With Motor) |

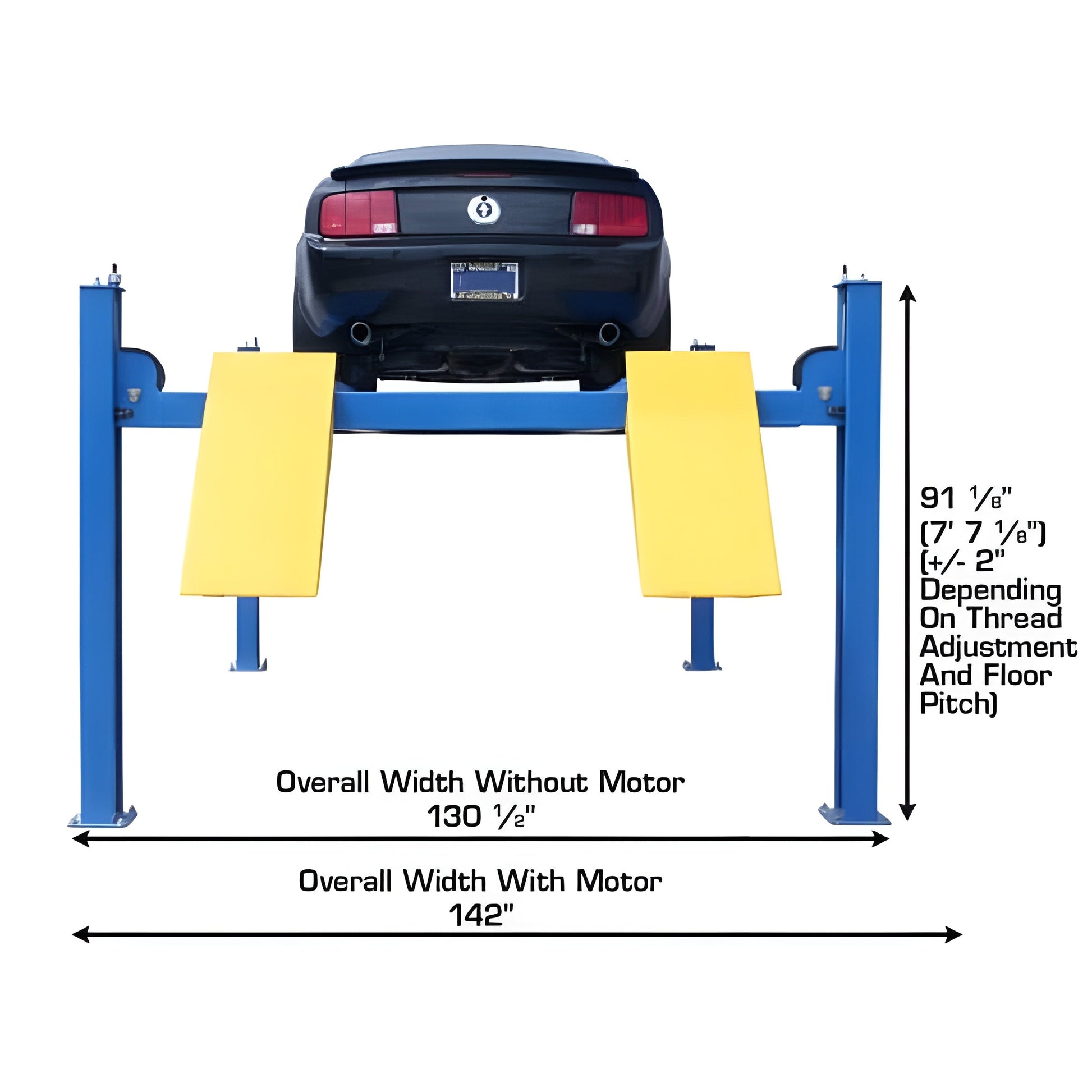

138 7/8" (11' 6 7/8") |

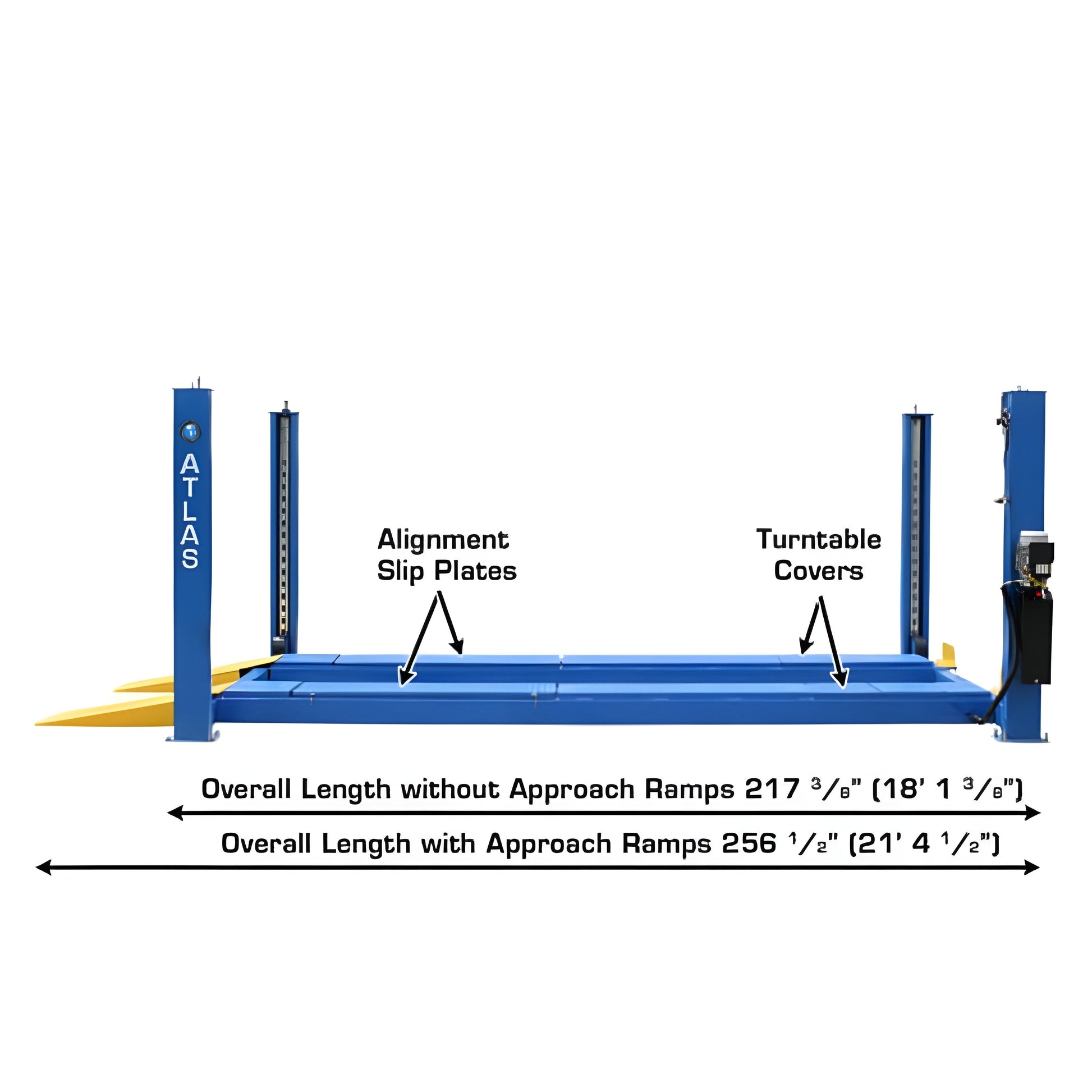

| Overall Length With Approach Ramp |
255" (21' 3") |
| Length Between Columns |
197 1/4" (16' 5 1/4") |
| Runway Length |
208 5/8" (17' 4 5/8") |
| Runway Width |
20" |
| Thickness Of Runway |
8 3/4" |
| Width Between Runways |
46 7/8" (w/ Rail 44 3/8") |
| Outside Runway To Outside Runway |
86 7/8" (7' 2 7/8") |
| Clearance Under Runways |

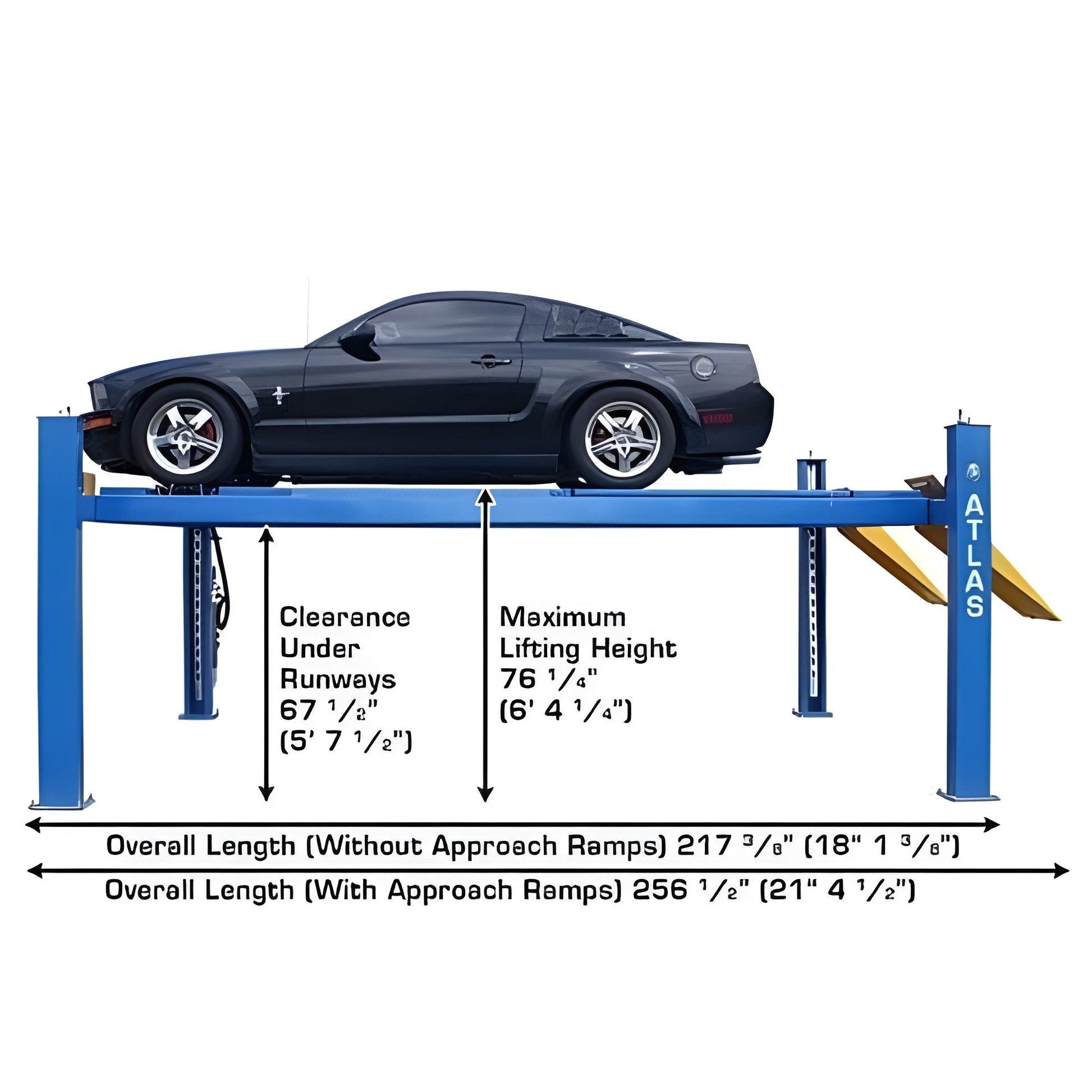

71 1/4" (5' 11 1/4") |

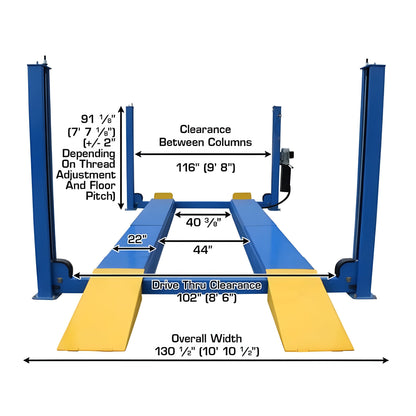

| Clearance Between Columns |

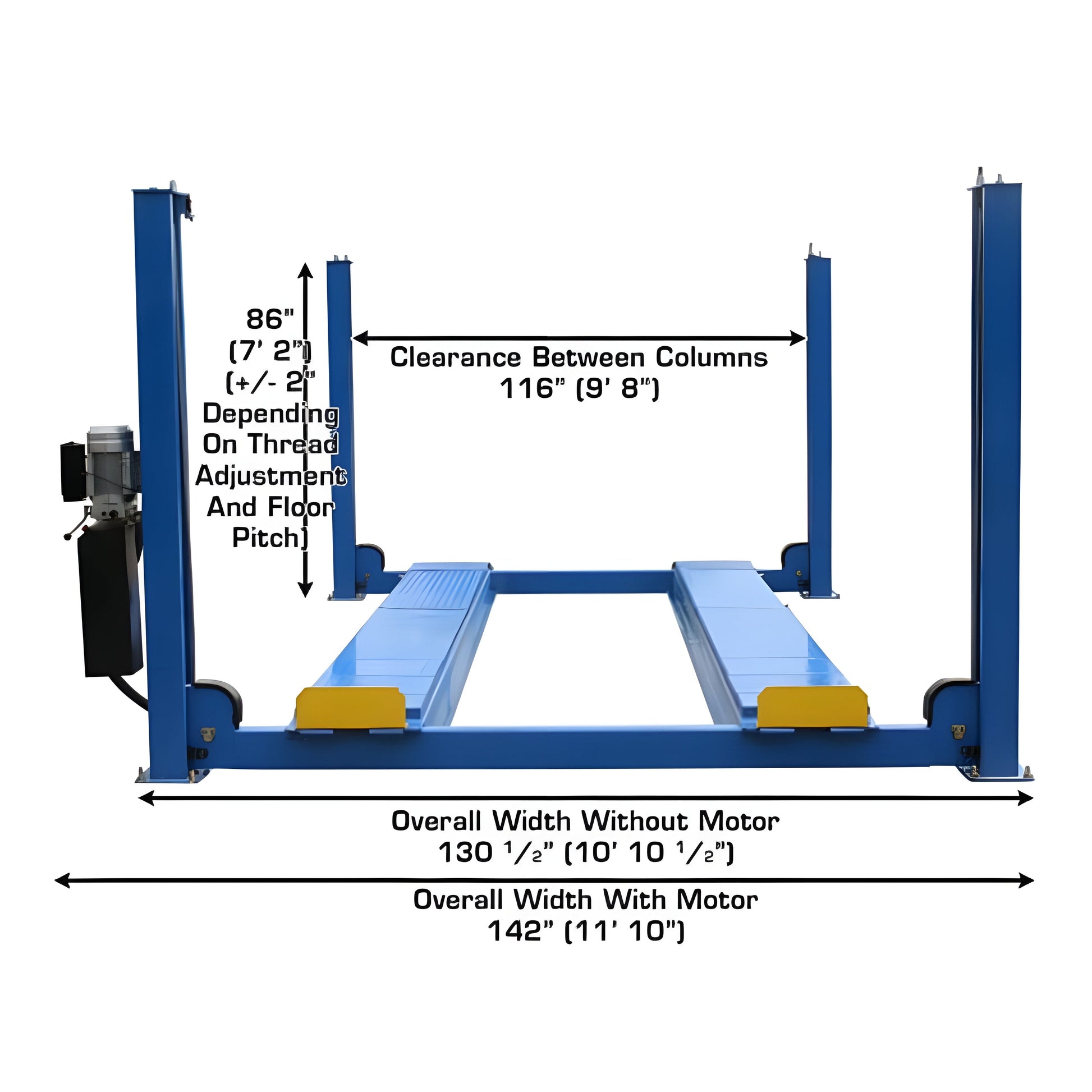

116" (9' 8") |

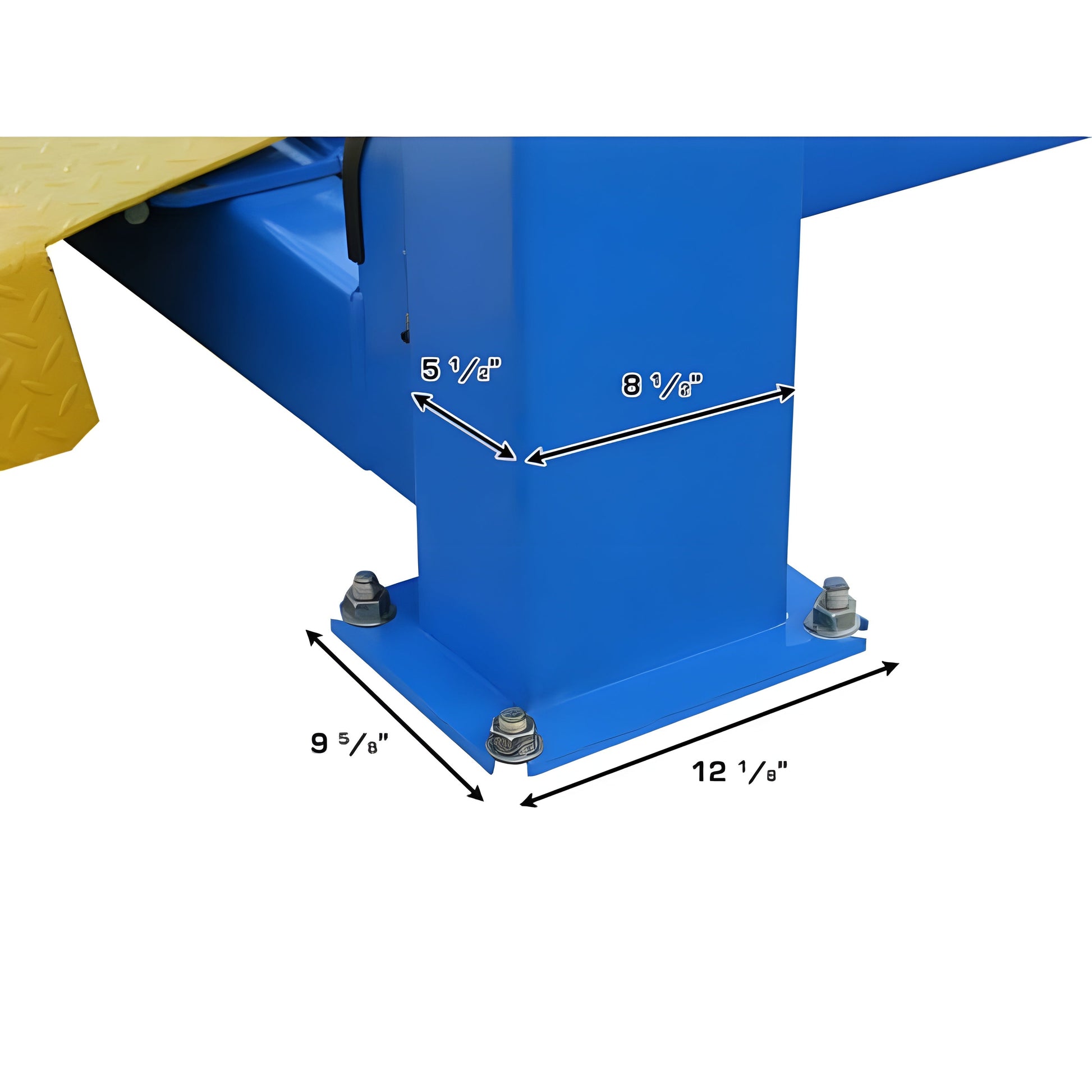

| Height Of Columns |
91 1/8" (7' 7 1/8") |

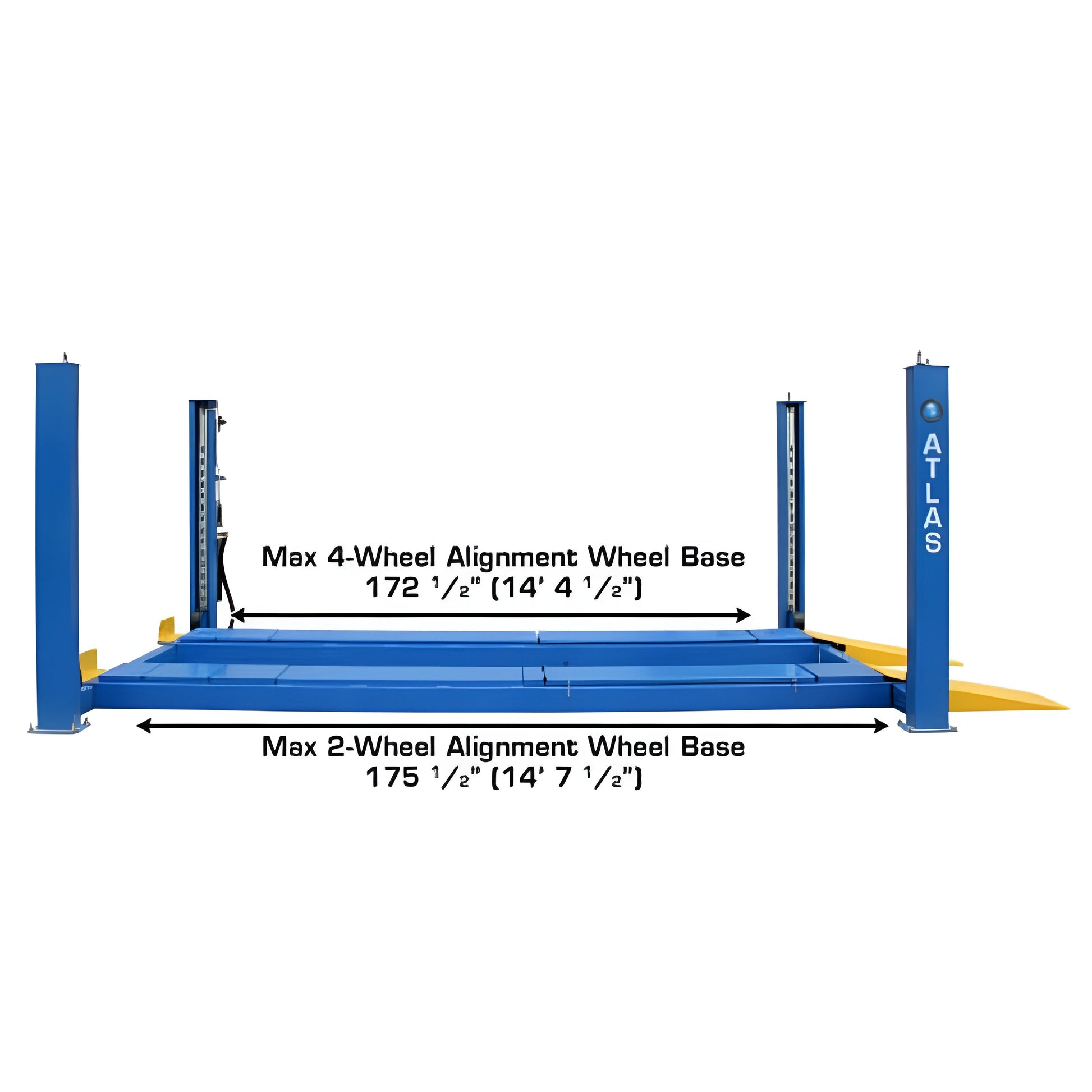

| Maximum Wheel Base |
197" (16' 5") |
| Drive Thru |
102 1/8" (8' 6 1/8") |
| Air Requirement |
85-115 PSI (EXTERNAL AIR SUPPLY REQUIRED) |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
Manual
Atlas ATTD-414A Manual
Atlas 414A Cylinder Bleeding Procedure (Do this immediately after installation)
What our Expect Think
-
14,000 lb Capacity: Built for heavy-duty trucks, SUVs, and commercial vehicles.
-
Precision Alignment System: Integrated turntables and slip plates for accurate alignments.
-
Heavy-Duty 4-Post Design: Provides maximum stability and safety.
-
Smooth Drive-On Ramps: Makes vehicle positioning quick and effortless.
-
Reliable Hydraulic System: Ensures smooth and controlled lifting and lowering.
-
Ideal for Professional Shops: Perfect for alignments, inspections, and repairs.
Q&A
Q: What is the weight capacity of the Atlas 414A lift?
A: It has a 14,000 lb capacity, making it ideal for heavy-duty trucks, vans, and commercial vehicles.
Q: What is the maximum lifting height?
A: It lifts vehicles up to approximately 75 inches.
Q: What power supply is required?
A: It operates on a 220V single-phase power supply.
Maintenance Tips
-
Daily Inspection – Check for hydraulic leaks, loose bolts, and worn cables.
-
Lubrication – Grease pulleys, cables, and moving parts monthly.
-
Hydraulic System – Monitor fluid levels and inspect hoses for cracks or leaks.
-
Safety Locks – Ensure locks engage properly and remain free from debris.
-

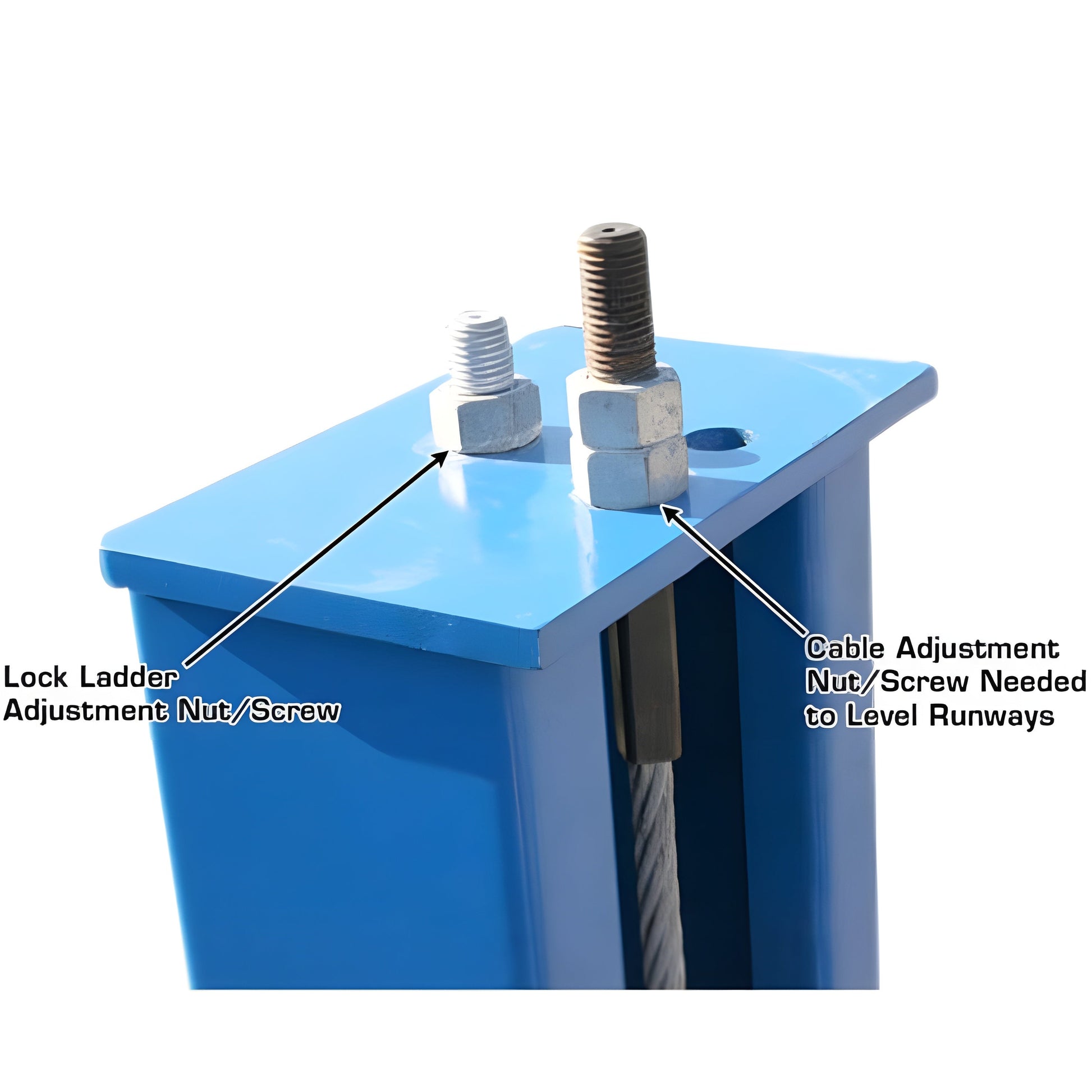

Cable Tension – Regularly adjust and inspect cables for even wear.
-
Annual Check-Up – Perform a full inspection and replace worn components.
