Atlas ACL Motorcycle Lift w/ Roller Plate - ATEHT-ACL-FPD

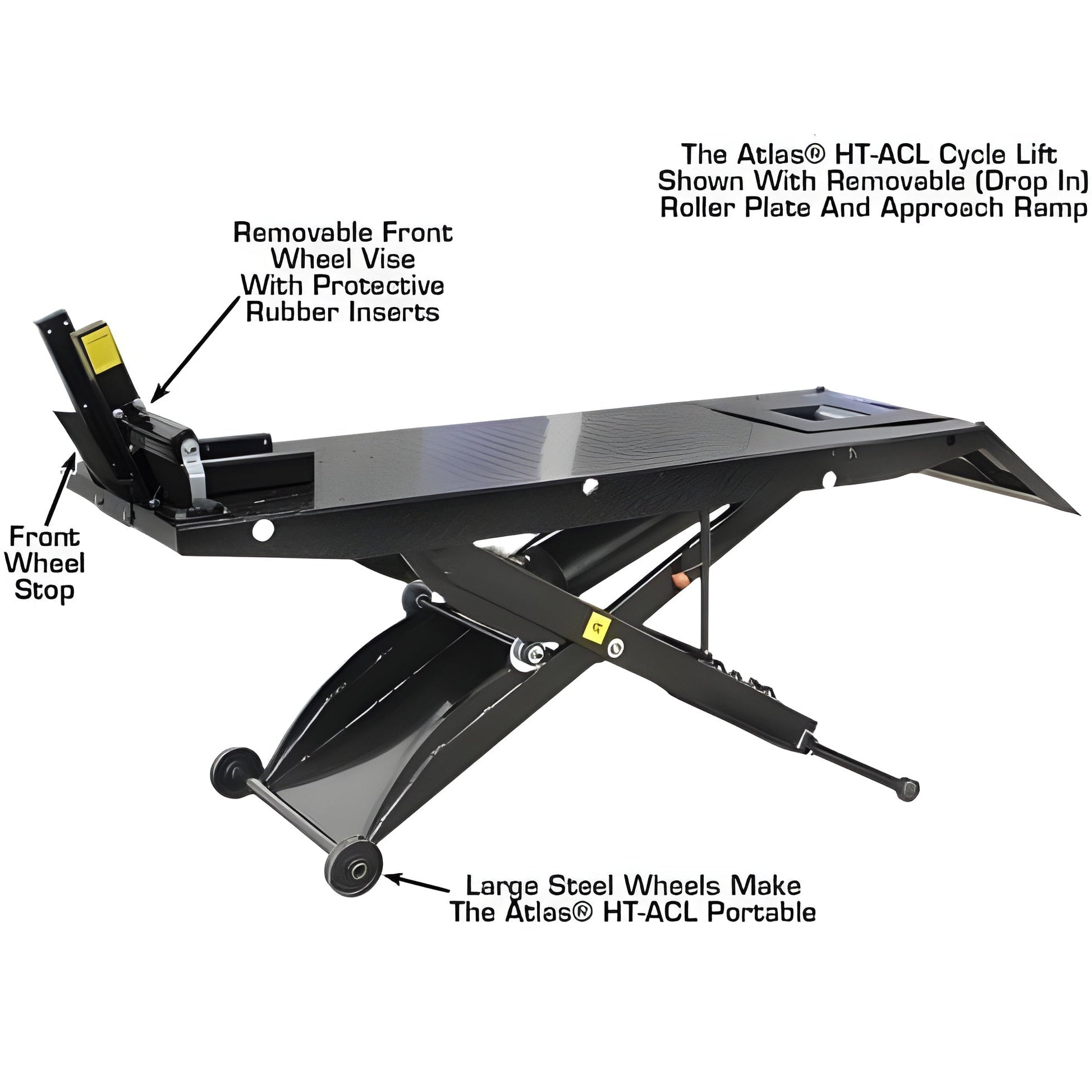

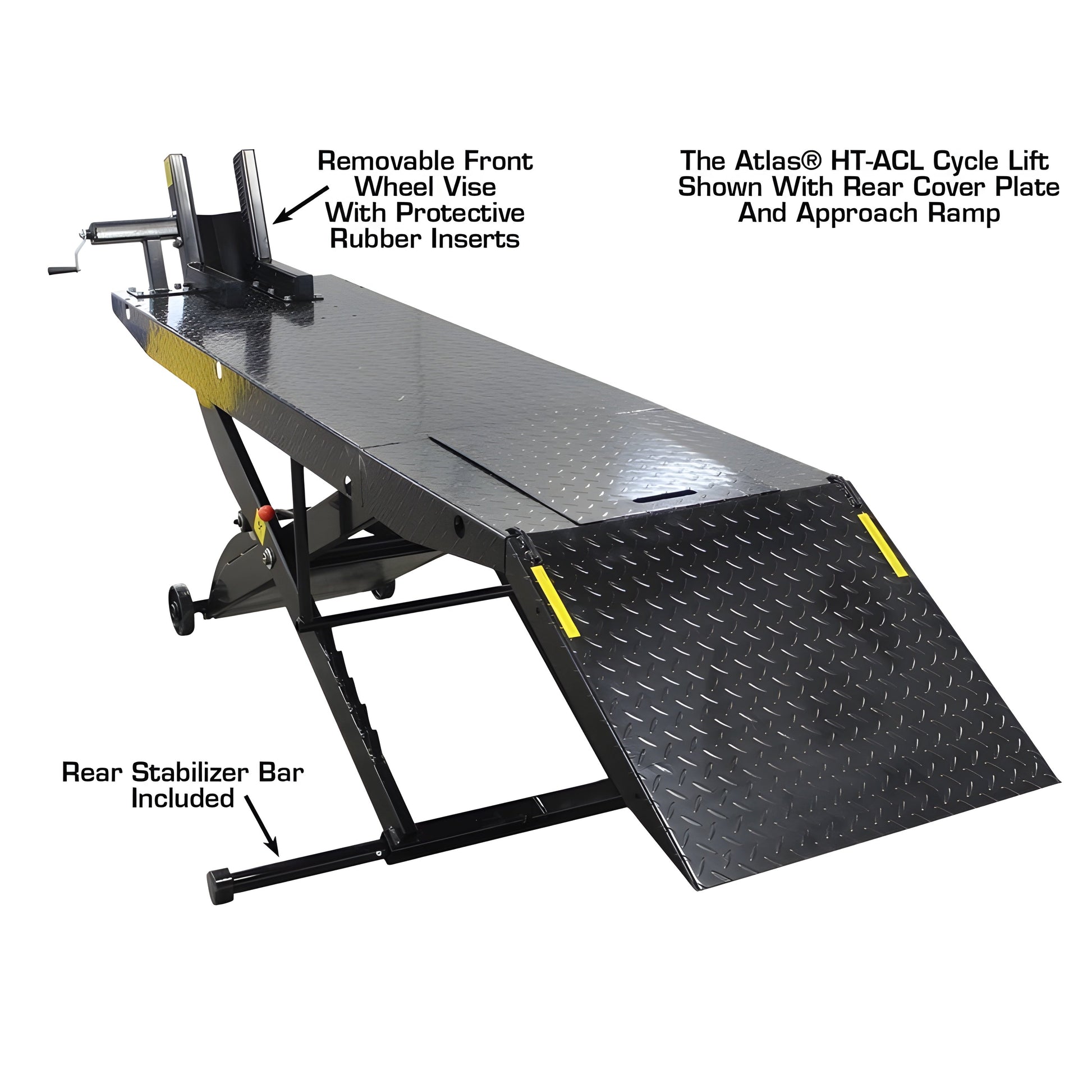

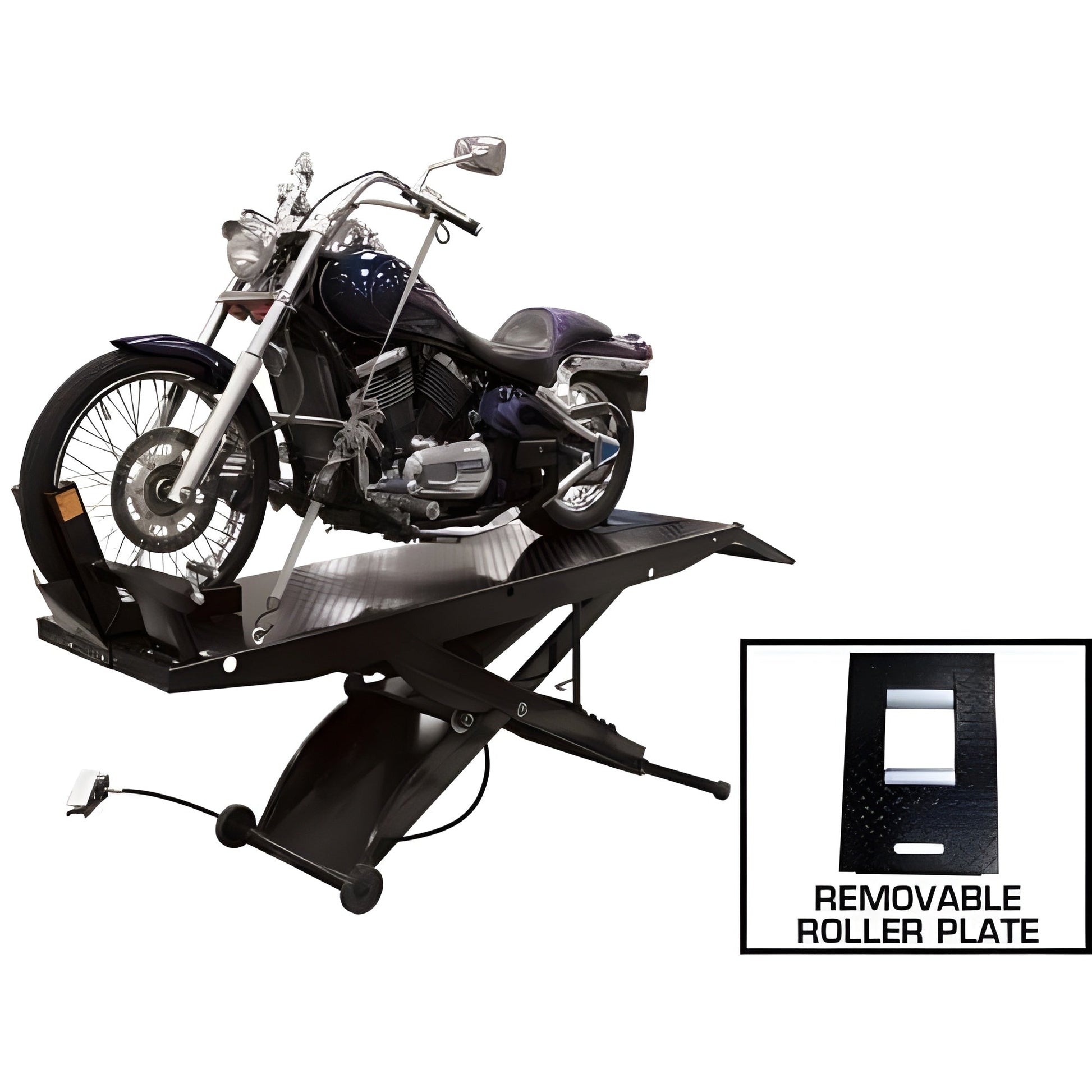

Atlas Air Operated Motorcycle LiftThe Atlas ACL is air operated and requires between 90-100 PSI to operate. The ACL is the perfect addition to any service department of professional motorcycle dealers or is a great motorcycle lift for the person who wants to work on his personal bike in their own garage.This is a complete motorcycle lift that includes an adjustable front (padded) wheel vise and a heavy duty air operated foot valve for easy raising and lowering. The defining feature of the ACL motorcycle lift is a removeable plate at the rear of the lift. The plate can be removed and left off to allow more access to the rear tire or the plate can be replaced with an included roller plate. The roller plate allows the rear tire to be spun for work and testing. Finally the ACL also includes the stabilizing bar at no extra charge. This bar provides greater stability for the raised platform by increasing the footprint of the lift.For those customers looking for more width to pick up ATVs, UTVs, Golf Carts, and other wider vehicles the Atlas ACL motorcycle lift can be equipped with the Atlas ACL Side Extension Kit to increase the width up to 4 feet.
Video
Features
- Capacity: 1000 lbs.
- Air Operated (External Air Supply Required)
- 33" Full Lift Height

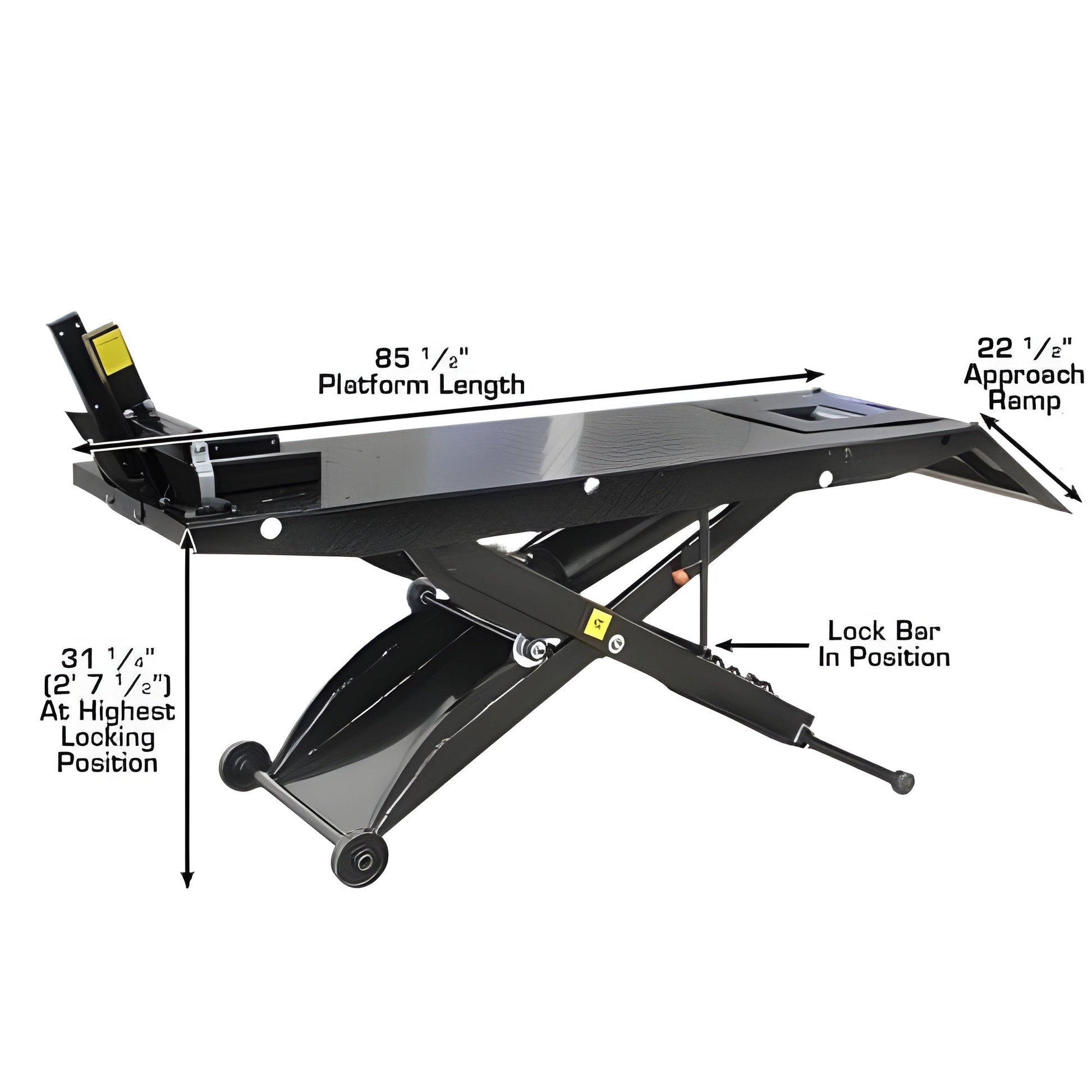

- 85 1/2" Table Length
- Diamond Plate Surface

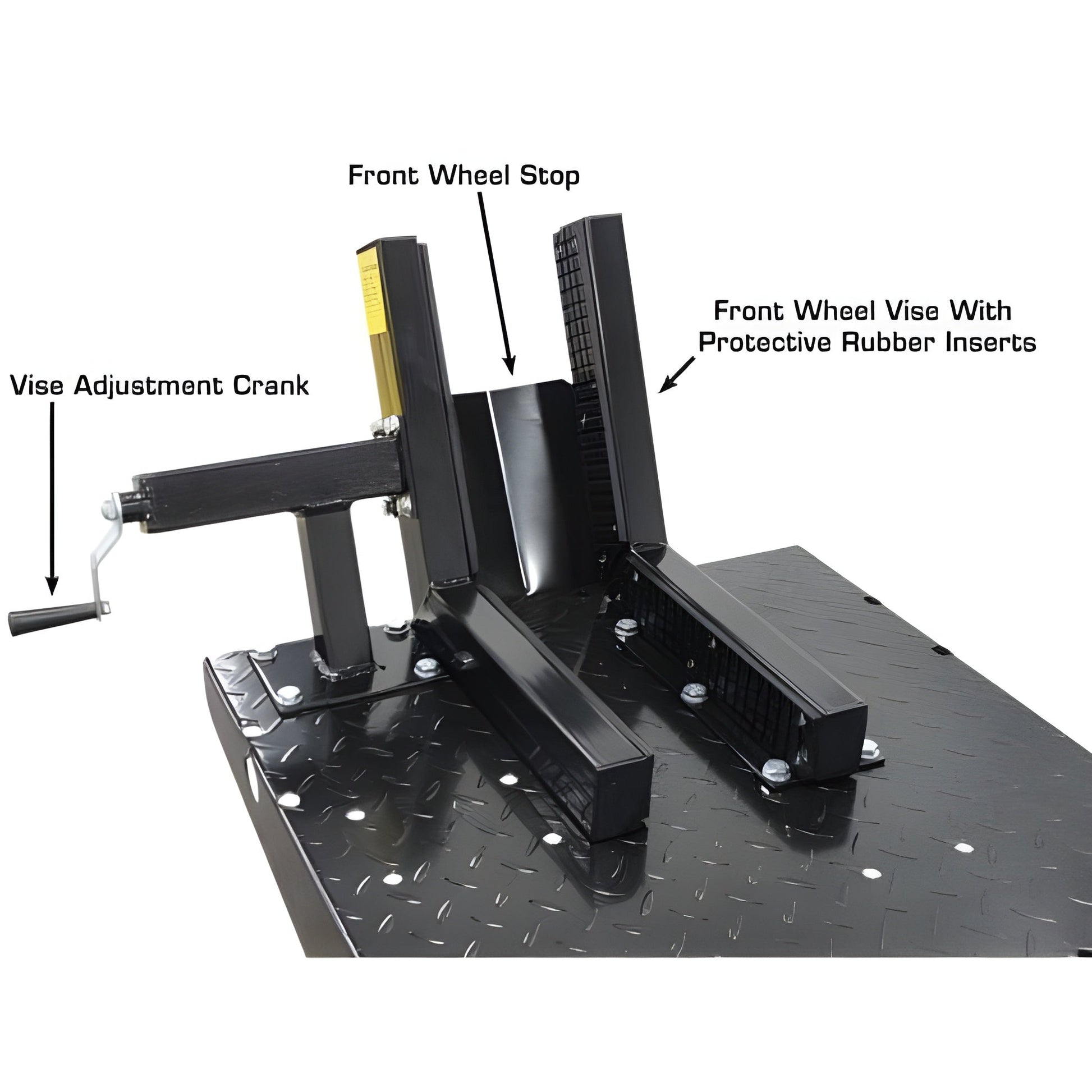

- Front Wheel Vise Included

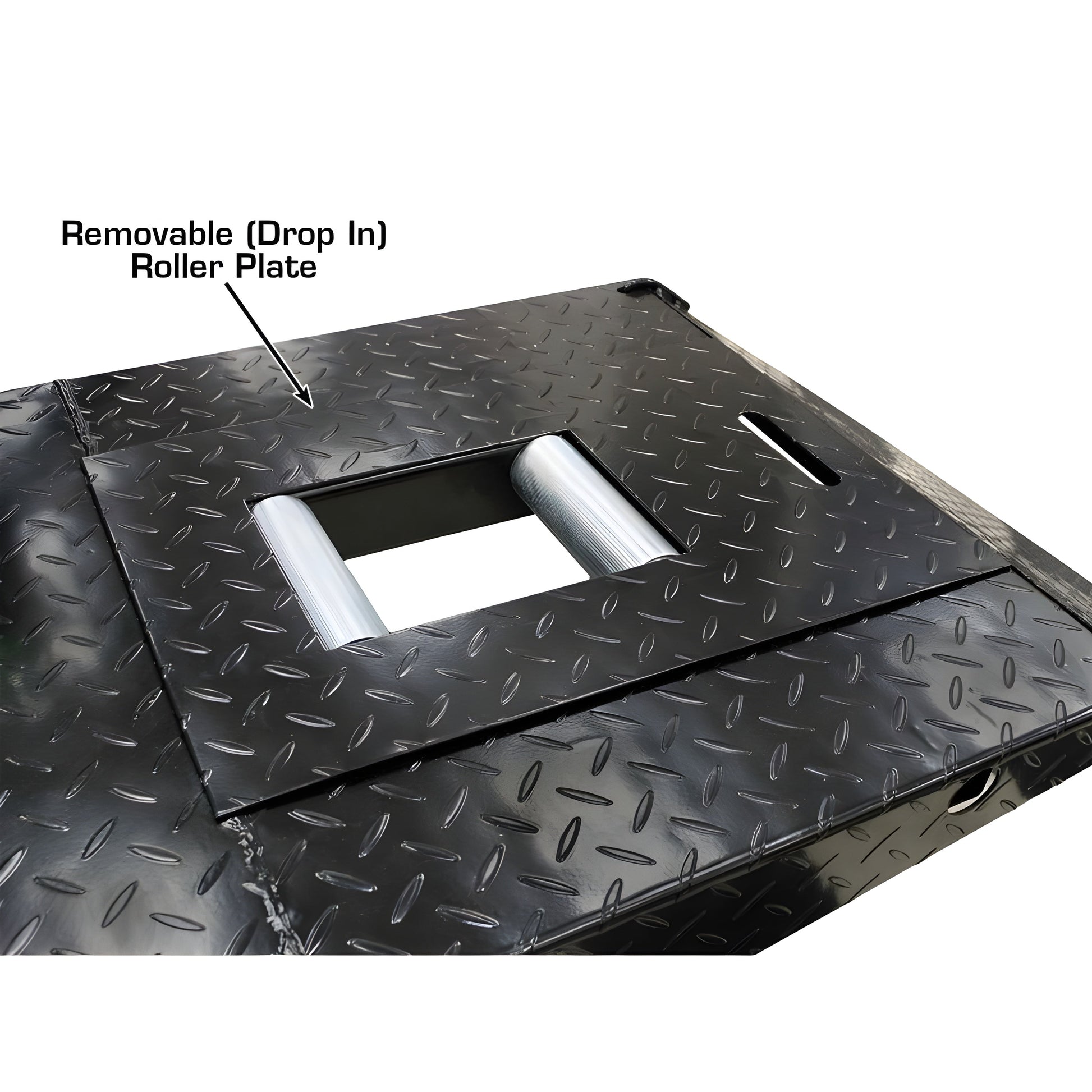

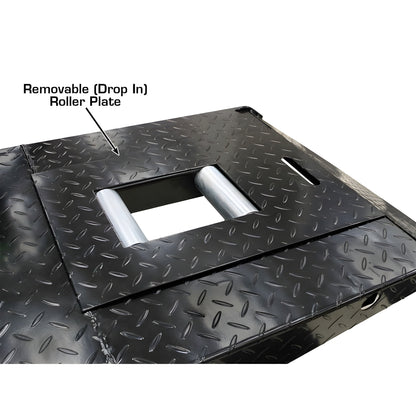

- Removeable Roller Plate

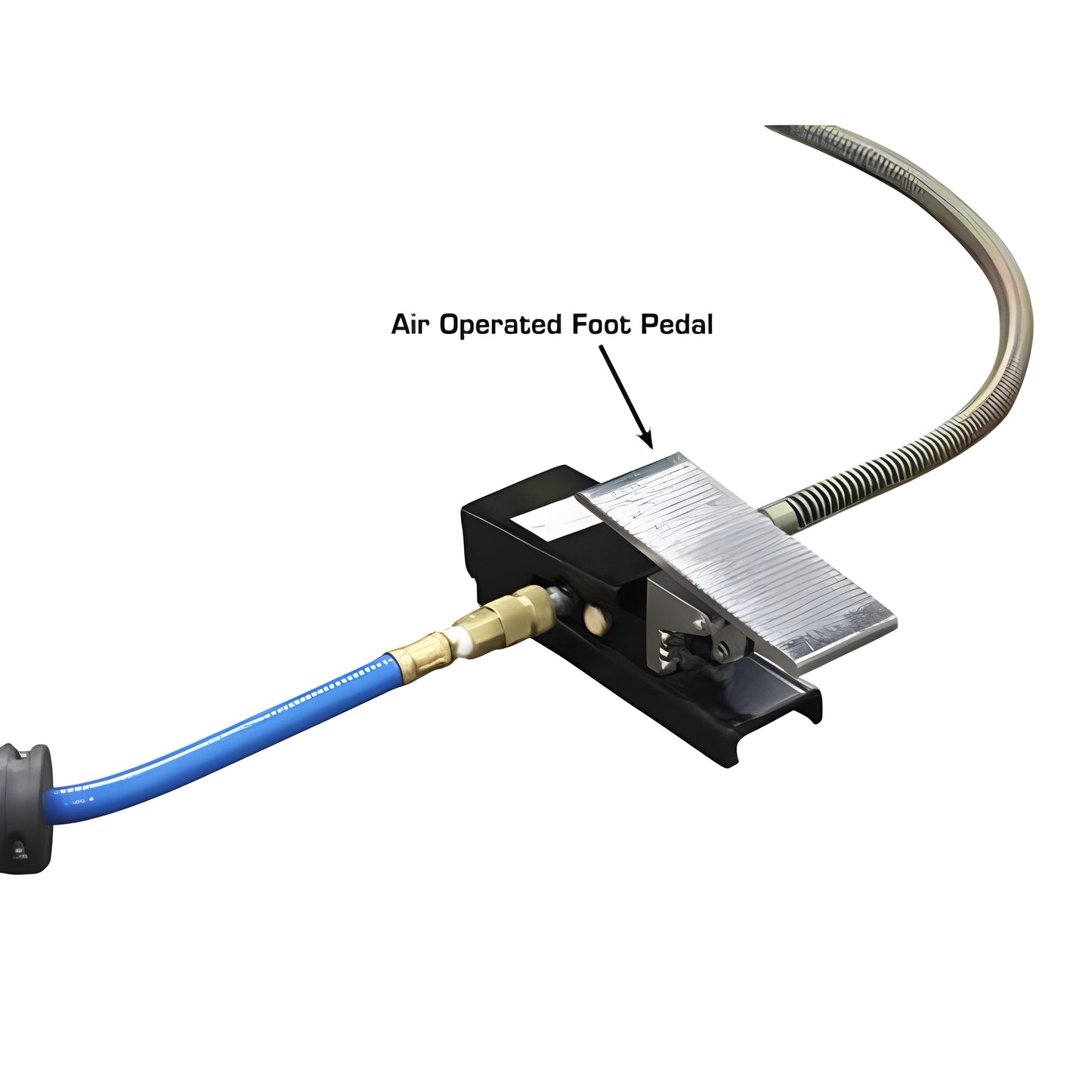

- Foot Pedal Control Included

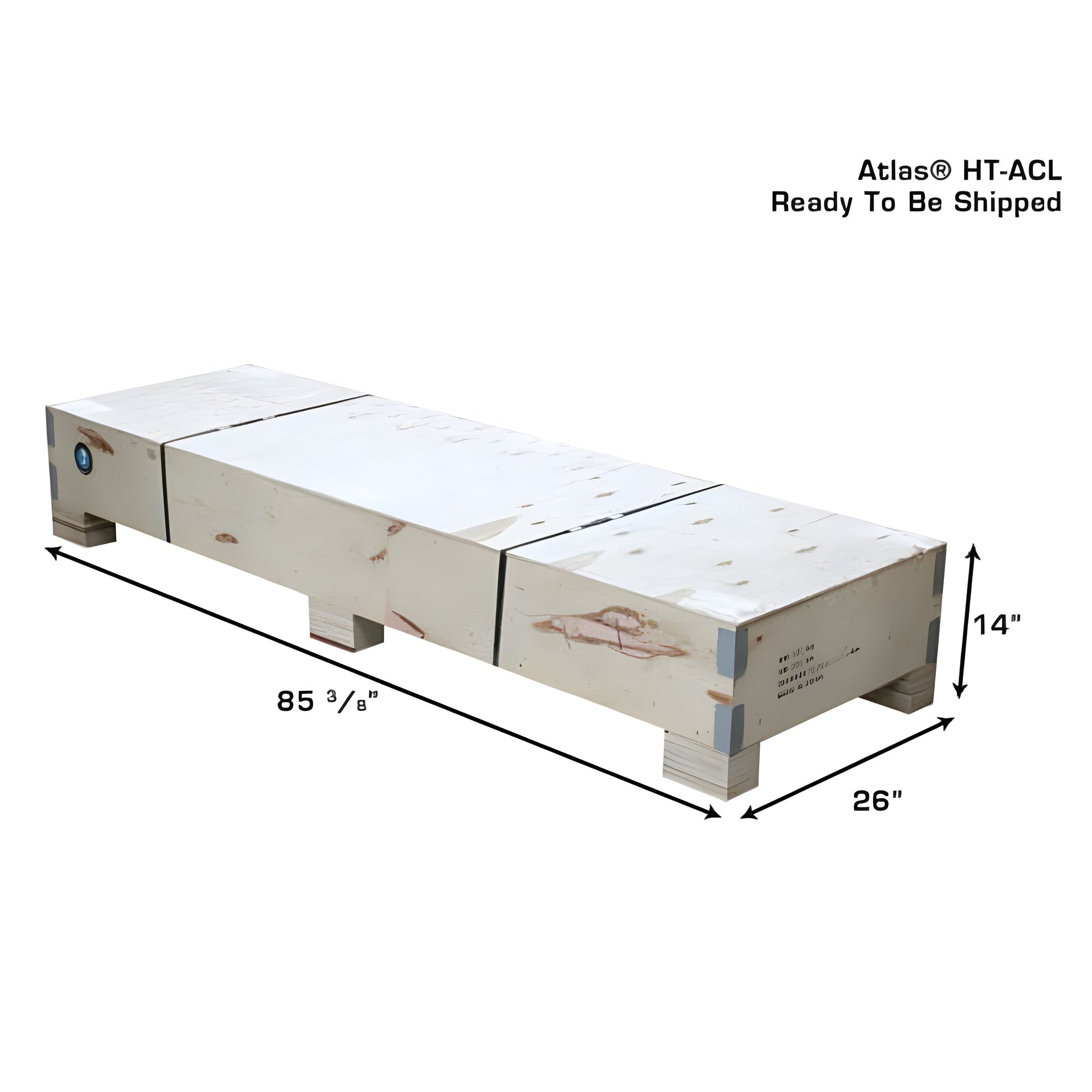

- Shipping Weight: 500 lbs.
- 1 yr Warranty Parts Only
Specifications
| Weight Capacity |
1,000 lb. |
| Length W/ Ramp |
105 1/2" (8' 9 1/2") |
| Table Length W/O Ramp |
85 1/2" (7' 1 1/2") |
| Width |
24" |
| Lift Height |
33" (2' 9") |
| Lowered Height |
7 1/4" |

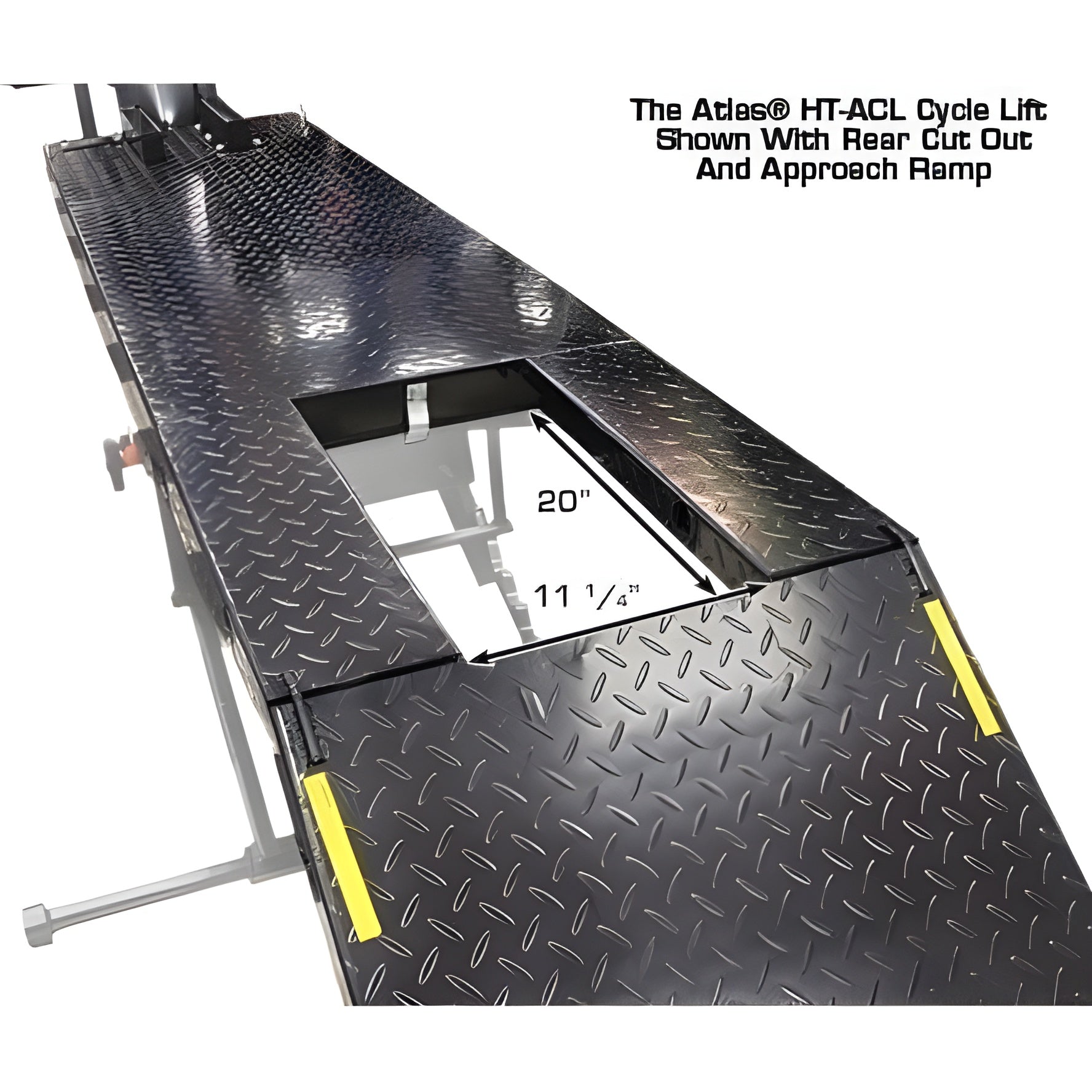

| Removable Approach Ramp |
20" |
| Air Requirements |
90 - 100 psi |
| Shipping Weight |
500 lb. |
Documents
Atlas ACL Motorcycle Lift Manual
What Our Experts Think
-
1,000 lb Capacity: Ideal for motorcycles, ATVs, and small vehicles.
-
Roller Plate Included: Allows for easy rear-wheel servicing.
-
Heavy-Duty Steel Frame: Ensures durability and stability.
-
Foot-Operated Hydraulic Pump: Provides smooth and controlled lifting.
-
Non-Slip Platform: Enhances safety during maintenance.
-
Compact & Versatile: Perfect for professional shops or home garages.
Q&A
Q: What is the weight capacity of the Atlas ACL Motorcycle Lift?
A: It has a 1,000 lb capacity, making it ideal for motorcycles, ATVs, and small vehicles.

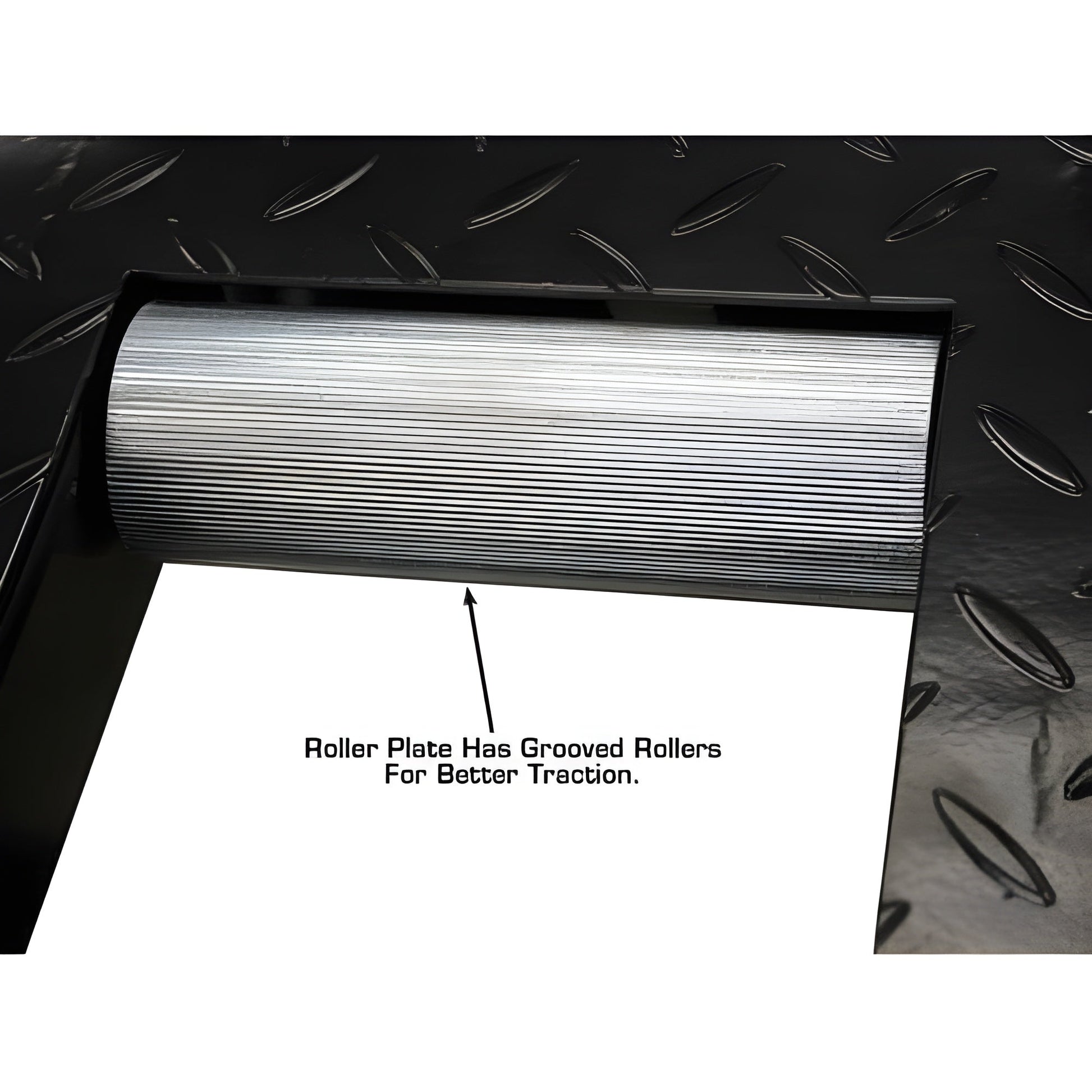

Q: What is the purpose of the roller plate?
A: The roller plate allows for easy wheel rotation, making tire and chain maintenance more convenient.
Q: What is the maximum lifting height?
A: It lifts up to 33 inches, providing comfortable access for repairs and detailing.

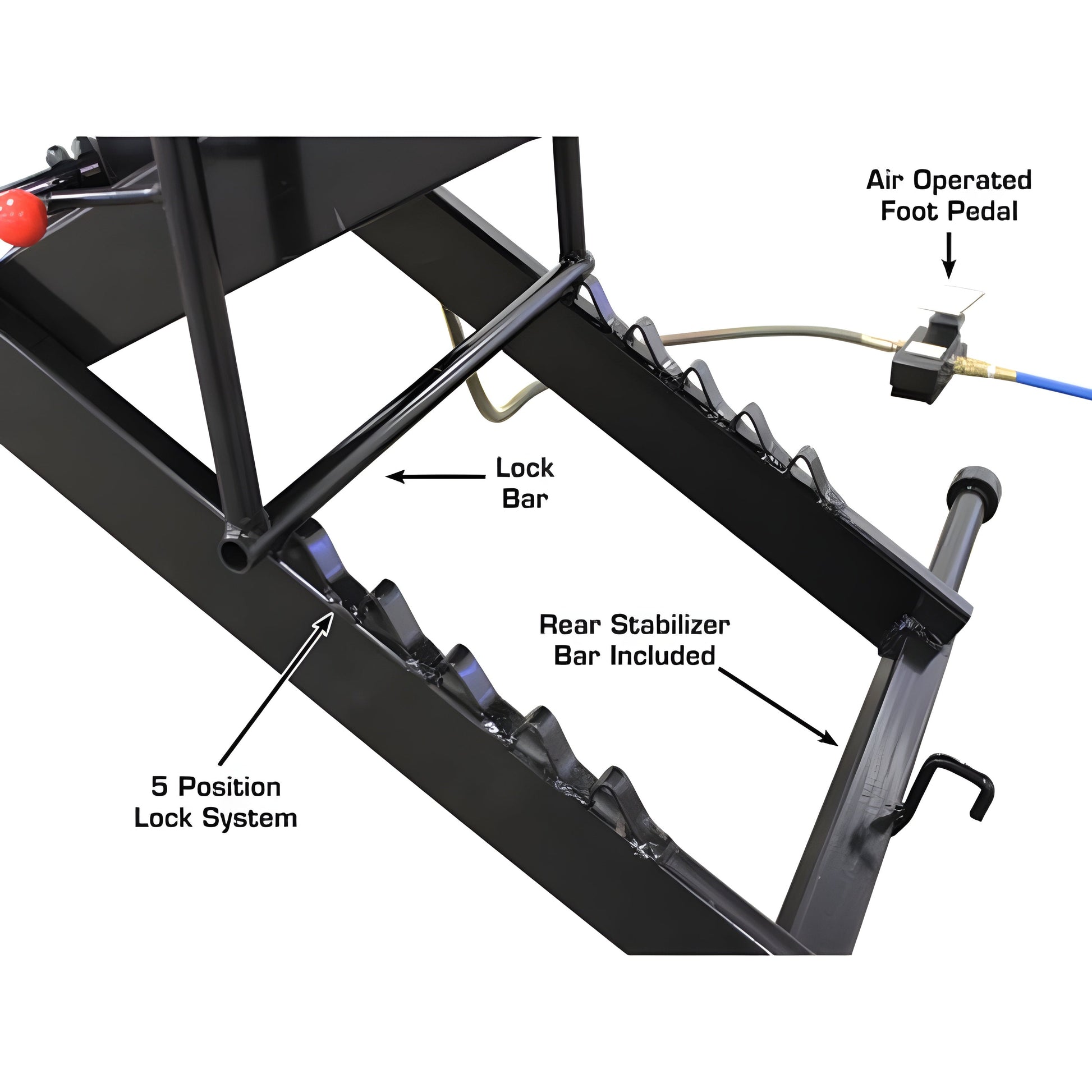

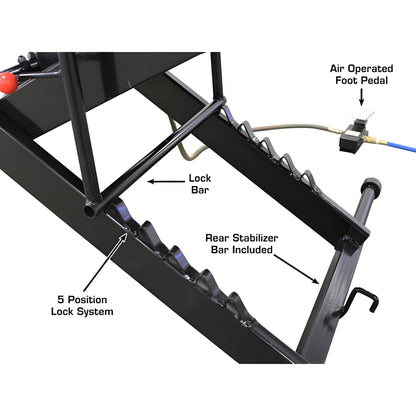

Q: Does it have a safety locking system?
A: Yes, it features a multi-position safety lock system for secure height adjustments.
Q: How is the lift operated?
A: It is a foot pedal-operated air-powered lift, ensuring smooth and controlled lifting.
Q: Is the lift surface non-slip?
A: Yes, the platform has a textured surface to prevent slipping and improve stability.
Maintenance Tipe
-
Daily Inspection – Check for loose bolts, hydraulic leaks, and wear on moving parts.
-
Lubrication – Grease pivot points and moving components regularly.
-
Hydraulic System – Monitor fluid levels and inspect hoses for cracks or leaks.
-
Roller Plate Care – Ensure smooth operation and keep it free from debris.
-
Weight Capacity – Do not exceed the recommended load limit.
-
Surface Maintenance – Keep the platform clean for safe operation.
-
Annual Check-Up – Inspect all components and replace worn parts as needed.
