Atlas Apex 8 ALI 8,000 lb 4-Post Lift - ATEATTD-APEX8-FPD
Atlas ALI 8,000 lb. Hobbyist Lift

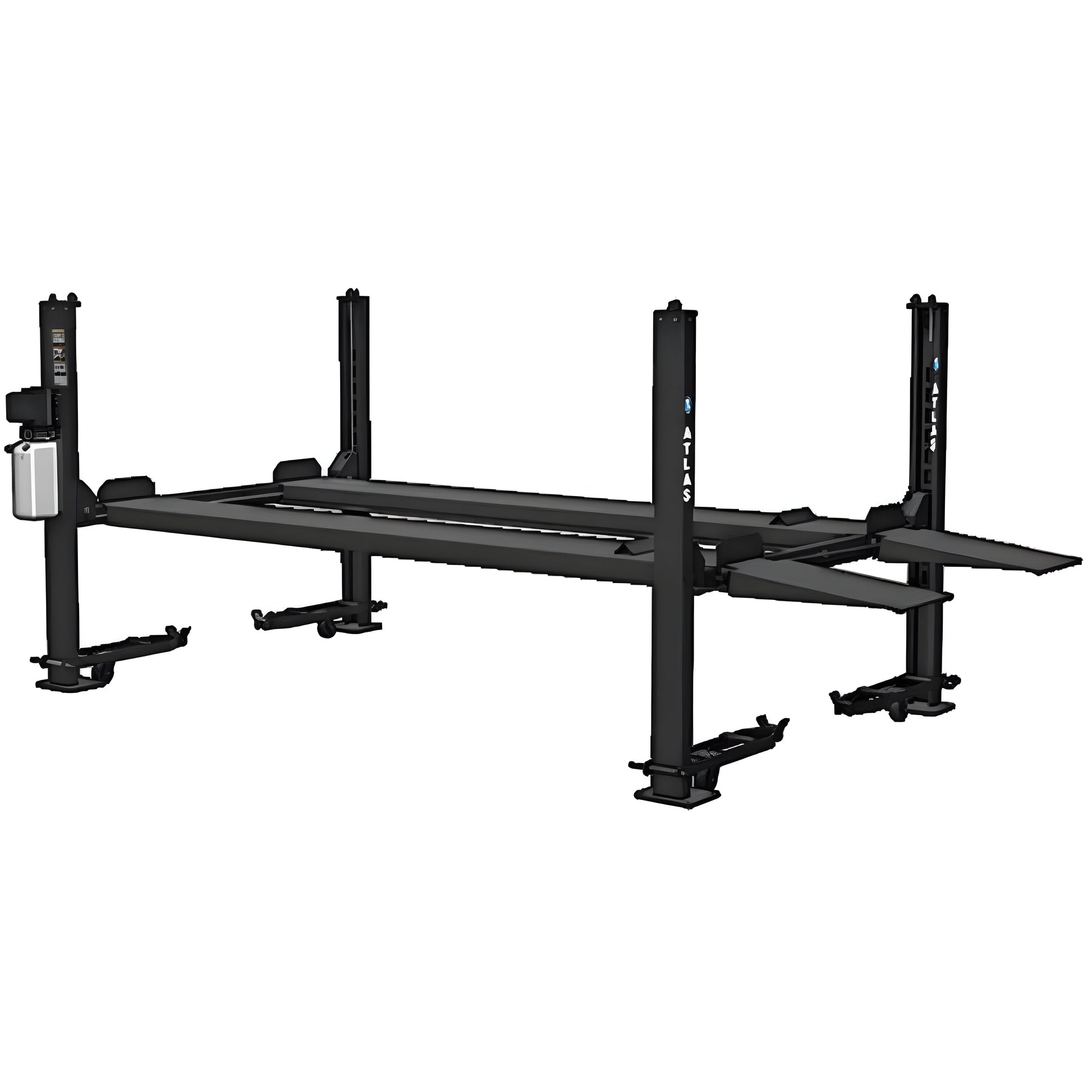

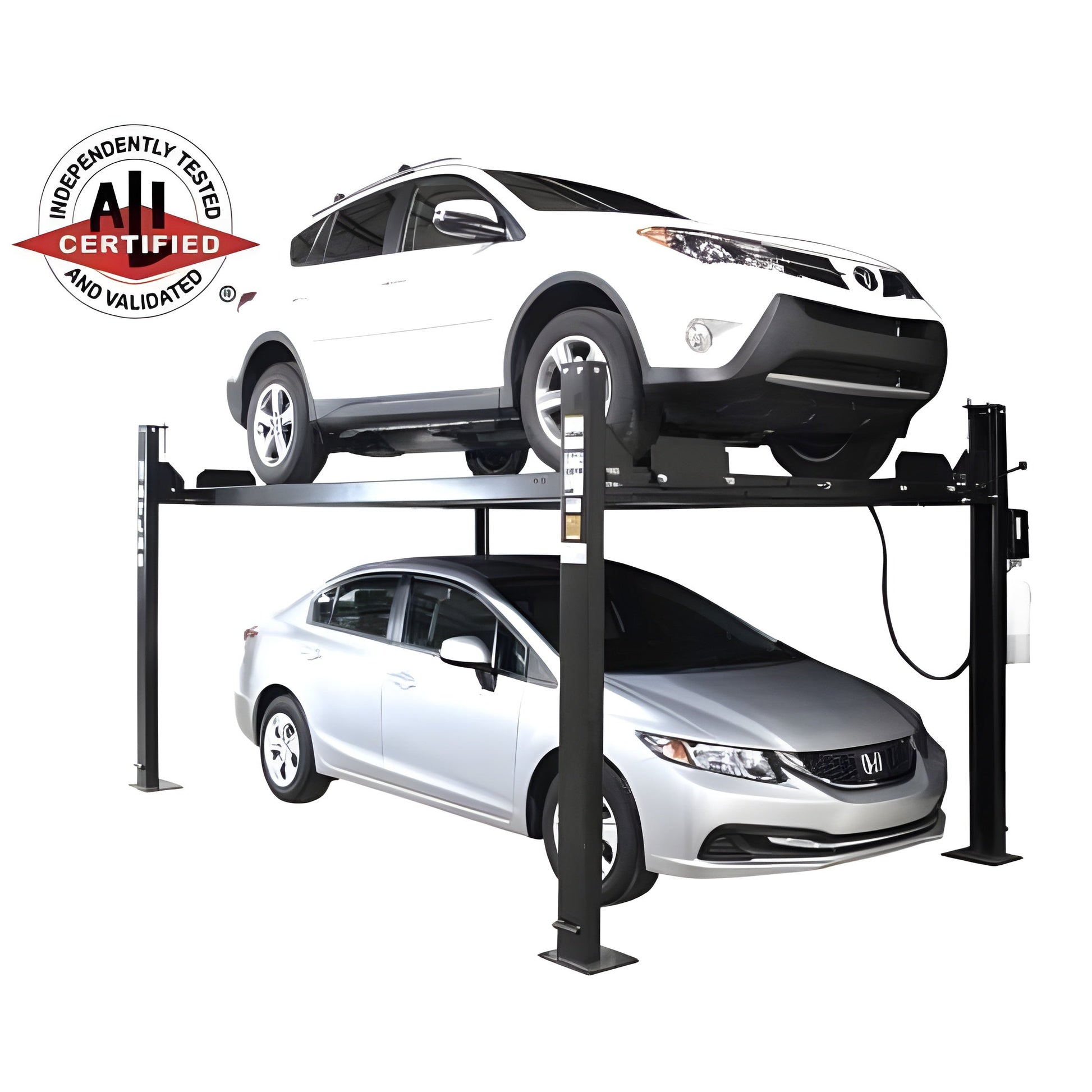

The Atlas APEX8 is an ALI version of our most popular 4-post hobbyist lift, the Atlas Garage PRO8000. Perfect for the customer with too many cars and not enough space. The APEX8 allows the user to easily double their space by stacking most passenger cars.
The Atlas APEX8 is designed and built for use by homeowners or restoration shops. This lift is not recommended for use in commercial repair shops where it would be raised and lowered several times per day.
The Atlas APEX8 is nearly 200 lbs. heavier than comparable lifts in the market. It includes a free caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. With those features and with the added peace of mind of the ALI Certification the APEX8 is one of the best values in our four-post hobbyist product line.
Many customers who purchased this lift also purchased the Atlas RJ35.
Video
Features
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Powder Coat Finish

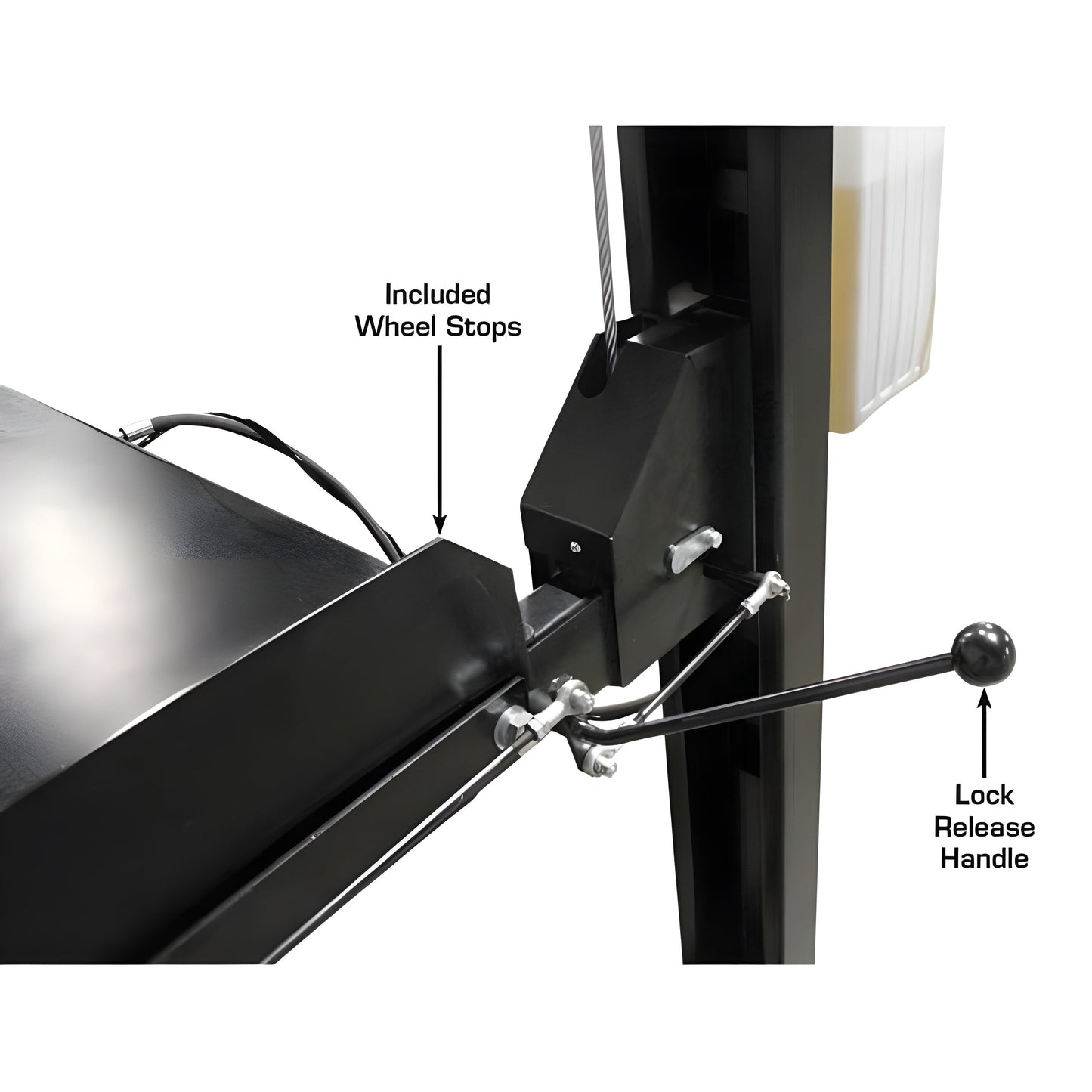

- Single Point Lock Release

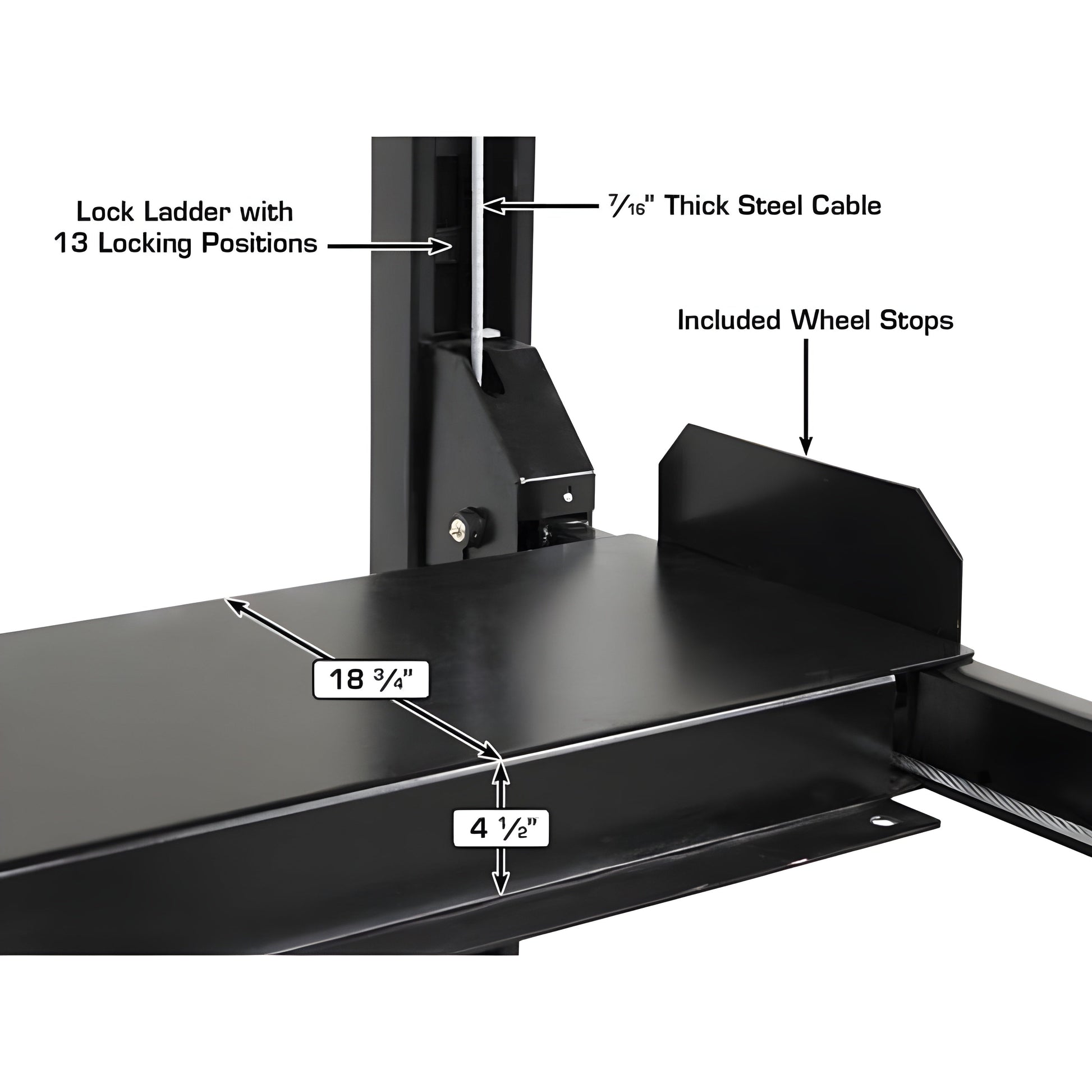

- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Wheel Stops Included
- Two Wheel Chocks Included

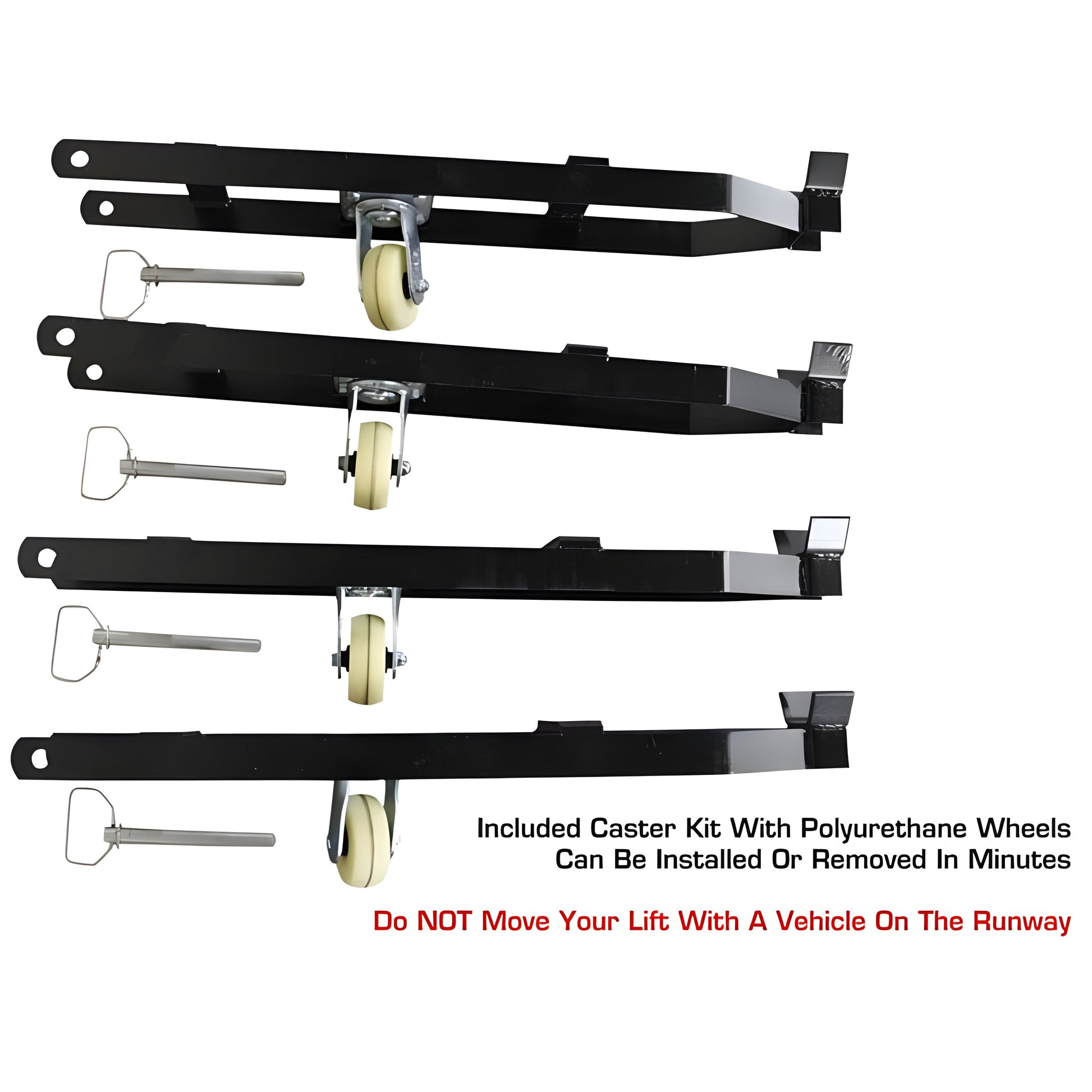

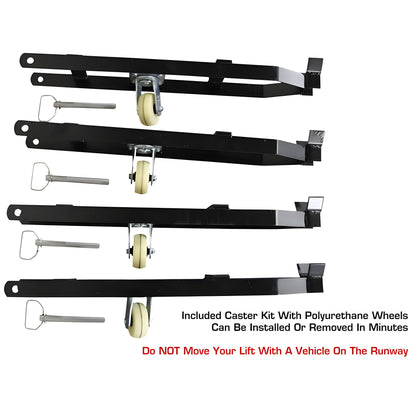

- Caster Kit with Polyurethane wheels Included
- Anchor Bolts Optional (Sold Separately)
- Perfect for Storage or Working on Vehicles
- 110volt Electric Operation (Requires 30amp Breaker)
Specifications
| Capacity |
8,000 lb. |

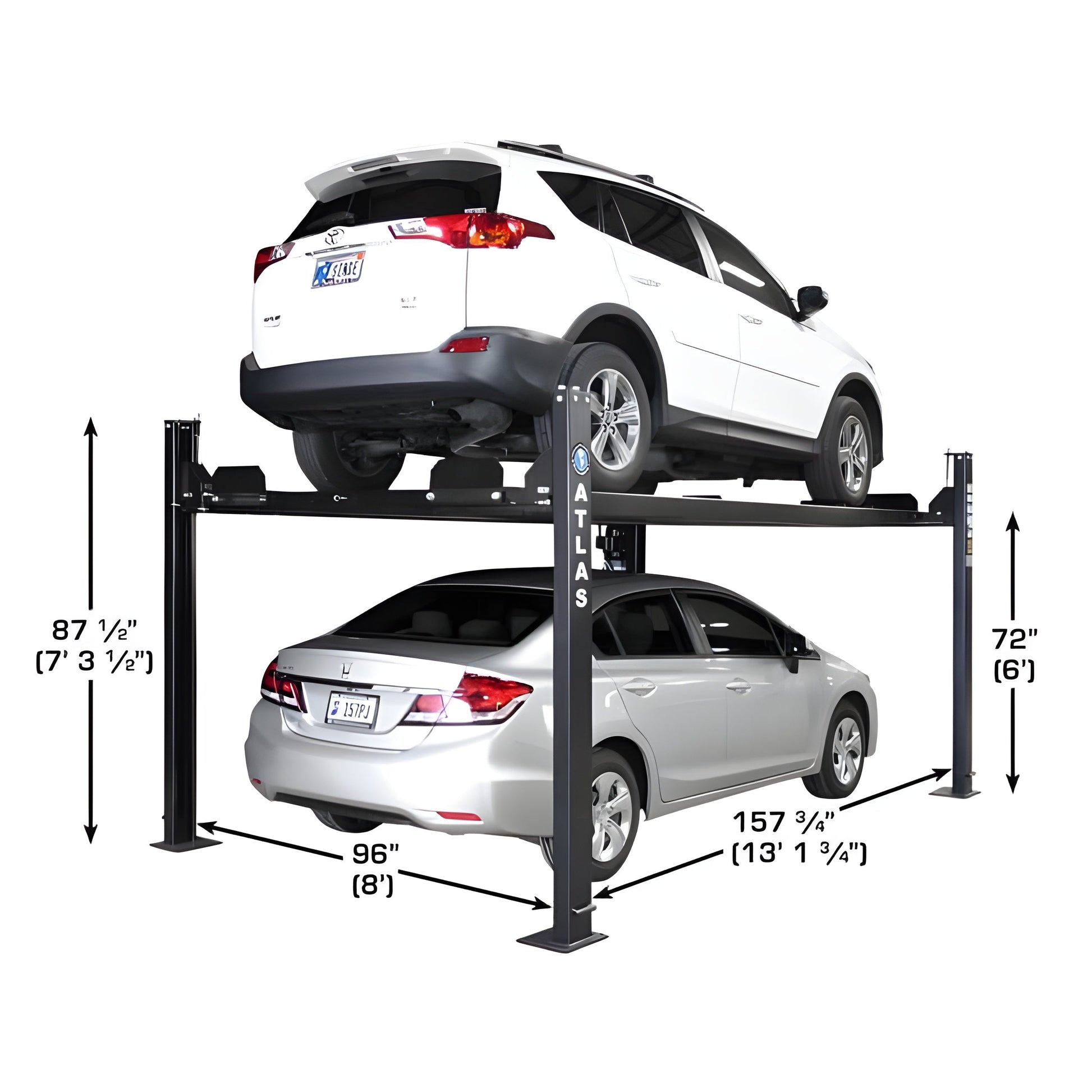

| Lifting Height To Top of Runway |
72" (6') |

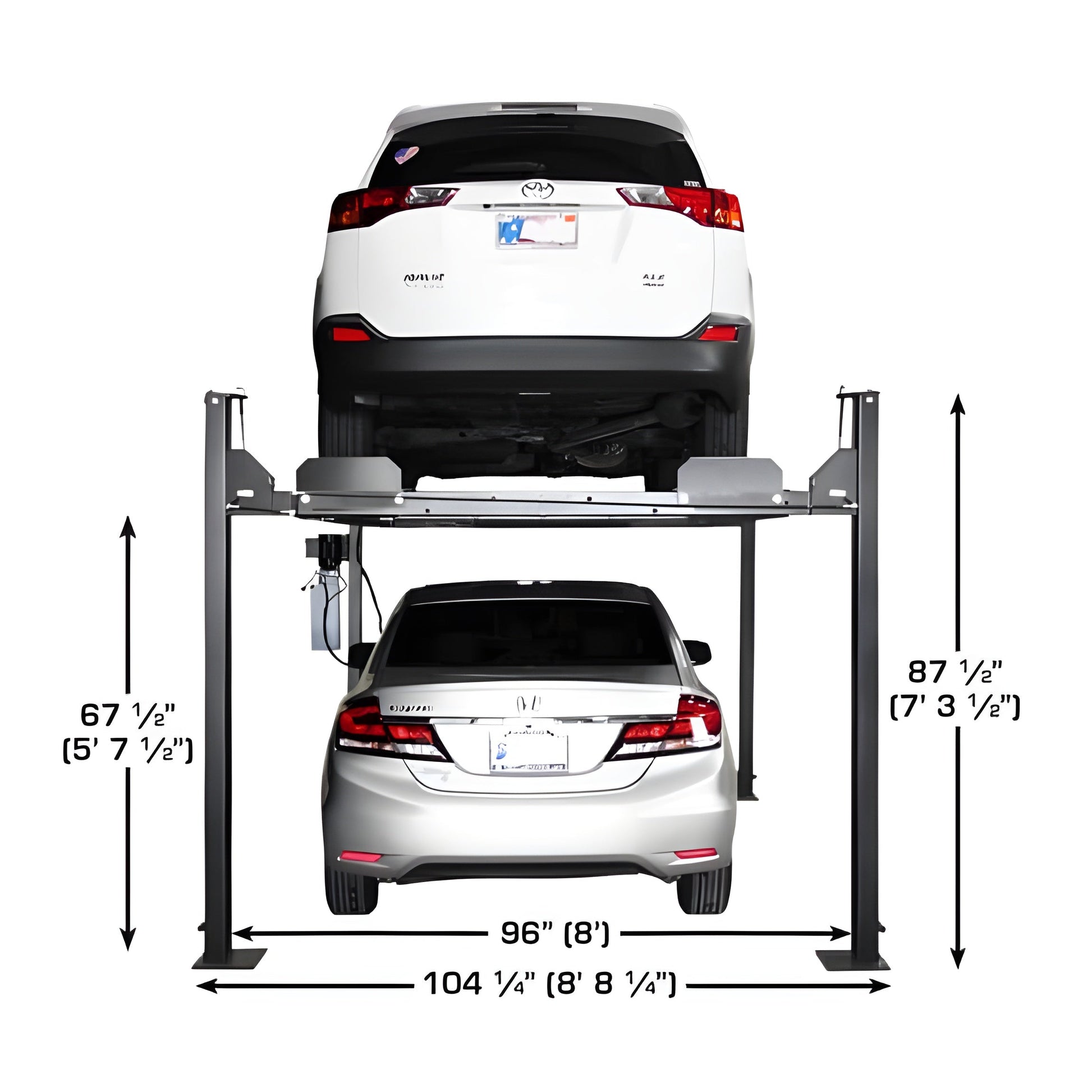

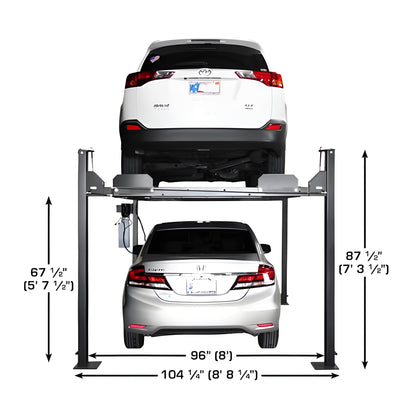

| Clearance Under Runways |
67" (5' 7") |
| Height of Columns (Including Nuts) |
86 5/8" (7' 2 5/8") |

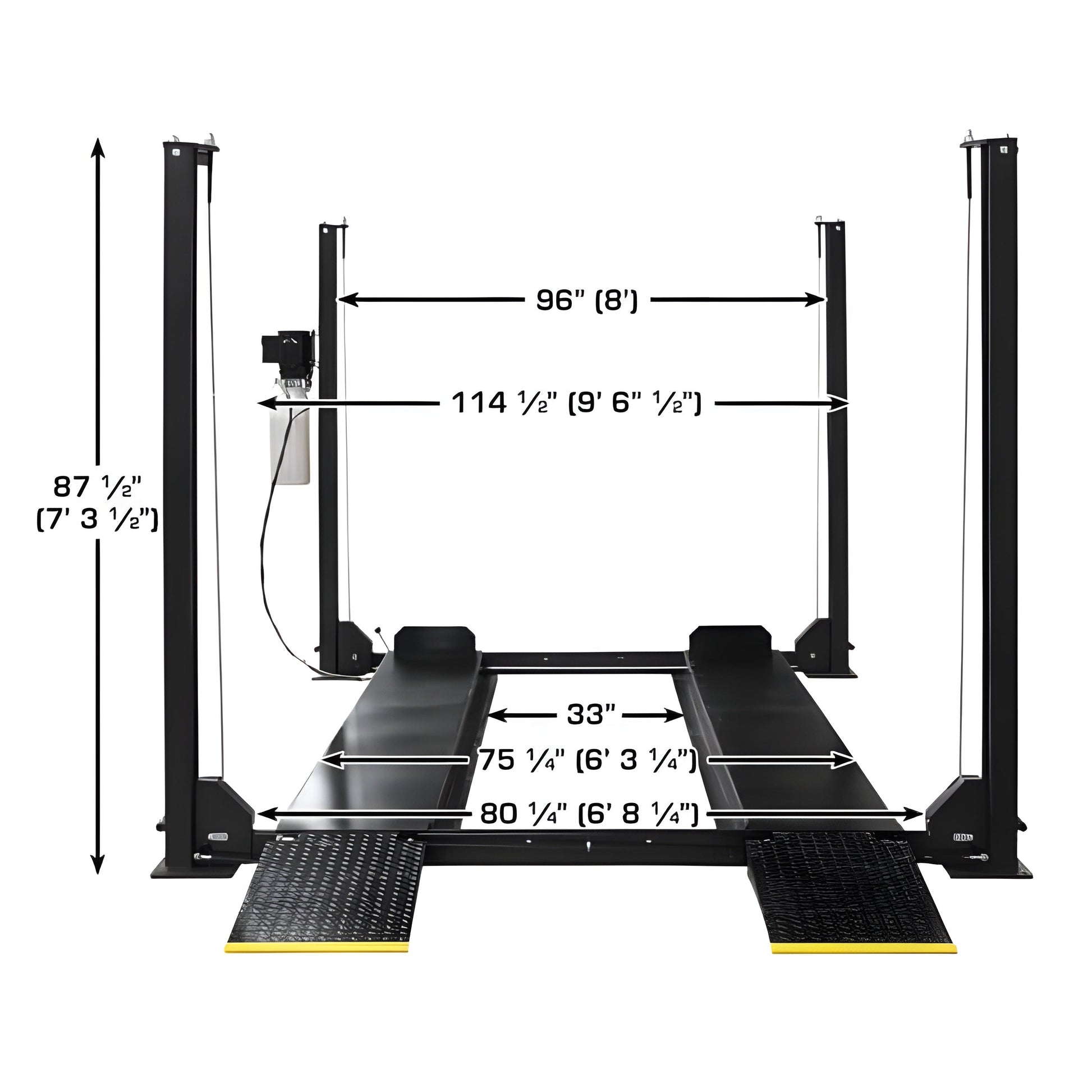

| Overall Width (Without Motor or Casters) |
104" (8' 8") |
| Overall Width (With Motor) |
114" (9' 6") |

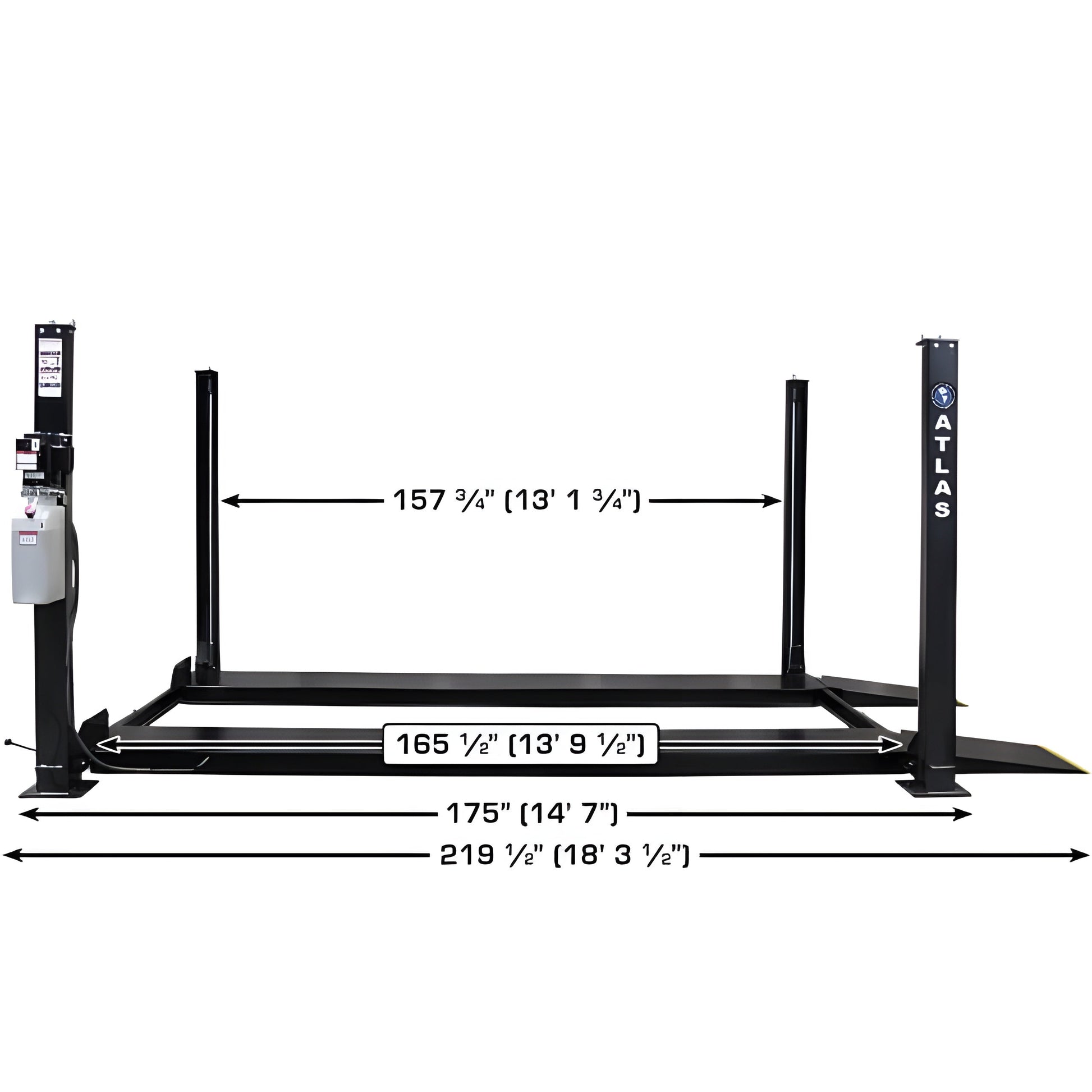

| Overall Length without Approach Ramps (Including Lock Release Bar) |
186 1/2" (15' 6 1/2") |
| Overall Length with Approach Ramps |
207 5/6" (17' 3 5/6") |

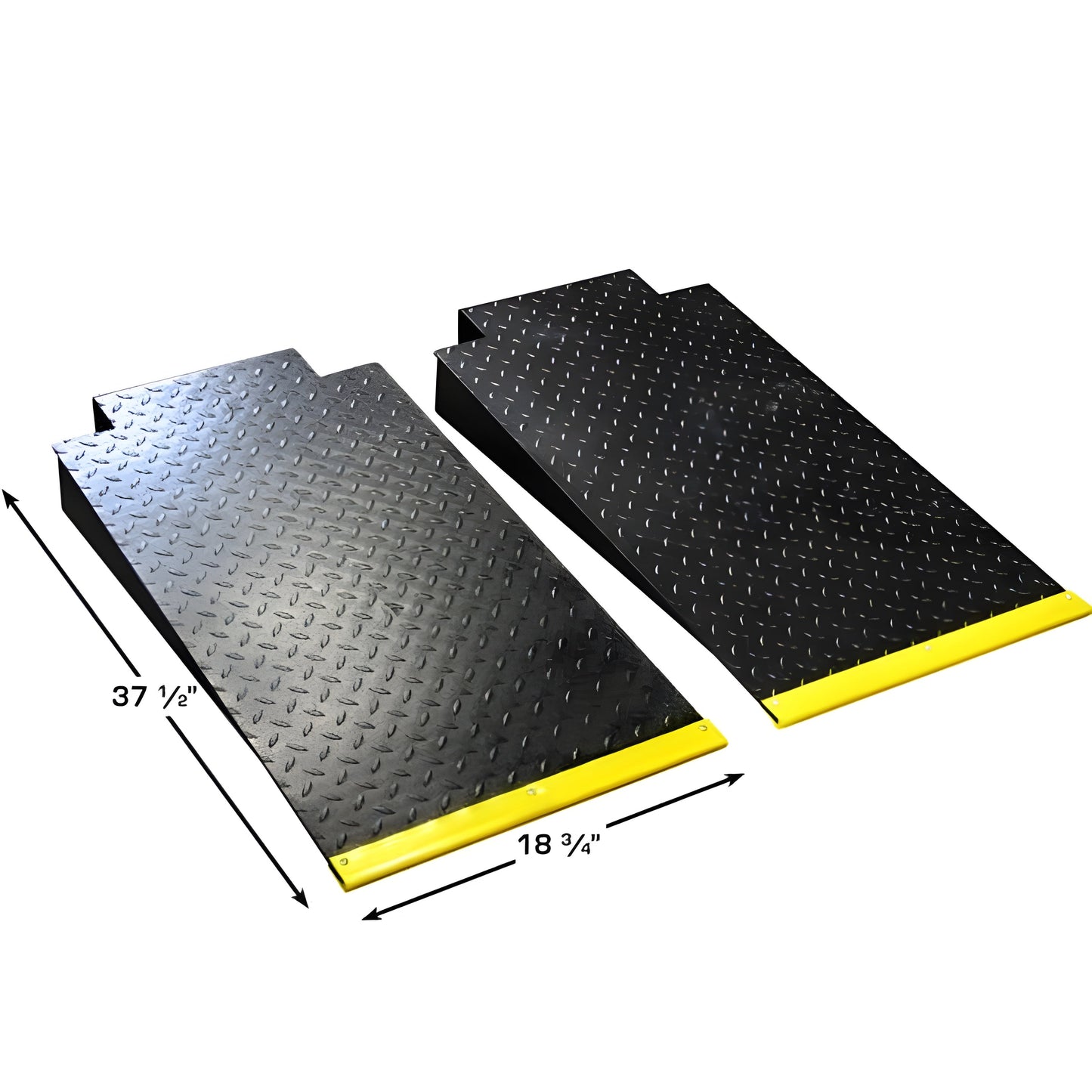

| Approach Ramps |
37 1/2" (3' 1 1/2") |

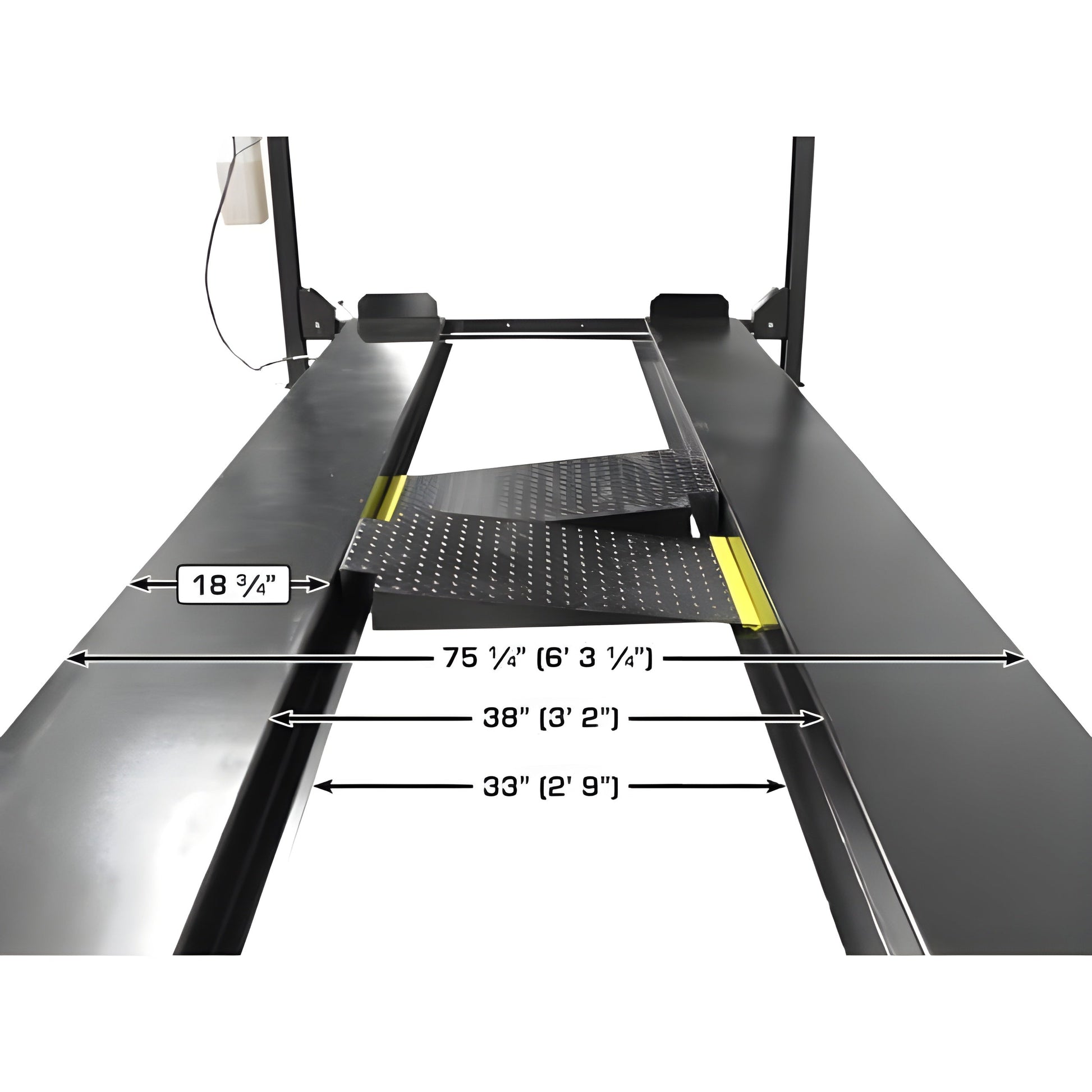

| Runway Width |
18 2/3" |
| Runway Rail Width |
2 1/2" |
| Runway Length |
169 1/2" (14' 1 1/2") |
| Runway Thickness |
4 1/3" |
| Width Between Runways |
38" (3' 2") |
| Width Between Runway Rails |
33 (2' 9") |
| Outside Runway to Outside Runway |
75 1/4 (6' 3 1/4") |
| Clearance Between Columns |
94" (7' 10") |

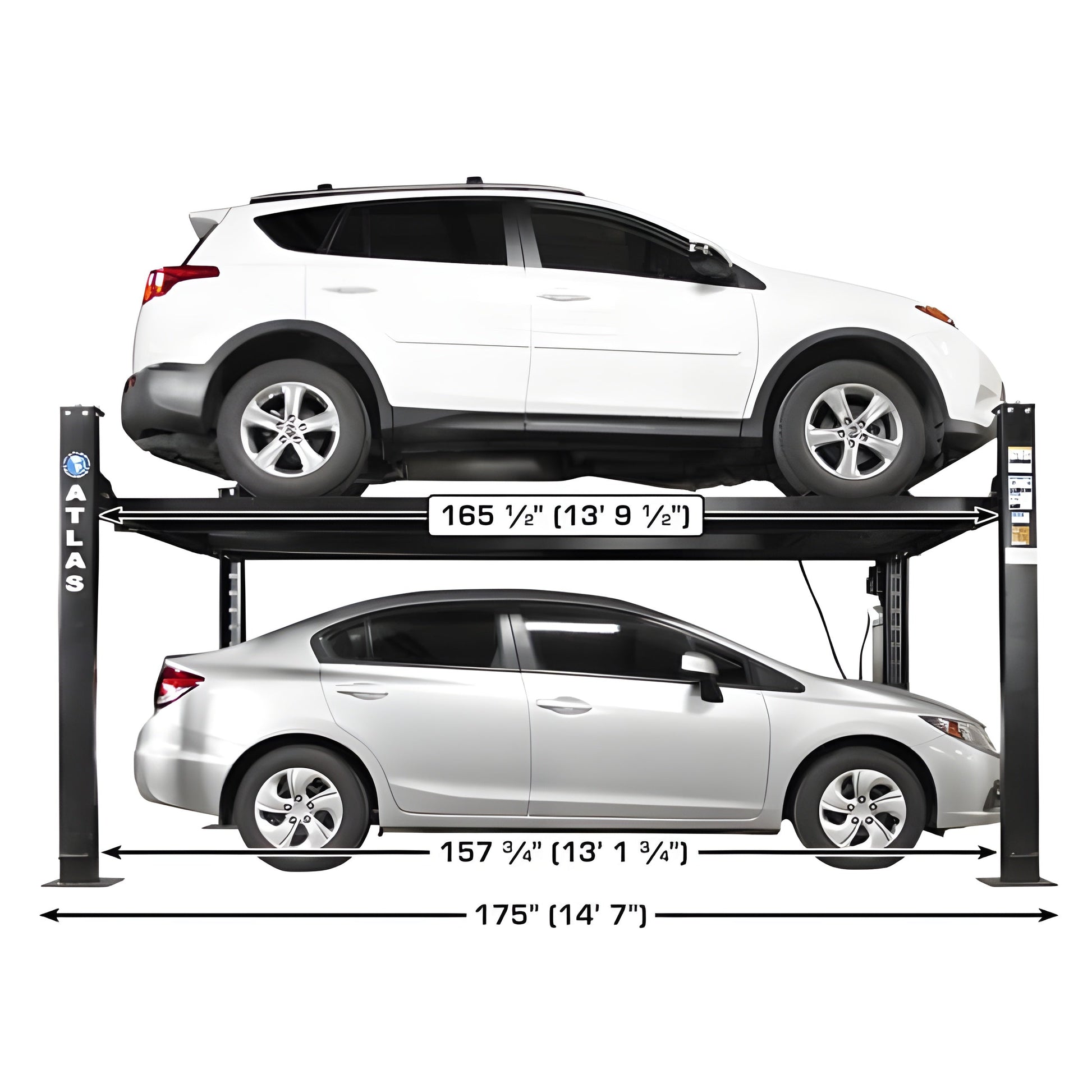

| Length Between Columns |
157 1/3" (13' 1 1/3") |
| Maximum Wheel Base |
154 (12' 9") |
| Drive Thru (Outside of tire to outside of tire) |
80 1/4" (6' 8 1/4") |

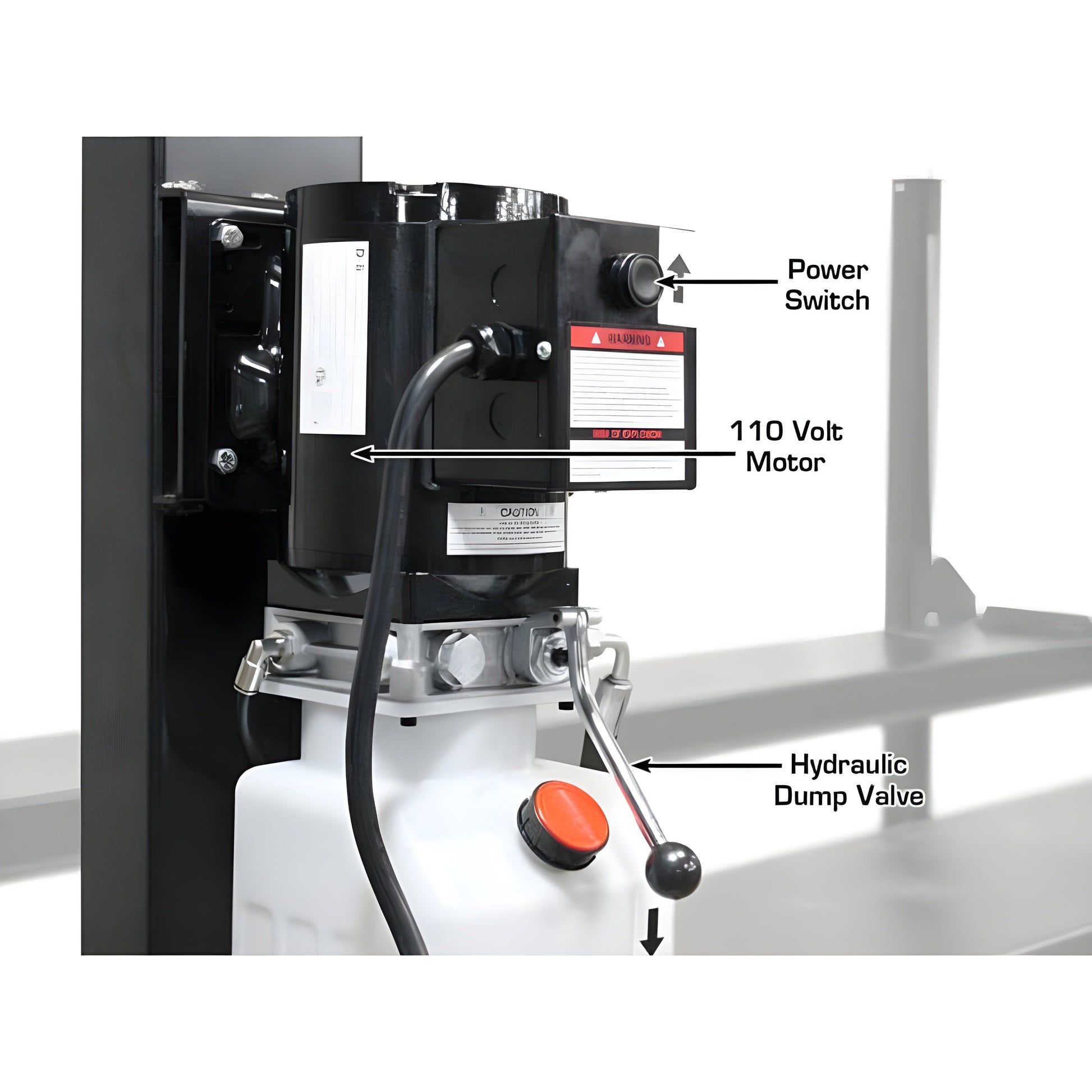

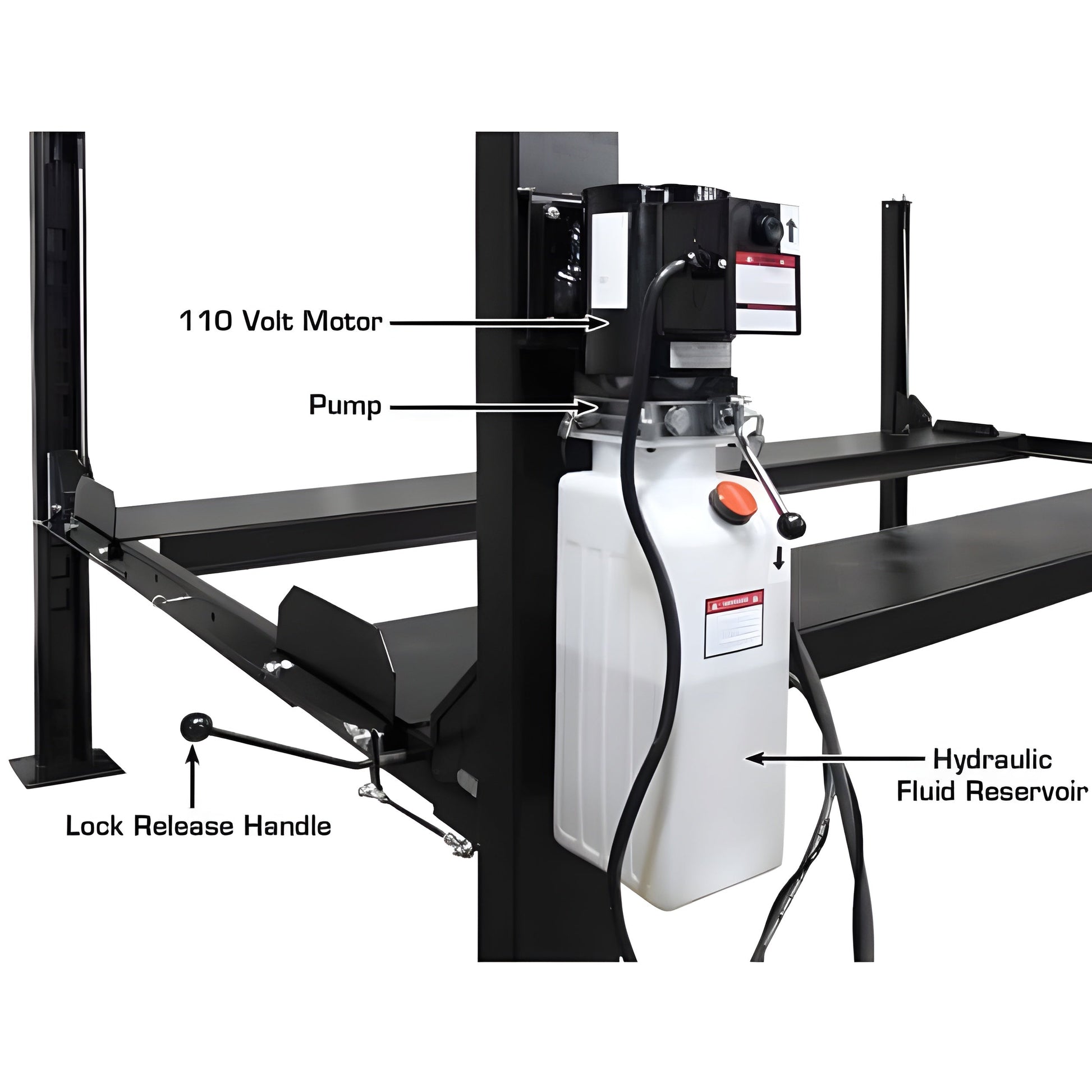

| Motor/Electrical Requirement |
110 Volt, 30 AMP BREAKER REQUIRED |
Manual
Atlas Apex 8 Manual
What our Expect Think
-
8,000 lb. Lifting Capacity – Designed for cars, trucks, and SUVs.
-
ALI Certified – Meets the highest safety and performance standards.
-
4-Post Stability – Ensures maximum strength and reliability for long-term use.
-
Extra-Wide Runways – Accommodates a variety of vehicle sizes with ease.
-
Durable Steel Construction – Heavy-duty frame for enhanced durability and safety.
-
Ideal for Garages & Shops – Perfect for professional and home automotive work.
Q&A
Q: What is the Atlas Apex 8 ALI 8,000 lb 4-Post Lift?
A: The Atlas Apex 8 ALI is a high-quality, ALI-certified 4-post lift designed for automotive shops and home garages. It offers an 8,000 lb lifting capacity, making it ideal for lifting cars, trucks, and SUVs for maintenance, repairs, and storage.
Q: What are the dimensions?
A: The Atlas Apex 8 features a spacious platform with extended length and width to accommodate a variety of vehicle sizes.
Q: Is professional installation required?
A: While some experienced users may install the lift themselves, professional installation is recommended to ensure proper setup and safety compliance.
Q: Can this lift be used for vehicle storage?
A: Yes, the Atlas Apex 8 is ideal for stacking vehicles for storage, maximizing garage space.
Maintenance Tips
-
8,000 lb. Lifting Capacity – Ideal for cars, light trucks, and SUVs.
-
4-Post Design – Provides superior stability and support for vehicle maintenance and storage.
-
ALI Certified – Ensures safety, reliability, and industry-standard performance.
-
Heavy-Duty Construction – Built with high-strength steel for durability and long-lasting use.
-
Adjustable Runways – Accommodates different vehicle sizes and wheelbases.
-
Hydraulic System – Smooth and efficient lifting with a robust hydraulic pump.
-
Safety Locks & Cables – Multi-position locking system for secure elevation.
-
Space-Saving Design – Perfect for professional shops and home garages.
