Atlas Garage PRO7000ST 7,000 lb Super Tall 4-Post Lift - ATEXH-PRO7000ST-FPD
Atlas 7,000 lb. Capacity Super Tall 4 Post Lift

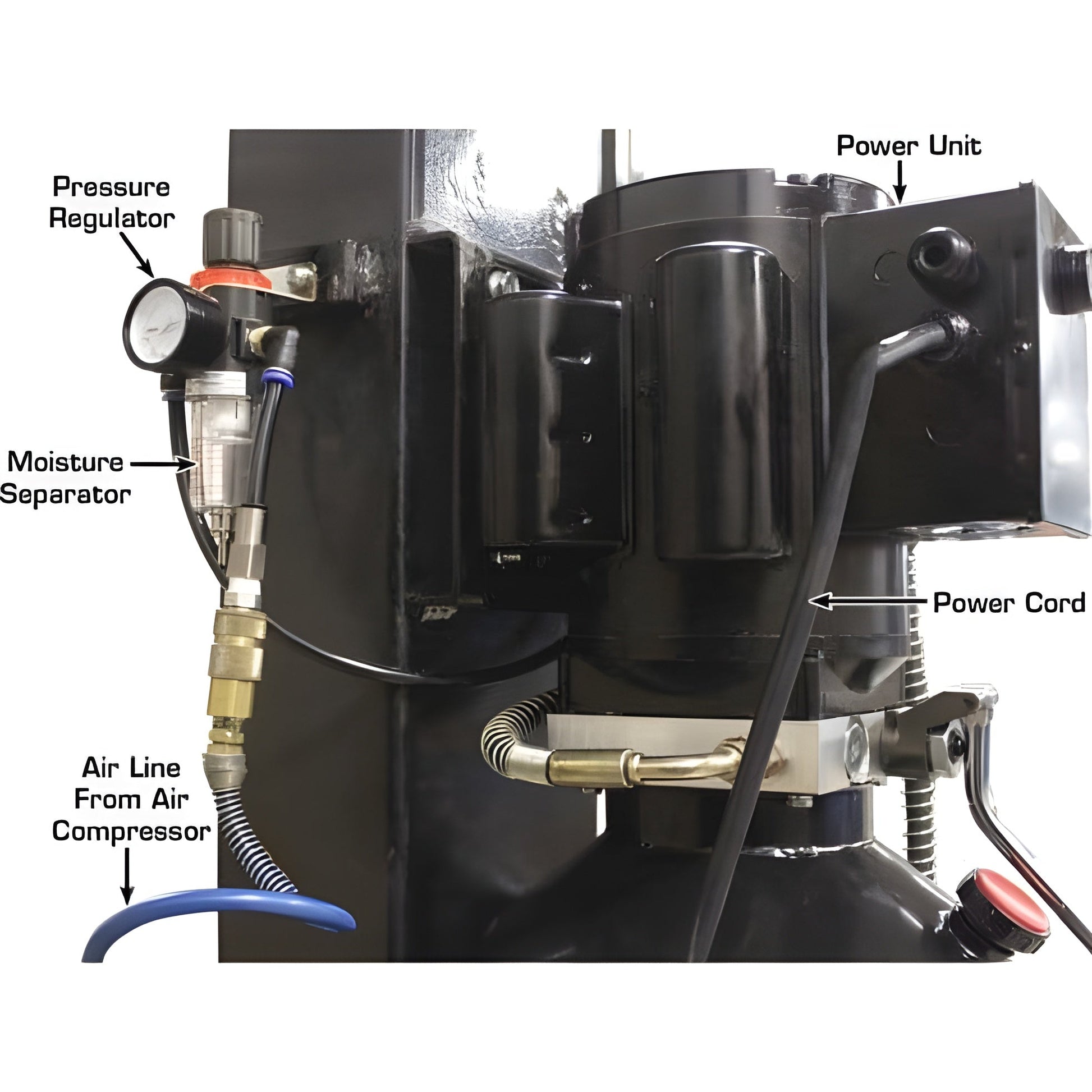

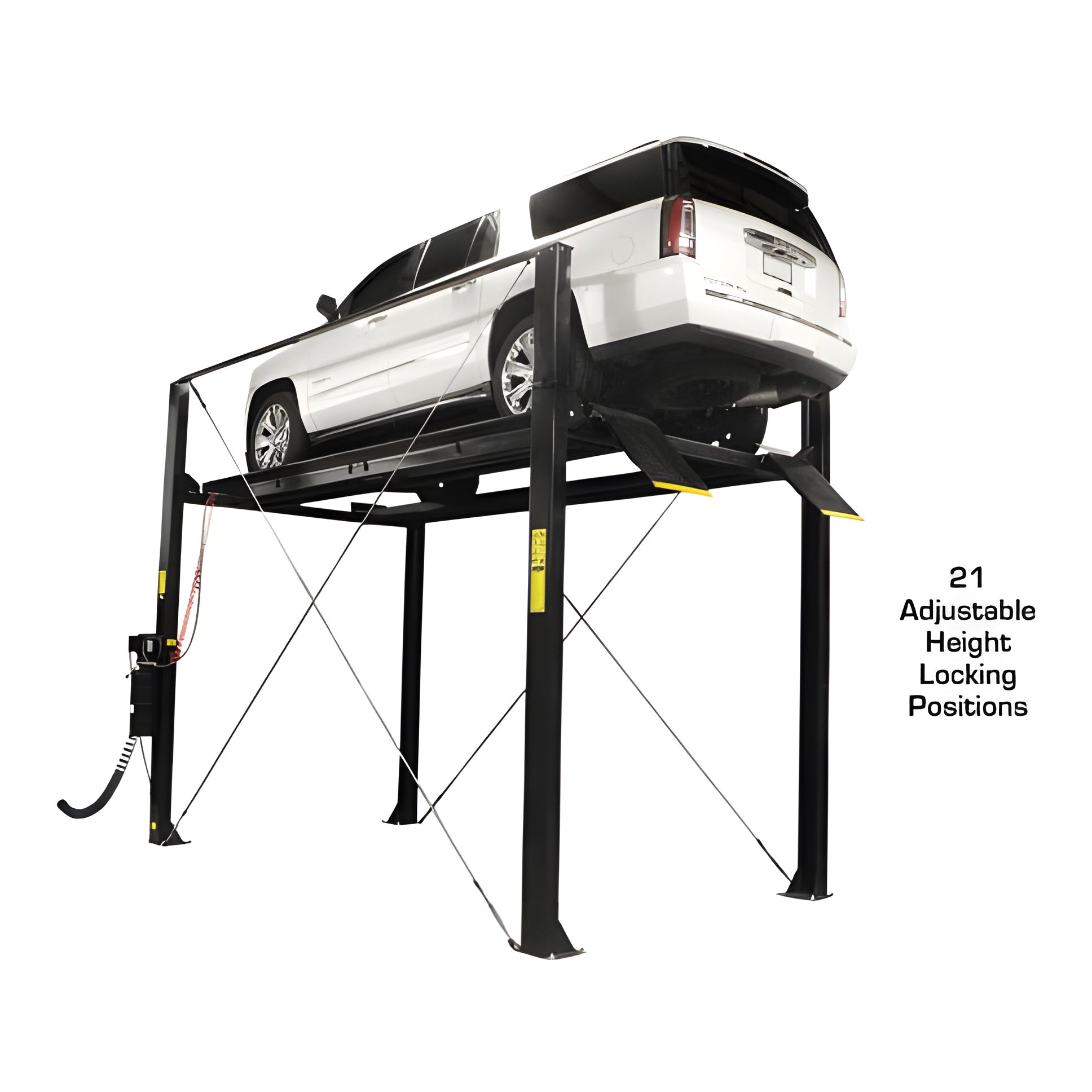

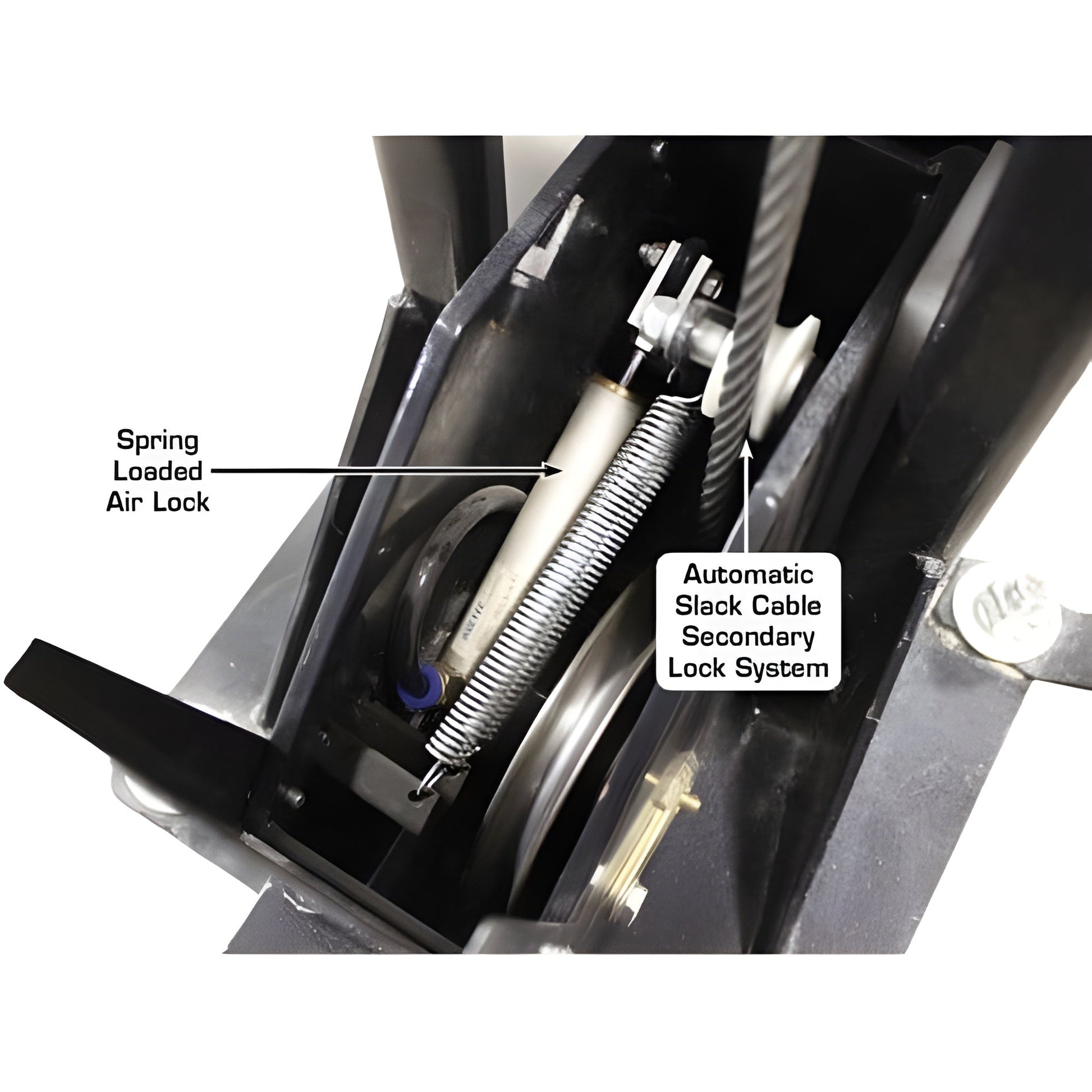

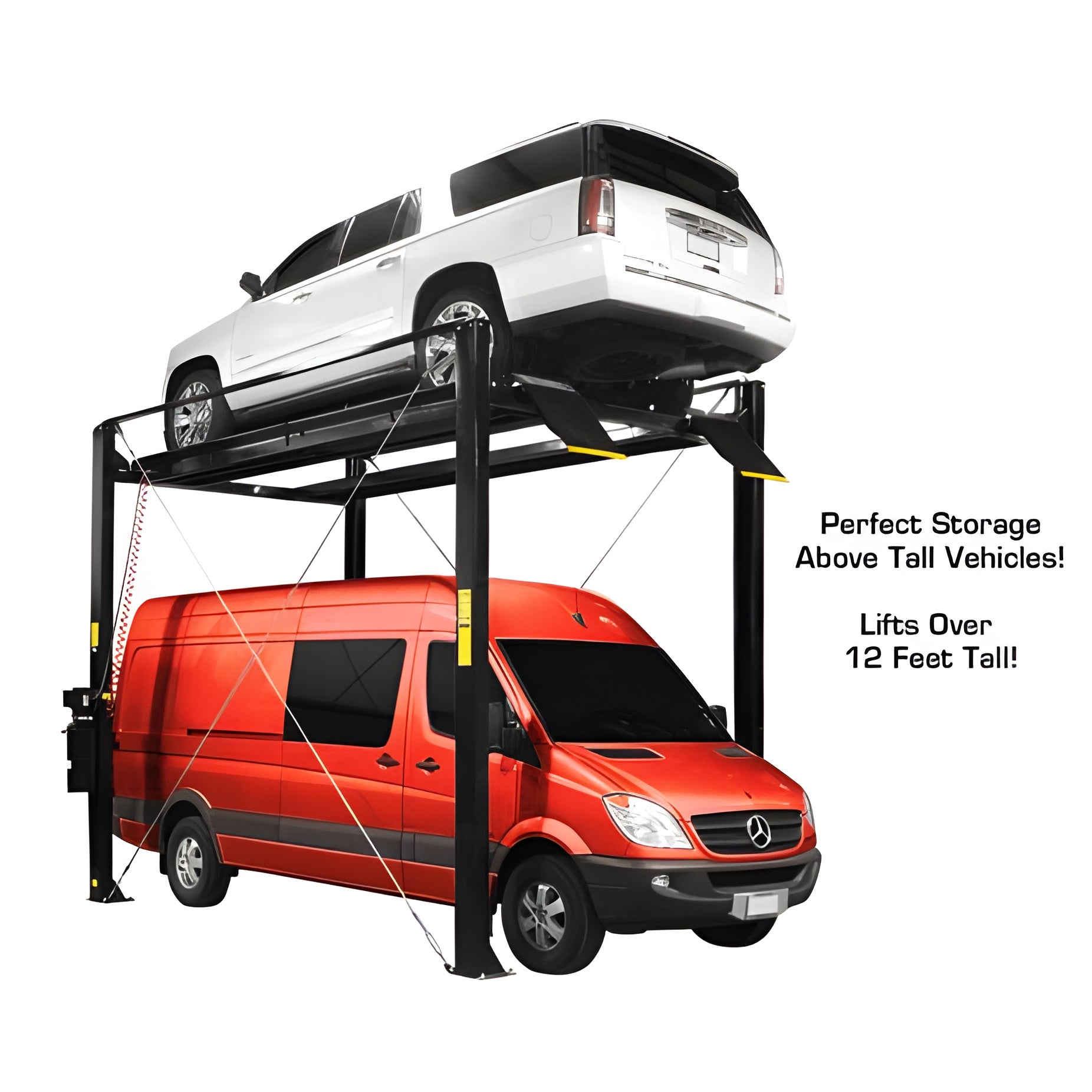

The Atlas Garage PRO7000ST is the perfect lift for those car enthusiasts lucky enough to have extra tall ceilings and need to store regular height vehicles on top of extra tall vehicles. The PRO7000ST raises vehicles weighing up to 7,000 lbs. all the way to over 12 feet (144 inches) under the runway.This super tall four post storage lift uses the same heavy duty runways as the Atlas® Garage PRO9000. The runways feature welded tracks which allow the use of a rolling bridge jack (such as the Atlas® RJ6BK). The extra tall lifting height gives customers the space needed to park much taller vehicles under the vehicle stored on top. There are a whopping 21 locking positions in the lock ladder, and the lock ladder may be adjusted during installation giving an almost infinite number of locking heights.A single point release toggle (located next to the power unit) automatically unlocks all four spring loaded pneumatic locks. Compressed air is required to disengage the locks (air supply not included). The emergency slack cable secondary lock system is always “on standby” and will engage automatically if the cables are compromised or become too slack.
Video
Features
- 7,000 lb. Capacity
- Heavy Duty
- “Super Tall” Lifting Height
- Extra Wide & Extra Long
- Diamond Plated Runways

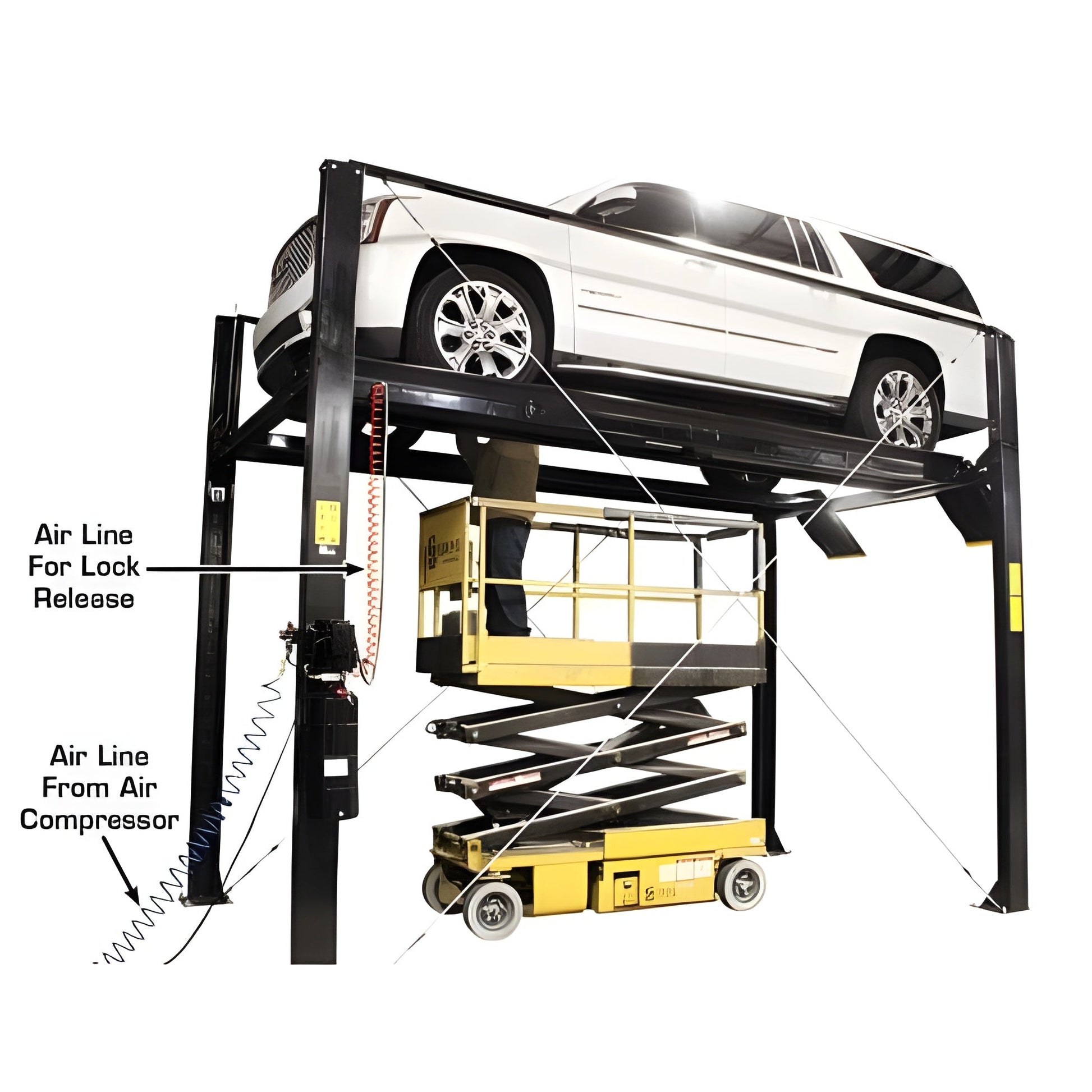

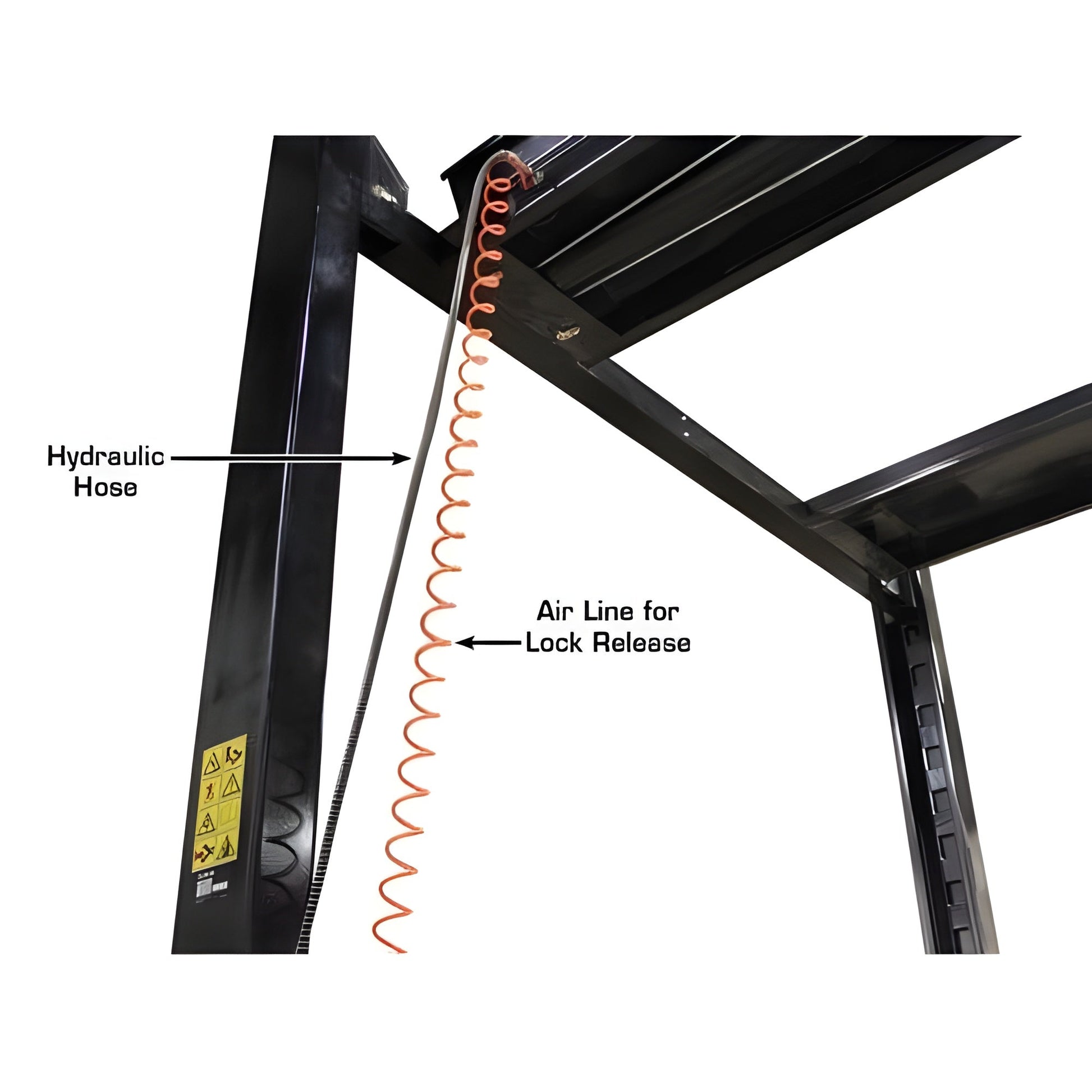

- Single Point Release, Pneumatic Locks (External Air Supply Required)
- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included

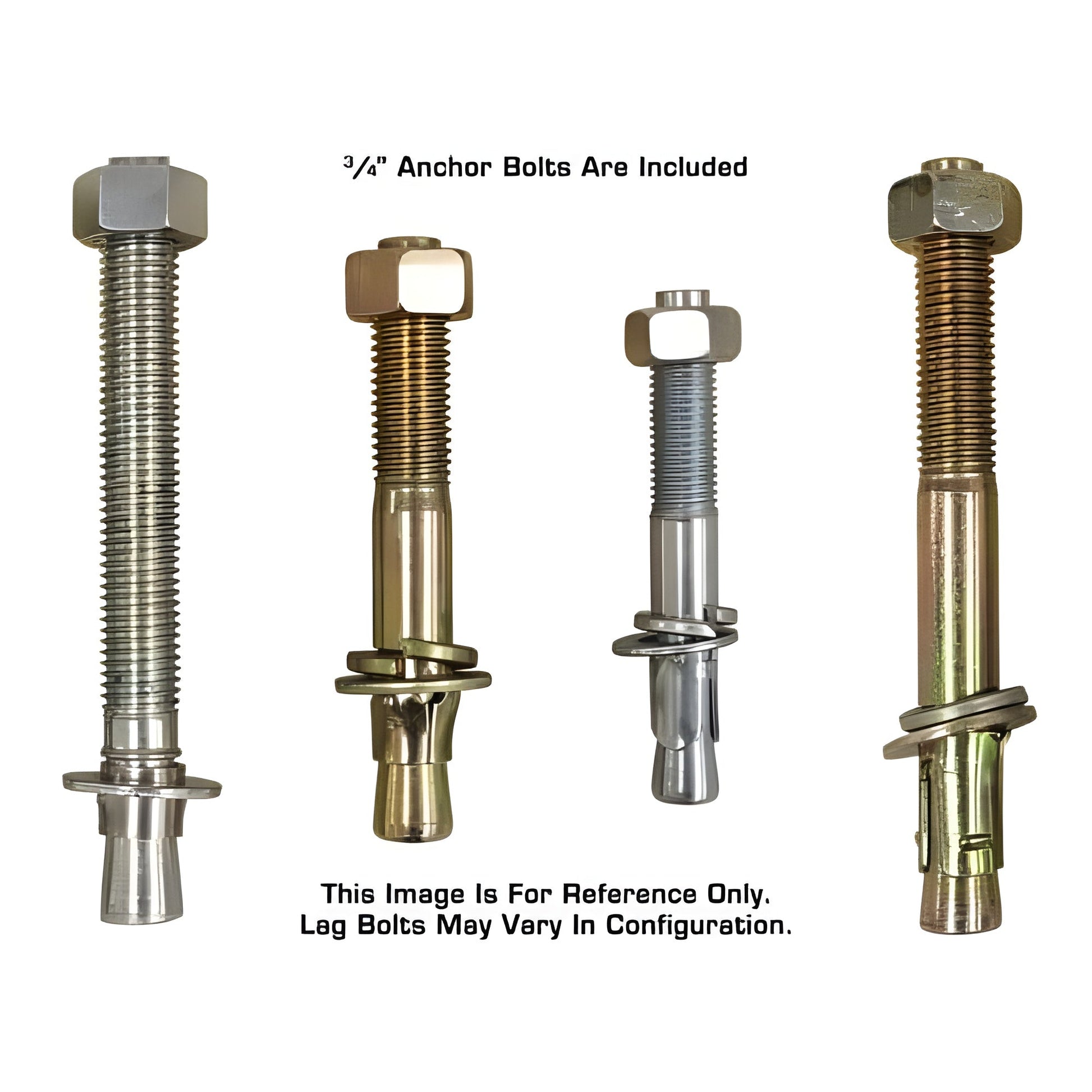

- Mounting Hardware Included
- Perfect for Storage or Working on Vehicles

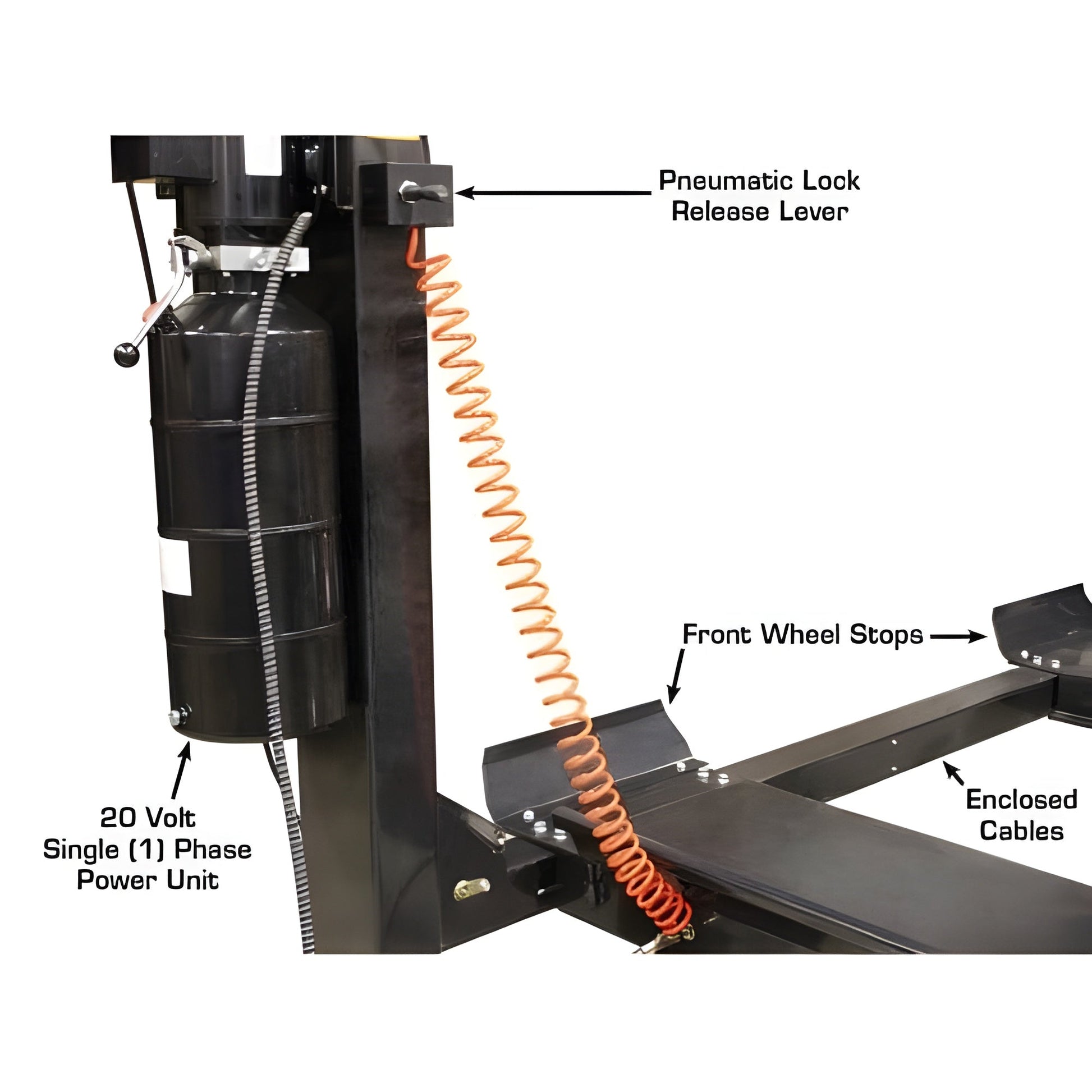

- 220volt/1phase Electric Operation (Requires 30amp Breaker)
Specifications
| Atlas Garage PRO7000ST Specifications |
|
| Capacity |
7,000 Lb. |
| Lifting Height To Top Of Runway |
147" (12' 3") |
| Clearance Under Runways |
142" (11' 10") |

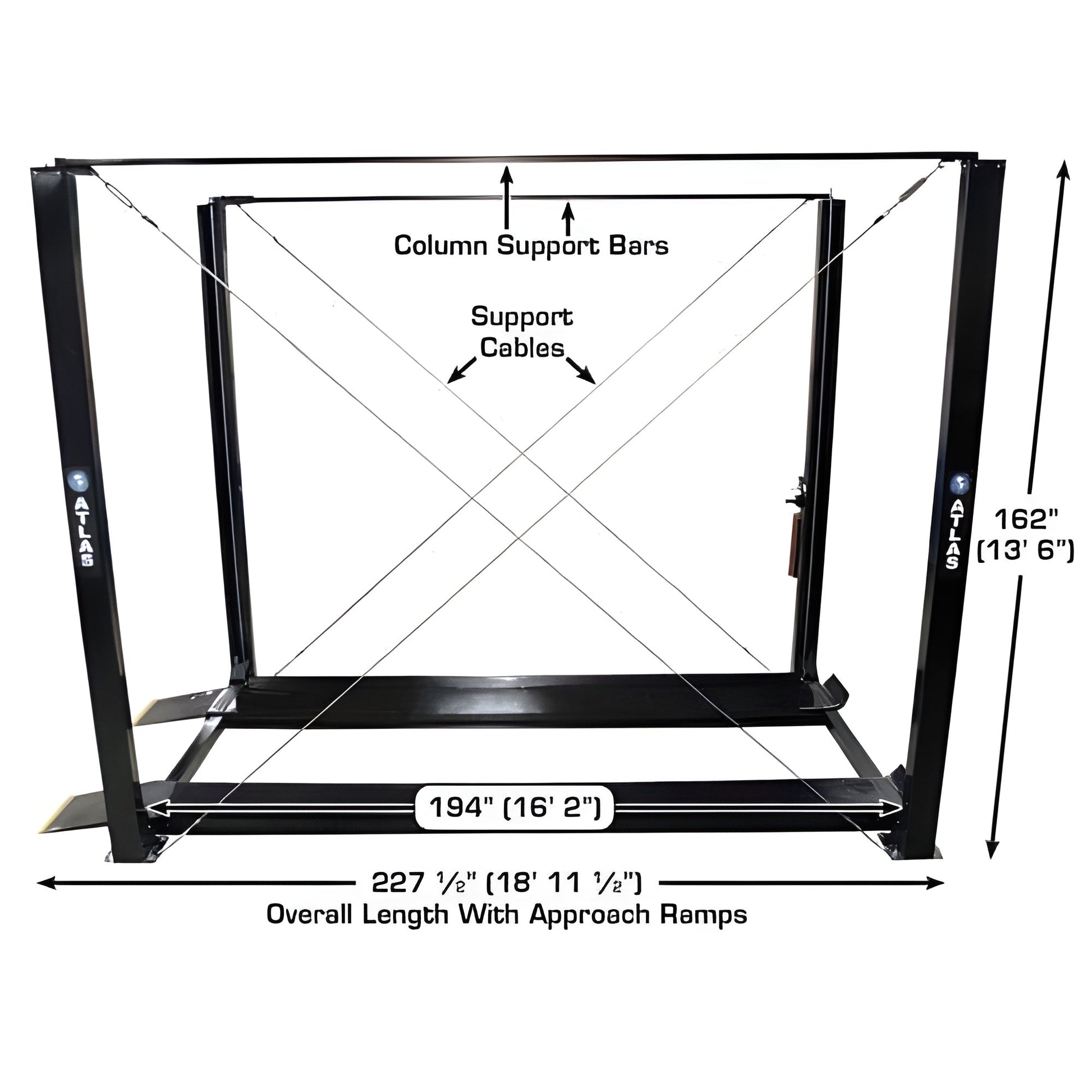

| Height Of Columns |
162" (13' 6") |

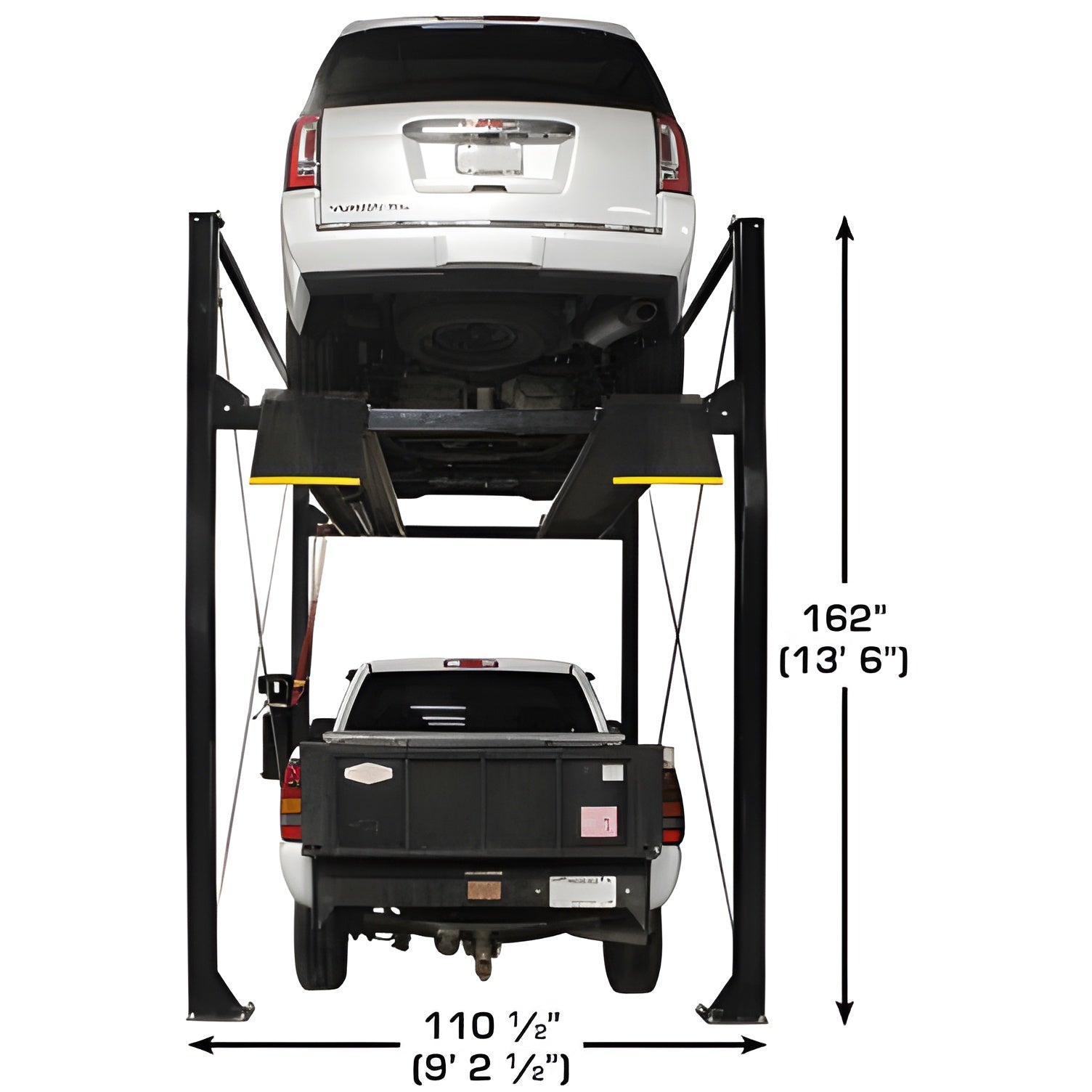

| Overall Width (Without Motor) |
110 1/2" (9' 2 1/2") |
| Overall Width (With Motor) |
123" (10' 3") |

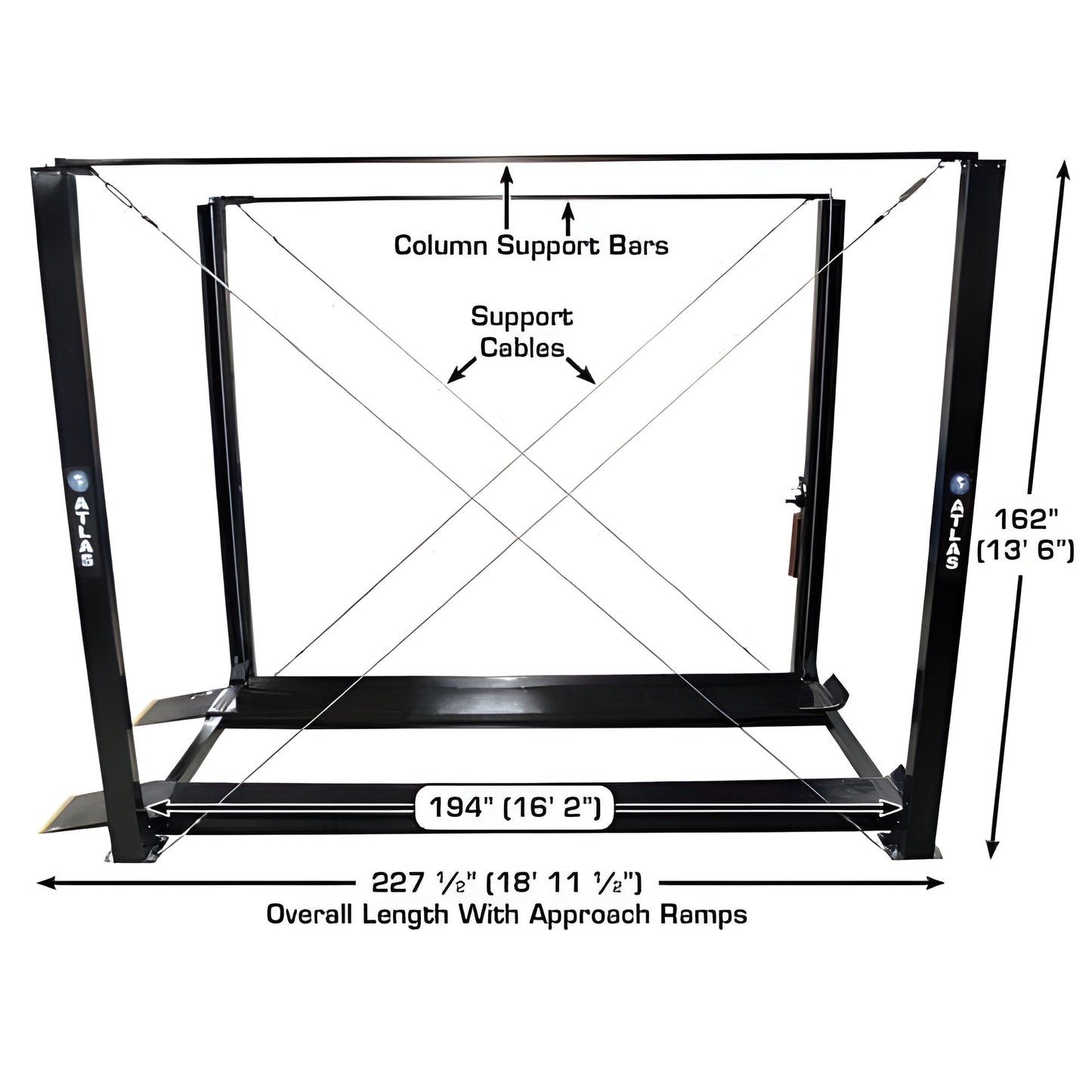

| Overall Length With Approach Ramp |
227 1/2" (18’ 11 1/2”) |
| Approach Ramp |
31" (2' 7") |
| Runway Width |
21" (w/ Rails) or 20" (Driving Surface) |
| Runway Length |
194" (16' 2") |
| Runway Thickness |
4 3/4" |
| Width Between Runways |
45" (3' 9") |
| Width Between Runway Rails |
41 3/4" (3' 5 3/4") |
| Outside Runway To Outside Runway |
83" (6' 11") |

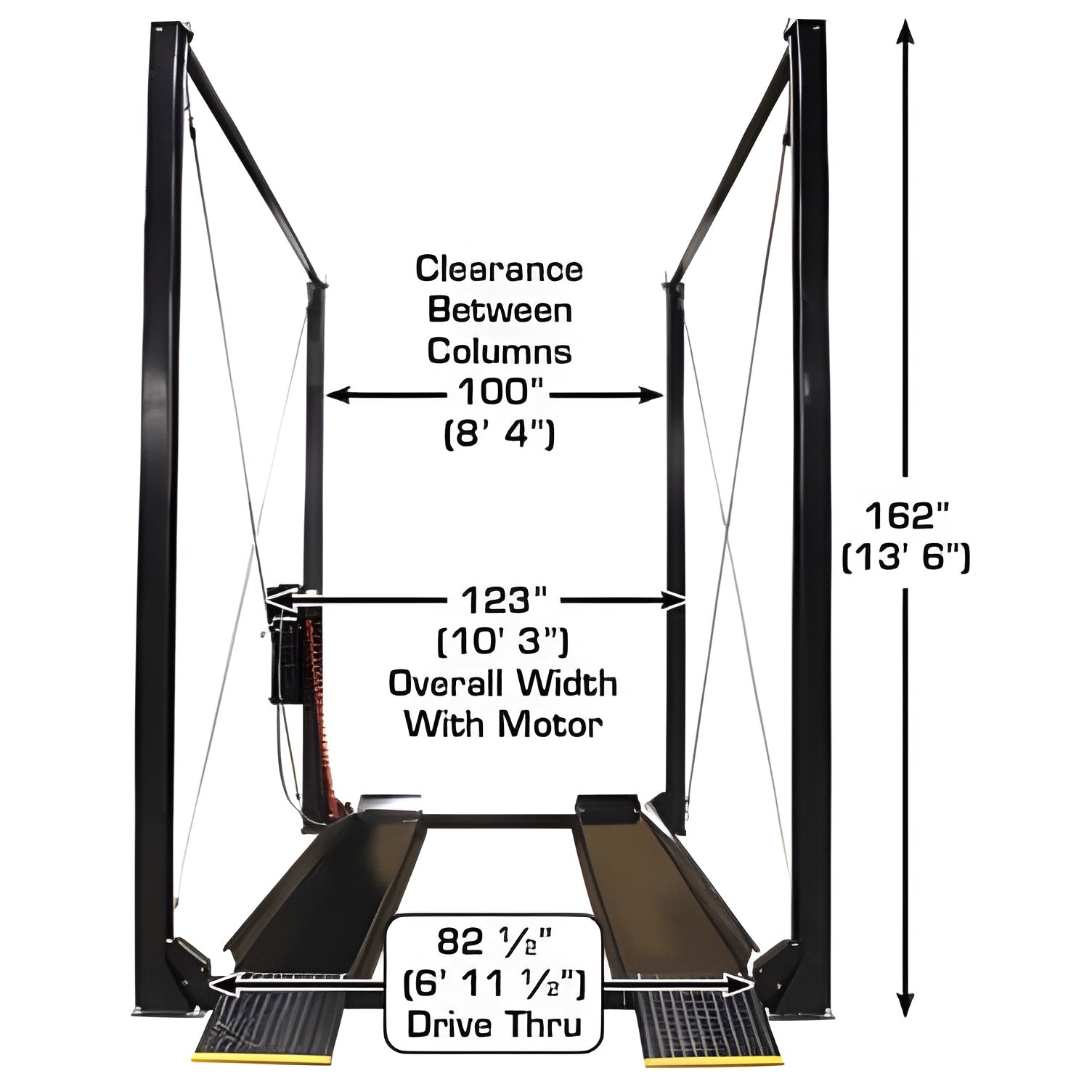

| Clearance Between Columns |
100" (8' 4") |
| Length Between Columns |
185" (15' 5") |
| Maximum Wheel Base |
182" (15' 2") |
| Drive Thru (Outside Of Tire To Outside Of Tire) |
82 1/2" (6' 10 1/2") |
| Motor/Electrical Requirement |
220 Volt, 1 phase, 30 AMP BREAKER REQUIRED |
| Locking Positions Under Runway |
|
| (+/ 2") |
|
| 23" (1' 11") |
|
| 29" (2' 5") |
|
| 35" (2' 11") |
|
| 41" (3' 5") |
|
| 47" (3' 11") |
|
| 52" (4' 4") |
|
| 58" (4' 10") |
|
| 64" (5' 4") |
|
| 70" (5' 10") |
|
| 76" (6' 4") |
|
| 82" (6' 10") |
|
| 88" (7' 4") |
|
| 94" (7' 10") |
|
| 100" (8' 4") |
|
| 106" (8' 10") |
|
| 112" (9' 4") |
|
| 118" (9' 10") |
|
| 124" (10' 4") |
|
| 130" (10' 10") |
|
| 136" (11' 4") |
|
| 142" (11' 10") |
|
Manual
Atlas PRO7000ST Manual
Atlas Garage Pro Lifts Cylinder Bleeding Procedure (Do this immediately after installation)
What our Expect Think
-
Super Tall Design: The Atlas Garage PRO7000ST 4-post lift is specifically engineered for taller vehicles, providing an impressive 7,000 lb lifting capacity while accommodating vehicles with higher clearance.
-
Heavy-Duty Construction: Built with high-quality steel for maximum strength and durability, ensuring it can withstand regular use in professional garages or home workshops.
-
Efficient Lifting: Equipped with a smooth hydraulic system for quick and easy operation, lifting and lowering vehicles with minimal effort.
-
Space-Saving: The 4-post design offers a compact footprint, allowing you to maximize garage space for both vehicle storage and repairs.
-
Safety Features: Includes multiple safety mechanisms such as secure locking positions and safety cables to ensure safe operation at all times.
-
Ideal for Taller Vehicles: Perfect for lifted trucks, vans, or any vehicle that requires additional height clearance for maintenance and repairs.
-
Reliable Performance: Designed for both professionals and enthusiasts, providing consistent and efficient performance for your garage or shop.
Q&A
Q: What is the lifting capacity of the Atlas Garage PRO7000ST?
A: The Atlas Garage PRO7000ST has a 7,000 lb lifting capacity, making it ideal for a wide range of vehicles, including smaller cars, trucks, and SUVs.
Q: What is the height range of the Atlas Garage PRO7000ST?
A: The Super Tall design of the PRO7000ST allows for extra clearance, providing a lifting height that can accommodate taller vehicles or offer more space for maintenance work.
Q: How many posts does the PRO7000ST have?
A: The Atlas PRO7000ST is a 4-post lift, offering excellent stability and ease of use, perfect for vehicle storage and maintenance.
Q: Is this lift suitable for home garages?
A: Yes, the PRO7000ST is designed to fit in most home garages, offering maximum vertical space while maintaining a compact footprint for easy installation.
Q: Can the Atlas Garage PRO7000ST be used in professional shops?
A: Yes, with its 7,000 lb capacity and Super Tall design, the PRO7000ST is well-suited for both home garages and professional shops that require extra height for vehicle lifting.
Q: Is the lift easy to install?
A: Yes, the PRO7000ST is designed for easy assembly with clear instructions, making it a convenient option for garage owners and mechanics alike.
Maintenance Tips
-
Inspect Cables and Pulleys – Regularly check cables and pulleys for wear, fraying, or any damage to ensure smooth and safe operation.
-
Lubricate Moving Components – Lubricate all moving parts, including posts, rails, and lift mechanisms, to minimize friction and prevent premature wear.
-
Monitor Hydraulic Fluid Levels – Keep an eye on the hydraulic fluid levels and top them up when necessary to maintain the lift's lifting power.
-
Clean the Lift Regularly – Remove dirt, grease, and debris from the lift to prevent buildup, and inspect for any loose or missing bolts and fasteners.
