Atlas Platinum PVL12 ALI 12,000 lb Overhead 2 Post Lift - ATEAP-PVL12-FPD
The Atlas Platinum PVL12 is an ALI Certified two post commercial grade 12,000 lb. capacity Heavy-Duty lift designed with the professional shop in mind. The low pad height allows this lift to accommodate both long wheel base trucks and passenger cars. The extra distance between the columns accommodates wider vehicles or vehicles with wide rearview mirrors. The extra height is perfect for tall vans and box trucks.The Platinum PVL12 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.The Atlas Platinum PVL12 features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry
Features
- 12,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide

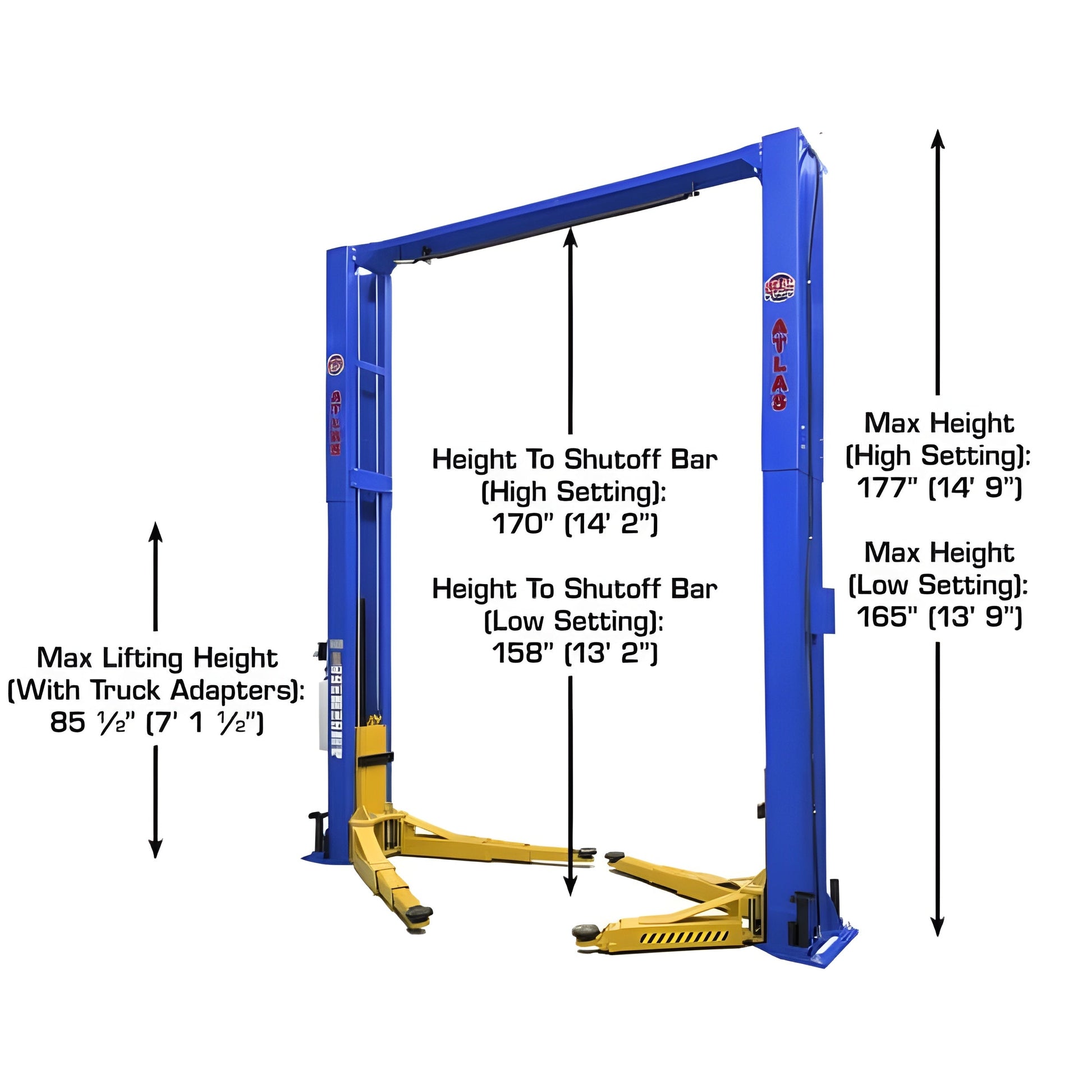

- Adjustable Height 165″ (13′ 9″) or 177″ (14′ 9″)
- 3-Stage Symmetric Arms
- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Thick Rubber Door Guards on Carriage
- Single Point Lock Releases
- Direct-Drive Cylinders
- Powder Coat Finish
- Free 8 Piece Truck Adapter Set
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
Specifications
| Atlas Platinum PVL12 Specifications |
|
| Capacity |
12,000 LB. |
| Overall Height |
165" (13’ 9”) or 177” (14’ 9”) |
| Overall Floor Width |
150 3/8" (12’ 6 3/8”) |
| Outside Column to Outside Column |
139 1/8" (11’ 7 1/8") |
| Maximum Lift Height (Without Adapters) |
73 5/8" |
| Maximum Lift Height (With Adapters) |
85 1/2" |
| Minimum Arm Height |
4 1/2" |
| Inside Column |
122 5/8” (10’ 2 5/8”) |
| Drive Thru |
109 5/8" (9’ 1 5/8”) |
| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |
| Base Of Lift |
17 1/2" x 20 1/2" |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Adapter Heights |
4 Each 4.5”, 8.5” |
| Arm Hole/Adapter Peg Size |
1.57” |
| |
|
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
Manual
Atlas Platinum PVL12 Manual
ALLY AL3500 Power Unit Specs and Parts List
What our Expect Think
-
12,000 lb Lifting Capacity – Handles larger trucks, SUVs, and commercial vehicles with ease.
-
Overhead Design – Provides clear floor space, allowing for efficient workspace management.
-
Heavy-Duty Construction – Built with reinforced steel for long-term durability and stability.
-
Versatile Arm Configuration – Three-stage front arms & two-stage rear arms ensure compatibility with a wide range of vehicles.
-
Dual Hydraulic Cylinders – Delivers smooth and stable lifting performance.
Q&A
Q: What is the Atlas Platinum PVL12 ALI 12,000 lb Overhead 2-Post Lift used for?
A: This ALI-certified lift is designed for lifting heavier vehicles like trucks, SUVs, and commercial vans in professional auto shops, ensuring safe and efficient service access.
Q: What is the lifting capacity?
A: The Atlas PVL12 has a 12,000 lb capacity, making it perfect for larger trucks and fleet vehicles.
Q: Does it have a clear-floor design?
A: Yes! The overhead (clear-floor) design keeps the floor space clear for unobstructed movement of tools and mechanics.
Q: Is this lift symmetric or asymmetric?
A: It features versatile arm configurations, allowing for both symmetric and asymmetric lifting based on vehicle type.
Q: What is the maximum lifting height?
A: It reaches a maximum lift height of over 78 inches, providing ample undercarriage workspace.
Maintenance Tips
-
Inspect Before Use – Check hydraulic hoses, cables, and bolts for wear or leaks.
-
Lubricate Moving Parts – Apply grease to carriage slides, lift arms, and pulleys.
-
Monitor Hydraulic Fluid – Maintain proper fluid levels and replace if contaminated.
-
Check Safety Locks – Ensure locks engage properly before lifting any vehicle.
-
Inspect Cable Tension – Adjust equalizer cables regularly for balanced lifting.
-
Keep It Clean – Remove dirt and debris to prevent corrosion and ensure smooth operation.
