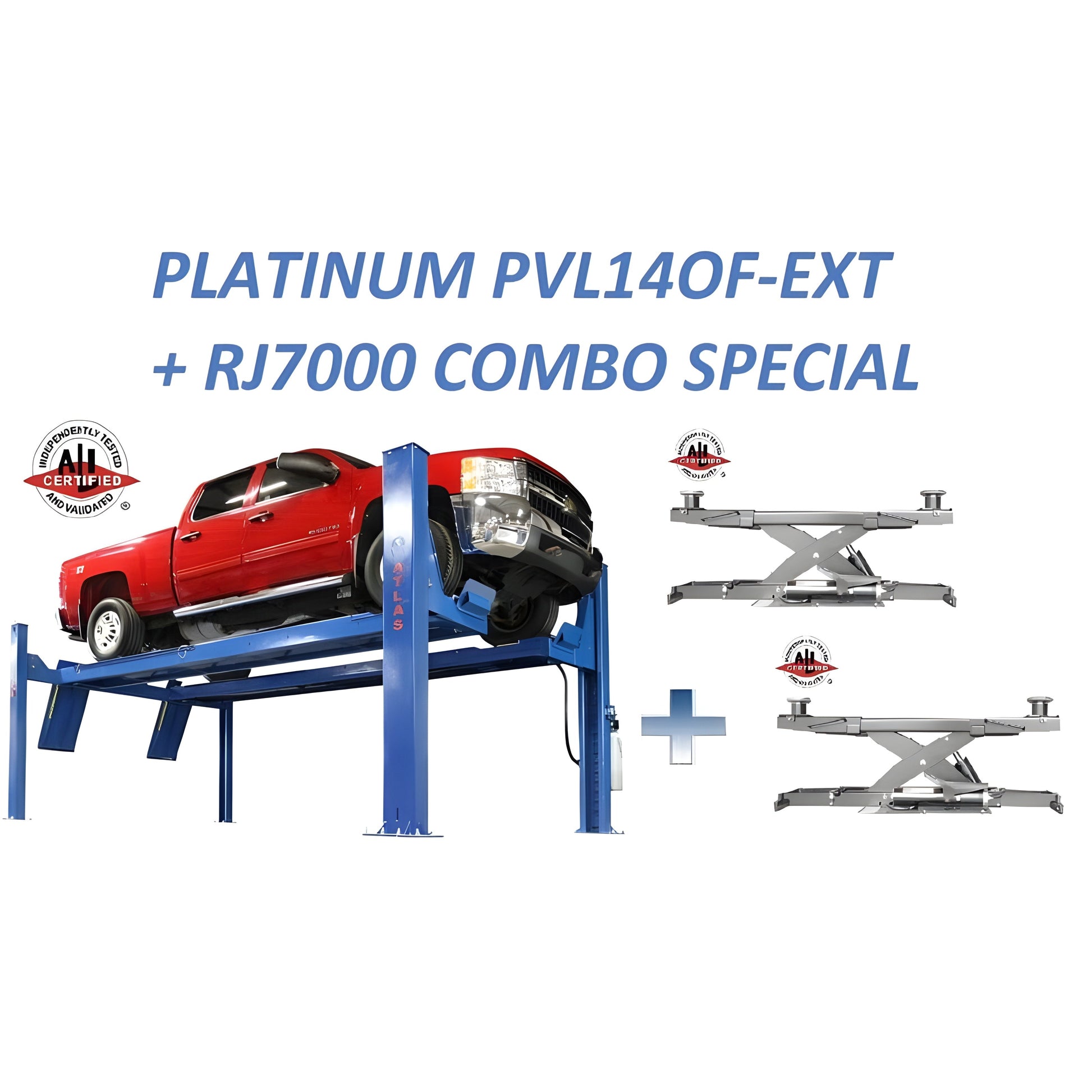

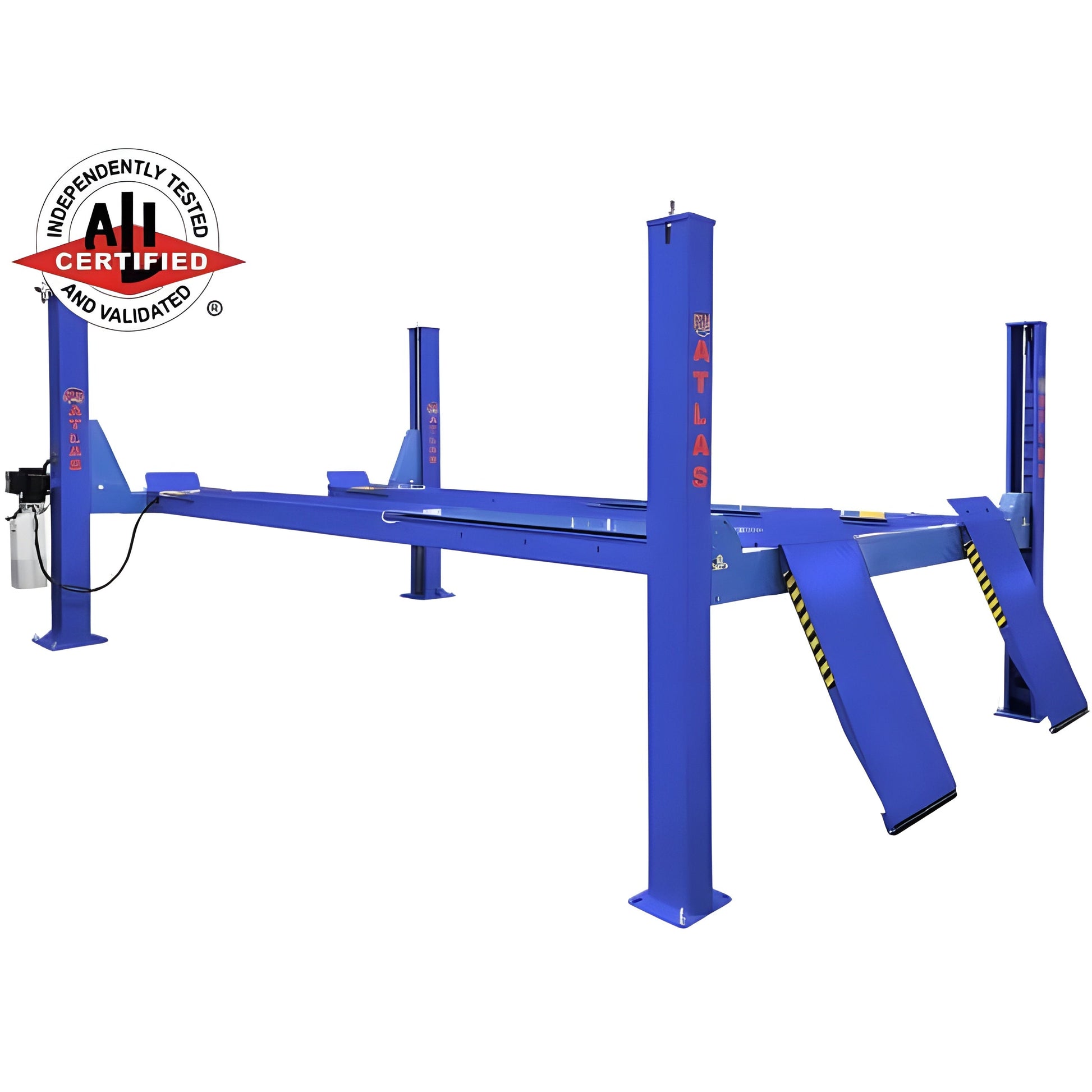

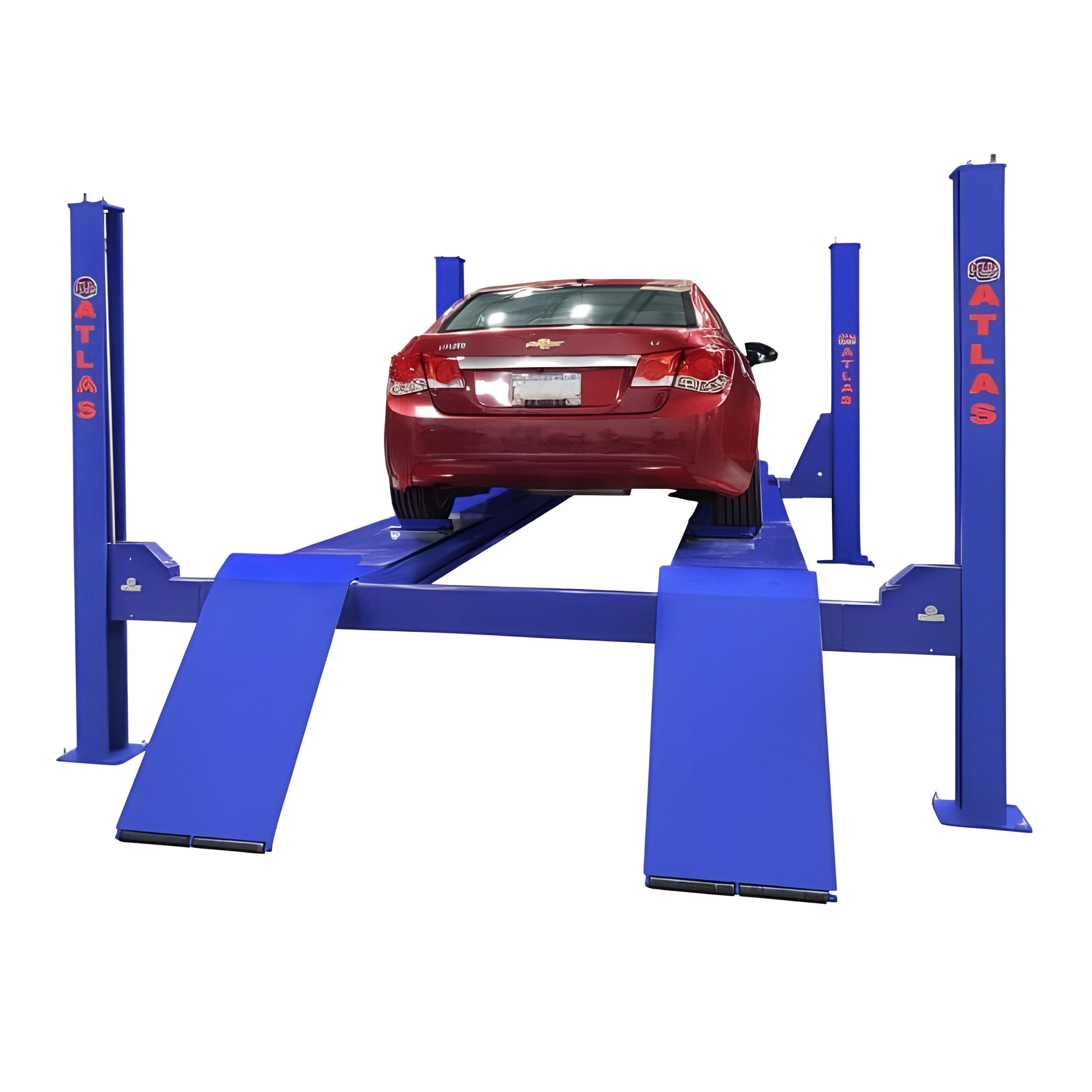

The Atlas Platinum PVL14OF-EXT is a four post commercial grade Open-Front Alignment lift designed with the professional shop in mind. This lift has extra long runways and can accommodate a variety of cars, vans, SUVs, trucks, and commercial vehicles. the Open-Front design allows better access to the underside of vehicles during use. The AP-PVL14OF-EXT features built in slip plates and a pair of heavy duty turntables so the user can do wheel alignments.The Platinum PVL14OF-EXT uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.The Atlas Platinum PVL14OF-EXT is also ALI and backed by one of the industry’s best warranties for an added peace of mind.This product features an ALLY Hydraulic AL3000 Power Unit. This premium power unit is by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading This combo package also includes two of the popular ALI Atlas Platinum RJ7000 Rolling bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.

Features

PLATINUM PVL14OF-EXT

• 14,000 lb. Capacity

• Heavy Duty, Commercial Grade

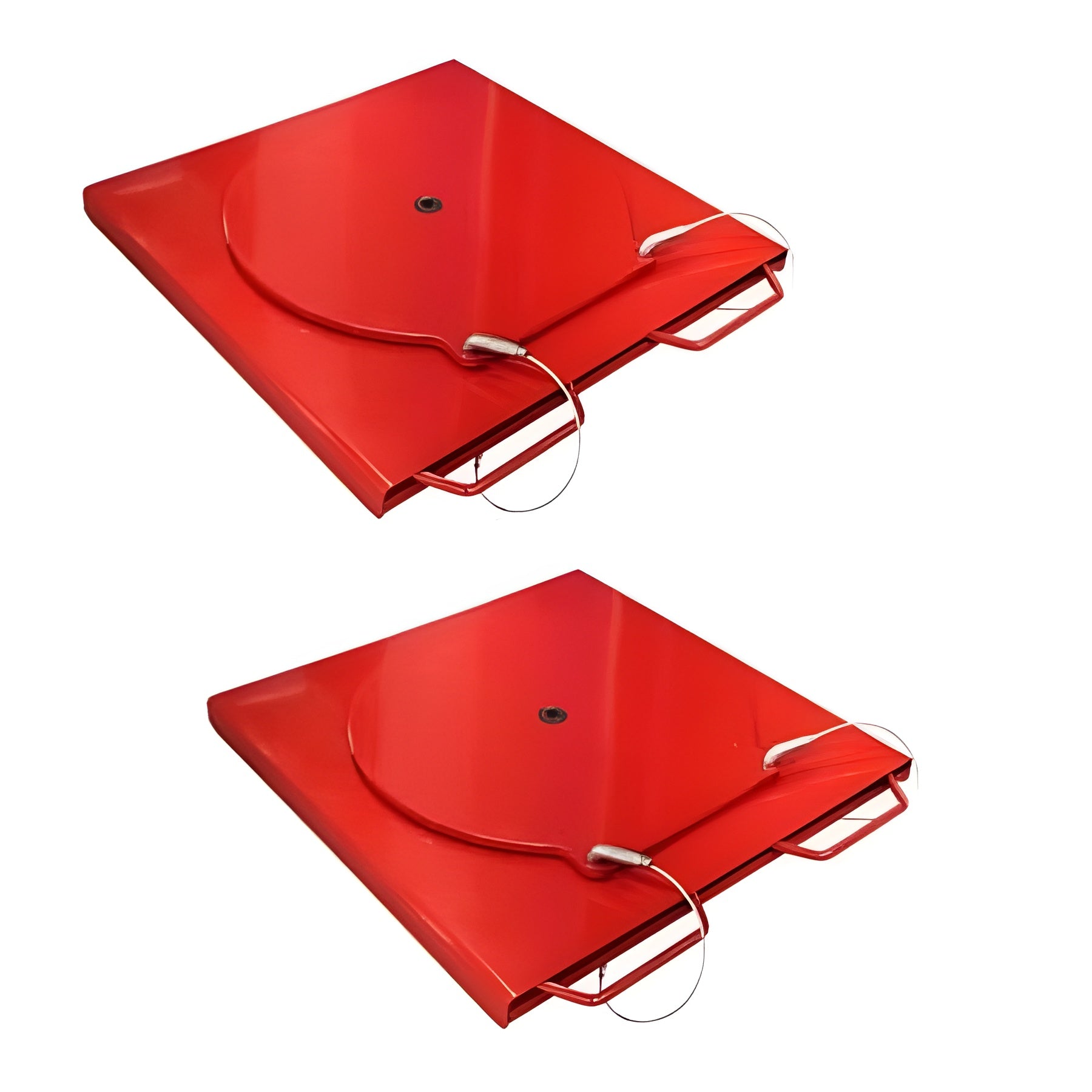

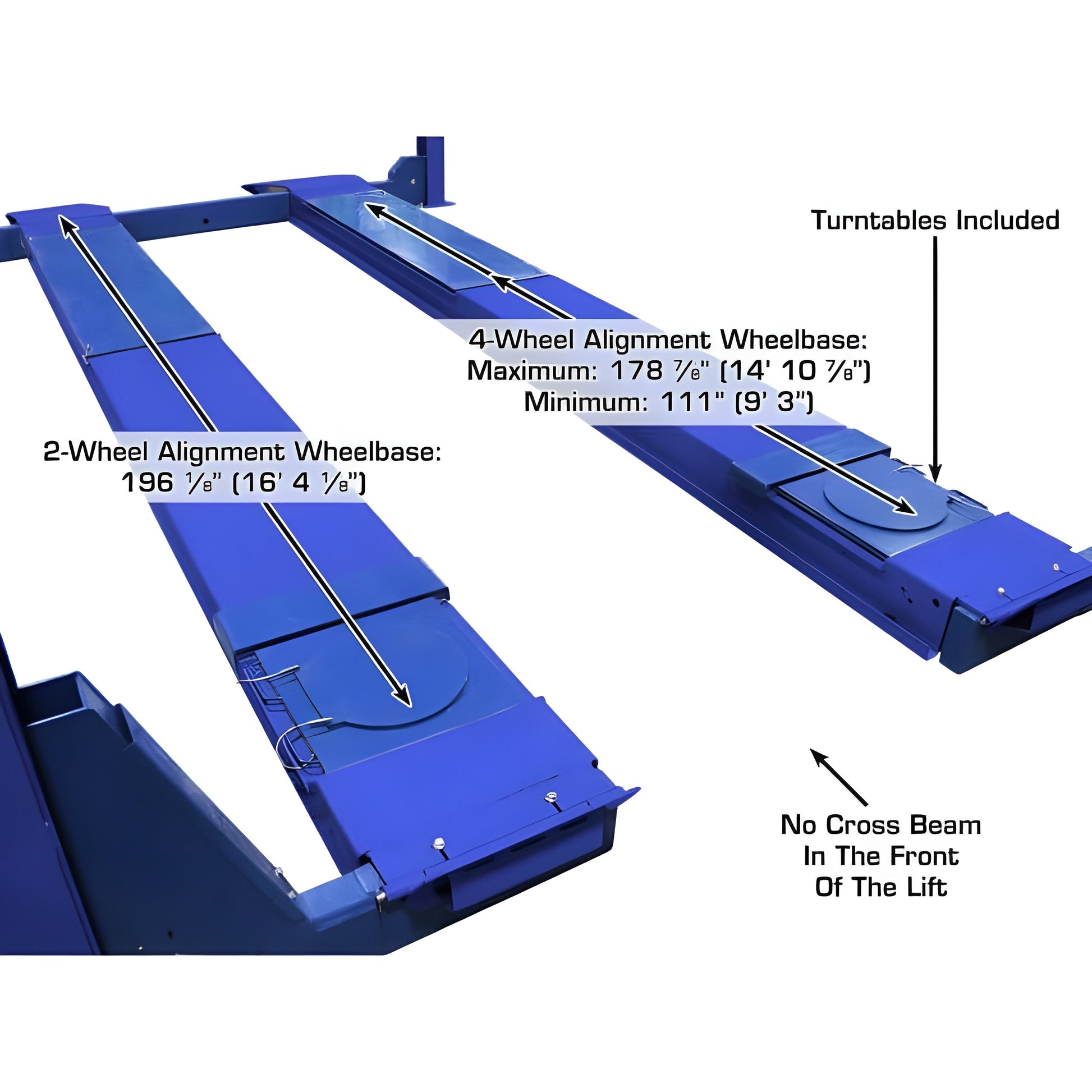

• Alignment Lift, Includes Built in Slip Plates & Turntables

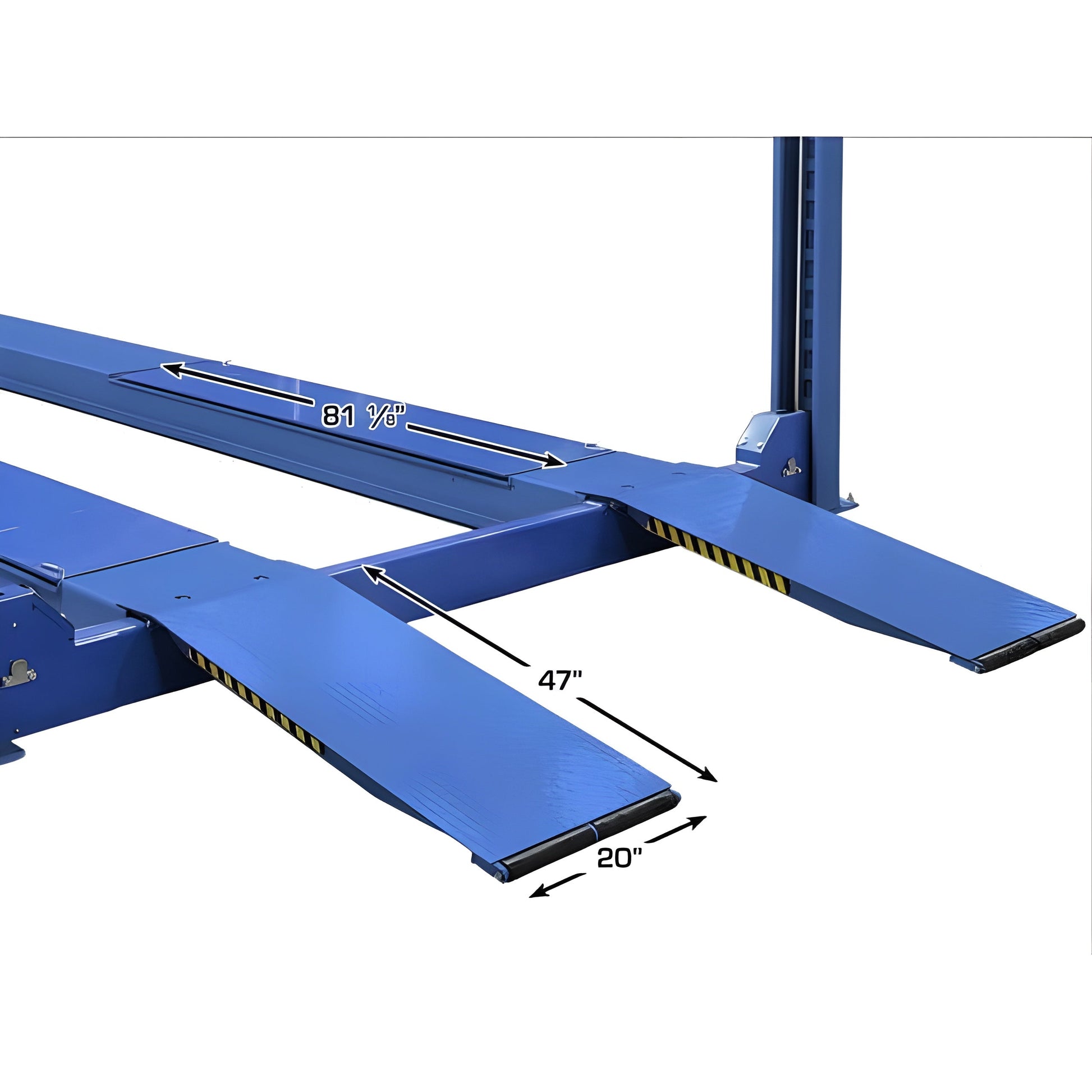

• Open Front Design for Better Access

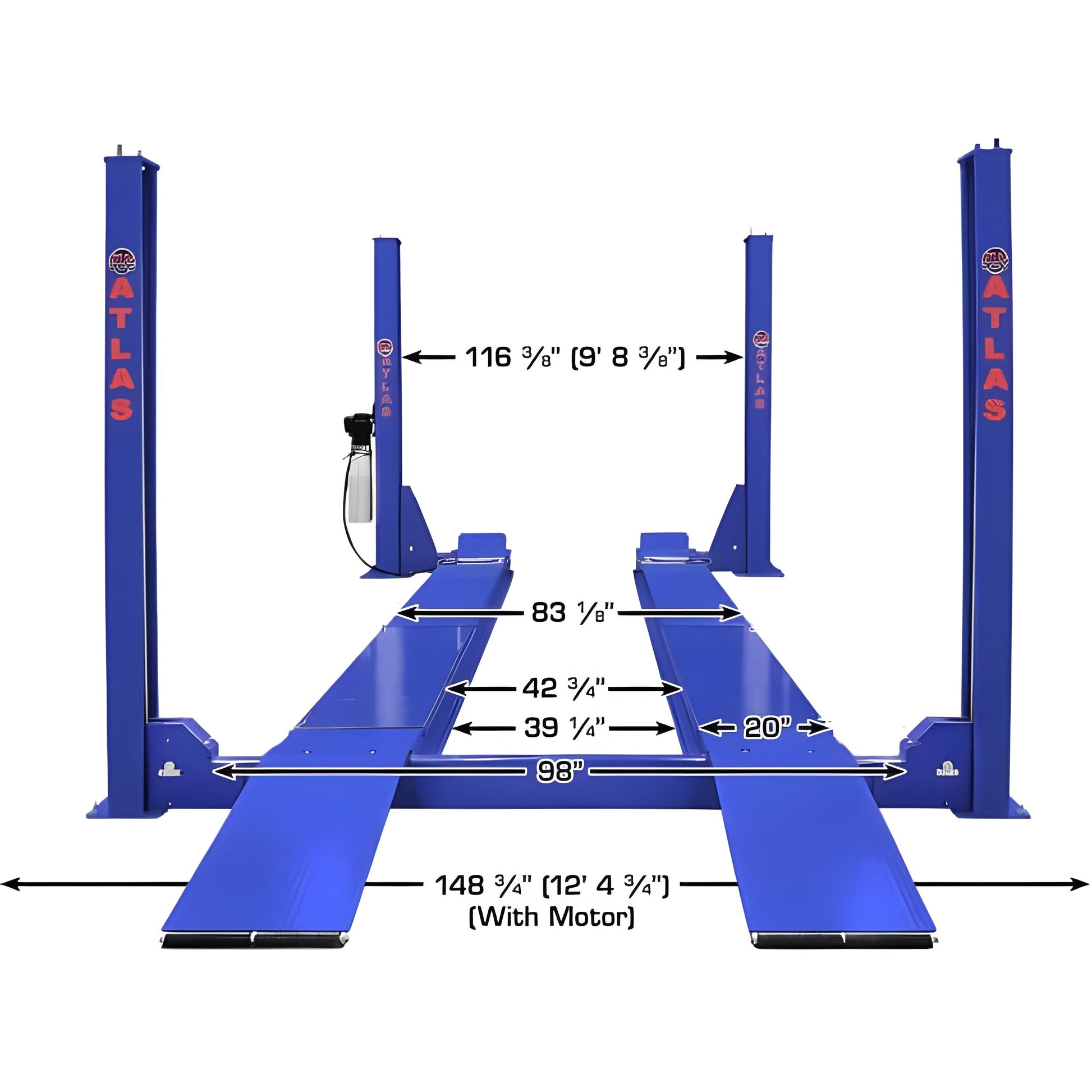

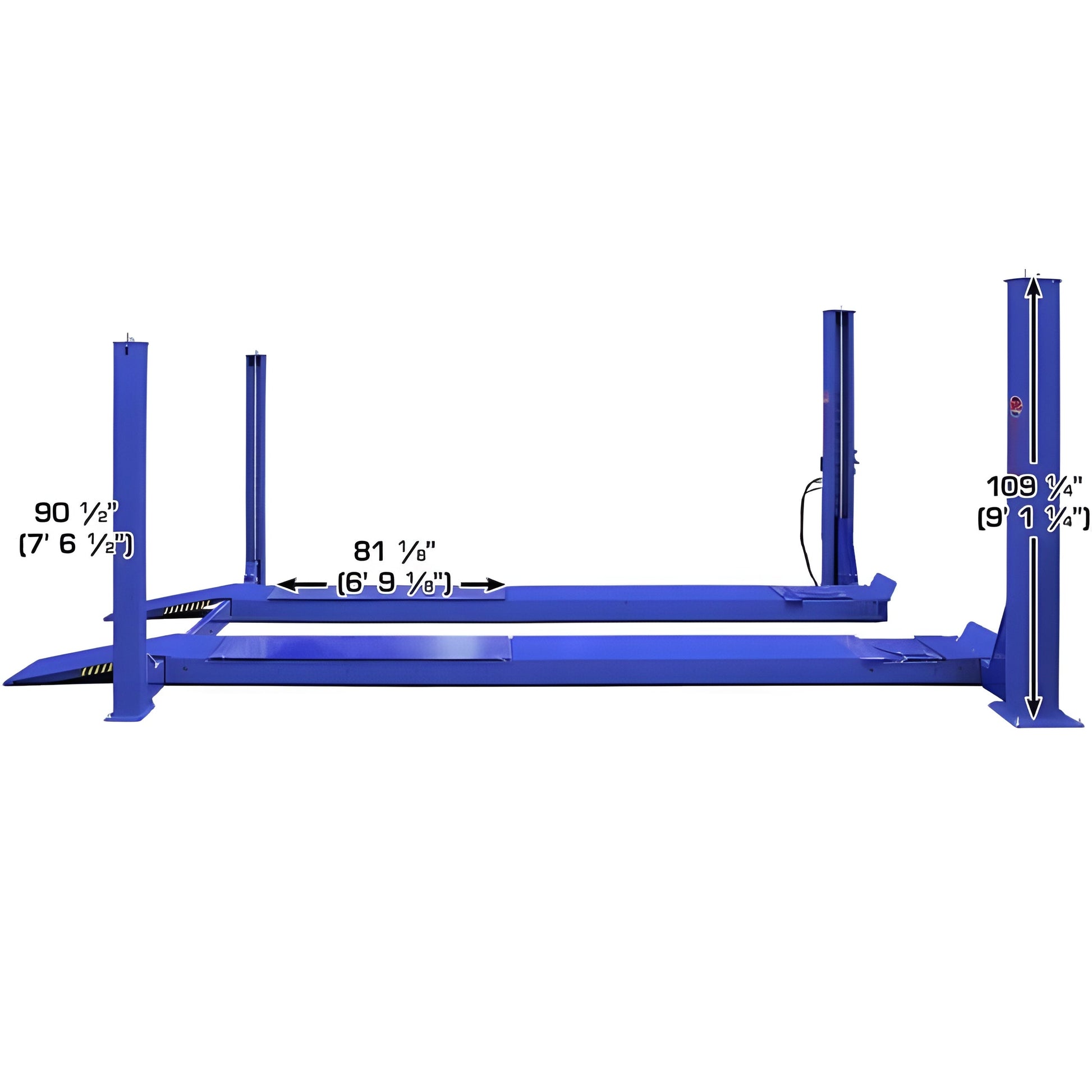

• Extra Long Runways

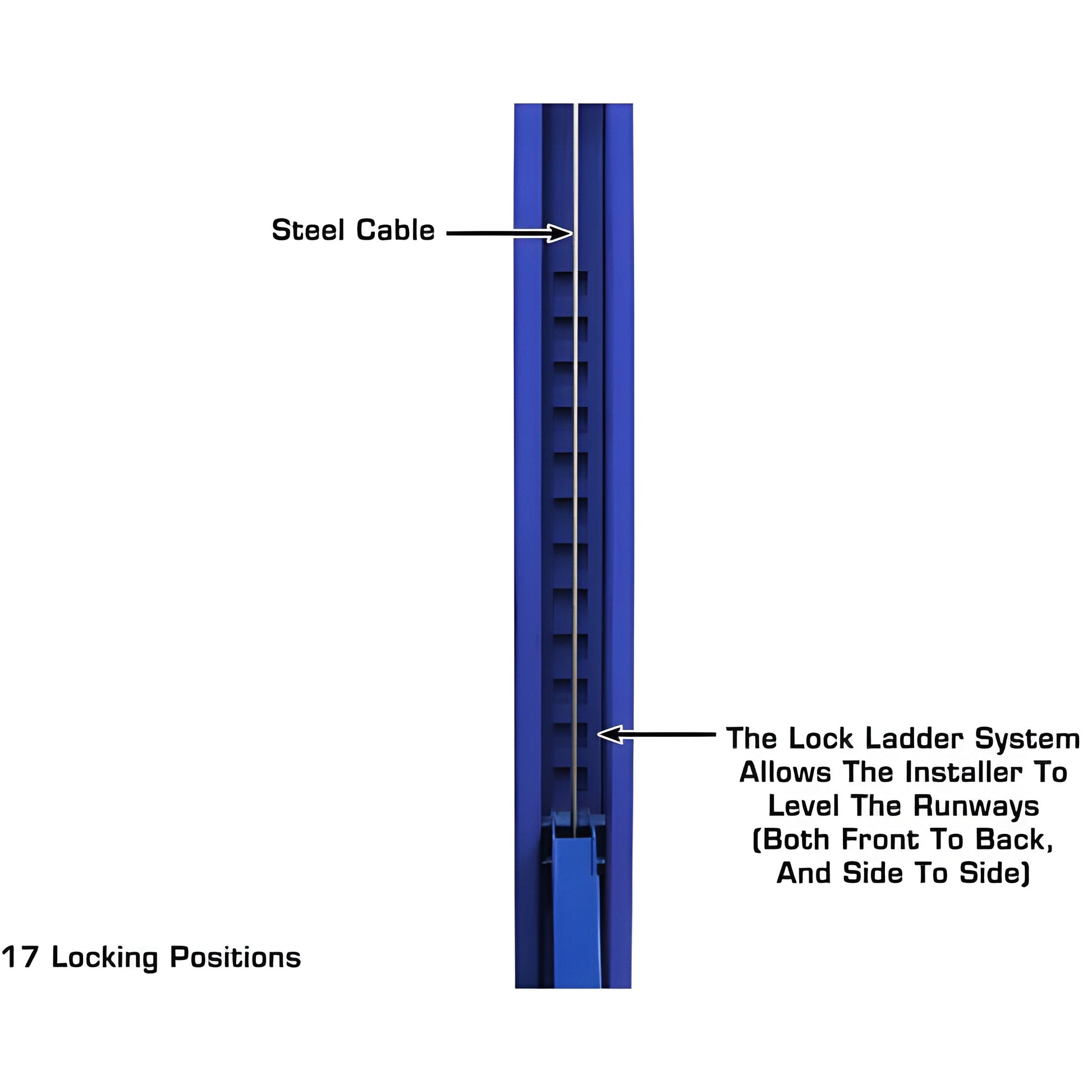

• Adjustable Lock Ladder Design

• Higher Quality Powder Coat Finish

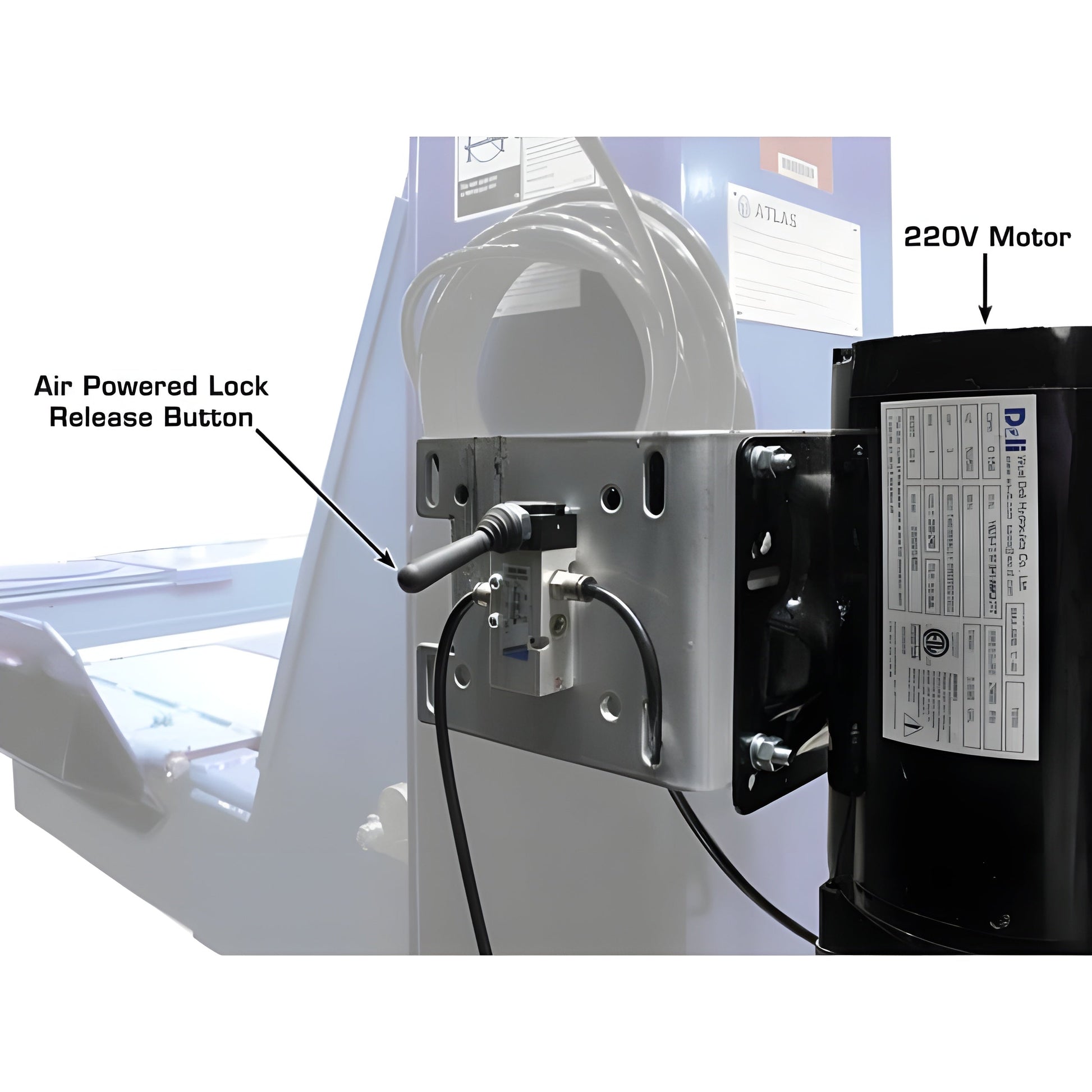

• Air Operated Single Point Lock Release (External Air Supply Required)

• Lock Ladder Design

• Double Lock Safety System

• Powder Coat Finish

• Steel Approach Ramps Included

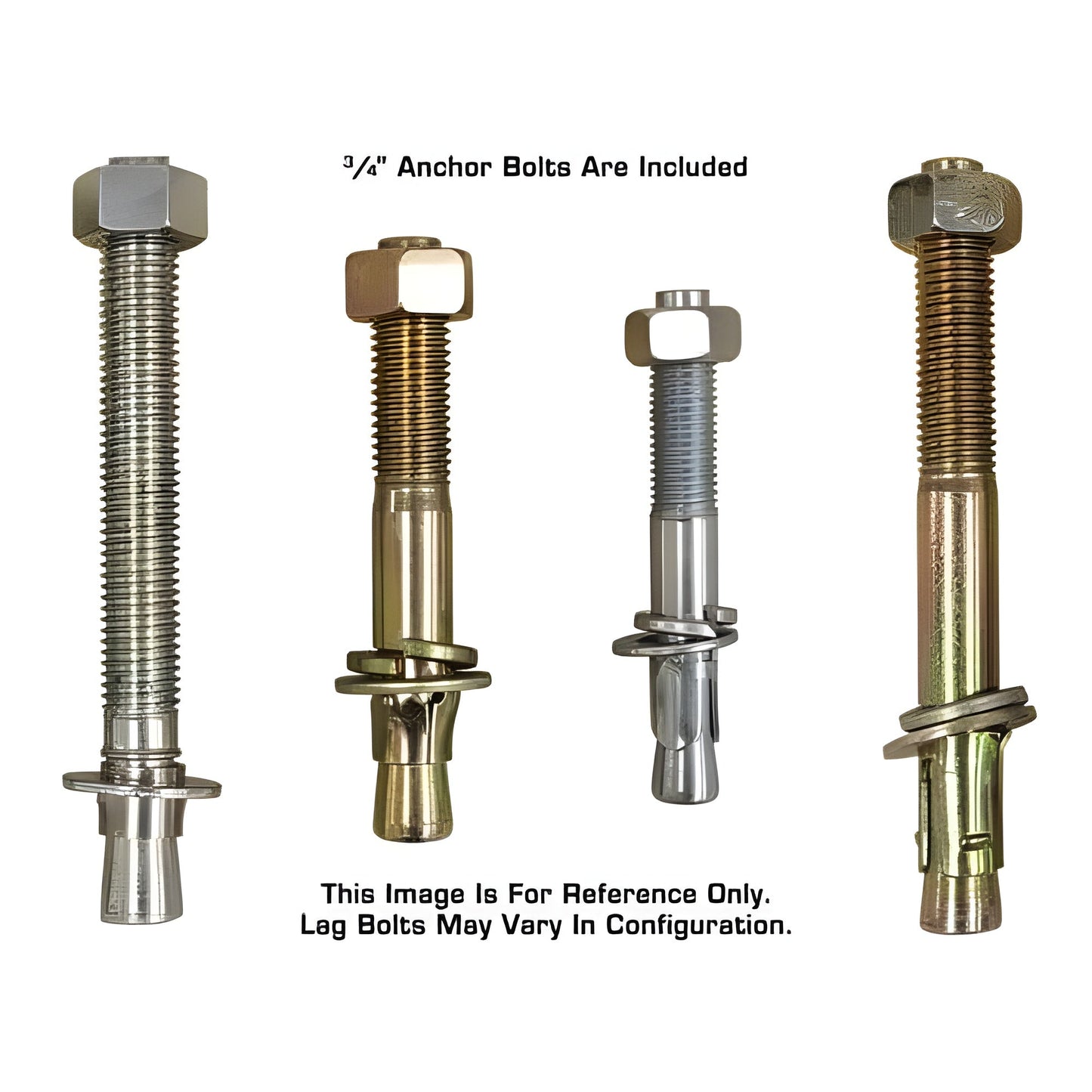

• Mounting Hardware Included

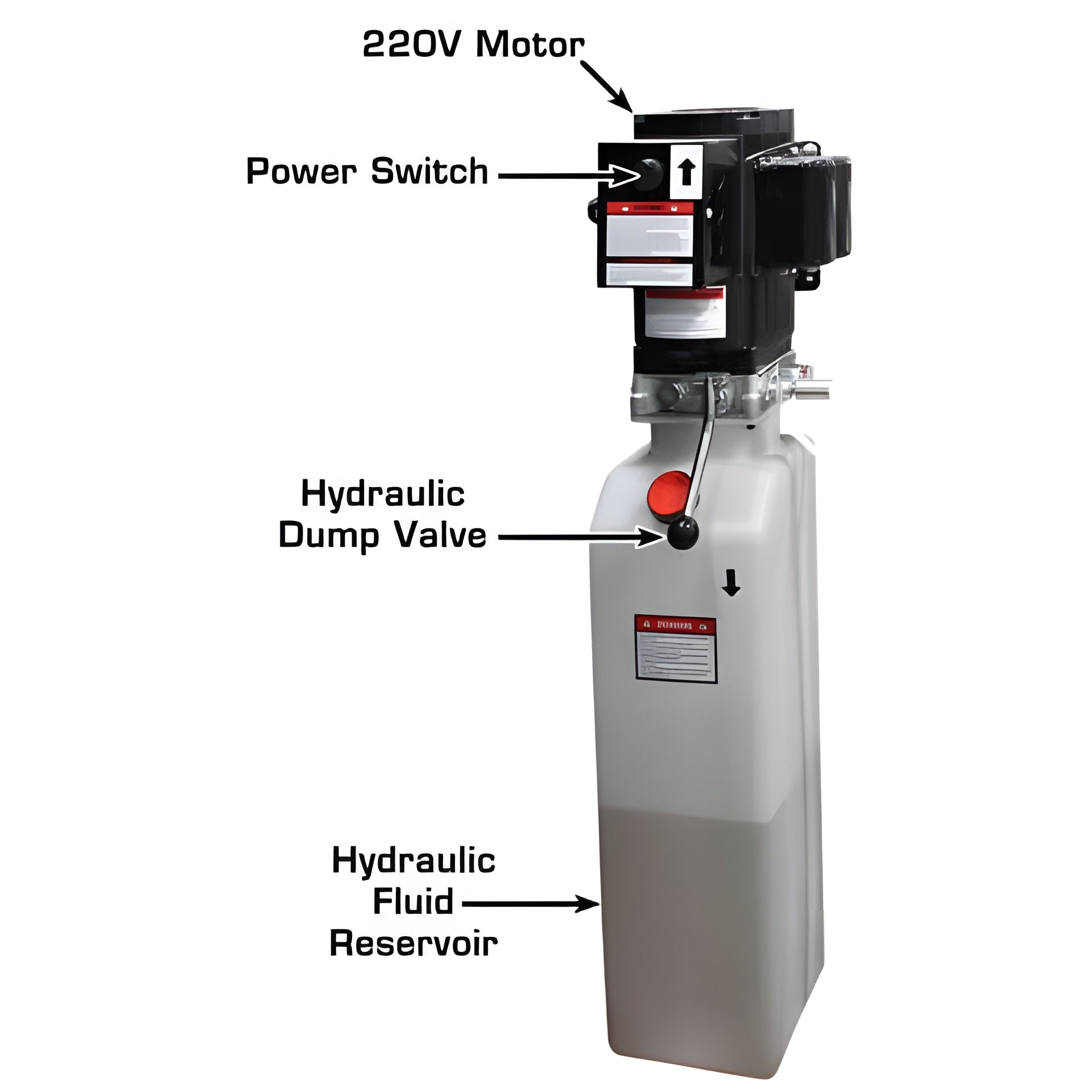

• Standard with Premium ALLY Powerunit

• 220volt/1phase Electric Operation (Requires a 30amp Breaker)

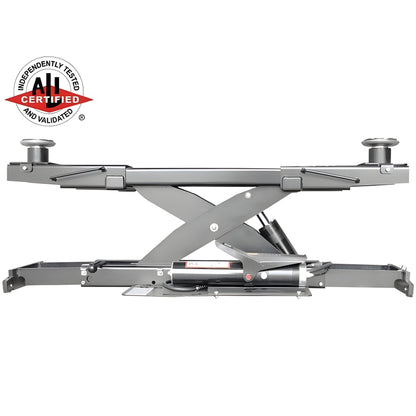

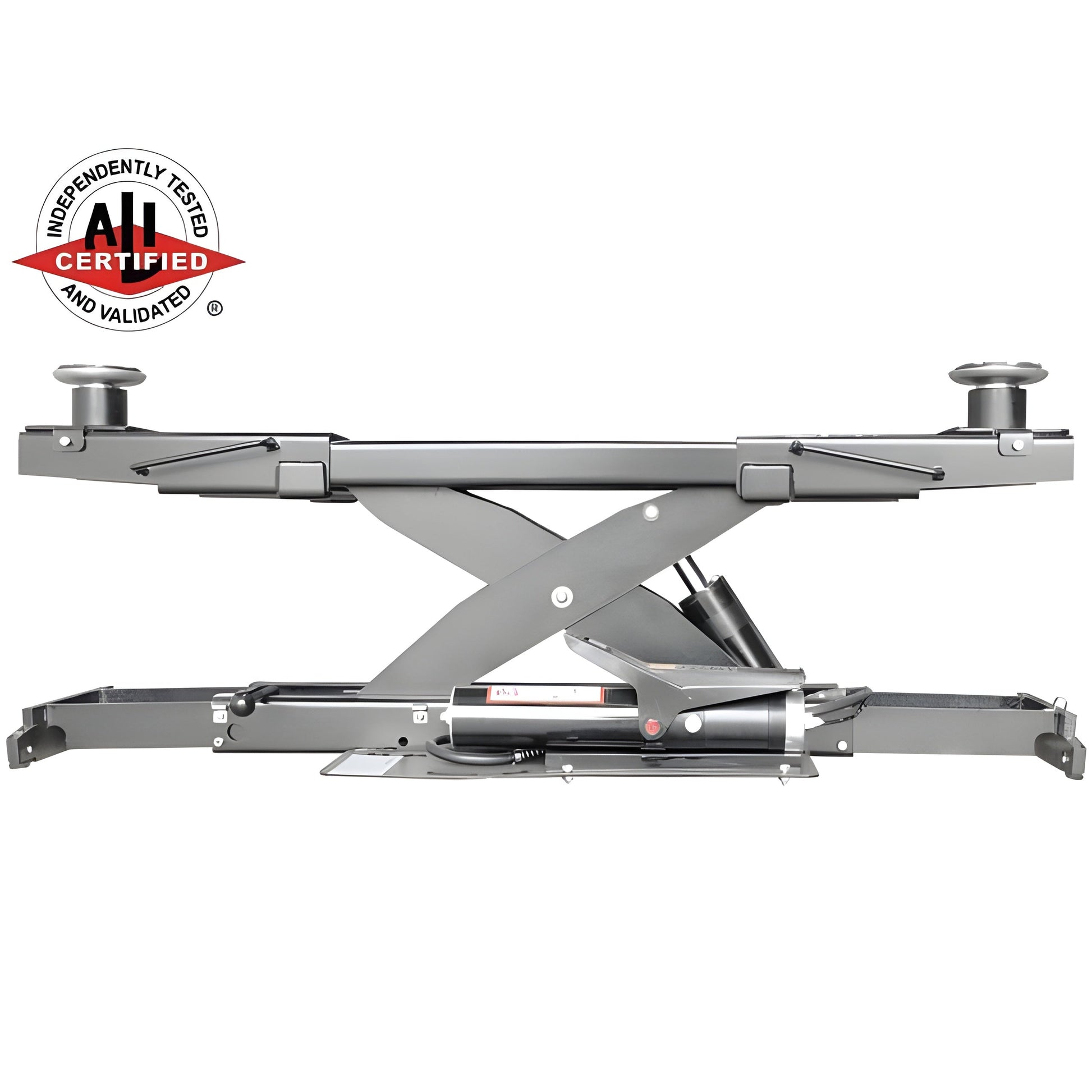

PLATINUM RJ7000

• 7,000 lb. Capacity

• Air/Hydraulic Operated

• Two Safety Lock Positions

• Double Screw-Up Adapters Included

• Compact Size with Low Profile

• Smooth Rolling Action

• Scissor mechanism allows for level lifting

• Powder Coated Finish


Specifications

Manual

Atlas Platinum PVL14OF-EXT Manual

Atlas Platinum RJ7000 Manual

What our Expect Think

• 14,000 lb Lifting Capacity – Built for heavy-duty vehicles, including trucks and SUVs.
• Open-Front Design – Provides unrestricted access to vehicle undercarriage for easy maintenance.
• RJ7000 Rolling Jacks Included – Enables wheel-free lifting for brake, tire, and suspension work.
• Extended Runways – Perfect for longer vehicles, ensuring a secure and stable lift.
• Multi-Position Locking System – Offers flexible height adjustments for various service tasks.
• Rugged Powder-Coated Finish – Enhances durability and resistance against wear and corrosion.

Q&A

Q: What is the lifting capacity?
A: The Atlas PVL14OF-EXT has a 14,000 lb lifting capacity, perfect for trucks, SUVs, and commercial vehicles. The RJ7000 rolling jacks provide additional lifting options for wheel service.

Q: What does “OF-EXT” stand for?
A: OF means Open-Front, which eliminates the front crossbeam for easier access to the vehicle’s underside. EXT stands for Extended, meaning it has longer runways to accommodate larger wheelbase vehicles.

Q: What is the maximum lifting height?
A: The lift raises vehicles up to 75 inches, offering plenty of space for undercarriage work.

Maintenance Tips

PVL14OF-EXT 4-Post Lift

1. Inspect Before Use – Check hydraulic hoses, cables, and bolts for wear or leaks.
2. Lubricate Moving Parts – Apply grease to lift cables, pulleys, and roller guides.
3. Monitor Hydraulic Fluid – Maintain proper levels and replace if contaminated.
4. Check Safety Locks – Ensure locks engage properly before lifting.
5. Inspect Cables & Tension – Adjust cables regularly for even lifting.
6. Keep It Clean – Remove dirt and debris to prevent rust and ensure smooth operation.

RJ7000 Rolling Jacks

1. Inspect Hydraulic Cylinder – Check for leaks and proper function.
2. Lubricate Slide Rails – Apply grease to keep movement smooth.
3. Monitor Load Capacity – Do not exceed the 7,000 lb weight limit.
4. Test Locking Mechanism – Ensure the safety locks engage correctly.
5. Check Air Lines (if applicable) – Inspect for leaks or damage.
