Atlas Platinum PVL15 15,000 lb Heavy Duty 2-Post Lift - ATEAP-PVL15-FPD

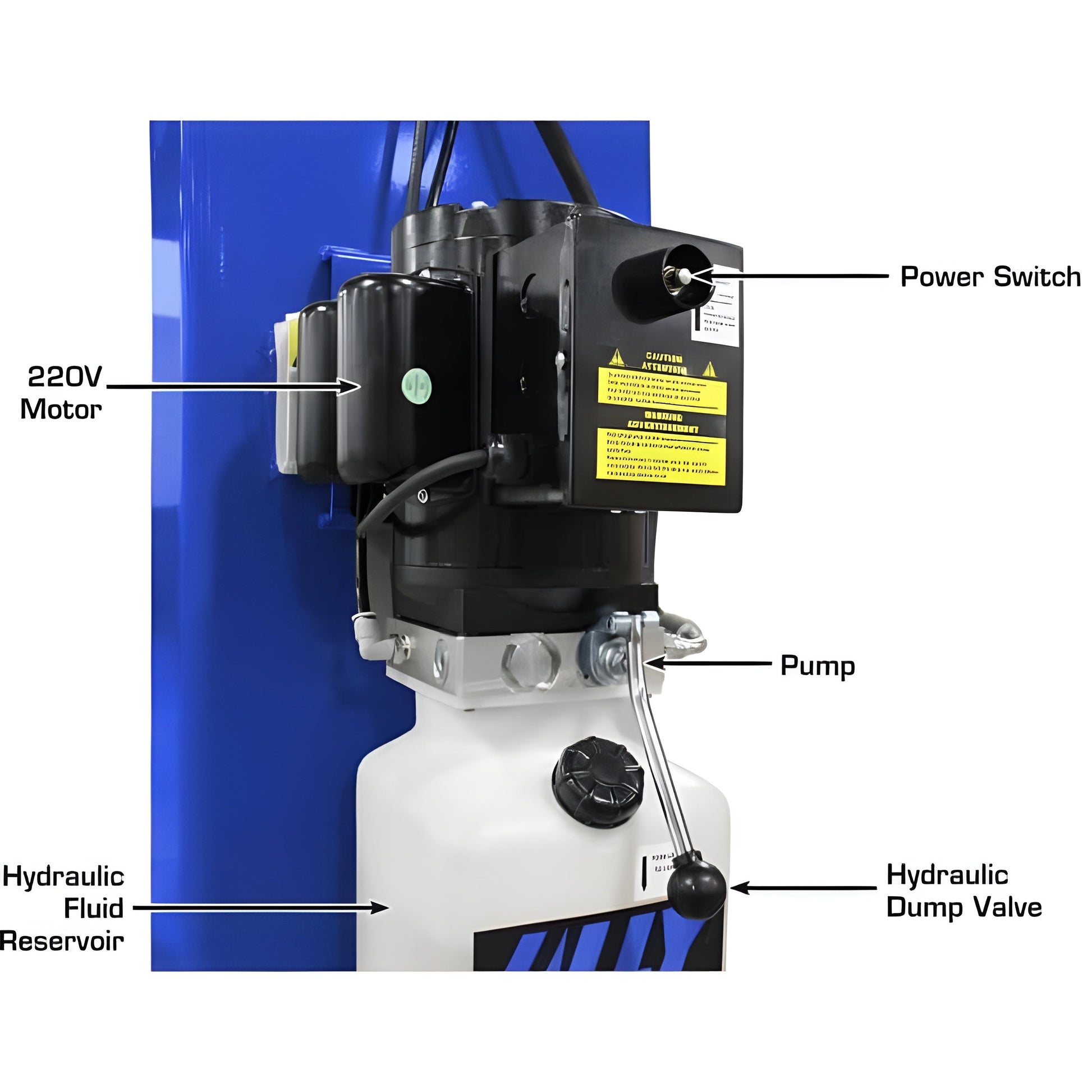

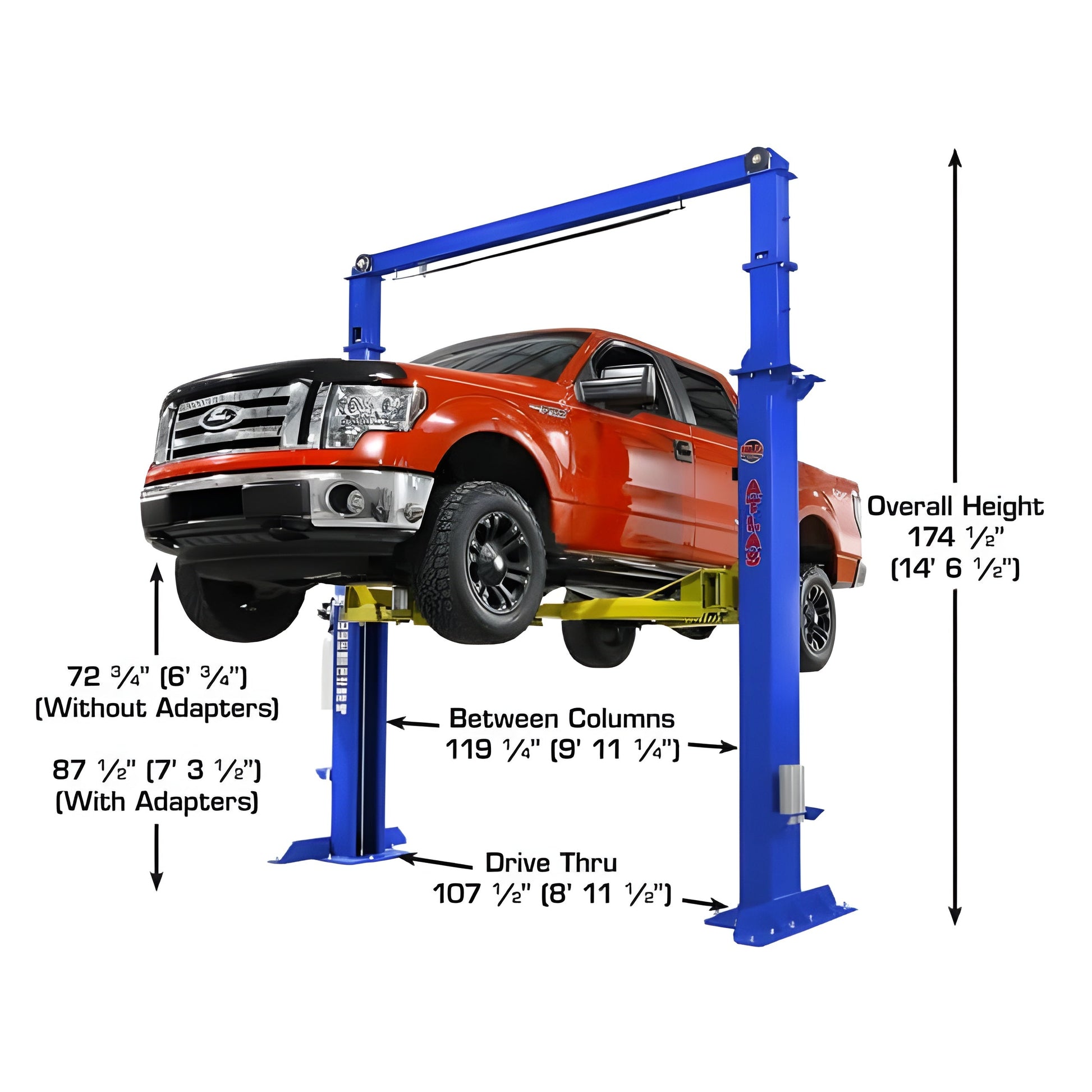

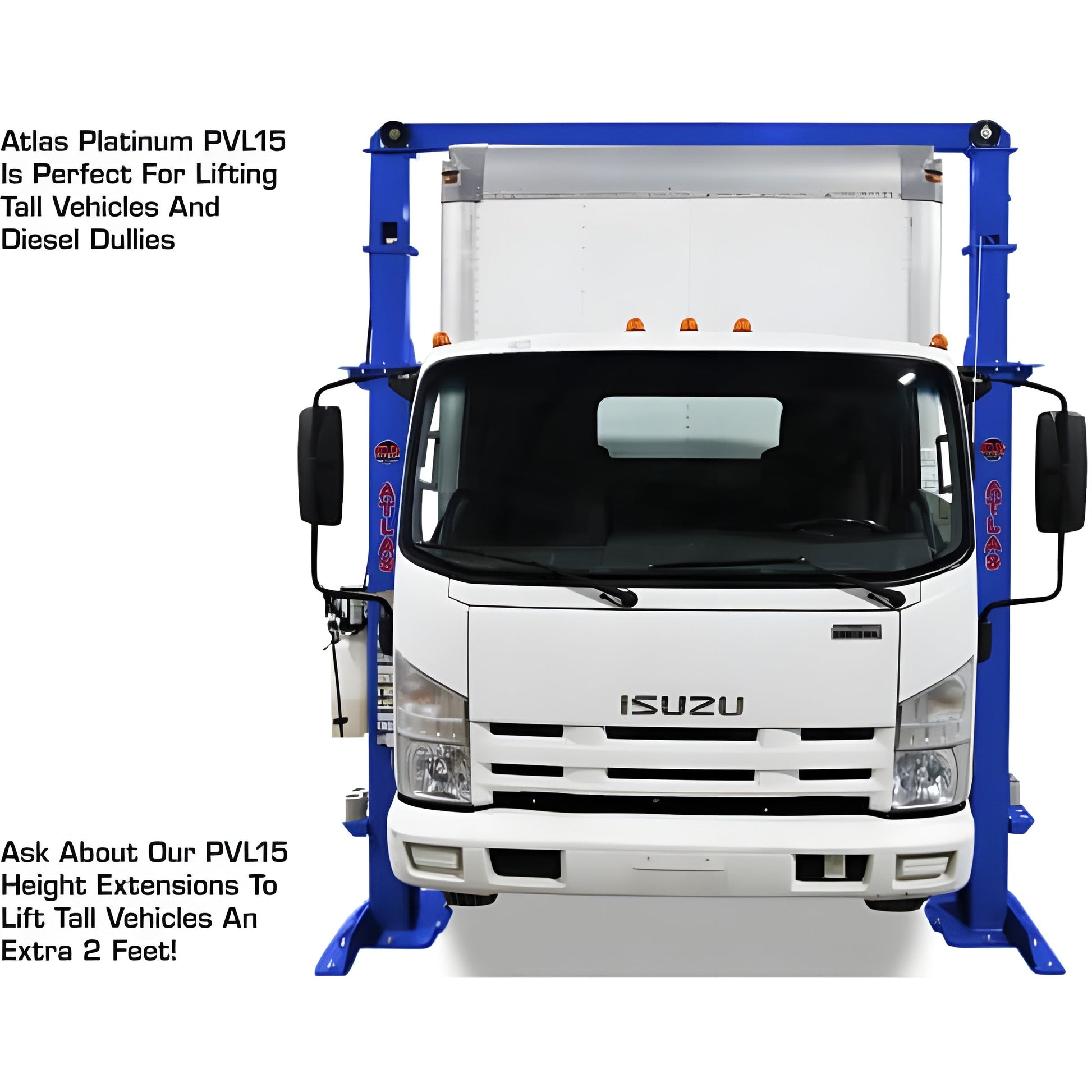

The Atlas Platinum PVL15 is an , commercial grade, 15,000 lb. capacity overhead two-post lift designed to accommodate both long wheel base trucks and service trucks. The Platinum PVL15 has an overall height of 174 1/2″ (14′ 6 1/2″), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit.This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading
Features
- 15,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall & Extra Wide
- Overall Height 174 1/2″ (14′ 6 1/2″)

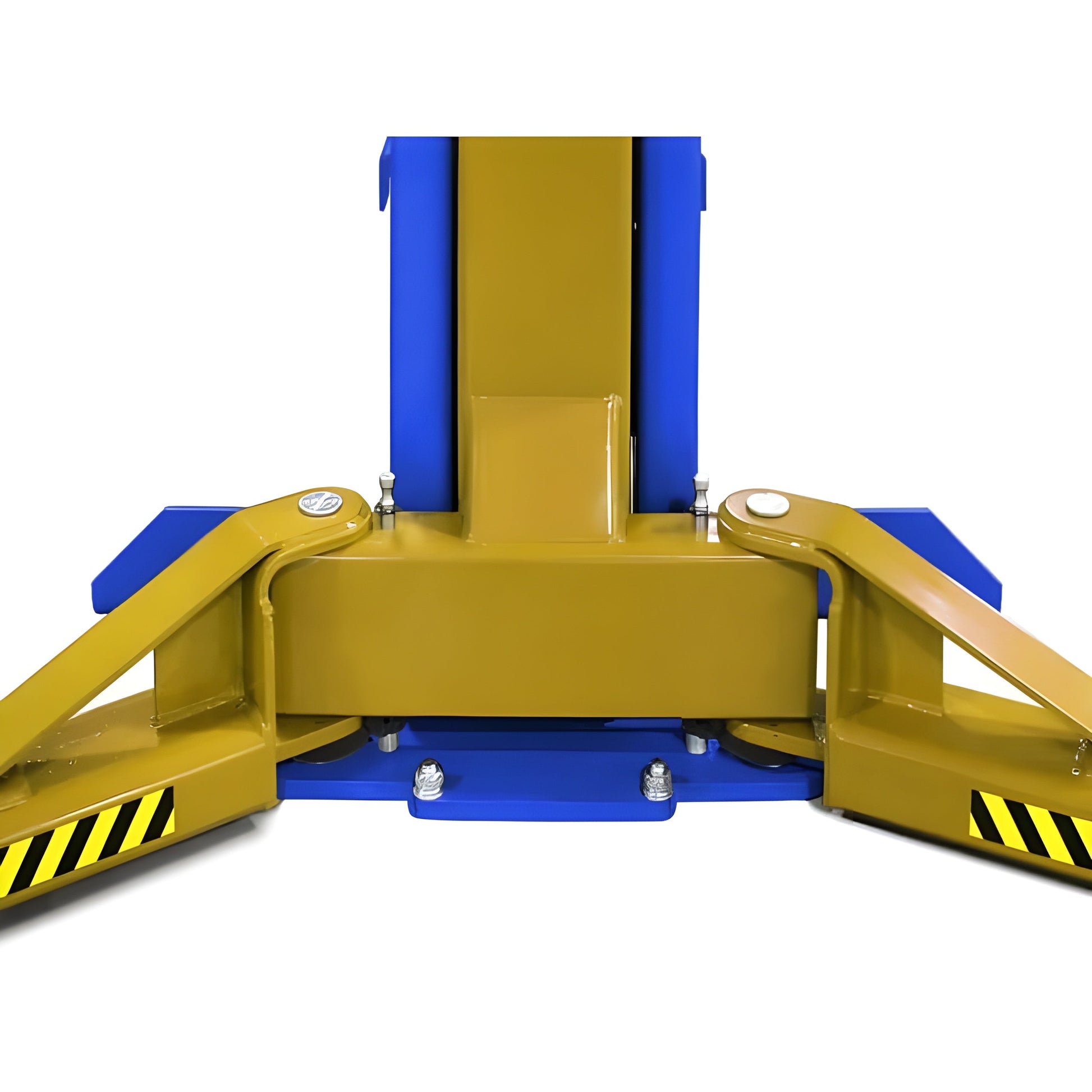

- Padded Carriages

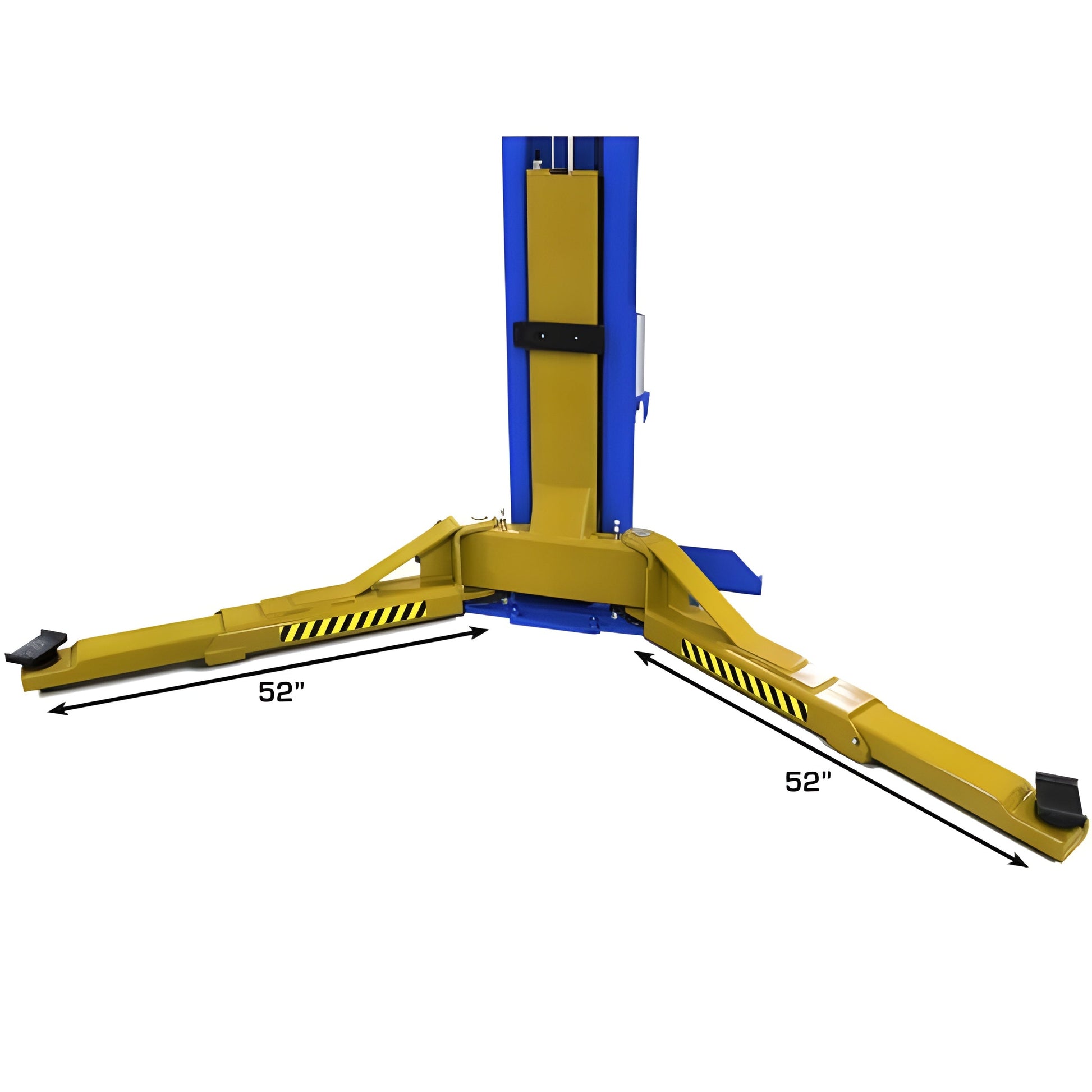

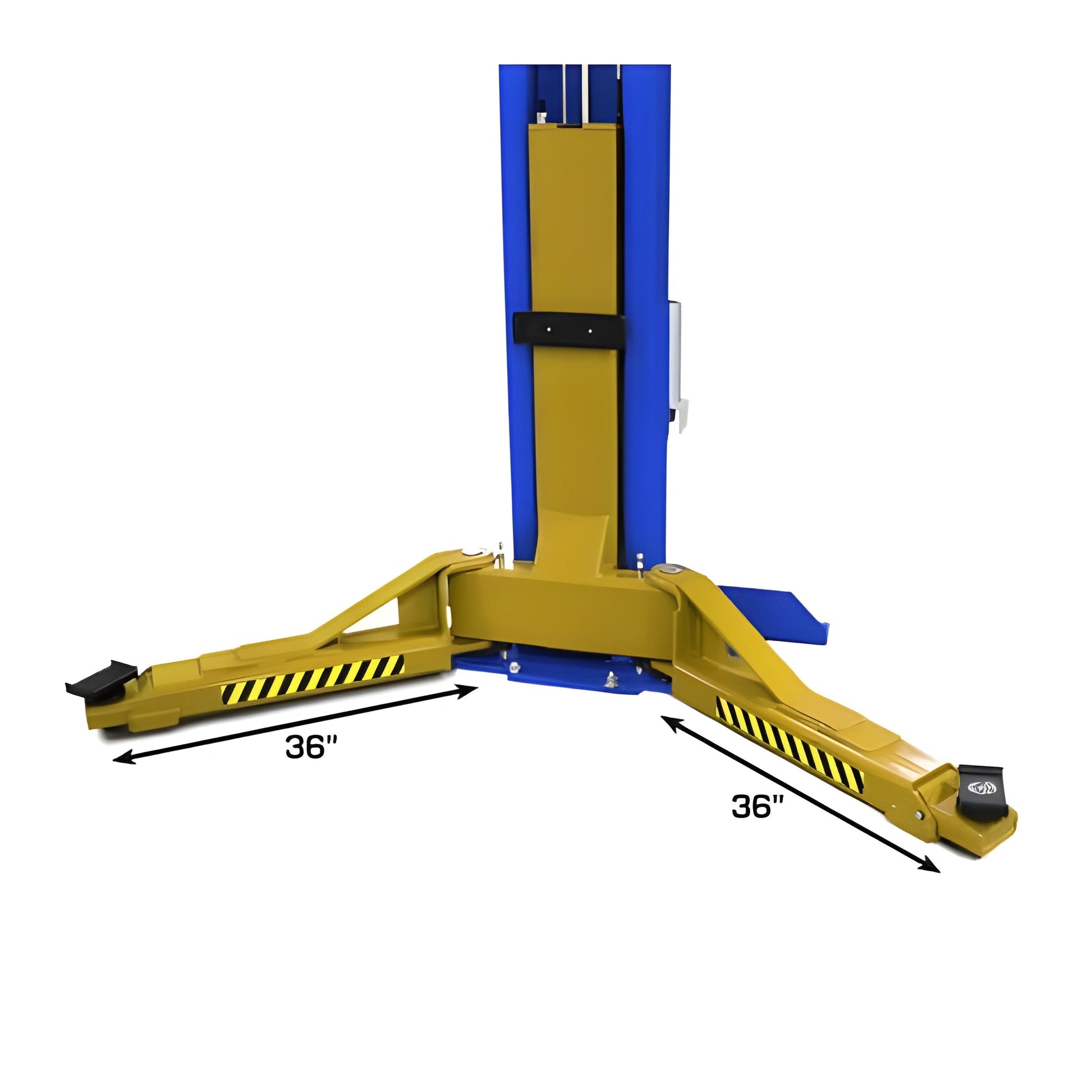

- Symmetric Arms
- Professional Grade Arm Lock Restraint System
- Dual Direct-Drive Hydraulic Cylinders

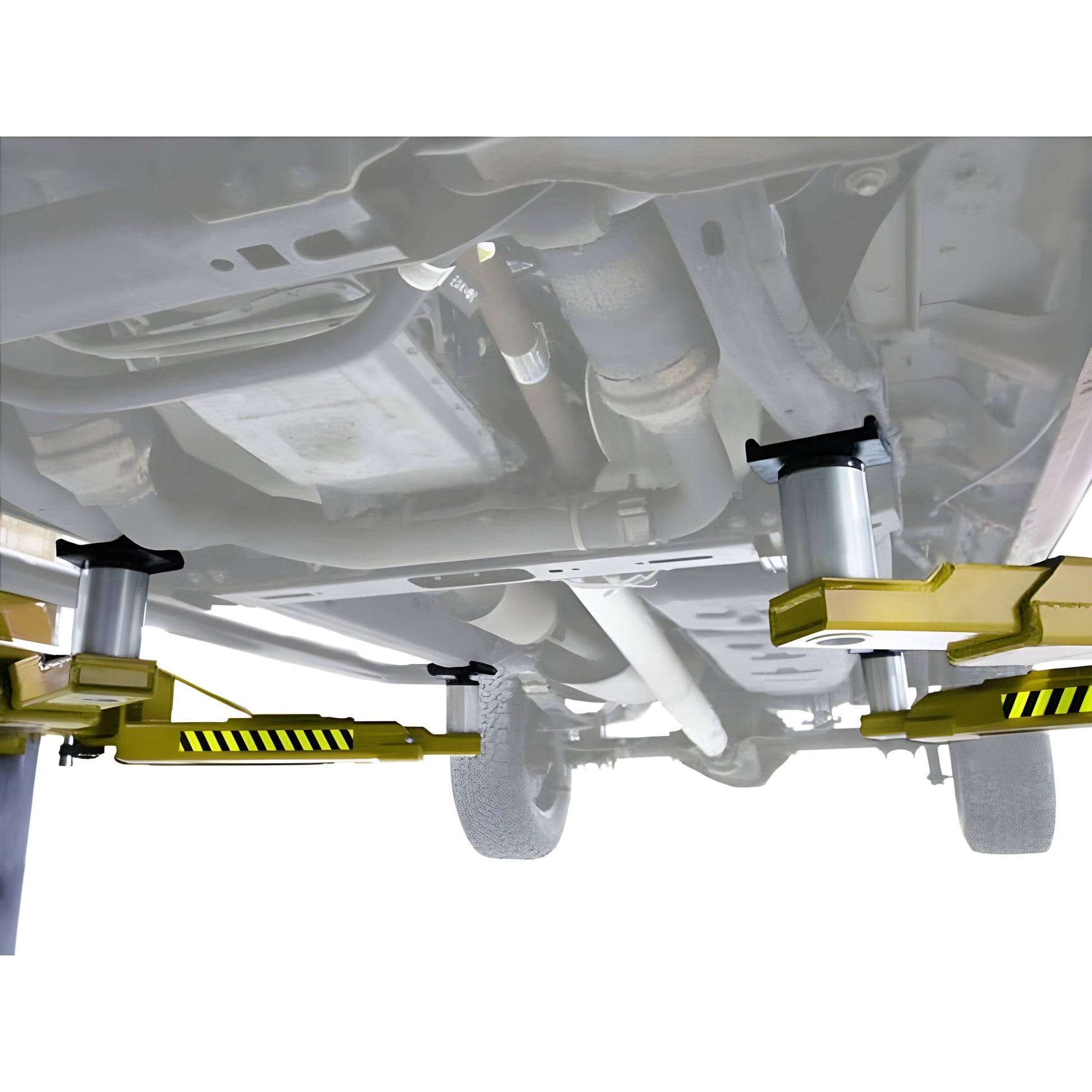

- Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters

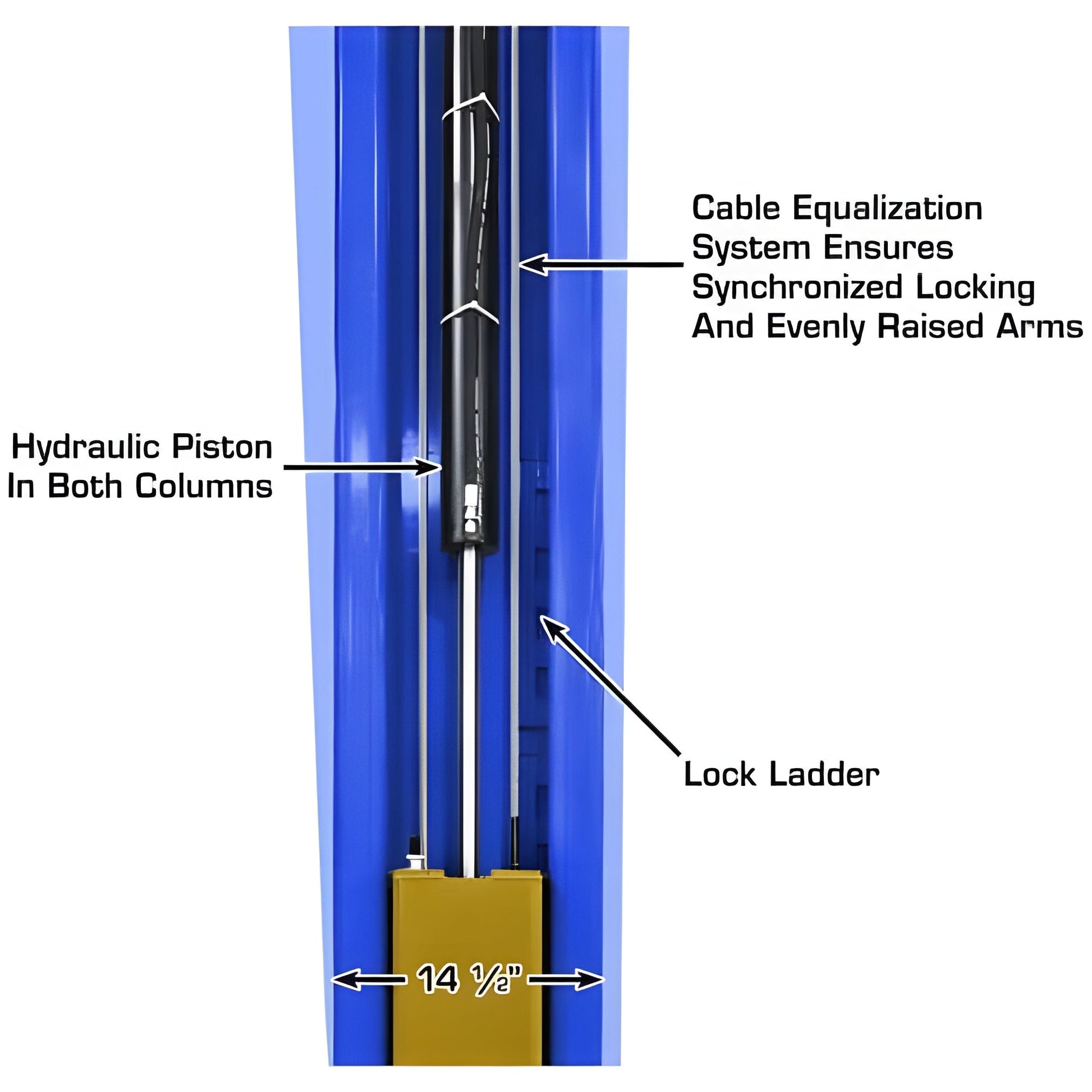

- Heavy Duty 3/8″ Equalization Cables
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit
Specifications
| Atlas Platinum PVL15 Specifications |
|
| Capacity |
15,000 LB. |

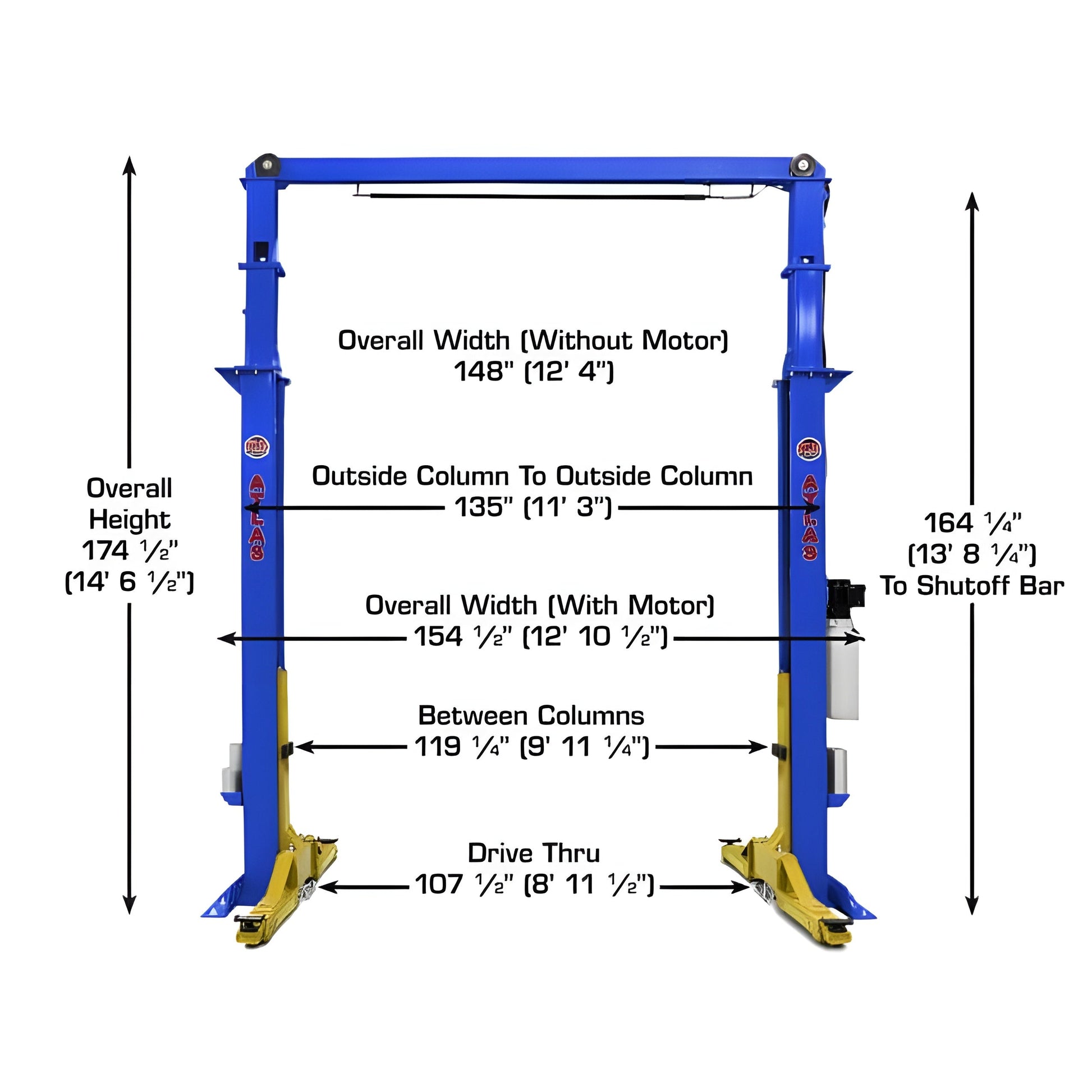

| Overall Height |
174 1/2" (14’ 6 1/2”) |
| Overall Floor Width |
148" (12’ 4”) |
| Outside Column to Outside Column |
135" (11’ 3") |

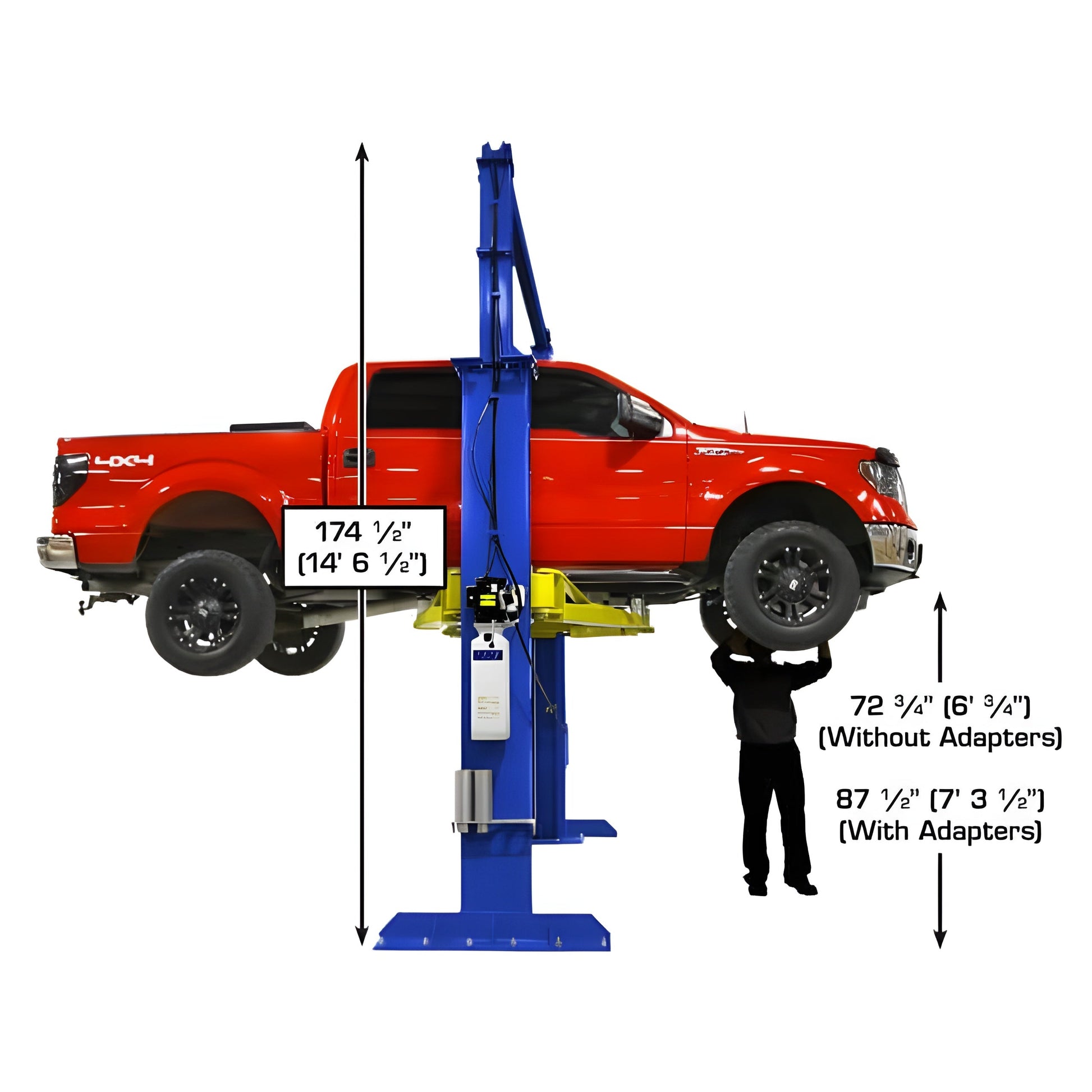

| Maximum Lift Height (Without Adapters) |
72 3/4" |
| Maximum Lift Height (With Adapters) |
87 1/2" |
| Minimum Arm Height |
6" |
| Inside Column |
119 1/4” (9’ 11 1/4”) |
| Drive Thru |
107 1/2” (8’ 11 1/2”) |
| Column Size |
8" x 14 1/2" |
| Column Thickness of Steel |
8mm |

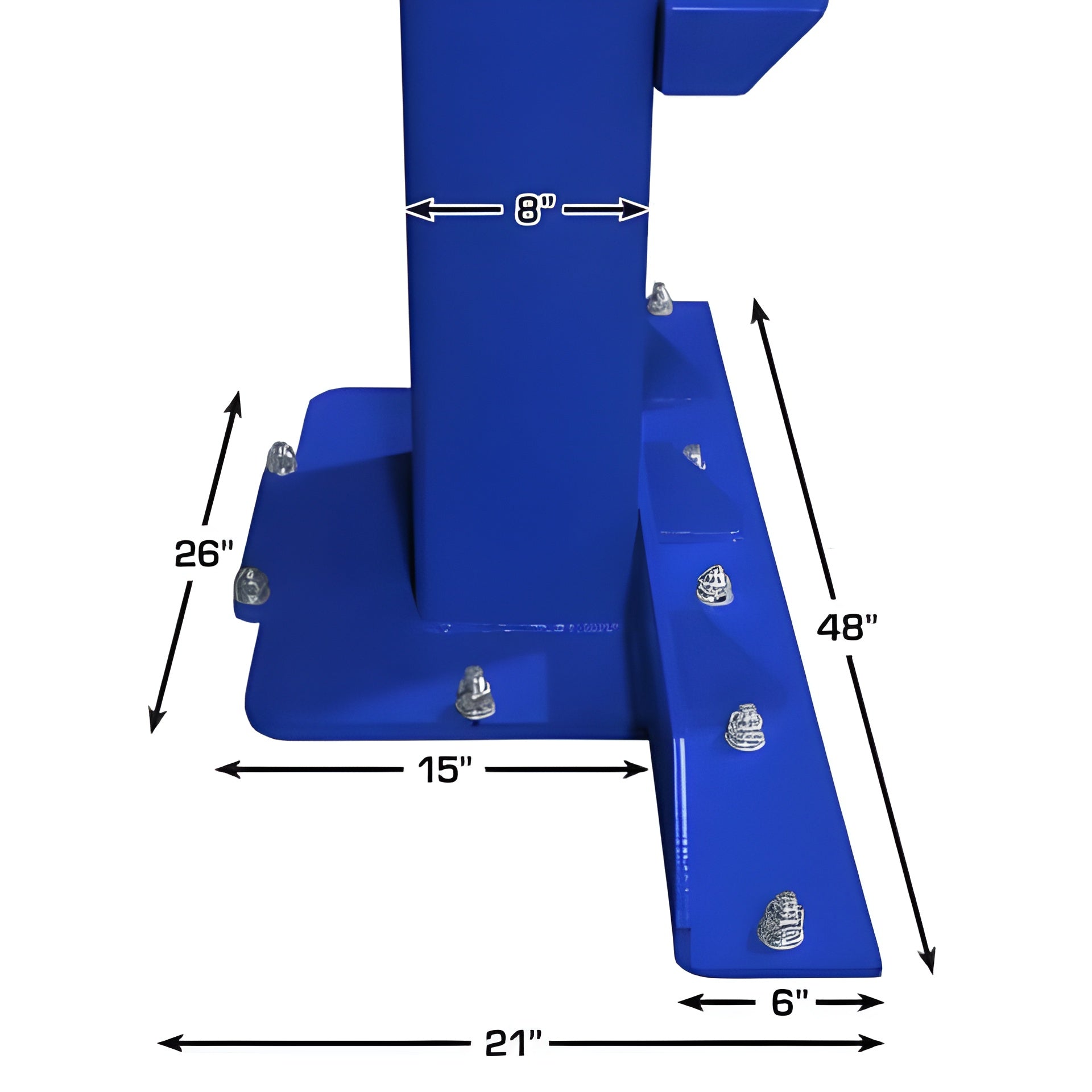

| Base Of Lift |
21" x 48" |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |

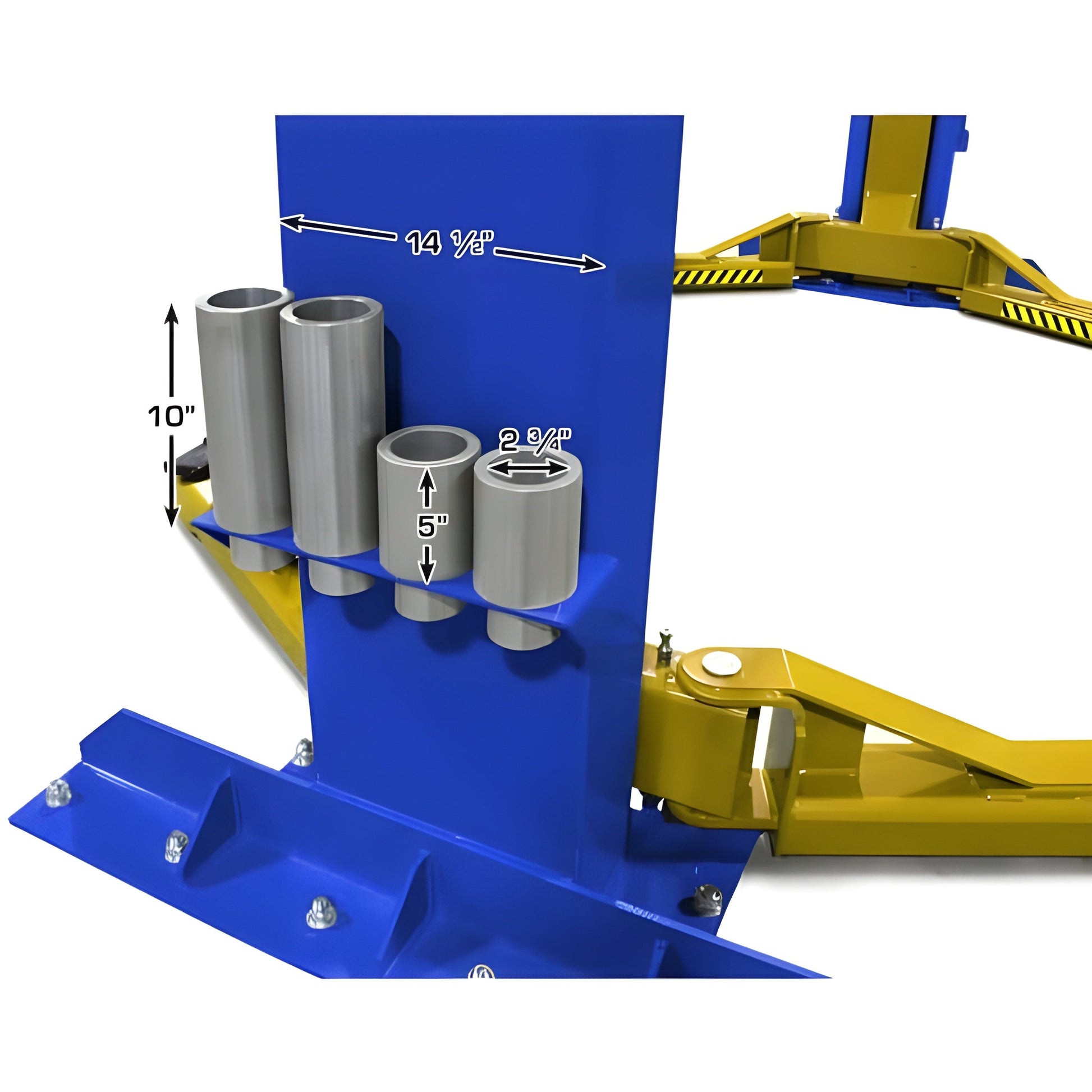

| Adapter Heights |
4 Each 5”, 10” |
| Arm Hole/Adapter Peg Size |
2.75” |
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
Manual
Atlas Platinum PVL15 Manual
ALLY AL2300 Power Unit Specs and Parts List
What our Expect Think
-
15,000 lb Lifting Capacity – Built for heavy-duty trucks, vans, and commercial vehicles.
-
Extra-Wide & Extra-Tall Design – Accommodates larger vehicles with ease, offering increased clearance.
-
Versatile Arm Configuration – Allows for asymmetrical or symmetrical lifting, adapting to different vehicle types.
-
Overhead Cable System – Keeps the floor clear of obstructions, providing a safer workspace.
-
Multi-Position Locking System – Ensures secure lifting at various working heights.
-
Heavy-Duty Construction – Designed for demanding shop environments, with a durable powder-coated finish.
Q&A

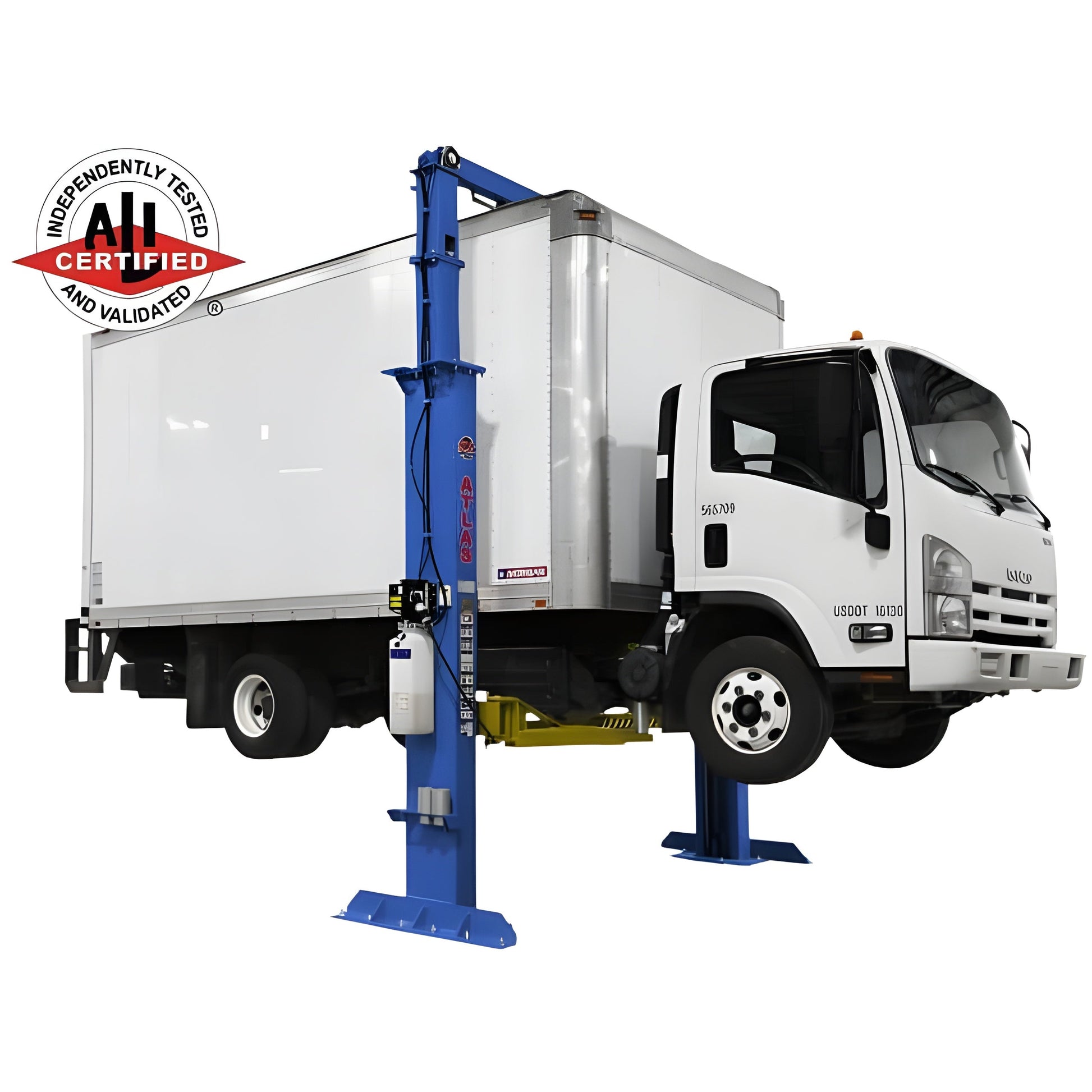

Q: What is the Atlas Platinum PVL15 15,000 lb Heavy Duty 2-Post Lift used for?
A: This heavy-duty 2-post lift is designed for lifting large trucks, SUVs, and commercial vehicles, making it ideal for auto repair shops, fleet maintenance, and heavy-duty service centers.
Q: What is the lifting capacity?
A: The Atlas PVL15 has a 15,000 lb lifting capacity, accommodating heavy-duty and commercial vehicles.
Q: What type of lift is this?
A: It is an overhead (clear floor) 2-post lift, providing unobstructed workspace underneath the vehicle.
Q: What is the maximum lifting height?
A: The lift raises vehicles up to 74 inches, offering ample clearance for repairs.
Maintenance Tips
-
Inspect Before Use – Check hydraulic lines, cables, and anchor bolts for wear or leaks.
-
Lubricate Moving Parts – Apply grease to carriage slides, lift arms, and pulleys.
-
Monitor Hydraulic Fluid – Maintain proper fluid levels and replace if contaminated.
-
Check Safety Locks – Ensure locks engage properly before lifting any vehicle.
-
Inspect Cable Tension – Adjust equalizer cables regularly for balanced lifting.
-
Tighten Anchor Bolts – Check floor anchors to ensure stability and security.
-
Keep It Clean – Remove dirt and debris to prevent corrosion and ensure smooth operation.
