Atlas Platinum PVL15 15,000 lb Heavy Duty 2-Post Lift - ATEAP-PVL15-FPD

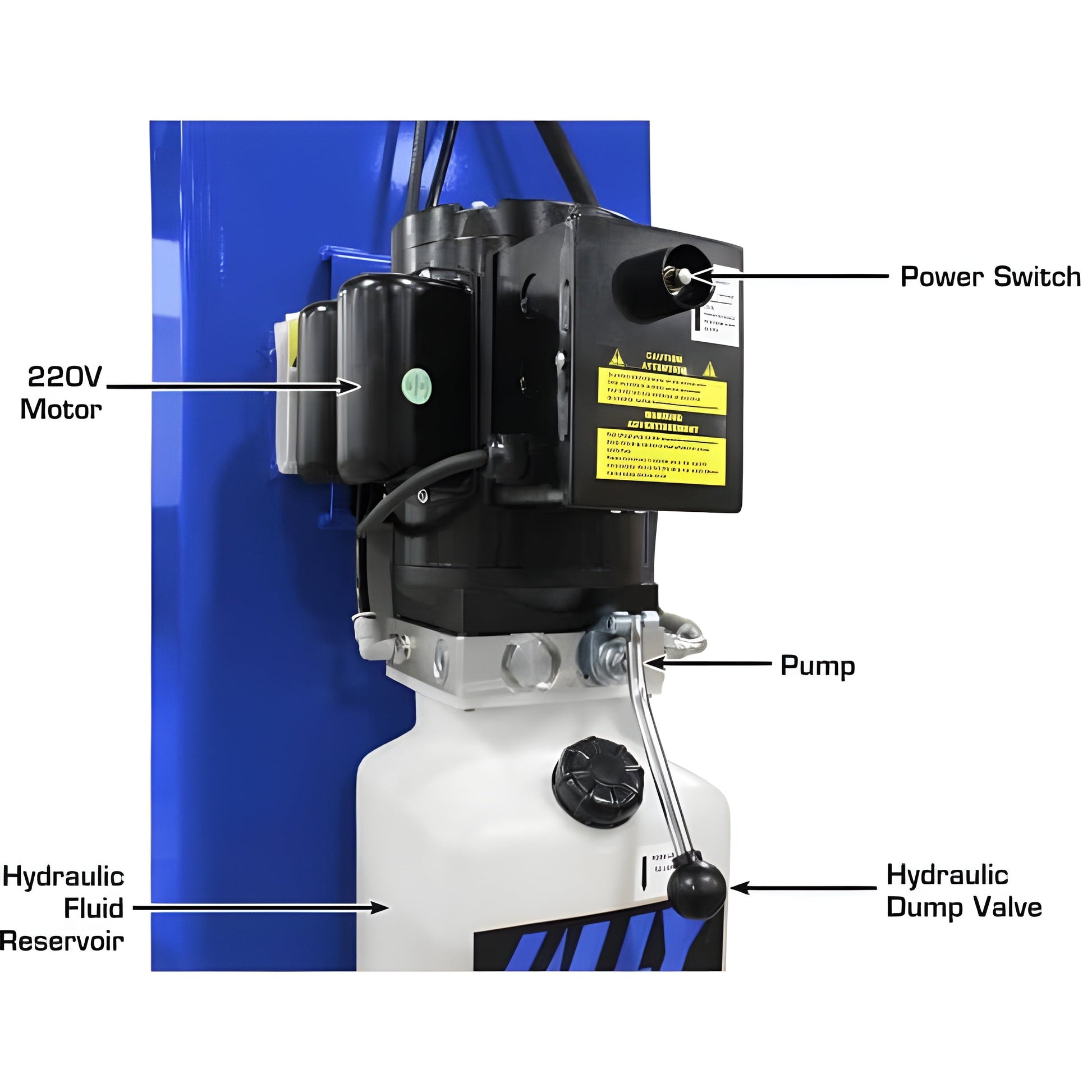

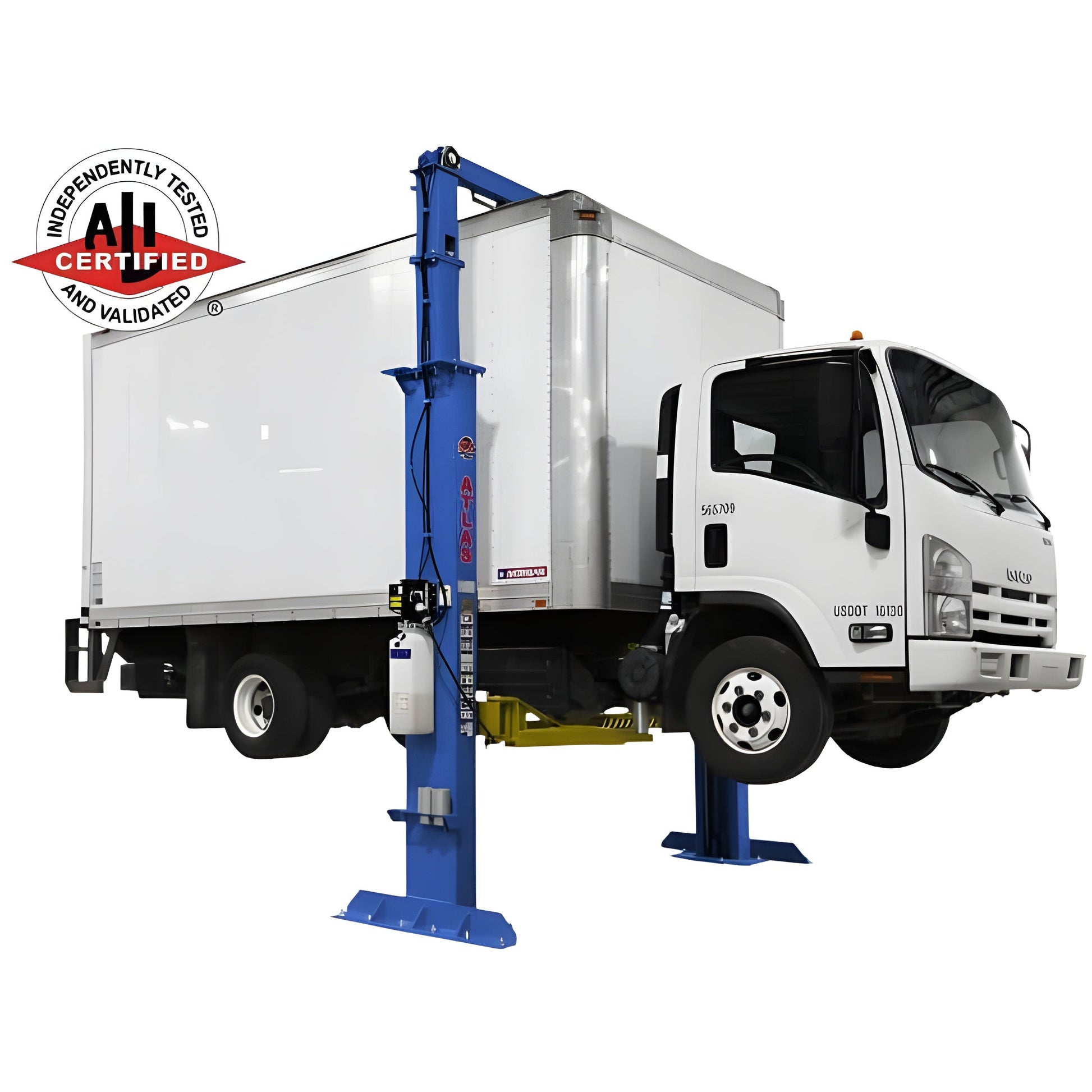

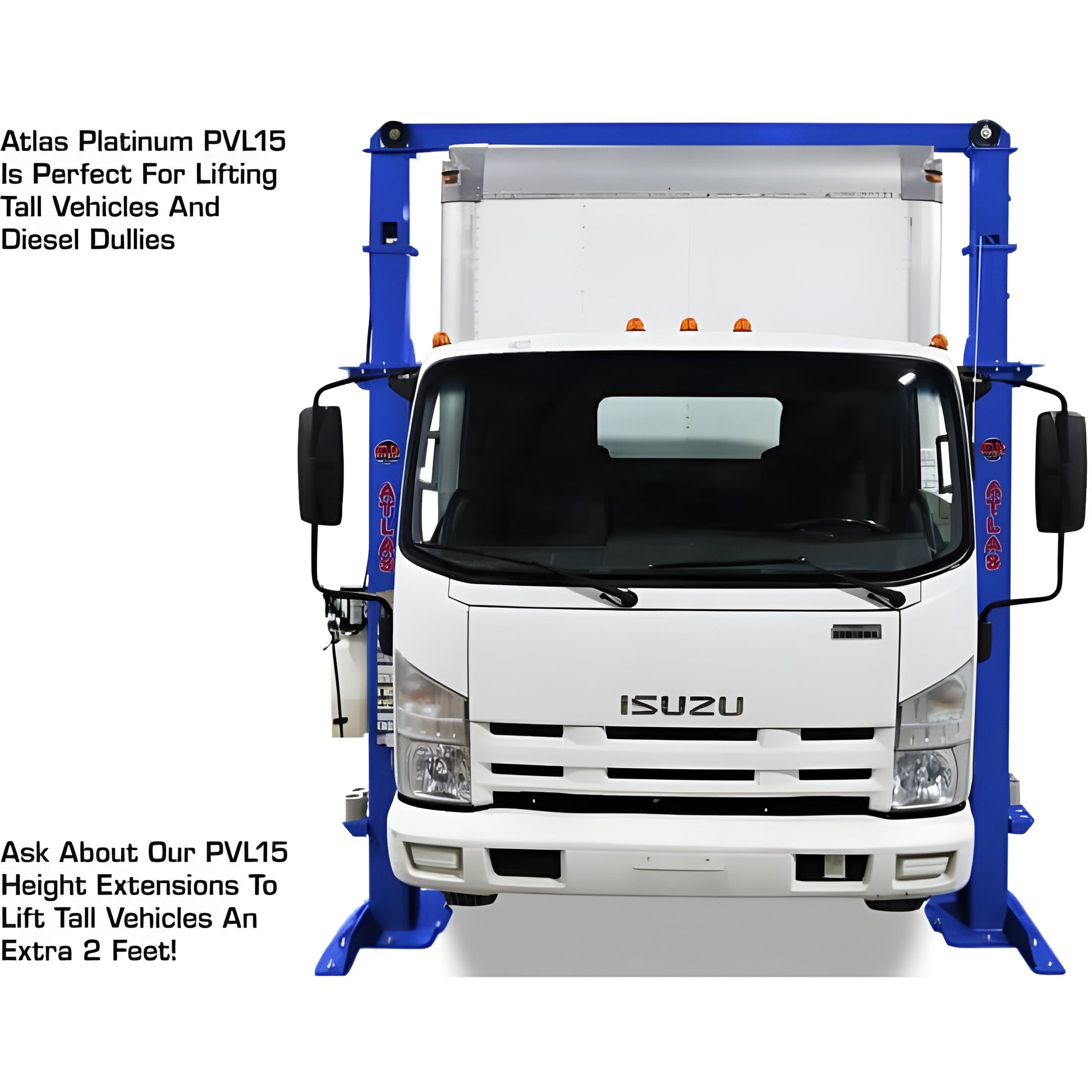

The Atlas Platinum PVL15 is an ALI CERTIFIED, commercial grade, 15,000 lb. capacity overhead two-post lift designed to accommodate both long wheel base trucks and service trucks. The Platinum PVL15 has an overall height of 174 1/2″ (14′ 6 1/2″), but can be extended by an extra 2 feet to accommodate taller vehicles with the Height Extension Kit.This product features an ALLY Hydraulic AL2300 Power Unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
Features
- 15,000 lb. Capacity
- Heavy Duty, Commercial Grade
- Extra Tall & Extra Wide
- Overall Height 174 1/2″ (14′ 6 1/2″)

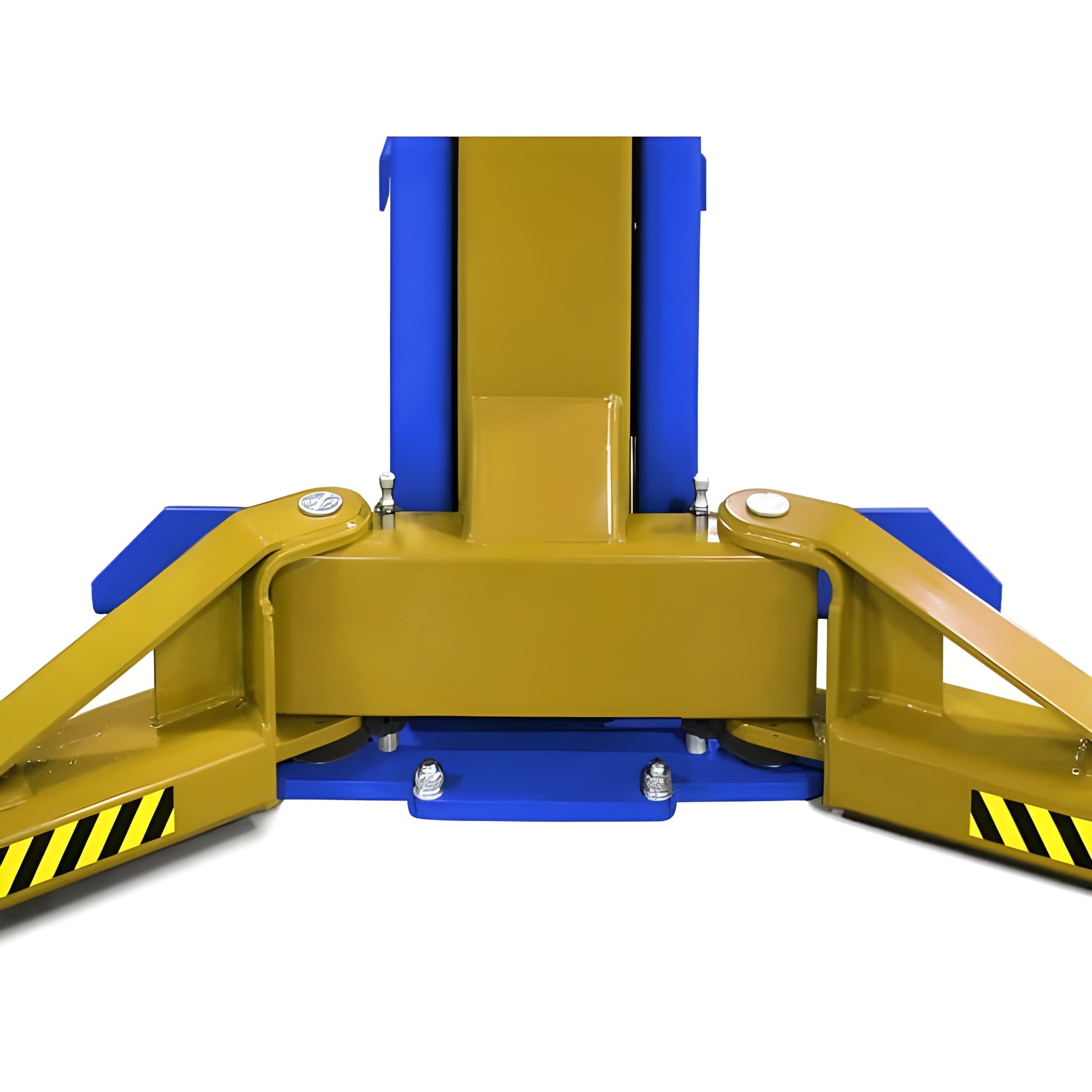

- Padded Carriages

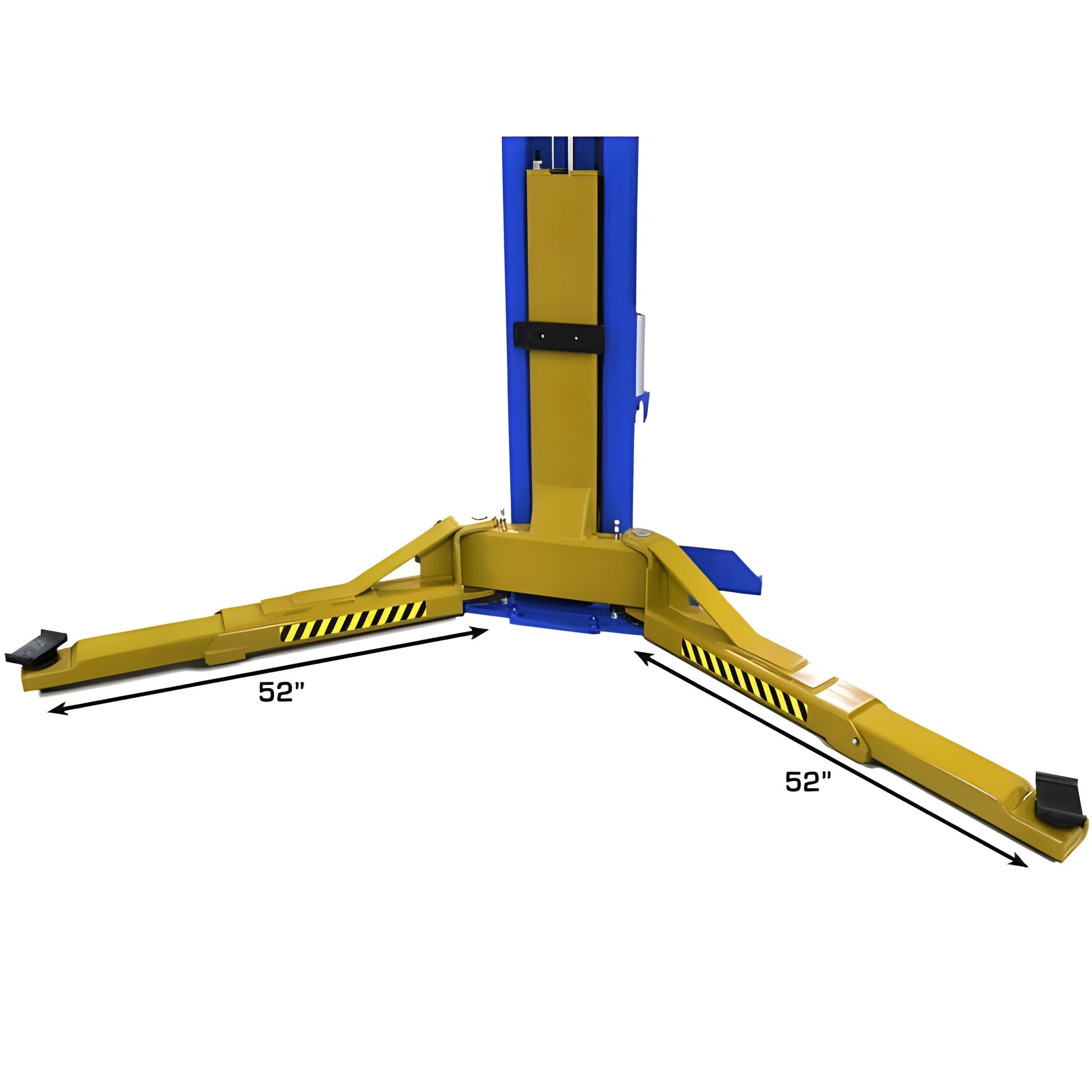

- Symmetric Arms
- Professional Grade Arm Lock Restraint System
- Dual Direct-Drive Hydraulic Cylinders

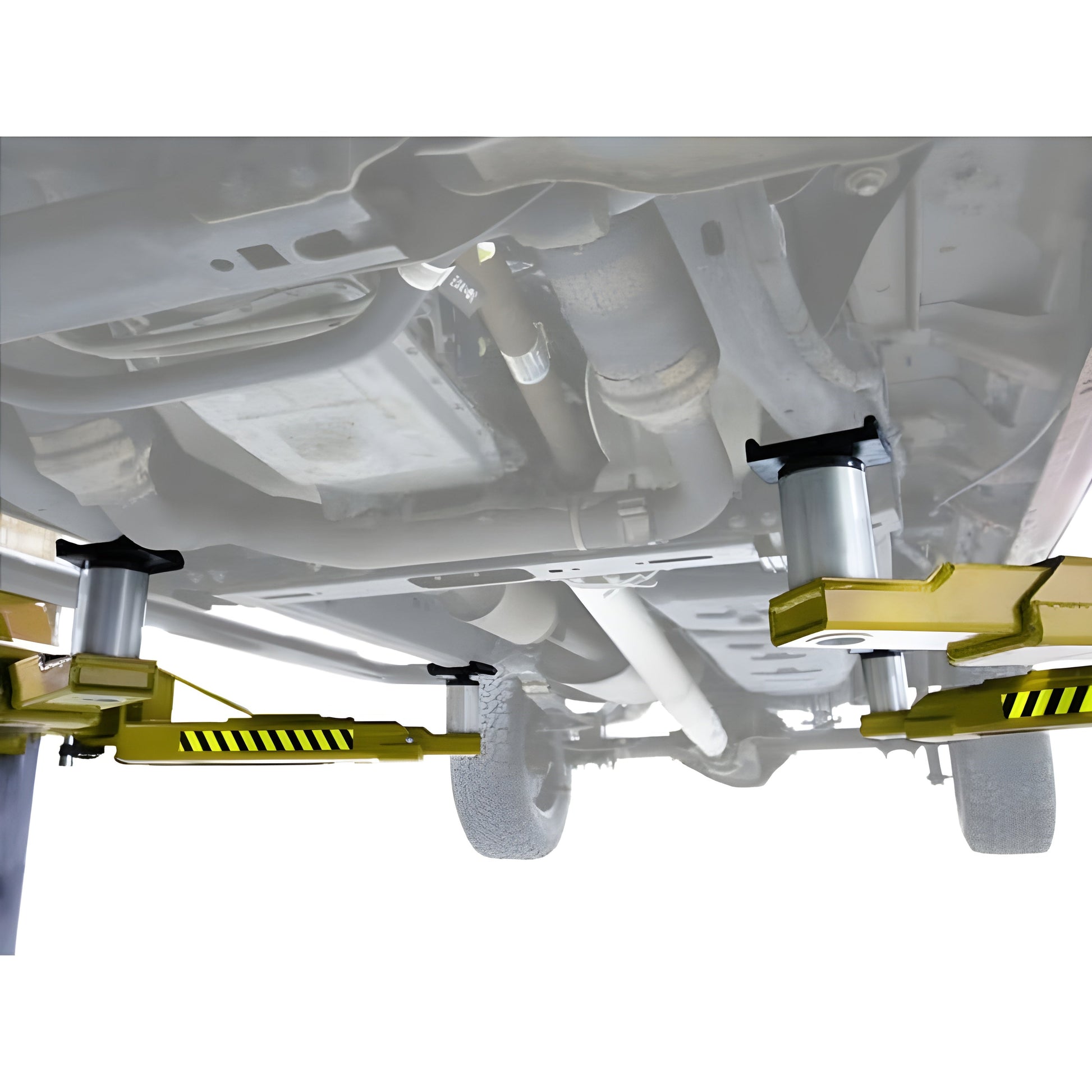

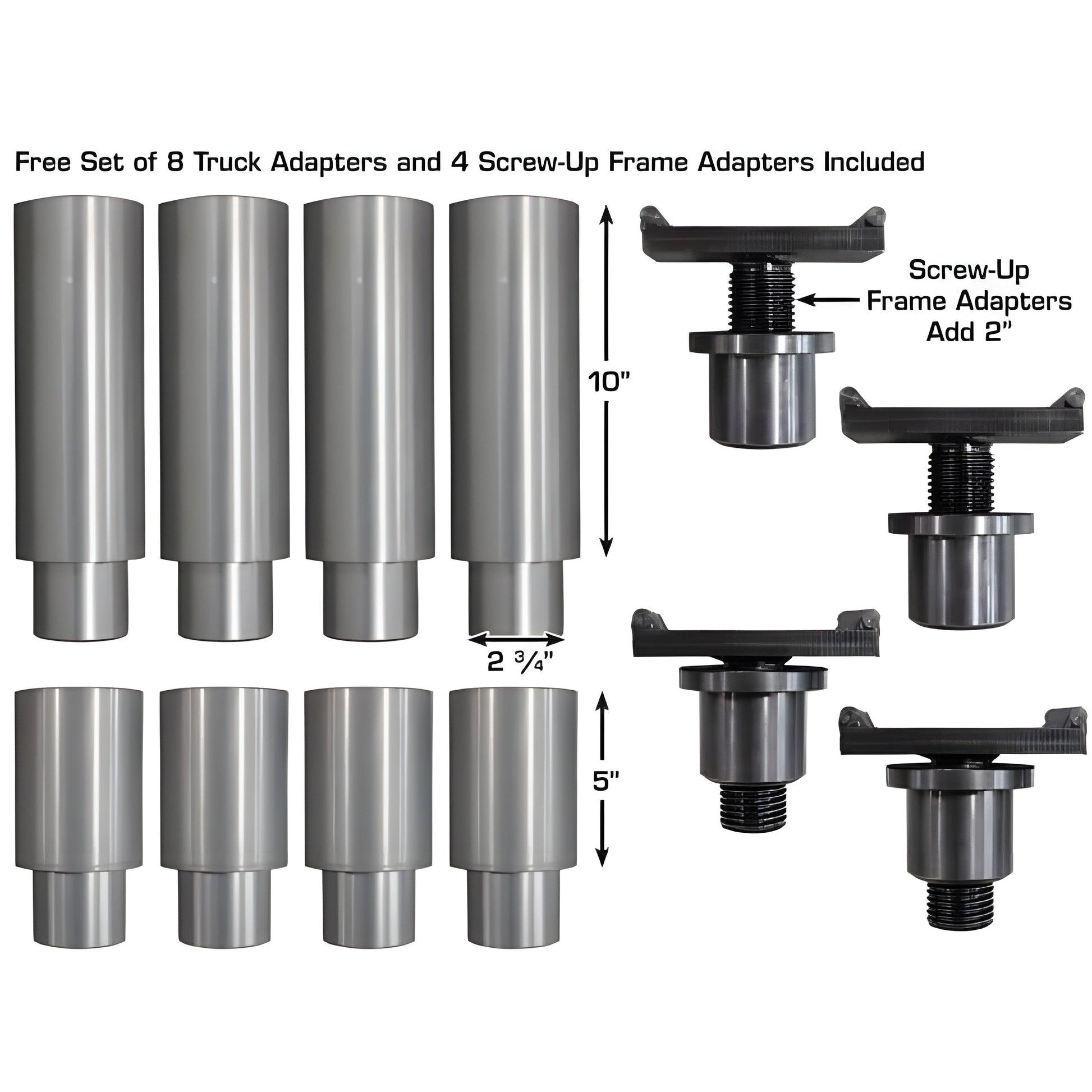

- Free 8 Piece Truck Adapter Set and 4 Screw-Up Frame Adapters
- Heavy Duty 3/8″ Equalization Cables
- Mounting Hardware Included
- Standard with Premium ALLY Poweruni
Specifications
| Atlas Platinum PVL15 Specifications |
|
| Capacity |
15,000 LB. |

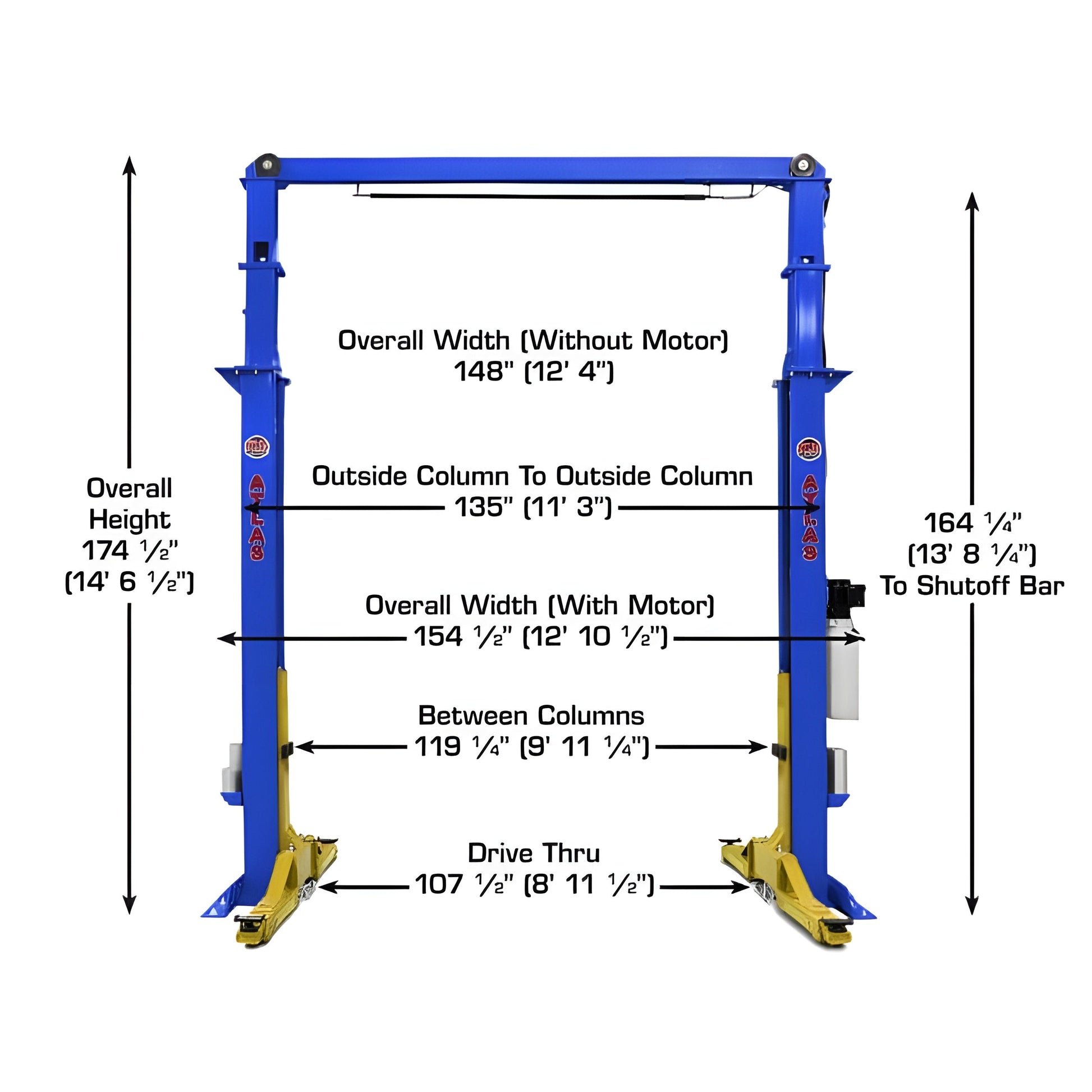

| Overall Height |
174 1/2" (14’ 6 1/2”) |
| Overall Floor Width |
148" (12’ 4”) |
| Outside Column to Outside Column |
135" (11’ 3") |

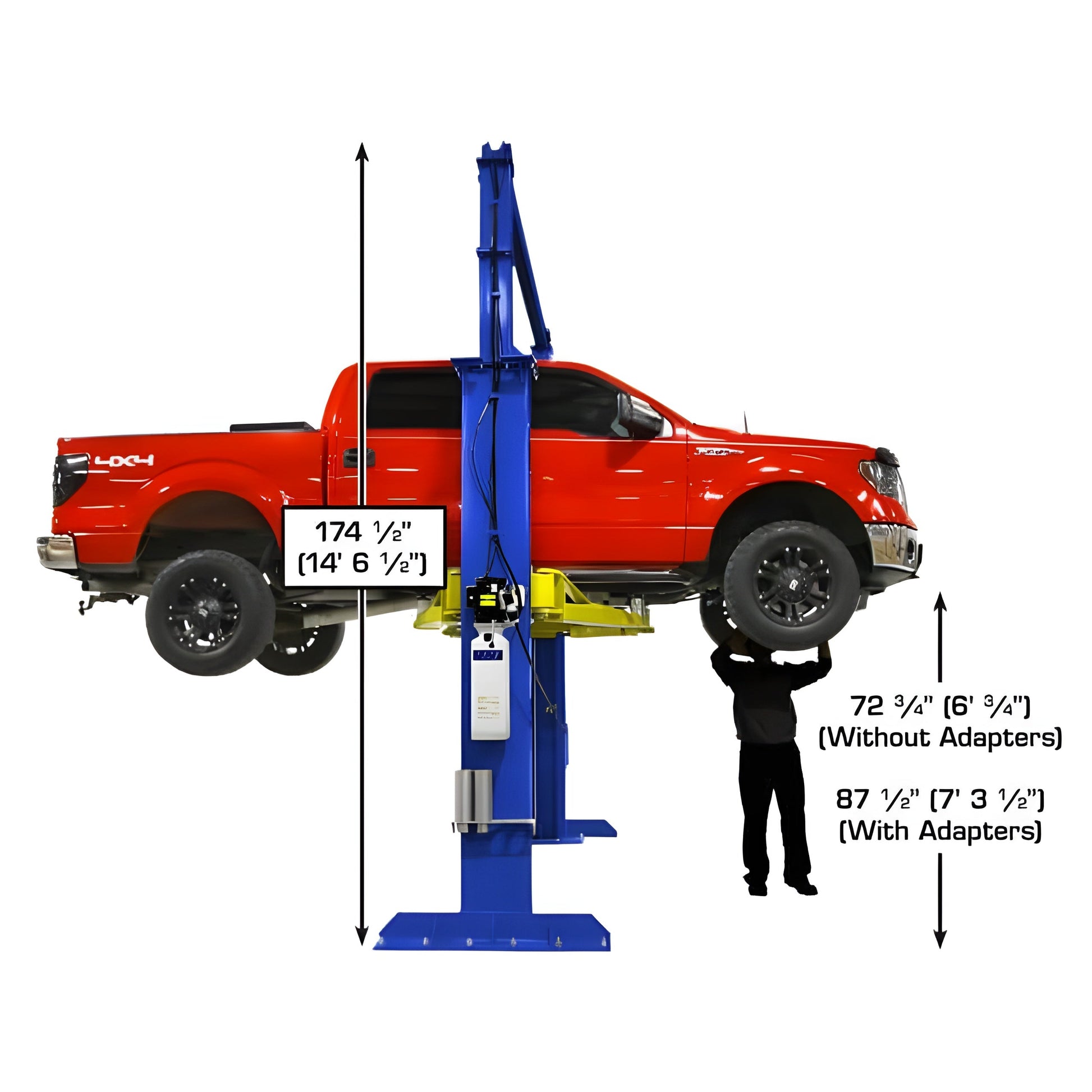

| Maximum Lift Height (Without Adapters) |
72 3/4" |
| Maximum Lift Height (With Adapters) |
87 1/2" |
| Minimum Arm Height |
6" |

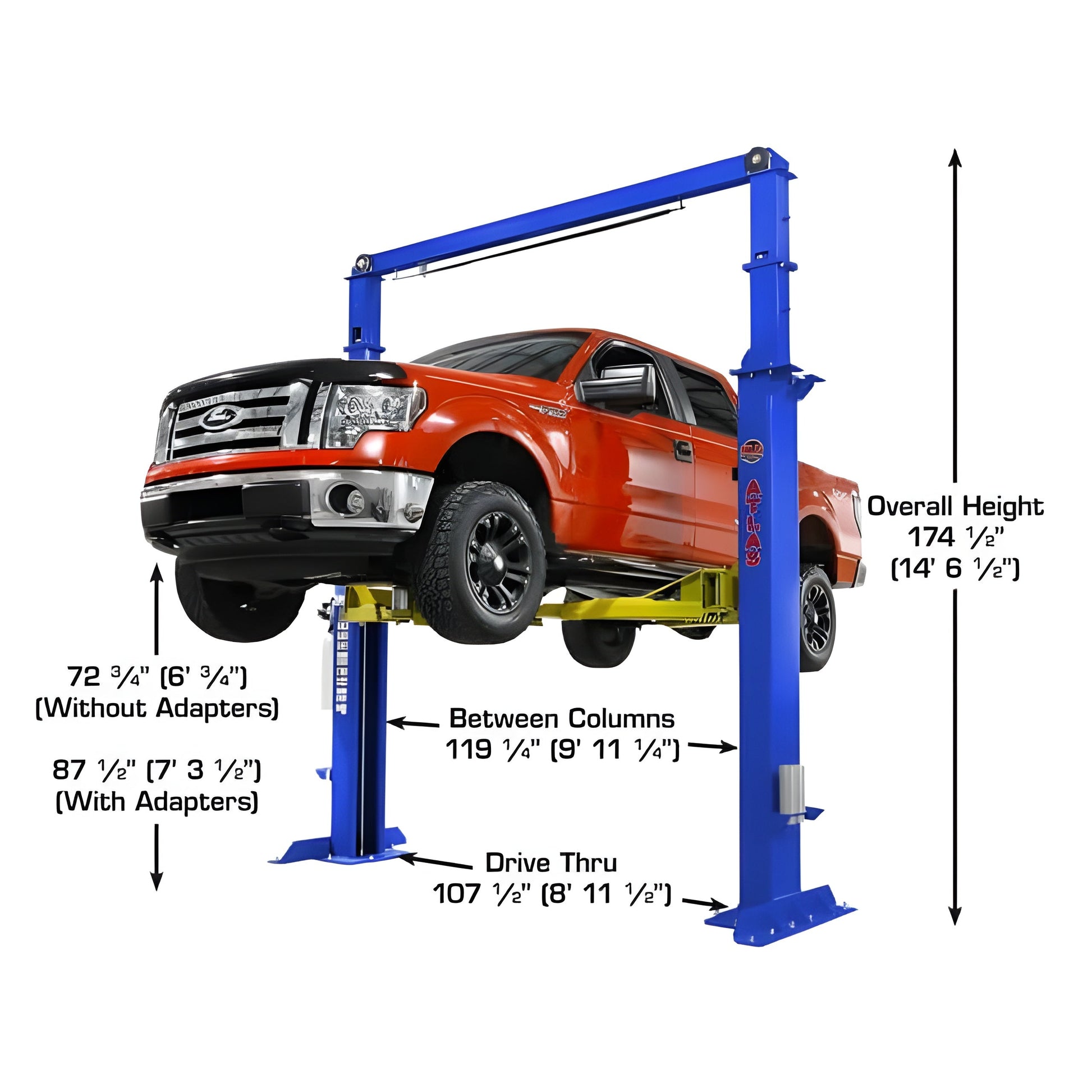

| Inside Column |
119 1/4” (9’ 11 1/4”) |
| Drive Thru |
107 1/2” (8’ 11 1/2”) |
| Column Size |

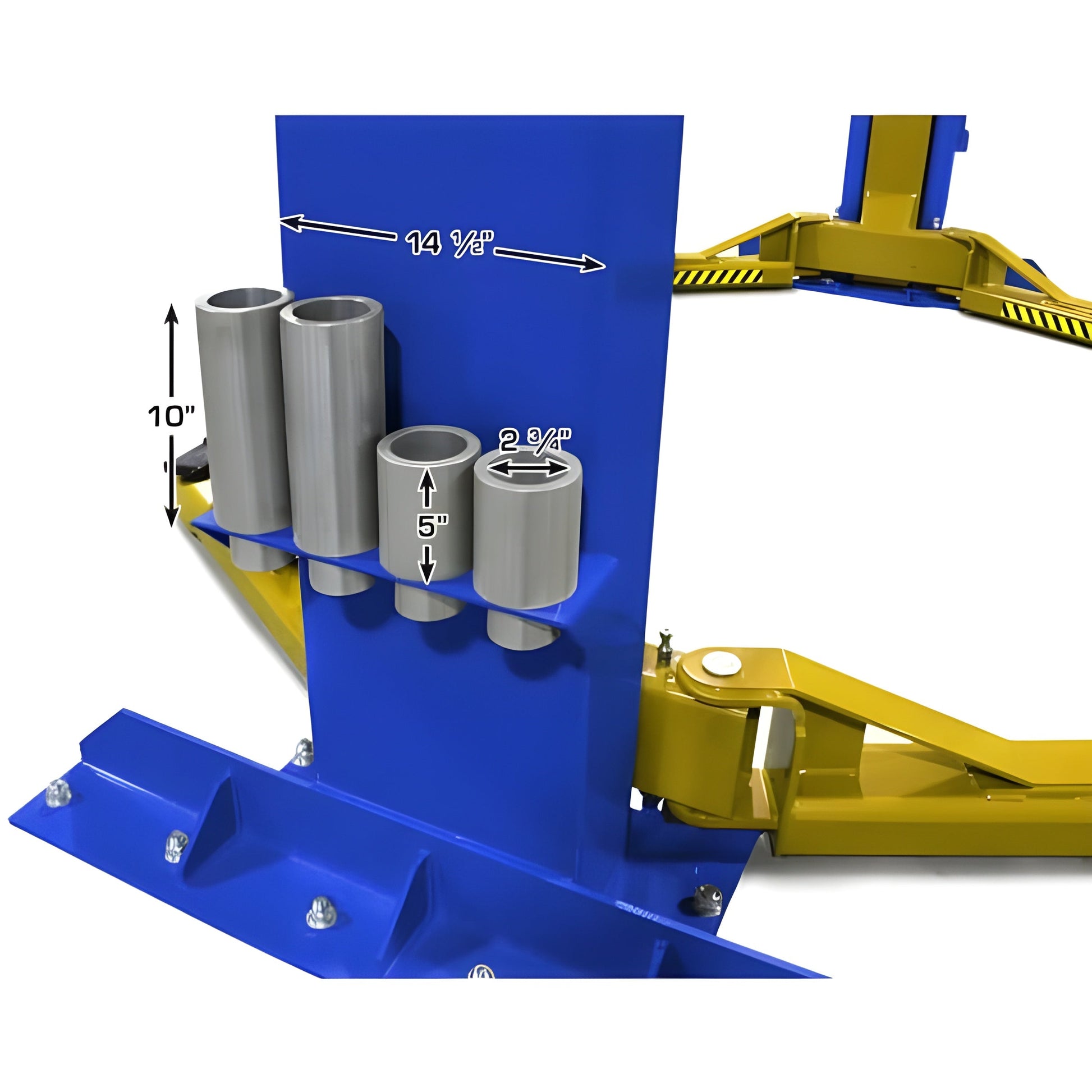

8" x 14 1/2" |
| Column Thickness of Steel |
8mm |
| Base Of Lift |

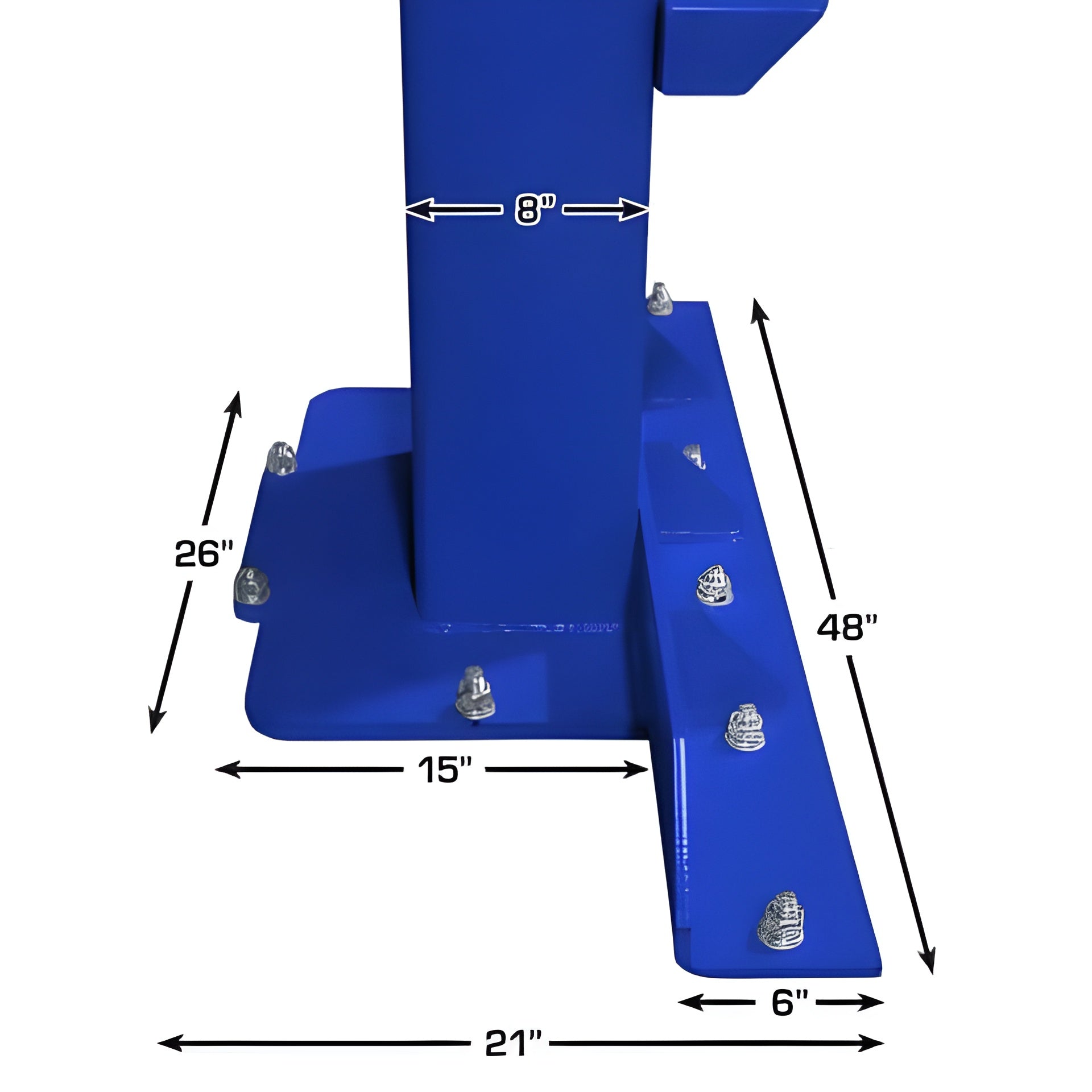

21" x 48" |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Adapter Heights |
4 Each 5”, 10” |
| Arm Hole/Adapter Peg Size |
2.75” |
| |
|
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
Manual
Atlas Platinum PVL15 Manual
ALLY AL2300 Power Unit Specs and Parts List
What Our Experts Think
-
High Capacity – Lifts up to 15,000 lbs, making it perfect for heavy-duty vehicles such as trucks, SUVs, and larger commercial vehicles.
-
Durable Construction – Built with premium materials for superior strength and durability, designed to withstand continuous use in demanding environments.
-
Precision Lifting – Offers smooth and stable lifting performance, ensuring safety and efficiency with each use.
-
Space-Saving Design – Compact 2-post configuration saves space without compromising strength, ideal for workshops with limited room.
Q&A
Q: What is the Atlas Platinum PVL15 15,000 lb Heavy Duty 2-Post Lift designed for?
A: The Atlas Platinum PVL15 is a heavy-duty 2-post lift designed for automotive shops and service centers that need to lift large vehicles, such as trucks, vans, and commercial vehicles, with a weight capacity of up to 15,000 lbs.
Q: What types of vehicles can the PVL15 lift?
A: The PVL15 can lift vehicles up to 15,000 lbs, making it ideal for heavy-duty trucks, vans, SUVs, and commercial vehicles commonly found in fleet maintenance and service centers.
Q: How does the PVL15 improve my service efficiency?
A: With its 15,000 lb capacity, the Atlas Platinum PVL15 allows for faster lifting and greater flexibility in handling heavy-duty vehicles. Its dual-synchro cables ensure even lifting, while the direct drive hydraulic system provides a smooth, reliable lift, saving time and increasing productivity in busy automotive shops.
Q: Is the Atlas Platinum PVL15 safe to use?
A: Yes, the Atlas Platinum PVL15 features advanced safety features, including automatic safety locks, overload protection, and a sturdy design that meets the highest standards for lifting equipment, ensuring safe operation during every use.
Q: Can I use this lift for a variety of vehicles?
A: Yes, the PVL15 is highly versatile, accommodating a wide range of vehicles, from light-duty to heavy-duty trucks, thanks to its adjustable arms and high lifting capacity.
Maintenance Tips
-
Lubricate All Moving Parts – Regularly lubricate the lift’s arms, posts, and all moving components to ensure smooth and efficient operation, preventing friction and wear.
-
Inspect Hydraulic Fluid – Check hydraulic fluid levels and inspect for leaks. Maintain the appropriate fluid levels to ensure optimal lifting performance.
-
Examine Lift Pads and Arm Assemblies – Inspect the lift pads and arm assemblies for wear or damage. Replace any worn-out parts to maintain proper vehicle support.
-
Tighten Bolts and Fasteners – Ensure that all bolts, nuts, and fasteners are tight and secure. Loose components can lead to safety hazards and mechanical failures.
-
Clean the Lift and Floor Area – Regularly clean the lift’s surface and the floor area around it to remove debris, dirt, or any other materials that could obstruct the operation of the lift.
-
Inspect Cable and Pulley System – Check the lift's cable and pulley system for signs of wear, fraying, or damage. Replace any worn parts to maintain proper lifting capabilities.
-
Safety Lock and Control Systems – Test the safety lock and control systems periodically to ensure they function properly. This is critical to maintaining safe operation during lifting.
