Atlas PRO8000EXT 4 Post Lift + RJ35 Sliding Jacks Combo - ATEXH-PRO8EXT-COMBO-FPD
The Atlas Garage PRO8000EXT is a true 8,000 LB. four post lift and is one of our most popular hobbyist lifts. This lift incorporates many of the great features of both the Atlas Garage PRO8000 and the Atlas Garage PRO9000.Many of our customers drive an SUV or pick-up truck and wanted a storage lift that would “go higher” to allow them to park their taller vehicles under the elevated platform. Many of our competitors sell “taller” lifts. However, their “taller” lifts also have longer runways. Our customers requested that we make a lift which lifts higher, but without the extra length (longer runways take up valuable garage space). Most customers want to store a car on top and park a SUV or pick up truck below. The Atlas Garage Pro 8000 EXT has been engineered to provide 79″ of clearance UNDER the bottom of the raised runway. If you need the extra lifting height of the Atlas Garage Pro 9000, but do not need the extra width and runway length provided by that lift, then the Atlas Garage PRO8000EXT is the perfect choice.This combo package also includes two of the popular Atlas® RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PRO8000EXT
- 8,000 lb. Capacity
- Free Standing/Portable Design
- EXTRA TALL, GREATER CLEARANCE UNDER RUNWAYS
- Diamond Plated Runways
- Single-Point Lock Release
- Lock Ladder Design
- Double Lock Safety System

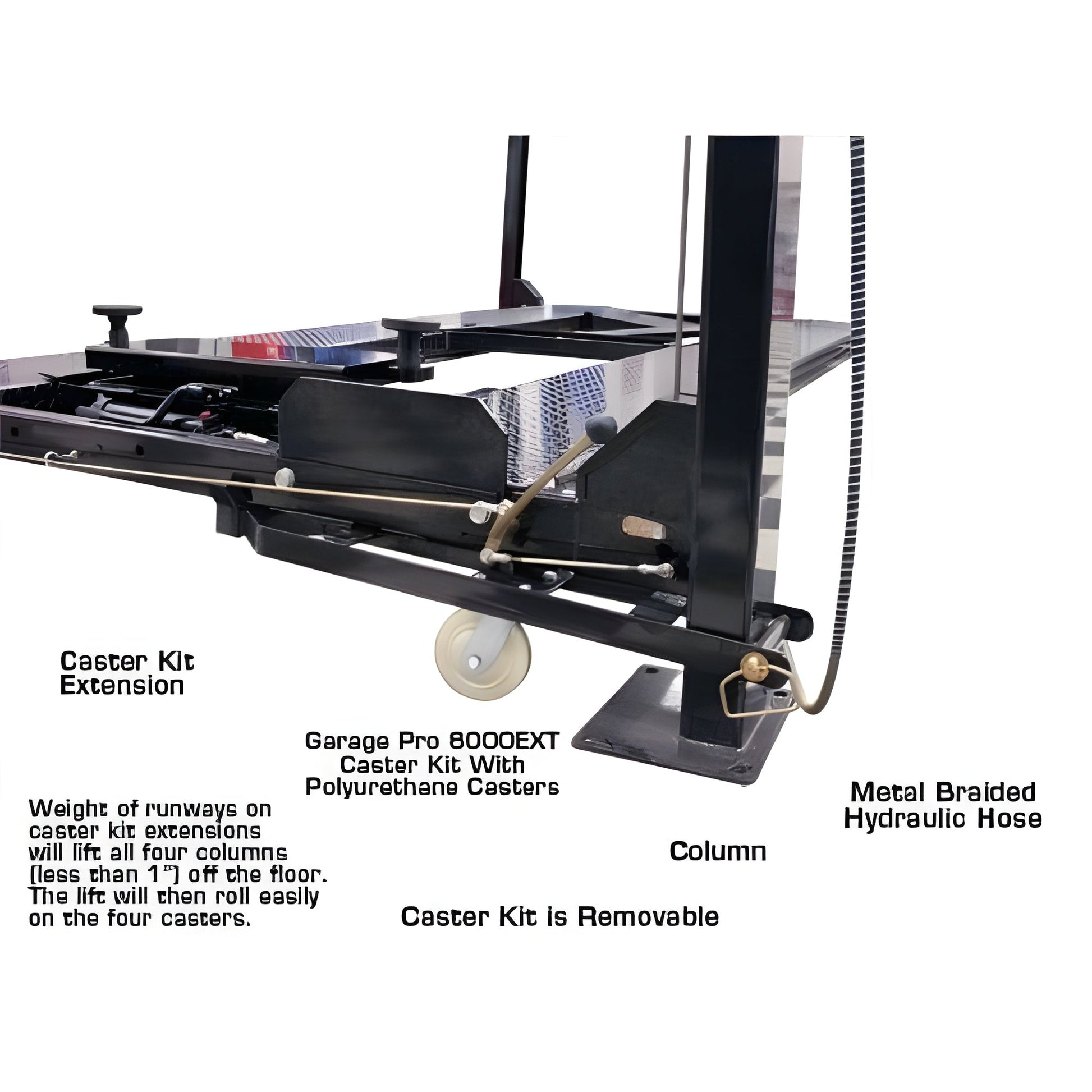

- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
PROJACK35
- Sliding Bridge Jack
- Capacity: 3,500 lbs.
- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions
- 4 Piece Truck Adapter Set Included
Specifications
| Atlas Garage Pro 8000 EXT Specifications |
|
| Capacity |
8,000 LB |
| Lifting Height |
84 1/4" (7' 1/4") |

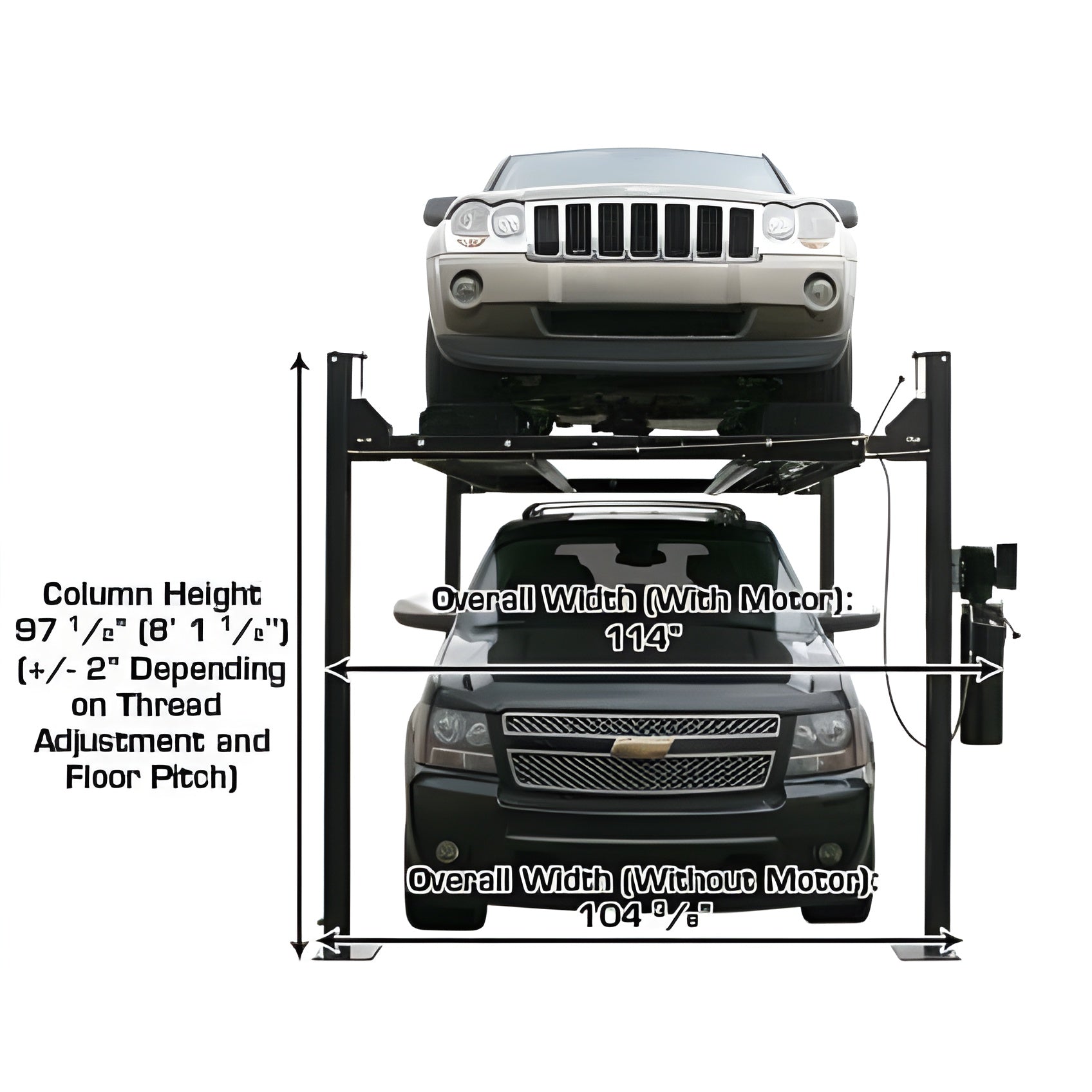

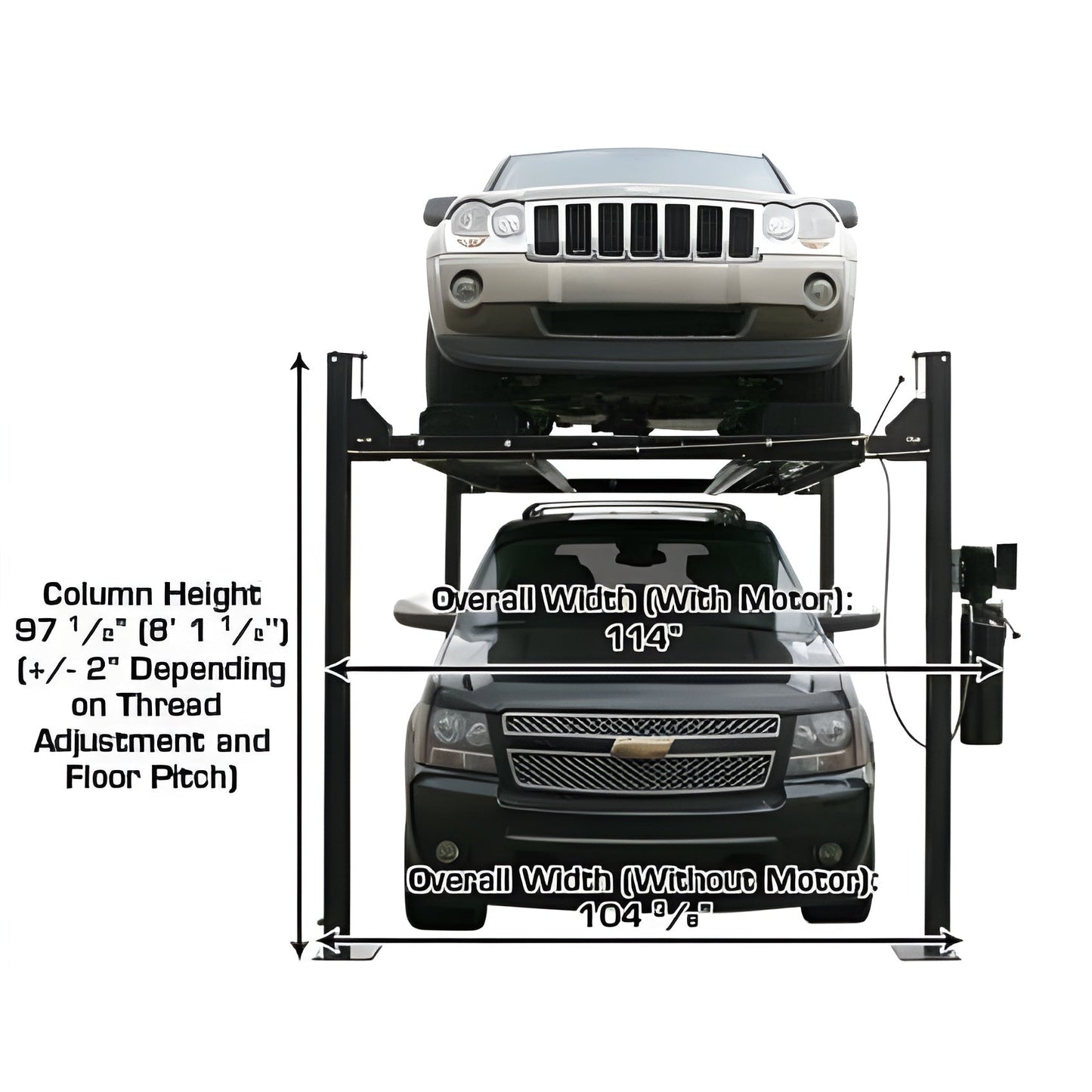

| Overall Width (Without Motor) |
104 3/8" (8' 8 3/8") |
| Overall Width (With Motor) |
114" (9' 6") |

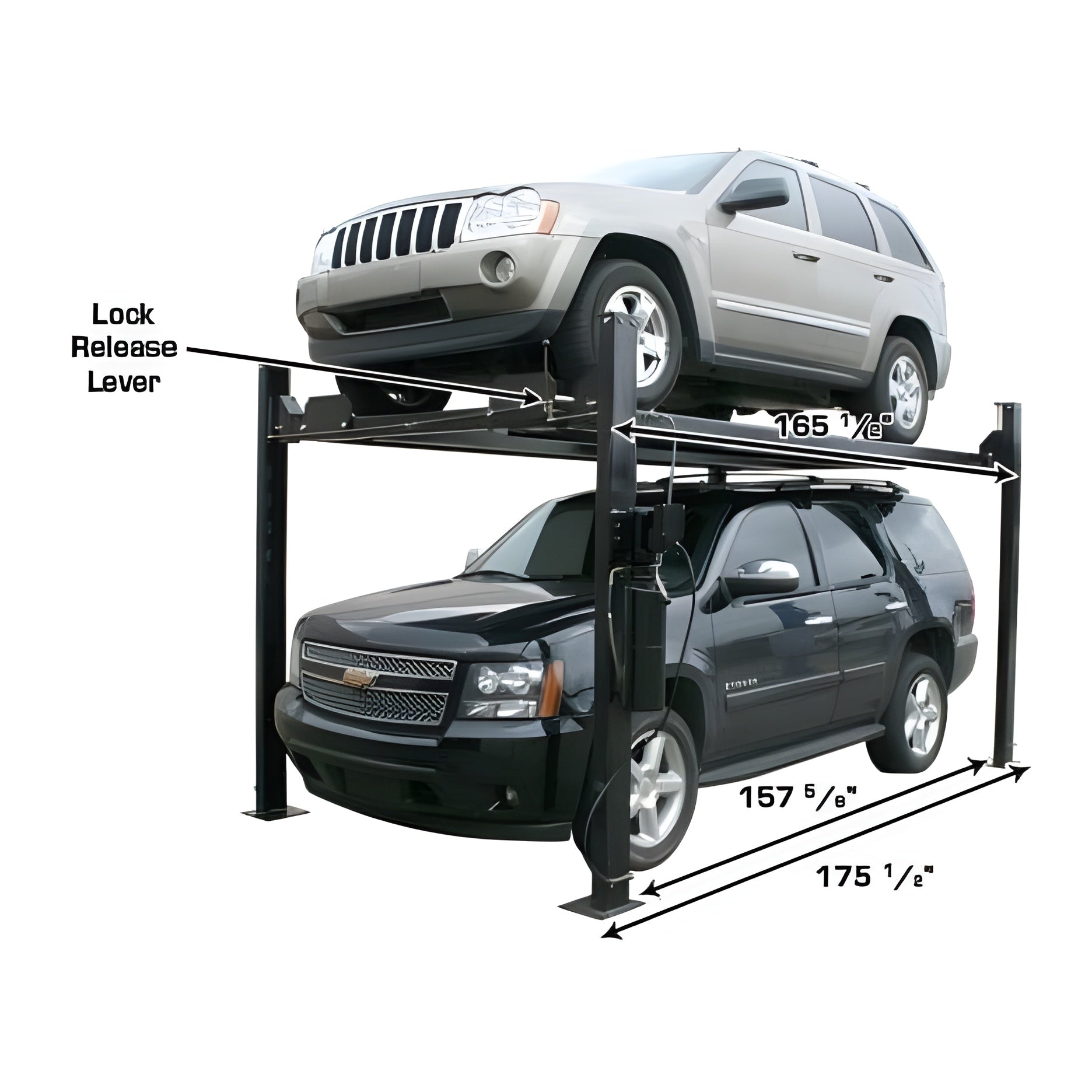

| Length Between Columns |
157 5/8" (13' 1 5/8 ") |
| Overall Length with Approach Ramps |
207 1/2" (17' 3 ½ ") |
| Overall Length without Approach Ramps |
175 ½" (14' 7 ½") |
| Approach Ramps |
37" (3' 1") |
| Total Runway Width |
21 1/4" (1' 9 1/4 ") |
| Runway Length |
165 1/2" (13' 9 ½ ") |
| Runway Thickness |
5" |

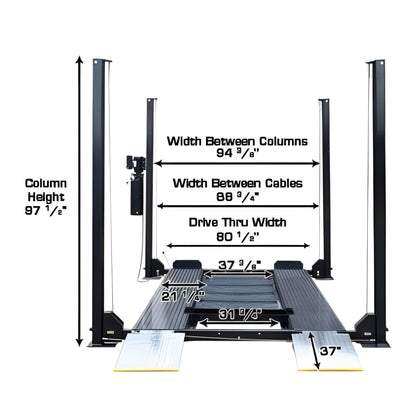

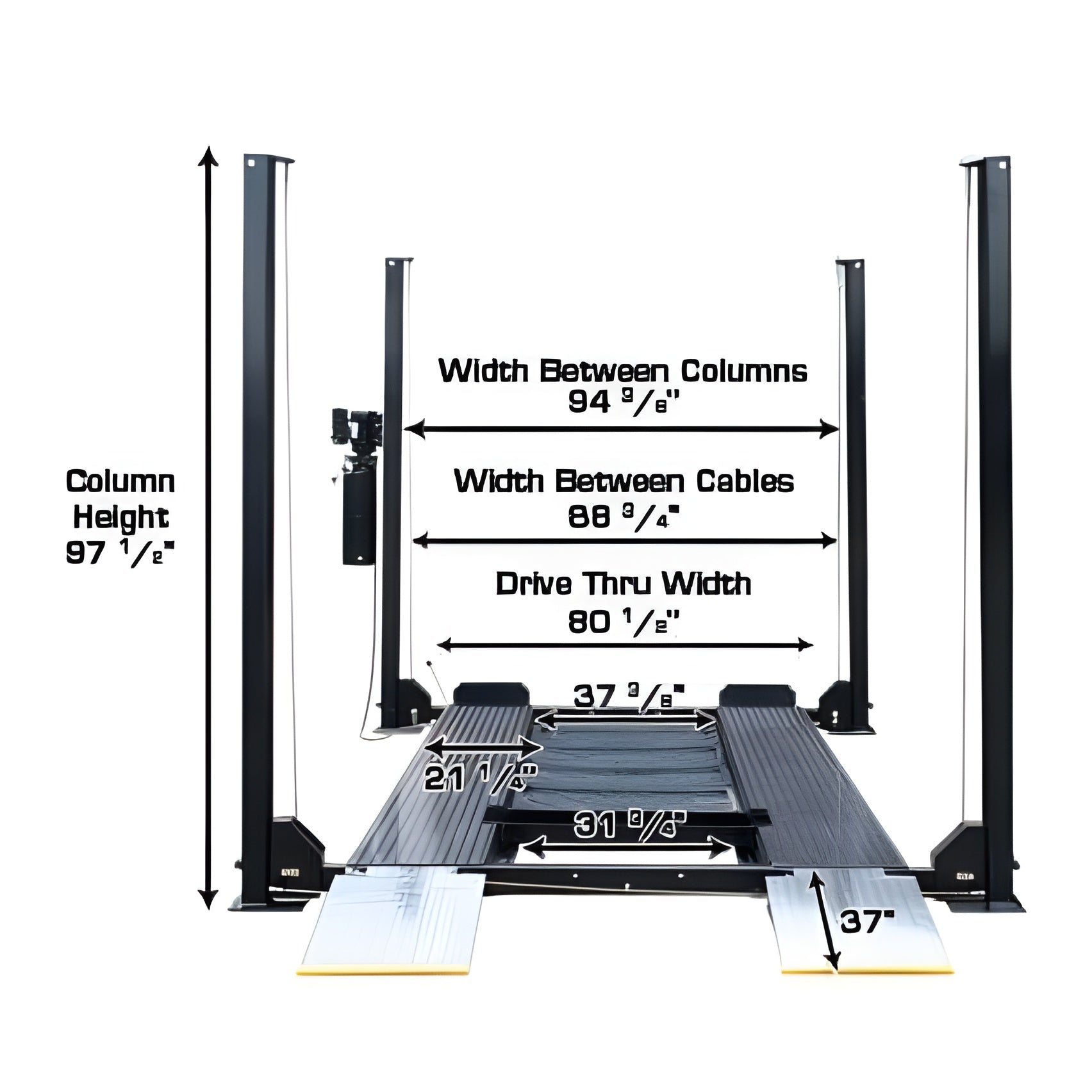

| Width Between Runways |
37 3/8" |
| Width Between Runway Rails |
31 3/4" |
| Outside Runway to Outside Runway |
74 3/4" (6' 2 ÂĽ") |

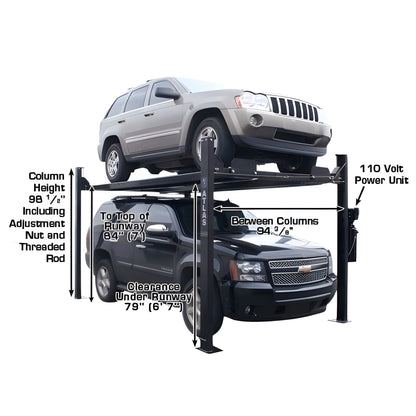

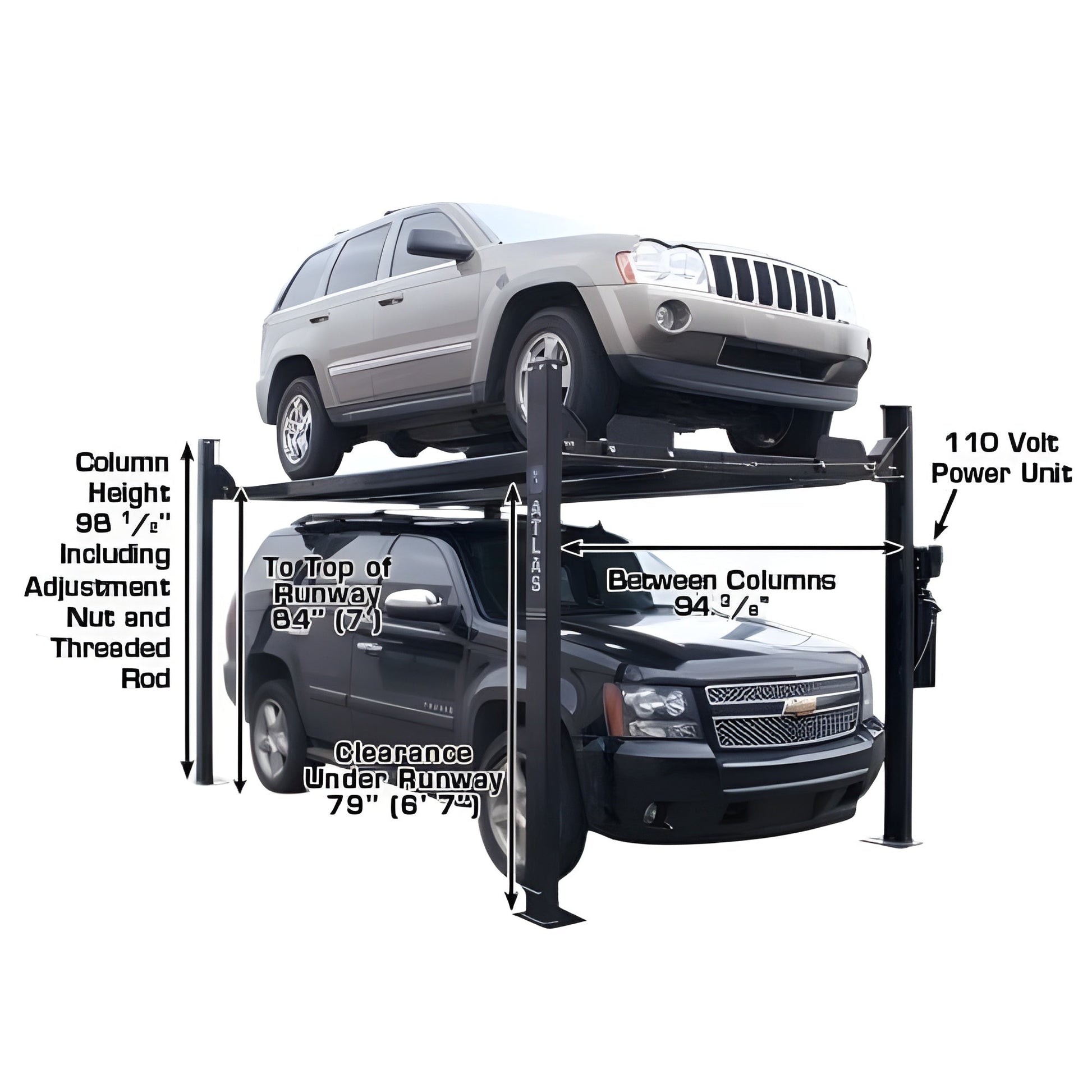

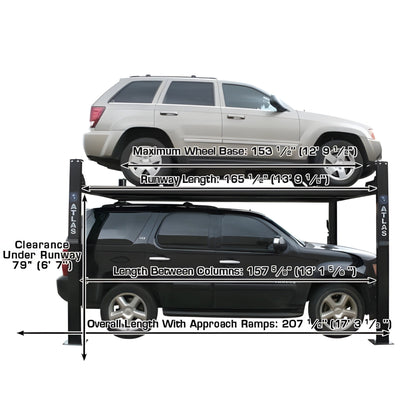

| Clearance Under Runways |
79" (6' 7") |

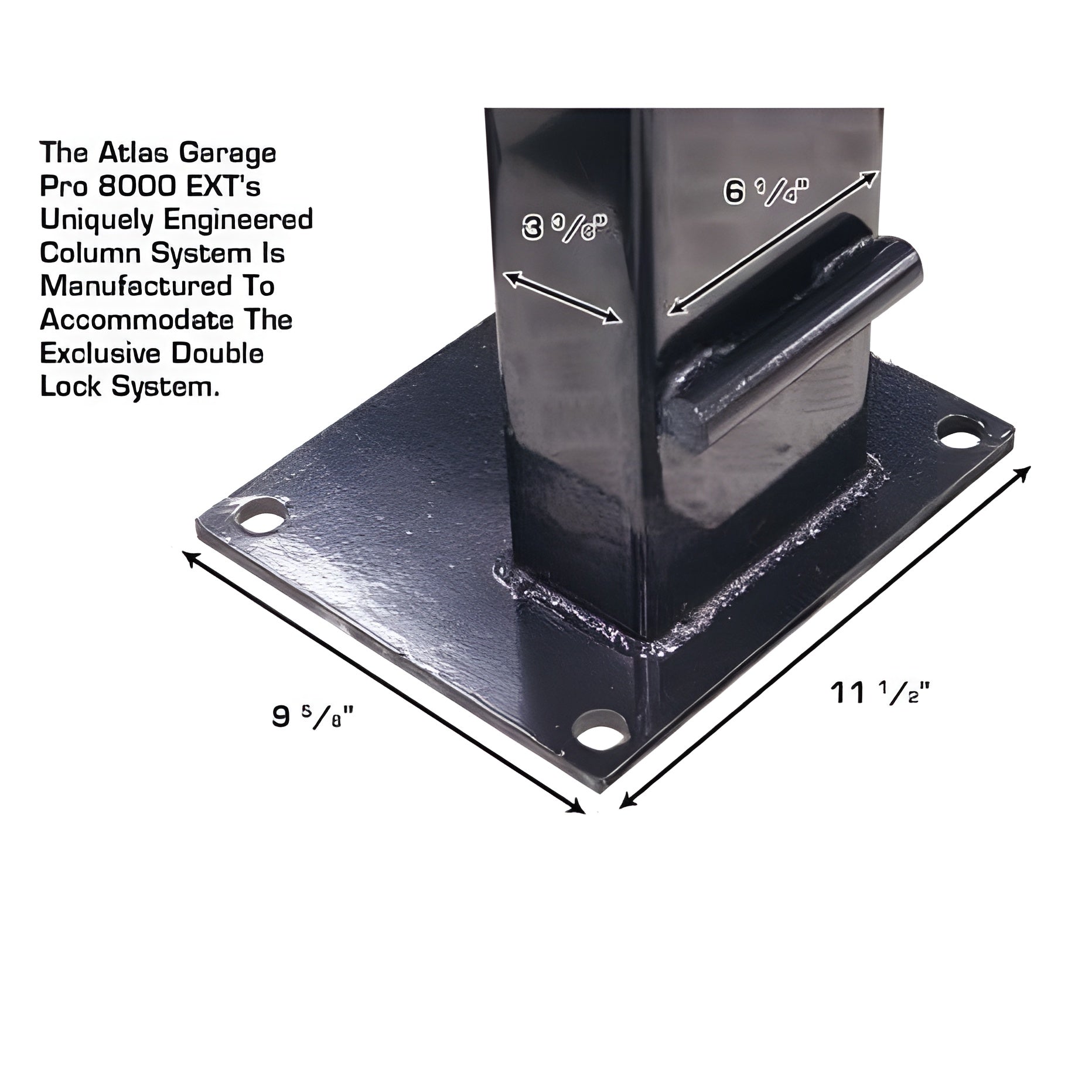

| Size of Column |
6 1/4" x 3 3/8" |
| Clearance Between Columns |
94 3/8" (7' 10 3/8") |
| Base of Column |
9 5/8" x 11 1/2" |
| Height of Columns |
98 1/2" (8' 2 1/2") |

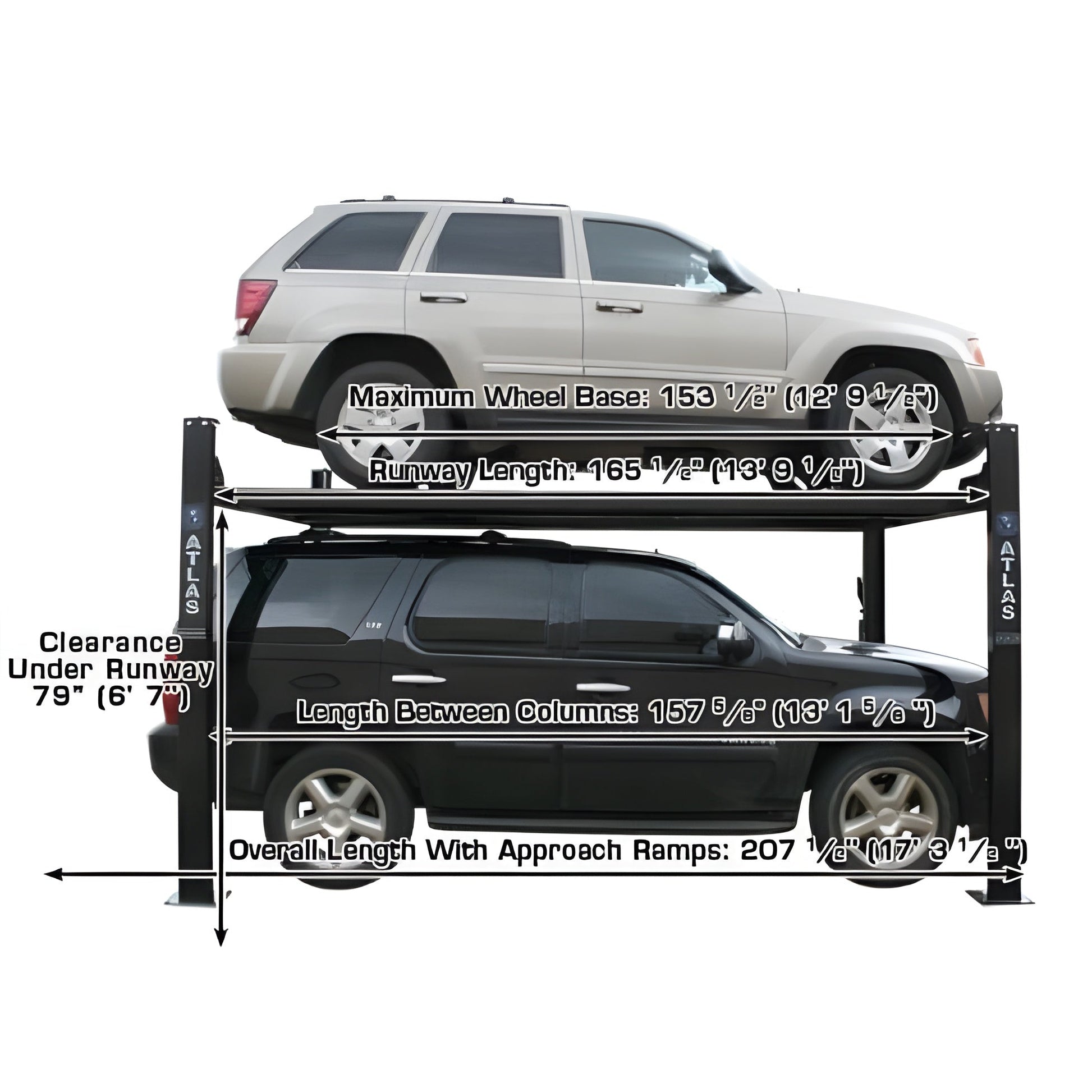

| Maximum Wheel Base |
153 ½" (12' 9 ½") |
| Drive Thru (Outside of tire to outside of tire) |
80 ½ " (6' 8 ½ ") |
| Cable Diameter |
.350" |

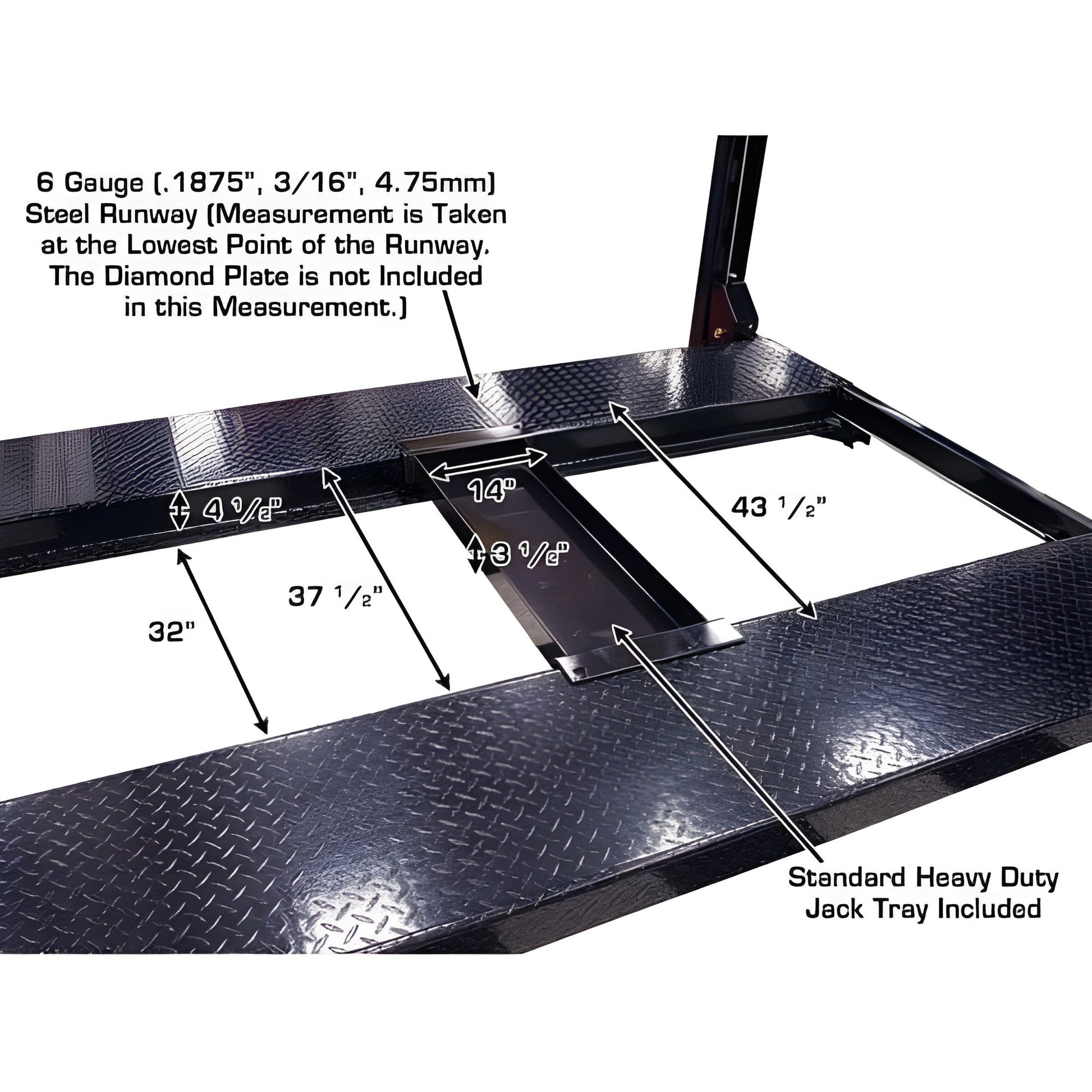

| Gauge Of Steel |
6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Motor |
110 Volt. A 30 amp breaker is required. |
Manual
Atlas Garage Pro 8,000 EXT Manual
What our Expect Think
-
8,000 lb. Lifting Capacity – Suitable for cars, light trucks, and SUVs.
-
Extended Height & Length – Ideal for taller vehicles and extra workspace.
-
4-Post Design for Stability – Provides enhanced safety and durability.
-
Includes RJ35 Sliding Jacks – Enables wheel-free lifting for brake and suspension work.
-
Heavy-Duty Steel Construction – Built for long-term reliability in professional or home garages.
Q&A
Q: What is the Atlas PRO8000EXT 4-Post Lift + RJ35 Sliding Jacks Combo used for?
A: The Atlas PRO8000EXT is a high-capacity 4-post lift designed for vehicle storage, maintenance, and repairs, with extended height and length to accommodate longer vehicles. The RJ35 sliding jacks enable wheel-free lifting for tire, brake, and suspension work.
Q: What is the lift’s weight capacity?
A: The lift has an 8,000 lb capacity, making it suitable for cars, SUVs, trucks, and longer-wheelbase vehicles.
Q: What type of vehicles is it best for?
A: This lift is ideal for full-size trucks, SUVs, and vehicles with extended wheelbases, offering ample clearance and lifting power.
Q: Does it require professional installation?
A: Yes, professional installation is recommended to ensure proper setup, safety, and functionality.
Maintenance Tips
-
Inspect Cables & Pulleys – Check for wear, fraying, and proper tension regularly.
-
Lubricate Moving Parts – Apply grease to pulleys, rollers, and jack rails for smooth operation.
-
Monitor Hydraulic Fluid – Ensure proper levels and replace if contaminated.
-
Check Safety Locks – Test lock engagement before lifting for maximum safety.
-
Inspect Sliding Jacks – Verify proper function and smooth movement.
-
Tighten Bolts & Fasteners – Secure all anchor points to maintain stability.
-
Keep Platforms Clean – Remove debris for safe vehicle positioning
