Atlas PRO8000EXT-L 4 Post Lift + RJ35 Sliding Jacks Combo - ATEXH-PRO8EXTL-COMBO-FPD
The Garage PRO8000EXT-L features the extra lifting height of the PRO8000EXT but is also 20 inches longer and 3 inches wider. Or to compare to the original, the Garage PRO8000EXT-L is 20 inches longer, 3 inches wider, and 14 inches taller than the standard Atlas Garage PRO8000! The extra runway length will accommodate almost all of the longer wheelbase pickup trucks, except duallys. This is because the dual rear wheels are TOO WIDE to fit between the column lock assemblies. Check out the Atlas Garage PRO9000 if you need a portable lift for your dually!This combo package also includes two of the popular Atlas RJ35 sliding bridge jacks. The jacks are perfect for raising a vehicles wheels off the lifts runways in order to service tires and brakes.
Features
PRO8000EXT-L
- 8,000 lb. Capacity
- Free Standing/Portable Design
- EXTRA TALL & EXTRA LONG
- Diamond Plated Runways

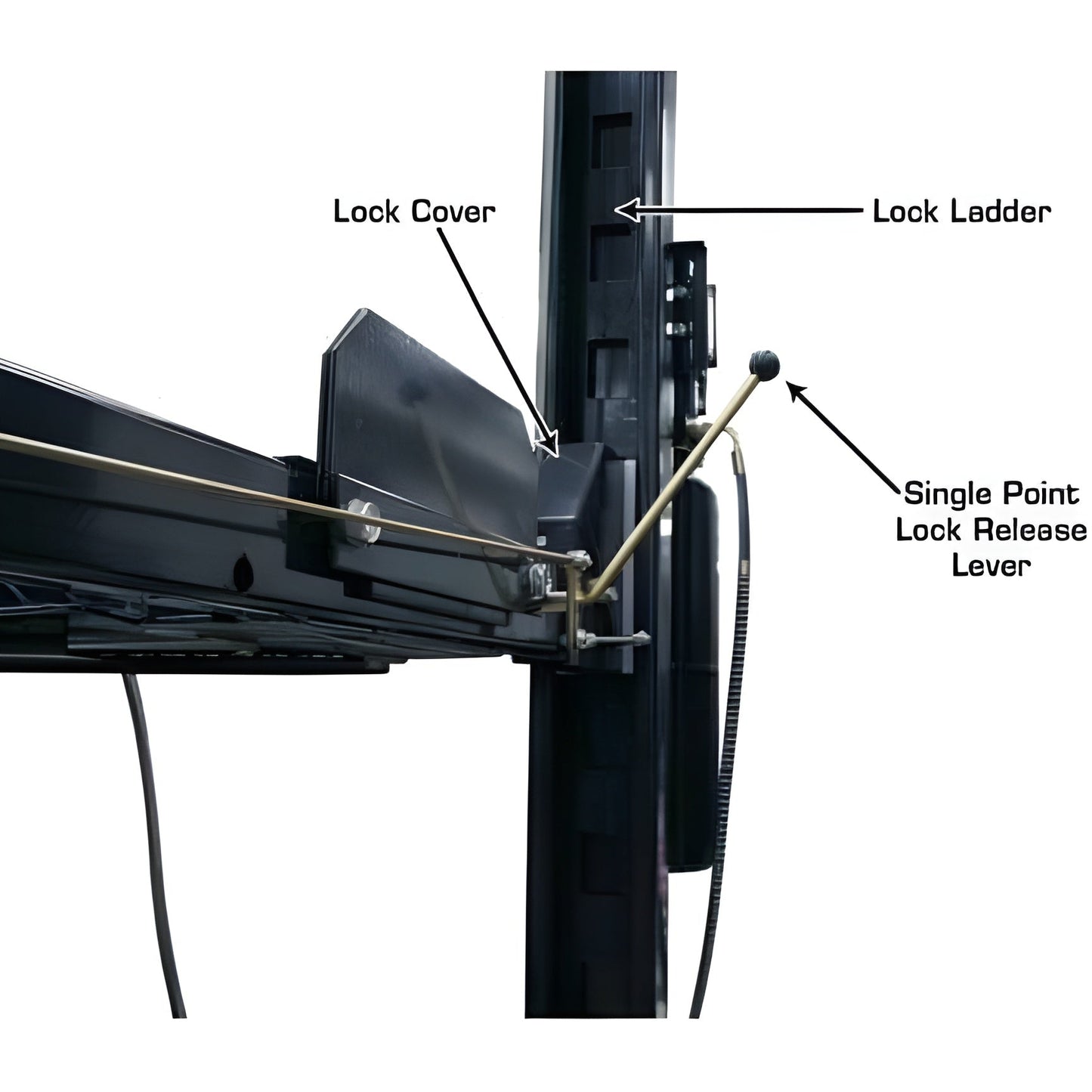

- Single-Point Lock Release

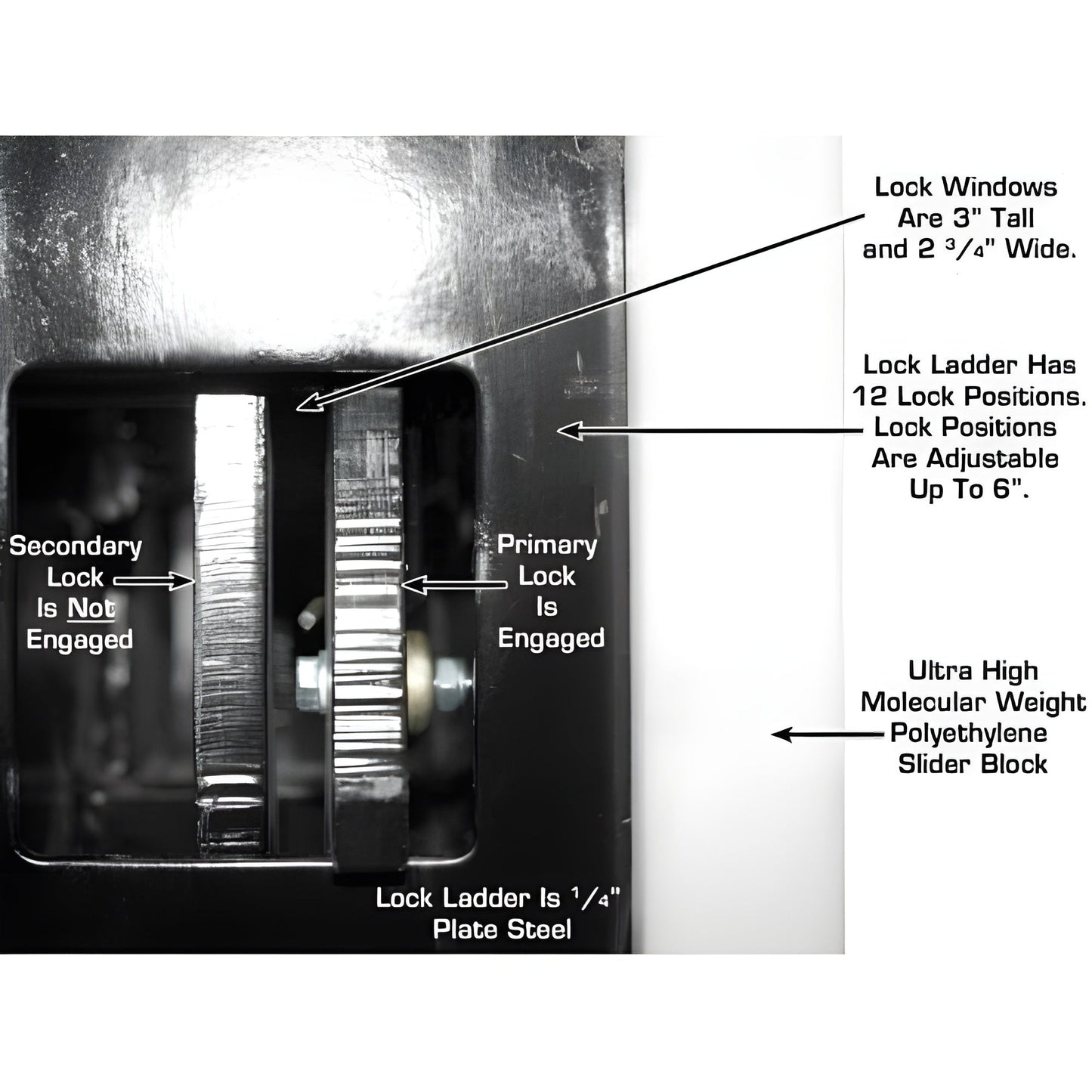

- Lock Ladder Design

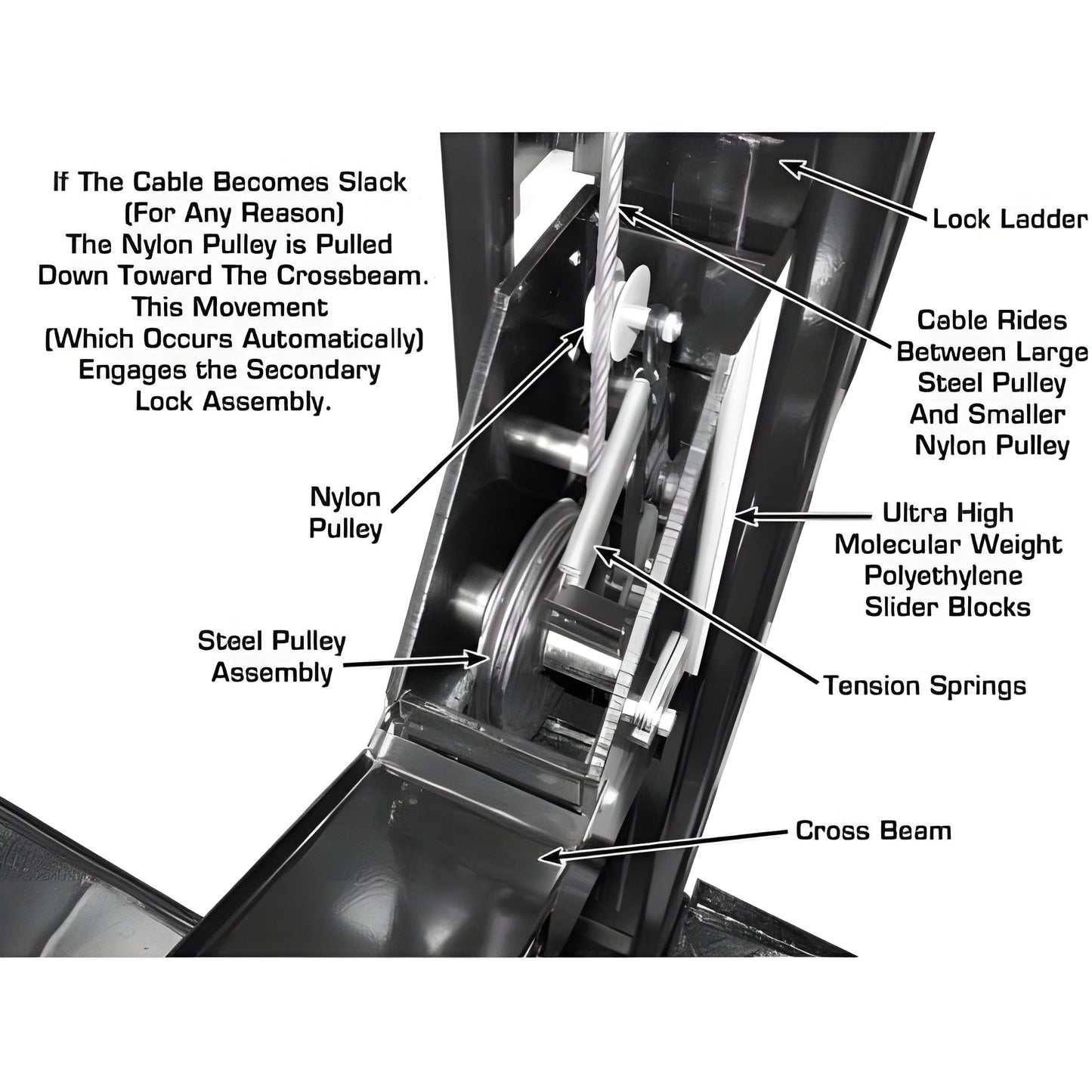

- Double Lock Safety System
- Caster Kit With Polyurethane Wheels Included
- Steel Approach Ramps Included
- Steel Jack Tray Included
- 4 Plastic Drip Trays Included
- 4 Wheel Stops Included
- 2 Rubber Wheel Chocks Included
- Perfect For Storing Or Working On Vehicles
- 110volt Electric Operation (30 AMP BREAKER REQUIRED)
PROJACK35
- Sliding Bridge Jack
- Capacity: 3,500 lbs.
- Manual, hand pump operated
- Scissor mechanism allows for level lifting
- Low Profile, Compact Design
- Adjustable Width to fit many 4-post lifts
- Adjustable Lift Arms to reach many lifting points
- Multiple Safety Lock Positions
- 4 Piece Truck Adapter Set Included
Specifications

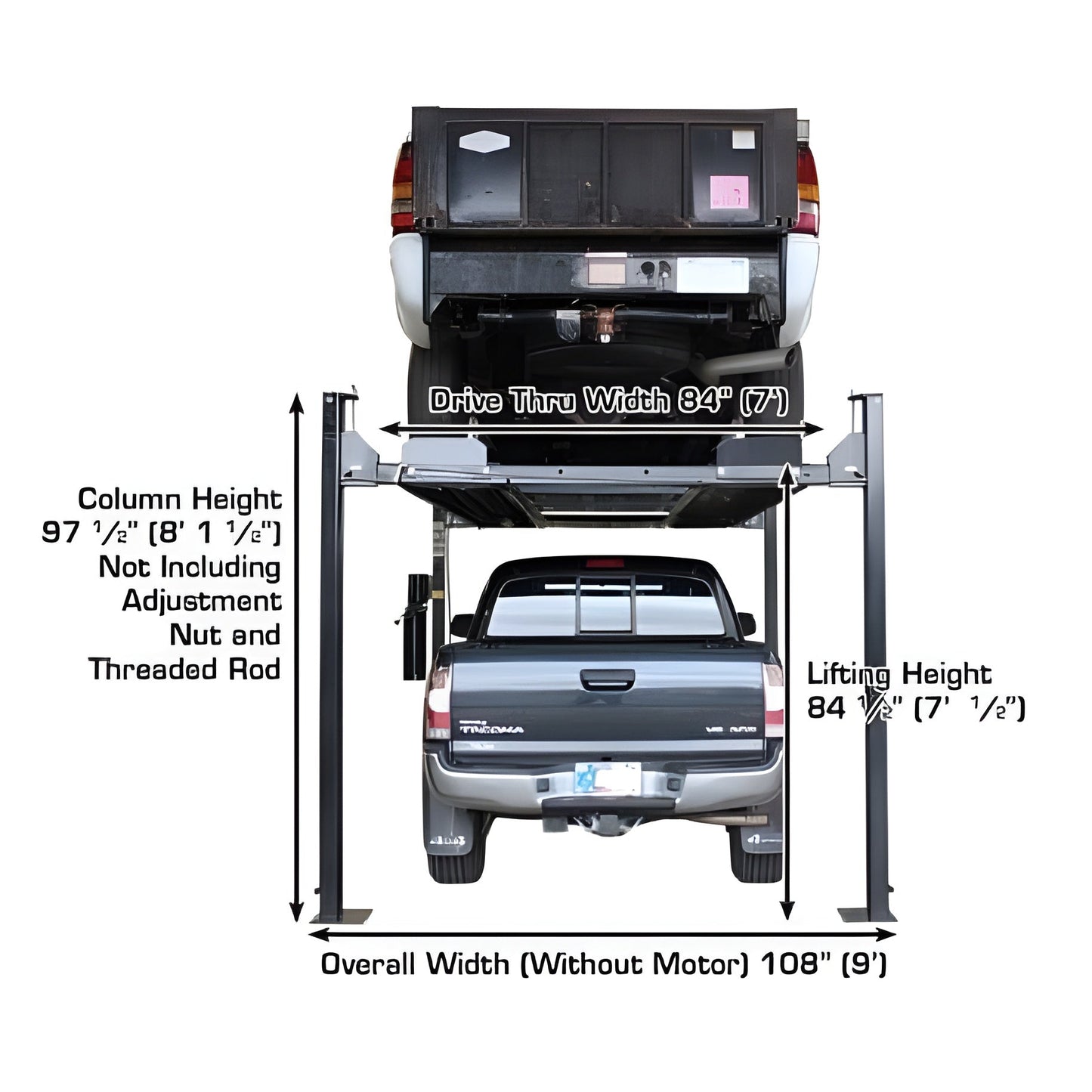

| Atlas Garage Pro 8000 EXT-L Specifications |
|
| Capacity |
8,000 LB |

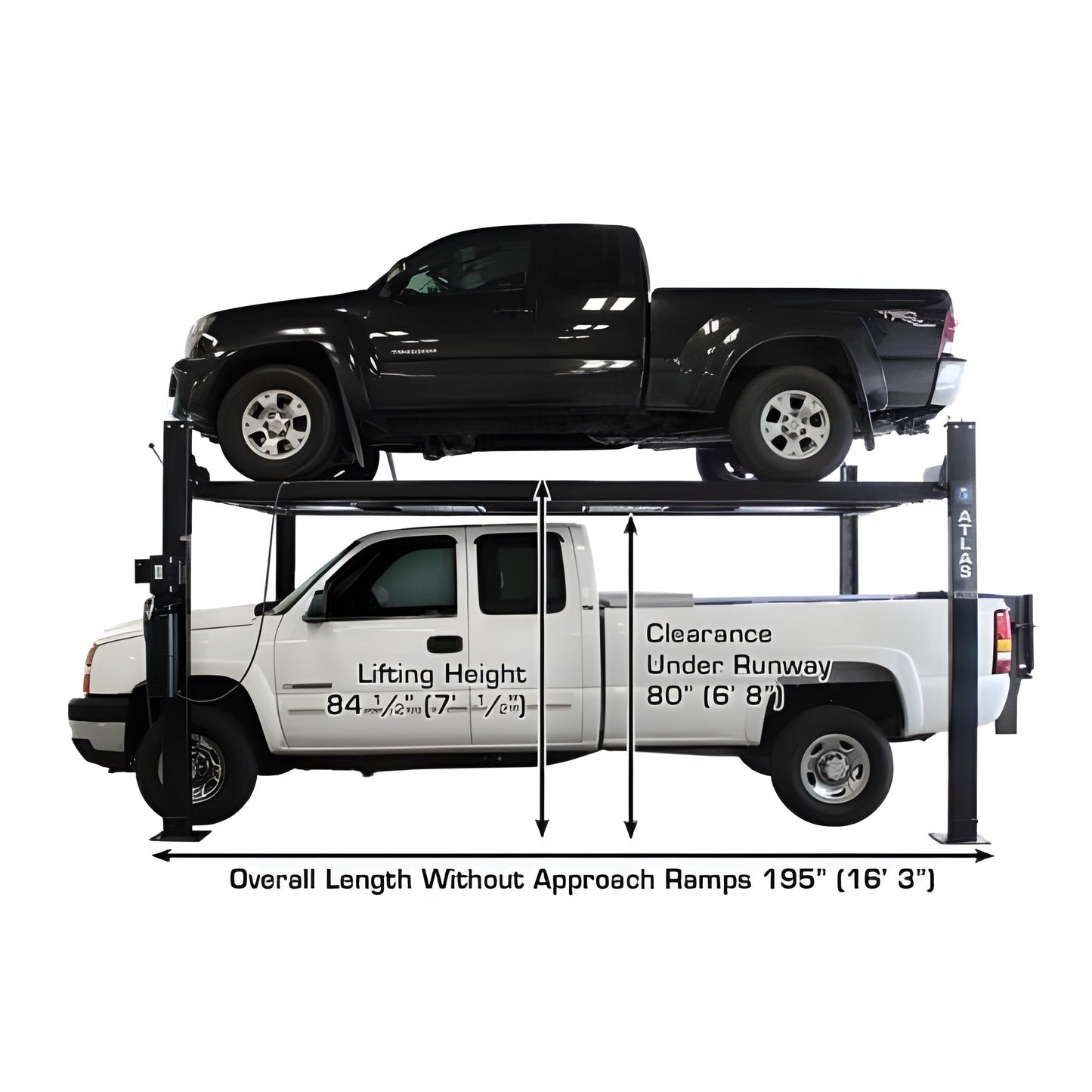

| Lifting Height |
84 ½" (7' ½") |
| Overall Width (Without Motor) |
108" (9') |
| Overall Width (With Motor) |
116 ½" (9' 8 ½") |
| Length Between Columns |
176 ½" (14' 8 ½") |
| Overall Length with Approach Ramps |
227" (18' 11") |
| Overall Length without Approach Ramps |
195" (16' 3") |

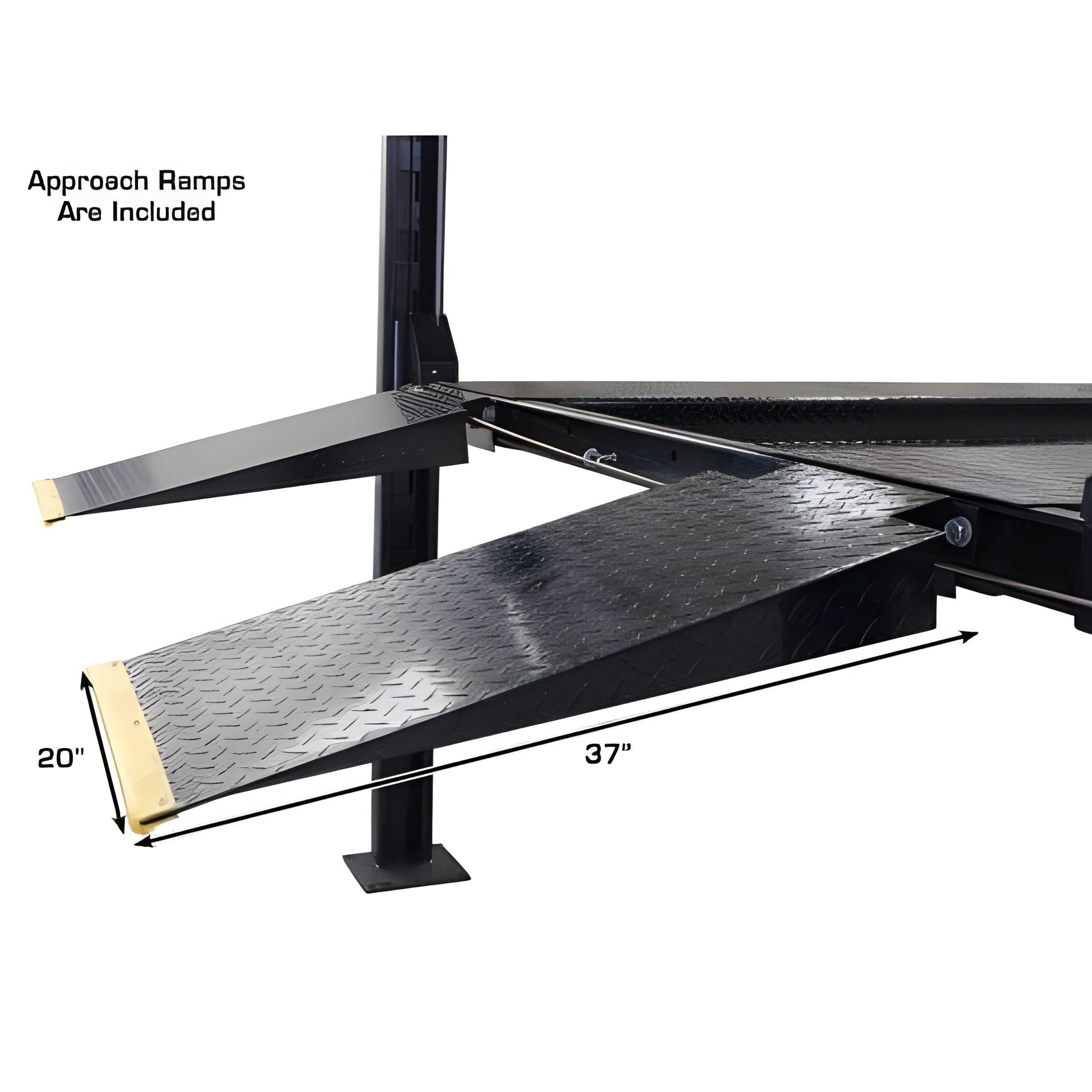

| Approach Ramps |
36 3/4" (3' 3/4") x 19 5/8" (1' 7 5/8") |
| Total Runway Width |
22" (1' 10") |
| Runway Length |
185" (15' 5") |
| Runway Thickness |
4 ½" |
| Width Between Runways |
38" (3' 2") |
| Width Between Runway Rails |
34" (2' 10") |
| Outside Runway to Outside Runway |
77 3/4" (6' 5 3/4") |
| Clearance Under Runways |
Max: 80" (6' 8") |
| Size of Column |
6 ¼" x 3 3/8" |

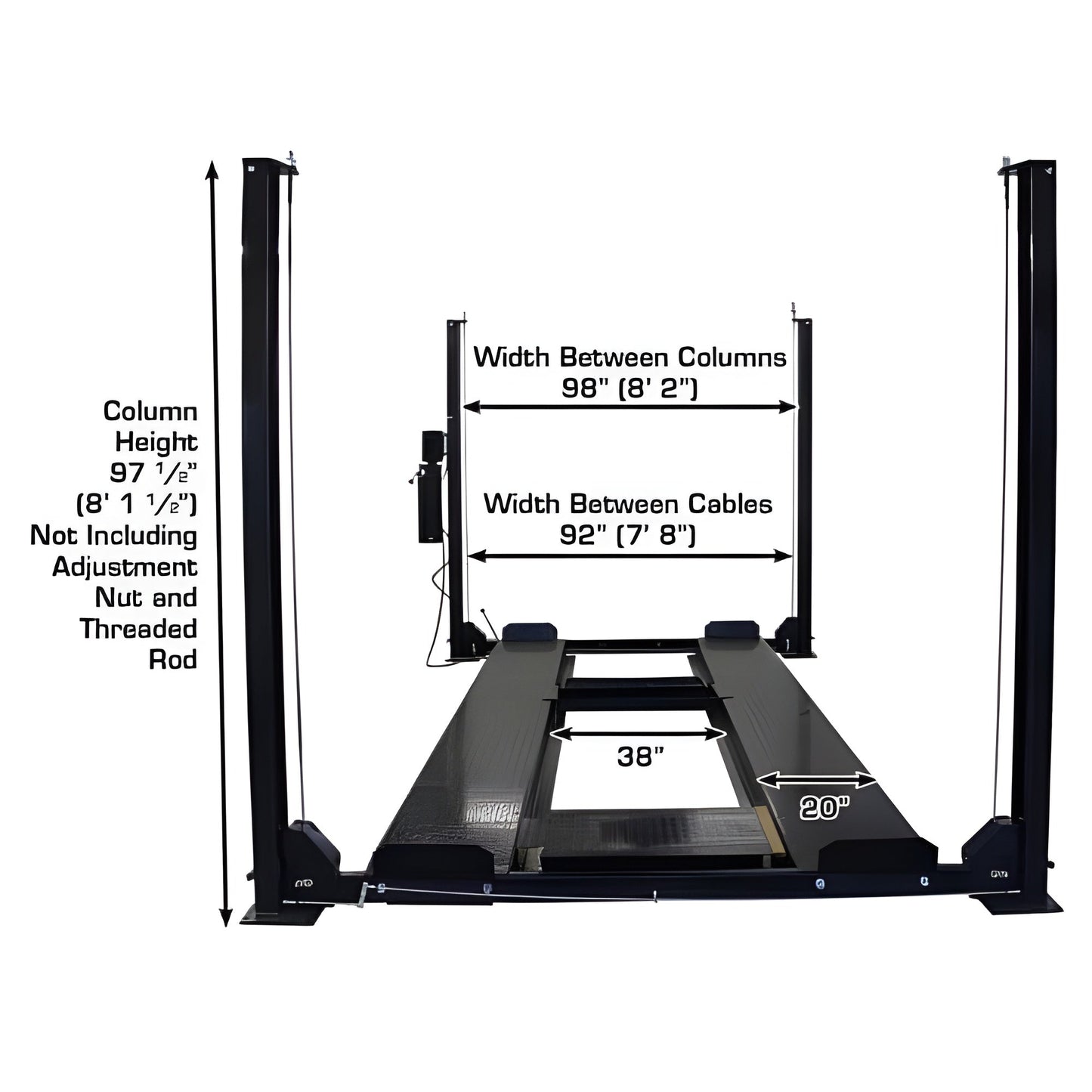

| Clearance Between Columns |
98" (8' 2") |

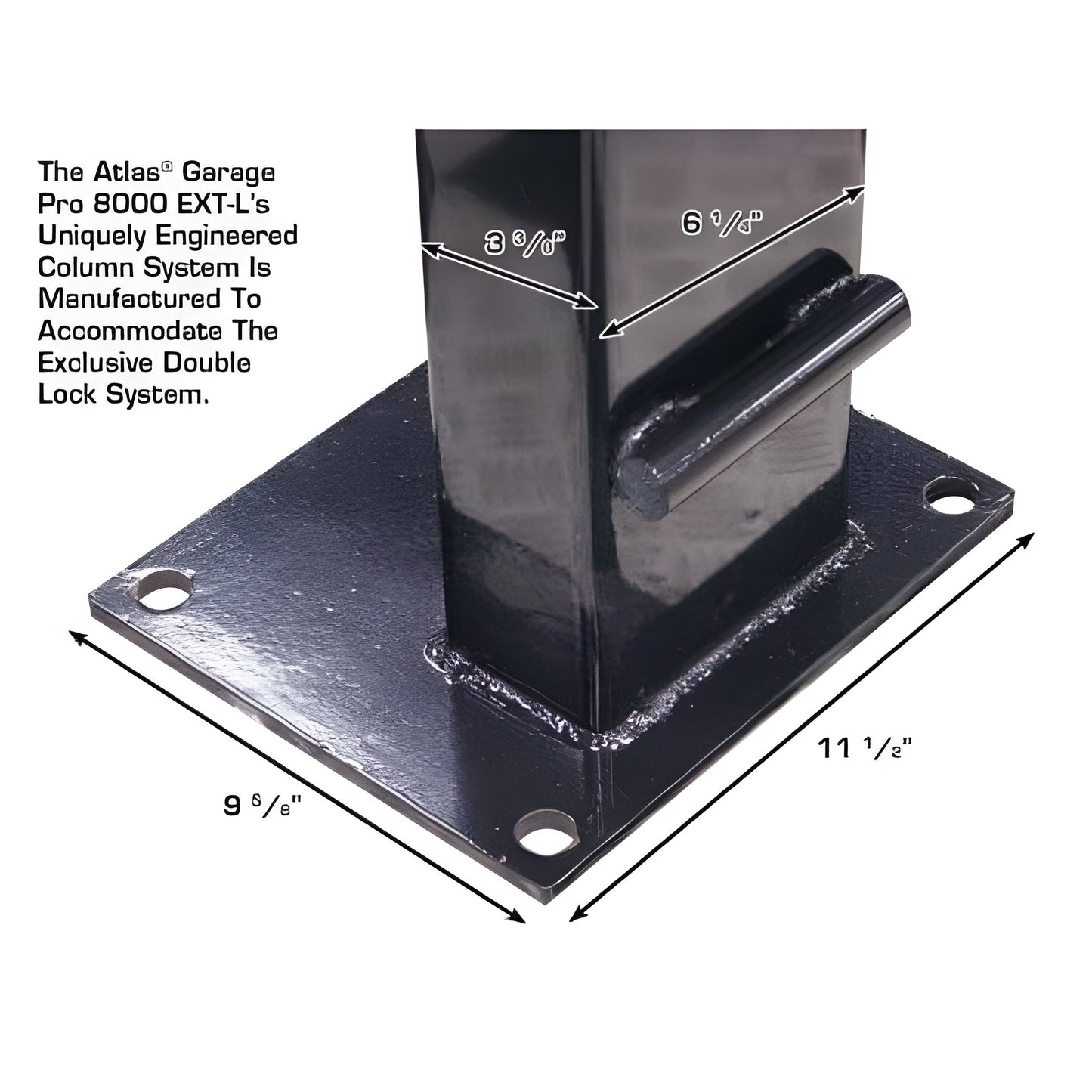

| Base of Column |
9 5/8" x 11 ½" |
| Height of Columns |
97 ½" (8' 1 ½"); 100" (8' 4") with Bolts |

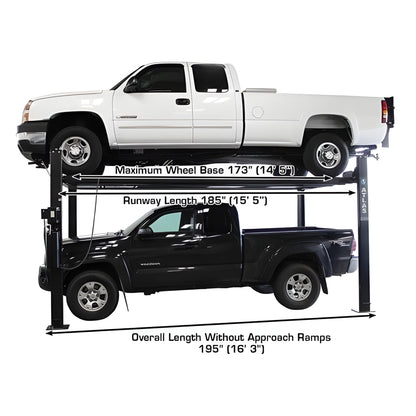

| Maximum Wheel Base |
173" (14' 5") |
| Drive Thru (Outside of tire to outside of tire) |
84" (7') |
| Cable Diameter |
.350" |
| Gauge Of Steel |
6 Gauge (.1875"/ 3/16" / 4.75mm) |
| Motor |
110 Volt |
| Oil Requirement |
3-5 Gallons AW32/AW46 |
| Shipping Weight |
1,900 LB. |
| 11 Locking Positions Under Runway |
|
| (+/ - 2") |
11 Locking Positions Top Of Runway |
| (+/ - 2") |
|
| 19" (1' 7") |
24 1/4" (2' 1/4") |
| 25" (2' 1") |
30 1/4" (2' 6 1/4") |
| 31" (2' 7") |
36 1/4" (3' 1/4") |
| 37" (3' 1") |
42 1/4" (3' 6 1/4") |
| 43" (3' 7") |
48 1/4" (4' 1/4") |
| 49" (4' 1") |
54 1/4" (4' 6 1/4") |
| 55" (4' 7") |
60 1/4" (5' 1/4") |
| 61" (5' 1") |
66 1/4" (5' 6 1/4") |
| 67" (5' 7") |
72 1/4" (6' 0 1/4") |
| 73" (6' 1") |
78 1/4" (6' 6 1/4") |
| 79" (6' 7") |
84 1/4" (7' 1/4") |
| Atlas RJ-35 Sliding Jack Specifications |
|
| Capacity |
3,500 LB. |
| Minimum Width |
29 1/2" |
| Minimum Width with Arms In |
39 1/2" |
| Maximum Width with Arms Out |
64 3/4" |
| Working Width |
31" - 47" |
| Minimum Height with Lift Pad |
3 1/2" |
| Lifting Pad |
1 3/8" |
| Short Adapter |
1 1/4" |
| Tall Adapter |
5" |
| Raised Height without Adapter |
11" |
| Raised Height with Small Adapter |
12 1/4" |
| Raised Height with Large Adapter |
16" |
| Raised Height with Small and Large Adapter |
17 1/4" |
Manual
Atlas Garage Pro 8,000 EXT-L Manual
What our Expect Think
-
Extended Height & Length – Ideal for taller vehicles and longer wheelbases.
-
8,000 lb. Lifting Capacity – Supports cars, trucks, and SUVs with ease.
-
RJ35 Sliding Jacks Included – Allows wheel-free lifting for maintenance and repairs.
-
Heavy-Duty 4-Post Construction – Ensures stability and longevity.
-
Perfect for Storage & Repairs – Great for home garages and professional shops.
Q&A
Q: What is the Atlas PRO8000EXT-L 4-Post Lift + RJ35 Sliding Jacks Combo used for?
A: The Atlas PRO8000EXT-L is a heavy-duty 4-post lift designed for storing and servicing longer wheelbase vehicles, paired with RJ35 sliding jacks for wheel-free lifting during maintenance.
Q: What makes this lift combo stand out?
A: It features an extra-long runway to accommodate longer trucks and SUVs, an 8,000 lb. lifting capacity, and a space-efficient design, making it ideal for home garages and professional shops.
Q: Is this lift suitable for residential garages?
A: Yes! Its compact footprint and extended-length design make it a great choice for both home garages and professional workshops.
Maintenance Tips
4-Post Lift Maintenance:
-
Inspect Cables & Pulleys – Check for fraying, wear, or loose tension and adjust if necessary.
-
Lubricate Moving Parts – Apply grease to rollers, locks, and lifting mechanisms.
-
Monitor Hydraulic Fluid – Keep fluid levels full and replace if contaminated.
-
Test Safety Locks – Ensure locks engage properly before lifting any vehicle.
-
Tighten Fasteners – Regularly check and secure bolts, anchor points, and structural components.
-
Keep Runways Clean – Remove dirt and debris to prevent slippage or misalignment.
RJ35 Sliding Jacks Maintenance:
-
Inspect Hydraulic Components – Check hoses, seals, and fluid levels for any leaks.
-
Lubricate Pivot Points – Apply grease to moving parts for smooth operation.
-
Confirm Weight Limit – Do not exceed the jack’s rated capacity.
-
Keep Tracks Free of Debris – Ensure a clean sliding surface for optimal performance.
