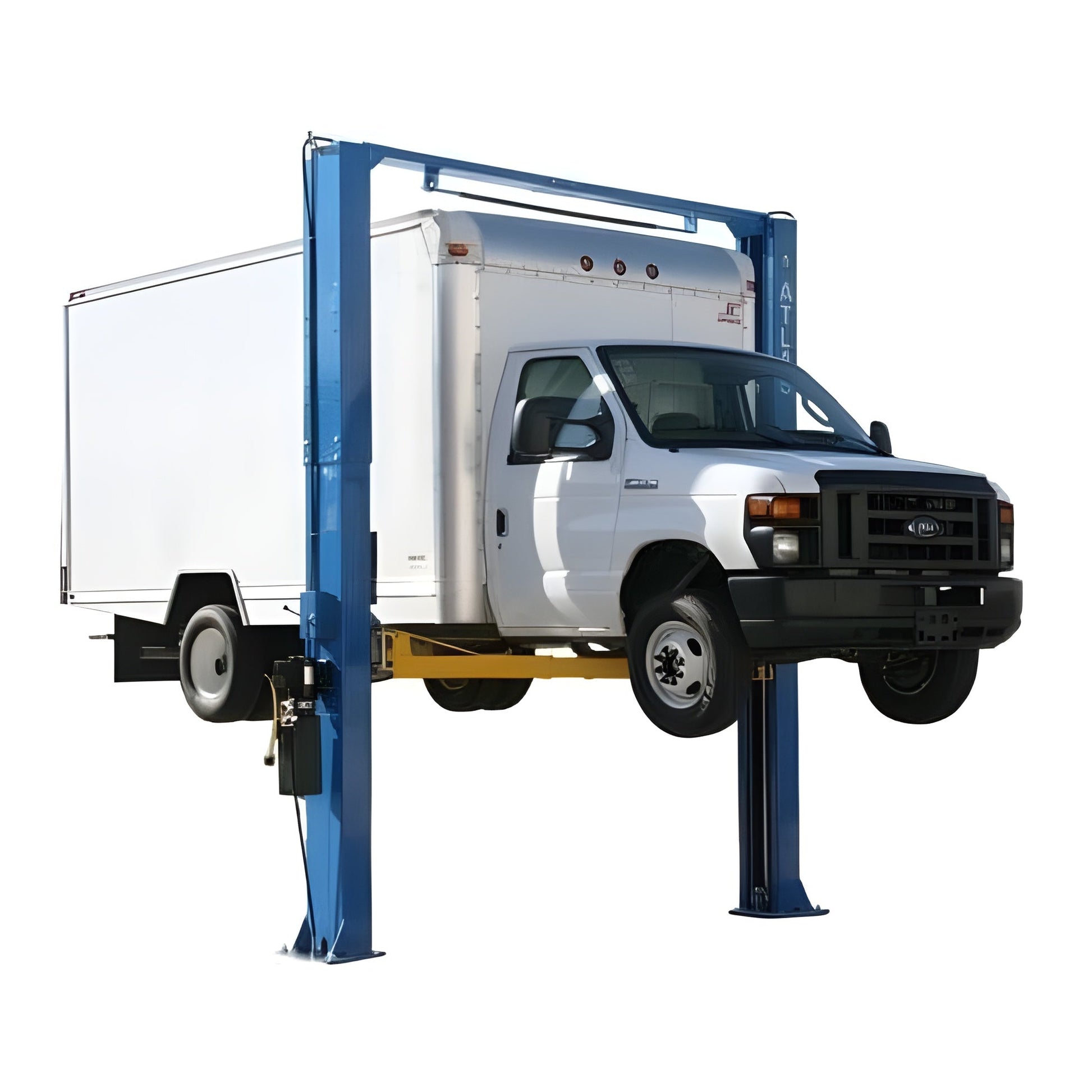

Atlas PV15PX 15,000 lb Overhead 2-Post Lift - ATEXH-PV15PX-FPD
The Atlas PV series represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold! Descriptions such as “bulletproof”, built like a brick outhouse, tougher than nails, and other such euphemistic phrases are used every day to describe any of the Atlas® PV series models.The Atlas PV15PX is a commercial grade lift designed to accommodate everything from standard cars to heavy duty service trucks . The distance between the symmetrical columns is almost 123″ with a drive through space of over 109″. The extra distance between the symmetrical columns will allow the widest of vehicles or vehicles with wide rearview mirrors to be lifted or driven through. The increased length of the symmetrical arms coupled with the additional height of the included peg style truck adapter set allows the operator to safely raise long wheel base trucks with a variety of running boards. The extra height means extra clearance allowing you to lift vans and box trucks without worry.The Atlas XH-PV15PX features three height settings, the lowest setting of 150 inches or 12 foot 6 inches requires the purchase of extra short cables.
Features
- 15,000 lb capacity
- Extra Tall & Extra Wide
- Commercial Grade

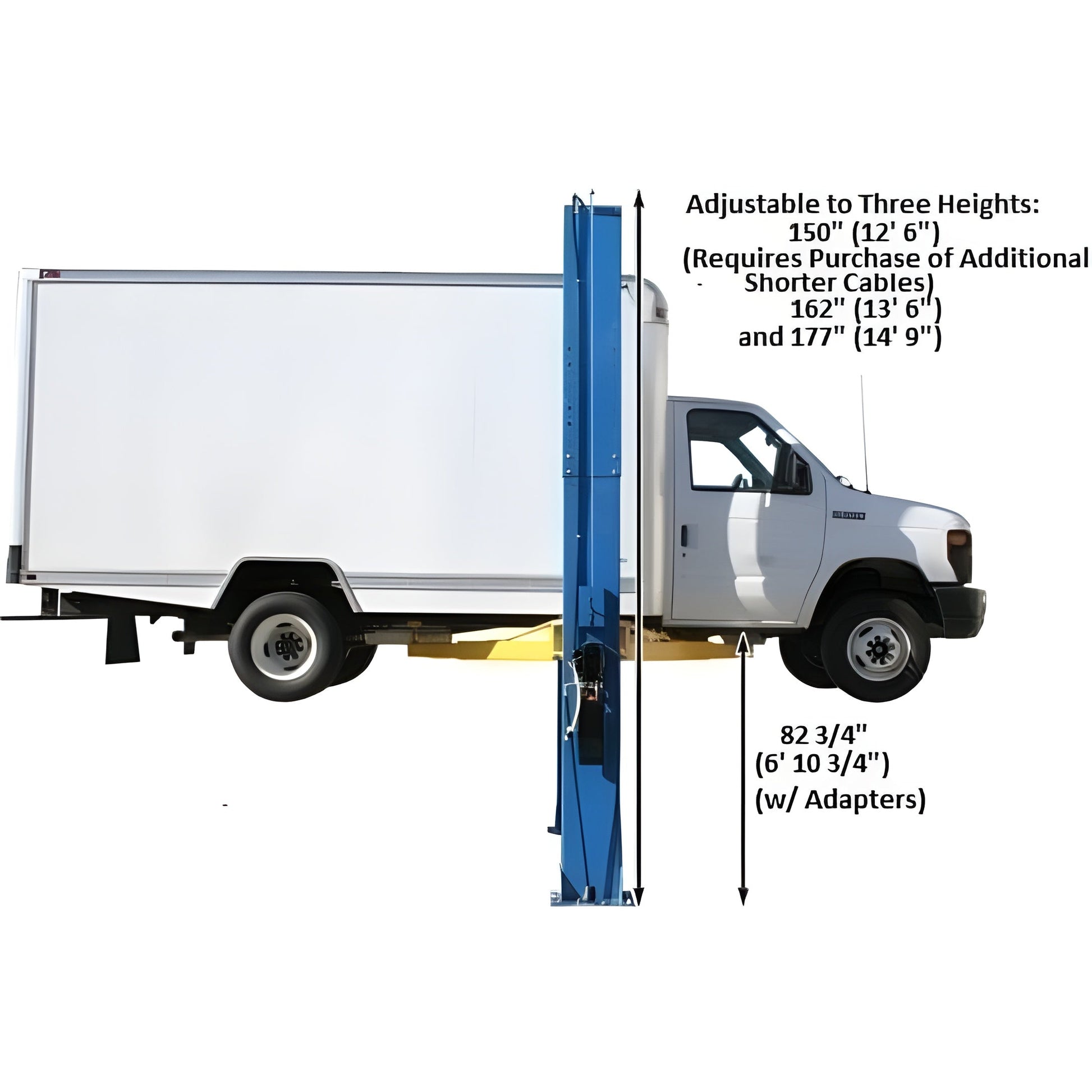

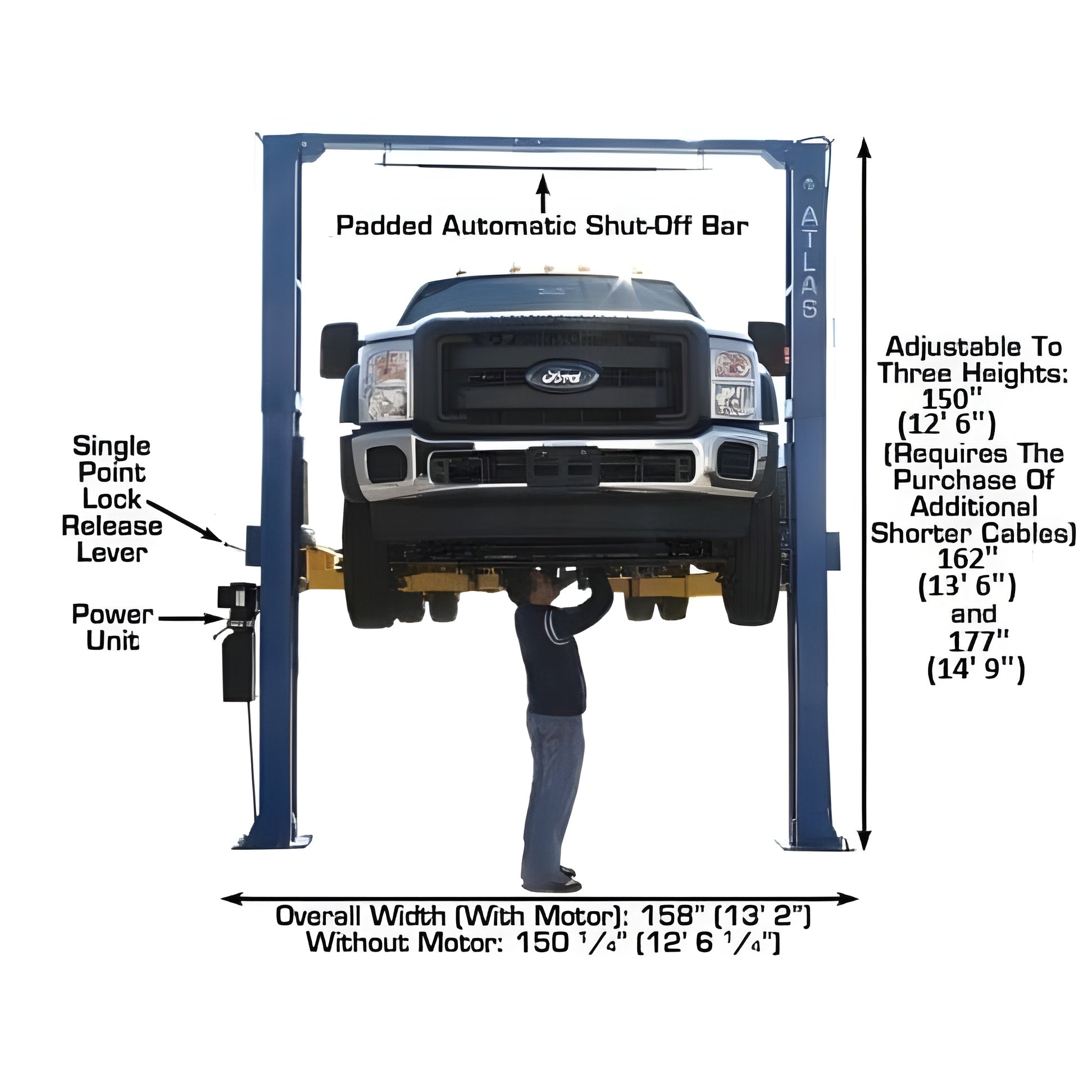

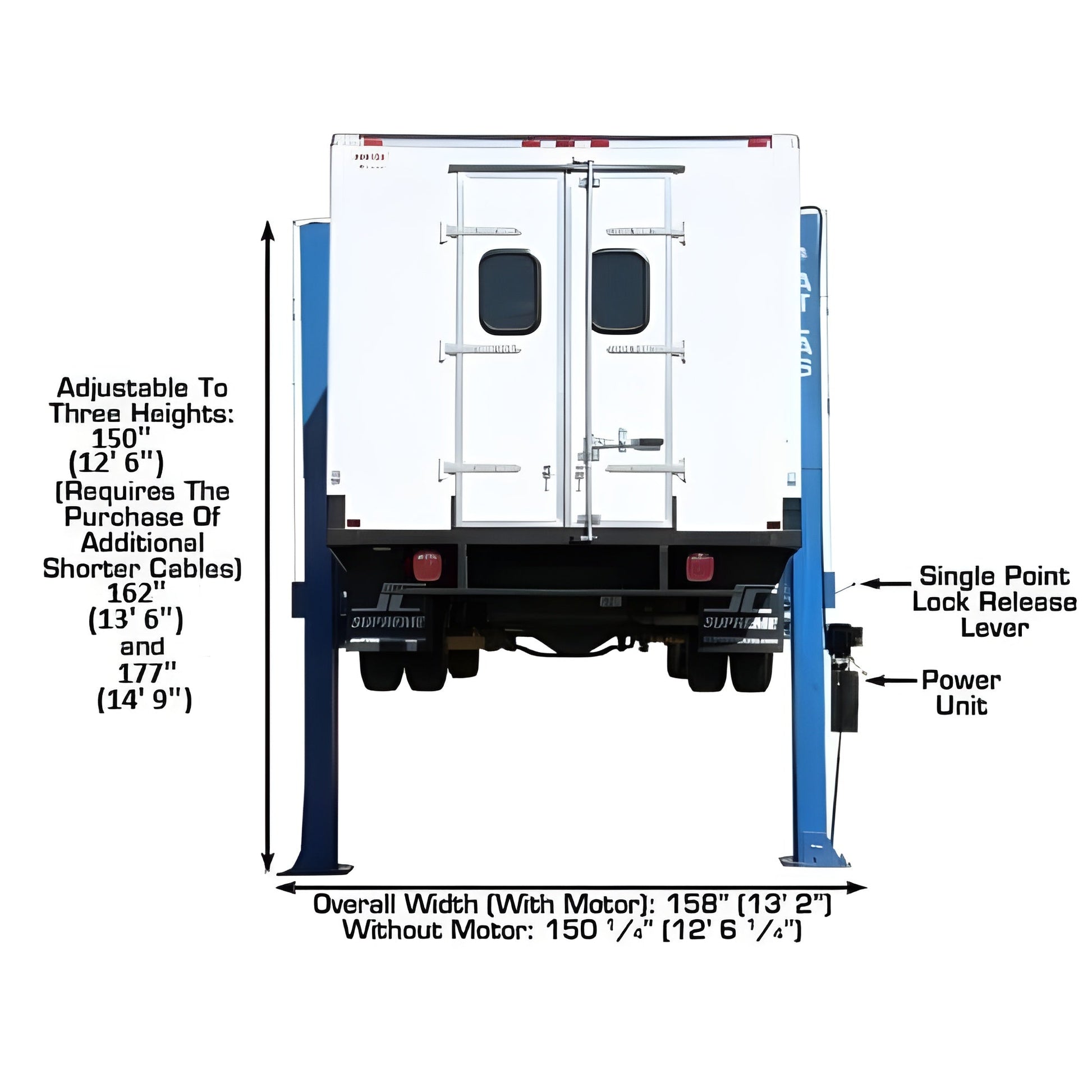

- Adjustable height 165″ (13′ 9″) or 177″ (14′ 9″)
- Special low height 150″ (12′ 6″) (Requires purchase of extra cables)

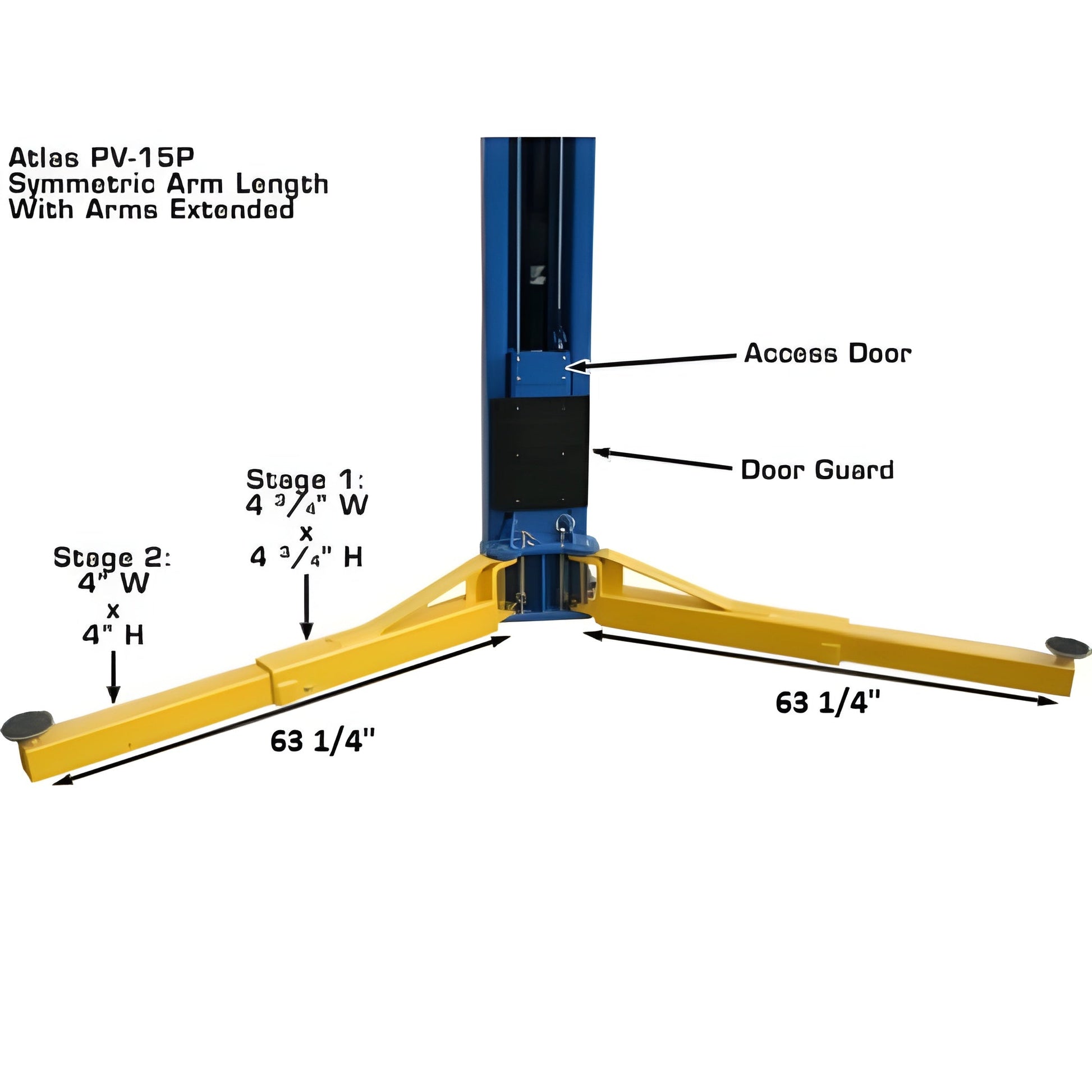

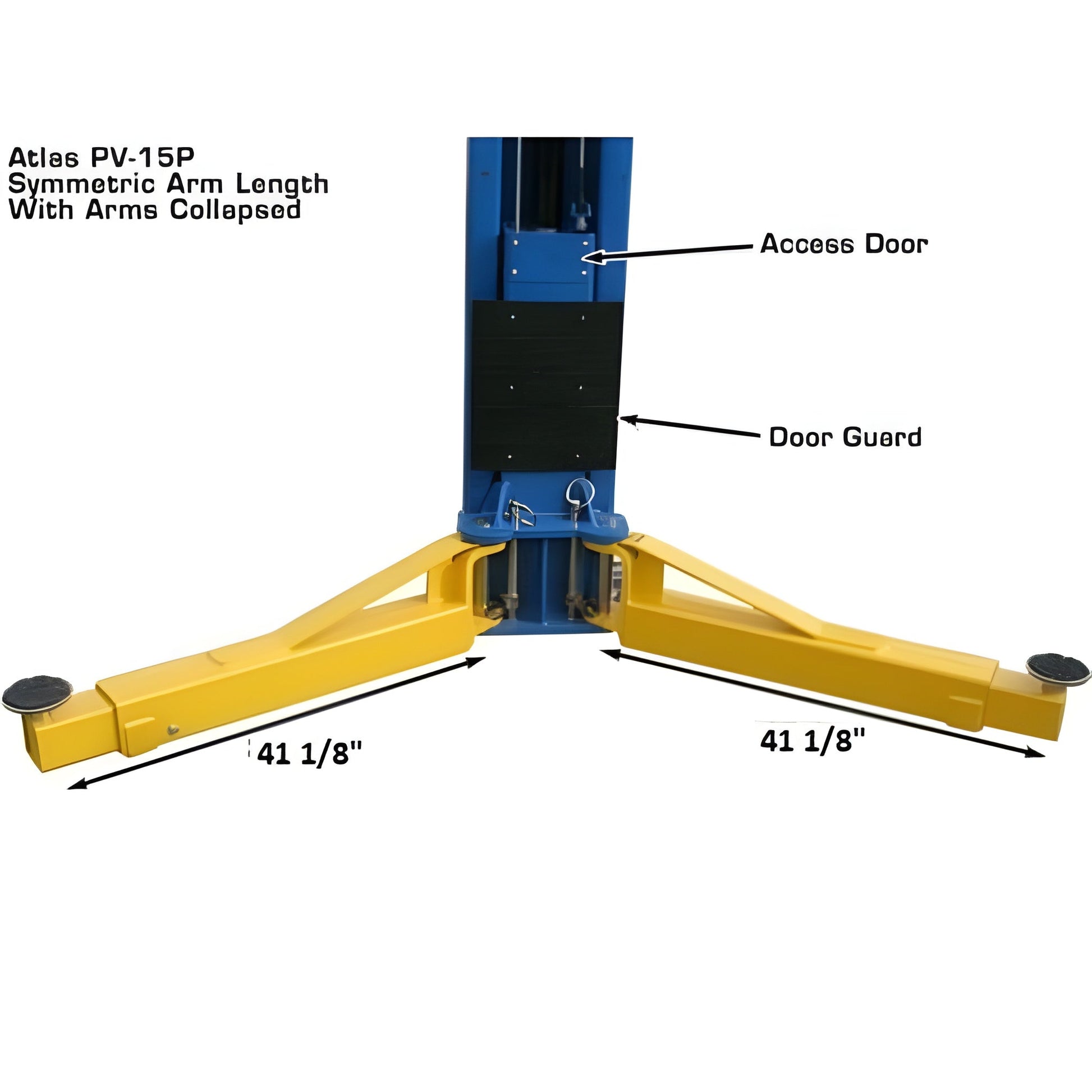

- Symmetric arms

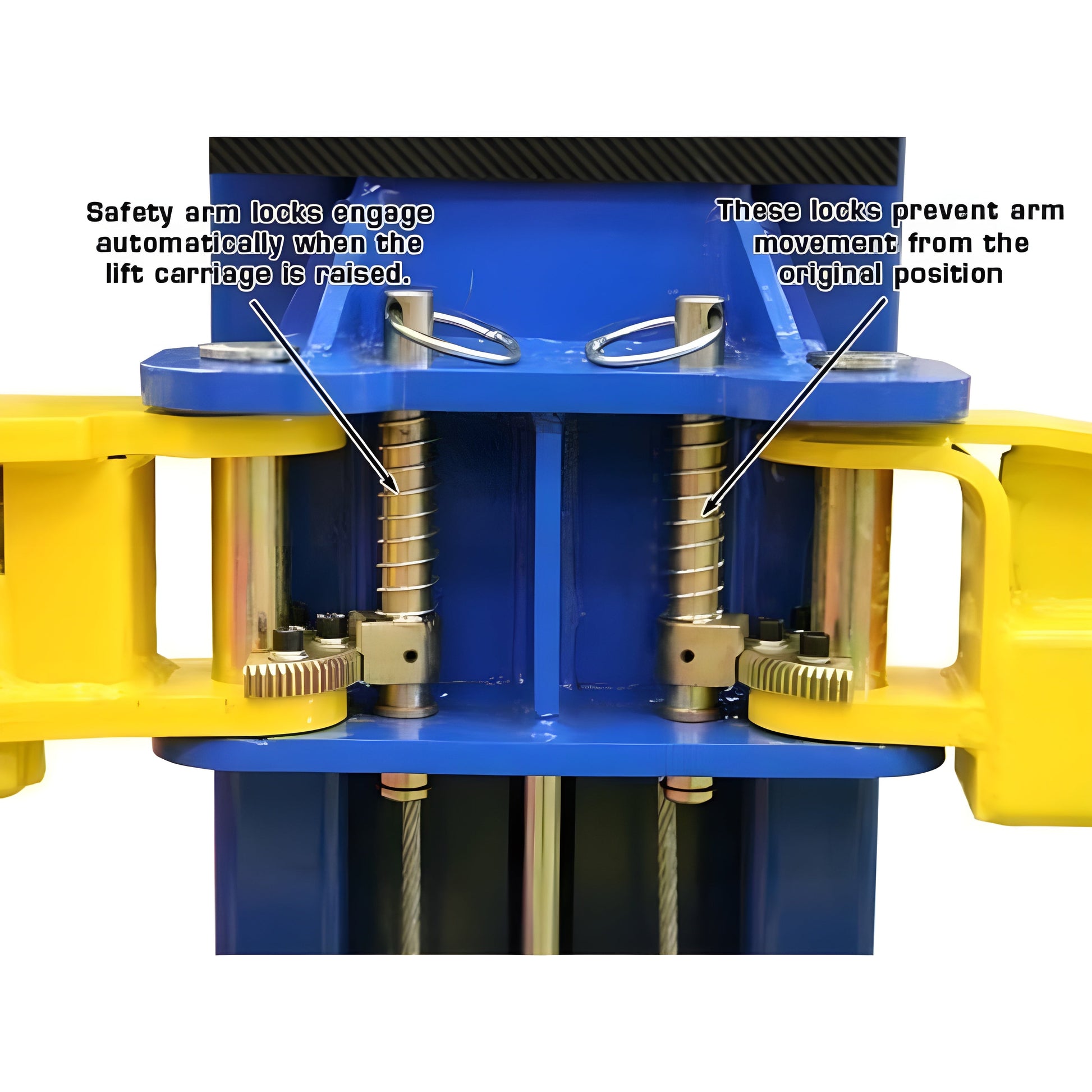

- Automatic Arm Restraints

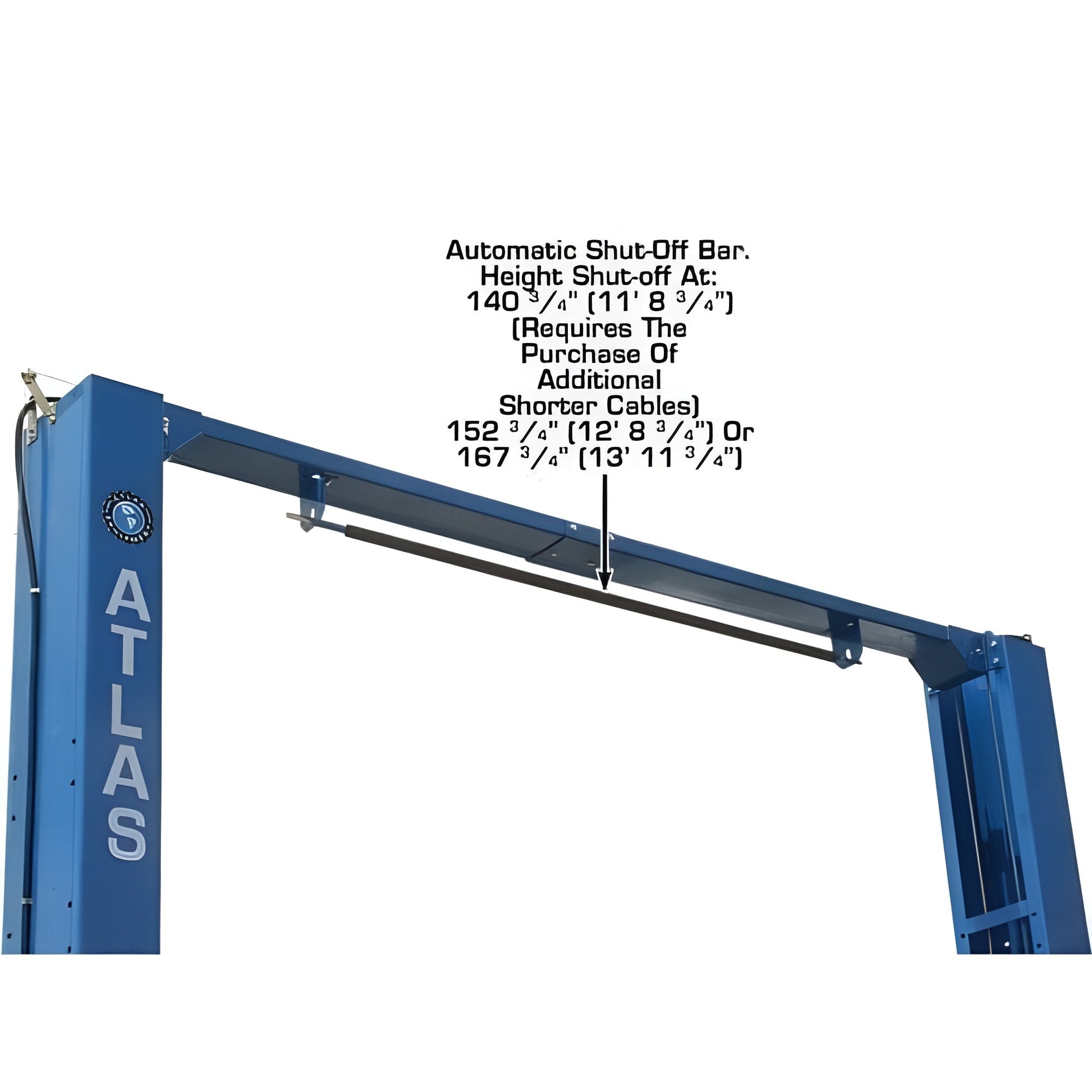

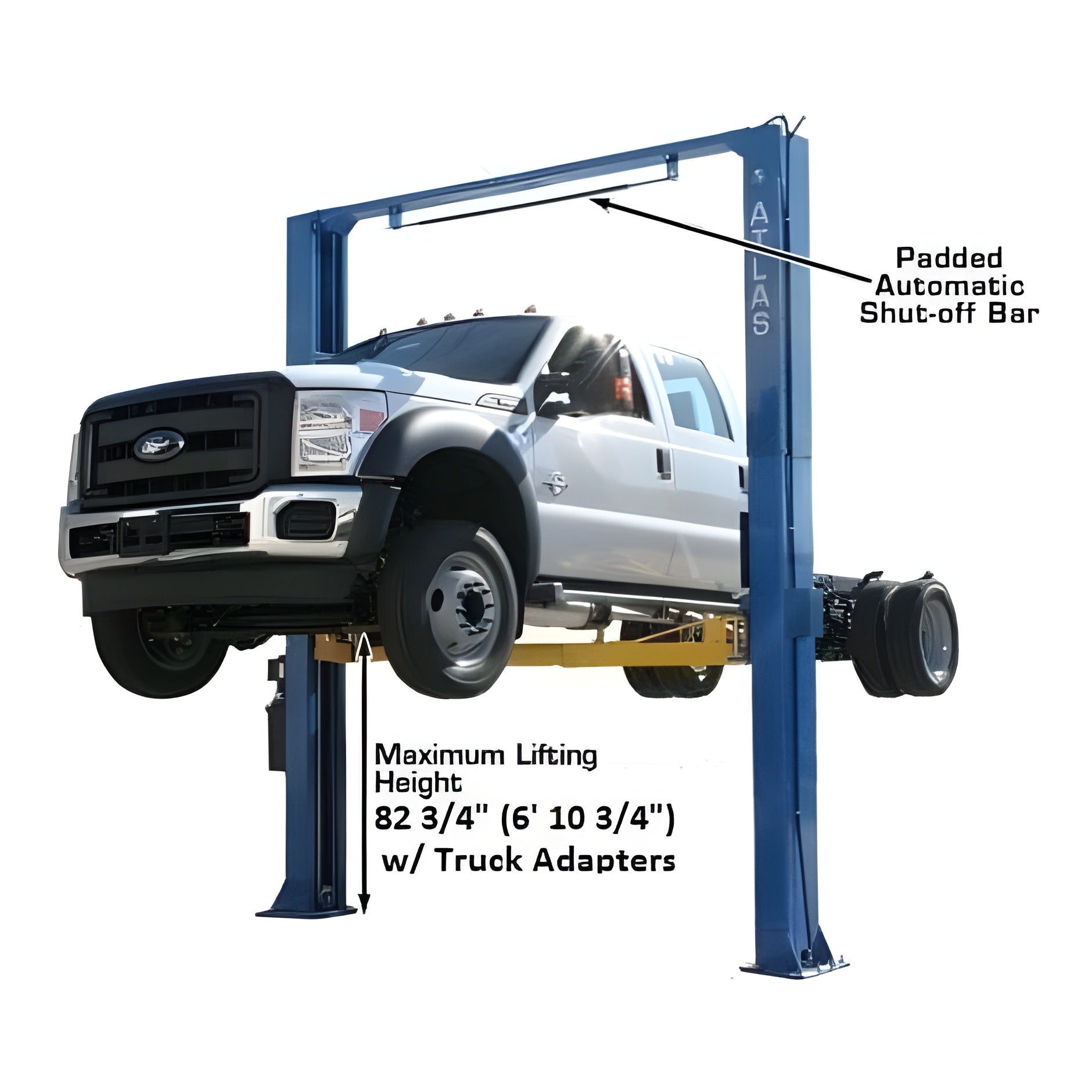

- “Padded” Shut-Off Bar
- Door Guards on Carriages

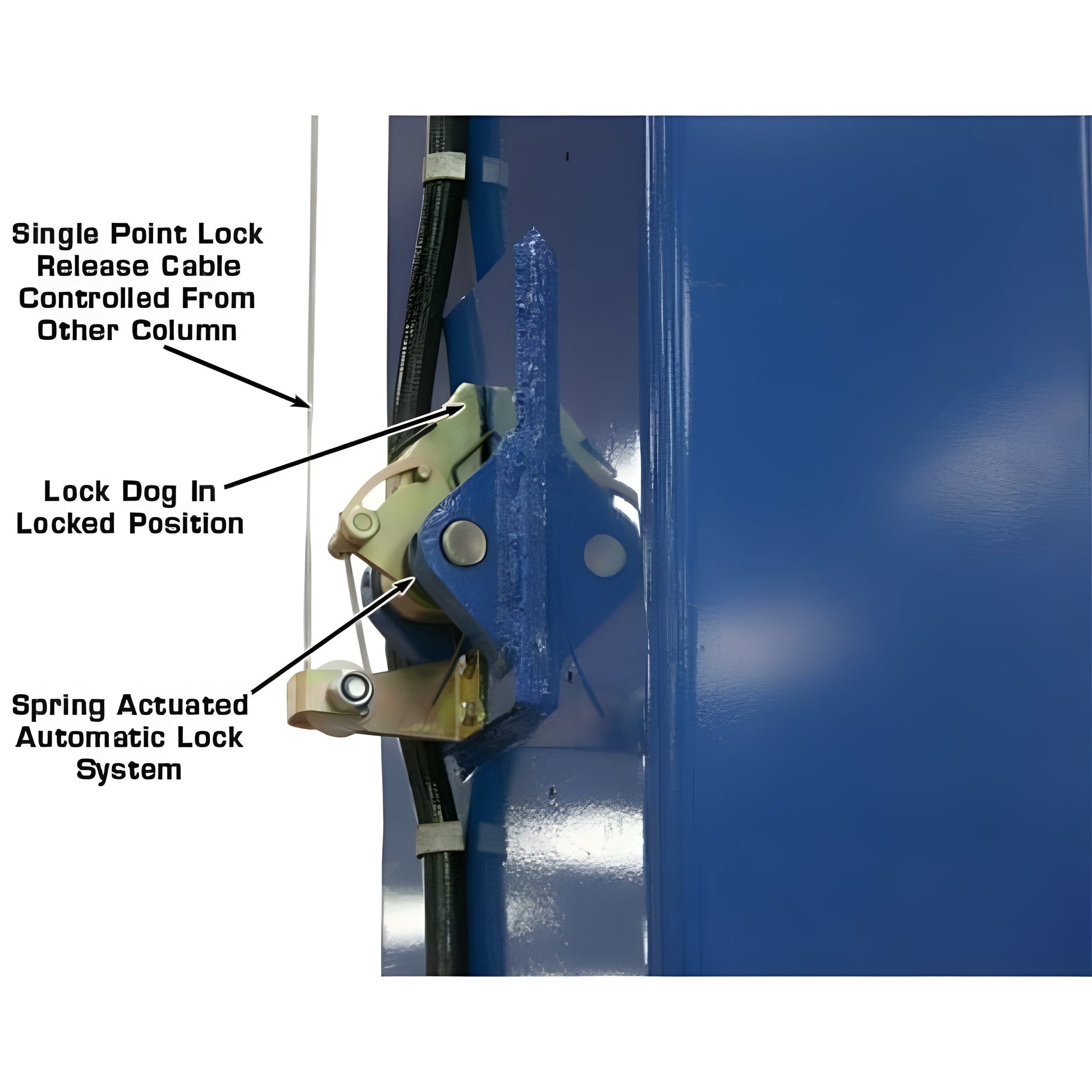

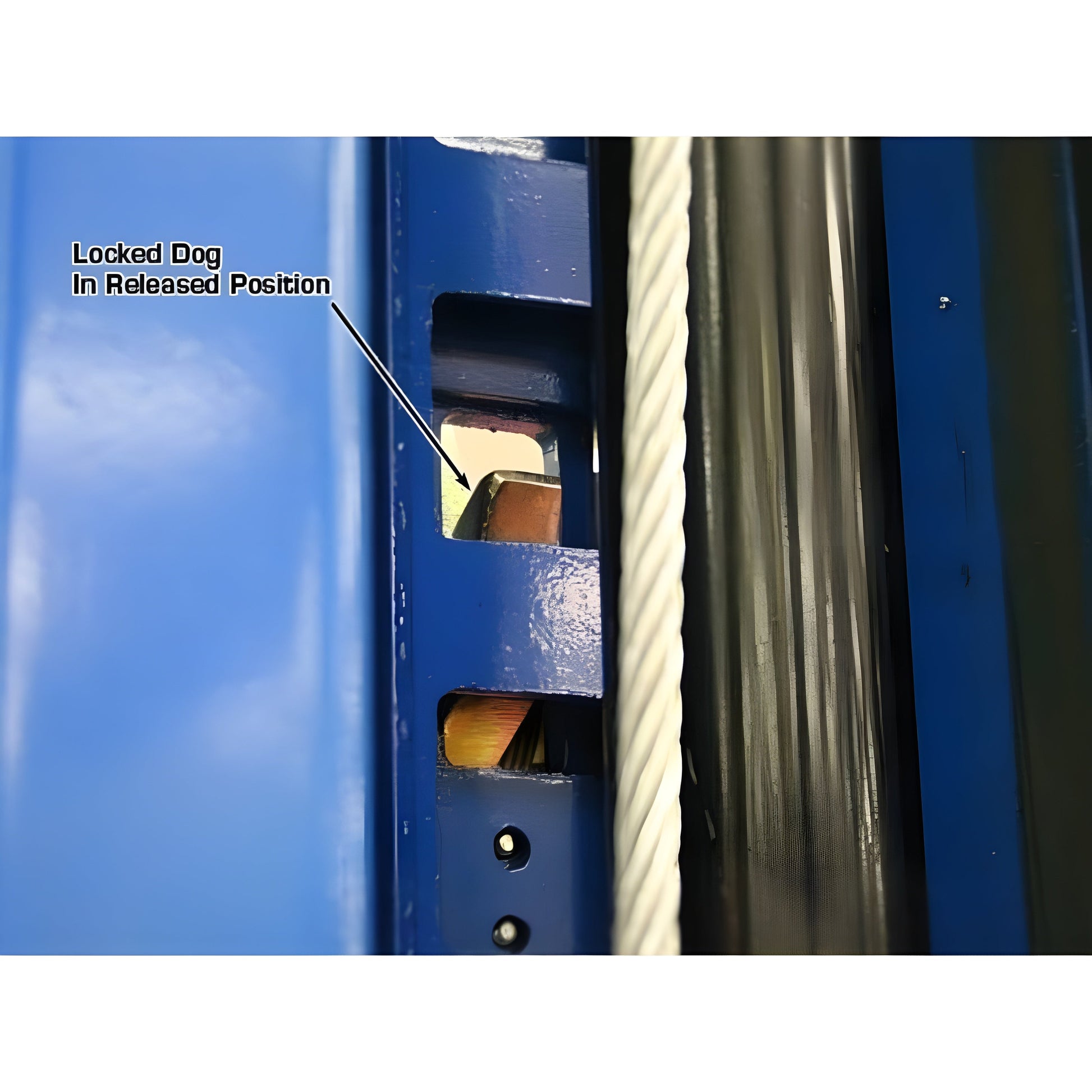

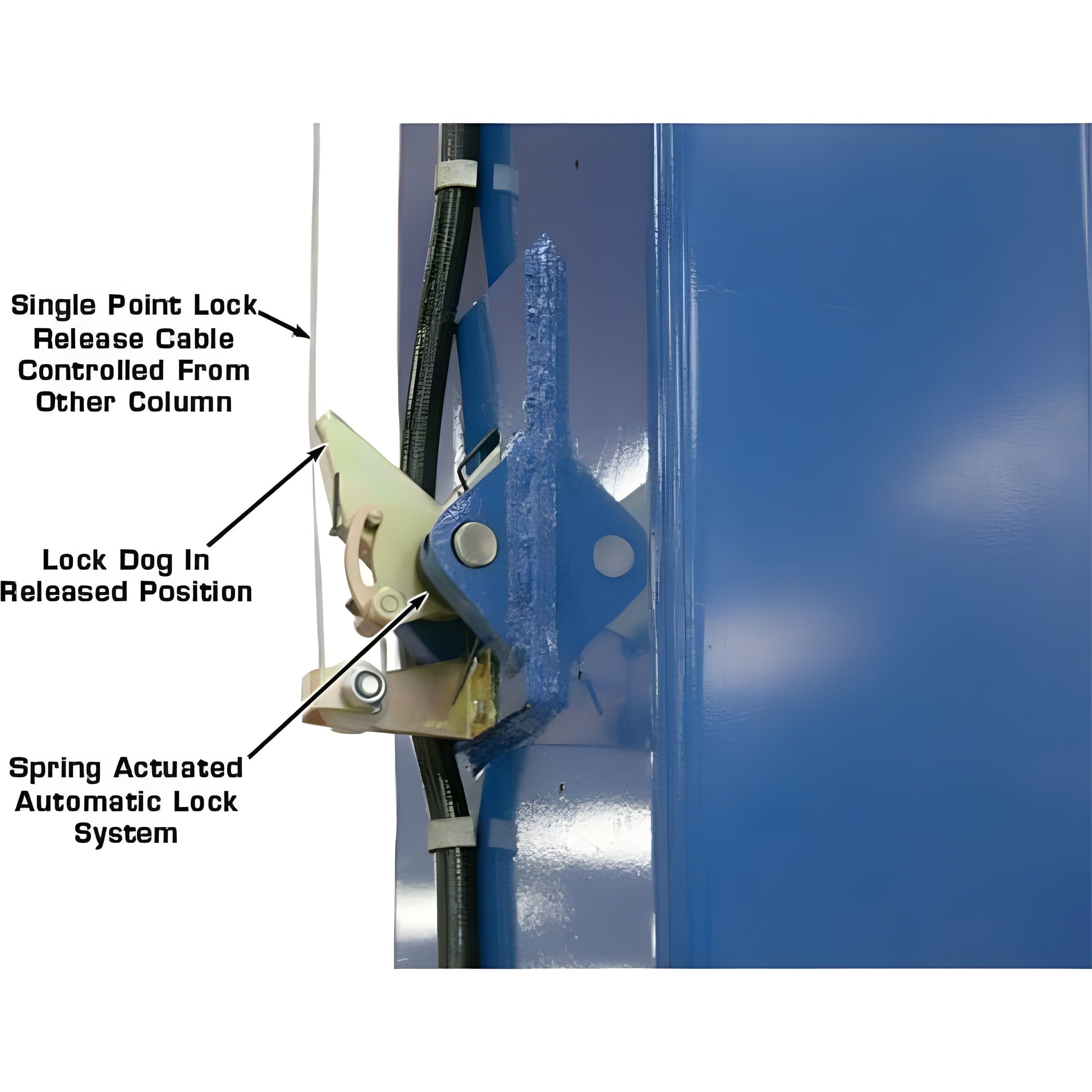

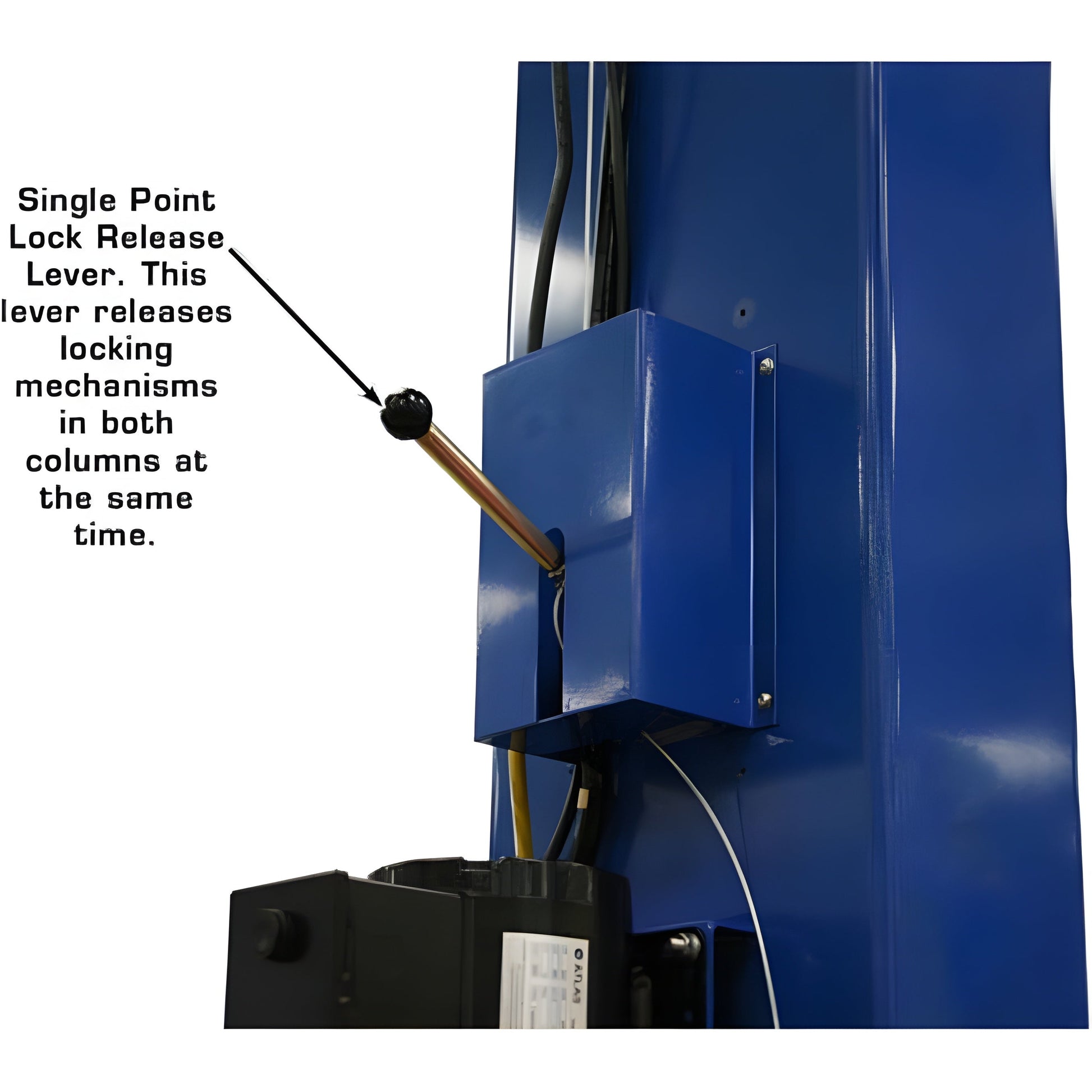

- Single Point Lock Release

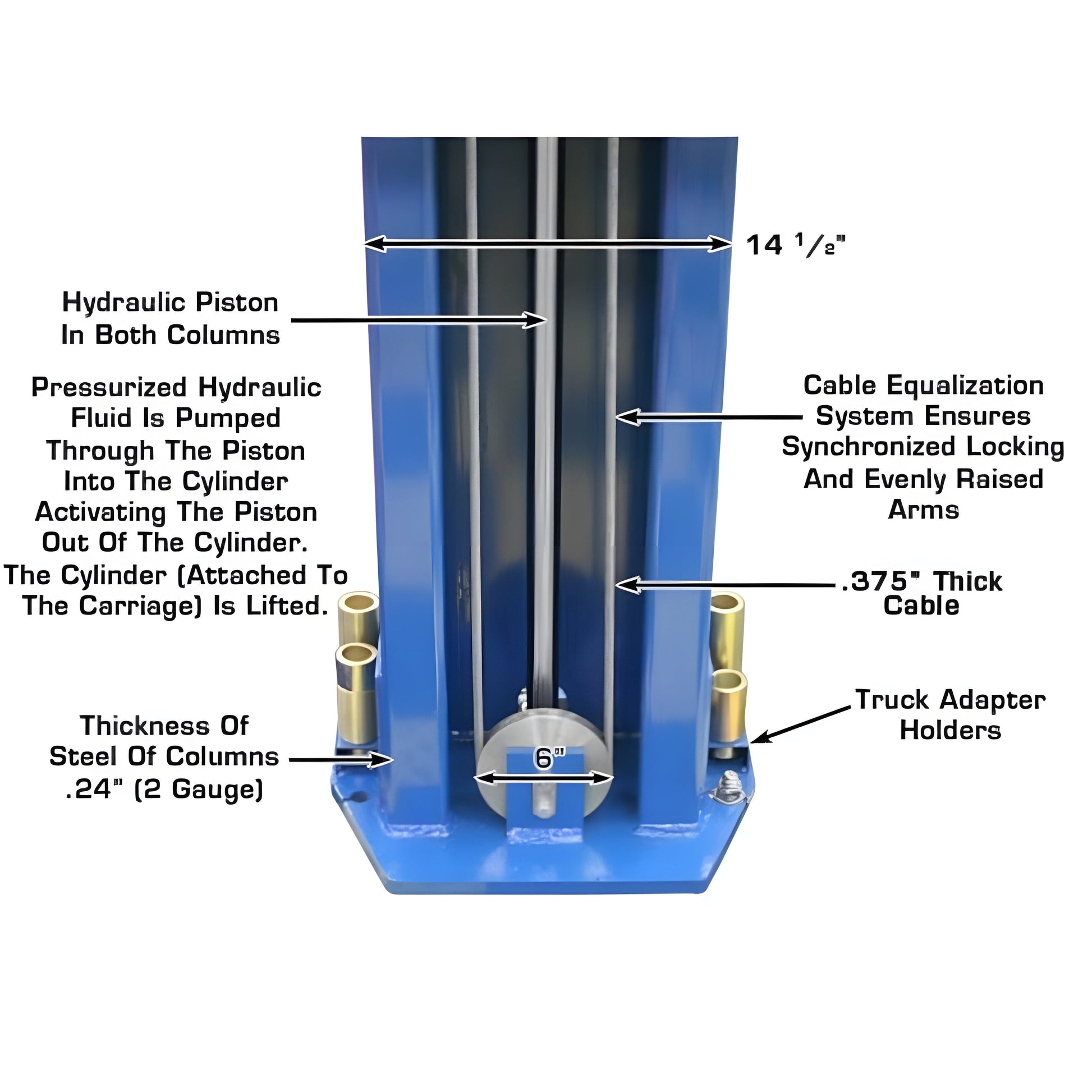

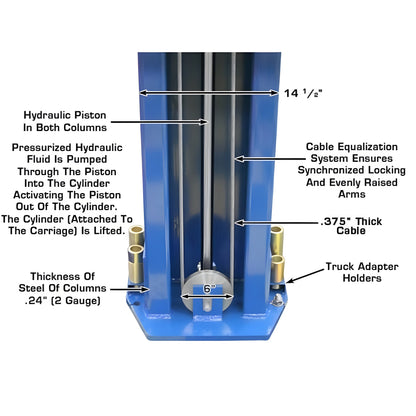

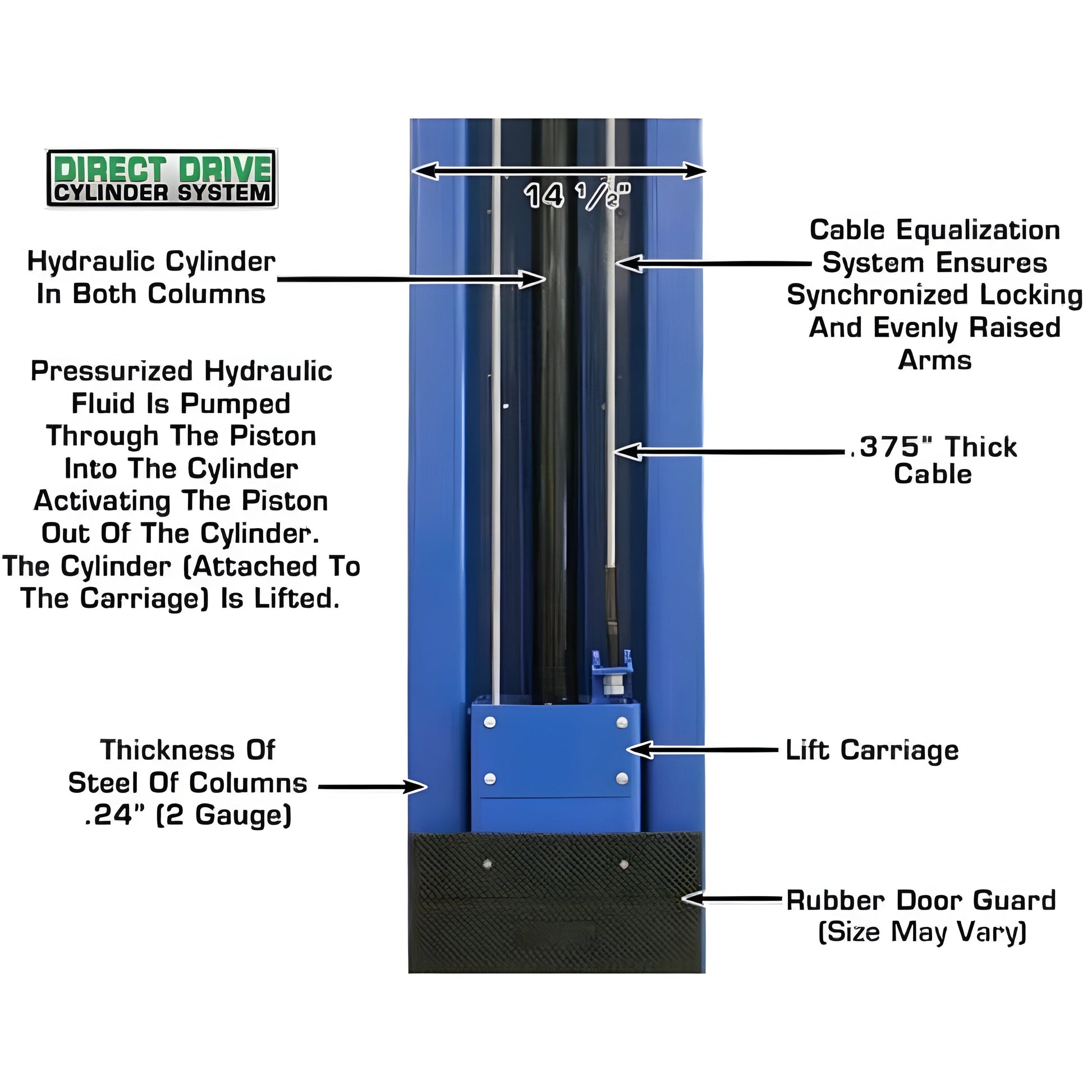

- Direct-Drive Cylinders
- Powder Coat Finish

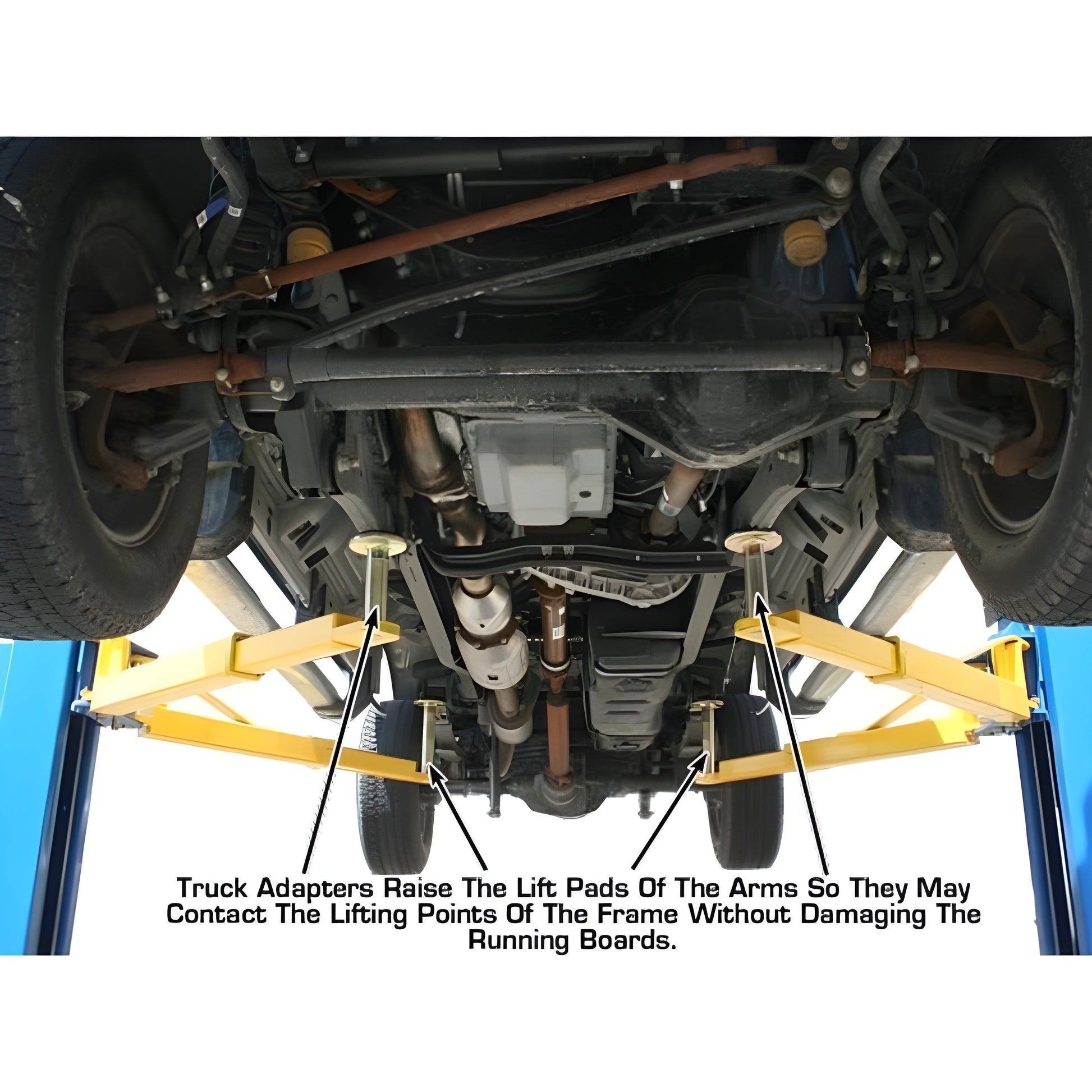

- Free 12 Piece Truck Adapter Set

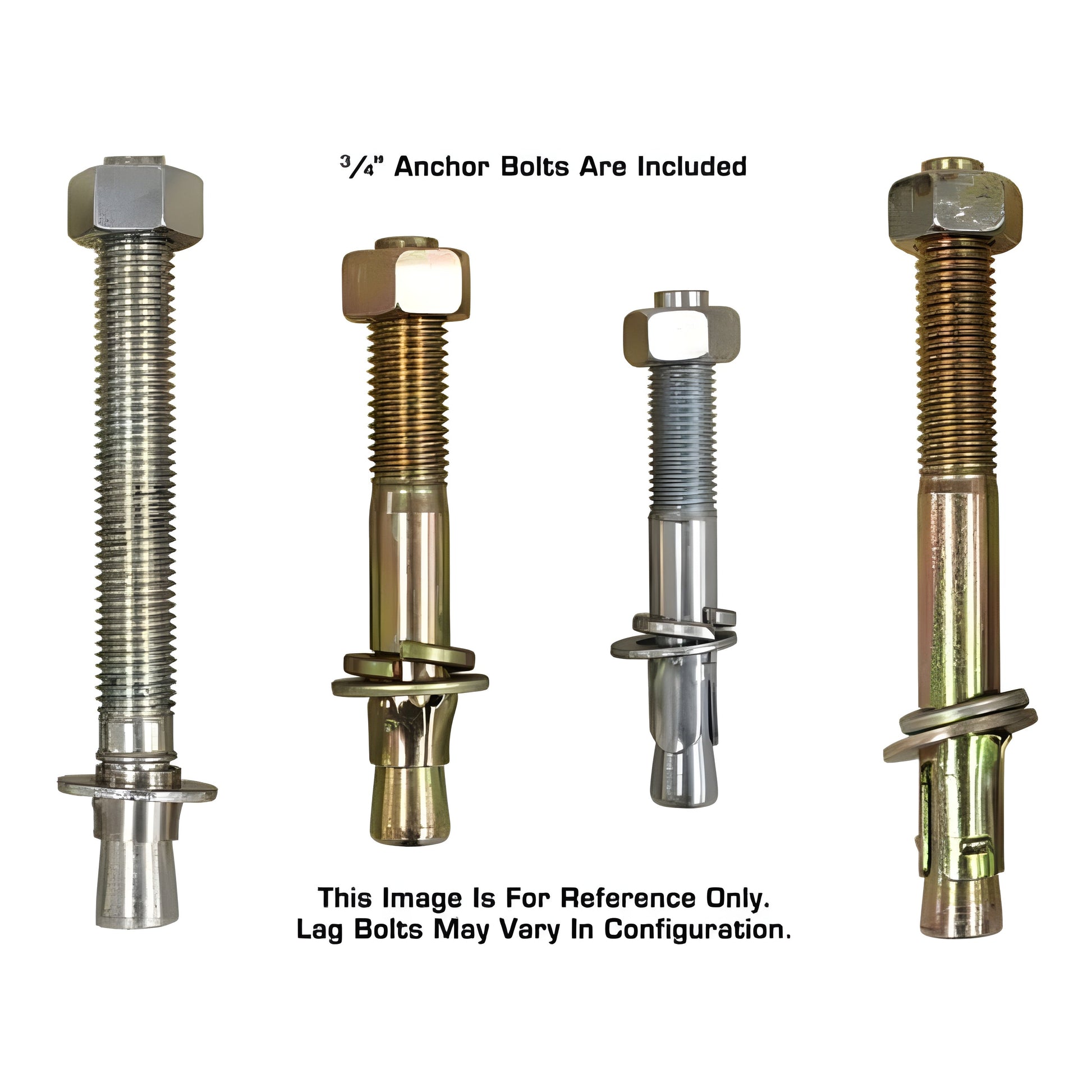

- Mounting Hardware Included
Specifications
| Atlas XH-PV15PX Specifications |
|
| Capacity |
15,000 LB. |
| Overall Height |
165" (13’ 9”) or 177” (14’ 9”) |
| Special Low Height |
150" (12’ 6”) (Requires Purchase of Extra Cables) |
| Overall Floor Width |
150 3/4" (12’ 6 3/4”) |
| Outside Column to Outside Column |
139 1/8" (11’ 7 1/8") |
| Maximum Lift Height (Without Adapters) |
72 1/4" |
| Maximum Lift Height (With Adapters) |
81" |
| Minimum Pad Height |
7 1/4" |
| Inside Column |
123 1/2” (10’ 3 1/2”) |
| Drive Thru |
109 1/2" (9’ 1 1/2”) |
| Column Size |
7 1/2" x 14 1/2" |
| Column Thickness of Steel |
6mm |

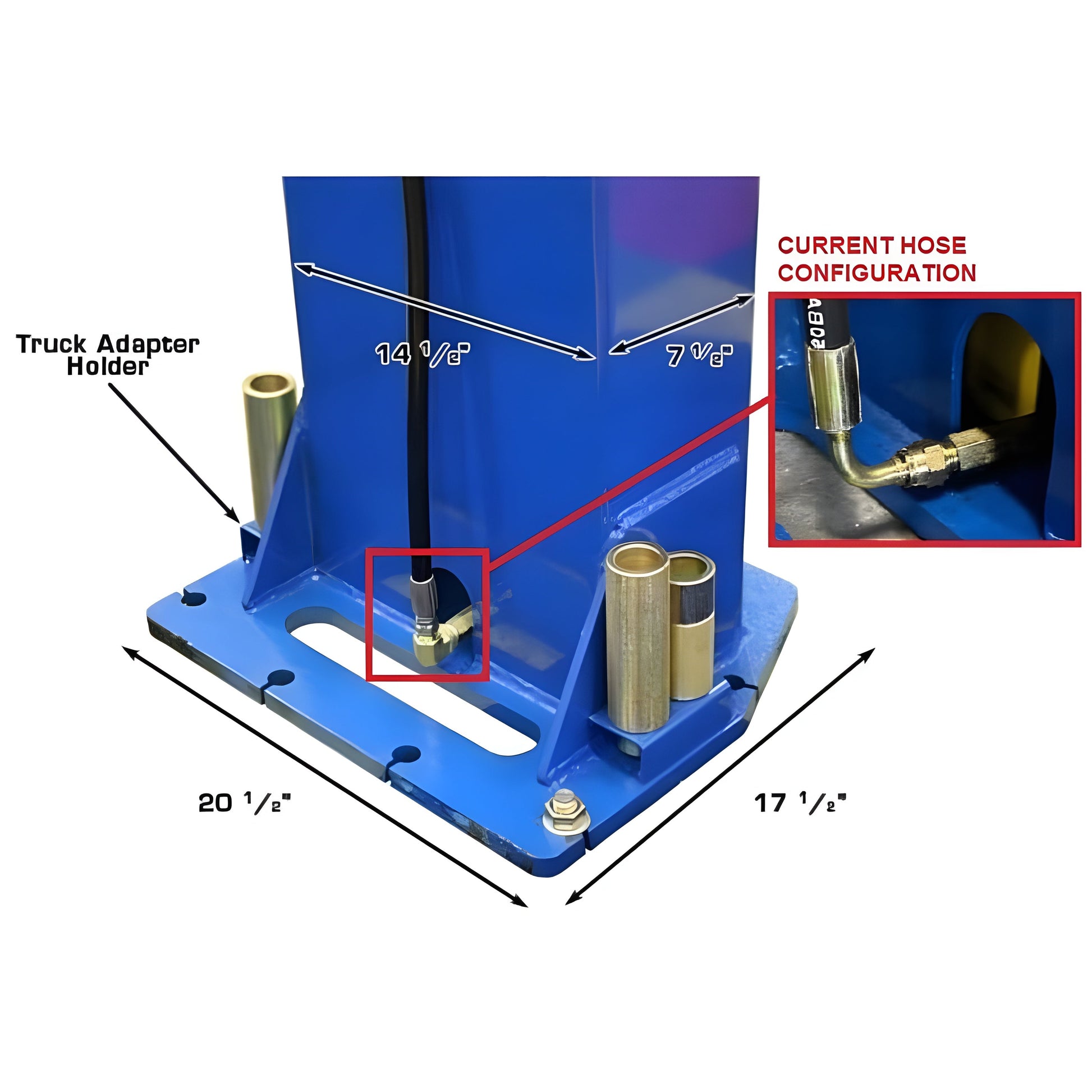

| Base Of Lift |
17 1/2" x 20 1/2" |
| Motor/Electrical Requirement |
220 volt single (1) phase. |
| A 30 amp breaker is recommended |
|
| Oil Requirement |
3-5 Gallons AW32/AW46 (NOT INCLUDED) |
| Adapter Heights |
4 Each 1.25”, 2.5", 5" |
| Arm Hole/Adapter Peg Size |
1.5” |
| |
|
| Requires a minimum of 6" of concrete with a 3000 psi. rating |
|
Manual
Atlas XH-PV15PX Manual
What our Expect Think
-
15,000 lb. Lifting Capacity – Handles heavy-duty trucks, vans, and commercial vehicles with ease.
-
Overhead 2-Post Design – Keeps the floor clear for better accessibility and workspace efficiency.
-
Heavy-Duty Steel Construction – Built for maximum durability and long-lasting performance.
-
Versatile Arm Configurations – Accommodates a variety of vehicle sizes and lifting points.
-
Powerful Hydraulic System – Ensures smooth, stable, and secure lifting for professional shops.
Q&A
Q: What is the Atlas PV15PX Overhead 2-Post Lift used for?
A: The Atlas PV15PX is a 15,000 lb. capacity overhead 2-post lift, ideal for lifting heavy-duty trucks, vans, and commercial vehicles in professional automotive shops.
Q: What is the weight capacity?
A: It can lift up to 15,000 lbs., making it suitable for large and heavy-duty vehicles.
Q: What type of power does it require?
A: The lift runs on 220V power for efficient and consistent lifting performance.
Q: Is professional installation required?
A: Yes, professional installation is recommended to ensure safety and proper functionality.
Maintenance Tips
-
Inspect Cables & Chains – Regularly check for wear, fraying, and proper tension.
-
Lubricate Moving Parts – Grease pulleys, pivot points, and lifting components.
-
Monitor Hydraulic Fluid – Maintain correct levels and replace if contaminated.
-
Test Safety Locks – Ensure locks engage properly before lifting any vehicle.
-
Tighten Bolts & Anchors – Periodically inspect and secure all fasteners.
-
Check Lift Arms & Pads – Ensure proper positioning and check for damage.
-
Keep Work Area Clean – Remove debris for optimal performance and safety.
