Atlas RJ8000 8,000 lb Rolling Bridge Jack - ATEATTD-RJ8000BK-FPD
The Atlas RJ8000 air/hydraulic rolling jack has telescoping arms that can be extended over the runways of a four post lift. The lift pads at the end of these arms can be positioned under the lifting points that are located over the runways of that four post lift. This rolling jack is equipped with expandable rail supports which adjust to fit between the runways of many different four post above ground lifts. These supports have a unique roller system that allows the rolling hydraulic jack to glide easily under the entire length of the vehicle.The Atlas RJ8000 rolling bridge jack comes standard with a set of peg style truck adapters which increases the lifting height of the lift pads. These truck adapters will allow the RJ8000 to raise most pick up and larger trucks that will sit higher than the average passenger car. The RJ8000 rolling hydraulic jack features two solid locking positions that are used when the vehicle is to be suspended above the runways. When the locking positions are engaged, the hydraulic pressure from the lifting cylinder of the jack is eliminated. (These locks act much like a pair of jack stands after you lift a vehicle off the ground with a service jack).IMPORTANT: The Atlas RJ8000 is designed and engineered to operate on “delivered” air pressure of between 70-115 PSI. If you exceed 115 PSI, you may damage your jack.
Features
- 8,000 lb. Capacity
- Air/Hydraulic Operated (external air supply required)
- Multiple Safety Lock Positions
- Compact Size with Low Profile

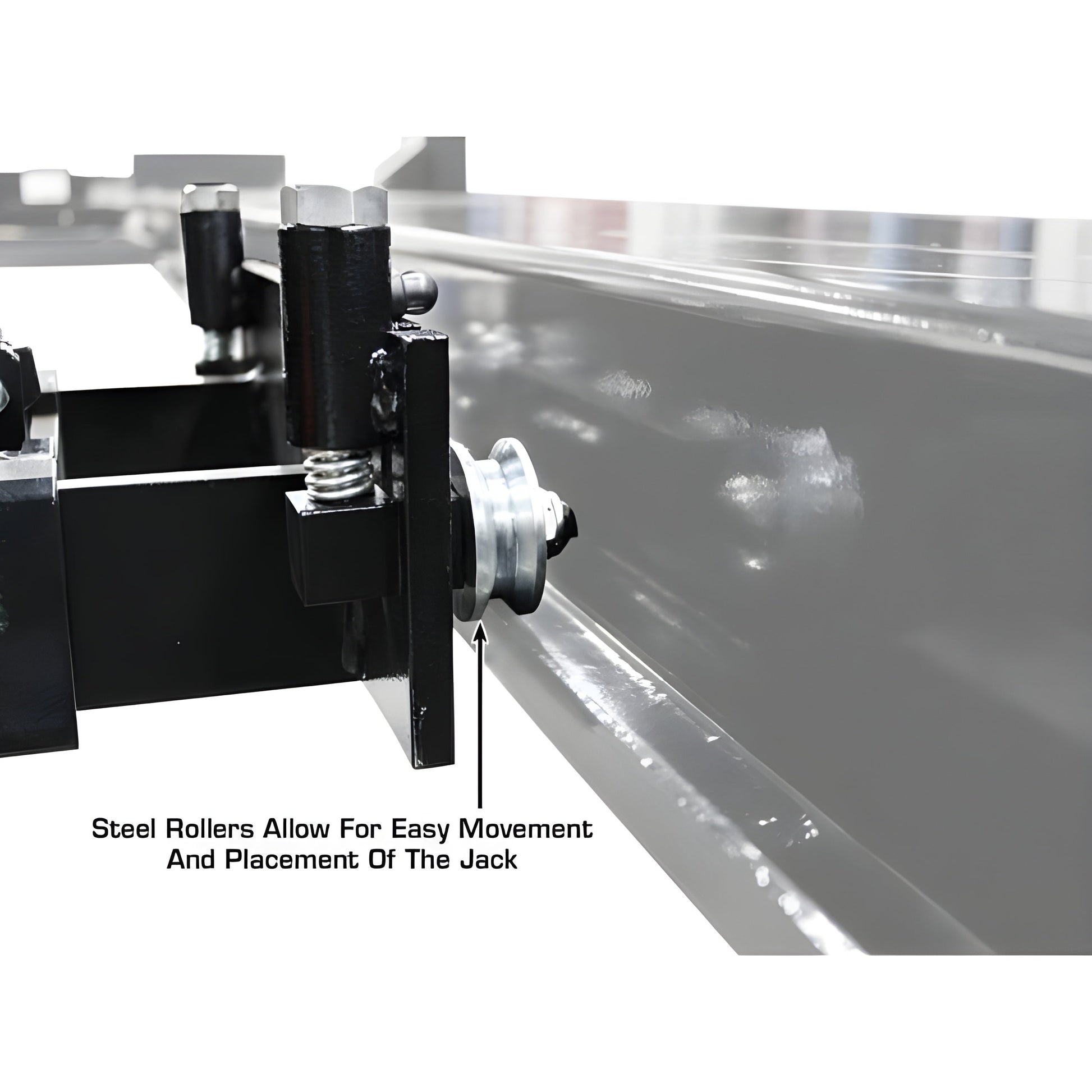

- Smooth Rolling Action
- Scissor mechanism allows for level lifting
- Powder Coated Finish
- 4 Piece Truck Adapter Set Included
Specifications
| Maximum Capacity |
8,000 lb. |
| Maximum Width |
68" (5' 8") |
| Minimum Width |
40" (3' 4") |
| Distance Between Runway Capability |
33"-53" |
| Maximum Lifting Height (With Adapters) |
27" |
| Air Requirement |
70-115 PSI |

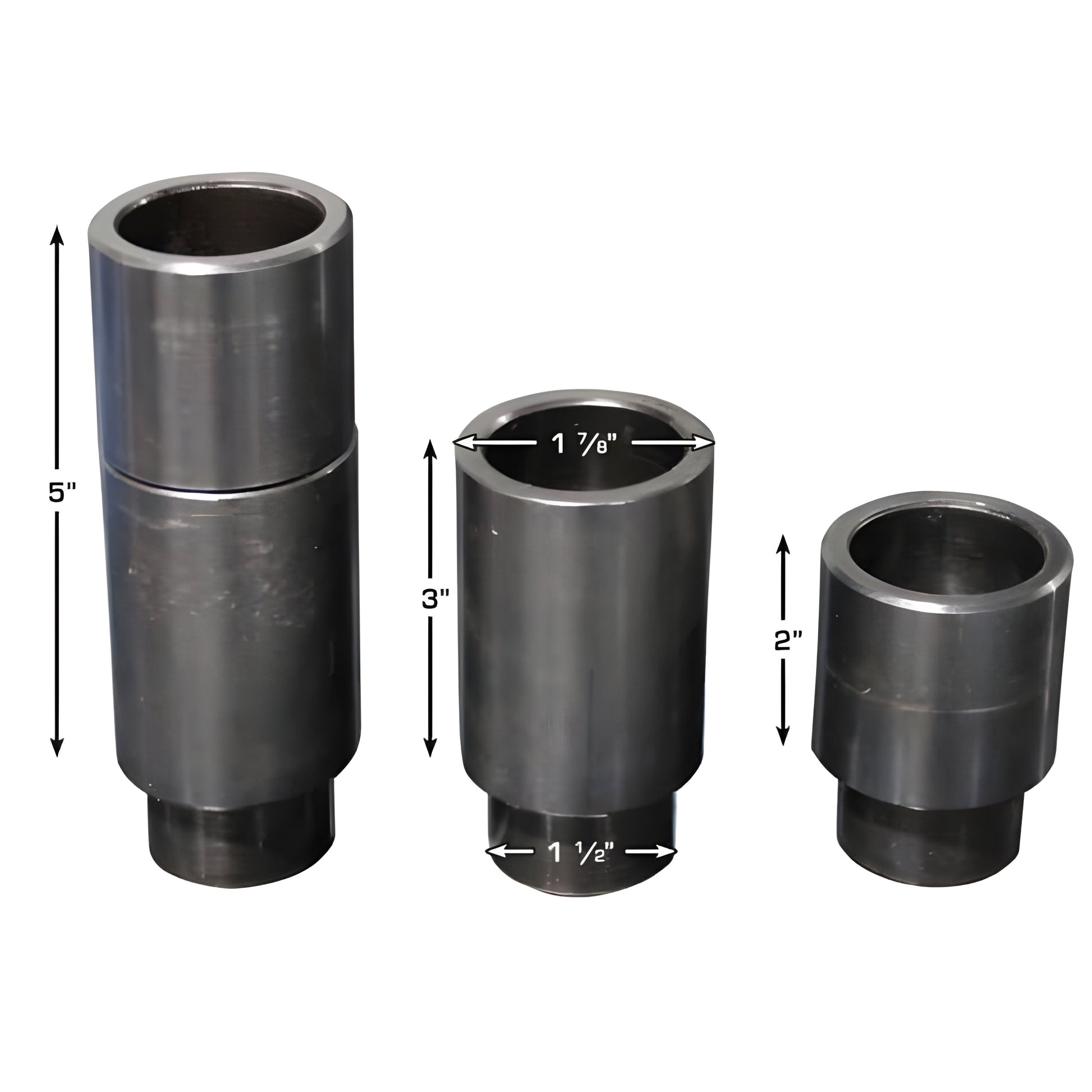

| Adapter Heights |
2 Each 2", 3" |
| Arm Hole/Adapter Peg Size |
1.5" |
Manual
Atlas RJ8000 Manual
Rolling Jack Measuring Guide
What our Expect Think
-
8,000 lb. Lifting Capacity – Ideal for heavier vehicles, ensuring safe and reliable lifting.
-
Rolling Bridge Jack Design – Moves smoothly along 4-post lift runways, providing flexibility in positioning.
-
Heavy-Duty Construction – Built to withstand high-volume use, with premium materials for long-lasting performance.
-
Hydraulic Lifting System – Ensures precise control and smooth operation for lifting vehicles effortlessly.
-
Wide Compatibility – Works seamlessly with most 4-post lifts, making it a versatile tool for automotive shops.
Q&A
Q: What is the Atlas RJ8000 8,000 lb Rolling Bridge Jack used for?
A: The Atlas RJ8000 is a rolling bridge jack designed to be used with 4-post lifts, providing wheel-free lifting for maintenance on vehicles up to 8,000 lbs., such as cars, trucks, and SUVs.
Q: What makes this rolling jack stand out?
A: It offers greater lifting capacity than the standard models, featuring smooth operation, adjustable lifting arms, and hydraulic precision for heavy-duty work.
Q: Is this jack compatible with all 4-post lifts?
A: The Atlas RJ8000 is designed to work with most Atlas 4-post lifts, but you should confirm compatibility based on runway width and available lifting height.
Maintenance Tips
-
Inspect Hydraulic System – Regularly check for leaks or wear in hoses, seals, and hydraulic fluid levels.
-
Lubricate Moving Components – Apply grease to all moving parts, including pivot points and rollers, to ensure smooth operation.
-
Test Safety Locks – Confirm that safety locks engage securely before using the jack.
-
Monitor Weight Limit – Never exceed the 8,000 lb lifting capacity to avoid damaging the equipment.
-
Clean Tracks & Rails – Keep the sliding tracks and rails free of dirt and debris for smooth movement.
-
Tighten Fasteners – Regularly check all bolts and fasteners to ensure the jack is securely assembled.
