Atlas TC229 Tire Changer + PWB50 Wheel Blancer Combo Package - ATETCWB-COMBO7-FPD
This combination package includes the Atlas TC229 rim-clamp swing arm tire changer & the Atlas Platinum PWB50 computerized spin balancer. This combination is perfect for a commercial shop looking to change and balance tires. Both machines are 110volt operated, both are CE approved, and the Atlas TC229 carries a and the Atlas Platinum PWB50 carries an extended
Features

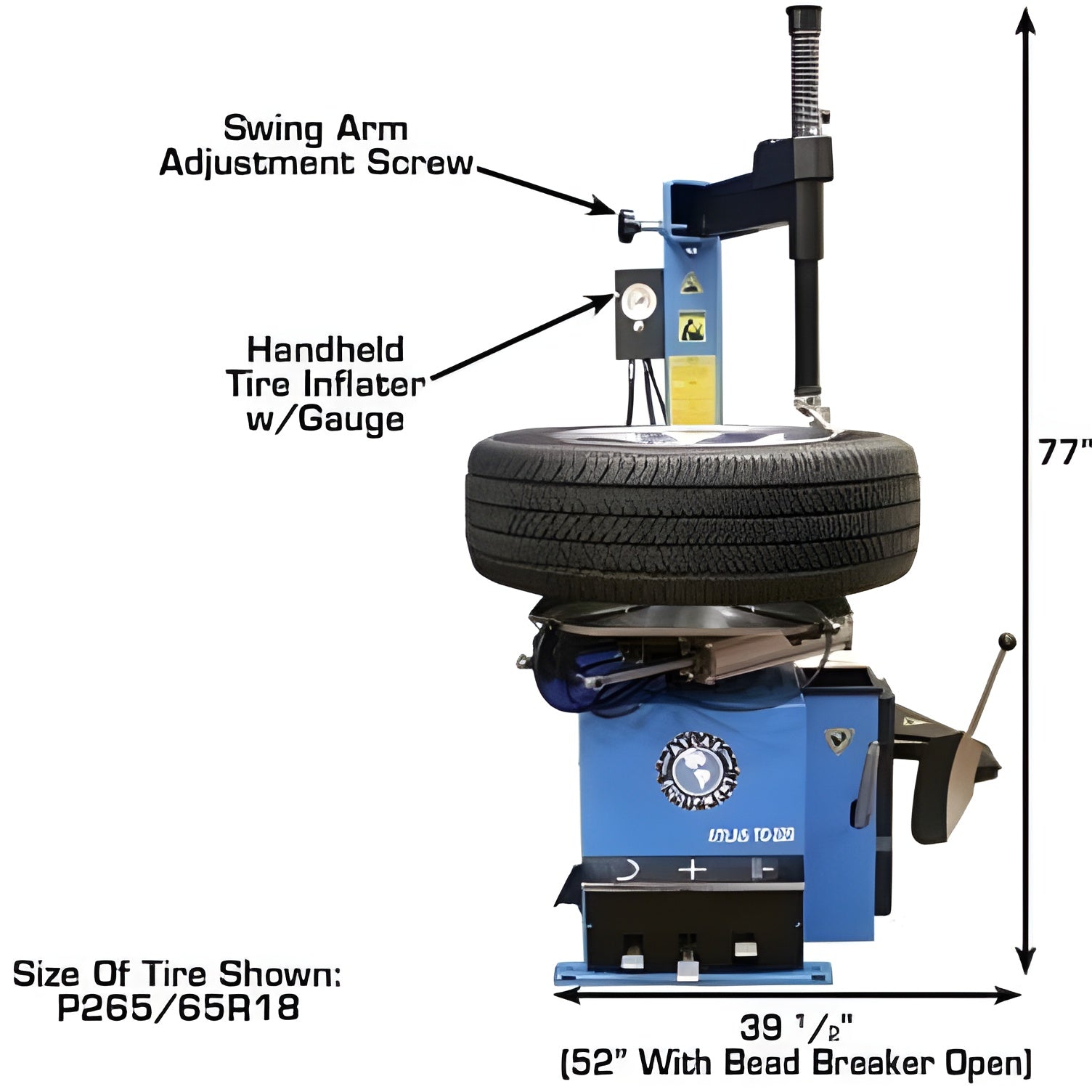

TC229 Tire Changer
- Rim Clamp/Swing Arm Tire Changer
- Air operated jaws & bead breaker (external air supply required)
- Electric turntable
- Adjustable jaws, three mounting positions
- Metal mount/demount head w/ metal roller or replaceable plastic inserts

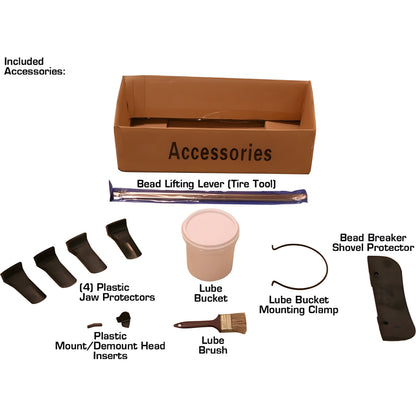

- Column mounted inflator box w/ gauge Included
- Filter/Regulator/Lubricator Included
- 20″ Tire Tool Included
- Lube Bucket with Brush Included
- Set of Large Plastic Jaw Covers Included
- Plastic Cover for Bead Breaker Shovel Included
- Multiple Replacement Plastic Inserts for M/D Head Included
- Built in “Beadblaster”
PWB50 Wheel Balancer
- Platinum Computer Controlled Motorized Spin Balancer
- Italian Engineering and Components
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Optimatch, FES (Split), OPF (Opposite Position) Functions
- Special ALU-S and other ALU Programs
- Automatic 2D Data Entry
- NWN (no wheel need) System
- Self-Diagnosing and Self-calibrating
- USB hub for firmware update through PC/Notebook
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
Specifications
| Rims |
Steel, Aluminum, Alloy |
| External Locking Rim Dimension |
|
| (3 Positions) |
1) 9 3/4" - 21 5/8" |
| 2) 10 3/4" - 22 1/2" |
|
| 3) 11 5/8" - 23 1/4" |
|
| Internal Locking Rim Dimension |
|
| (3 Positions) |
1) 11 5/8" - 23 1/4" |
| 2) 12 5/8" - 24 1/4" |
|
| 3) 13 1/2" - 25 1/4" |
|
| Maximum Tire Diameter |
39" |
| Maximum Wheel Width (Bead Breaker) |
13" |
| Table Motor |
1 HP |
| Turntable Rotating Torque |
885 ft/lbs |
| Bead Breaker |
5,500 LB. Force |
| Air Requirement |
90-110 PSI (MUST NOT EXCEED 140 PSI) |
| Operating Voltage |
110volt |
| Max Tire Diameter |
43" |
| Rim Sizes (Cars And Light Trucks) |
10"-30" |
| Rim Width |
1 1/2"-20" |
| Shaft Size |
40mm |
| Max. Wheel Weight |
165 lbs. |
| Balancing Speed |
130 rpm |
| Data Entry |
Automatic 2D |
| Measurements |
Standard Or Metric |
| Accuracy |
1 gram |
| Weight Position Resolution |
1.4 Degrees |
| Self Calibration |
Yes |
| Cycle Time |
7 seconds |
| Power Supply |
110volt |
Manual
Atlas TC229 Manual
Atlas Platinum PWB50 Manual
What our Expect Think
-
Complete Tire Service Solution – The Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package provides a comprehensive solution for tire changing and balancing, making it an ideal choice for busy tire shops and service centers.
-
Rim-Clamp Technology – The TC229 Tire Changer features advanced rim-clamp technology, ensuring that wheels are securely mounted without risk of damage, protecting high-value rims from harm.
-
Precision Balancing – The PWB50 Wheel Balancer offers precise and accurate balancing, ensuring smooth driving and prolonging tire life by identifying even the smallest imbalances.
-
Efficiency at Its Best – This combo package is built to handle high volumes, allowing technicians to work faster and more efficiently, reducing turnaround time for each tire service.
-
Durable and Reliable – Both the TC229 and PWB50 are built with robust construction to withstand the demands of a professional workshop, ensuring reliability and longevity under heavy use.
-
User-Friendly Design – Easy to operate, this combo allows technicians to work with minimal training, maximizing productivity from the start.
Q&A
Q: What is the Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package?
A: The Atlas TC229 Tire Changer + PWB50 Wheel Balancer Combo Package is a high-quality tire service solution that pairs the TC229 tire changer with the PWB50 wheel balancer for efficient tire installation and balancing.
Q: What is included in the combo package?
A: The package includes the Atlas TC229 Tire Changer and the PWB50 Wheel Balancer, providing everything you need for professional-grade tire service.
Q: Is the Atlas TC229 Tire Changer easy to use?
A: Yes, the TC229 is designed with user-friendly features like adjustable clamps and a powerful bead breaker for quick and safe tire changes.
Q: What is the capacity of the PWB50 Wheel Balancer?
A: The PWB50 Wheel Balancer is capable of handling a variety of tire sizes and weights, with a maximum capacity of 50 lbs for precise wheel balancing.
Q: Is this combo package suitable for high-volume tire shops?
A: Yes, both the TC229 Tire Changer and PWB50 Wheel Balancer are built for professional, high-volume use, ensuring durability and performance in busy automotive shops.
Q: Does this package require a lot of space?
A: The TC229 and PWB50 are designed to be compact, making them ideal for shops with limited space while still providing powerful and efficient tire service.
Maintenance Tips
-
Routine Inspections: Inspect both machines regularly for wear and tear, particularly the bead-blaster on the TC229 and the moving parts of the PWB50.
-
Keep Equipment Clean: Clean the tire changer and wheel balancer after each use to prevent debris from affecting performance.
-
Lubrication: Ensure moving parts on both the tire changer and wheel balancer are lubricated regularly for smooth operation and longevity.
-
Wheel Balancer Calibration: Regularly calibrate the PWB50 to maintain its precision.
